An energy-saving water conservancy irrigation device

technical field

The utility model relates to the technical field of irrigation equipment, in particular to an energy-saving water conservancy irrigation device.

Background technique

Irrigation is a technical measure for supplementing the water required by crops. In order to ensure the normal growth of crops and obtain high and stable yields, crops must be supplied with sufficient water. Under natural conditions, often due to insufficient precipitation or uneven distribution, it cannot meet the water requirements of crops. Therefore, artificial irrigation must be carried out to make up for the lack of natural rainfall. Irrigation means watering the land with water. The principle of irrigation is that the amount, frequency and time of irrigation should be determined according to the water demand characteristics, growth stage, climate and soil conditions of medicinal plants, and irrigation should be timely and appropriate. Its types mainly include irrigation before sowing, seedling irrigation, growing season irrigation and winter irrigation. Energy saving is to reduce energy consumption as much as possible to produce products of the same quantity and quality as the original, or to produce more or better quality products with the same amount of energy consumption than the original.

At present, most of the water conservancy irrigation devices used in the market use sprinkler heads for high-pressure injection. Using this irrigation method will waste a lot of water resources, which does not conform to the concept of energy saving, and also increases the cost of irrigation, thereby reducing water conservancy irrigation. The practicality of the device, thereby reducing the production profit of agricultural production.

Utility model content

(1) Technical problems solved

In view of the deficiencies of the prior art, the utility model provides an energy-saving water conservancy irrigation device, which has the advantages of good energy-saving effect of the water conservancy irrigation device and the like, and solves the problem of wasting energy by the general water conservancy irrigation device.

(2) Technical solutions

In order to achieve the purpose of good energy-saving effect of the above-mentioned water conservancy irrigation device, the utility model provides the following technical scheme: an energy-saving water conservancy irrigation device, comprising a water conservancy irrigation box, the bottom of the water conservancy irrigation box is fixedly connected with a support rod, and the bottom of the support rod is fixedly connected. A connecting rod is fixedly connected to the bottom, a rotating rod is movably connected to the outer wall of the connecting rod, a connecting plate is fixedly connected to the outer wall of the rotating rod, and a roller is fixedly connected to one side of the connecting plate. A water tank is fixedly connected, an irrigation pipe is fixedly connected to the front of the water conservancy irrigation tank, a water inlet pipe is fixedly connected to one side of the water tank, and one end of the water inlet pipe is fixedly connected to a water pump body, and the top of the water pump body is fixedly connected There is a water outlet pipe, the inner wall of the water outlet pipe is movably connected with a valve core, one end of the valve core is fixedly connected with a valve rod, the outer wall of the valve rod is fixedly connected with a hand wheel, and the outer wall of the valve rod is movably connected with a disc Root, the outer wall of the packing is movably connected with a valve flap, one end of the water outlet pipe is movably connected with a water belt, one side of the water belt is fixedly connected with a gun body, and the outer wall of the gun body is fixedly connected with a sealing ring The inner wall of the gun body is fixedly connected with a baffle plate, the top of the water conservancy irrigation box is fixedly connected with a push rod, and the outer wall of the push rod is fixedly connected with a handle.

Preferably, one side of the baffle is provided with a water spray hole, and the radius of the water spray hole is one centimeter.

Preferably, one end of the valve core penetrates the outer wall of the water outlet pipe and extends to the inner wall of the water outlet pipe, and the height of the valve core is ten centimeters.

Preferably, the wall thickness of the water inlet pipe is three centimeters, and the inner diameter of the water inlet pipe is eight centimeters.

Preferably, the height of the support rod is twenty-four centimeters, and the support rod is a stainless steel support rod.

Preferably, the height of the water tank is thirty centimeters, and the volume of the water tank is twenty-seven cubic decimeters.

Preferably, the inner diameter of the sealing ring is fourteen centimeters, and the sealing ring is a hydrogenated nitrile rubber sealing ring.

(3) Beneficial effects

Compared with the prior art, the utility model provides an energy-saving water conservancy irrigation device, which has the following beneficial effects:

1. The energy-saving water conservancy irrigation device can achieve the purpose of good energy-saving effect of the water conservancy irrigation device by setting the water pump body, the water outlet pipe, the water belt, the sealing ring, the gun body, the baffle plate, the water inlet pipe and the water tank, which solves the problem of general water conservancy irrigation. The problem of wasting energy in the device reduces the water needed to irrigate the fields, thereby improving the practicability of the water conservancy irrigation device, thereby increasing the production profit of agricultural production.

2. The energy-saving water conservancy irrigation device can achieve the purpose of facilitating the movement of the water conservancy irrigation device through the provided support rods, connecting rods, rotating rods, connecting plates and rollers, so that the staff can conveniently move the irrigation device to the position where irrigation is required. Therefore, the time for changing the position of the water conservancy irrigation device is saved, thereby improving the work efficiency of the staff, and further providing convenience for the staff to use.

3. The energy-saving water conservancy irrigation device can achieve the purpose of saving the water consumption of the energy-saving water conservancy irrigation device by setting the handwheel, valve stem, valve disc, valve core and packing, so that the staff can conveniently open and close the energy-saving water conservancy irrigation. The device can save the cost of irrigating the land by the staff, thereby further increasing the production profit of agricultural production.

Description of drawings

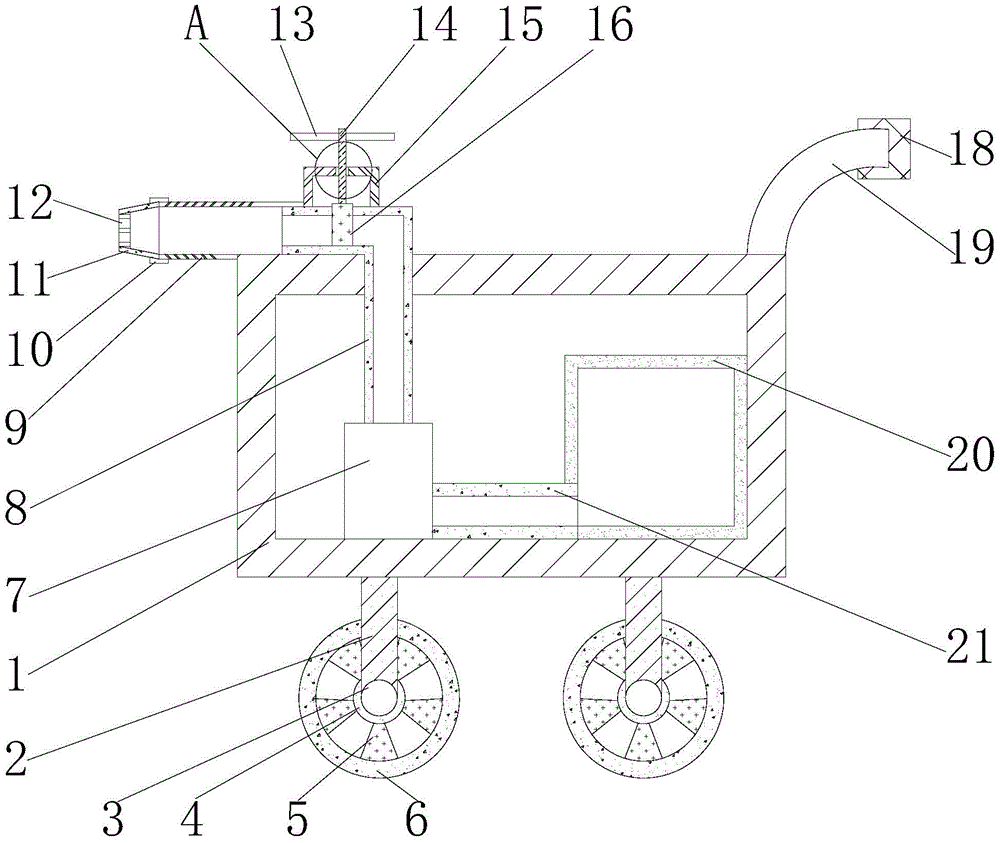

Fig. 1 is the front sectional view of the utility model structure;

Fig. 2 is an enlarged view of the structure at place A in Fig. 1;

Figure 3 is a front view of the structure of the utility model.

In the figure: 1. Water conservancy irrigation tank; 2. Support rod; 3. Connecting rod; 4. Rotating rod; 5. Connecting plate; 6. Roller; 7. Water pump body; 8. Water outlet pipe; 9. Water belt; 10. Sealing ring; 11, gun body; 12, baffle; 13, hand wheel; 14, valve stem; 15, valve disc; 16, valve core; 17, irrigation pipe; 18, handle; 19, push rod; 20, water tank ; 21, water inlet pipe; 22, packing.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to Figure 1-3, an energy-saving water conservancy irrigation device, including a water conservancy irrigation box 1, a support rod 2 is fixedly connected to the bottom of the water conservancy irrigation box 1, the height of the support rod 2 is 24 cm, and the support rod is a stainless steel support Rod, stainless steel support rod has good corrosion resistance, and has high strength and hardness, the bottom of the support rod 2 is fixedly connected with a connecting rod 3, the outer wall of the connecting rod 3 is movably connected with a rotating rod 4, and the outer wall of the rotating rod 4 is fixedly connected There is a connecting plate 5, and one side of the connecting plate 5 is fixedly connected with a roller 6. Through the provided support rod 2, connecting rod 3, rotating rod 4, connecting plate 5 and roller 6, the purpose of facilitating the movement of the water conservancy irrigation device can be obtained, so that the The staff can easily move the irrigation device to the position that needs to be irrigated, thereby saving the time for changing the position of the water conservancy irrigation device, thereby improving the work efficiency of the staff, and further providing convenience for the use of the staff. A water tank 20 is fixedly connected inside, the height of the water tank 20 is thirty centimeters, and the volume of the water tank 20 is twenty-seven cubic decimeters. The water inlet pipe 21, the wall thickness of the water inlet pipe 21 is three centimeters, and the inner diameter of the water inlet pipe 21 is eight centimeters, one end of the water inlet pipe 21 is fixedly connected with the water pump body 7, and the top of the water pump body 7 is fixedly connected with the water outlet pipe 8, the water outlet pipe The inner wall of 8 is movably connected with a valve core 16, one end of the valve core 16 penetrates the outer wall of the water outlet pipe 8 and extends to the inner wall of the water outlet pipe 8, and the height of the valve core 16 is ten centimeters, and one end of the valve core 16 is fixedly connected with a valve stem. 14. A handwheel 13 is fixedly connected to the outer wall of the valve stem 14, a packing 22 is movably connected to the outer wall of the valve stem 14, and a valve flap 15 is movably connected to the outer wall of the packing 22. The flap 15, the valve core 16 and the packing 22 can achieve the purpose of saving the water consumption of the energy-saving water conservancy irrigation device, so that the staff can conveniently open and close the energy-saving water conservancy irrigation device, thereby saving the cost of irrigating the land for the staff, thereby further reducing the cost of the water conservancy irrigation device. The production profit of agricultural production is increased. One end of the water outlet pipe 8 is movably connected with a water belt 9, and one side of the water belt 9 is fixedly connected with a gun body 11. The outer wall of the gun body 11 is fixedly connected with a sealing ring 10, and the inner diameter of the sealing ring 10 is fixed. It is 14 cm, and the sealing ring 10 is a hydrogenated nitrile rubber sealing ring. The hydrogenated nitrile rubber sealing ring has excellent corrosion resistance, tear resistance and compression deformation resistance, and has good ozone resistance, sunlight resistance and weather resistance. , the inner wall of the gun body 11 is fixedly connected with a baffle plate 12, through the set of the water pump body 7, the water outlet pipe 8, the water belt 9, the sealing ring 10, the gun body 11, the baffle plate 12, the water inlet pipe 21 and the water tank 20, the water conservancy can be obtained. The purpose of the energy saving effect of the irrigation device is to solve the problem of wasting energy by the general water conservancy irrigation device, reduce the water needed to irrigate the fields, thus improve the practicability of the water conservancy irrigation device, thereby increasing the production profit of agricultural production. One side of 12 is provided with a water spray hole, and the radius of the water spray hole is one centimeter. The top of the water conservancy irrigation box 1 is fixedly connected with a push rod 19, and the push rod A handle 18 is fixedly connected to the outer wall of 19 .

The electrical components appearing in this article are all connected with the external main controller and 220V mains, and the main controller can be a conventional known device controlled by a computer or the like.

When in use, the water in the water tank 20 flows out through the water inlet pipe 21, reaches the water pump body 7, is ejected through the water pump body 7, flows through the water outlet pipe 8 and reaches the water belt 9. The staff holds the water belt 9 and moves it to the water belt 9. Where irrigation is required, the water passes through the gun body 11, and sufficient irrigation water is sprayed from the water spray holes on the baffle 12.

To sum up, the energy-saving water conservancy irrigation device can achieve the purpose of good energy saving effect of the water conservancy irrigation device, solve the problem of wasting energy by the general water conservancy irrigation device, and thus reduce the water resources used for farmland irrigation.

It should be noted that, in this document, relational terms such as first and second are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply any relationship between these entities or operations. any such actual relationship or sequence exists. Moreover, the terms "comprising", "comprising" or any other variation thereof are intended to encompass a non-exclusive inclusion such that a process, method, article or device that includes a list of elements includes not only those elements, but also includes not explicitly listed or other elements inherent to such a process, method, article or apparatus.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (7)

1. The utility model provides an energy-conserving irrigation device, includes irrigation case (1), its characterized in that: the water conservancy irrigation tank is characterized in that a supporting rod (2) is fixedly connected to the bottom of the water conservancy irrigation tank (1), a connecting rod (3) is fixedly connected to the bottom of the supporting rod (2), a rotary rod (4) is movably connected to the outer wall of the connecting rod (3), a connecting plate (5) is fixedly connected to the outer wall of the rotary rod (4), a roller (6) is fixedly connected to one side of the connecting plate (5), a water tank (20) is fixedly connected to the inside of the water conservancy irrigation tank (1), an irrigation pipe (17) is fixedly connected to the front side of the water conservancy irrigation tank (1), a water inlet pipe (21) is fixedly connected to one side of the water tank (20), a water pump body (7) is fixedly connected to one end of the water inlet pipe (21), a water outlet pipe (8) is fixedly connected to the, the water conservancy irrigation box is characterized in that one end of the valve core (16) is fixedly connected with a valve rod (14), the outer wall of the valve rod (14) is fixedly connected with a hand wheel (13), the outer wall of the valve rod (14) is movably connected with a packing (22), the outer wall of the packing (22) is movably connected with a valve clack (15), one end of the water outlet pipe (8) is movably connected with a water hose (9), one side of the water hose (9) is fixedly connected with a gun body (11), the outer wall of the gun body (11) is fixedly connected with a sealing ring (10), the inner wall of the gun body (11) is fixedly connected with a baffle plate (12), the top of the water conservancy irrigation box (1) is fixedly connected with a push rod (19), and.

2. An energy efficient irrigation device according to claim 1 and further comprising: one side of the baffle (12) is provided with a water spraying hole, and the radius of the water spraying hole is one centimeter.

3. An energy efficient irrigation device according to claim 1 and further comprising: one end of the valve core (16) penetrates through the outer wall of the water outlet pipe (8) and extends to the inner wall of the water outlet pipe (8), and the height of the valve core (16) is ten centimeters.

4. An energy efficient irrigation device according to claim 1 and further comprising: the wall thickness of inlet tube (21) is three centimetres, and the internal diameter of inlet tube (21) is eight centimetres.

5. An energy efficient irrigation device according to claim 1 and further comprising: the height of the supporting rod (2) is twenty-four centimeters, and the supporting rod is a stainless steel supporting rod.

6. An energy efficient irrigation device according to claim 1 and further comprising: the height of the water tank (20) is thirty centimeters, and the volume of the water tank (20) is twenty-seven cubic decimeters.

7. An energy efficient irrigation device according to claim 1 and further comprising: the inner diameter of the sealing ring (10) is fourteen centimeters, and the sealing ring (10) is a hydrogenated nitrile rubber sealing ring.
