Abstract

The utility model discloses a device for processing, finishing and desizing of body-fitting fabrics, which comprises a first desizing chamber, a water outlet pipe is welded and connected to the lower end of the first desizing chamber, and a second desizing chamber is fixedly connected to the left end of the first desizing chamber. A support frame, the upper right end of the first desizing chamber is fixedly connected with a fixing frame, the bidirectional threaded rod is connected through the interior of the limit block, the lower end of the connecting rod is hingedly connected with a pressing block, the fixing frame The lower right end of the frame is rotatably connected with a feeding roller, the right end of the first desizing chamber is fixedly connected with a second desizing chamber, the right end of the second desizing chamber is fixedly connected with a drying chamber, and the drying chamber is fixedly connected to the right end of the drying chamber. A collection box is placed at the lower end, a worm wheel is fixedly connected to the front end of the winding roller, and the lower end of the worm wheel is in contact with the worm, and the right end of the drying chamber is rotatably connected with the worm. The close-fitting fabric processing and finishing desizing device is convenient for fully desizing the fabric, drying the desizing fabric, and collecting the fabric.

Description

A kind of close-fitting fabric processing, finishing and desizing device

technical field

The utility model relates to the technical field of fabric processing, in particular to a device for processing, finishing and desizing of body-fitting fabrics.

Background technique

Clothes are an indispensable item in people's daily life, and there are many kinds of clothes, which are divided into outer wear and inner wear. The inner clothes are made of close-fitting fabrics, and the desizing process is very important when the close-fitting fabrics are processed. a part of.

However, the general desizing device is not convenient for fully desizing the fabric, and it is not convenient for drying the desizing fabric, and it is not convenient for collecting the fabric. The problems posed by the above-mentioned background art are solved.

Utility model content

The purpose of this utility model is to provide a kind of fabric processing and finishing desizing device, in order to solve most of the desizing devices proposed in the above background technology, it is inconvenient for the fabric to fully desizing, and it is not convenient for drying the desizing fabric, and The problem of inconvenient collection of fabrics.

In order to achieve the above purpose, the utility model provides the following technical solutions: a body-fitting fabric processing, finishing and desizing device, comprising a first desizing chamber, a water outlet pipe is welded and connected to the lower end of the first desizing chamber, and the inside of the water outlet pipe is A filter tank is placed, the left end of the first desizing chamber is fixedly connected with a first support frame, and the upper end of the first support frame is rotatably connected with a cloth roll, and the upper right end of the first desizing chamber is fixedly connected with a fixed The inner end of the fixing frame is rotatably connected with a bidirectional threaded rod, the bidirectional threaded rod is connected to the inside of the limit block, and the lower end of the limit block is hinged with a connecting rod, and the lower end of the connecting rod is hingedly connected with an extrusion rod. Pressing block, the lower right end of the fixing frame is rotatably connected with a feeding roller, the right end of the first desizing chamber is fixedly connected with a second desizing chamber, and the inside of the second desizing chamber is rotatably connected with a cleaning roller, the A drying chamber is fixedly connected to the right end of the second desizing chamber, a connecting plate is installed inside the drying chamber, a connecting pipe is connected through the upper end of the drying chamber, a collection box is placed at the lower end of the drying chamber, and The right end of the drying chamber is fixedly connected with a second support frame, and the upper end of the second support frame is rotatably connected with a winding roller, the front end of the winding roller is fixedly connected with a worm wheel, and the lower end of the worm wheel is in contact with the worm. The right end of the drying chamber is rotatably connected with a worm.

Preferably, the connection mode of the water outlet pipe and the filter tank is a snap connection, and the bottom end of the filter tank is a hollow structure.

Preferably, the fixing frame and the limiting block form a sliding structure, and the connecting rod units connected to the lower end of the limiting block form a rotating structure.

Preferably, the extrusion block and the first desizing chamber form a lifting structure, and the longitudinal section of the lower end of the extrusion block is arc-shaped, and the lower ends of the first desizing chamber and the second desizing chamber are inclined.

Preferably, the bottom end of the drying chamber and the connecting plate are both porous structures, and the connecting pipe forms a communication structure with the lower end of the drying chamber through the connecting plate.

Preferably, the connection mode of the worm and the worm gear is meshing connection, and the worm and the winding roller constitute a transmission structure.

Compared with the prior art, the beneficial effects of the present utility model are: the body-fitting fabric processing, finishing and desizing device is convenient for fully desizing the fabric, drying the desizing fabric, and collecting the fabric;

1. There is a limit block, a two-way threaded rod, a connecting rod and an extrusion block. The structural design of the fixing frame and the limit block makes the limit block slide on the two-way threaded rod. The structure of the extrusion block and the first desizing chamber Design, so that the connecting rod drives the extrusion block to rise and fall, and the fabric is fully immersed in the first desizing chamber for desizing;

2. There is a connecting pipe, a drying chamber and a connecting plate. The bottom end of the drying chamber and the connecting plate are all porous structures. The structural design of the connecting pipe and the drying chamber makes the hot air evenly blow to the fabric through the connecting plate. drying the fabric;

3. There is a winding roller, a worm gear and a worm. The connection between the worm and the worm gear is meshing connection. The structure of the worm and the winding roller is designed so that when the worm rotates, the winding roller is driven to rotate, thereby winding and winding the fabric.

Description of drawings

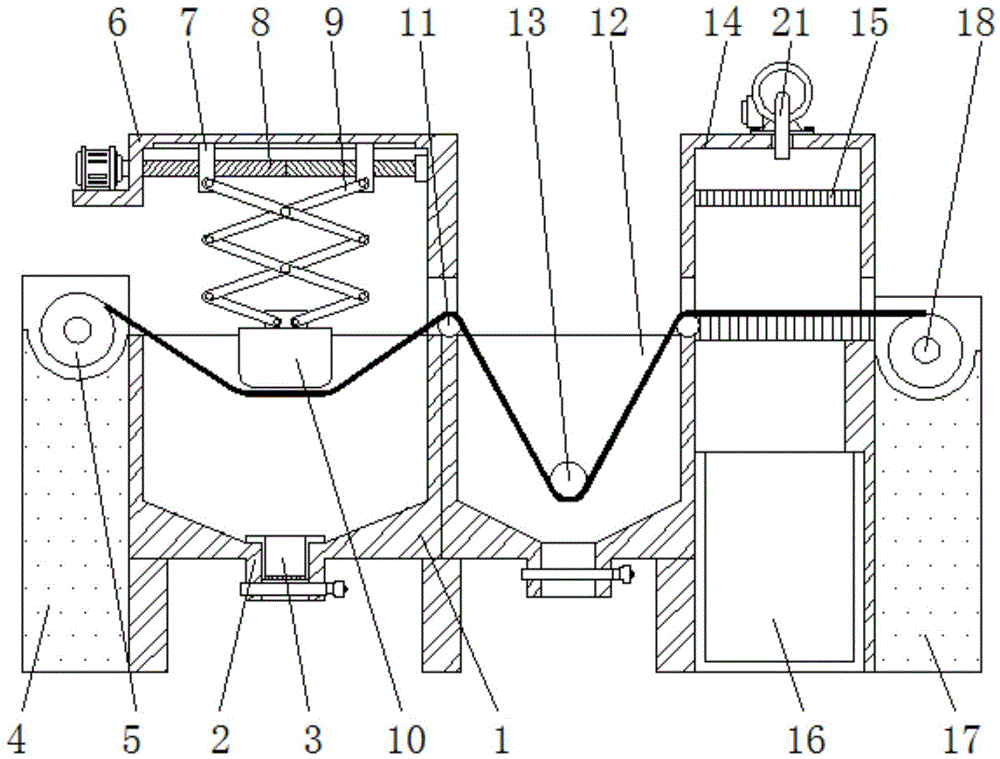

Fig. 1 is the front view sectional structure schematic diagram of the utility model;

FIG. 2 is a schematic top view of the connection between the winding roller and the second support frame of the present invention;

FIG. 3 is a schematic view of the front view of the connection between the worm gear and the worm of the present invention.

In the figure: 1. The first desizing chamber; 2. The water outlet pipe; 3. The filter tank; 4. The first support frame; ; 9, connecting rod; 10, extrusion block; 11, feeding roller; 12, second desizing chamber; 13, cleaning roller; 14, drying chamber; 15, connecting plate; 16, collecting box; 17, second Support frame; 18. Rewinding roller; 19. Worm gear; 20. Worm; 21. Connecting pipe.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. For example, based on the embodiments of the present invention, all other embodiments obtained by persons of ordinary skill in the art without creative work shall fall within the protection scope of the present invention.

Please refer to Figures 1-3, the present utility model provides a technical solution: a body-fitting fabric processing, finishing and desizing device, comprising a first desizing chamber 1, a water outlet pipe 2, a filter tank 3, a first support frame 4, a cloth roll Roller 5, fixed frame 6, limit block 7, bidirectional threaded rod 8, connecting rod 9, extrusion block 10, feeding roller 11, second desizing chamber 12, cleaning roller 13, drying chamber 14, connecting plate 15, The collection box 16, the second support frame 17, the winding roller 18, the worm gear 19, the worm 20 and the connecting pipe 21, the lower end of the first desizing chamber 1 is connected with a water outlet pipe 2 by welding, and a filter tank is placed inside the water outlet pipe 2 3, the left end of the first desizing chamber 1 is fixedly connected with a first support frame 4, and the upper end of the first support frame 4 is rotatably connected with a cloth roll 5, and the upper right end of the first desizing chamber 1 is fixedly connected with a fixing frame 6 , and the inner end of the fixing frame 6 is rotatably connected with a bidirectional threaded rod 8, the bidirectional threaded rod 8 is connected through the interior of the limit block 7, and the lower end of the limit block 7 is hinged with a connecting rod 9, and the lower end of the connecting rod 9 is hingedly connected There is an extrusion block 10, a feeding roller 11 is rotatably connected to the lower right end of the fixing frame 6, a second desizing chamber 12 is fixedly connected to the right end of the first desizing chamber 1, and a cleaning chamber 12 is rotatably connected to the inside of the second desizing chamber 12. The roller 13, the drying chamber 14 is fixedly connected to the right end of the second desizing chamber 12, and the connecting plate 15 is installed inside the drying chamber 14, and the upper end of the drying chamber 14 is connected with a connecting pipe 21, and the drying chamber 14 A collection box 16 is placed at the lower end of the drying chamber 14, a second support frame 17 is fixedly connected to the right end of the drying chamber 14, and a winding roller 18 is rotatably connected to the upper end of the second support frame 17, and the front end of the winding roller 18 is fixedly connected with a worm gear 19, and the lower end of the worm wheel 19 is in contact with the worm 20, and the right end of the drying chamber 14 is rotatably connected with the worm 20.

As shown in FIG. 1, the connection mode of the water outlet pipe 2 and the filter tank 3 is a snap connection, and the bottom end of the filter tank 3 is a hollow structure, which is convenient for filtering the impurities in the first desizing chamber 1, and is convenient for cleaning the filter tank 3, The fixed frame 6 and the limit block 7 form a sliding structure, and the connecting rods 9 connected at the lower end of the limit block 7 form a rotating structure, and the limit blocks 7 are close to each other, so that the connecting rod 9 rotates and squeezes The block 10 and the first desizing chamber 1 constitute a lifting structure, and the longitudinal section of the lower end of the extrusion block 10 is arc-shaped, and the lower ends of the first desizing chamber 1 and the second desizing chamber 12 are inclined. The connecting rod 9 The rotation drives the extrusion block 10 to descend, preventing the extrusion block 10 from damaging the fabric, and facilitating the cleaning of the liquid in the first desizing chamber 1 and the second desizing chamber 12. The bottom end of the drying chamber 14 and the connecting plate 15 are porous structure, and the connecting pipe 21 forms a communication structure with the lower end of the drying chamber 14 through the connecting plate 15, so that the hot air is evenly and fully blown to the fabric through the connecting plate 15, so that the water droplets on the fabric can fall into the collection box 16;

2 and 3, the connection mode of the worm 20 and the worm wheel 19 is meshing connection, and the worm 20 and the winding roller 18 constitute a transmission structure.

Working principle: When using this close-fitting fabric processing and finishing desizing device, as shown in Figure 1, the first desizing chamber 1 is alkaline water. When the motor connected to the left end of the bidirectional threaded rod 8 is working, it drives the bidirectional threaded rod 8. Rotation, when the two-way threaded rod 8 rotates, the limit blocks 7 are close to each other, so that the connecting rod 9 drives the extrusion block 10 to descend, and the fabric is completely immersed in the first desizing chamber 1. After the alkaline water desizing the fabric, pull the fabric to the right, so that the fabric enters the clean water in the second desizing chamber 12 through the feeding roller 11 for cleaning. When the fabric is pulled, the cleaning roller 13 can clean the fabric;

As shown in FIG. 1 , the cleaned fabric is unfolded at the lower end of the drying chamber 14. When the drying fan connected to the rear end of the connecting pipe 21 is working, it is blown into the drying chamber 14 through the connecting pipe 21 like hot air. It is a porous structure, so the hot air can be blown to the fabric evenly and fully, and the lower end of the drying chamber 14 is a porous structure, so that the water contained in the fabric enters the collection box 16 through the porous structure for collection;

2 and 3, after the fabric is dried, the worm 20 is rotated to engage with the worm wheel 19 to drive the rewinding roller 18 to rotate. When the rewinding roller 18 rotates, the dried fabric is wound and wound to prevent the fabric from being piled up in disorder. Together, after the fabric is desizing, open the control valve provided at the lower end of the water outlet pipe 2 to discharge the alkaline water in the first desizing chamber 1, and the setting of the filter tank 3 can filter the impurities desizing in the first desizing chamber 1, This is the working principle of the de-sizing device for processing, finishing and de-sizing of close-fitting fabrics.

The standard parts used in the utility model can be purchased from the market, the special-shaped parts can be customized according to the description in the specification and the drawings, and the specific connection method of each part adopts the mature bolts, rivets and welding in the prior art. and other conventional means, the machinery, parts and equipment all adopt the conventional models in the prior art, and the circuit connection adopts the conventional connection method in the prior art, which will not be described in detail here, and the content that is not described in detail in this specification. It belongs to the prior art known to those skilled in the art.

Although the present invention has been described in detail with reference to the foregoing embodiments, for those skilled in the art, it is still possible to modify the technical solutions described in the foregoing embodiments, or perform equivalent replacements for some of the technical features. Within the spirit and principle of the present utility model, any modifications, equivalent replacements, improvements, etc. made shall be included within the protection scope of the present utility model.

Claims (6)

1. A device for processing, finishing and desizing a body-fitting fabric, comprising a first desizing chamber (1), characterized in that: the lower end of the first desizing chamber (1) is welded and connected with a water outlet pipe (2), and the water outlet pipe (2) A filter tank (3) is placed inside, the left end of the first desizing chamber (1) is fixedly connected with a first support frame (4), and the upper end of the first support frame (4) is rotatably connected with a coil The cloth roller (5), the upper right end of the first desizing chamber (1) is fixedly connected with a fixing frame (6), and the inner end of the fixing frame (6) is rotatably connected with a bidirectional threaded rod (8). The threaded rod (8) is connected through the inside of the limiting block (7), and the lower end of the limiting block (7) is hingedly connected with a connecting rod (9), and the lower end of the connecting rod (9) is hingedly connected with an extrusion block ( 10), the lower right end of the fixing frame (6) is rotatably connected with a feeding roller (11), the right end of the first desizing chamber (1) is fixedly connected with a second desizing chamber (12), and the second desizing chamber (12) is fixedly connected to the right end of the first desizing chamber (1). A cleaning roller (13) is rotatably connected inside the pulp chamber (12), a drying chamber (14) is fixedly connected to the right end of the second desizing chamber (12), and a connection is installed inside the drying chamber (14). plate (15), and the upper end of the drying chamber (14) is connected with a connecting pipe (21), the lower end of the drying chamber (14) is placed with a collection box (16), and the right end of the drying chamber (14) A second support frame (17) is fixedly connected, and a winding roller (18) is rotatably connected to the upper end of the second support frame (17), and a worm gear (19) is fixedly connected to the front end of the winding roller (18), and The lower end of the worm wheel (19) is in contact with the worm (20), and the right end of the drying chamber (14) is rotatably connected with the worm (20). 2. A body fabric processing, finishing and desizing device according to claim 1, characterized in that: the connection mode of the water outlet pipe (2) and the filter tank (3) is a snap connection, and the filter tank (3) The bottom end is a hollow structure. 3. The device for processing, finishing and desizing of body-fitting fabrics according to claim 1, characterized in that: the fixing frame (6) and the limit block (7) form a sliding structure, and the lower end of the limit block (7) is connected A rotating structure is formed between the connecting rods (9) of the connecting rods (9). 4. The device for processing, finishing and desizing of body-fitting fabrics according to claim 1, characterized in that: the extrusion block (10) and the first desizing chamber (1) constitute a lifting structure, and the extrusion block (10) constitutes a lifting structure. ) The longitudinal section of the lower end is arc-shaped, and the lower ends of the first desizing chamber (1) and the second desizing chamber (12) are inclined. 5. A body fabric processing, finishing and desizing device according to claim 1, characterized in that: the bottom end of the drying chamber (14) and the connecting plate (15) are porous structures, and the connecting pipe ( 21) A communication structure is formed with the lower end of the drying chamber (14) through the connecting plate (15). 6. The device for processing, finishing and desizing of body-fitting fabrics according to claim 1, characterized in that: the connection mode of the worm (20) and the worm wheel (19) is meshing connection, and the worm (20) is connected to the winding roller. (18) constitute a transmission structure.
