Abstract

The utility model relates to the technical field of elevator counterweight equipment, in particular to a double-column-connected elevator counterweight device, comprising a counterweight frame, a counterweight block and a reverse sheave mounted on the counterweight frame, and the counterweight frame includes a first A column, a second column, and a third column are arranged in sequence from front to back, and the upper ends of the first column, the second column, and the third column are clamped and fixedly connected with the upper left beam and the upper right beam. A sheave frame is laterally arranged between the left upper beam and the right upper beam, and the reverse rope pulley is laterally installed on the sheave frame between the left upper beam and the right upper beam. The utility model can meet the installation requirements of the elevator hoistway with large left and right lateral width and small depth, effectively solve the problems of insufficient placement of the counterweight device and inconvenient installation caused by the hoistway structure, and improve the stability and safety of the counterweight device Its overall compact structure, high flexibility and good transmission performance help to promote the application and development of large-load elevator shafts.

Description

Double row connection elevator counterweight device

technical field

The utility model relates to the technical field of elevator counterweight equipment, in particular to a double-column connection elevator counterweight device.

Background technique

In the field of elevator technology, it is necessary to use the car to carry the load to realize the transportation of people or goods. Therefore, it is necessary to maintain a balance between the weight of the car and the weight of the payload to reduce energy consumption and motor power consumption. The balance of this weight is called counterweight. Through the counterweight, the required stress ratio between the car and the steel rope branch on the counterweight side can be maintained, and at the same time, a proper frictional force can be obtained between the steel rope and the rope groove of the steel rope drive wheel, so the counterweight has important meaning.

The counterweight device is located in the hoistway, and is connected to the car through the traction rope through the traction sheave. During the operation of the elevator, the counterweight device slides on the counterweight guide rail through the counterweight guide shoe to play a balancing role. Most of the traditional elevator counterweight frame is a frame structure composed of two left and right columns and upper and lower beams. The reverse rope pulley is longitudinally arranged at the upper beam position of the counterweight frame structure, and the counterweight is longitudinally placed in the card slots of the columns on both sides of the frame. Since the size of the hoistway has been fixed at the beginning of the design of the elevator, when a larger tonnage elevator is to be loaded in the elevator hoistway, the total weight of the counterweight device is fixed, and the front and rear longitudinal width and depth of the elevator hoistway can have enough space. , the requirements of installation and operation can be met by further heightening the counterweight device or further thickening the counterweight block. However, when faced with a hoistway space with large left and right lateral width and small depth of the elevator shaft, it is impossible to improve the counterweight device by the above method, so it is necessary to improve the counterweight structure.

In the patent technology of the utility model 201621145182.2 disclosed in the Chinese patent document entitled "An installation structure for a counterweight wheel of a freight elevator", a method is disclosed by arranging two counterweight wheels laterally on the upper beam of the counterweight frame, And the two counterweight wheels are arranged side by side, and the two counterweight wheels are perpendicular to the upper beam of the counterweight frame, which solves the problem of insufficient placement of the counterweight device and inconvenient installation. On the top of the upper beam, the upper beam needs to bear a great force during the operation of this embodiment, which is prone to the risk of jitter and side slip, and its stability is poor.

Utility model content

One of the objectives of the present utility model is to provide a double-column-connected elevator counterweight device with compact structure, high stability and good transmission performance, which can fully utilize the advantages of the hoistway to meet the needs of large loads in view of the defects and deficiencies of the prior art.

The technical scheme of the present utility model is as follows:

The double-column elevator counterweight device includes a counterweight frame, a counterweight block and a reverse sheave mounted on the counterweight frame, and the counterweight frame includes a first column, a second column, and a third column from the front. They are arranged in sequence at intervals to the rear. The upper ends of the first, second and third columns are clamped and fixedly connected with the upper left beam and the upper right beam. The first, second and third columns are The lower end of the cable pulley is clamped and fixedly connected with the lower left beam and the lower right beam, a sheave frame is laterally arranged between the upper left beam and the upper right beam, and the reverse rope pulley is laterally installed on the rope between the upper left beam and the upper right beam. On the wheel frame, and the top of the reverse rope pulley is not higher than the plane height of the top of the left upper beam, the right upper beam, the first column, the second column and the third column, the center line of the reverse rope pulley and the counterweight The centerlines of the frames are perpendicular to each other.

Preferably, the first column and the third column of the counterweight frame are respectively two "U"-shaped steels in a space sandwiched with a second column structure, and the second column is a "H"-shaped steel with openings on both sides facing the The first column and the "U" shaped steel opening of the third column are arranged opposite to each other.

Preferably, the left and right lateral widths of the first column, the second column and the third column are larger than the diameter of the reverse rope pulley.

Preferably, the sheave frame is composed of two structurally opposite connection plates, and the rollers on the reverse sheave are transversely placed on the two connection plates.

Preferably, the counterweight block is a structure whose front and rear lengths are shorter than the left and right lengths, the front and rear ends of the counterweight block are provided with protruding mounting blocks, and the mounting blocks are matched with the first column and the third column. The "U"-shaped steel opening on the upper column and the "H"-shaped steel opening on the second column are used.

Preferably, the counterweight frame is provided with two sheave frames and a reverse sheave mounted on the sheave frames, which are respectively arranged between the first column and the second column and between the second column and the third column. between.

Preferably, the upper end of the top of the counterweight frame is provided with a guide sheave, a traction device, a rope head plate and a wire rope for winding and transmission, which are arranged in a vertical direction with the reverse sheave.

Preferably, sliding guide shoes are installed on the four right-angle sides at the upper and lower ends of the counterweight frame, and the lower ends of the sliding guide shoes are fixed by two or four hexagonal bolts.

Preferably, a counterweight iron is provided above the counterweight block, and the counterweight iron is adjustable and installed on the first column and the third column.

Preferably, the bottom of the counterweight frame is provided with a buffer adjustment seat for safe buffering of the entire counterweight frame, and the top of the reverse sheave is provided with a protective cover installed on the sheave frame.

The beneficial effects of the utility model are as follows: the double-column-connected elevator counterweight device separates the counterweight frame structure to form an installation space that runs through the middle part; The force on the elevator can be evenly distributed to the counterweight frame, so as to achieve the purpose of stable operation. In addition, the counterweight block is a structure with short front and rear, left and right, which can meet the installation requirements of the elevator shaft with large left and right lateral width and small depth, effectively It solves the problem of insufficient placement of the counterweight device and inconvenient installation caused by the hoistway structure, improves the stability and safety of the counterweight device, and its overall compact structure, high flexibility, and good transmission performance help promote large Application and development of load elevator shaft.

Description of drawings

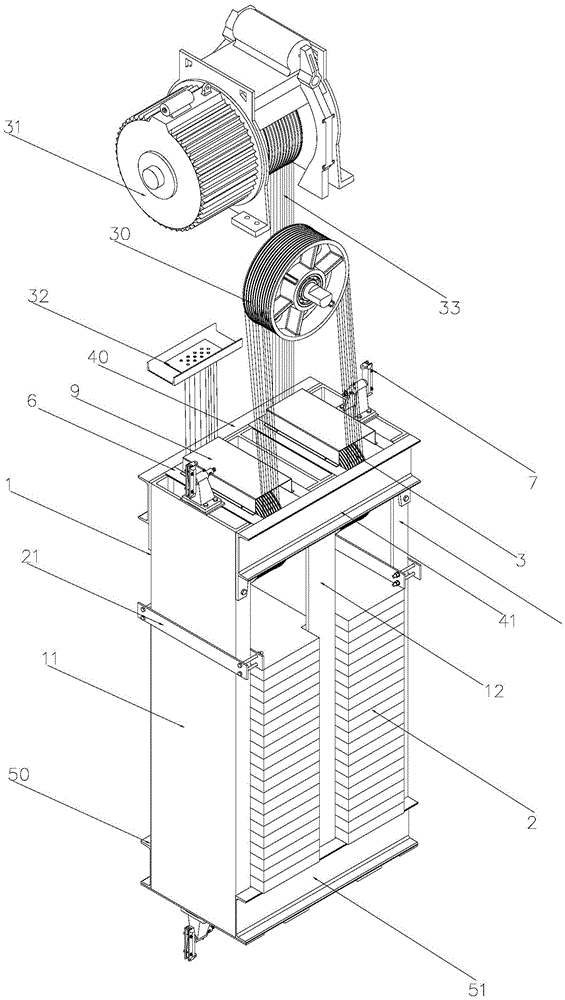

Fig. 1 is the working state diagram of the double-column-connected elevator counterweight device according to the embodiment of the present utility model;

2 is a schematic front view of a double-column-connected elevator counterweight device according to an embodiment of the present utility model;

3 is a schematic diagram of the right side of the double-column-connected elevator counterweight device according to the embodiment of the present utility model;

4 is a schematic top view of a double-column-connected elevator counterweight device according to an embodiment of the present invention.

Detailed ways

As shown in Figures 1-4, the double-column-connected elevator counterweight device in the embodiment of the present utility model includes a counterweight frame 1, a counterweight block 2 and a reverse sheave 3 mounted on the counterweight frame 1, The counterweight frame 1 includes a first column 11 , a second column 12 , and a third column 13 arranged in sequence from front to rear. The first column 11 , the second column 12 , and the third column 13 The upper end is clamped and fixedly connected with the upper left beam 40 and the upper right beam 41, and the lower ends of the first column 11, the second column 12, and the third column 13 are clamped and fixedly connected with the lower left beam 50 and the lower right beam 51, so A sheave frame 6 is arranged laterally between the left upper beam 40 and the right upper beam 41, and the reverse sheave 3 is laterally installed on the sheave frame 6 between the left upper beam 40 and the right upper beam 41. The frame 6 is composed of two structurally opposite connecting plates 60, the rollers on the reverse rope pulley 3 are horizontally placed on the two connecting plates 60, and the top of the reverse rope pulley 3 is not higher than the upper left beam 40, The plane height of the top of the right upper beam 41, the first column 11, the second column 12, and the third column 13, the counterweight frame 1 is provided with two sheave frames 6 and a counter mounted on the sheave frame 6. The sheaves 3 are respectively arranged between the first column 11 and the second column 12 and between the second column 12 and the third column 13. The center line of the reverse rope pulley 3 and the center line of the counterweight frame 1 are mutually Vertically, by dividing the structure of the heavy frame 1 to form an installation space through the middle, the reverse rope pulley 3 is arranged between the column and the upper beam to form a protective structure, and the force on the reverse rope pulley 3 can be evenly distributed to the counterweight frame 1, so as to achieve the purpose of stable operation.

Specifically, in this embodiment, the first column 11 and the third column 13 of the counterweight frame 1 are respectively two "U"-shaped steels in a structure of sandwiching the second column 12 in space. The second column 12 is the openings on both sides of the "H"-shaped steel, which are respectively arranged opposite to the "U"-shaped steel openings of the first column 11 and the third column 13 .

In this embodiment, the left and right lateral widths of the first column 11, the second column 12, and the third column 13 are larger than the diameter of the reverse rope pulley 3, and the reverse rope pulley 3 can be wrapped between the columns to avoid external objects. Interfering with the reverse rope pulley 3 and increasing the width of the column can improve the strength of the counterweight device.

In this embodiment, in this embodiment, the counterweight block 2 is a structure whose front and rear length is shorter than the left and right lengths. The front and rear ends of the counterweight block 2 are provided with raised installation blocks. The installation block is used in conjunction with the "U"-shaped steel openings on the first column 11 and the third column 13 and the "H"-shaped steel openings on the second column 12. If the counterweight 2 is set to a wide body structure, corresponding fixing is required. structure, the wide-body column effectively supports the counterweight 2 .

Further, the application of this embodiment includes that the upper end of the top of the counterweight frame 1 is provided with a guide wheel 30, a traction device 31, a rope head plate 32, and a wire rope 33 for winding and driving, which cooperates with the reverse rope pulley 3 to run. The guide pulley 30 is vertically arranged with the reverse rope pulley 3, and the reverse rope pulleys 3 on both sides are connected together at a vertical angle of 90° through the guide pulley 30.

In this embodiment, sliding guide shoes 7 are installed on the four right-angled sides at the upper and lower ends of the counterweight frame 1, and the lower ends of the sliding guide shoes 7 are fixed by two or four hexagonal bolts. The upper part of the block 2 is provided with a counterweight iron 21, the counterweight iron 21 can be adjusted to be installed on the first column 11 and the third column 13, and the bottom of the counterweight frame 1 The heavy frame 1 serves as a buffer adjustment seat 8 for safety buffering, and the top of the reverse rope pulley 3 is provided with a protective cover 9 installed on the sheave frame 6 .

Through the above technical solution, the counterweight block 2 on the double-column-connected elevator counterweight device is a structure with short front and rear, left and right, which can meet the installation requirements of the elevator shaft with large left and right lateral width and small depth, and effectively solve the problem caused by the shaft structure. The problem of insufficient placement and inconvenient installation of the counterweight device improves the stability and safety of the counterweight device. Its overall compact structure, high flexibility, and good transmission performance help promote the application and development of large-load elevator shafts.

The above descriptions are only preferred embodiments of the present invention, and are not intended to limit the scope of the present invention. Any equivalent structure or equivalent process transformation made by using the contents of the description and accompanying drawings of the present invention, or directly or indirectly applied to Other related technical fields are similarly included in the scope of patent protection of the present invention.
