CN211659189U

CN211659189U - Stretching exercise device for old people

Info

Publication number: CN211659189U
Application number: CN202020047983.5U
Authority: CN
Inventors: 杜静
Original assignee: Lishui University
Current assignee: Lishui University
Priority date: 2020-01-10
Filing date: 2020-01-10
Publication date: 2020-10-13
Anticipated expiration: 2030-01-10

Abstract

The utility model discloses a tensile exercise device that old person used relates to old person's exercise equipment technical field. Including the bottom plate, massage box and tensile structure, turn right from a left side and have set gradually massage box and electric putter one in the top of bottom plate, the fixed backup pad that is provided with of output of electric putter one, the fixed back that is provided with in one side of backup pad, the both sides of back are all fixed and are provided with the handrail, the fixed bearing structure that is provided with in right side of back, bearing structure's top is provided with tensile structure, turn left from the right side and have set gradually vibrating motor and expanding spring in the bottom of massage box inner chamber, vibrating motor's the fixed vibration board that is provided with of output shaft. This stretching exercise device that old person used, simple structure is practical, can carry out the tensile exercise of both arms to the old man, can massage old man's foot again, does benefit to the height-adjusting moreover, is convenient for to different heights old man practicality, has fully reached the suitability strong and comparatively perfect advantage of function.

Description

Stretching exercise device for old people

Technical Field

The utility model relates to an old person exercise equipment technical field specifically is a tensile exercise device that old person used.

Background

At present, the proportion of old people in China is higher and higher, and the body characteristics of the old people are as follows: the body function is reduced, basic diseases are increased, various functions of the body begin to decline, the basic metabolic rate is reduced, the organ function is reduced, muscle atrophy, joint movement failure and the like, along with the continuous development of social economy, people pay more and more attention to the body health of old people, and the exercise device is needed.

The old person is because of the age crescent, lead to organ function to reduce, muscle atrophy and joint movement are malfunctioning, this just needs to use and tempers stretching device, the old person stretching device who uses on the existing market mostly all is simple stretcher, it is only simple when tensile to the arm, it uses to the old man of different heights to be difficult to, lead to the suitability not high, and the function is comparatively single moreover, influence the result of use, for this reason, it solves above-mentioned problem to provide a tensile exercise device that the old person used.

SUMMERY OF THE UTILITY MODEL

The utility model provides a tensile exercise device that old person used possesses the suitability strong and comparatively perfect advantage of function to there is the general problem of result of use in solving traditional exercise stretching device.

For realizing that the suitability is strong and the function is comparatively perfect purpose, the utility model provides a following technical scheme: a stretching exercise device for old people comprises a bottom plate, a massage box and a stretching structure, wherein the massage box and a first electric push rod are sequentially arranged on the top of the bottom plate from left to right, a support plate is fixedly arranged at the output end of the first electric push rod, a backrest is fixedly arranged on one side of the support plate, handrails are fixedly arranged on two sides of the backrest, a support structure is fixedly arranged on the right side of the backrest, and the stretching structure is arranged on the top of the support structure;

the bottom of the inner cavity of the massage box is sequentially provided with a vibration motor and a telescopic spring from right to left, an output shaft of the vibration motor is fixedly provided with a vibration plate, and the top of the vibration plate is fixedly provided with a massage bulge which penetrates through and extends to the top of the massage box;

the stretching structure comprises a sleeve, a stretching spring is fixedly arranged in the sleeve, a hook is fixedly arranged at the bottom of the stretching spring, a stretching pipe is movably arranged at the bottom of the hook through a fixing rope, and an anti-slip pad is fixedly arranged on the surface of the stretching pipe.

As a preferred technical scheme of the utility model, turn right from a left side and set gradually electric putter two and remove the wheel bottom the bottom plate, the fixed supporting legs that is provided with of output of electric putter two.

As the utility model discloses a preferred technical scheme, the top activity of backup pad is provided with the cushion, the fixed back of the body pad that is provided with in one side that bearing structure was kept away from to the back, cushion and back of the body pad are the foam-rubber cushion.

As an optimized technical scheme of the utility model, one side of backup pad is provided with the handrail through the anchor strut is fixed, the rubber sleeve has been cup jointed in the surface activity of handrail.

As an optimized technical proposal of the utility model, the expansion spring is positioned between the bottom of the inner cavity of the massage box and the vibrating plate.

As a preferred technical scheme of the utility model, bearing structure includes a fixed section of thick bamboo and telescopic link, the fixed regulating spring that is provided with in bottom of a fixed section of thick bamboo inner chamber, regulating spring's top is provided with the telescopic link, the bolt setting is passed through on the side of a fixed section of thick bamboo in one side of telescopic link bottom.

As a preferred technical scheme of the utility model, the jack with bolt looks adaptation is all seted up to the side of a fixed section of thick bamboo and telescopic link, and the jack is provided with four, and two jack inside of bottom are provided with two the bolt.

Compared with the prior art, the utility model provides a tensile exercise device that old person used possesses following beneficial effect:

1. this device is tempered in stretching that old person used, through setting up tensile structure, take out the bolt, make the telescopic link carry out concertina movement under adjusting spring's effect, when adjusting suitable height with the telescopic link, it is fixed to utilize the bolt to peg graft, thereby make tensile structure's height can be adjusted, be convenient for to the use of different heights old man, the result of use has been improved greatly, adjust tensile structure suitable height, the old person sits on the cushion, both hands hold on the slipmat, it is tensile downwards hard, the extension spring at tensile tub top carries out concertina movement, thereby be convenient for the tensile exercise of old man, it is stronger to reach the suitability, be convenient for stretch the exercise to the old man of different heights.

2. This device is tempered in stretching that old person used, through setting up the massage case, the old man sits on the cushion, and both feet are placed in the massage arch, utilize vibrating motor to drive vibration board and massage arch and vibrate, utilize the massage arch to vibrate the massage to old man both feet, do benefit to and massage old man foot.

3. This stretching exercise device that old person used, simple structure is practical, can carry out the tensile exercise of both arms to the old man, can massage old man's foot again, does benefit to the height-adjusting moreover, is convenient for to different heights old man practicality, has fully reached the suitability strong and comparatively perfect advantage of function.

Drawings

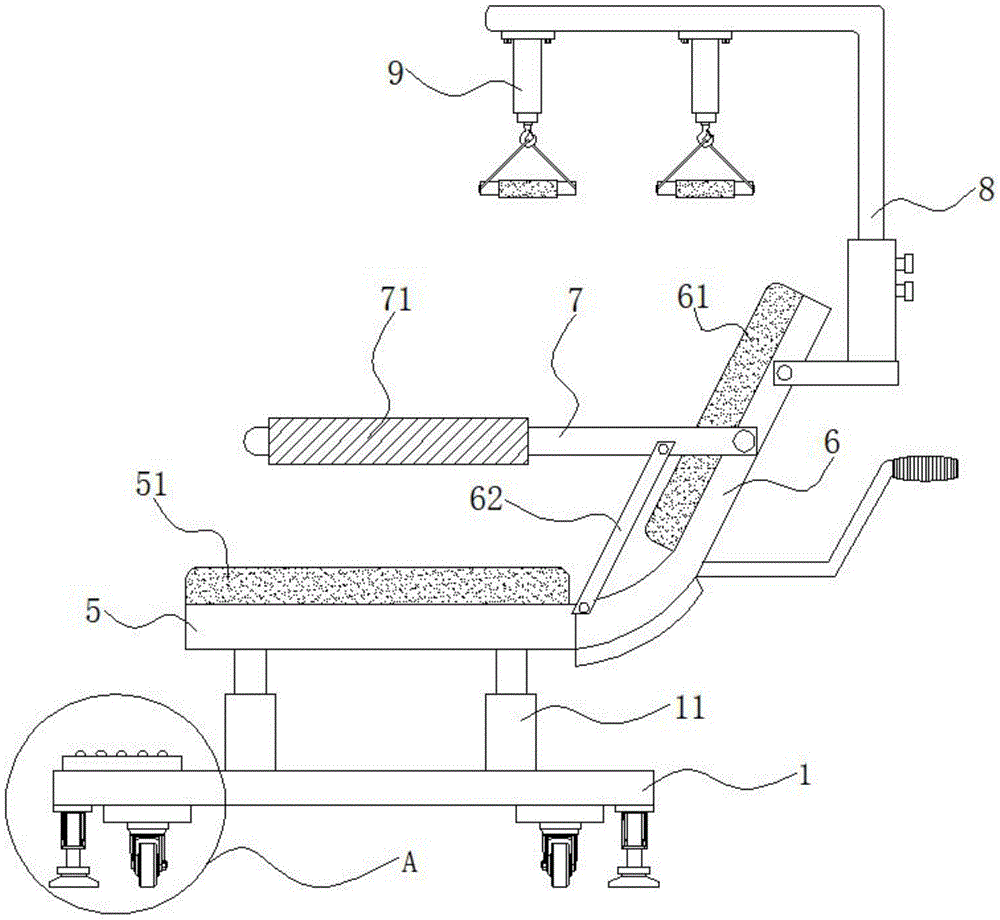

Fig. 1 is a schematic structural view of the present invention;

FIG. 2 is an enlarged view of the portion A of FIG. 1 according to the present invention;

FIG. 3 is a sectional view of the massage box of the present invention;

FIG. 4 is a schematic view of the supporting structure of the present invention;

fig. 5 is a schematic drawing of the stretching structure of the present invention;

fig. 6 is a cross-sectional view of the sleeve structure of the present invention.

In the figure: 1. a base plate; 11. an electric push rod I; 2. a moving wheel; 3. a second electric push rod; 31. supporting legs; 4. a massage box; 41. a vibration motor; 42. a tension spring; 43. a vibrating plate; 44. massaging the bumps; 5. a support plate; 51. a cushion; 6. a backrest; 61. a back pad; 62. a reinforcing rod; 7. a handrail; 71. a rubber sleeve; 8. a support structure; 81. a fixed cylinder; 82. adjusting the spring; 83. a telescopic rod; 84. a bolt; 9. stretching the structure; 91. a sleeve; 92. an extension spring; 93. hooking; 94. fixing a rope; 95. stretching the tube; 96. a non-slip mat.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-6, the utility model discloses a stretching exercise device for the elderly, which comprises a bottom plate 1, a massage box 4 and a stretching structure 9, wherein the massage box 4 and an electric push rod 11 are sequentially arranged on the top of the bottom plate 1 from left to right, a support plate 5 is fixedly arranged at the output end of the electric push rod 11, a backrest 6 is fixedly arranged on one side of the support plate 5, handrails 7 are fixedly arranged on both sides of the backrest 6, a support structure 8 is fixedly arranged on the right side of the backrest 6, and the stretching structure 9 is arranged on the top of the support structure 8;

a vibration motor 41 and a telescopic spring 42 are sequentially arranged at the bottom of the inner cavity of the massage box 4 from right to left, a vibration plate 43 is fixedly arranged on an output shaft of the vibration motor 41, and a massage bulge 44 which penetrates through and extends to the top of the massage box 4 is fixedly arranged at the top of the vibration plate 43;

tensile structure 9 includes sleeve 91, the fixed extension spring 92 that is provided with in inside of sleeve 91, the fixed couple 93 that is provided with in bottom of extension spring 92, the bottom of couple 93 is provided with tensile pipe 95 through fixed rope 94 activity, the fixed slipmat 96 that is provided with in surface of tensile pipe 95, slipmat 96 is made for the rubber material, and the slipmat 96 of rubber material can play anti-skidding effect.

Specifically, the bottom of the bottom plate 1 is sequentially provided with an electric push rod II 3 and a moving wheel 2 from left to right, the output end of the electric push rod II 3 is fixedly provided with a supporting leg 31, when the stretching exercise device for the old needs to be moved, the electric push rod II 3 is utilized to drive the supporting legs 31 to contract and move upwards, so that the supporting legs 31 are separated from the ground, the moving wheel 2 is contacted with the ground, the device is moved by the moving wheel 2, when the stretching exercise device for the old needs to be placed, the electric push rod II 3 is utilized to drive the supporting legs 31 to stretch and move downwards, the supporting feet 31 are contacted with the ground, the moving wheel 2 is far away from the ground, the supporting feet 31 are utilized to support the device, the purpose of stable support is achieved, and then make this old person use stretch exercise device can reach the purpose of being convenient for remove, can reach again and place stable effect.

Specifically, the top activity of backup pad 5 is provided with cushion 51, the fixed back of the body pad 61 that is provided with in one side that bearing structure 8 was kept away from to back 6, cushion 51 and back of the body pad 61 are the foam-rubber cushion, and the cushion 51 and the back of the body pad 61 of sponge material have improved the travelling comfort in the use.

Specifically, one side of the supporting plate 5 is fixedly provided with the handrail 7 through the reinforcing rod 62, the rubber sleeve 71 is movably sleeved on the surface of the handrail 7, the reinforcing rod 62 is arranged to play a role in reinforcing the handrail 7, and the service life of the handrail 7 is prolonged.

Specifically, the extension spring 42 is located between the bottom of the inner cavity of the massage box 4 and the vibration plate 43, and the extension spring 42 can play a buffering role in the vibration working process of the vibration motor 41, so that the vibration effect of the vibration plate 43 can be assisted, and the purpose of buffering and protecting the vibration motor 41 can be achieved.

Concretely, bearing structure 8 is including a fixed section of thick bamboo 81 and telescopic link 83, the fixed regulating spring 82 that is provided with in bottom of a fixed section of thick bamboo 81 inner chamber, regulating spring 82's top is provided with telescopic link 83, bolt 84 setting is passed through on a fixed section of thick bamboo 81 side to one side of telescopic link 83 bottom, the jack with bolt 84 looks adaptation is all seted up to a fixed section of thick bamboo 81 and telescopic link 83's side, and the jack is provided with four, and two jack inside of bottom are provided with two bolt 84 takes out bolt 84 for telescopic link 83 carries out concertina movement under regulating spring 82's effect, when adjusting suitable height with telescopic link 83, utilizes bolt 84 to peg graft fixedly, thereby makes tensile structure 9's height can adjust, is convenient for to different heights old man's use, has improved the result of use greatly.

The utility model discloses a theory of operation and use flow: when in use, the bolt 84 is taken out, so that the telescopic rod 83 can perform telescopic motion under the action of the adjusting spring 82, when the telescopic rod 83 is adjusted to a proper height, the bolt 84 is utilized for splicing and fixing, thereby the height of the stretching structure 9 can be adjusted, the use for old people with different heights is convenient, the use effect is greatly improved, the stretching structure 9 is adjusted to a proper height, the old people sit on the cushion 51, both hands hold on the anti-skid pad 96 and stretch downwards forcefully, the stretching spring 92 at the top of the stretching pipe 95 performs telescopic motion, thereby the old people can conveniently perform stretching exercise, the applicability is strong, the old people with different heights can conveniently perform stretching exercise, the old people sit on the cushion 51, both feet are placed on the massage bulges 44, the vibrating plate 43 and the massage bulges 44 are driven by the vibrating motor 41 to vibrate, the both feet of the old people are massaged by utilizing the massage bulges 44, do benefit to and massage old man foot, when the tensile exercise device that this old man used is removed to needs, utilize two 3 drive supporting legs 31 shrink upward movement of electric putter, make supporting legs 31 leave ground, remove wheel 2 and ground contact, utilize and remove wheel 2 and remove the device, when this old man uses's tensile exercise device is placed to needs, utilize two 3 drive supporting legs 31 flexible downstream of electric putter, make supporting legs 31 and ground contact, remove wheel 2 and keep away from ground, utilize supporting legs 31 to support the device, reach and support stable purpose.

To sum up, this tensile exercise device that old person used, simple structure is practical, can carry out the tensile exercise of both arms to the old man, can massage old man's foot again, does benefit to height-adjusting moreover, is convenient for to different heights old man practicality, has fully reached the suitability strong and comparatively perfect advantage of function.

It should be noted that, in this document, terms such as "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation, an element defined by the phrase "comprising an … …" does not exclude the presence of other identical elements in a process, method, article, or apparatus that comprises the element.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a tensile exercise device that old person used, includes bottom plate (1), massage case (4) and tensile structure (9), its characterized in that: the massage box (4) and the electric push rod I (11) are sequentially arranged on the top of the bottom plate (1) from left to right, a support plate (5) is fixedly arranged at the output end of the electric push rod I (11), a backrest (6) is fixedly arranged on one side of the support plate (5), handrails (7) are fixedly arranged on two sides of the backrest (6), a support structure (8) is fixedly arranged on the right side of the backrest (6), and a stretching structure (9) is arranged on the top of the support structure (8);

the bottom of the inner cavity of the massage box (4) is sequentially provided with a vibration motor (41) and a telescopic spring (42) from right to left, an output shaft of the vibration motor (41) is fixedly provided with a vibration plate (43), and the top of the vibration plate (43) is fixedly provided with a massage bulge (44) which penetrates through and extends to the top of the massage box (4);

the stretching structure (9) comprises a sleeve (91), a stretching spring (92) is fixedly arranged in the sleeve (91), a hook (93) is fixedly arranged at the bottom of the stretching spring (92), a stretching pipe (95) is movably arranged at the bottom of the hook (93) through a fixing rope (94), and an anti-skid pad (96) is fixedly arranged on the surface of the stretching pipe (95).

2. The stretching exercise device for the elderly as claimed in claim 1, wherein: the bottom of the bottom plate (1) is sequentially provided with a second electric push rod (3) and a moving wheel (2) from left to right, and supporting legs (31) are fixedly arranged at the output end of the second electric push rod (3).

3. The stretching exercise device for the elderly as claimed in claim 1, wherein: the top activity of backup pad (5) is provided with cushion (51), one side that bearing structure (8) were kept away from in back (6) is fixed to be provided with back pad (61), cushion (51) and back pad (61) are the foam-rubber cushion.

4. The stretching exercise device for the elderly according to claim 3, wherein: one side of the supporting plate (5) is fixedly provided with a handrail (7) through a reinforcing rod (62), and the surface of the handrail (7) is movably sleeved with a rubber sleeve (71).

5. The stretching exercise device for the elderly as claimed in claim 1, wherein: the extension spring (42) is positioned between the bottom of the inner cavity of the massage box (4) and the vibration plate (43).

6. The stretching exercise device for the elderly as claimed in claim 1, wherein: the supporting structure (8) comprises a fixed cylinder (81) and an expansion rod (83), an adjusting spring (82) is fixedly arranged at the bottom of an inner cavity of the fixed cylinder (81), the expansion rod (83) is arranged at the top of the adjusting spring (82), and one side of the bottom of the expansion rod (83) is arranged on the side face of the fixed cylinder (81) through a bolt (84).

7. The stretching exercise device for the elderly according to claim 6, wherein: the side of a fixed cylinder (81) and a telescopic rod (83) is provided with four jacks matched with the bolts (84), and the two jacks at the bottom are internally provided with two bolts (84).
