Abstract
本实用新型公开了防火塑钢门窗，包括塑钢门窗框与玻璃板，所述塑钢门窗框的第一层设有铝质材层，所述塑钢门窗框的第二层设有塑钢材层，所述铝质材层的内侧与塑钢材层外侧紧贴，所述塑钢材层内设有防火材料，所述塑钢门窗框内镶嵌有第一防火玻璃，所述第一防火玻璃一侧并排安装有第二防火玻璃，所述第二防火玻璃一侧并排安装有第三防火玻璃，还包括防火密封胶条，所述塑钢门窗框与玻璃板通过防火密封胶条连接。在塑钢材层内设有防火材料，外侧设置铝型材层，这样一来两种材层结合，提高了塑钢门窗的导热系数，防火玻璃镶嵌到塑钢门窗框内，能够满足防火安全，防火密封胶条能够达到密封、减震和防火的作用。
The utility model discloses a fireproof plastic-steel door and window, comprising a plastic-steel door and window frame and a glass plate. The first layer of the plastic-steel door and window frame is provided with an aluminum material layer, and the second layer of the plastic-steel door and window frame is provided with a plastic-steel layer. The inner side of the aluminum material layer is in close contact with the outer side of the plastic-steel layer, the plastic-steel layer is provided with a fireproof material, the plastic-steel door and window frame is inlaid with a first fireproof glass, and one side of the first fireproof glass is installed side by side with a second fireproof glass. Second fireproof glass, a third fireproof glass is installed side by side on one side of the second fireproof glass, and also includes a fireproof sealing strip, and the plastic-steel door and window frame and the glass plate are connected by a fireproof sealing strip. A fireproof material is arranged in the plastic-steel layer, and an aluminum profile layer is arranged on the outside. In this way, the combination of the two material layers improves the thermal conductivity of the plastic-steel door and window. The strip can achieve the functions of sealing, shock absorption and fire prevention.
Description
技术领域technical field
本实用新型涉及到防火门窗的技术领域，特别是涉及防火塑钢门窗。The utility model relates to the technical field of fireproof doors and windows, in particular to fireproof plastic steel doors and windows.
背景技术Background technique
许多公共设施和场所都会用到防火门窗，各种建筑材料对防火门窗的防火等级与性能要求越来越高，如果发生火灾，门窗是隔离房间内外的主要通道，防火门窗能够有效的将火灾隔离在室外，阻止火灾的蔓延。Fire doors and windows are used in many public facilities and places. Various building materials have higher and higher requirements on the fire rating and performance of fire doors and windows. If a fire occurs, doors and windows are the main channels to isolate the inside and outside of the room. Fire doors and windows can effectively isolate the fire. Outside, stop the spread of fire.
目前的门窗主要是依靠塑钢型材制成，但是现有的塑钢门窗框上只会安装防火玻璃板进行隔热防火，从而导致防火效果不佳，为了达到更好的防火效果，发明了一种防火效果良好的塑钢门窗。The current doors and windows are mainly made of plastic-steel profiles, but only fire-resistant glass panels are installed on the existing plastic-steel door and window frames for heat insulation and fire prevention, resulting in poor fire protection effect. Good effect plastic steel doors and windows.
实用新型内容Utility model content
针对现有技术的不足，本实用新型提供防火塑钢门窗，解决了塑钢门窗框上只会安装防火玻璃板来进行隔热防火，从而导致防火效果不佳的技术问题。Aiming at the deficiencies of the prior art, the utility model provides fireproof plastic-steel doors and windows, which solves the technical problem that only fire-proof glass plates are installed on the plastic-steel door and window frames for thermal insulation and fire prevention, resulting in poor fireproofing effect.
为实现上述目的，本实用新型提供如下技术方案：防火塑钢门窗，包括塑钢门窗框与防火玻璃板，所述塑钢门窗框上设有防火玻璃板，所述塑钢门窗框的第一层设有铝质材层，所述塑钢门窗框的第二层设有塑钢材层，所述铝质材层的内侧与塑钢材层外侧紧贴，所述塑钢材层内设有防火材料，所述塑钢门窗框内镶嵌有第一防火玻璃，所述第一防火玻璃一侧并排安装有第二防火玻璃，所述第二防火玻璃一侧并排安装有第三防火玻璃，还包括防火密封胶条，所述塑钢门窗框与防火玻璃板通过防火密封胶条连接。In order to achieve the above purpose, the utility model provides the following technical solutions: fireproof plastic-steel doors and windows, including plastic-steel door and window frames and fire-proof glass plates, the plastic-steel door and window frames are provided with fire-proof glass plates, and the first layer of the plastic-steel door and window frames is provided with aluminum material layer, the second layer of the plastic-steel door and window frame is provided with a plastic-steel layer, the inner side of the aluminum material layer is closely attached to the outer side of the plastic-steel layer, the plastic-steel layer is provided with a fireproof material, and the plastic-steel door and window A first fireproof glass is inlaid in the frame, a second fireproof glass is installed side by side on one side of the first fireproof glass, a third fireproof glass is installed side by side on one side of the second fireproof glass, and a fireproof sealing strip is also included. The plastic-steel door and window frame is connected with the fireproof glass plate by fireproof sealing tape.
优选的，所述第一防火玻璃与第二防火玻璃连接处设有第一防火胶，所述第二防火玻璃与第三防火玻璃连接处设有第二防火胶。Preferably, a first fireproof glue is provided at the connection between the first fireproof glass and the second fireproof glass, and a second fireproof glue is provided at the connection between the second fireproof glass and the third fireproof glass.
优选的，所述塑钢材层内设有防火材料为氯化橡胶。Preferably, the fireproof material provided in the plastic steel layer is chlorinated rubber.
优选的，所述防火密封胶条为聚氨酯密封胶条。Preferably, the fireproof sealing strip is a polyurethane sealing strip.
本实用新型提供了防火塑钢门窗，具备以下有益效果：1.在塑钢材层内设有防火材料，塑钢材层外侧设置铝质材层，这样一来两种材层结合，使得塑钢门窗绝缘性能好，提高了塑钢门窗的导热系数，通过将防火玻璃镶嵌到塑钢门窗框内，使防火玻璃之间浑然一体,既能够满足防火安全性的前提下，能够减少使用的金属框架，降低生产成本，且在提高室内采光率，又能更好地欣赏到玻璃外的美景，防火密封胶条能够防止内外介质泄露或侵入，能防止或减轻由于机械震动、冲击所造成的损伤，从而达到密封、减震和防火的作用。The utility model provides fire-proof plastic-steel doors and windows, which have the following beneficial effects: 1. Fire-proof materials are arranged in the plastic-steel layer, and aluminum material layers are arranged outside the plastic-steel layer. In this way, the two material layers are combined, so that the insulation performance of the plastic-steel doors and windows is improved. Well, the thermal conductivity of the plastic-steel doors and windows is improved. By inlaying the fire-proof glass into the plastic-steel door and window frame, the fire-proof glass is integrated into one, which can not only meet the premise of fire safety, but also reduce the use of metal frames and reduce production costs. In addition, the indoor lighting rate can be improved, and the beautiful scenery outside the glass can be better appreciated. The fireproof sealing strip can prevent the leakage or intrusion of internal and external media, and can prevent or reduce the damage caused by mechanical vibration and impact, so as to achieve sealing, reducing earthquake and fire protection.
2.在相邻的防火玻璃板之间通过防火胶填充缝隙，占据面积极小，施工极为简便，使三个防火玻璃之间的连接更加牢固，避免了第二防火玻璃分别与第一防火玻璃、第三防火玻璃之间出现脱落的现象。2. The gaps are filled with fireproof glue between the adjacent fireproof glass panels, occupying a small area, and the construction is extremely simple, which makes the connection between the three fireproof glasses more firm, and avoids the second fireproof glass and the first fireproof glass. , The phenomenon of falling off between the third fireproof glass.
3.氯化橡胶由于它具有优良的抗腐蚀性、阻燃性和具有较好的耐热性。3. Chlorinated rubber has excellent corrosion resistance, flame retardancy and good heat resistance.
4.聚氨酯密封条在生产制造等方面的应用越来越广泛，它能防漏、防油、防水、减震和防噪音，起到密封作用。4. Polyurethane sealing strips are more and more widely used in production and manufacturing. It can prevent leakage, oil, waterproof, shock absorption and noise, and play a sealing role.
附图说明Description of drawings

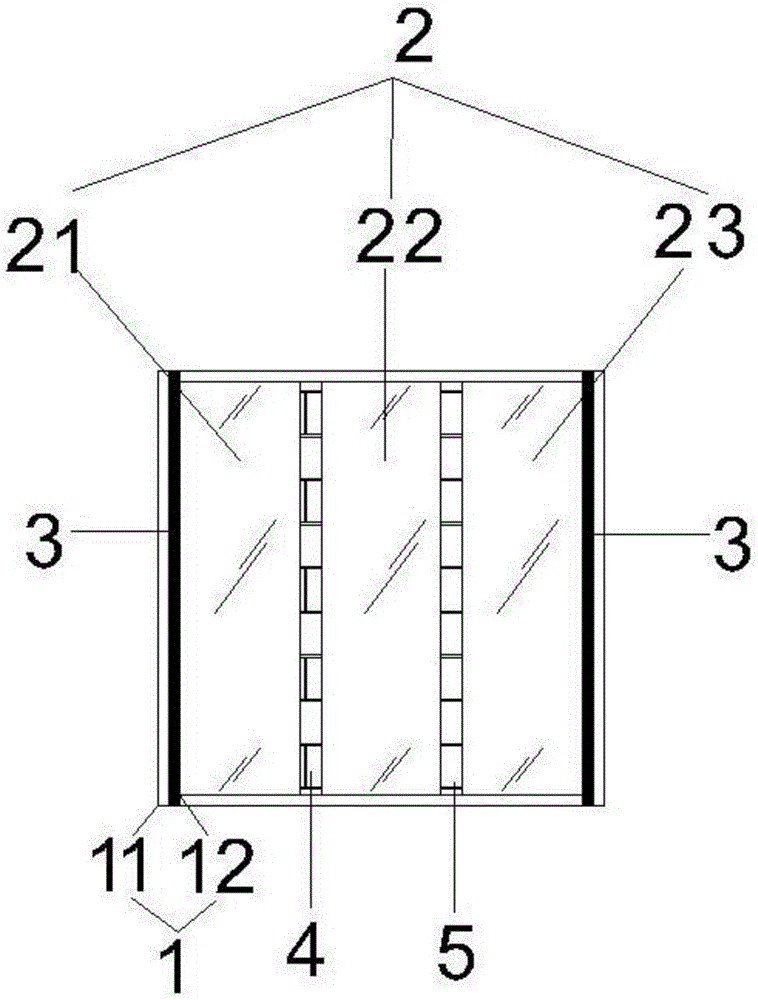

图1为防火塑钢门窗的结构示意图；Fig. 1 is the structural schematic diagram of fireproof plastic-steel doors and windows;
图2为塑钢门窗框的结构示意图；Fig. 2 is the structural representation of plastic-steel door and window frame;
其中1-塑钢门窗框、11-铝质材层、12-塑钢材层、2-防火玻璃板、21-第一防火玻璃、22-第二防火玻璃、23-第三防火玻璃、3-防火密封胶条、4-第一防火胶、5-第二防火胶。Among them, 1-plastic steel door and window frame, 11-aluminum material layer, 12-plastic steel layer, 2-fireproof glass plate, 21-first fireproof glass, 22-second fireproof glass, 23-third fireproof glass, 3-fireproof Sealing strip, 4-first fireproof glue, 5-second fireproof glue.
具体实施方式Detailed ways
下面将结合本发明实施例中的附图，对本发明实施例中的技术方案进行清楚、完整地描述，显然，所描述的实施例仅仅是本发明一部分实施例，而不是全部的实施例。以下实施例仅为了示例说明，不是对技术特征的组合方式进行限制，任何技术特征均可以跨实施例进行合理的第一防火玻璃组合。The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only a part of the embodiments of the present invention, but not all of the embodiments. The following embodiments are for illustrative purposes only, and are not intended to limit the combination of technical features. Any technical feature can be combined with a reasonable first fireproof glass across the embodiments.
如图1-2所示，本实用新型提供一种技术方案：防火塑钢门窗，包括塑钢门窗框1与防火玻璃板2，所述塑钢门窗框1上设有防火玻璃板2，所述塑钢门窗框1的第一层设有铝质材层11，塑钢门窗框1的第二层设有塑钢材层12，铝质材层11的内侧与塑钢材层12外侧紧贴，塑钢材层12内设有防火材料，塑钢门窗框1内镶嵌有第一防火玻璃21，第一防火玻璃21一侧并排安装有第二防火玻璃22，第二防火玻璃22一侧并排安装有第三防火玻璃23，还包括防火密封胶条3，塑钢门窗框1与防火玻璃板2通过防火密封胶条3连接。As shown in Figures 1-2, the present utility model provides a technical solution: fire-proof plastic-steel doors and windows, including plastic-steel door and
众所周知，塑钢门窗的隔热效果不佳，铝型材层不仅仅外形优美，经久耐用，而且密封性能也好，所以在塑钢材层12内设有防火材料，塑钢材层12外侧设置铝质材层11，这样一来两种材层结合，使得塑钢门窗绝缘性能好，提高了塑钢门窗的导热系数，通过将防火玻璃板2镶嵌到塑钢门窗框1内，使防火玻璃板2之间浑然一体,既能够满足防火安全性的前提下，能够减少使用的金属框架，降低生产成本，且在提高室内采光率，又能更好地欣赏到玻璃外的美景，防火密封胶条3能够防止内外介质泄露或侵入，能防止或减轻由于机械震动、冲击所造成的损伤，从而达到密封、减震和防火的作用。As we all know, the thermal insulation effect of plastic-steel doors and windows is not good. 11. In this way, the combination of the two material layers makes the insulation performance of the plastic-steel doors and windows good, and improves the thermal conductivity of the plastic-steel doors and windows. On the premise of satisfying fire safety, it can reduce the use of metal frames, reduce production costs, and improve indoor daylighting rate, and can better appreciate the beauty outside the glass. The
本实施例中，第一防火玻璃21与第二防火玻璃22连接处设有第一防火胶4，第二防火玻璃22与第三防火玻璃23连接处设有第二防火胶5。In this embodiment, the first
在相邻的防火玻璃板2之间通过防火胶填充缝隙，占据面积极小，施工极为简便，使三个防火玻璃之间的连接更加牢固，避免了第二防火玻璃22分别与第一防火玻璃21、第三防火玻璃23之间出现脱落的现象。The gaps between the adjacent
本实施例中，塑钢材层12内设有防火材料为氯化橡胶。In this embodiment, the fireproof material provided in the
氯化橡胶由于它具有优良的抗腐蚀性、阻燃性和具有较好的耐热性。Chlorinated rubber has excellent corrosion resistance, flame retardancy and good heat resistance.
本实施例中，防火密封胶条3为聚氨酯密封胶条。In this embodiment, the
聚氨酯密封条在生产制造等方面的应用越来越广泛，它能防漏、防油、防水、减震和防噪音，起到密封作用。Polyurethane sealing strips are more and more widely used in production and manufacturing. It can prevent leakage, oil, water, shock absorption and noise, and play a sealing role.
以上所述实施例仅表达了本实用新型的几种实施方式，其描述较为具体和详细，但并不能因此而理解为对本实用新型专利范围的限制。应当指出的是，对于本领域的普通技术人员来说，在不脱离本实用新型构思的前提下，还可以做出若干变形和改进，这些都属于本实用新型的保护范围。因此，本实用新型专利的保护范围应以所附权利要求为准。The above-mentioned embodiments only represent several embodiments of the present invention, and the descriptions thereof are specific and detailed, but should not be construed as limiting the scope of the present invention. It should be pointed out that for those of ordinary skill in the art, some modifications and improvements can be made without departing from the concept of the present invention, which all belong to the protection scope of the present invention. Therefore, the protection scope of the patent for this utility model shall be subject to the appended claims.
