Abstract

The utility model discloses a dust-proof polishing machine for lead glass, which relates to a polishing machine, which specifically comprises a base, a box body is fixedly installed on the base through supporting feet, and a recovery box is fixedly installed on the base under the box body , the inner fixed workbench of the box body, the middle part of the inner top surface of the box body is fixedly connected with the top end of an electric telescopic rod, the bottom end of the electric telescopic rod is fixedly connected with the middle part of the top surface of the motor shell, the motor A motor is fixedly installed in the shell by bolts, and the output shaft of the motor is fixedly connected to the middle of the top surface of the polishing disc, and the polishing disc is located directly above the workbench; a box door is installed on the front end surface of the box body. In the use process of the utility model, the consumption of the cooling liquid is reduced, the production cost of the enterprise is saved; the flying of dust is effectively avoided, and the environmental protection of the polishing machine is improved.

Description

A dust-proof polishing machine for lead glass

technical field

The utility model relates to a polishing machine, in particular to a dust-proof polishing machine for lead glass.

Background technique

Polishers, also known as grinders, are often used for mechanical grinding, polishing, and waxing. Its working principle is: the motor drives the sponge or wool polishing disc installed on the polishing machine to rotate at a high speed. Because the polishing disc and the polishing agent work together and rub against the surface to be polished, the paint pollution, oxide layer and shallow marks can be removed. Purpose. The rotating speed of the polishing disc is generally 1500-3000r/min, mostly infinitely variable, which can be adjusted at any time according to the needs during construction.

In the production process of lead glass, polishing machines are often used, and the existing polishing machines often cause unsuitable health hazards to the surrounding staff due to dust flying during the use process, and the environmental protection is poor.

Utility model content

The purpose of this utility model is to provide a dust-proof polishing machine for lead glass, so as to solve the problems raised in the above background technology.

To achieve the above object, the utility model provides the following technical solutions:

A dust-proof polishing machine for lead glass comprises a base, two ends of the upper surface of the base are respectively fixedly connected with the bottom end of a support foot, the top end of the support foot is respectively fixedly connected with both ends of the bottom surface of a box body, Below, a recovery box is installed on the upper surface of the base through bolts, the top of the recovery box is installed with a horizontal filter screen through bolts, and a circulating pump is installed at the bottom of one side of the recovery box through bolts. The output end of the circulating pump is connected to the circulating pipe. One end of the box is fixedly connected, the circulation pipe is fixedly installed on the side and top of the box through the pipe clamp, and several nozzles are evenly fixed and installed on the inner top of the box by bolts, and the nozzles are all connected with the circulation pipe;

The inner bottom surface of the box body is fixedly installed with a workbench, the two ends of the bottom surface of the workbench are respectively fixedly connected to the inner bottom surface of the box body through a fixing block, and a number of suction cups are evenly fixed on the workbench by glue, and the suction cups are all fixed with the fixed installation. The negative pressure pipe on the bottom surface of the workbench is connected, one end of the negative pressure pipe is fixedly connected with one end of the connecting pipe, and the other end of the connecting pipe extends out of the box and is fixedly connected with the suction end of the vacuum pump, and the vacuum pump is fixedly installed in the box by bolts on the outer wall;

The middle part of the inner top surface of the box is fixedly connected with the top end of an electric telescopic rod, and the bottom end of the electric telescopic rod is fixedly connected with the middle part of the top surface of the motor shell. The output shaft is fixedly connected to the middle of the top surface of the polishing disc, and the polishing disc is located just above the workbench;

A box door is installed on the front end surface of the box body.

As a further solution of the present invention, a plurality of vertical through holes are evenly opened at the bottom of the box body.

As a further solution of the present invention, the inner bottom surface of the recovery box is set as an inclined surface, and the bottom end of the inclined surface faces the circulating pump.

As a further solution of the present invention, the negative pressure pipe is fixedly installed on the bottom surface of the workbench through a pipe clamp.

As a further solution of the present invention, one side of the box door is hinged with one side of the box body through a hinge, and the other side of the box door is fixedly installed with a permanent magnet through glue.

As a further solution of the present invention: the box body is made of iron alloy.

Compared with the prior art, the beneficial effects of the present utility model are as follows: during the use of the present utility model, through the filtration and recycling of the cooling liquid, the consumption of the cooling liquid is greatly reduced, and the production cost of the enterprise is saved; The lead glass plate is adsorbed and fixed by the suction cup, and the operation is extremely simple and convenient to use when picking and placing the lead glass plate; during the polishing process, the polishing plate is cooled by the cooling liquid, which prolongs the service life of the polishing plate, and at the same time, the cooling liquid effectively avoids dust. Flying, improving the environmental protection of the polishing machine.

Description of drawings

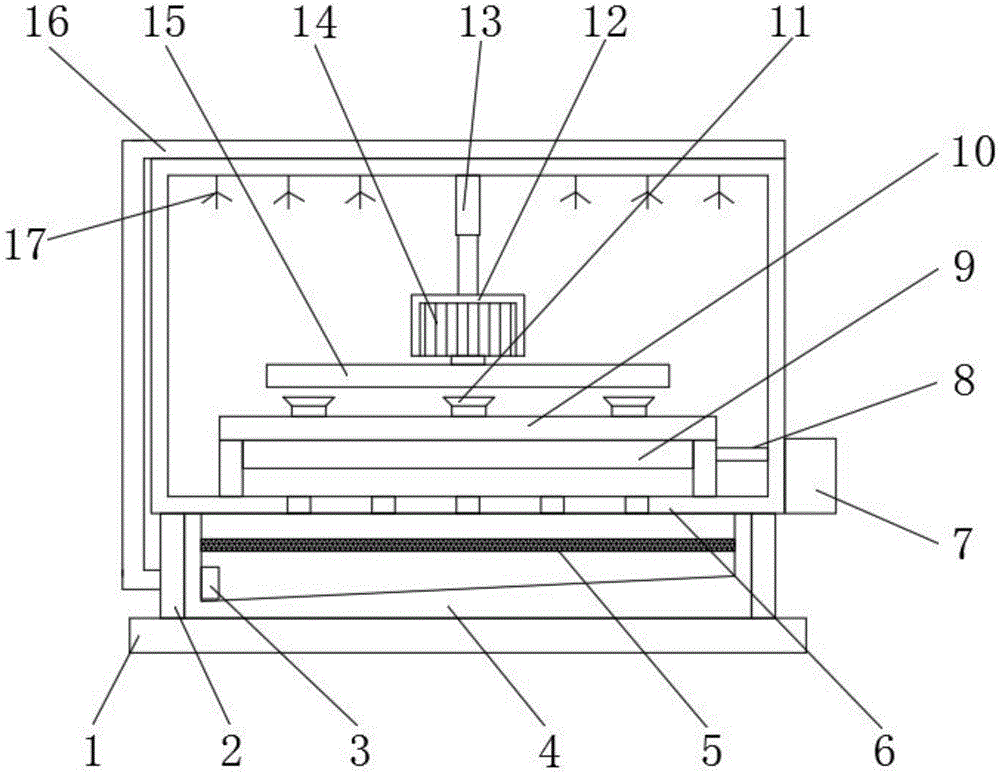

FIG. 1 is a schematic diagram of the internal structure of a dust-proof polishing machine for lead glass.

FIG. 2 is a schematic structural diagram of the exterior of a dust-proof polishing machine for lead glass.

As shown in the figure: base 1, support feet 2, circulating pump 3, recovery box 4, filter screen 5, box body 6, vacuum pump 7, connecting pipe 8, negative pressure pipe 9, workbench 10, suction cup 11, motor shell 12. Electric telescopic rod 13, electric motor 14, polishing disc 15, circulation pipe 16, spray head 17, box door 18, observation window 19.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

In the description of the present invention, it should be noted that the orientation or positional relationship indicated by the terms "upper", "lower", "inner", "outer", "top/bottom", etc. is based on the drawings shown in the drawings. The orientation or positional relationship is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and therefore should not be construed as a limit. Furthermore, the terms "first" and "second" are used for descriptive purposes only and should not be construed to indicate or imply relative importance.

In the description of the present invention, it should be noted that, unless otherwise expressly specified and limited, the terms "installation", "provided with", "sleeve/connection", "connection", etc., should be understood in a broad sense, such as "Connection" can be a fixed connection, a detachable connection, or an integral connection; it can be a mechanical connection or an electrical connection; it can be a direct connection or an indirect connection through an intermediate medium, and it can be two elements Internal connectivity. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood in specific situations.

Referring to FIGS. 1-2, in the embodiment of the present invention, a dust-proof polishing machine for lead glass includes a base 1, and both ends of the upper surface of the base 1 are respectively fixedly connected with the bottom end of a support foot 2, supporting The tops of the feet 2 are fixedly connected to the two ends of the bottom surface of the box body 6 respectively. The bottom of the box body 6 is evenly provided with a number of vertical through holes to facilitate the outflow of the cooling liquid through the through holes. The lower part of the box body 6 is on the upper surface of the base 1 The recovery box 4 is installed by bolts, the top of the recovery box 4 is installed with a horizontal filter screen 5 by bolts, and the bottom of one side of the recovery box 4 is installed with a circulation pump 3 by bolts. The circulation pump 3 is a submersible pump and is externally The power supply is powered, the output end of the circulating pump 3 is fixedly connected with one end of the circulating pipe 16, the circulating pipe 16 is fixedly installed on the side and top of the box 6 through the pipe clamp, and the inner bottom surface of the recovery box 4 is set as an inclined plane, and the bottom end of the inclined plane faces Circulating pump 3, so that it is convenient for the circulating pump 3 to discharge all the cooling liquid. Several nozzles 17 are evenly fixed and installed on the inner top of the box 6 through bolts. The nozzles 17 are all communicated with the circulating pipe 16. The cooling liquid is sprayed in 6, on the one hand, the polishing parts in the box 6 are cooled, and at the same time, the dust reduction operation is performed to avoid dust flying and improve the environmental protection of the polishing machine;

The inner bottom surface of the box body 6 is fixedly installed with a workbench 10, and the two ends of the bottom surface of the workbench 10 are respectively fixedly connected to the inner bottom surface of the box body 6 through a fixing block. A number of suction cups 11 are evenly fixed on the workbench 10 through glue. , the suction cups 11 are connected with the negative pressure pipe 9 fixedly installed on the bottom surface of the workbench 10, the negative pressure pipe 9 is fixedly installed on the bottom surface of the workbench 10 through the pipe clamp, and one end of the negative pressure pipe 9 is fixedly connected with one end of the connecting pipe 8, The other end of the connecting pipe 8 protrudes out of the box body 6 and is fixedly connected to the suction end of the vacuum pump 7. The vacuum pump 7 adopts the MNBENG model vacuum pump of the Dawel brand and the vacuum pump 7 is powered by an external power supply. The vacuum pump 7 is fixed on the box body 6 by bolts. When in use, the vacuum pump 7 is used to evacuate, so as to provide a negative pressure to the suction cup 11, and the lead glass is adsorbed and fixed on the workbench 10. When removing the lead glass, it is only necessary to stop the vacuum pump 7, which is convenient to use. ;

The middle of the inner top surface of the box body 6 is fixedly connected to the top of an electric telescopic rod 13, the bottom end of the electric telescopic rod 13 is fixedly connected to the middle of the top surface of the motor shell 12, and the electric telescopic rod 13 is powered by an external power supply. The motor 14 is fixedly installed in the motor housing 12 by bolts. The model of the motor 14 is Y132M-4 and the power supply port of the motor 14 is connected to the external power supply system through a switch. The output shaft of the motor 14 is fixedly connected to the middle of the top surface of the polishing disc 15. , the polishing disc 15 is located directly above the workbench 10. When in use, the motor housing 12 is driven to rise and fall by the electric telescopic rod 13, so that the motor housing 12 drives the motor 14 and the polishing disc 15 to lift and lower, and the motor 14 drives the polishing disc 15 to rotate. , so as to polish the lead glass fixed on the workbench 10, which is convenient to use;

A box door 18 is installed on the front end of the box body 6, one side of the box door 18 is hinged with one side of the box body 6 through a hinge, and the other side of the box door 18 is fixedly installed with a permanent magnet through glue. It is made of iron alloy, so that when the permanent magnet is close to the box body 6, the box door 18 can be adsorbed and fixed. The box door 18 is provided with an observation window 19, and transparent glass is fixedly installed in the observation window 19 through glue.

Although the present invention has been described in detail with reference to the foregoing embodiments, for those skilled in the art, it is still possible to modify the technical solutions described in the foregoing embodiments, or perform equivalent replacements for some of the technical features. Within the spirit and principle of the present invention, any modifications, equivalent replacements, improvements, etc. made should be included in the protection scope of the present invention, and the content not described in detail in this specification belongs to the professional in the field State of the art known to the skilled person.

Claims (6)

1. The utility model provides a lead glass is with dustproof burnishing machine, which comprises a base (1), a serial communication port, the upper surface both ends of base (1) respectively with the bottom fixed connection of a supporting legs (2), the top of supporting legs (2) respectively with the bottom surface both ends fixed connection of box (6), there is collection box (4) below box (6) at the upper surface of base (1) through bolt fixed mounting, there is horizontal filter screen (5) at the top of collection box (4) through bolt fixed mounting, there is circulating pump (3) one side bottom of collection box (4) through bolt fixed mounting, the output of circulating pump (3) and the one end fixed connection of circulating pipe (16), circulating pipe (16) pass through pipe strap fixed mounting in the side and the top of box (6), there are a plurality of shower nozzle (17) at the inside top of box (6) through even fixed mounting of bolt, the spray heads (17) are communicated with the circulating pipe (16);

a workbench (10) is fixedly installed on the inner bottom surface of the box body (6), two ends of the bottom surface of the workbench (10) are fixedly connected with the inner bottom surface of the box body (6) through a fixing block respectively, a plurality of suckers (11) are uniformly fixed on the workbench (10) through glue, the suckers (11) are communicated with a negative pressure pipe (9) fixedly installed on the bottom surface of the workbench (10), one end of the negative pressure pipe (9) is fixedly connected with one end of a connecting pipe (8), the other end of the connecting pipe (8) extends out of the box body (6) and is fixedly connected with an air exhaust end of a vacuum pump (7), and the vacuum pump (7) is fixedly installed on the outer wall of the box body (6) through bolts;

the middle of the top surface of the interior of the box body (6) is fixedly connected with the top end of an electric telescopic rod (13), the bottom end of the electric telescopic rod (13) is fixedly connected with the middle of the top surface of a motor shell (12), a motor (14) is fixedly installed in the motor shell (12) through bolts, an output shaft of the motor (14) is fixedly connected with the middle of the top surface of a polishing disc (15), and the polishing disc (15) is positioned right above the workbench (10);

and a box door (18) is arranged on the front end surface of the box body (6).

2. The dustproof polishing machine for lead glass according to claim 1, wherein a plurality of vertical through holes are uniformly formed in the bottom of the box body (6).

3. The dust-proof polishing machine for lead glass according to claim 1, characterized in that the inner bottom surface of the recycling box (4) is provided with a slope, and the bottom end of the slope faces the circulating pump (3).

4. The dust-proof polishing machine for lead glass according to claim 1, characterized in that the negative pressure tube (9) is fixedly mounted on the bottom surface of the workbench (10) through a tube clamp.

5. The dust-proof polishing machine for lead glass according to claim 1, characterized in that one side of the box door (18) is hinged with one side of the box body (6) through a hinge, and the other side of the box door (18) is fixedly provided with a permanent magnet through glue.

6. The dust-proof polishing machine for lead glass according to claim 1, characterized in that the box body (6) is made of iron alloy.
