CN211541355U

CN211541355U - High-efficient slicer is used in dehydrated vegetable production

Info

Publication number: CN211541355U
Application number: CN201922312452.4U
Authority: CN
Inventors: 王益林; 王爱凤; 王俊; 张伟; 陈美琴
Original assignee: Xinghua Dalin Foods Co ltd
Current assignee: Xinghua Dalin Foods Co ltd
Priority date: 2019-12-20
Filing date: 2019-12-20
Publication date: 2020-09-22
Anticipated expiration: 2029-12-20

Abstract

The utility model discloses a high-efficiency slicing machine for producing dehydrated vegetables, which comprises a workbench, a slicing box and a cutter; a workbench: four groups of supporting legs are distributed at the bottom end of the workbench in an array mode, a first electric push rod is mounted on the front side of the top end of the workbench, the telescopic end of the first electric push rod is connected with a slicing box, the slicing box is a steel box body, a feeding hole is formed in the left side face of the slicing box, a feeding pipe is arranged at the position, located at the feeding hole, of the workbench, a first cutter groove is formed in the top end of the slicing box, a sliding rail is mounted at the top end of the workbench, and the bottom end of the slicing box is connected with the sliding rail in a; cutting tool: two sets of electric putter two are installed to the rear side on workstation top, the flexible end at electric putter two is installed to the cutter, and the cutter comprises the blade installation, the utility model provides a high-efficient slicer is used in dehydrated vegetable production, dehydrated vegetable is difficult for being minced, and the piece that surely goes out beautifully spends highly, and it is efficient to cut into slices.

Description

High-efficient slicer is used in dehydrated vegetable production

Technical Field

The utility model relates to a dehydrated vegetable section technical field specifically is a dehydrated vegetable production uses high-efficient slicer.

Background

The dewatered vegetable is a dried vegetable made up by washing and drying fresh vegetable and removing most of water from vegetable, and features that its original colour and nutrients are basically unchanged, so it can be easily stored and transported, and can be used for regulating the season of vegetable production

The slicing machine is convenient to store, when a traditional slicing machine slices, the cutter cuts vegetables, a repeated cutting method is adopted for a plurality of times, the transmission device is utilized to drive the vegetables to move, the vegetables are easily adhered to the cutter, and the vegetables are easily cut up due to repeated cutting, so that the attractiveness of the vegetable slicing is influenced, and the slicing efficiency is improved.

SUMMERY OF THE UTILITY MODEL

The to-be-solved technical problem of the utility model is to overcome current defect, provide a high-efficient slicer is used in dehydrated vegetable production, dehydrated vegetable is difficult by the comminution, the difficult adhesion vegetables of cutter, the vegetables piece of cutting out is beautifully spent, and it is efficient to cut into slices, can effectively solve the problem in the background art.

In order to achieve the above object, the utility model provides a following technical scheme: a high-efficiency slicing machine for producing dehydrated vegetables comprises a workbench, a slicing box and a cutter;

a workbench: four groups of supporting legs are distributed at the bottom end of the workbench in an array mode, a first electric push rod is mounted on the front side of the top end of the workbench, the telescopic end of the first electric push rod is connected with a slicing box, the slicing box is a steel box body, a feeding hole is formed in the left side face of the slicing box, a feeding pipe is arranged at the position, located at the feeding hole, of the workbench, a first cutter groove is formed in the top end of the slicing box, a sliding rail is mounted at the top end of the workbench, and the bottom end of the slicing box is connected with the sliding rail in a;

cutting tool: two groups of electric push rods II are mounted on the rear side of the top end of the workbench, the cutter is mounted at the telescopic end of each electric push rod II and consists of blades, the cutter groove I corresponds to the size of the cutter, an inverted U-shaped plate is arranged at the position, below the cutter, of the top end of the workbench, and a cutter groove II corresponding to the cutter is arranged at the top end of the inverted U-shaped plate;

the single-chip microcomputer is installed at the top end of the workbench, the input end of the single-chip microcomputer is electrically connected with the output end of an external power supply, and the input end of the single-chip microcomputer is electrically connected with the output ends of the first electric push rod and the second electric push rod.

Further, still include left baffle and telescopic link, two sets of parallel distribution's spout one is seted up to the left side inner wall of the template of falling U, is equipped with the telescopic link in the spout one, the flexible end of telescopic link is connected with the draw runner one of left baffle lateral surface, and the spring has been cup jointed to the side of telescopic link, draw runner one and spout sliding connection, and left baffle is the L template, the trailing flank of section case is equipped with the recess that corresponds with left baffle, utilizes left baffle can seal the left surface of section case, avoids spilling at section in-process vegetable piece, can accomplish the back through the spring and reset left baffle after the cutting.

Further, still include magnet bottom plate, discharging channel and vegetable box, the magnet bottom plate is the L template, and adsorbs in the bottom of slice case, the bottom and the slide rail sliding connection of magnet bottom plate, the leading flank of slice case is equipped with the adsorption tank of fixing the usefulness with the magnet bottom plate, discharging channel installs the trailing flank at the template of falling U, spout two has been seted up to the right side inner wall of the template of falling U and discharging channel, the right flank of slice case is equipped with the draw runner two that corresponds with spout two, and runs out the leading flank of material passageway with one in the spout on the template of falling U, draw runner two and two sliding connection of spout, the vegetable box is located discharging channel's below, and the magnet bottom plate can be opened to utilize discharging channel, unsettled with the magnet bottom plate, be convenient for open the unloading of magnet bottom plate.

Further, still include the limiting plate, the limiting plate is installed at the trailing flank of the template of falling the U, and is located the trailing flank of slide rail, and the height of limiting plate is the same with the thickness of magnet bottom plate, through the limiting plate, can restrict the magnet bottom plate, makes the section case after getting into ejection of compact pipeline, and the magnet bottom plate is blockked, realizes the unloading function automatically.

Further, discharge channel's trailing flank is equipped with fixed stop, and fixed stop is the same with the length of section case apart from the distance of falling U template trailing flank, utilizes fixed stop can restrict the displacement distance of section case, falls into the vegetable incasement with inside slice vegetables under the action of gravity and preserves.

Compared with the prior art, the beneficial effects of the utility model are that: this high-efficient slicer is used in dehydrated vegetable production has following benefit:

this high-efficient slicer is used in dehydrated vegetable production simple structure utilizes the inlet pipe and the cooperation of outside feed mechanism to through ejection of compact pipeline, can high efficiency slice dehydrated vegetable, and fashioned slice vegetables beautifully spend highly, cut up the rate low, and sliced high quality, utilize sword groove one and sword groove two can scrape out the vegetable piece of adhesion on the cutter, utilize movable magnet bottom plate, the cooperation limiting plate can realize automatic unloading process, has improved sliced efficiency.

Drawings

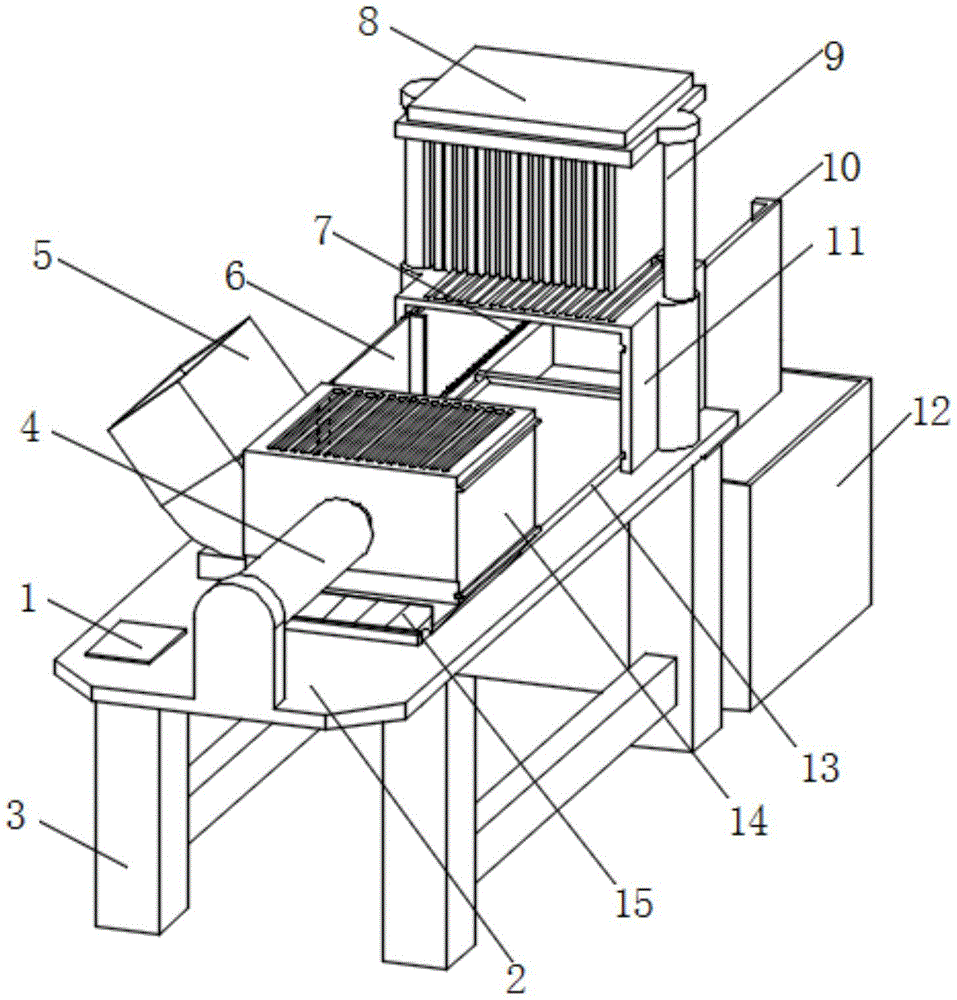

FIG. 1 is a schematic structural view of the present invention;

fig. 2 is a schematic view of the left side structure of the present invention.

In the figure: 1 singlechip, 2 workstations, 3 supporting legs, 4 electric putter one, 5 inlet pipes, 6 left baffles, 7 telescopic links, 8 cutters, 9 electric putter two, 10 discharge passage, 11 inverted U-shaped boards, 12 vegetable boxes, 13 slide rails, 14 slicing boxes, 15 magnet bottom plates, 16 limiting plates.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-2, the present invention provides a technical solution: a high-efficiency slicing machine for producing dehydrated vegetables comprises a workbench 2, a slicing box 14 and a cutter 8;

the working table 2: four groups of supporting legs 3 are distributed at the bottom end of the workbench 2 in an array mode, an electric push rod I4 is installed on the front side of the top end of the workbench 2, the telescopic end of the electric push rod I4 is connected with a slicing box 14 and can drive the slicing box 14 to reciprocate and provide power support, the slicing box 14 is a steel box body, a feeding hole is formed in the left side face of the slicing box 14, a feeding pipe 5 is arranged at the position, located at the feeding hole, of the workbench 2, automatic feeding can be achieved through matching of a discharging pipe 5 and an external feeding device, vegetables can also be added manually, a cutter groove I is formed in the top end of the slicing box 14, a sliding rail 13 is installed at the top end of the workbench 2, the bottom end of the slicing box 14 is connected with the sliding rail 13 in a sliding mode, pressure of the electric;

the cutter 8: two groups of electric push rods II 9 are installed on the rear side of the top end of the workbench 2, a cutter 8 is installed at the telescopic end of the electric push rods II 9, the cutter 8 can be driven to reciprocate up and down through the electric push rods II 9 so as to slice vegetables, the cutter 8 is formed by installing blades, a cutter groove I corresponds to the size of the cutter 8, a plurality of groups of blades are distributed in parallel, all the vegetables in the slicing box 14 can be cut into slices at one time, the working efficiency is high, the probability of vegetable chopping can be reduced, the attractiveness of the cut vegetable slices is high, an inverted U-shaped plate 11 is arranged at the position, below the cutter 8, of the top end of the workbench 2, a cutter groove II corresponding to the cutter 8 is arranged at the top end of the inverted U-shaped plate 11, the inverted U-shaped plate 11 can be connected with the slicing box 14 in a sliding mode, the position of the slicing box 14 is limited, the left baffle 6 and, the slide groove I is internally provided with an expansion link 7, the expansion end of the expansion link 7 is connected with a slide bar I on the outer side surface of the left baffle 6, the side surface of the expansion link 7 is sleeved with a spring, the slide bar I is in sliding connection with the slide groove I, the left baffle 6 can be automatically reset by utilizing the elasticity of the spring, the left baffle 6 is reset, the left baffle 6 is an L-shaped plate, the rear side surface of the slice box 14 is provided with a groove corresponding to the left baffle 6, the groove props against the left baffle 6 when the slice box 14 moves forwards and drives the left baffle 6 to move, the spring is compressed and is used for resetting the left baffle 6, the slide block further comprises a magnet bottom plate 15, a discharge channel 10 and a vegetable box 12, the magnet bottom plate 15 is an L-shaped plate and is adsorbed at the bottom end of the slice box 14, the bottom of the magnet bottom plate 15 is in sliding connection with a slide rail 13, the front side surface of the slice box 14 is provided with an adsorption groove for, moving along with the vegetable box, the discharging channel 10 is arranged on the rear side surface of the inverted U-shaped plate 11, a fixed baffle is arranged on the rear side surface of the discharging channel 10, the distance between the fixed baffle and the rear side surface of the inverted U-shaped plate 11 is the same as the length of the slicing box 14 and is used for limiting the farthest distance of the slicing box 14, a second sliding groove is formed in the right inner walls of the inverted U-shaped plate 11 and the discharging channel 10, a second sliding strip corresponding to the second sliding groove is arranged on the right side surface of the slicing box 14 and can be kept stable after leaving the sliding rail 13, the sliding groove on the inverted U-shaped plate 11 penetrates through the front side surface of the discharging channel 10, the second sliding strip is in sliding connection with the second sliding groove, the vegetable box 12 is positioned below the discharging channel 10 and is used for storing sliced and automatically-discharged flaky vegetables, the vegetable box further comprises a limiting plate 16, the limiting plate 16 is arranged on the rear side surface of the inverted U-shaped plate, when the magnet bottom plate 15 advances, the magnet bottom plate touches the limiting plate 16, the slicing box 14 continues to advance, the magnet bottom plate 15 is slowly separated from the slicing box 14, and the flaky vegetables fall into the vegetable box 12 in the slicing box 14;

the electric push rod type workbench comprises a workbench 2, and is characterized by further comprising a single chip microcomputer 1, wherein the single chip microcomputer 1 is installed at the top end of the workbench 2, the input end of the single chip microcomputer 1 is electrically connected with the output end of an external power supply, and the input end of the single chip microcomputer 1 is electrically connected with the output ends of a first electric push rod 4 and a second electric push rod 9.

When in use: an external power supply is switched on, dehydrated vegetables are added from a feeding pipe 5 and spread at the bottom end of a slicing box 14, a magnet bottom plate 15 is adsorbed at the bottom end of the slicing box 14, an electric push rod I4 is started to drive the slicing box 14 to move towards a cutter 8, meanwhile, under the adsorption of magnetic force, the magnet bottom plate 15 moves forwards along with the slice box, the rear side surface of the slicing box 14 is contacted with a left baffle 6 and drives the left baffle 6 to slide along the inner wall of an inverted U-shaped plate 11 to enter the bottom end of the inverted U-shaped plate 11, an electric push rod II 9 is shortened to drive the cutter 8 to enter the slicing box 14 to cut the vegetables, then, the electric push rod II 9 extends to lift the cutter 8, the slicing box 14 continues to move forwards under the action of the electric push rod I4 and enters a discharge pipeline 10, at the moment, the magnet bottom plate 15 touches a limiting plate 16 and is slowly separated from the slicing box 14, the sliced vegetables in, and finishing the slicing of the dehydrated vegetables.

It should be noted that the model of the single chip microcomputer 1 disclosed in this embodiment is STC89C52, the preferred model of the electric push rod two 9 is DT700, the preferred model of the electric push rod one 4 is DT5000, and the method commonly used in the prior art is adopted by the single chip microcomputer 1 to control the electric push rod two 9 and the electric push rod one 4 to work.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a production of dehydrated vegetable uses high-efficient slicer which characterized in that: comprises a workbench (2), a slicing box (14) and a cutter (8);

table (2): four groups of supporting legs (3) are distributed at the bottom end of the workbench (2) in an array mode, a first electric push rod (4) is installed on the front side of the top end of the workbench (2), the telescopic end of the first electric push rod (4) is connected with a slicing box (14), the slicing box (14) is a steel box body, a feeding hole is formed in the left side face of the slicing box (14), a feeding pipe (5) is arranged at the position, located at the feeding hole, of the workbench (2), a first cutter groove is formed in the top end of the slicing box (14), a sliding rail (13) is installed at the top end of the workbench (2), and the bottom end of the slicing box (14) is connected with the sliding rail (13) in a sliding;

tool (8): two groups of electric push rods II (9) are mounted on the rear side of the top end of the workbench (2), the cutter (8) is mounted at the telescopic end of the electric push rods II (9), the cutter (8) is formed by mounting blades, the cutter groove I corresponds to the cutter (8) in size, an inverted U-shaped plate (11) is arranged at the position, below the cutter (8), of the top end of the workbench (2), and a cutter groove II corresponding to the cutter (8) is arranged at the top end of the inverted U-shaped plate (11);

the electric power tool is characterized by further comprising a single chip microcomputer (1), wherein the single chip microcomputer (1) is installed at the top end of the workbench (2), the input end of the single chip microcomputer (1) is electrically connected with the output end of an external power supply, and the input end of the single chip microcomputer (1) is electrically connected with the output ends of the electric push rod I (4) and the electric push rod II (9).

2. The efficient slicer for producing dehydrated vegetables according to claim 1, wherein: still include left baffle (6) and telescopic link (7), two sets of parallel distribution's spout one is seted up to the left side inner wall of the template of falling U (11), is equipped with telescopic link (7) in the spout one, the flexible end of telescopic link (7) is connected with the draw runner one of left baffle (6) lateral surface, and the spring has been cup jointed to the side of telescopic link (7), draw runner one and a spout sliding connection, and left baffle (6) are the L template, the trailing flank of slicer case (14) is equipped with the recess that corresponds with left baffle (6).

3. The efficient slicer for producing dehydrated vegetables according to claim 2, wherein: still include magnet bottom plate (15), discharging channel (10) and vegetable box (12), magnet bottom plate (15) are the L template, and adsorb in the bottom of slicer case (14), the bottom and slide rail (13) sliding connection of magnet bottom plate (15), the leading flank of slicer case (14) is equipped with the adsorption tank of fixing usefulness with magnet bottom plate (15), discharging channel (10) are installed in the trailing flank of falling U template (11), spout two has been seted up to the right side inner wall of falling U template (11) and discharging channel (10), the right flank of slicer case (14) is equipped with the draw runner two that corresponds with spout two, and falls the leading flank of one-tenth wearing out material channel (10) of spout on U template (11), draw runner two and two sliding connection of spout, vegetable box (12) are located the below of discharging channel (10).

4. The efficient slicer for producing dehydrated vegetables according to claim 3, wherein: the magnet bottom plate is characterized by further comprising a limiting plate (16), wherein the limiting plate (16) is installed on the rear side face of the inverted U-shaped plate (11) and located on the rear side face of the sliding rail (13), and the height of the limiting plate (16) is the same as the thickness of the magnet bottom plate (15).

5. The efficient slicer for producing dehydrated vegetables according to claim 3, wherein: the rear side face of the discharging channel (10) is provided with a fixed baffle, and the distance from the fixed baffle to the rear side face of the inverted U-shaped plate (11) is the same as the length of the slicing box (14).
