Abstract
The utility model discloses a double-gear reducer five-axis machining device for workpiece production, which comprises a bottom plate, wherein a vertical plate is fixedly arranged on one side of the upper surface of the bottom plate, a first driving component is fixedly arranged on one side of the vertical plate, a hydraulic tailstock is fixedly arranged on one side of the upper surface of the bottom plate, which is far away from the vertical plate, a mechanical chuck is rotatably arranged between the hydraulic tailstock and the driving component, a second driving component is fixedly arranged on the bottom of the mechanical chuck, the first driving component comprises a first servo motor and a first gear reducer, the gear reducer is fixedly connected with an output shaft end of the servo motor through an expansion sleeve, the gear reducer and the hydraulic tailstock are respectively fixedly connected with two sides of the mechanical chuck, the second driving component comprises a second servo motor and a second gear reducer, a first base and a second base are respectively fixedly arranged on two sides of a transition plate, the application range is wide, five-axis linkage is realized, and the production efficiency is improved.
Description
Technical Field
The utility model relates to a work piece processing technology field specifically is a double gear reduction unit five-axis machining device is used in work piece production.
Background
The machine tool is a symbol of the national manufacturing industry level, represents the highest boundary of the machine tool manufacturing industry and is a five-axis linkage numerical control machine tool system, and can be suitable for machining modern dies such as automobile parts, airplane structural parts and the like.
The existing five-axis linkage machining center has the characteristics of high efficiency and high precision, and complex machining can be finished by clamping a workpiece once. For some large-scale workpieces with complex curved surfaces or local angles, the angle of the processing cutter is inconvenient to adjust during processing, and the production efficiency is reduced; and increases the procurement costs incurred for the production of the above-described complex parts.
SUMMERY OF THE UTILITY MODEL
The utility model aims at providing a double gear reducer five-axis machining device for workpiece production, which is provided with a group of servo motors to drive a mechanical chuck to rotate by different angles, thereby meeting the requirement of multi-surface machining of workpieces and having wide application range; a group of servo motors are also arranged at the bottom of the mechanical chuck, the workpiece is rotated at different angles, and when the servo motors are used for machining, the two groups of servo motors are started to adjust the machining position of the workpiece, so that five-axis linkage is realized, the production efficiency is improved, and the problems in the background art are solved.
In order to achieve the above object, the utility model provides a following technical scheme: a five-axis machining device of a double-gear speed reducer for workpiece production comprises a bottom plate, wherein a vertical plate is fixedly arranged on one side of the upper surface of the bottom plate, a first driving assembly is fixedly arranged on one side of the vertical plate, a hydraulic tailstock is fixedly arranged on one side of the upper surface of the bottom plate, which is far away from the vertical plate, a mechanical chuck is rotatably arranged between the hydraulic tailstock and the first driving component, a second driving component is fixedly arranged at the bottom of the mechanical chuck, the first driving assembly comprises a first servo motor and a first gear reducer, the first gear reducer is fixedly connected with an output shaft end of the first servo motor through an expansion sleeve, the gear reducer and the hydraulic tailstock are respectively and fixedly connected with two sides of the mechanical chuck, the second driving assembly comprises a second servo motor and a second gear reducer, and the second gear reducer is also fixedly connected with the output shaft end of the second servo motor through an expansion sleeve.
Preferably, the output end of the second gear reducer is fixedly provided with a transition plate, two sides of the transition plate are respectively and fixedly provided with a first base and a second base, the hydraulic tailstock is fixedly arranged on one side of the first base, and the second gear reducer is rotatably connected with the second base.
Preferably, a hydraulic cylinder is arranged in the hydraulic tailstock, and a cushion block is fixedly connected between the hydraulic tailstock and the bottom plate.
Preferably, a first protective cover is fixedly arranged outside the second servo motor below the transition plate.
Preferably, a second protective cover is fixedly mounted outside the first servo motor.
Preferably, the second base is fixedly connected with the first gear reducer.
Compared with the prior art, the beneficial effects of the utility model are that:
1. a group of servo motors is arranged to drive the mechanical chuck to rotate by different angles, so that the requirement of machining multiple surfaces of a machined part is met, and the application range is wide;
2. a group of servo motors are also arranged at the bottom of the mechanical chuck, the workpiece is rotated at different angles, and when the servo motors are used for machining, the two groups of servo motors are started to adjust the machining position of the workpiece, so that five-axis linkage is realized, and the production efficiency is improved.
Drawings

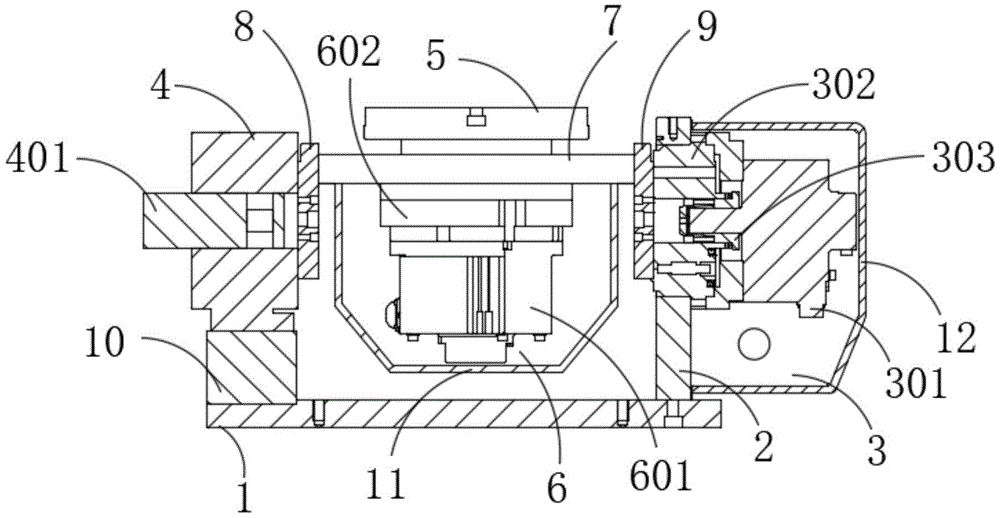

Fig. 1 is a schematic view of the structure of the present invention;
fig. 2 is a schematic perspective view of the present invention;
fig. 3 is a schematic top view of the present invention.
In the figure: 1. a base plate; 2. a vertical plate; 3. a first drive assembly; 301. a first servomotor; 302. a first gear reducer; 303. expanding and tightening the sleeve; 4. a hydraulic tailstock; 401. a hydraulic cylinder; 5. a mechanical chuck; 6. a second drive assembly; 601. a second servo motor; 602. a second gear reducer; 7. a transition plate; 8. a first base; 9. a second base; 10. cushion blocks; 11. a first protective housing; 12. a second protective enclosure.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-3, the present invention provides a technical solution: a double-gear reducer five-axis machining device for workpiece production comprises a base plate 1, wherein the base plate 1 is used for fixedly connecting a five-axis fixing device with a machine tool machining base plane; the vertical plate 2 is fixedly mounted on one side of the upper surface of the bottom plate 1, the first driving assembly 3 is fixedly mounted on one side of the vertical plate 2, the hydraulic tailstock 4 is fixedly mounted on one side of the vertical plate 2 and is far away from the upper surface of the bottom plate 1, the mechanical chuck 5 is arranged between the hydraulic tailstock 4 and the first driving assembly 3, the second driving assembly 6 is fixedly mounted at the top of the mechanical chuck 5, the mechanical chuck 5 is connected with the second servo motor 601, the workpiece can be conveniently driven to rotate, and the vertical plate type machining tool is suitable for large-scale machining parts with complicated curved surfaces or local.
Referring to fig. 1 and 2, a transition plate 7 is fixedly mounted at an output end of a second gear reducer 602, a first base 8 and a second base 9 are respectively fixedly mounted at two sides of the transition plate 7, a hydraulic tailstock 4 is fixedly mounted at one side of the first base 8, the second gear reducer 602 is rotatably connected with the second base 9, a first protective housing 11 is fixedly mounted at the outside of a second servo motor 601 below the transition plate 7, a second protective housing 12 is fixedly mounted at the outside of the first servo motor 301, and the first protective housing 11 and the second protective housing 12 are arranged to protect the mechanical chuck 5 and the first servo motor 301, so that the service life of the mechanical chuck is prolonged.
Referring to fig. 1 and 3, the first driving assembly 3 includes a first servo motor 301 and a first gear reducer 302, the first gear reducer 302 is fixedly connected to an output shaft of the first servo motor 301 through an expansion sleeve 303, the first gear reducer 302 and the hydraulic tailstock 4 are respectively and fixedly connected to two sides of the mechanical chuck 5, the first driving assembly 3 includes the first servo motor 301 and the first gear reducer 302, during installation, the first gear reducer 302 is fixedly installed on one side of the vertical plate 2, and then the first servo motor 301 is fixedly connected to the first gear reducer 302, so that the installation is convenient; a hydraulic cylinder 401 is arranged in the hydraulic tailstock 4, a cushion block 10 is fixedly connected between the hydraulic tailstock 4 and the bottom plate 1, and the cushion block 10 is used for ensuring the installation straightness of the hydraulic tailstock 4, the mechanical chuck 5 and the first servo motor 301, so that the machining precision is ensured; the second base 9 is fixedly connected with the first gear reducer 302.
The structure principle is as follows: the first servo motor 301 and the first gear reducer 302 are arranged to drive the mechanical chuck 5 to rotate by different angles, the first servo motor 301 is started to drive the first gear reducer 302 to drive the mechanical chuck 5 to rotate, fixing of any angle of the mechanical chuck 5 can be achieved, the requirement of multi-surface machining of a machined part is met, and the application range is wide;
the second servo motor 601 and the second gear reducer 602 are installed at the bottom of the mechanical chuck 5 and are matched with the first servo motor 301, so that the mechanical chuck 5 rotates at any angle, and during machining, the first servo motor 301 and the second servo motor 601 are started simultaneously to adjust different machining stations for machining workpieces, five-axis linkage is realized, and the production efficiency is improved.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (5)
1. The utility model provides a workpiece production is with double gear reduction gear five-axis machining device, includes bottom plate (1), its characterized in that: a vertical plate (2) is fixedly installed on one side of the upper surface of the bottom plate (1), a first driving assembly (3) is fixedly installed on one side of the vertical plate (2), a hydraulic tailstock (4) is fixedly installed on one side, far away from the vertical plate (2), of the upper surface of the bottom plate (1), a mechanical chuck (5) is rotatably installed between the hydraulic tailstock (4) and the first driving assembly (3), and a second driving assembly (6) is fixedly installed at the bottom of the mechanical chuck (5); the first driving assembly (3) comprises a first servo motor (301) and a first gear reducer (302), the first gear reducer (302) is fixedly connected with an output shaft end of the first servo motor (301) through an expansion sleeve (303), and the first gear reducer (302) and the hydraulic tailstock (4) are respectively and fixedly connected to two sides of the mechanical chuck (5); the second driving assembly (6) comprises a second servo motor (601) and a second gear reducer (602), and the second gear reducer (602) is also fixedly connected with the output shaft end of the second servo motor (601) through the expansion sleeve (303).
2. The five-axis machining device for the double-gear speed reducer used for workpiece production according to claim 1, characterized in that: the output end of the second gear reducer (602) is fixedly provided with a transition plate (7), two sides of the transition plate (7) are respectively fixedly provided with a first base (8) and a second base (9), the hydraulic tailstock (4) is fixedly arranged on one side of the first base (8), the second gear reducer (602) is rotatably connected with the second base (9), and the second base (9) is fixedly connected with the first gear reducer (302).
3. The five-axis machining device for the double-gear speed reducer used for workpiece production according to claim 1, characterized in that: a hydraulic cylinder (401) is arranged in the hydraulic tailstock (4), and a cushion block (10) is fixedly connected between the hydraulic tailstock (4) and the bottom plate (1).
4. The five-axis machining device for the double-gear speed reducer used for workpiece production according to claim 2, characterized in that: and a first protective cover shell (11) is fixedly arranged below the transition plate (7) and outside the second servo motor (601).
5. The five-axis machining device for the double-gear speed reducer used for workpiece production according to claim 1, characterized in that: and a second protective cover shell (12) is fixedly arranged outside the first servo motor (301).
