The utility model relates to the field of machining equipment, and discloses a burr grinding device for machine manufacturing, which comprises a machining base, wherein a through groove is arranged on the machining base, a grinding wheel is fixed in the through groove, filter tanks are respectively arranged at two sides of the grinding wheel, a collecting box is respectively arranged at the bottom of the filter tanks and is movably connected below the base through a T-shaped clamping groove arranged at the side surface of the base, a filter screen is arranged on the filter tanks, a fixing device is arranged at the other side of one filter tank, the fixing device is arranged on a fixing plate, the fixing device is arranged on one side of the grinding wheel, a connecting rod is hinged with a support frame by utilizing the fixing device, so that the connecting rod can be adjusted up and down, a movable rod is movably connected at the bottom of the connecting rod, a positioning groove is arranged at the position of the movable rod corresponding to the connecting rod, and, and the connecting rod is pressed downwards, so that the grinding wheel polishes the workpiece, the labor is saved, and the safety of operators is improved.
Description
Technical Field
The utility model relates to a machining equipment field specifically is a burr grinder for machine-building.
Background
Burrs on mechanical parts are caused by plastic deformation in the cutting process; some are flashes for casting, die forging, etc., and some are welding extrusion residues. Deburring is the removal of burrs or flashes formed at the intersection of the face and the face of a part. The harmfulness of the burrs is particularly obvious, people pay more attention to the harmfulness of the burrs gradually, and research on a generation mechanism and a removal method of the burrs is started.
Traditional putting the work piece on the abrasive machine through artifical handheld clamping tool and polishing, but long-time handheld tool not only can't polish to fixed angle, and long-time handheld leads to finger muscle stiffness numb easily moreover, produces painful sense, is unfavorable for carrying out work, seriously can cause the production accident even. Therefore, the burr grinding device for machine manufacturing is designed.
SUMMERY OF THE UTILITY MODEL
Not enough to prior art, the utility model provides a burr grinder for machine-building solves the problem of proposing among the above-mentioned background art.
In order to achieve the above purpose, the utility model adopts the technical scheme that:
a burr grinding device for machine manufacturing comprises a processing base, a grinding wheel and a fixing device, wherein a through groove is formed in the processing base, the grinding wheel is fixed in the through groove, filter tanks are respectively arranged on two sides of the grinding wheel, filter screens are arranged on the filter tanks, the fixing device is arranged on the other side of one of the filter tanks, the fixing device is arranged on a fixing plate, the fixing device comprises a support frame, a connecting rod and a movable rod, the fixing plate is fixed on the processing base through bolts, the support frame is arranged at one end of the fixing plate, the top of the support frame is hinged with one end of the connecting rod through a rotating shaft, a groove is formed in the bottom of the connecting rod, a fixing shaft is vertically arranged at one end of the groove, two ends of the fixing shaft respectively extend to two sides of the connecting rod, the movable rod is an L-shaped rod, a, the two sides of the movable rod are provided with torsion springs, the torsion springs are sleeved on the outer surface of the fixed shaft, one ends of the torsion springs are connected to the fixed shaft, the other ends of the torsion springs are fixed on the side surfaces of the movable rod, and the top of the movable rod and the bottom of the connecting rod are respectively provided with a plurality of semi-cylindrical positioning grooves.
Furthermore, the bottom four corners of processing base are fixed with the supporting leg respectively, and the supporting leg bottom is equipped with rubber foot pad.
Further, the upper half part of the grinding wheel penetrates through the through groove and extends to the upper surface of the machining base.
Furthermore, the bottom of the filter tank is respectively provided with a collecting box, and the collecting boxes are movably connected below the base through T-shaped clamping grooves formed in the side faces of the base.
Furthermore, the length and width of the movable rod are smaller than those of the groove, a plurality of finger grooves are formed in the bottom of one end, far away from the fixed shaft, of the movable rod, and the finger grooves are arc-shaped.
Furthermore, rubber gaskets are respectively fixed in the positioning grooves.
The utility model has the advantages that:
1. the utility model discloses a set up the emery wheel on the processing base, set up filter-tank, filter screen and set up the collecting box in the filter-tank below in the emery wheel both sides simultaneously, the piece after polishing the processing to the work piece is collected and is handled, prevents to pile up too much at the in-process bits of broken glass of polishing, influences processing.
2. The utility model discloses a set up fixing device in emery wheel one side, and articulated with the connecting rod and support frame in fixing device, make the connecting rod adjust from top to bottom, swing joint movable rod in the recess of the bottom of connecting rod again sets up the constant head tank in movable rod and the corresponding position of connecting rod, and it is fixed with the work piece centre gripping through movable rod and constant head tank, pushes down the connecting rod again for the work piece is polished with the emery wheel contact, helps practicing thrift the manpower, improves operating personnel's security.
Drawings

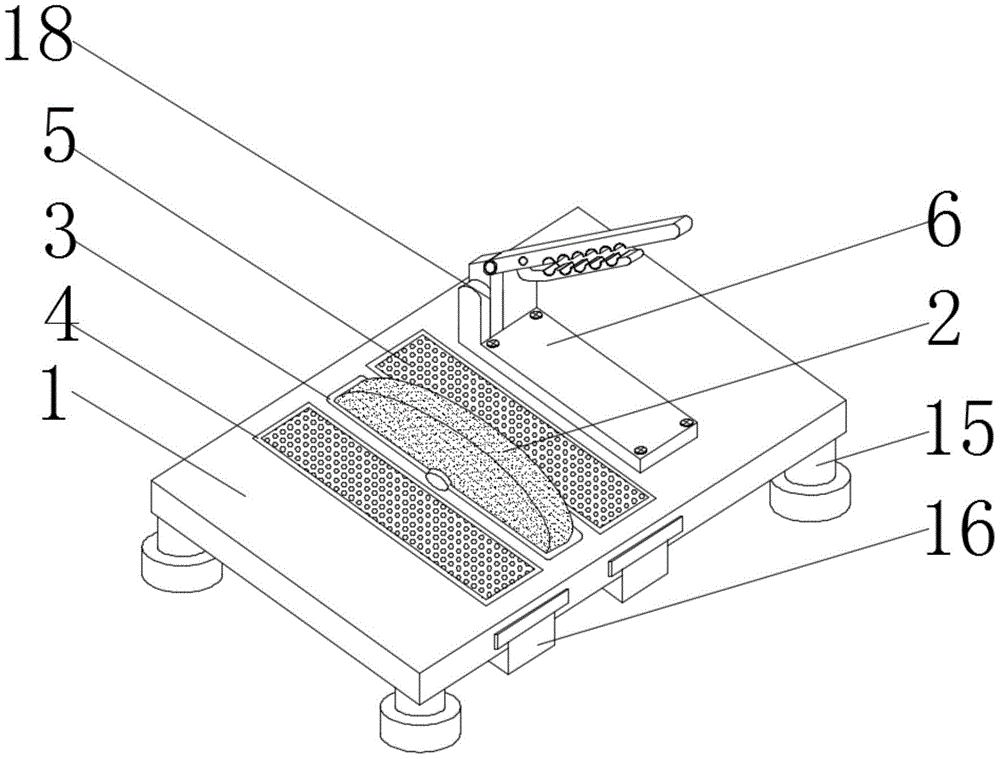

Fig. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic structural view of the middle support frame and the connecting rod of the present invention;
FIG. 3 is a side view of the connection between the connecting rod and the movable rod of the present invention;
fig. 4 is a bottom view of the connecting rod and the movable rod of the present invention.
In the figure: 1. processing a base; 2. a grinding wheel; 3. a through groove; 4. a filter tank; 5. filtering with a screen; 6. a fixing plate; 7. a support frame; 8. a connecting rod; 9. a movable rod; 10. a rotating shaft; 11. a groove; 12. a fixed shaft; 13. a torsion spring; 14. positioning a groove; 15. supporting legs; 16. a collection box; 17. a finger groove; 18. and (4) a fixing device.
Detailed Description
In order to make the objects, technical solutions and advantages of the embodiments of the present invention clearer, the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are some, but not all, embodiments of the present invention. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative efforts belong to the protection scope of the present invention.
Referring to FIGS. 1-4: a burr grinding device for machine manufacturing comprises a processing base 1, a grinding wheel 2 and a fixing device 18, wherein four corners of the bottom of the processing base 1 are respectively fixed with a supporting leg 15, and the bottom of the supporting leg 15 is provided with a rubber foot pad, the bottom of the processing base 1 is improved by utilizing the supporting leg 15, the installation of equipment at the bottom of the processing base 1 is convenient, meanwhile, the rubber foot pad is utilized to reduce vibration, a through groove 3 is arranged on the processing base 1, the grinding wheel 2 is fixed in the through groove 3, two sides of the grinding wheel 2 are respectively provided with a filter tank 4, the filter tank 4 is provided with a filter screen 5, the bottom of the filter tank 4 is respectively provided with a collecting box 16, the collecting box 16 is movably connected below the processing base 1 through a T-shaped clamping groove formed in the side face of the base, waste residues generated after polishing and processing of the workpiece are collected and recycled by the collecting box 16, resources are saved, and meanwhile, the influence of excessive accumulation of the waste residues on processing is avoided;
the upper half part of the grinding wheel 2 penetrates through the through groove 3 and extends to the upper surface of the processing base 1, the grinding wheel 2 extending to the upper surface of the processing base 1 is used for processing a workpiece needing to be polished, the grinding wheel 2 is connected with the output end of the rotating motor through a coupler, and the connection is common knowledge of technicians in the field, so that detailed description is not provided in the application;
the fixing device 18 is arranged on the other side of one of the filter tanks 4, the fixing device 18 is arranged on the fixing plate 6, the fixing device 18 comprises a support frame 7, a connecting rod 8 and a movable rod 9, the fixing plate 6 is fixed on the processing base 1 through a bolt, the support frame 7 is arranged at one end of the fixing plate 6, the top of the support frame 7 is hinged with one end of the connecting rod 8 through a rotating shaft 10, a groove 11 is formed in the bottom of the connecting rod 8, a fixing shaft 12 is vertically arranged at one end of the groove 11, two ends of the fixing shaft 12 respectively extend to two sides of the connecting rod 8, the movable rod 9 is an L-shaped rod, a through hole is formed in one end of the movable rod 9, the fixing shaft 12 penetrates through the through hole to movably connect the movable rod 9 in the groove 11, torsion springs 13 are arranged on two sides of the movable rod 9, the other end of the torsion spring 13 is fixed on the side surface of the movable rod 9, the length and width of the movable rod 9 are smaller than those of the groove 11, the movable rod 9 is convenient to arrange in the groove 11, the bottom of the movable rod 9 far away from one end of the fixed shaft 12 is provided with a plurality of finger grooves 17, the finger grooves 17 are arc-shaped, the finger grooves 17 are machined to be in shapes suitable for human knuckle joints, operators can conveniently master the movable rod 9, two semi-cylindrical positioning grooves 14 are respectively arranged at positions corresponding to the bottoms of the movable rod 9 and the connecting rod 8, rubber gaskets are respectively fixed in the positioning grooves 14, friction force when the rubber gaskets are fixed with workpieces is increased, the workpieces can be conveniently fixed at the better bottom, and stability of the workpieces is improved.
To sum up, when the utility model is used, the grinding wheel 2 is arranged on the processing base 1, the filter tank 4 and the filter screen 5 are arranged on two sides of the grinding wheel 2, and the collecting box 16 is arranged below the filter tank 4, so that the scraps after the workpiece is ground and processed are collected, and the phenomenon that the scraps are too much accumulated to affect processing in the grinding process is prevented; and set up fixing device 18 in emery wheel 2 one side, and it is articulated with connecting rod 8 and support frame 7 in fixing device 18, make connecting rod 8 adjust from top to bottom, swing joint movable rod 9 in the recess 11 of the bottom of connecting rod 8 again, set up constant head tank 14 in movable rod 9 and the corresponding position of connecting rod 8, it is fixed with the work piece centre gripping through movable rod 9 and constant head tank 14, push down connecting rod 8 again, make the work piece polish with emery wheel 2 contact, help practicing thrift the manpower, improve operating personnel's security.
The above embodiments are only used to illustrate the technical solution of the present invention, and not to limit it; although the present invention has been described in detail with reference to the foregoing embodiments, it should be understood by those skilled in the art that: the technical solutions described in the foregoing embodiments may still be modified, or some technical features may be equivalently replaced; such modifications and substitutions do not depart from the spirit and scope of the present invention in its corresponding aspects.
Claims (6)
1. The utility model provides a burr grinder for machine-building, includes processing base (1), emery wheel (2) and fixing device (18), its characterized in that: the grinding machine is characterized in that a through groove (3) is formed in the processing base (1), the grinding wheel (2) is fixed in the through groove (3), filter tanks (4) are respectively arranged on two sides of the grinding wheel (2), filter screens (5) are arranged on the filter tanks (4), the fixing device (18) is arranged on the other side of one filter tank (4), the fixing device (18) is arranged on the fixing plate (6), the fixing device (18) comprises a support frame (7), a connecting rod (8) and a movable rod (9), the fixing plate (6) is fixed on the processing base (1) through bolts, the support frame (7) is arranged at one end of the fixing plate (6), the top of the support frame (7) is hinged with one end of the connecting rod (8) through a rotating shaft (10), a groove (11) is formed in the bottom of the connecting rod (8), and a fixing shaft (12) is vertically arranged at, and fixed axle (12) both ends extend to the both sides of connecting rod (8) respectively, movable rod (9) are L type pole, and the one end of movable rod (9) is equipped with the through-hole, and fixed axle (12) pass the through-hole with movable rod (9) swing joint in recess (11), are equipped with torsional spring (13) in the both sides of movable rod (9), and torsional spring (13) cover is established at the surface of fixed axle (12), and the one end of torsional spring (13) is connected on fixed axle (12), and the side at movable rod (9) is fixed to the other end of torsional spring (13), set up constant head tank (14) of a plurality of semi-cylindrical respectively in the top of movable rod (9) and the corresponding position in bottom of connecting rod (8).
2. The burr grinding device for machine manufacturing according to claim 1, wherein: supporting legs (15) are fixed at four corners of the bottom of the processing base (1) respectively, and rubber foot pads are arranged at the bottoms of the supporting legs (15).
3. The burr grinding device for machine manufacturing according to claim 1, wherein: the upper half part of the grinding wheel (2) penetrates through the through groove (3) and extends to the upper surface of the machining base (1).
4. The burr grinding device for machine manufacturing according to claim 1, wherein: the bottom of the filter tank (4) is respectively provided with a collecting box (16), and the collecting box (16) is movably connected below the processing base (1) through a T-shaped clamping groove arranged on the side surface of the base.
5. The burr grinding device for machine manufacturing according to claim 1, wherein: the length and width of the movable rod (9) are smaller than those of the groove (11), a plurality of finger grooves (17) are formed in the bottom of one end, far away from the fixed shaft (12), of the movable rod (9), and the finger grooves (17) are arc-shaped.
6. The burr grinding device for machine manufacturing according to claim 1, wherein: rubber gaskets are respectively fixed in the positioning grooves (14).
