CN211456428U - Intelligent high-voltage board of dampproofing function dispels heat - Google Patents
Intelligent high-voltage board of dampproofing function dispels heat Download PDFInfo
- Publication number
- CN211456428U CN211456428U CN202020393833.XU CN202020393833U CN211456428U CN 211456428 U CN211456428 U CN 211456428U CN 202020393833 U CN202020393833 U CN 202020393833U CN 211456428 U CN211456428 U CN 211456428U
- Authority
- CN
- China
- Prior art keywords
- intelligent high
- cabinet body
- voltage board
- heat dissipation
- voltage
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Landscapes
- Cooling Or The Like Of Electrical Apparatus (AREA)
Abstract
The utility model discloses an intelligent high-voltage board of dampproofing function dispels heat belongs to the high-voltage board field, an intelligent high-voltage board of dampproofing function dispels heat, including the intelligent high-voltage board cabinet body, the subassembly of blowing, protection against insects subassembly, base, and dampproof course, the bottom of the intelligent high-voltage board cabinet body is fixed with the base, the cavity has been seted up to the inside of base, the dampproof course sets up top in the cavity, the subassembly of blowing sets up the top at the intelligent high-voltage board cabinet body, a plurality of first louvres have all been seted up to the left and right sides wall of the intelligent high-voltage board cabinet body, all be provided with a protection against insects subassembly on the left and right sides wall of. The utility model discloses an intelligence high-voltage board of dampproofing function of heat dissipation collects heat dissipation, dampproofing, protection against insects in an organic whole to setting up through the subassembly of blowing need not electric power or artificial drive, can realize blowing through wind-force, further improves the radiating effect.
Description
Technical Field
The utility model belongs to the high-voltage board field especially relates to an intelligent high-voltage board of dampproofing function of heat dissipation.
Background
The high-voltage cabinet is used for power generation, power transmission, power distribution, electric energy conversion and consumption of an electric power system to play roles of on-off, control or protection and the like, and is mainly suitable for various different places such as power plants, transformer substations, petrochemical engineering, metallurgical steel rolling, light industrial and textile, factories and mining enterprises, residential districts, high-rise buildings and the like, and the high-voltage cabinet is generally placed outdoors.
With the continuous updating of the technology, the intelligent high-voltage cabinet appears on the market at present, and the performance and the safety are improved. The work of the internal device of high-voltage board can produce the heat, if these heats do not in time the cabinet body of effluvium can cause the damage of internal device, the most directness of current high-voltage board is placed subaerial, and is moist easily, and then influences the normal work of internal device, leaks electricity even to because the high-voltage board is arranged in indoorly, the insect mosquito can be carelessly get into the cabinet internally, the accident takes place, and overall security is poor.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide an intelligence high-voltage board of dampproofing function of heat dissipation collects heat dissipation, dampproofing, protection against insects in an organic whole to setting up through the subassembly of blowing need not electric power or artificial drive, can realize blowing through wind-force, further improves the radiating effect.
To achieve the purpose, the utility model adopts the following technical proposal:
the utility model provides a pair of intelligent high-voltage board of dampproofing function dispels heat, including the intelligent high-voltage board cabinet body, the subassembly of blowing, protection against insects subassembly, a pedestal, and the dampproof course, the bottom of the intelligent high-voltage board cabinet body is fixed with the base, the cavity has been seted up to the inside of base, the dampproof course sets up at the internal top of cavity, the subassembly of blowing sets up the top at the intelligent high-voltage board cabinet body, the partly outside that is located the intelligent high-voltage board cabinet body of the subassembly of blowing, another part of the subassembly of blowing is located the inside of the intelligent high-voltage board cabinet body, a plurality of first louvres have all been seted up to the left and right sides wall of the intelligent high-voltage board cabinet body, all be provided.
Preferably, the subassembly of blowing includes blade, pivot, bearing frame, flabellum, is fixed with the bearing frame on the roof of the internal portion of intelligence high-voltage board cabinet, and the bottom of pivot is passed intelligent high-voltage board cabinet body roof and bearing frame and is fixed with the flabellum, and the flabellum is located the top of first louvre, and the upper portion of pivot is fixed with the blade, and the blade is located the outside of the intelligent high-voltage board cabinet body.
Preferably, the protection against insects subassembly is including placing frame and clamping device, all is fixed with clamping device on the left and right sides wall of the internal portion of intelligence high-voltage board cabinet, places the frame and presss from both sides tight the setting in the intelligence high-voltage board cabinet is internal by clamping device to place the protection against insects granule in the frame with the intelligent high-voltage board cabinet body.
Preferably, the left and right sides wall of placing the frame all is equipped with the dust screen, and the inside of placing the frame is from last to being equipped with a plurality of baffles down in proper order, has placed the protection against insects granule on the diapire of baffle and placing the frame, and the upper wall of placing the frame articulates through the hinge has the apron, and the below of apron back side wall is equipped with the fixture block, and the front side of placing the frame lower wall is opened and is equipped with and fixture block complex draw-in groove.
Preferably, clamping device includes rack, mounting panel, spring and splint, and the bottom of mounting panel is fixed with the spring, and the bottom mounting of spring has splint, and the rack is located the below of splint, places the bottom of frame and places on the rack, and the top of placing the frame supports and leans on the bottom at splint.
Preferably, the rack is L-shaped in cross section.
Preferably, the first heat dissipation hole is in a circular truncated cone shape, and the diameter of the first heat dissipation hole increases progressively from outside to inside in sequence.
Preferably, a plurality of second louvres are arranged on the bottom wall of the intelligent high-voltage cabinet body, through holes communicated with the second louvres are arranged on the top wall of the base, and a plurality of third louvres are arranged on the side wall of the base.
Preferably, the front side wall of the intelligent high-voltage board cabinet body is provided with a cabinet door.
The utility model has the advantages that:
1. play the radiating effect through first louvre, combine the subassembly of blowing again to have better radiating effect, and need not extra electric power or manpower drive, it is energy-concerving and environment-protective more.
2. Keep apart the intelligent high-voltage board cabinet body and ground through the base, avoid the ground steam infiltration that the intelligent high-voltage board cabinet body direct contact ground caused to further improve dampproofing ability through the dampproof course, dampproofing effect is good.
3. The insect prevention assembly blocks the first heat dissipation hole, an insect prevention effect is achieved through the insect prevention assembly, and the insect mosquitoes are prevented from entering the cabinet body of the intelligent high-voltage cabinet to cause danger.
Drawings
Fig. 1 is a schematic view of the structure of the present invention.

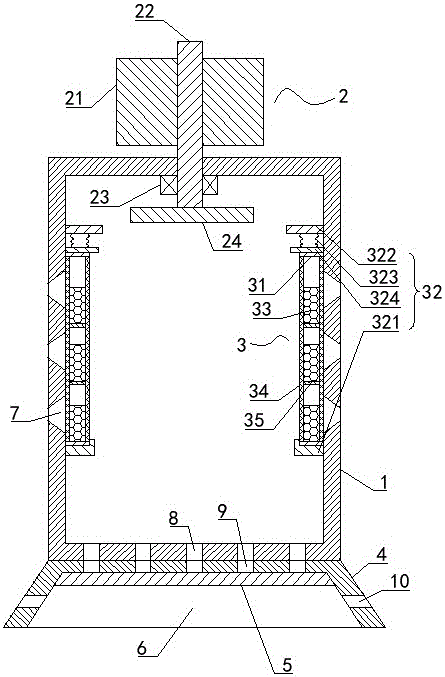

Fig. 2 is a schematic sectional structure diagram of the present invention.
Fig. 3 is a left side view structure diagram of the placement frame of the present invention.
The labels in the figures are: 1-intelligent high-voltage cabinet body, 2-blowing assembly, 21-blade, 22-rotating shaft, 23-bearing seat, 24-fan blade, 3-insect-proof assembly, 31-placing frame, 32-clamping device, 321-placing frame, 322-mounting plate, 323-spring, 324-clamping plate, 33-insect-proof particle, 34-dustproof net, 35-partition plate, 36-cover plate, 37-clamping block, 38-clamping groove, 4-base, 5-dampproof layer, 6-cavity, 7-first heat dissipation hole, 8-second heat dissipation hole, 9-through hole, 10-third heat dissipation hole and 11-cabinet door.
Detailed Description
The present invention will now be further described with reference to the accompanying drawings and detailed description.
Those not described in detail in this specification are within the skill of the art. In the description of the present invention, it is to be understood that the terms "center", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", "clockwise", "counterclockwise", and the like, indicate the orientation or positional relationship based on the orientation or positional relationship shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention. Furthermore, the terms "first," "second," "third," and the like are used solely to distinguish one from another and are not to be construed as indicating or implying relative importance.
As shown in fig. 1 to 3, the intelligent high-voltage board of dampproofing function dispels heat that provides in this embodiment, including the intelligent high-voltage board cabinet body 1, subassembly 2 of blowing, protection against insects subassembly 3, base 4, and dampproof course 5, the preceding lateral wall of the intelligent high-voltage board cabinet body 1 is equipped with cabinet door 11, the bottom of the intelligent high-voltage board cabinet body 1 is fixed with base 4, cavity 6 has been seted up to base 4's inside, dampproof course 5 sets up top in cavity 6, keep apart the intelligent high-voltage board cabinet body 1 and ground through base 4, avoid the ground steam infiltration that the intelligent high-voltage board cabinet body 1 direct contact ground caused, and further improve dampproofing ability through dampproof course 5, dampproofing effect is good. The subassembly 2 of blowing sets up the top at the intelligent high-voltage board cabinet body 1, the part of the subassembly 2 of blowing is located the outside of the intelligent high-voltage board cabinet body 1, the another part of the subassembly 2 of blowing is located the inside of the intelligent high-voltage board cabinet body 1, improve the inside air of the intelligent high-voltage board cabinet body 1 and circulate with the external world through the subassembly 2 of blowing, be convenient for discharge the heat, a plurality of first louvres 7 have all been seted up to the left and right sides wall of the intelligent high-voltage board cabinet body 1, first louvre 7 itself plays the radiating effect, the subassembly 2 of blowing of reunion has better radiating effect, all be provided with an protection against insects subassembly 3 on the left and right sides wall of the inside of the intelligent high-voltage board cabinet body 1, protection against insects subassembly 3 blocks first louvre 7, play protection against insects effect through protection against.
Further, blow subassembly 2 and include blade 21, pivot 22, bearing frame 23, flabellum 24, be fixed with bearing frame 23 on the roof of the 1 inside of the intelligent high-voltage board cabinet body, the bottom of pivot 22 is passed 1 roof of the intelligent high-voltage board cabinet body and bearing frame 23 and is fixed with flabellum 24, flabellum 24 is located the top of first louvre 7, the upper portion of pivot 22 is fixed with blade 21, blade 21 is located the outside of the intelligent high-voltage board cabinet body 1. When wind blows through the blades 21, the blades 21 are driven to rotate, and then the rotating shaft 22 is driven to rotate, so that the fan blades 24 are driven to rotate, circulation of air inside the intelligent high-voltage cabinet body 1 and the outside is improved, heat is conveniently discharged, natural wind is utilized, extra electric power or manual driving is not needed, and the intelligent high-voltage cabinet is more energy-saving and environment-friendly.
Further, protection against insects subassembly 3 is including placing frame 31 and clamping device 32, all is fixed with clamping device 32 on the inside left and right sides wall of the intelligent high-voltage board cabinet body 1, places frame 31 and places the frame 31 and place protection against insects granule 33 in the frame 31 by clamping device 32 clamp setting in the intelligent high-voltage board cabinet body 1 with the intelligent high-voltage board cabinet body 1. The insect-proof effect is achieved through the insect-proof particles 33, and the placement blocks are more convenient to take and place through the arrangement of the clamping device 32.
Further, the left and right sides wall of placing frame 31 all is equipped with dust screen 34, and the inside of placing frame 31 is from last to being equipped with a plurality of baffles 35 down in proper order, has placed protection against insects granule 33 on baffle 35 and the diapire of placing frame 31, and the upper wall of placing frame 31 articulates through the hinge has apron 36, and the below of 36 rear side walls of apron is equipped with fixture block 37, and the front side of placing the frame 31 lower wall is opened and is equipped with draw-in groove 38 with fixture block 37 complex. The dust screen 34 is arranged to play a role in dust prevention, the cover plate 36 can be opened when insect-proof particles 33 need to be added, and the cover plate 36 can be stably covered by the clamping block 37 and the clamping groove 38.
Further, the clamping device 32 comprises a placing frame 321, a mounting plate 322, a spring 323 and a clamping plate 324, wherein the spring 323 is fixed at the bottom of the mounting plate 322, the clamping plate 324 is fixed at the bottom end of the spring 323, the placing frame 321 is located below the clamping plate 324, the bottom of the placing frame 31 is placed on the placing frame 321, and the top of the placing frame 31 abuts against the bottom of the clamping plate 324. When the placing frame 31 needs to be installed, the top end of the placing frame 31 abuts against the clamping plate 324, the placing frame 31 is pushed upwards, the spring 323 contracts, the lower end of the placing frame 31 is placed in the placing frame 321, then the placing frame 31 is loosened, and the spring 323 extends, so that the clamping plate 324 presses downwards to install the placing frame 31 after the placing frame 31 is completed.
Further, the cross-section of the placing frame 321 is L-shaped, which is more favorable for placing and limiting the placing frame 31.
Further, first louvre 7 is the round platform form, and the diameter of first louvre 7 is by outer to interior increase progressively in proper order, does benefit to inside air through this being provided with and discharges to reduce external dust and get into.
Furthermore, a plurality of second heat dissipation holes 8 are formed in the bottom wall of the intelligent high-voltage board cabinet body 1, through holes 9 communicated with the second heat dissipation holes 8 are formed in the top wall of the base 4, a plurality of third heat dissipation holes 10 are formed in the side wall of the base 4, and heat inside the intelligent high-voltage board cabinet body 1 can be discharged to the cavity 6 through the second heat dissipation holes 8 and the through holes 9 and is discharged through the third heat dissipation holes 10.
The above embodiments are only used to illustrate the technical solution of the present invention, and not to limit it; although the present invention has been described in detail with reference to the foregoing embodiments, it will be understood by those skilled in the art; the technical solutions described in the foregoing embodiments may still be modified, or some technical features may be equivalently replaced; such modifications and substitutions do not depart from the spirit and scope of the present invention in its corresponding aspects.
Claims (9)
1. The utility model provides an intelligence high-voltage board of dampproofing function of heat dissipation which characterized in that:
the intelligent high-voltage cabinet comprises an intelligent high-voltage cabinet body, a blowing assembly, an insect prevention assembly, a base and a moisture-proof layer;
the base is fixed at the bottom of the intelligent high-voltage cabinet body, a cavity is formed in the base, and the moisture-proof layer is arranged at the top in the cavity;
the blowing assembly is arranged at the top of the intelligent high-voltage cabinet body, one part of the blowing assembly is positioned outside the intelligent high-voltage cabinet body, and the other part of the blowing assembly is positioned inside the intelligent high-voltage cabinet body;
a plurality of first louvres have all been seted up to the left and right sides wall of the intelligence high-voltage board cabinet body, all be provided with one on the left and right sides wall of the internal portion of intelligence high-voltage board cabinet the protection against insects subassembly, the protection against insects subassembly will first louvre blocks.
2. The intelligent high-voltage board of dampproofing function of heat dissipation of claim 1, characterized in that:
the blowing assembly comprises blades, a rotating shaft, a bearing seat and fan blades;
the bearing seat is fixed on the top wall of the inner portion of the intelligent high-voltage cabinet body, the bottom end of the rotating shaft penetrates through the top wall of the intelligent high-voltage cabinet body and the bearing seat and is fixed with the fan blades, the fan blades are located above the first radiating holes, the blades are fixed on the upper portion of the rotating shaft, and the blades are located outside the intelligent high-voltage cabinet body.
3. The intelligent high-voltage board of dampproofing function of heat dissipation of claim 1, characterized in that:
the insect-proof assembly comprises a placing frame and a clamping device;
the clamping devices are fixed on the left side wall and the right side wall inside the intelligent high-voltage cabinet body;
the placement frame is clamped by the clamping device and is arranged in the intelligent high-voltage cabinet body, and insect-proof particles are placed in the placement frame of the intelligent high-voltage cabinet body.
4. The intelligent high-voltage board of dampproofing function of heat dissipation of claim 3, characterized in that:
the left and right sides wall of placing the frame all is equipped with the dust screen, the inside of placing the frame is from last to being equipped with a plurality of baffles down in proper order, the upper wall of placing the frame articulates through the hinge has the apron, the below of lateral wall is equipped with the fixture block behind the apron, the front side of placing the frame lower wall open be equipped with fixture block complex draw-in groove.
5. The intelligent high-voltage board of dampproofing function of heat dissipation of claim 3, characterized in that:
the clamping device comprises a placing frame, a mounting plate, a spring and a clamping plate;
the bottom of mounting panel is fixed with the spring, the bottom mounting of spring has splint, the rack is located the below of splint, the bottom of placing the frame is placed on the rack, the top of placing the frame supports and leans on the bottom of splint.
6. The intelligent high-voltage board of dampproofing function of heat dissipation of claim 5, characterized in that:
the cross section of the placing frame is L-shaped.
7. The intelligent high-voltage board of dampproofing function of heat dissipation of claim 1, characterized in that:
the first heat dissipation hole is in a round table shape, and the diameter of the first heat dissipation hole is gradually increased from outside to inside.
8. The intelligent high-voltage board of dampproofing function of heat dissipation of claim 1, characterized in that:
a plurality of second heat dissipation holes are formed in the bottom wall of the intelligent high-voltage cabinet body, through holes communicated with the second heat dissipation holes are formed in the top wall of the base, and a plurality of third heat dissipation holes are formed in the side wall of the base.
9. The intelligent high-voltage board of dampproofing function of heat dissipation of claim 1, characterized in that:
and a cabinet door is arranged on the front side wall of the intelligent high-voltage cabinet body.
