CN211447987U

CN211447987U - Roadside parking positioning and guiding device for intelligent traffic

Info

Publication number: CN211447987U
Application number: CN201921766093.3U
Authority: CN
Inventors: 王杰
Original assignee: Huaibei Duoer Whole Network Technology Co ltd
Current assignee: Huaibei Duoer Whole Network Technology Co ltd
Priority date: 2019-10-21
Filing date: 2019-10-21
Publication date: 2020-09-08
Anticipated expiration: 2029-10-21

Abstract

The utility model discloses a roadside parking positioning and guiding device for intelligent traffic, which comprises a supporting bottom rod, wherein the bottom of the supporting bottom rod is fixedly connected with a fixed bottom plate, a plurality of limiting threaded holes are equidistantly arranged in the fixed bottom plate, the top of the supporting bottom rod is slidably connected with a telescopic slide bar, the top of the telescopic slide bar is provided with a guiding mechanism, the guiding mechanism comprises a waterproof glass cover, the inner wall of the waterproof glass cover is fixedly connected with the telescopic slide bar, a warning lamp is arranged in the waterproof glass cover, the liftable warning lamp is arranged on a roadside parking space, so that a driver needing to park can be reminded of the position, the situation that the driver cannot find the parking space in time due to poor vision is avoided, the bottom of the warning lamp can be driven by a motor to rotate, the viewing in different directions is convenient, the glass cover arranged at the top of the warning lamp has good light transmittance while preventing, the lamp light can penetrate through the lamp conveniently.

Description

Roadside parking positioning and guiding device for intelligent traffic

Technical Field

The utility model relates to a parking stall guiding device technical field especially relates to a roadside parking location guiding device of wisdom traffic.

Background

The vehicle is the indispensable vehicle of people's trip, along with the improvement of people's economic nature, the vehicle increases gradually, the building of some ages for a long time does not have sufficient parking stall, the parking stall that can only draw out certain region at the roadside supplies people to park, and on the roadside, when having more vehicle to park, the driver drives, the parking stall is hardly in time observed in the lane that leads to, can drive away from the parking stall, can only return around the route, the time of parking has been increased, therefore, a roadside parking guider need be designed, a position for reminding the driver parking stall.

SUMMERY OF THE UTILITY MODEL

The utility model aims at solving the shortcoming that exists among the prior art, and the roadside parking location guiding device of wisdom traffic that proposes, set up the warning light of liftable through the parking stall at the roadside, the driver who parks to needs carries out the position warning, avoid because the poor driver of leading to in time discovering the parking stall of vision, the bottom of warning light passes through the motor and drives and to rotate, the convenience is observed in the position of difference, the glass cover of the top setting of warning light, have good light transmissivity again in rain-proof, make things convenient for light to pierce through.

In order to achieve the above purpose, the utility model adopts the following technical scheme:

the utility model relates to a roadside parking location guiding device of wisdom traffic, including supporting the sill bar, the bottom fixedly connected with PMKD of supporting the sill bar, a plurality of spacing screw holes have been seted up to PMKD's inside equidistance, the top sliding connection who supports the sill bar has flexible slide bar, the top of flexible slide bar is equipped with guiding mechanism, guiding mechanism includes waterproof glass cover, the inner wall and the flexible slide bar fixed connection of waterproof glass cover, the inside of waterproof glass cover is equipped with the warning light.

Preferably, a plurality of limiting holes are dug in one side of the top of the supporting bottom rod at equal intervals, and a spring buckle is fixedly connected to one side of the bottom of the telescopic sliding rod relative to the limiting holes.

Preferably, the middle part of the inner wall of the waterproof glass cover is fixedly connected with a limiting ring, and the inner part of the limiting ring is rotatably connected with a rotating disc.

Preferably, the top of rolling disc fixedly connected with warning light, the bottom of rolling disc is equipped with micro motor.

Preferably, the base of the micro motor is fixedly connected with the telescopic sliding rod, and the output end of the micro motor is fixedly connected with the circle center of the rotating disc.

Preferably, the pole wall of one side of the telescopic slide pole, which is far away from the spring fastener, is fixedly connected with a switch, the switch is electrically connected with a power line of the micro motor and a power line of the warning light,

the utility model provides a pair of roadside parking location guiding device of wisdom traffic, beneficial effect lies in: set up the warning light of liftable through the parking stall in the roadside, carry out the position to the driver that needs parkked and remind, avoid because the vision difference leads to the unable parking stall of driver in time, the bottom of warning light passes through the motor and drives and to rotate, conveniently observes in the position of difference, and the glass cover that the top of warning light set up has good light transmissivity again in rain-proof, makes things convenient for light to pierce through.

Drawings

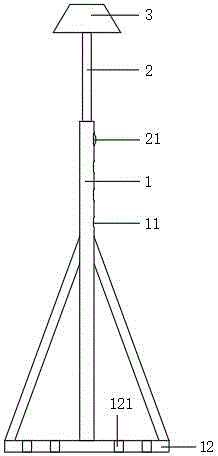

Fig. 1 is a schematic front view of a roadside parking positioning and guiding device for intelligent transportation according to the present invention;

fig. 2 is a schematic view of the internal structure of a waterproof glass cover of a roadside parking positioning and guiding device for intelligent traffic according to the present invention;

fig. 3 is a schematic view of the connection structure of the switch of the roadside parking positioning and guiding device for intelligent transportation according to the present invention.

In the figure: the device comprises a supporting bottom rod 1, a limiting hole 11, a fixed bottom plate 12, a limiting threaded hole 121, a telescopic sliding rod 2, a spring buckle 21, a guide mechanism 3, a waterproof glass cover 31, a limiting ring 32, a micro motor 33, a switch 331, a rotating disc 34 and a warning light 35.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.

Referring to fig. 1-3, the utility model relates to a roadside parking location guiding device of wisdom traffic, including supporting sill bar 1, the bottom fixedly connected with PMKD 12 of supporting sill bar 1, a plurality of spacing screw hole 121 have been seted up to PMKD 12's inside equidistance, and the top sliding connection who supports sill bar 1 has flexible slide bar 2, and the top of flexible slide bar 2 is equipped with guiding mechanism 3, and guiding mechanism 3 includes waterproof glass cover 31, and waterproof glass cover 31's inner wall and flexible slide bar 2 fixed connection, the inside of waterproof glass cover 31 is equipped with warning light 35.

A plurality of limiting holes 11 are dug at equal intervals on one side of the top of a supporting bottom rod 1, one side of the bottom of a telescopic slide rod 2 is fixedly connected with a spring buckle 21 relative to the limiting holes 11, the effect of limiting the height of a guide mechanism 3 is achieved through limiting of the spring buckle 21, a limiting ring 32 is fixedly connected to the middle part of the inner wall of a waterproof glass cover 31, a rotating disc 34 is rotatably connected to the inside of the limiting ring 32, a warning lamp 35 can rotate to facilitate a driver to observe light at different angles, the warning lamp 35 is fixedly connected to the top of the rotating disc 34, a micro motor 33 is arranged at the bottom of the rotating disc 34, the rotating disc 34 is driven through the micro motor 33, the base of the micro motor 33 is fixedly connected with the telescopic slide rod 2, the output end of the micro motor 33 is fixedly connected with the center of the rotating disc 34, a switch 331 is fixedly connected to the rod wall of the telescopic slide rod 2 far away from one side of, the switch 331 can control the on and off of the warning light 35 and the micro motor 33, and the warning light is turned off after the vehicle enters, so that the electric energy can be saved.

The working principle is as follows: the utility model discloses during the use, after last vehicle is driven from the parking stall, through opening of switch 331 with micro motor 33 and warning light 35 and power intercommunication, warning light 35 lights, micro motor 33's output drives rolling disc 34 and rotates, drive warning light 35 turned angle, the light that warning light 35 sent is observed to the driver that later needs to park drives to this parking stall, the bottom of warning light 35 drives through micro motor 33 and can rotates, light is observed in the position of difference to the convenience, waterproof glass cover 31 of the top setting of warning light 35, have good light transmissivity again in rainproof, make things convenient for light to pierce through.

The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.

Claims

1. The utility model provides a roadside parking location guiding device of wisdom traffic, is including supporting sill bar (1), its characterized in that, the bottom fixedly connected with PMKD (12) of supporting sill bar (1), a plurality of spacing screw hole (121) have been seted up to the inside equidistance of PMKD (12), the top sliding connection who supports sill bar (1) has flexible slide bar (2), the top of flexible slide bar (2) is equipped with guiding mechanism (3), guiding mechanism (3) are including waterproof glass cover (31), the inner wall and flexible slide bar (2) fixed connection of waterproof glass cover (31), the inside of waterproof glass cover (31) is equipped with warning light (35).

2. The intelligent transportation roadside parking positioning and guiding device as claimed in claim 1, wherein a plurality of limiting holes (11) are drilled on one side of the top of the supporting bottom rod (1) at equal intervals, and a spring buckle (21) is fixedly connected to one side of the bottom of the telescopic sliding rod (2) opposite to the limiting holes (11).

3. The intelligent traffic roadside parking positioning and guiding device as claimed in claim 1, wherein a limiting ring (32) is fixedly connected to the middle part of the inner wall of the waterproof glass cover (31), and a rotating disc (34) is rotatably connected to the inner part of the limiting ring (32).

4. The intelligent transportation roadside parking positioning and guiding device as claimed in claim 3, wherein a warning lamp (35) is fixedly connected to the top of the rotary disc (34), and a micro motor (33) is arranged at the bottom of the rotary disc (34).

5. The intelligent transportation roadside parking positioning and guiding device as claimed in claim 4, wherein the base of the micro motor (33) is fixedly connected with the telescopic sliding rod (2), and the output end of the micro motor (33) is fixedly connected with the center of the rotating disc (34).

6. The intelligent transportation roadside parking positioning and guiding device as claimed in claim 1, wherein a switch (331) is fixedly connected to a pole wall of the telescopic sliding pole (2) on a side away from the spring buckle (21), and the switch (331) is electrically connected with a power line of the micro motor (33) and a power line of the warning light (35).
