CN211419791U

CN211419791U - Preliminary treatment device for sewage recovery

Info

Publication number: CN211419791U
Application number: CN201922498422.7U
Authority: CN
Inventors: 卢忆灵; 骆宇阳; 张芳; 王鹰; 王斌; 程超锋; 马炜杰; 周桂萍
Original assignee: Zhejiang Lvjing Environmental Engineering Co ltd
Current assignee: Zhejiang Lvjing Environmental Engineering Co ltd
Priority date: 2019-12-31
Filing date: 2019-12-31
Publication date: 2020-09-04
Anticipated expiration: 2029-12-31

Abstract

The utility model relates to a sewage recovery's preliminary treatment device, it includes the barrel, be equipped with first baffle and second baffle respectively along the direction of height in the barrel, first baffle is in second baffle top, the mouth of a river that leaks has all been seted up on first baffle and second baffle, the mouth of a river middle berth that leaks of first baffle is equipped with first filter screen, first filter screen becomes the bellied sphere form that makes progress, be equipped with the second filter screen in the mouth of a river that leaks of second baffle, the second filter screen becomes the cone setting towards first filter screen direction, the aperture of second filter screen is less than first filter screen, be equipped with the water inlet at the top of barrel, the bottom of barrel becomes to leak hopper-shaped setting, and the most advanced of leaking hopper-shaped is equipped with the delivery port bottom the barrel. The utility model discloses have the effect that can prevent the filter screen jam.

Description

Preliminary treatment device for sewage recovery

Technical Field

The utility model belongs to the technical field of sewage treatment technique's technique and specifically relates to a preliminary treatment device of sewage recovery is related to.

Background

At present, along with the development of cities, the pollution of water resources is gradually serious, and the water pollution means that the use value of water produced by harmful chemical substances is reduced or lost, so that the water resources are seriously wasted. Therefore, it is a necessary work to recycle the sewage, and before the water purification work of the sewage, it is required to primarily treat the sewage for filtering large-volume impurities in the sewage.

Current sewage preliminary treatment all utilizes filter equipment, lets in sewage among the filter equipment, utilizes the filter screen in the filter to filter sewage to reach the purpose of preliminary detach impurity.

The above prior art solutions have the following drawbacks: after filtering for a long time, impurities are easily accumulated on the filter screen, so that the filter screen is blocked, and the filtering efficiency is reduced.

SUMMERY OF THE UTILITY MODEL

To the deficiency that prior art exists, one of the purposes of the utility model is to provide a sewage recovery's preliminary treatment device, have the effect that can prevent the filter screen jam.

The above object of the present invention can be achieved by the following technical solutions:

the utility model provides a sewage recovery's preliminary treatment device, the novel nipple rectifier comprises a cylindrical shel, be equipped with first baffle and second baffle respectively along the direction of height in the barrel, first baffle is in second baffle top, the mouth of a river that leaks has all been seted up on first baffle and second baffle, the mouth of a river that leaks of first baffle middle berth is equipped with first filter screen, first filter screen becomes the bellied sphere form that makes progress, be equipped with the second filter screen in the mouth of a river that leaks of second baffle, the second filter screen becomes the cone setting towards first filter screen direction, the aperture of second filter screen is less than first filter screen, be equipped with the water inlet at the top of barrel, the bottom of barrel becomes to leak hopper-shaped setting, and the most advanced of leaking hopper-shaped is equipped with.

Through adopting above-mentioned technical scheme, send into the barrel with sewage inside from the water inlet, sewage from the top flows through first filter screen and second filter screen in proper order, in the great first filter screen department in aperture, filters out great impurity, filters out tiny particle impurity in the less second filter screen department in aperture, discharges from the delivery port at last.

When through first filter screen, because first filter screen becomes the bellied sphere that makes progress, consequently when bold impurity is blockked on first filter screen, the surface of impurity is difficult to laminate completely with the first filter screen surface that becomes the cambered surface, thereby reduce the area of stress of impurity on first filter screen, reduce the ability of snatching of impurity to the wire side under hydraulic effect, make it can slide along the cambered surface under the drive of rivers, make impurity be difficult for adsorbing in first filter screen surface and cause the jam, and the sphere has bigger filter area, under the condition that the same mouth of a river leaks, can have better filtration efficiency.

When passing through the second filter screen, because great impurity has been strained in first filter screen department and has been strained, so strain impurity on the second filter screen be the tiny particle impurity, tiny particle impurity is more smooth than large granule impurity surface, and it is difficult for the card to locate on the mesh. Therefore, the second filter screen is arranged in a cone shape, the side wall of the second filter screen is an inclined plane inclined downwards, and impurities can be driven to move downwards along the inclined plane under the driving of water flow, so that the impurities are prevented from being accumulated on the filter screen and blocking the second filter screen.

The present invention may be further configured in a preferred embodiment as: the scraper is connected to the first filter screen in an abutting mode, the scraper is attached to the surface of the first filter screen, a transmission rod is fixed to the scraper, the transmission rod penetrates through the center of the first filter screen along the vertical direction even in the length direction, and a motor used for driving the transmission rod to rotate is fixed to the top of the barrel.

Through adopting above-mentioned technical scheme, the motor can drive the dwang and rotate to make the scraper blade rotate along the spherical surface of first filter screen, at the pivoted in-process, the scraper blade just can scrape the impurity of remaining on first filter screen surface down, prevents that the stronger impurity of adhesive force from piling up on first filter screen surface, causes the jam.

The present invention may be further configured in a preferred embodiment as: and a scraping piece made of a flexible material is arranged on one side of the scraping plate, which faces the first filter screen, and the scraping piece is tightly propped against the surface of the first filter screen.

Through adopting above-mentioned technical scheme, the doctor-bar that flexible material made can support as far as possible tight first filter screen surface under the prerequisite of not scraping and damaging first filter screen to reduce the clearance between doctor-bar and the first filter screen surface as far as possible, improve the doctor-bar and rotate the cleaning effect of in-process to impurity.

The present invention may be further configured in a preferred embodiment as: one side of the water outlet, which is far away from the cylinder body, is connected with a water pumping pipe, and the water pumping pipe is connected with a sewage pump.

Through adopting above-mentioned technical scheme, in filtering process, start the dredge pump, under the extraction of dredge pump, form the negative pressure in the barrel, compare the natural filtration of sewage under the action of gravity, enable sewage and pass through from first filter screen and second filter screen faster under the negative pressure effect for filter speed has improved filterable efficiency.

The present invention may be further configured in a preferred embodiment as: wear to be equipped with first clearance pipe, first blow off pipe, second clearance pipe and second blow off pipe respectively along the direction of height on the lateral wall of barrel, first clearance pipe and first blow off pipe are located the top of first baffle, second clearance pipe and second blow off pipe are located between first baffle and the second baffle, first baffle is pressed close to first blow off pipe, the second baffle is pressed close to the second blow off pipe, all be equipped with the valve on first clearance pipe, first blow off pipe, second clearance pipe and second blow off pipe.

Through adopting above-mentioned technical scheme, after filtering for a long time, impurity can pile up on first baffle and second baffle, reduces filtration efficiency, just can stop the filtration of sewage this moment, washs the barrel inside. The valves of the pipelines are opened, clean water is introduced into the barrel through the first cleaning pipe and the second cleaning pipe respectively, impurities on the first partition plate and the second partition plate are washed under the impact of water flow, and the impurities are discharged from the first sewage discharge pipe and the second sewage discharge pipe.

The present invention may be further configured in a preferred embodiment as: the first cleaning pipe and the second cleaning pipe are communicated with an annular water distributor, and water distribution ports are uniformly formed in the water distributor along the circumferential direction.

Through adopting above-mentioned technical scheme, when wasing, rivers flow into the back from first clearance pipe and second clearance pipe, under the effect of annular water-locator, can spray more evenly on first baffle and the second baffle to carry out the omnidirectional washing to it, improve abluent effect.

The present invention may be further configured in a preferred embodiment as: be equipped with the connecting pipe outside the barrel, first blow off pipe of connecting pipe intercommunication and second blow off pipe, below intercommunication at the connecting pipe has the dirty room of collection, at the indoor third filter screen that is equipped with of collection dirt, offer the clearance mouth that is used for clearing up the third filter screen on the dirty lateral wall of collection dirt, be equipped with the clearance door at clearance mouth upper cover, the intercommunication has the accumulator on the barrel, accumulator and connecting pipe are located the both sides of third filter screen, the one end intercommunication delivery port of dirty room of collection is kept away from to the accumulator, be equipped with the valve on the accumulator.

Through adopting above-mentioned technical scheme, after wasing first baffle and second baffle, during the dirty room of collection will be entered into through the connecting pipe to the exhaust water that has impurity to detach impurity under the filtration of third filter screen, and the water rethread recovery tube after the filtration is delivered to water outlet department, carries out filterable sewage with the preceding and retrieves together, improves the utilization ratio of water resource, more green. And through the clearance door, just can clear up the impurity on the third filter screen to the filter effect of third filter screen when guaranteeing to wash next time.

The present invention may be further configured in a preferred embodiment as: the third filter screen is arranged towards the downward inclination of the cleaning opening.

Through adopting above-mentioned technical scheme, make the impurity on the third filter screen easily pile up in one side of clearance mouth to it is more convenient when making the clearance, and reducible clearance back impurity remains on the third filter screen.

To sum up, the utility model discloses a following at least one useful technological effect:

1. in the filtering process, the filter screen is not easy to block;

2. the sewage pump is arranged, so that the filtering efficiency is high;

3. the interior of the cylinder body can be conveniently cleaned;

4. the water after cleaning can be recovered, and the method is more environment-friendly.

Drawings

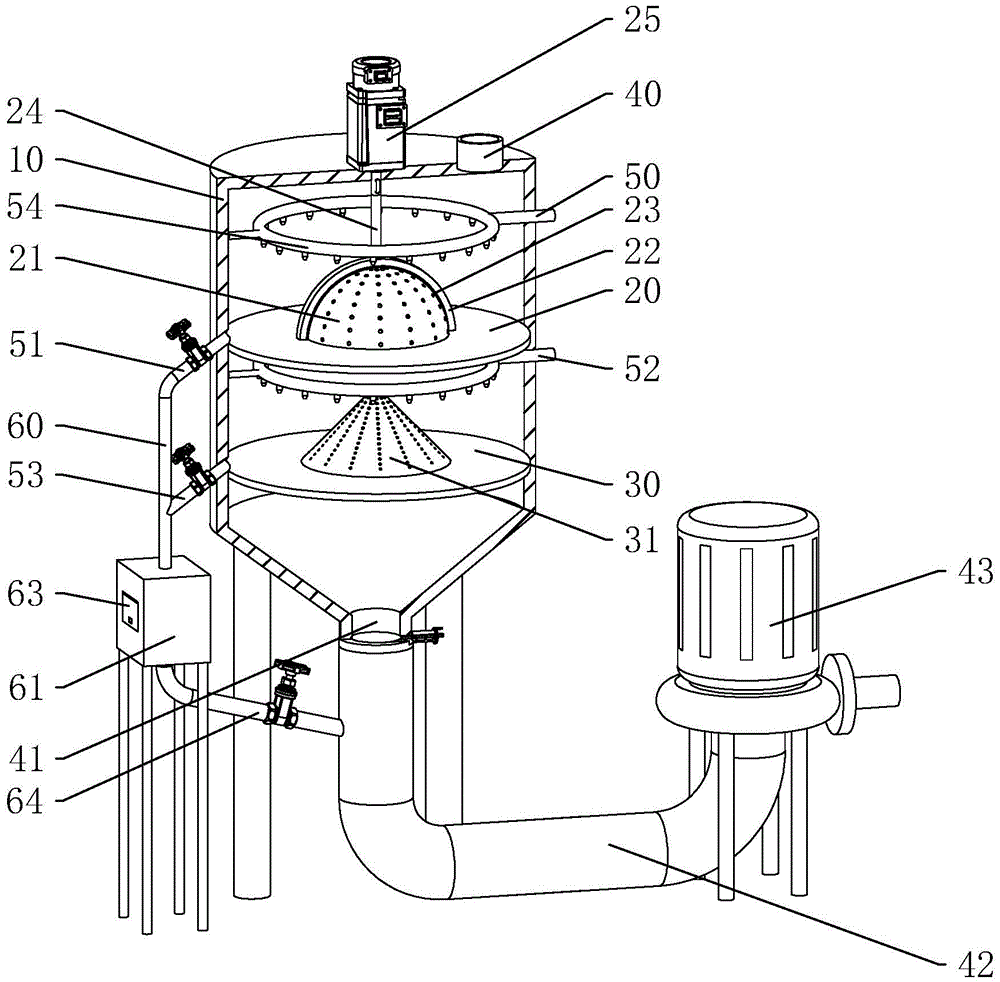

FIG. 1 is a schematic structural diagram of an embodiment;

FIG. 2 is a partial cross-sectional view of the embodiment;

fig. 3 is a partial sectional view of the dirt collection chamber.

In the figure, 10, cylinder; 20. a first separator; 21. a first filter screen; 22. a squeegee; 23. scraping a blade; 24. a transmission rod; 25. a motor; 30. a second separator; 31. a second filter screen; 40. a water inlet; 41. a water outlet; 42. a water pumping pipe; 43. a sewage pump; 50. a first cleaning pipe; 51. a first drain pipe; 52. a second cleaning pipe; 53. a second sewage draining pipe; 54. a water distributor; 60. a connecting pipe; 61. a dirt collection chamber; 62. a third filter screen; 63. cleaning the door; 64. and (7) recovering the pipe.

Detailed Description

The present invention will be described in further detail with reference to the accompanying drawings.

Referring to fig. 1 and 2, for the utility model discloses a sewage recovery's preliminary treatment device, including barrel 10, be equipped with the stabilizer blade below barrel 10. The first partition plate 20 and the second partition plate 30 are respectively provided in the cylinder 10 in the height direction, and the first partition plate 20 is above the second partition plate 30. The water leakage openings are formed in the first partition plate 20 and the second partition plate 30, the first filter screen 21 is laid in the water leakage opening of the first partition plate 20, the second filter screen 31 is arranged in the water leakage opening of the second partition plate 30, the water inlet 40 is arranged at the top of the barrel 10, the bottom of the barrel 10 is funnel-shaped, and the funnel-shaped tip of the bottom of the barrel 10 is provided with the water outlet 41. The sewage is sent into the cylinder 10 from the water inlet 40, is filtered by the first filter screen 21 and the second filter screen 31 in sequence, is subjected to primary treatment, and is discharged from the water outlet 41.

Referring to fig. 2, the first screen 21 is formed in an upward convex spherical shape, the second screen 31 is disposed in a conical shape toward the first screen 21, and the aperture of the second screen 31 is smaller than that of the first screen 21. The scraper 22 is abutted to the first filter screen 21, the scraper 22 is attached to the surface of the first filter screen 21, the transmission rod 24 is fixed on the scraper 22, the transmission rod 24 penetrates through the center of the first filter screen 21 in the vertical direction and even the length direction of the transmission rod 24, and the motor 25 for driving the transmission rod 24 to rotate is fixed at the top of the barrel 10. A scraper 23 made of flexible material is arranged on the side of the scraper 22 facing the first screen 21, and the scraper 23 abuts against the surface of the first screen 21. The first sieve 21 with larger pore size is used for filtering out large-particle impurities, and then the second sieve 31 with smaller pore size is used for filtering out small-particle impurities, and the first sieve 21 and the second sieve 31 are respectively arranged in a spherical shape and a conical shape, so that the accumulation of impurities on the sieves can be prevented. The scraping blade 23 is driven by the motor 25 to scrape off the stubborn and residual impurities on the first filter 21.

Referring to fig. 2, a suction pipe 42 is connected to a side of the water outlet 41 away from the cylinder 10, and a sewage pump 43 is connected to the suction pipe 42. In the filtering process, the sewage pump 43 is started, negative pressure is formed in the cylinder 10 under the pumping of the sewage pump 43, sewage can rapidly pass through the first filter screen 21 and the second filter screen 31 under the action of the negative pressure, and the filtering speed is accelerated.

Referring to fig. 2, a first cleaning pipe 50, a first sewage pipe 51, a second cleaning pipe 52 and a second sewage pipe 53 are respectively arranged on the side wall of the cylinder 10 along the height direction, the first cleaning pipe 50 and the first sewage pipe 51 are positioned above the first partition plate 20, the second cleaning pipe 52 and the second sewage pipe 53 are positioned between the first partition plate 20 and the second partition plate 30, the first partition plate 20 is pressed close to the first sewage pipe 51, the second partition plate 30 is pressed close to the second sewage pipe 53, and valves are arranged on the first cleaning pipe 50, the first sewage pipe 51, the second cleaning pipe 52 and the second sewage pipe 53. The inside of the tub 10 can be washed by pumping clean water into the first and

second cleaning pipes

50 and 52, and the washed water can be discharged through the first and

second soil pipes

51 and 53.

Referring to fig. 2, the first cleaning pipe 50 and the second cleaning pipe 52 are both connected with an annular water distributor 54, and water distribution ports are uniformly formed in the water distributor 54 along the circumferential direction. The water distributor 54 can make the water fed from the first cleaning pipe 50 and the second cleaning pipe 52 flush the interior of the barrel 10 more uniformly, and reduce the dead angle during flushing.

Referring to fig. 2 and 3, a connecting pipe 60 is arranged outside the cylinder 10, the connecting pipe 60 is communicated with a first sewage discharging pipe 51 and a second sewage discharging pipe 53, a sewage collecting chamber 61 is communicated below the connecting pipe 60, a third filter screen 62 is arranged in the sewage collecting chamber 61, a cleaning opening for cleaning the third filter screen 62 is arranged on the side wall of the sewage collecting chamber 61, a cleaning door 63 is arranged on the upper cover of the cleaning opening, and the third filter screen 62 is arranged in a downward inclination way towards the cleaning opening. A recovery pipe 64 is communicated with the cylinder 10, the recovery pipe 64 and the connecting pipe 60 are positioned at two sides of the third filter screen 62, one end of the recovery pipe 64 far away from the dirt collecting chamber 61 is communicated with the water outlet 41, and a valve is arranged on the recovery pipe 64. The washing wastewater discharged from the first and

second soil pipes

51 and 53 is filtered by the third filter net 62, and is recovered by the recovery pipe 64 after being filtered, and the third filter net 62 can be cleaned by opening the cleaning door 63.

The implementation principle of the embodiment is as follows:

1. when filtering through first filter screen 21, because first filter screen 21 becomes the bellied sphere that makes progress, consequently when bold impurity is blockked on first filter screen 21, the surface of impurity is difficult to laminate completely with the first filter screen 21 surface that becomes the cambered surface, thereby reduce the area of stress of impurity on first filter screen 21, reduce the ability of snatching of impurity to the wire side under hydraulic effect, make it can slide along the cambered surface under the drive of rivers, make impurity be difficult for adsorbing in first filter screen 21 surface and cause the jam, and the sphere has bigger filter area, under the condition of the same mouth that leaks, can have better filtration efficiency. And motor 25 can drive the dwang and rotate to make scraper blade 22 rotate along the spherical surface of first filter screen 21, at the pivoted in-process, scraper blade 22 just can be scraped the impurity that remains on first filter screen 21 surface and be scraped off, further prevents that the impurity that the adhesive force is stronger from piling up on first filter screen 21 surface.

2. When filtering through the second filter screen 31, since the larger impurities are filtered out at the first filter screen 21, the impurities left on the second filter screen 31 are small particle impurities, which are smoother in surface than large particle impurities and are not easily stuck on the meshes. Therefore, the second filter screen 31 is arranged in a cone shape, the side wall of the second filter screen is an inclined plane inclined downwards, and impurities can be driven to move downwards along the inclined plane under the driving of water flow, so that the impurities are prevented from being accumulated on the filter screen and blocking the second filter screen 31.

3. When cleaning, the valves on the first cleaning pipe 50, the first sewage pipe 51, the second cleaning pipe 52 and the second sewage pipe 53 are opened, clean water is fed into the first cleaning pipe 50 and the second cleaning pipe 52, the clean water is uniformly sprayed onto the first partition plate 20 and the second partition plate 30 under the action of the water distributor 54, the first partition plate and the second partition plate are cleaned in all directions, then the water with impurities is discharged from the first sewage pipe 51 and the second sewage pipe 53, then enters the sewage collecting chamber 61 through the connecting pipe 60, the impurities are removed under the filtration of the third filter screen 62, the filtered water is sent to the water outlet 41 through the recovery pipe 64, the filtered sewage is recovered together with the filtered sewage, and the utilization rate of water resources is improved. And through clearance door 63, just can clear up the impurity on the third filter screen 62 to the filter effect of third filter screen 62 when guaranteeing to wash next time.

The embodiment of this specific implementation mode is the preferred embodiment of the present invention, not limit according to this the utility model discloses a protection scope, so: all equivalent changes made according to the structure, shape and principle of the utility model are covered within the protection scope of the utility model.

Claims

1. The utility model provides a preliminary treatment device of sewage recovery which characterized in that: including barrel (10), be equipped with first baffle (20) and second baffle (30) respectively along direction of height in barrel (10), first baffle (20) are in second baffle (30) top, the mouth of a river that leaks has all been seted up on first baffle (20) and second baffle (30), the mouth of a river that leaks of first baffle (20) middle berth is equipped with first filter screen (21), first filter screen (21) become the bellied sphere form that makes progress, be equipped with second filter screen (31) in the mouth of a river that leaks of second baffle (30), second filter screen (31) become the cone setting towards first filter screen (21) direction, the aperture of second filter screen (31) is less than first filter screen (21), top at barrel (10) is equipped with water inlet (40), the bottom of barrel (10) becomes to leak hopper-shaped setting, and the most advanced that leaks hopper-shaped bottom at barrel (10) is equipped with delivery port (41).

2. The primary treatment device for sewage recovery according to claim 1, wherein: a scraper (22) is arranged on the first filter screen (21) in an abutting mode, the scraper (22) is attached to the surface of the first filter screen (21), a transmission rod (24) is fixed on the scraper (22), the transmission rod (24) penetrates through the center of the first filter screen (21) along the vertical direction even in the length direction, and a motor (25) used for driving the transmission rod (24) to rotate is fixed to the top of the barrel (10).

3. The primary treatment device for sewage recovery according to claim 2, wherein: and a scraping blade (23) made of flexible materials is arranged on one side of the scraping blade (22) facing the first filter screen (21), and the scraping blade (23) is tightly propped against the surface of the first filter screen (21).

4. The primary treatment device for sewage recovery according to claim 1, wherein: a water pumping pipe (42) is connected to one side of the water outlet (41) far away from the cylinder body (10), and a sewage pump (43) is connected to the water pumping pipe (42).

5. The primary treatment device for sewage recovery according to claim 4, wherein: wear to be equipped with first clearance pipe (50) respectively along the direction of height on the lateral wall of barrel (10), first blow off pipe (51), second clearance pipe (52) and second blow off pipe (53), first clearance pipe (50) and first blow off pipe (51) are located the top of first baffle (20), second clearance pipe (52) and second blow off pipe (53) are located between first baffle (20) and second baffle (30), first baffle (20) are pressed close to in first blow off pipe (51), second baffle (30) are pressed close to in second blow off pipe (53), all be equipped with the valve on first clearance pipe (50), first blow off pipe (51), second clearance pipe (52) and second blow off pipe (53).

6. The primary treatment device for sewage recovery according to claim 5, wherein: the first cleaning pipe (50) and the second cleaning pipe (52) are communicated with an annular water distributor (54), and water distribution openings are uniformly formed in the water distributor (54) along the circumferential direction.

7. The primary treatment device for sewage recovery according to claim 1, wherein: be equipped with connecting pipe (60) outside barrel (10), connecting pipe (60) intercommunication first blow off pipe (51) and second blow off pipe (53), below intercommunication at connecting pipe (60) has dirty room (61) of collection, be equipped with third filter screen (62) in dirty room (61) of collection, offer the clearance mouth that is used for clearing up third filter screen (62) on dirty room (61) lateral wall of collection, be equipped with clearance door (63) at clearance mouth upper cover, the intercommunication has recovery tube (64) on barrel (10), recovery tube (64) and connecting pipe (60) are located the both sides of third filter screen (62), the one end intercommunication delivery port (41) of dirty room (61) of collection is kept away from in recovery tube (64), be equipped with the valve on recovery tube (64).

8. The primary treatment device for sewage recovery according to claim 7, wherein: the third screen (62) is inclined downwardly towards the cleaning opening.
