The utility model provides a trachea cannula fixer, includes left sleeve pipe and right sleeve pipe, left side sleeve pipe and right sleeve pipe pass through buckle fixed connection and are cylinder type pipe fitting, cylinder type pipe fitting one end is equipped with the fixed plate by near the port portion, the fixed plate with the port leave one section working distance, the fixed plate is formed its characterized in that by fixing the left half crown plate at left sleeve pipe outer wall and by fixing the right half crown plate at right sleeve pipe outer wall and dock each other respectively: the one end that cylinder type pipe fitting was equipped with the fixed plate still is equipped with the fixed bolster that the branch of using cylinder type pipe fitting as two bisymmetry of center is constituteed, branch with the fixed plate become an inclination, branch tip be equipped with the through-hole that is used for fixed band, the length of fixed band enough interconnect be fixed in back brain. The device is simple in use method, convenient to operate and remarkable in effect.
Description
Technical Field
The patent of the utility model relates to a trachea cannula's fixer especially involves a fixer through oral cavity trachea cannula.
Background
In the clinical treatment process, a simple and quick method is usually adopted to fix the tracheal cannula in the respiratory tract after the endotracheal intubation operation of a patient is generally required, so as to achieve the purposes of preventing the tracheal cannula from slipping and shifting and preventing the tracheal cannula from being blocked in the respiratory tract. The trachea cannula is one of important measures for rescuing critically ill patients, and the oral trachea cannula has the advantages of simple and rapid operation, small wound, relatively large cannula diameter, difficult blockage by sputum and the like, and is an important rescue method for keeping respiratory tract open. Whether the tracheal cannula is fixed properly is important for effective ventilation of the patient. The middle-aged and the elderly patients often have sparse and loose teeth, the traditional tracheal catheter fixing method is difficult to ensure that the catheter is reliably fixed, and the accidental tube drawing proportion is high. The fixing of the white tape of the dental pad of the oral trachea cannula is blocked by the dental pad and the adhesive tape, so that a nurse cannot well and comprehensively observe and clean the oral cavity, and meanwhile, a patient with the trachea cannula difficultly swallows, the saliva of the oral cavity is increased, the adhesive tape and the white tape are easily polluted, and the adhesive tape and the white tape are curled and loosened. Therefore, the traditional method for fixing the tracheal cannula not only increases the workload of medical staff and reduces the comfort of a patient, but also threatens the life safety of the patient.
The "comparison of the effects of three different methods for oral tracheal intubation" was disclosed in the journal of practical medicine, 2013, 29, vol.18, page 3029, by sun cuisine et al, to conclude that: the tracheal cannula fixer fixing method is simple and convenient to operate, safe and effective in fixing, few in oral and facial complications and worthy of clinical popularization.
However, the existing fixator for the trachea cannula through the oral cavity has some defects, such as: CN2287970Y relates to a ring-sleeved molar fixed bite-block, which is fixed with molar on one side in a ring-sleeved molar manner, and a pillow strap, an insertion tube and a bite-block are respectively fixed, so as to achieve the purpose of fixing the insertion tube safely, conveniently and practically. But because the bite block is fixed in the oral cavity, the patient is very uncomfortable all the time. CN202207380U discloses a tracheal cannula fixer, which is characterized in that semi-cylindrical tooth pads are respectively arranged on the bottom surfaces of a left fixing clamp and a right fixing clamp, fixing holes are respectively arranged on the outer sides of the left fixing clamp and the right fixing clamp, fixing belts are arranged on the fixing holes, the tracheal cannula is tightly wrapped by the two fixing clamps, the two fixing clamps adjust the tightness degree of the fixing clamps for the tracheal cannula through a switch button and a sawtooth groove, the tracheal cannula is arranged in the two tooth pads in a penetrating manner, the tracheal cannula is effectively prevented from being bitten by teeth of a patient, and the tracheal cannula can be prevented from sliding up and down. This seems to be a secure attachment, but also requires the placement of a bite block within the patient's mouth, with the same discomfort problem as the previous one.
CN108671353A is a reducing tracheal cannula fixer, including left sleeve pipe and right sleeve pipe, left sleeve pipe and right sleeve pipe combination become the pipe, are equipped with the fixed plate simultaneously, but because the fixed plate hugs closely the mouth, this makes the patient have the sense of compaction when using, and is very uncomfortable, if the live time is a bit for a long time, the patient oral cavity surface easily has the ulcer, and the patient need be careful when using to pay attention to this kind of misery.
Therefore, there is a need for a fixing device for an oral tracheal cannula with good fixing effect and a comfortable fixing mode for patients
Disclosure of Invention
The utility model aims at solving the defects in the prior tracheal intubation fixing process, and provides a novel controllable tracheal intubation fixer to solve the problems.
In order to achieve the purpose, the technical scheme of the utility model is as follows:
the utility model provides a trachea cannula fixer, includes left sleeve pipe and right sleeve pipe, left side sleeve pipe and right sleeve pipe pass through buckle fixed connection and are the cylinder type pipe fitting, cylinder type pipe fitting one end is close to the port position and is equipped with the fixed plate, the fixed plate with the port leave one section working distance, the fixed plate is formed by fixing the left half crown plate at left sleeve pipe outer wall and by fixing the right half crown plate of right sleeve pipe outer wall and dock each other, the one end that the cylinder type pipe fitting was equipped with the fixed plate still is equipped with the fixed bolster of constituteing for central two bisymmetry's branch with the fixed plate one-tenth inclination, the branch tip be equipped with the through-hole that is used for fixed band, the length of fixed band be enough interconnect to be fixed in back brain. Here be close to the port position and mean that the fixed plate leaves certain distance with the outer one end port in cylinder type pipe fitting oral cavity, this is because need guarantee when using tracheal cannula fixer during operation, the tracheal catheter that the inside was worn out can not touch patient's face, this is also the utility model discloses a scheme and prior art have the place of improvement.
Furthermore, a connection protective belt is arranged at the joint of the left sleeve or the right sleeve, the connection protective belt is connected with the edge of one of the left sleeve or the right sleeve, a multi-stage clamping groove is formed in the connection belt, and a buckle matched with the multi-stage clamping groove is arranged on the edge of the other left sleeve or the right sleeve which is not connected with the protective belt. The clamping grooves and the buckles can be a plurality of groups of multi-stage clamping grooves which are uniformly distributed at the joint of the left sleeve or the right sleeve, and the whole connecting protective belt can be designed into a strip-shaped multi-stage clamping groove to be matched with the strip-shaped multi-stage buckles at the edge of the left sleeve or the right sleeve without the connecting protective belt. Still further, the multistage draw-in groove and buckle be mutually supported latch, the latch quantity of multistage draw-in groove is a plurality of grades more than the quantity of buckle. Thus, medical staff can select proper clamping grooves and gears matched with buckles for different patients, and the size of the cylindrical pipe after the left sleeve or the right sleeve is connected is suitable for different patients.
Still further, trachea cannula fixer, its characterized in that multistage draw-in groove with the joint driving fit does not leave the gap after the buckle coincide, can let left, right semicircle have better stability after connecting.
Furthermore, the multistage clamping grooves and the buckles are densely provided with a plurality of groups of clamping grooves which are uniformly arranged at the connecting position of the left sleeve and the right sleeve, so that the left sleeve or the right sleeve is not detached after being connected.
The fixing support is formed by four support rods which are arranged in a crossed manner, and the inclination angle between the support rods and the fixing plate is 10-30 degrees. Most preferably, the fixing plate has an inclination angle of 15 degrees.
More preferably, the tracheal cannula fixer is characterized in that the support rod is made of slightly elastic silica gel. The branch is recommended to be slightly elastic material, chooses for use more rigid silica gel or rubber better, and trachea cannula fixer can have a buffering when fixed in back brain with the fixed band, increases patient's comfort.
The inventor strongly recommends that tracheal cannula fixer, left sleeve pipe, right sleeve pipe, fixed plate be the material of transparent material, be convenient for observe tracheal catheter scale, cleanliness etc..
Furthermore, the tracheal cannula fixator comprises four fixing bands fixed with the through holes and a fixing cloth block which is mutually connected into a mask shape, the fixing cloth block is arranged in the rear brain, and the four fixing bands connected with the fixing cloth block are respectively fixed with the matched through holes.
Furthermore, the fixing belt is recommended to be made of soft materials, and the front surface and the back surface of the fixing belt are respectively provided with primary and secondary stickers which can be pasted and matched with each other. The fixing belt passes through the through hole on the bracket and is stuck and fixed with the other side of the fixing belt.
Particularly, the length of the cylindrical pipe fitting at one end of the fixing plate, which faces the bracket, is preferably 1cm-3cm, and the length of the other end of the fixing plate is matched with the length of a physiological oral cavity of a human body.
The utility model has the advantages that: (1) the utility model discloses a trachea cannula fixer is equipped with the fixed plate except, still is equipped with the mount with the fixed plate separation, and support and fixed plate separation promptly can thoroughly let the trachea cannula of wearing out from trachea cannula fixer can not contact patient's oral cavity or other positions on the face, and the medical personnel of being convenient for operate also to make patient more comfortable. (2) The utility model discloses a trachea cannula fixer's pipe port leaves the distance with the fixed plate, further guarantees trachea cannula and does not touch patient's face to can firmly fix trachea cannula, the defect that trachea cannula easily buckled when avoiding ventilating. (3) The tracheal cannula fixer of the utility model can fix tracheal cannulas of different models through the positions of the adjusting buckle and the clamping groove which are matched with each other in different ways, and has convenient and simple operation and firm fixation; (4) recommend trachea cannula fixer's intubate fixed plate to adopt transparent material, can make things convenient for medical personnel to observe the depth of insertion and the colour of patient's lips of oral cavity trachea cannula, can not harm the skin of patient's face simultaneously, alleviate patient's uncomfortable sense in oral cavity. (5) The four-head fixing belt is made of soft materials, and the facial skin of a patient cannot be damaged during fixing.
Drawings

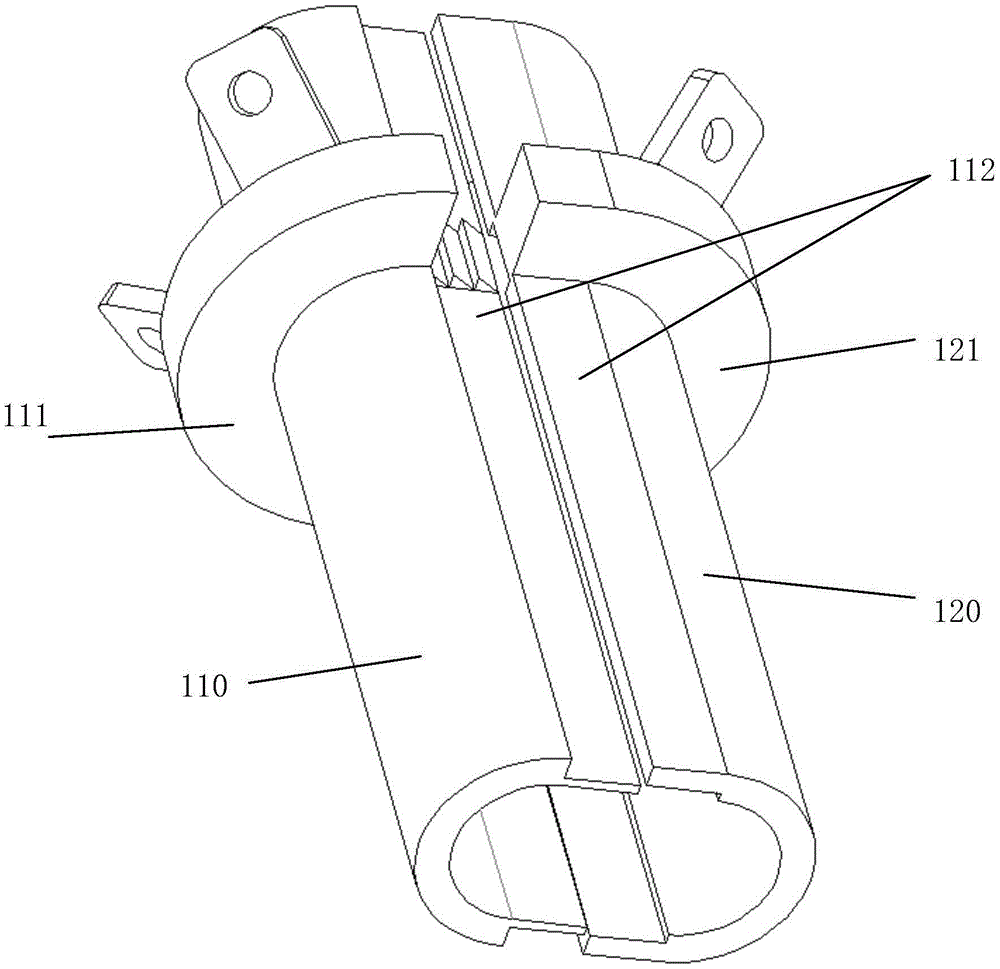

Fig. 1 is a schematic view of the overall structure of the present invention.
FIG. 2 is a schematic view of a local detailed structure of the present invention
Fig. 3 is a general plan view structure of the present invention.
Fig. 4 is a schematic view of the fixing belt structure of the present invention.
Detailed Description
The following describes the present invention in further detail with reference to the attached drawings.
Example 1
The utility model provides a trachea cannula fixer, includes left sleeve pipe 110 and right sleeve pipe 120, left sleeve pipe 110 and right sleeve pipe 120 are cylindrical pipe fitting through buckle 114 fixed connection, left sleeve pipe 110 or right sleeve pipe 120 junction be equipped with connection protection area 112, the edge of connection protection area 112 and left sleeve pipe 110 or right sleeve pipe 120 one of them be connected, the connecting band on be equipped with multistage draw-in groove 124, another left sleeve pipe 110 or right sleeve pipe 120 edge that do not have the connection protection area be equipped with multistage draw-in groove 124 complex buckle 114. The multi-stage card slot 124 and the buckle 114 are mutually matched card teeth, and the number of the card teeth of the multi-stage card slot 124 is a plurality of stages more than that of the buckle 114. Therefore, medical staff can select proper gears matched with the clamping grooves 124 and the buckles 114 for different patients, the size of the cylindrical pipe connected with the left sleeve 110 or the right sleeve 120 is suitable for different patients, and joints are tightly closed without gaps after the multistage clamping grooves 124 are matched with the buckles 114. The multi-stage clamping grooves 124 and the buckles 114 are densely provided with a plurality of groups which are uniformly arranged at the connecting position of the left sleeve 110 and the right sleeve 120, so that the left sleeve 110 or the right sleeve 120 is ensured not to fall off after being connected.
Cylinder type pipe fitting one end is close to the port position and is equipped with the fixed plate, the fixed plate with the port leave one section working distance, the fixed plate is formed by fixing the left half ring board 111 at left sleeve pipe 110 outer wall and by fixing the right half ring board 121 butt joint each other at right sleeve pipe 120 outer wall, the one end that cylinder type pipe fitting was equipped with the fixed plate still is equipped with fixed bolster 115(1-4) that use cylinder type pipe fitting to constitute as central two bisymmetry's branch, the fixed bolster be the cross hairpin by four branch 115(1-4) and arrange and form, branch with the fixed plate be 15 degrees inclinations. The tip of branch be equipped with the through-hole that is used for fixed band 130, branch be somewhat elastic silica gel, fixed band 130's length be enough interconnect to be fixed in back brain. The tracheal cannula fixing device is characterized in that the left sleeve 110, the right sleeve 120 and the fixing plate are made of transparent materials, so that scales and cleanliness of the tracheal cannula can be observed conveniently.
When the tracheal cannula fixator is used, the four fixing bands 130 fixed with the through holes are firstly connected with the fixing cloth 131 to form a mask shape, the fixing cloth 131 is arranged in the back brain, and the four fixing bands 130 connected with the fixing cloth 131 are respectively fixed with the matched through holes. The fixing band 130 preferably uses a soft material, and the front and back surfaces of the fixing band 130 are respectively primary and secondary stickers capable of being stuck and matched with each other. The fixing band 130 is adhered to the other side of the fixing band through the through hole of the bracket, and it is emphasized that a certain distance is left between the fixing band and the port at one end outside the oral cavity of the cylindrical pipe fitting, because it is required to ensure that the tracheal catheter penetrating through the fixing band does not touch the affected face when the tracheal catheter fixing device works.
The length of the cylindrical pipe fitting at one end of the fixing plate, which faces the bracket, is 1.5cm, and the length of the other end of the fixing plate is matched with the length of a physiological oral cavity of a human body.
Claims (10)
1. The utility model provides a trachea cannula fixer, includes left sleeve pipe (110) and right sleeve pipe (120), left side sleeve pipe (110) and right sleeve pipe (120) are cylinder type pipe fitting through buckle (114) fixed connection, cylinder type pipe fitting one end is equipped with the fixed plate by near end oral area, the fixed plate with the port leave one section working distance, the fixed plate is formed by fixing left half crown plate (111) at left sleeve pipe (110) outer wall and by fixing right half crown plate (121) at right sleeve pipe (120) outer wall and dock each other its characterized in that: the one end that cylinder type pipe fitting was equipped with the fixed plate still is equipped with fixed bolster (115) that the branch of using cylinder type pipe fitting as two bisymmetry of center is constituteed, branch with the fixed plate become an inclination, branch tip be equipped with the through-hole that is used for fixed band (130), the length of fixed band (130) be enough interconnect to be fixed in the back brain.
2. The endotracheal intubation fixator according to claim 1, wherein a connection protection tape (112) is provided at a connection portion of the left cannula (110) or the right cannula (120), the connection protection tape (112) is connected to an edge of one of the left cannula (110) or the right cannula (120), a multi-stage locking groove (124) is provided on the connection tape, and a locking buckle (114) engaged with the multi-stage locking groove (124) is provided on an edge of the other of the left cannula (110) or the right cannula (120) provided with the connection protection tape (112).
3. The endotracheal intubation holder according to claim 2, wherein said multiple stages of engaging grooves (124) and said engaging projections (114) are engaging teeth, and the number of engaging teeth of said multiple stages of engaging grooves (124) is several stages greater than the number of engaging projections (114).
4. The endotracheal intubation holder according to claim 2, wherein said multiple engaging grooves (124) are engaged with said engaging tabs (114) in a sealed manner, with no gap left therebetween.
5. The endotracheal intubation holder according to any one of claims 2 to 4, characterized in that said multiple levels of notches (124) and said catches (114) are arranged densely and uniformly at the junction between the left cannula (110) and the right cannula (120).
6. The tracheal cannula fixator according to claim 1, wherein the fixing support (115) is formed by four struts arranged in a criss-cross arrangement, and the struts and the fixing plate form an inclination angle of 10-30 degrees.
7. The endotracheal tube holder of claim 1 wherein said support post is a slightly resilient silicone.
8. The tracheal cannula fixator according to claim 1, wherein the left cannula (110), the right cannula (120) and the fixing plate are made of transparent materials.
9. The tracheal cannula fixator according to claim 1, wherein in use, four fixing straps (130) fixed with the through holes are first interconnected with a fixing cloth (131) to form a mask shape, the fixing cloth (131) is placed on the back brain, and the four fixing straps (130) connected with the fixing cloth (131) are then fixed with the matched through holes respectively.
10. The tracheal cannula fixator of claim 1 wherein the cylindrical tube has a length of 1cm to 3cm at one end of the fixation plate facing the stent and a length at the other end of the fixation plate matching the length of the physiological oral cavity of the human body.
