Abstract
The utility model provides a solar energy absorber plate and house, it has multiple thermal-arrest mode, and the thermal-arrest is effectual, include the frame and be located the bottom plate of frame lower extreme, its characterized in that: the heat-absorbing plate is characterized in that a glass layer, a heat-absorbing plate, a copper pipe and a heat-insulating layer are respectively arranged at the upper end of the frame from top to bottom, the copper pipe is arranged in a snake shape, an inlet and an outlet are respectively formed in two ends of the copper pipe and extend out of the frame, a fluid medium flows in the copper pipe, a cavity is formed between the lower part of the heat-insulating layer and the bottom plate, an air inlet is formed in one side of the frame, and an air outlet is formed in the.
Description
Technical Field
The utility model relates to a solar energy absorber plate technical field specifically is a solar energy absorber plate and house.
Background
The solar heat absorbing plate is a component which absorbs solar radiation energy and transfers heat to a heat transfer working medium, generally, the solar heat absorbing plate is mostly in a flat plate shape, and can be made into a corrugated shape, a radiating sheet shape and the like in order to increase the area for absorbing radiation. The solar heat absorbing plate is generally provided with a flow channel for a heat exchange medium, and the flow channel for fluid can be a pipeline tightly combined with the heat absorbing plate or integrated with the heat absorbing plate.
The existing solar heat absorbing plate has a single heat collecting mode and low heat collecting speed.
SUMMERY OF THE UTILITY MODEL
To the problem, the utility model provides a solar energy absorber plate and house, it has multiple thermal-arrest mode, and the thermal-arrest is effectual.
The technical scheme is as follows: the utility model provides a solar absorber plate, includes the frame and is located the bottom plate of frame lower extreme, its characterized in that: the heat-absorbing plate is characterized in that a glass layer, a heat-absorbing plate, a copper pipe and a heat-insulating layer are respectively arranged at the upper end of the frame from top to bottom, the copper pipe is arranged in a snake shape, an inlet and an outlet are respectively formed in two ends of the copper pipe and extend out of the frame, a fluid medium flows in the copper pipe, a cavity is formed between the lower part of the heat-insulating layer and the bottom plate, an air inlet is formed in one side of the frame, and an air outlet is formed in the.
Furthermore, the glass layer is made of ultra-white glass.
Furthermore, the heat absorbing plate is a metal plate with a blue film coating.
Furthermore, the air inlet and the air outlet are respectively provided with a valve.
Further, the valve is electrically connected with the controller.
Furthermore, the copper pipe is respectively connected with an electric tracing water storage tank at the inlet and the outlet through pipelines, and a water pump is also arranged on the pipeline.
The application of the solar heat absorbing plate on a house is characterized in that: the solar heat absorption plate and the solar cell panel are obliquely arranged on the roof through a support, the solar heat absorption plate is positioned on the upper side of the solar cell panel, and a gap is reserved between the solar heat absorption plate and the roof and between the solar cell panel and the roof to form an air duct.
The utility model discloses a solar energy absorber plate, it can not only absorb heat through the solar radiation absorber plate, heat the fluid medium in the copper pipe, but also can heat the fluid medium in the copper pipe through the hot blast through the air inlet of solar energy absorber plate, the glass board of solar energy absorber plate adopts super white glass, the luminousness can reach more than 91.5%, the visible light transmissivity is high, the permeability is good, relatively ordinary glass absorbs less to the red purple wave band in the visible light, can improve the efficiency of heating the fluid medium in the copper pipe, the absorber plate adopts the metal sheet that has blue membrane cladding material, it has high absorptivity to solar radiation energy, and its self emissivity is very low, can effectively improve the solar photothermal conversion efficiency, it has multiple heat collecting modes, the heat collecting effect is good, high efficiency, when the solar energy absorber plate of the utility model is used on the house, the solar energy absorber plate is located the solar cell panel upside, the solar panel is cooled, the power generation efficiency of the solar panel is improved, and hot air can be guided indoors through the air outlet in the bottom plate in winter for heating.
Drawings

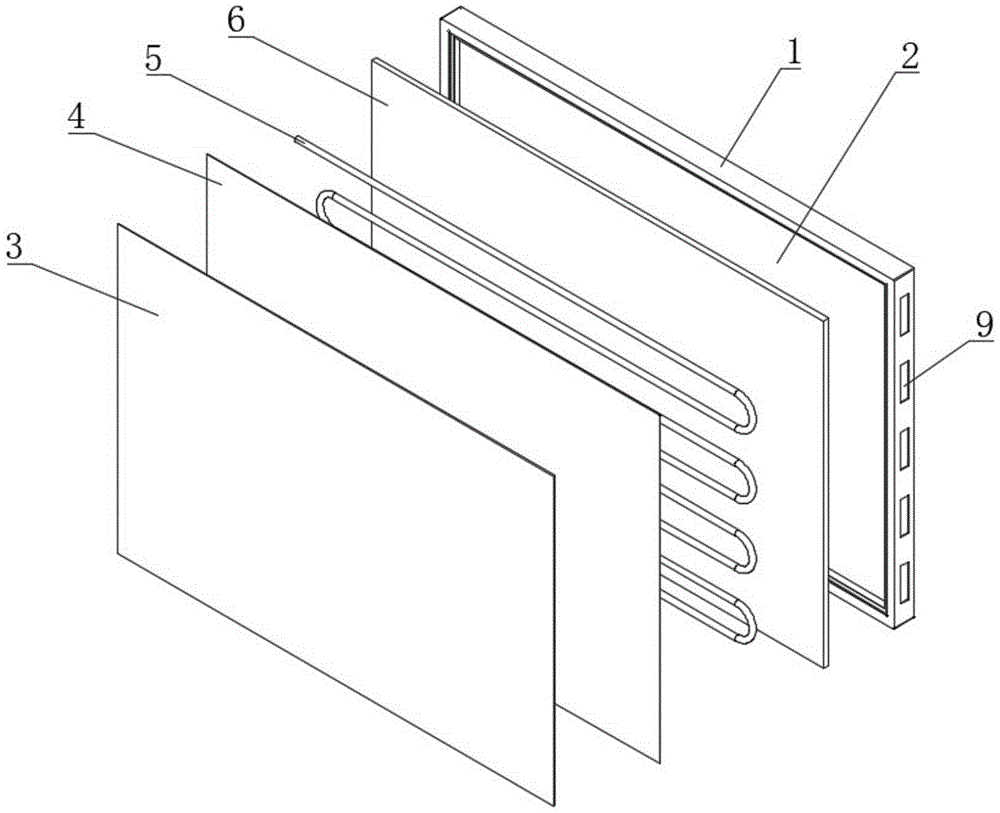

Fig. 1 is an exploded view of a solar absorber plate according to the present invention;
fig. 2 is an exploded side view of the solar absorber plate of the present invention;
fig. 3 is a schematic view of the frame and the bottom plate of the solar absorber plate of the present invention;
fig. 4 is a schematic view of the application of the solar absorber plate of the present invention.
Detailed Description
The technical solution in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention.
See fig. 1, 2, 3, the utility model discloses a solar energy absorber plate, it includes frame 1 and the bottom plate 2 that is located frame 1 lower extreme, the upper end top-down that is located frame 1 is provided with glass layer 3 respectively, absorber plate 4, copper pipe 5, heat preservation 6, copper pipe 5 sets up and is snakelike, the both ends of copper pipe 5 set up respectively to stretch out from frame 1 for import 7 and export 8, the circulation has fluid medium in copper pipe 5, constitute cavity 8 between the below of heat preservation 6 and the bottom plate 2, one side of frame 1 is provided with air intake 9, be provided with air outlet 10 on the bottom plate 2.
In this embodiment, the glass layer is made of ultra-white glass, the light transmittance can reach more than 91.5%, the visible light transmittance is high, the permeability is good, and the absorption of the glass layer to the magenta band in the visible light is less compared with that of common glass, so that the efficiency of heating the fluid medium in the copper pipe can be improved.
In the embodiment, the heat absorbing plate adopts a metal plate with a blue film coating, has extremely high absorptivity to solar radiation energy, has very low self emissivity, and can effectively improve the solar photo-thermal conversion efficiency.
In this embodiment, the copper pipe is connected with the electric heat tracing water storage tank at the inlet and the outlet respectively through a pipeline, and a water pump is further arranged on the pipeline and controls the circulation of the medium flowing through the copper pipe.
In another embodiment of the present invention, the air inlet and the air outlet are respectively provided with a valve, the valve is electrically connected to the controller, and the controlling of the valve by the controller is a conventional technique in the art and will not be described in detail herein.
The utility model discloses a solar energy absorber plate, it is except can heating the fluid medium in the copper pipe through the heat absorption of sun-irradiation absorber plate, can also pass through the air intake air inlet of solar energy absorber plate, and it has multiple thermal-arrest mode, and the thermal-arrest is effectual, efficient.
The embodiment of the utility model provides an application of foretell solar absorber plate on house is still provided in the embodiment, see figure 4, the installation on the roof of solar absorber plate 100 and solar cell panel 200 through the support slope, solar absorber plate 100 is located solar cell panel 200 upside, leave the clearance between solar absorber plate 100 and solar cell panel 200 and the roof and constitute the wind channel, be located the solar cell panel upside with the solar absorber plate, leave the clearance between solar absorber plate and solar cell panel and the roof and constitute the wind channel, in summer, the air intake air is taken away the heat under the solar cell panel and is blown solar absorber plate department, lower the temperature to solar cell panel, improve solar cell panel's generating efficiency, in winter, can guide hot-blast indoor through the air outlet on the bottom plate, be used for the heating.
It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein.
Furthermore, it should be understood that although the present description refers to embodiments, not every embodiment may contain only a single embodiment, and such description is for clarity only, and those skilled in the art should integrate the description, and the embodiments may be combined as appropriate to form other embodiments understood by those skilled in the art.
Claims (7)
1. The utility model provides a solar absorber plate, includes the frame and is located the bottom plate of frame lower extreme, its characterized in that: the heat-absorbing plate is characterized in that a glass layer, a heat-absorbing plate, a copper pipe and a heat-insulating layer are respectively arranged at the upper end of the frame from top to bottom, the copper pipe is arranged in a snake shape, an inlet and an outlet are respectively formed in two ends of the copper pipe and extend out of the frame, a fluid medium flows in the copper pipe, a cavity is formed between the lower part of the heat-insulating layer and the bottom plate, an air inlet is formed in one side of the frame, and an air outlet is formed in the.
2. A solar absorber plate according to claim 1, wherein: the glass layer is made of ultra-white glass.
3. A solar absorber plate according to claim 1, wherein: the heat absorbing plate is a metal plate with a blue film coating.
4. A solar absorber plate according to claim 1, wherein: and the air inlet and the air outlet are respectively provided with a valve.
5. A solar absorber plate according to claim 4, wherein: the valve is electrically connected with the controller.
6. A solar absorber plate according to claim 1, wherein: the copper pipe is connected with an electric tracing water storage tank at the inlet and the outlet through pipelines respectively, and a water pump is further arranged on the pipeline.
7. A dwelling having the solar absorber panel of claim 1, wherein: the solar heat absorption plate and the solar cell panel are obliquely arranged on the roof through a support, the solar heat absorption plate is positioned on the upper side of the solar cell panel, and a gap is reserved between the solar heat absorption plate and the roof and between the solar cell panel and the roof to form an air duct.
