The utility model relates to a clinical care medical computer shallow of angularly adjustable and easily accomodate, including the chassis, its characterized in that, the inside ann on chassis has the power supply box, be equipped with L type cavity on the workstation, there is angle adjusting device through the mounting bracket rigid coupling in the axis of rotation, it has the spliced pole to rotate on the angle adjusting device, the rigid coupling has the mount table on the spliced pole, the upper portion of workstation be equipped with the collecting storage of mount table looks adaptation. The utility model discloses simple structure, reasonable in design through setting up angle adjusting device to and have the spliced pole of mount table, the medical computer shallow of clinical care is when using, is convenient for pass through the spliced pole according to user's demand and drives the computer rotation, through setting up the workstation of ann's collecting storage facility, under the condition of not using the computer, through installing the computer on the mount table, the cooperation axis of rotation just accomodates the computer in collecting storage facility, has satisfied user's demand.
Description
Technical Field
The utility model relates to the technical field of medical equipment, especially, relate to a medical computer shallow of clinical care that angularly adjustable and easily accomodate.
Background
With the development of computer technology, computer carts carrying computers are gradually entering daily lives of users, and particularly, when medical staff work in hospitals, medical computer carts for clinical care are indispensable equipment. However, when the existing clinical care medical computer cart is used, the computer cannot be rotated according to the requirements of the user, and in addition, the computer cannot be stored under the condition that the computer is not used, so that the requirements of the user are difficult to meet.
Disclosure of Invention
The utility model aims at solving the defects of the prior art and providing a clinical care medical computer cart which is adjustable in angle and easy to store.
The utility model discloses a realize above-mentioned purpose, adopt following technical scheme:
the utility model provides a clinical care medical computer shallow that angularly adjustable and easily accomodate, includes the chassis, its characterized in that, the power supply box is ann to the inside on chassis, vertical rigid coupling has corresponding stand around on the chassis, and the front and back upper portion of stand all is equipped with the cavity structure, ann has vertical lift electric jar in the cavity structure, lift electric jar with the power supply box electricity is connected, and the front and back drive end of lift electric jar is worn out the top rigid coupling of stand has the workstation of same level, the one end of workstation is rotated backward by the front and is ann has the axis of rotation, the one end of axis of rotation is located the outer wall of workstation ann has the runner, be equipped with L type cavity on the workstation, there is angle adjusting device through the mounting bracket rigid coupling in the axis of rotation, the mounting bracket uses the axis of rotation as the center to rotate in the L type cavity of workstation, it installs the spliced pole to rotate on the angle adjusting device, the spliced pole is last the rigid coupling has the mount table, the upper portion of workstation be equipped with the storage bin of mount table looks adaptation.
The angle adjusting device comprises a driving box, the driving box is fixedly connected with the mounting rack, a rotating disc vertical to the connecting column is arranged in the driving box, one end of the connecting column penetrates through the side wall of the driving box to be fixedly connected with the rotating disc, the outer side wall of the rotating disc is rotatably provided with a roller through a connecting frame, the inner wall of the driving box is provided with an annular sliding chute, the roller rolls in the annular sliding chute, the other side of the rotating disc is coaxially and fixedly connected with a driven rotating shaft, the other end of the driven rotating shaft rotates on the inner wall of the driving box, a driven bevel gear is coaxially and fixedly connected to the driven rotating shaft, a driving bevel gear is engaged with the driven bevel gear, and a driving rotating shaft vertical to the driven rotating shaft is coaxially and fixedly connected to the driving bevel gear, and the other end of the driving rotating shaft penetrates through the side wall of the driving box and is coaxially and fixedly connected with a hand wheel.
A plurality of horizontal storage boxes are arranged between the front upright post and the rear upright post from top to bottom.
The lower surface of the workbench is provided with a mouse storage box and a liquid soap fixing frame respectively, and the mouse storage box and the liquid soap fixing frame are located on the left side and the right side of the upright post respectively.
The bottom of the chassis is provided with a plurality of casters.
The utility model has the advantages that: the utility model discloses simple structure, reasonable in design through setting up angle adjusting device to and have the spliced pole of mount table, the medical computer shallow of clinical care is when using, is convenient for pass through the spliced pole according to user's demand and drives the computer rotation, through setting up the workstation of ann's collecting storage facility, under the condition of not using the computer, through installing the computer on the mount table, the cooperation axis of rotation just accomodates the computer in collecting storage facility, has satisfied user's demand.
Drawings

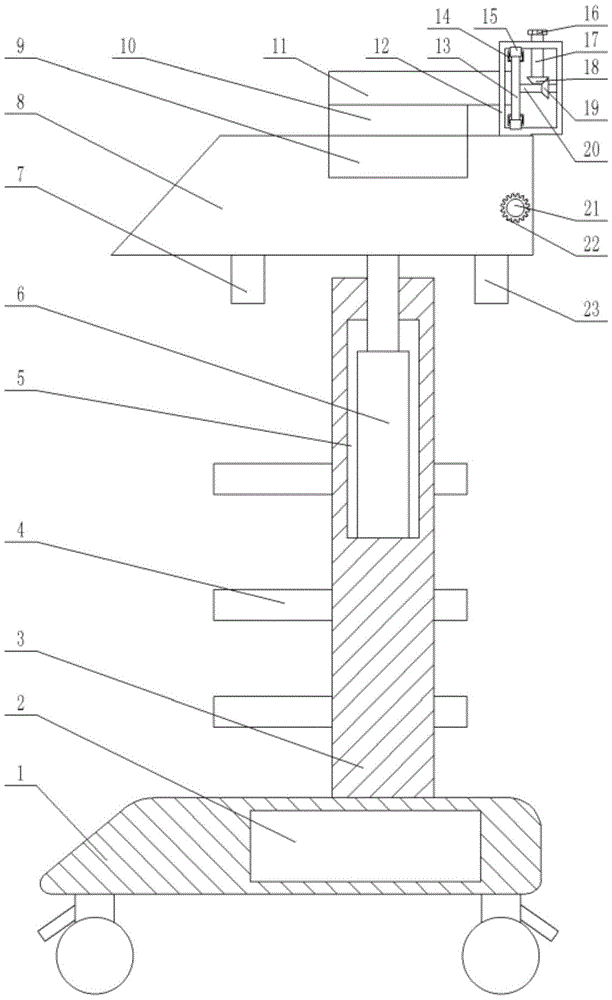

FIG. 1 is a schematic view of the structure of the installation table of the present invention;
FIG. 2 is a schematic structural view of the present invention with the installation platform opened;
FIG. 3 is an enlarged view of a portion of FIG. 2;
in the figure: 1-a chassis; 2-a power box; 3-upright column; 4-a storage box; 5-a cavity structure; 6-lifting electric cylinder; 7-a mouse storage box; 8, a workbench; 9-a storage bin; 10-mounting a platform; 11-a connecting column; 12-a drive box; 13-a rotating disc; 14-a connecting frame; 15-a roller; 16-a hand wheel; 17-a driving rotating shaft; 18-drive bevel gear; 19-driven bevel gear; 20-driven rotating shaft; 21-a rotating shaft; 22-a wheel; 23-liquid soap fixing rack;
the following detailed description will be made in conjunction with embodiments of the present invention with reference to the accompanying drawings.
Detailed Description
The invention will be further explained with reference to the following figures and examples:
as shown in fig. 1-3, a clinical care medical computer cart with adjustable angle and easy storage comprises a chassis 1, and is characterized in that a power box 2 is installed inside the chassis 1, corresponding front and rear upright posts 3 are vertically and fixedly connected to the chassis 1, cavity structures 5 are respectively arranged on the front and rear upper portions of the upright posts 3, a vertical lifting electric cylinder 6 is installed in the cavity structures 5, the lifting electric cylinder 6 is electrically connected to the power box 2, a driving end of the front and rear lifting electric cylinder 6 penetrates through the top end of the upright post 3 and is fixedly connected to a horizontal workbench 8, a rotating shaft 21 is installed at one end of the workbench 8 in a forward and backward rotating manner, a rotating wheel 22 is installed at one end of the rotating shaft 21 on the outer wall of the workbench 8, an L-shaped concave cavity is arranged on the workbench 8, an angle adjusting device is fixedly connected to the rotating shaft 21 through a mounting bracket, the mounting bracket rotates in the L-shaped concave cavity of the workbench 8 by taking the rotating shaft 21 as a center, the angle adjusting device is provided with a connecting column 11 in a rotating mode, the connecting column 11 is fixedly connected with an installation table 10, and the upper portion of the working table 8 is provided with a storage bin 9 matched with the installation table 10.
The angle adjusting device comprises a driving box 12, the driving box 12 is fixedly connected with the mounting rack, a rotating disc 13 vertical to the connecting column 11 is arranged in the driving box 12, one end of the connecting column 11 penetrates through the side wall of the driving box 12 and is fixedly connected with the rotating disc 13, a roller 15 is rotatably arranged on the outer side wall of the rotating disc 13 through a connecting frame 14, an annular sliding groove is formed in the inner wall of the driving box 12, the roller 15 rolls in the annular sliding groove, a driven rotating shaft 20 is coaxially and fixedly connected to the other side of the rotating disc 13, the other end of the driven rotating shaft 20 rotates on the inner wall of the driving box 12, a driven bevel gear 19 is coaxially and fixedly connected to the driven rotating shaft 20, a driving bevel gear 18 is meshed with the driven bevel gear 19, and a driving rotating shaft 17 vertical to the driven rotating shaft 20 is coaxially and fixedly connected to the driving bevel gear 18, the other end of the driving rotating shaft 17 penetrates through the side wall of the driving box 12 and is coaxially and fixedly connected with a hand wheel 16.
A plurality of horizontal storage boxes 4 are arranged between the front upright post and the rear upright post 3 from top to bottom.
The lower surface of the workbench 8 is provided with a mouse storage box 7 and a liquid soap fixing frame 23 respectively, and the mouse storage box 7 and the liquid soap fixing frame 23 are located on the left side and the right side of the upright post 3 respectively.
The bottom of the chassis 1 is provided with a plurality of casters.
The utility model discloses during the use, install the computer on mount table 10, the user rotates through 16 drive initiative pivots 17 of hand wheel, initiative pivot 17 passes through initiative bevel gear 18 and drives driven bevel gear 19 and rotate, make 20 drive rolling disc 13 of driven pivot rotate, rolling disc 13 drives spliced pole 11 and rotates, according to user's demand, the user rotates the computer to suitable position, the medical computer shallow of clinical care is when using, be convenient for rotate, under the condition that does not use the computer, the user passes through axis of rotation 21 drive case 12 through runner 22 and rotates, just accomodate the computer in collecting storage 9, user's demand has been satisfied, the utility model discloses simple structure, reasonable in design.
The present invention has been described above with reference to the accompanying drawings, and it is obvious that the present invention is not limited by the above embodiments, and various improvements made by the method concept and technical solution of the present invention or directly applied to other occasions without improvement are all within the protection scope of the present invention.
Claims (5)
1. The utility model provides a clinical care medical computer shallow that angularly adjustable and easily accomodate, includes chassis (1), its characterized in that, power supply box (2) are ann to the inside on chassis (1), vertical rigid coupling has corresponding stand (3) around on chassis (1), and around the upper portion of stand (3) all is equipped with cavity structure (5), ann has vertical lift electric jar (6) in cavity structure (5), lift electric jar (6) with power supply box (2) electricity is connected, around the drive end of lift electric jar (6) is worn out the top rigid coupling of stand (3) has same horizontally workstation (8), the one end of workstation (8) is by preceding rotation after installing axis of rotation (21), the one end of axis of rotation (21) is located the outer wall of workstation (8) is installed runner (22), be equipped with L type cavity on workstation (8), there is angle adjusting device through the mounting bracket rigid coupling on axis of rotation (21), the mounting bracket with axis of rotation (21) rotates as the center in the L type cavity of workstation (8), angle adjusting device goes up to rotate and is ann there are spliced pole (11), the rigid coupling has mount table (10) on spliced pole (11), the upper portion of workstation (8) be equipped with storage bin (9) of mount table (10) looks adaptation.
2. The medical computer cart for clinical care with adjustable angle and easy storage according to claim 1, wherein the angle adjusting device comprises a driving box (12), the driving box (12) is fixedly connected with the mounting rack, a rotating disc (13) perpendicular to the connecting column (11) is arranged in the driving box (12), one end of the connecting column (11) penetrates through the side wall of the driving box (12) and is fixedly connected with the rotating disc (13), rollers (15) are rotatably arranged on the outer side wall of the rotating disc (13) through a connecting frame (14), an annular sliding groove is arranged on the inner wall of the driving box (12), the rollers (15) roll in the annular sliding groove, a driven rotating shaft (20) is coaxially and fixedly connected to the other side of the rotating disc (13), and the other end of the driven rotating shaft (20) rotates on the inner wall of the driving box (12), driven shaft (20) go up coaxial rigid coupling have driven bevel gear (19), driven bevel gear (19) go up the meshing have drive bevel gear (18), drive bevel gear (18) go up coaxial rigid coupling have with driven shaft (20) vertically initiative pivot (17), the other end of initiative pivot (17) is worn out the coaxial rigid coupling of lateral wall of drive case (12) has hand wheel (16).
3. The medical computer cart for clinical care with adjustable angle and easy storage according to claim 1, wherein a plurality of horizontal storage boxes (4) are arranged between the front and the rear upright posts (3) from top to bottom.
4. The clinical care medical computer cart with adjustable angle and easy storage according to claim 1, wherein a mouse storage box (7) and a liquid soap fixing frame (23) are respectively mounted on the lower surface of the workbench (8), and the mouse storage box (7) and the liquid soap fixing frame (23) are respectively located on the left side and the right side of the upright post (3).
5. The clinical nursing medical computer cart with adjustable angle and easy storage according to claim 1, wherein the bottom of the chassis (1) is provided with a plurality of casters.
