Abstract

The utility model relates to the technical field of monitoring cameras, in particular to a fixing mechanism for a monitoring camera for weather, comprising a base plate, an upper part of the base plate is connected with a mounting frame through a buffer structure, and a monitoring camera is installed in the mounting frame; Both sides of the bottom plate are provided with a first protective frame that is perpendicular to its top surface, and both ends of the bottom plate are provided with a second protective frame that is perpendicular to its top surface. The bottom of the bottom plate is connected, and a plurality of protective rod mechanisms are connected between the two first protective frames and between the two second protective frames. The protective rod mechanisms include protective rods. The utility model can monitor the monitoring The camera is fixed installation and collision protection.

Description

A fixing mechanism for a weather surveillance camera

technical field

The utility model relates to the field of monitoring cameras, in particular to a fixing mechanism for a monitoring camera for weather.

Background technique

The commonly used equipment in weather monitoring is surveillance cameras. These cameras are generally set in the outdoor environment and are easily damaged by the collision of external forces during long-term use. Therefore, a fixed mechanism that can protect the surveillance cameras is required.

Utility model content

The purpose of the utility model is to solve the shortcoming of lack of protection in the prior art, and propose a fixing mechanism for a weather monitoring camera.

In order to achieve the above purpose, the technical scheme adopted by the present invention is as follows: a fixing mechanism for a weather monitoring camera, comprising a base plate, an upper part of the base plate is connected with a mounting frame through a buffer structure, and a monitoring camera is installed in the mounting frame , both sides of the bottom plate are provided with a first protective frame perpendicular to its top surface, both ends of the bottom plate are provided with a second protective frame perpendicular to its top surface, and both the first protective frame and the second protective frame pass through The damping structure is connected to the bottom of the bottom plate, and a plurality of protection rod mechanisms are connected between the two first protection frames and between the two second protection frames. One end of the rod is vertically connected to one of the first protective frames or the second protective frame, the other end of the protective rod passes through the socket provided on the other first protective frame or the second protective frame, and the end is connected to the limiting end , the protection rods connected between the two first protection frames and the protection rods connected between the two second protection frames are vertically intersected, and the bottom of the bottom plate is provided with a rotating mechanism.

Preferably, the mounting frame includes a U-shaped plate body, and the bottom surface and both sides of the plate body are equally spaced with elongated openings.

Preferably, the buffer structure includes four support rods vertically connected to the four corners of the bottom of the mounting frame, the support rods pass through the through holes provided on the bottom plate and are slidably fitted with the inner walls of the through holes, and the lower ends of the support rods are fixedly connected There is a limit block, and a second spring is sleeved on the support rod between the mounting frame and the bottom plate.

Preferably, the damping structure includes a connecting plate arranged at the bottom of the first protective frame and the second protective frame and a plug sleeve fixed on the bottom surface of the bottom plate, the connecting plate is vertically connected to one end of a guide rod, and the guide rod passes through the plug The sleeve is connected with the limit plate at the end, and the guide rod between the insertion sleeve and the connecting plate is sleeved with a first spring.

Preferably, the rotating mechanism includes a mounting plate, a plurality of mounting holes are provided on the mounting plate, a support plate is vertically fixed on the mounting plate, and the upper end of the support plate is rotatably connected to the bottom side of the bottom plate through a rotating shaft The mounting plate is rotatably connected with one end of the electric telescopic rod through the second connecting shaft, and the other end of the electric telescopic rod is rotatably connected with the other side of the bottom of the bottom plate through the first connecting shaft.

Compared with the prior art, the present invention has the following beneficial effects: in the present invention, the monitoring camera is installed in the mounting frame, and the mounting frame is installed on the bottom plate through the buffer structure, so that the monitoring camera can be buffered and protected, and a first The protective frame and the second protective frame protect the surveillance camera in an all-round way to ensure the safety of the surveillance camera. The first protective frame and the second protective frame are connected to the bottom plate through the damping structure, which can buffer the collision of foreign objects and reduce the impact of collision. The influence of the monitoring camera is monitored, and a movable protective rod is arranged between the first protective frame and the second protective frame for protection, which can protect the top of the monitoring camera while maintaining the stability of the protective frame.

Description of drawings

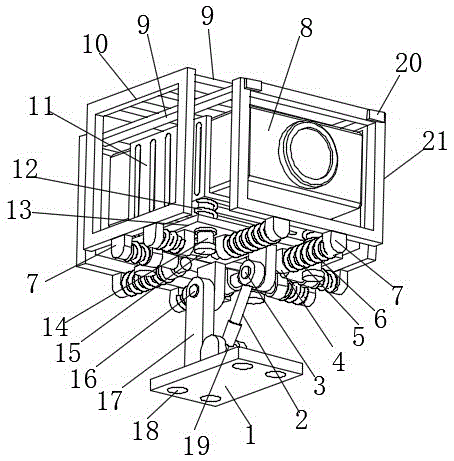

Fig. 1 is the structural representation of the utility model;

FIG. 2 is a schematic structural diagram of the present invention after the monitoring camera is removed.

In the figure: mounting plate 1, electric telescopic rod 2, first connecting shaft 3, insert sleeve 4, first spring 5, guide rod 6, connecting plate 7, monitoring camera 8, protective rod 9, first protective frame 10, installation The frame 11 , the second spring 12 , the bottom plate 13 , the support rod 14 , the limit block 15 , the rotating shaft 16 , the support plate 17 , the installation hole 18 , the second connecting shaft 19 , the limit end 20 , and the second protective frame 21 .

Detailed ways

The following description is used to disclose the present invention to enable those skilled in the art to implement the present invention. The preferred embodiments described below are given by way of example only, and other obvious modifications will occur to those skilled in the art.

As shown in FIG. 1-2, a fixing mechanism for a weather surveillance camera includes a base plate 13, the upper part of the base plate 13 is connected with a mounting frame 11 through a buffer structure, and the monitoring camera 8 is installed in the mounting frame 11, and the mounting frame 11 includes The U-shaped plate body has elongated openings equidistant from the bottom surface and both sides of the plate body. The buffer structure includes four support rods 14 vertically connected to the four corners of the bottom of the mounting frame 11 . The support rods 14 pass through the through holes provided on the bottom plate 13 and are slidably matched with the inner walls of the through holes, and the lower ends of the support rods 14 are fixedly connected to the limit block 15 , a second spring 12 is sleeved on the support rod 14 between the mounting frame 11 and the bottom plate 13 . The second spring 12 provides elastic force to buffer vibration and collision, so as to reduce the damage to the surveillance camera 8 caused by the collision of foreign objects.

Both sides of the bottom plate 13 are provided with a first protective frame 10 that is perpendicular to its top surface, and both ends of the bottom plate 13 are provided with a second protective frame 21 that is perpendicular to its top surface. Both the first protective frame 10 and the second protective frame 21 are damped The structure is connected to the bottom of the bottom plate 13. The damping structure includes a connecting plate 7 arranged at the bottom of the first protective frame 10 and the second protective frame 21 and a socket 4 fixed on the bottom surface of the bottom plate 13. The connecting plate 7 is vertically connected to one end of the guide rod 6 , the guide rod 6 passes through the plug sleeve 4 and the end is connected to the limit plate, the guide rod 6 between the plug sleeve 4 and the connecting plate 7 is sleeved with a first spring 5 . The first protective frame 10 and the second protective frame 21 respectively protect the two sides and both ends of the surveillance camera 8, and the shape of the protective frame can be flexibly set as required, so as to protect the surveillance camera 8 and not affect the camera, For example, choose the form of a rectangular frame. The buffering effect is provided by the first spring 5 to reduce the damage of the surveillance camera 8 caused by the collision of foreign objects.

A plurality of protection rod mechanisms are connected between the two first protection frames 10 and between the two second protection frames 21 . The protective rod mechanism includes a protective rod 9, one end of the protective rod 9 is vertically connected with one of the first protective frames 10 or the second protective frame 21, and the other end of the protective rod 9 passes through the other first protective frame 10 or the second protective frame The jacks provided on the 21 are connected to the limiting ends 20 at the ends, and the protective rods 9 connected between the two first protective frames 10 and the protective rods 9 connected between the two second protective frames 21 intersect vertically. There is a rotating mechanism at the bottom. The protective rod 9 is used to provide protection for the top of the surveillance camera 8, and to improve the connection between the two first protective frames 10 and the two second protective frames 21, and to improve the structural strength. One end of the protective rod 9 is inserted through the way It can be installed and can slide along the socket when the protective frame is impacted without affecting the buffering effect.

The rotating mechanism includes a mounting plate 1, a plurality of mounting holes 18 are arranged on the mounting plate 1, a support plate 17 is vertically fixed on the mounting plate 1, and the upper end of the support plate 17 is rotatably connected with the bottom side of the bottom plate 13 through a rotating shaft 16, and the mounting plate 1 is rotatably connected to one end of the electric telescopic rod 2 through the second connecting shaft 19, and the other end of the electric telescopic rod 2 is rotatably connected to the other side of the bottom of the bottom plate 13 through the first connecting shaft 3. The extension and retraction of the electric telescopic rod 2 can conveniently control the rotation angle of the base plate 13 around the rotating shaft 16 , so as to conveniently adjust the shooting angle of the monitoring camera 8 .

The basic principles, main features and advantages of the present invention have been shown and described above. It should be understood by those skilled in the art that the present invention is not limited by the above-mentioned embodiments, and the above-mentioned embodiments and descriptions describe only the principles of the present invention. There are various changes and improvements that fall within the scope of the claimed invention. The scope of protection claimed by the present invention is defined by the appended claims and their equivalents.

Claims (5)

1. A fixing mechanism for a meteorological monitoring camera comprises a bottom plate (13) and is characterized in that the upper portion of the bottom plate (13) is connected with a mounting frame (11) through a buffering structure, a monitoring camera (8) is installed in the mounting frame (11), first protective frames (10) perpendicular to the top surface of the bottom plate (13) are arranged on two sides of the bottom plate (13), second protective frames (21) perpendicular to the top surface of the bottom plate (13) are arranged at two ends of the bottom plate (13), the first protective frames (10) and the second protective frames (21) are connected with the bottom of the bottom plate (13) through damping structures, a plurality of protective rod mechanisms are connected between the two first protective frames (10) and between the two second protective frames (21), each protective rod mechanism comprises a protective rod (9), one end of each protective rod (9) is perpendicularly connected with one of the first protective frames (10) or the second protective frames (21), the other end of the protection rod (9) penetrates through a jack arranged on another first protection frame (10) or a second protection frame (21), the end part of the jack is connected with a limiting end (20), the protection rod (9) connected between the first protection frame (10) and the protection rod (9) connected between the two second protection frames (21) are vertically crossed, and a rotating mechanism is arranged at the bottom of the bottom plate (13).

2. A fixing mechanism of a monitoring camera for weather, according to claim 1, characterized in that the mounting frame (11) comprises a U-shaped plate body, the bottom surface and two sides of which are equidistantly provided with a long-strip-shaped opening.

3. The fixing mechanism of a monitoring camera for meteorology of claim 1, characterized in that the buffering structure includes four support rods (14) vertically connected at four corners of the bottom of the mounting rack (11), the support rods (14) pass through the through holes provided on the bottom plate (13) and are in sliding fit with the inner walls of the through holes, the lower ends of the support rods (14) are fixedly connected with limit blocks (15), and the support rods (14) between the mounting rack (11) and the bottom plate (13) are sleeved with second springs (12).

4. The fixing mechanism for the meteorological monitoring camera of claim 1, wherein the damping structure comprises a connecting plate (7) arranged at the bottoms of the first protective frame (10) and the second protective frame (21) and an inserting sleeve (4) fixed on the bottom surface of the bottom plate (13), the connecting plate (7) is vertically connected with one end of the guide rod (6), the guide rod (6) penetrates through the inserting sleeve (4) and is connected with the limiting plate at the end part, and a first spring (5) is sleeved on the guide rod (6) between the inserting sleeve (4) and the connecting plate (7).

5. The fixing mechanism of the monitoring camera for the weather is characterized in that the rotating mechanism comprises a mounting plate (1), a plurality of mounting holes (18) are formed in the mounting plate (1), a support plate (17) is vertically fixed on the mounting plate (1), the upper end of the support plate (17) is rotatably connected with one side of the bottom plate (13) through a rotating shaft (16), the mounting plate (1) is rotatably connected with one end of the electric telescopic rod (2) through a second connecting shaft (19), and the other end of the electric telescopic rod (2) is rotatably connected with the other side of the bottom plate (13) through a first connecting shaft (3).
