Abstract
The utility model relates to a water-saving type cleaning device for a material conveying belt in a construction site, which comprises a bottom plate, a water tank, a cleaning brush and a high-pressure water spray head, the lower surface of the bottom plate is provided with universal wheels, the upper surface of the bottom plate is provided with the water tank, both ends of one side of the water tank are provided with first brackets, both ends of the other side of the water tank are provided with second brackets, the cleaning brush and the high-pressure water spraying head can be positioned at different heights and angles by adjusting the three electric hydraulic rods, thereby cleaning the conveyor belts with different heights and inclination angles, leading the cleaning brush to scrub on the conveyor belts through idle running of the conveyor belts, the cleaning device has simple structure and easy operation, works under the conveyor belt, is suitable for cleaning various conveyor belts, and the cleaned water falls into the water tank under the action of gravity, and is repeatedly used by filtering, so that water resources are saved.
Description
Technical Field
The utility model relates to a water-saving building site material conveyer belt cleaning device belongs to belt cleaning device technical field.
Background
The conveyor belt mode is used in Xinxinati slaughterhouses in 1869 years and is also widely applied to the canned food industry and the cast iron industry, and the types of conveying equipment are increasing along with the production requirements, and the following are mainly commonly used: belt conveyors, slat conveyors, scraper conveyors, bucket conveyors, and the like; also by wide use at construction site material conveyer belt, but because construction site is with open-air many, and have a large amount of piece earth grit and so on in the transportation, if not in time clear up, not only can influence conveying efficiency and still can reduce the life of conveyer belt, nevertheless all be that the workman is direct simply to wash with the squirt on general site, difficult sanitization, and still can waste a large amount of water, even if also have the device of brushing the conveyer belt on the market, general structure is complicated, it can wash to need to dismantle the conveyer belt, a large amount of manpowers have been wasted, and most belt cleaning device size is fixed, can only wash the conveyer belt of a certain height, and only can wash the top surface and be unfavorable for the recovery of water and recycle.
SUMMERY OF THE UTILITY MODEL
The utility model discloses the technical problem who solves overcomes current defect, provides a water-saving building site material conveyer belt cleaning device, can effectively solve the extravagant water resource in the background art, and the belt cleaning device structure is complicated, need to dismantle the extravagant manpower and materials of conveyer belt, and the belt cleaning device size is fixed, can only wash the conveyer belt of a certain height, can only wash the top surface moreover and be unfavorable for the recovery problem of recycling of water.
In order to solve the technical problem, the utility model provides a following technical scheme:
a water-saving cleaning device for a material conveying belt in a construction site comprises a bottom plate, a water tank, a cleaning brush and a high-pressure water spray head, wherein universal wheels are arranged on the lower surface of the bottom plate, the water tank is arranged on the upper surface of the bottom plate, first supports are arranged at two ends of one side of the water tank, second supports are arranged at two ends of the other side of the water tank, first bearings are arranged at the upper ends of the two first supports, a first rotating shaft is connected in the first bearings in a rolling mode, second bearings are arranged on the surfaces of the two first supports below the first bearings, a second rotating shaft is connected in the second bearings in a rolling mode, first electric hydraulic rods are fixedly connected at two ends of the first rotating shaft, first fixing plates are fixedly connected at two sides of the first electric hydraulic rods, third bearings are arranged at the lower ends of the two first fixing plates, and third rotating shafts are connected in the third bearings in the rolling, two ends of the third rotating shaft are fixedly connected with one end of a second electric hydraulic rod, and the other end of the second electric hydraulic rod is fixedly connected to one side of the second rotating shaft respectively;
the upper ends of the two second supports are respectively provided with a fourth bearing, a fourth rotating shaft is connected in the fourth bearings in a rolling manner, fifth bearings are arranged on the surfaces of the two second supports below the fourth bearings, the fifth bearings are connected in the fifth bearings in a rolling manner, supporting rods are fixedly connected at two ends of the fourth rotating shaft, second fixing plates are fixedly connected at two sides of each supporting rod, sixth bearings are arranged at the lower ends of the two second fixing plates, the sixth bearings are connected in the sixth bearings in a rolling manner, one ends of third electric hydraulic rods are fixedly connected at two ends of the sixth rotating shaft, and the other ends of the third electric hydraulic rods are respectively and fixedly connected to one side of the fifth rotating shaft;
the other ends of the two first electric hydraulic rods are fixedly connected to one side of a connecting plate, the cleaning brush is connected to the other side of the connecting plate in a sliding mode, the two ends of the high-pressure water spray head are fixedly connected with the supporting rod, one side of the high-pressure water spray head is fixedly connected with one end of a water outlet pipe, the other end of the water outlet pipe is fixedly connected to an outlet of a water pump, the water pump is arranged on the outer side of the bottom of the water tank, an inlet of the water pump is fixedly connected with one side of the water tank through a water inlet pipe, and a filter screen and an;
and a controller is arranged on one side of the water pump, and the controller is electrically connected with the first electric hydraulic rod, the second electric hydraulic rod, the third electric hydraulic rod and the water pump respectively.
Further, the universal wheel is provided with a brake pad.
Further, the nozzles on the surface of the high-pressure water jet head are arranged in an array.
Further, the filter screen is arranged above the activated carbon filter layer.
Further, the water outlet pipe is a hose.
Furthermore, the other side of connecting plate is provided with the dovetail, cleaning brush one side be provided with can with dovetail matched with slider.
Further, the controller is FX1S-10 MR-001.
The utility model discloses beneficial effect: the utility model has the advantages that the cleaning device is convenient to move by arranging the universal wheels; the cleaning brush and the high-pressure water spraying head can be positioned at different heights and angles by arranging the first electric hydraulic rod, the second electric hydraulic rod, the third electric hydraulic rod and the controller and controlling and adjusting the first electric hydraulic rod, the second electric hydraulic rod and the third electric hydraulic rod through the controller, so that the cleaning of the conveying belts at different heights and different inclination angles is realized; through the filter screen and the active carbon filter layer that the water tank inner chamber set up for the cleaning water can used repeatedly, the water economy resource.
Drawings
The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description serve to explain the invention and not to limit the invention.

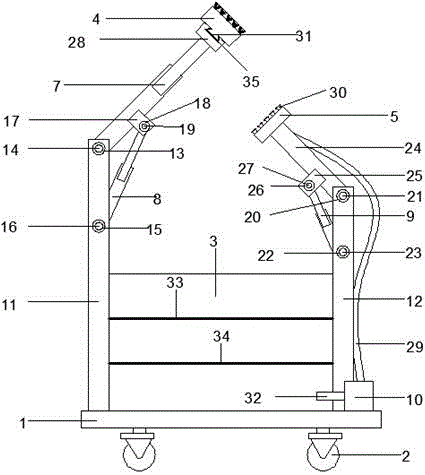

Fig. 1 is a front view of the present invention.
Fig. 2 is a state view of the present invention.
Fig. 3 is a sectional view a of the present invention.
Fig. 4 is a sectional view b of the present invention.
Fig. 5 is an electrical connection diagram of the present invention.
Reference numbers in the figures: 1. a base plate; 2. a universal wheel; 3. a water tank; 4. cleaning brushes; 5. a high pressure water jet head; 6. a controller; 7. a first electro-hydraulic lever; 8. a second electro-hydraulic ram; 9. a third electro-hydraulic ram; 10. a water pump; 11. a first bracket; 12. a second bracket; 13. a first bearing; 14. a first rotating shaft; 15. a second bearing; 16. a second rotating shaft; 17. a first fixing plate; 18. a third bearing; 19. a third rotating shaft; 20. a fourth bearing; 21. a fourth rotating shaft; 22. a fifth bearing; 23. a fifth rotating shaft; 24. a support bar; 25. a second fixing plate; 26. a sixth bearing; 27. a sixth rotating shaft; 28. a connecting plate; 29. a water outlet pipe; 30. a nozzle; 31. a slider; 32. a water inlet pipe; 33. filtering with a screen; 34. an activated carbon filter layer; 35. a dovetail groove.
Detailed Description
The preferred embodiments of the present invention will be described in conjunction with the accompanying drawings, and it will be understood that they are presented herein only to illustrate and explain the present invention, and not to limit the present invention.
As shown in fig. 1-5, a water-saving cleaning device for a material conveying belt in a construction site comprises a bottom plate 1, a water tank 3, a cleaning brush 4 and a high-pressure water spray head 5, wherein universal wheels 2 are arranged on the lower surface of the bottom plate 1, so that the cleaning device can be moved conveniently, and the power supply is switched on, a controller 6 respectively controls a first electric hydraulic rod 7, a second electric hydraulic rod 8, a third electric hydraulic rod 9 and a water pump 10 to operate, the water tank 3 is arranged on the upper surface of the bottom plate 1, the water tank 3 can store water and collect used water, first brackets 11 are respectively arranged at two ends of one side of the water tank 3, second brackets 12 are respectively arranged at two ends of the other side of the water tank 3, first bearings 13 are respectively arranged at the upper ends of the two first brackets 11, first rotating shafts 14 are connected in a rolling manner in the first bearings 13, second bearings 15 are respectively arranged on the surfaces of the two first brackets 11 below, the two ends of the first rotating shaft 14 are fixedly connected with first electric hydraulic rods 7, the two sides of each first electric hydraulic rod 7 are fixedly connected with first fixing plates 17, the lower ends of the two first fixing plates 17 are respectively provided with third bearings 18, the third bearings 18 are connected with third rotating shafts 19 in a rolling mode, the two ends of each third rotating shaft 19 are fixedly connected with one end of a second electric hydraulic rod 8, and the other ends of the second electric hydraulic rods 8 are respectively and fixedly connected to one side of a second rotating shaft 16;
the upper ends of the two second supports 12 are respectively provided with a fourth bearing 20, a fourth rotating shaft 21 is connected in the fourth bearing 20 in a rolling manner, fifth bearings 22 are respectively arranged on the surfaces of the two second supports 12 below the fourth bearings 20, a fifth rotating shaft 23 is connected in the fifth bearings 22 in a rolling manner, two ends of the fourth rotating shaft 21 are respectively and fixedly connected with a supporting rod 24, two sides of the supporting rod 24 are respectively and fixedly connected with a second fixing plate 25, the lower ends of the two second fixing plates 25 are respectively provided with a sixth bearing 26, a sixth rotating shaft 27 is connected in the sixth bearings 26 in a rolling manner, two ends of the sixth rotating shaft 27 are respectively and fixedly connected with one end of a third electric hydraulic rod 9, and the other end of the third electric hydraulic rod 9 is respectively and fixedly connected with one side of the fifth rotating shaft 23;
the other ends of the two first electric hydraulic rods 7 are fixedly connected to one side of the connecting plate 28, the cleaning brush 4 is slidably connected to the other side of the connecting plate, the cleaning brush 4 can be positioned at different heights and angles by adjusting the first electric hydraulic rods 7 and the second electric hydraulic rods 8 through the controller 6, so that the cleaning of the conveyor belts with different heights and inclination angles is achieved, the two ends of the high-pressure water spray head 5 are fixedly connected with the supporting rods 24, one side of the high-pressure water spray head 5 is fixedly connected with one end of the water outlet pipe 29, the high-pressure water spray head 5 can be positioned at different heights and angles by adjusting the third electric hydraulic rods 9 through the controller 6, so that the cleaning of the conveyor belts with different heights and inclination angles is achieved more efficiently by matching with the cleaning brush 4, the other end of the water outlet pipe 29 is fixedly connected to the outlet of the water pump 10, the water pump 10 is, a filter screen 33 and an active carbon filter layer 34 are arranged in the inner cavity of the water tank 3;
one side of the water pump 10 is provided with a controller 6, and the controller 6 is electrically connected with the first electric hydraulic rod 7, the second electric hydraulic rod 8, the third electric hydraulic rod 9 and the water pump 10 respectively.
The universal wheel 2 is provided with a brake pad, so that a cleaning device in work is more stable, the safety degree is increased, the cleaning effect is improved, the nozzles 30 on the surface of the high-pressure water spraying head 5 are arranged in an array mode, so that water columns which are uniform and dense are sprayed out, dead angles are avoided, the filter screen 33 is arranged on the active carbon filter layer 34, cleaned sewage is simply filtered by the filter screen 33 and then can be cleaned by the active carbon filter layer 34, the water can be continuously used, water resources are saved, the water outlet pipe 29 is a hose, the dovetail groove 35 is arranged on the other side of the connecting plate, the sliding block 31 which can be matched with the dovetail groove 35 is arranged on one side of the cleaning brush 4, the cleaning brush 4 is convenient to replace, and the.
The utility model discloses the theory of operation: through the arranged universal wheel 2, the cleaning device is moved to the bottom of the conveying belt, the universal wheel 2 is braked tightly to fix the cleaning device, the power supply is switched on, the controller 6 respectively controls the first electric hydraulic rod 7, the second electric hydraulic rod 8, the third electric hydraulic rod 9 and the water pump 10 to operate, the controller 6 adjusts the third electric hydraulic rod 9 to enable the nozzle 30 on the surface of the high-pressure water spray head 5 to be aligned with the conveying belt, the conveying belt is opened to idle, the water pump 10 is opened through the controller 6 to spray water onto the conveying belt to moisten the conveying belt, after a plurality of cycles, the controller 6 adjusts the first electric hydraulic rod 7 and the second electric hydraulic rod 8 to enable the brush of the cleaning brush 4 to just contact with the conveying belt, so that stains, scraps, dust, particles and the like on the conveying belt can be easily brushed off, the conveying belt is washed through the reverse water column sprayed at high pressure, and the force of sewage along the, so that the sewage falls into the water tank 3, is treated by the filter screen 33 and the activated carbon filter layer 34 to obtain clean water, passes through the water inlet pipe 32 again, and is recycled by the water pump 10.
The above is the preferred embodiment of the present invention, and the technical personnel in the field of the present invention can also change and modify the above embodiment, therefore, the present invention is not limited to the above specific embodiment, and any obvious improvement, replacement or modification made by the technical personnel in the field on the basis of the present invention all belong to the protection scope of the present invention.
Claims (7)
1. The utility model provides a water-saving building site material conveyer belt cleaning device, includes bottom plate (1), water tank (3), cleaning brush (4) and high pressure water jet (5), its characterized in that: the lower surface of the bottom plate (1) is provided with universal wheels (2), the upper surface of the bottom plate (1) is provided with the water tank (3), two ends of one side of the water tank (3) are respectively provided with a first support (11), two ends of the other side of the water tank (3) are respectively provided with a second support (12), the upper ends of the two first supports (11) are respectively provided with a first bearing (13), the first bearings (13) are connected with a first rotating shaft (14) in a rolling manner, the surfaces of the two first supports (11) below the first bearings (13) are respectively provided with a second bearing (15), the second bearings (15) are connected with a second rotating shaft (16) in a rolling manner, two ends of the first rotating shaft (14) are respectively and fixedly connected with a first electric hydraulic rod (7), two sides of the first electric hydraulic rod (7) are respectively and fixedly connected with a first fixing plate (17), the lower ends of the two first fixing plates (17) are respectively provided with a third bearing (18), the third bearings (18) are connected with a third rotating shaft (19) in a rolling manner, two ends of the third rotating shaft (19) are fixedly connected with one end of a second electric hydraulic rod (8), and the other end of the second electric hydraulic rod (8) is respectively and fixedly connected to one side of a second rotating shaft (16);
the upper ends of the two second brackets (12) are respectively provided with a fourth bearing (20), the fourth bearings (20) are connected with a fourth rotating shaft (21) in a rolling way, fifth bearings (22) are arranged on the surfaces of the two second brackets (12) below the fourth bearing (20), a fifth rotating shaft (23) is connected in the fifth bearing (22) in a rolling way, two ends of the fourth rotating shaft (21) are fixedly connected with supporting rods (24), two sides of the supporting rod (24) are fixedly connected with second fixing plates (25), the lower ends of the two second fixing plates (25) are provided with sixth bearings (26), a sixth rotating shaft (27) is connected in the sixth bearing (26) in a rolling way, two ends of the sixth rotating shaft (27) are fixedly connected with one end of a third electric hydraulic rod (9), the other end of the third electric hydraulic rod (9) is respectively and fixedly connected to one side of the fifth rotating shaft (23);
the other ends of the two first electric hydraulic rods (7) are fixedly connected to one side of a connecting plate (28), the cleaning brush (4) is slidably connected to the other side of the connecting plate (28), the two ends of the high-pressure water spray head (5) are fixedly connected to the supporting rod (24), one side of the high-pressure water spray head (5) is fixedly connected to one end of a water outlet pipe (29), the other end of the water outlet pipe (29) is fixedly connected to an outlet of a water pump (10), the water pump (10) is arranged on the outer side of the bottom of the water tank (3), an inlet of the water pump (10) is fixedly connected with one side of the water tank (3) through a water inlet pipe (32), and a filter screen (33) and an active carbon filter layer (34) are arranged in the inner cavity of;
one side of the water pump (10) is provided with a controller (6), and the controller (6) is electrically connected with the first electric hydraulic rod (7), the second electric hydraulic rod (8), the third electric hydraulic rod (9) and the water pump (10) respectively.
2. A water-saving construction site material conveyor belt cleaning device according to claim 1, wherein: the universal wheel (2) is provided with a brake pad.
3. A water-saving construction site material conveyor belt cleaning device according to claim 1, wherein: the nozzles (30) on the surface of the high-pressure water spray head (5) are arranged in an array.
4. A water-saving construction site material conveyor belt cleaning device according to claim 1, wherein: the filter screen (33) is arranged above the active carbon filter layer (34).
5. A water-saving construction site material conveyor belt cleaning device according to claim 1, wherein: the water outlet pipe (29) is a hose.
6. A water-saving construction site material conveyor belt cleaning device according to claim 1, wherein: the opposite side of connecting plate (28) is provided with dovetail (35), cleaning brush (4) one side be provided with can with dovetail (35) matched with slider (31).
7. A water-saving construction site material conveyor belt cleaning device according to claim 1, wherein: the controller (6) is FX1S-10 MR-001.
