Abstract
The utility model discloses a new trend purifier and air conditioner thereof, wherein, new trend purifier includes: the device comprises an air inlet mechanism, a fan mechanism and an air outlet mechanism which are arranged in sequence, wherein a purification and dust removal mechanism is arranged between the air inlet mechanism and the fan mechanism; the air outlet mechanism comprises an air outlet nozzle which is arranged at the air outlet of the fan mechanism; this application sets up the air outlet tuyere through the air outlet department at fan mechanism, can carry out the heat transfer with the leading-in heat exchanger top of new trend better and handle.
Description
Technical Field
The utility model relates to an air conditioner technical field, more specifically say, it relates to a new trend purifier and air conditioner thereof.
Background
The existing air conditioner is generally used in an internal circulation mode, a room of the air conditioner generally needs a closed state, and the air conditioner repeatedly cools or heats the air in the room when in work, but the indoor air is easily turbid because the air cannot be exchanged for a long time. The fresh air conditioner adopts a mode of introducing outdoor air into a room, solves the problem of indoor air turbidity, and is more and more widely applied.
In prior art, after the air conditioner indoor hanging machine introduces the new trend device, only can realize the blow-through air supply, do not have the requirement to the flow direction of new trend, as long as can send into indoor just can reach the effect of trading the new trend, rely on the suction of air conditioner cross flow fan itself to inhale the new trend among the prior art, lead to most new trend can not carry out through the heat exchanger processing, the new trend of introduction and room air temperature difference are great, influence user experience.
Therefore, the prior art still needs to be improved and developed.
SUMMERY OF THE UTILITY MODEL
The utility model aims at providing a new trend purifier and air conditioner thereof to not enough among the prior art to carry out heat transfer treatment with the leading-in heat exchanger top of new trend better.
The above technical purpose of the present invention can be achieved by the following technical solutions:
a fresh air purification device comprises an air inlet mechanism, a fan mechanism and an air outlet mechanism which are sequentially arranged, wherein a purification and dust removal mechanism is arranged between the air inlet mechanism and the fan mechanism; the air outlet mechanism comprises an air outlet nozzle, and the air outlet nozzle is arranged at the air outlet of the fan mechanism.
The fresh air purification device is characterized in that the air outlet nozzle comprises an installation part, an air guide part and a nozzle part which are sequentially connected, and the installation part is correspondingly arranged at the air outlet; the air nozzle part comprises an air nozzle air inlet and an air nozzle air outlet, the air nozzle air inlet is communicated with the air guide part, and the area of the air nozzle air inlet is larger than that of the air nozzle air outlet.
The fresh air purification device, wherein, the installation department includes first installing port and second installing port, first installing port connect in the air outlet, the second installing port communicate in wind-guiding portion, the area of first installing port is greater than the area of second installing port.
The fresh air purification device is characterized in that the air guide part is arranged in an arc shape and is bent towards a direction far away from the fan mechanism, and the air outlet direction of the air guide part is perpendicular to the air outlet direction of the air outlet; the air guide part is communicated with the air nozzle part through an air guide connecting part.
Fresh air purifier, wherein, purify dust removal mechanism pass through the wind channel part communicate in air inlet mechanism with between the fan mechanism, air inlet mechanism includes air inlet mounting bracket and intake pipe, the air inlet mounting bracket communicate in the wind channel part, the intake pipe sets up air inlet department of air inlet mounting bracket.
Fresh air purification device, wherein, purification and dust removal mechanism is including purifying and removing dust mounting bracket and purifying and removing dust module, purifying and removing dust mounting bracket sets up the air inlet mounting bracket with between the wind channel part, purifying and removing dust module can dismantle connect in purifying and removing dust in the mounting bracket.
The fresh air purification device is characterized in that the purification and dust removal mounting frame is provided with a connecting part, and the purification and dust removal mounting frame is detachably connected with the air duct part through the connecting part; the purification and dust removal module comprises a filter cotton core and/or an active carbon filter core.
The fresh air purification device is characterized in that the air duct component comprises an air duct shell, and the air duct shell is arranged in a hollow mode to form an air inlet duct; the fan mechanism is a centrifugal fan.
The air conditioner comprises the fresh air purification device and a base used for assembling the fresh air purification device, wherein a heat exchanger is further arranged on the base, and the fresh air purification device is arranged on one side of the heat exchanger.
The air conditioner, wherein, the outside of heat exchanger is provided with the filter screen, the filter screen can dismantle connect in the heat exchanger, air-out mechanism sets up the air inlet of heat exchanger with between the filter screen.
To sum up, the utility model discloses following beneficial effect has:
the utility model discloses an air outlet department at fan mechanism sets up the air-out tuyere, can carry out heat transfer treatment with the leading-in heat exchanger top of new trend better.
Drawings
Fig. 1 is a schematic view of the entire structure of the fresh air purification apparatus in this embodiment.

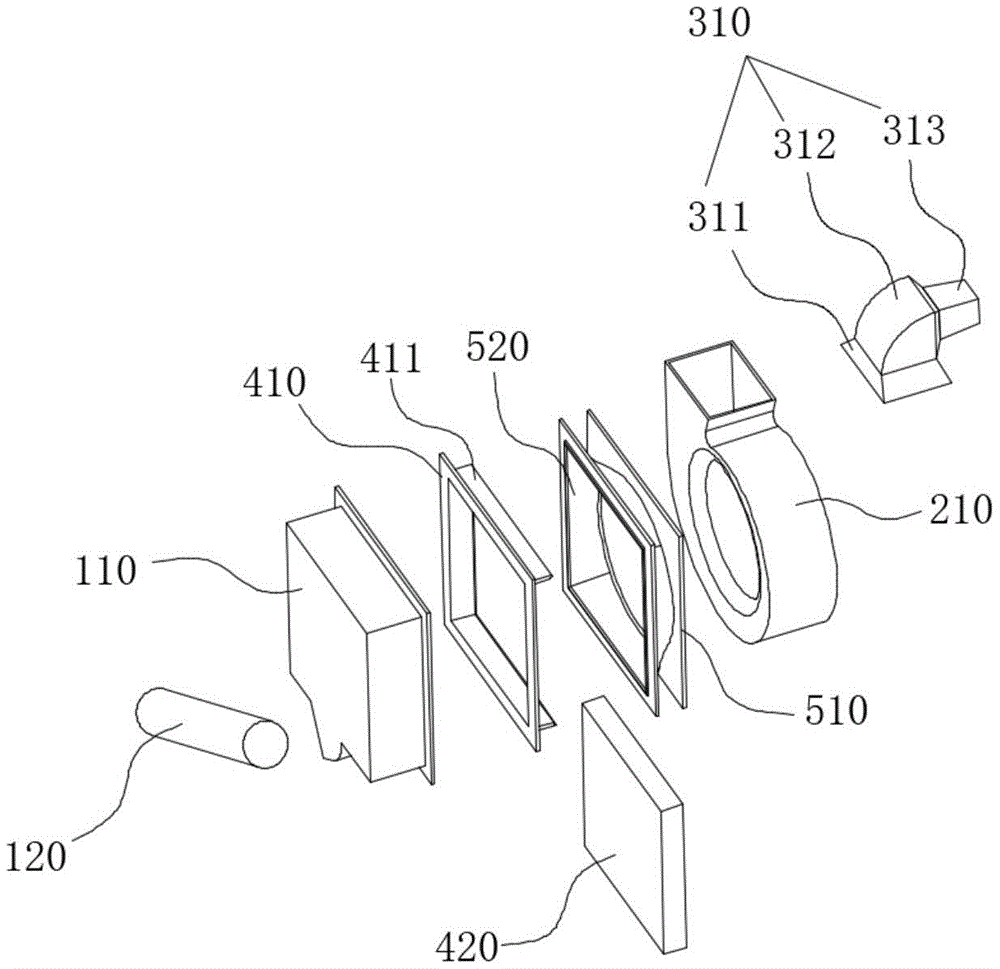

Fig. 2 is an exploded view of the fresh air purification apparatus in this embodiment.
Fig. 3 is a schematic view of the internal structure of the air conditioner in the present embodiment.
Fig. 4 is a schematic diagram of the internal structure of the air conditioner of the present embodiment with the filter net removed.
In the figure: 001. a fresh air purification device; 100. an air inlet mechanism; 110. an air inlet mounting rack; 120. an air inlet pipe; 200. a fan mechanism; 210. a centrifugal fan; 300. an air outlet mechanism; 310. an air outlet nozzle; 311. an installation part; 312. a wind guide part; 313. a tuyere portion; 400. a purifying and dedusting mechanism; 410. a purification and dust removal mounting rack; 411. a connecting portion; 420. a purification and dust removal module; 500. an air duct member; 510. an air duct housing; 520. an air inlet duct; 600. a base; 700. a heat exchanger; 710. an air inlet; 800. and (4) a filter screen.
Detailed Description
The present invention will be described in further detail with reference to the accompanying drawings.
The present embodiment is only for explaining the present invention, and it is not limited to the present invention, and those skilled in the art can make modifications to the present embodiment without inventive contribution as required after reading the present specification, but all of them are protected by patent laws within the scope of the claims of the present invention.
In the description of the present invention, it is to be understood that the terms "length," "width," "upper," "lower," "front," "rear," "left," "right," "vertical," "horizontal," "top," "bottom," "inner," "outer," and the like are used in the orientation or positional relationship indicated in the drawings for convenience in describing the present invention and for simplicity in description, and are not intended to indicate or imply that the device or element so referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus should not be construed as limiting the present invention. In the description of the present invention, "a plurality" means two or more unless specifically limited otherwise.
In the present invention, unless otherwise expressly stated or limited, the terms "mounted," "connected," "secured," and "disposed" are to be construed broadly, e.g., as meaning either a fixed connection, a removable connection, or an integral part; can be mechanically or electrically connected; they may be directly connected or indirectly connected through intervening media, or may be connected through the interconnection of two elements or through the interaction of two elements. The specific meaning of the above terms in the present invention can be understood according to specific situations by those skilled in the art.
Example (b): the utility model provides a new trend purifier, as shown in fig. 1 and fig. 2, including the air inlet mechanism 100, fan mechanism 200 and the air-out mechanism 300 that set gradually, air inlet mechanism 100 with be provided with purification and dust removal mechanism 400 between fan mechanism 200, purification and dust removal mechanism 400 through wind channel part 500 communicate in air inlet mechanism 100 with between the fan mechanism 200. The air outlet mechanism 300 includes an air outlet nozzle 310, and the air outlet nozzle 310 is disposed at the air outlet of the fan mechanism 200.
In this embodiment, the dust cleaning mechanism 400 is disposed at the air inlet position of the fan mechanism 200, so as to ensure that the air entering the fan mechanism 200 is clean air, and ensure that the introduced fresh air is clean. Meanwhile, the air entering the fan mechanism 200 is ensured to be clean fresh air, and the service life of the fan mechanism 200 is prolonged.
The air outlet nozzle 310 comprises an installation part 311, an air guiding part 312 and a nozzle part 313 which are sequentially connected, the installation part 311 is correspondingly arranged at the air outlet of the fan mechanism 200, the air guiding part 312 is arranged in an arc shape and is bent towards the direction far away from the fan mechanism 200, and the air outlet direction of the air guiding part 312 is perpendicular to the air outlet direction of the air outlet; the air guide portion 312 and the air nozzle portion 313 are communicated with each other by an air guide connecting portion.
The tuyere portion 313 includes a tuyere air inlet and a tuyere air outlet, the tuyere air inlet is communicated with the air guide portion 312, and an area of the tuyere air inlet is larger than an area of the tuyere air outlet.
The mounting portion 311 includes a first mounting opening and a second mounting opening, the first mounting opening is connected to the air outlet, the second mounting opening is communicated with the air guiding portion 312, and an area of the first mounting opening is larger than an area of the second mounting opening.
Specifically, the fan mechanism 200 is a centrifugal fan 210, and in other embodiments, the fan mechanism 200 may also be any other fan satisfying the air intake function.
The air inlet mechanism 100 comprises an air inlet mounting rack 110 and an air inlet pipe 120, the air inlet mounting rack 110 is communicated with the air duct component 500, and the air inlet pipe 120 is arranged at an air inlet of the air inlet mounting rack 110. The air inlet pipe 120 is connected to the air inlet mechanism 100 and the outdoor environment, and is used for introducing outdoor ambient air into the room.
The air duct member 500 includes an air duct housing 510, and the air duct housing 510 is hollow to form an air inlet duct 520.
Purify dust removal mechanism 400 including purification dust removal mounting bracket 410 and purification dust removal module 420, purification dust removal mounting bracket 410 sets up air inlet mounting bracket 110 with between the wind channel part 500, purification dust removal module 420 can dismantle connect in purification dust removal mounting bracket 410. Specifically, the purification and dust removal module 420 includes a filter cotton core and/or an activated carbon filter core for purifying the introduced fresh air, and in other embodiments, the purification and dust removal module 420 may also be any air filter component capable of purifying air.
The purification and dust removal mounting frame 410 is provided with a connecting part 411, and the purification and dust removal mounting frame 410 is detachably connected with the air duct component 500 through the connecting part 411. In this embodiment, the connecting portion 411 is a connecting plate, and the connecting plate is fastened to the air duct housing 510, so that the user can replace the purifying and dedusting module 420 after the fresh air purifying device is used for a period of time.
The utility model also provides an air conditioner, as shown in FIG. 3 and FIG. 4, including as above fresh air purifier 001 and be used for the assembly fresh air purifier 001's base 600. The embodiment is particularly suitable for wall-mounted air conditioner indoor units.
The base 600 is further provided with a heat exchanger 700, and the fresh air purification device 001 is arranged on one side of the heat exchanger 700. The outside of heat exchanger 700 is provided with filter screen 800, filter screen 800 can dismantle connect in heat exchanger 700, air-out mechanism 300 sets up heat exchanger 700's air inlet 710 with between the filter screen 800. In this embodiment, the heat exchanger 700 is an evaporator.
Specifically, in this embodiment, the air outlet nozzle 310 is disposed between the heat exchanger 700 and the filter screen 800, so that it is ensured that dust deposited on the top end of the indoor unit of the wall-mounted air conditioner is not blown by fresh air, which causes secondary pollution to indoor air. In addition, the air sucked into the heat exchanger 700 from the indoor and the fresh air introduced from the outdoor are mixed and then enter the heat exchanger 700 through the air inlet 710 of the heat exchanger 700, so that the fresh air entering the indoor is subjected to heat exchange through the heat exchanger 700, the temperature of the fresh air is the same as the temperature of the indoor environment, and the comfortable experience of a human body is guaranteed. And the introduced indoor fresh air is sent into the indoor environment through the air outlet of the air conditioner, so that the fresh air can be uniformly distributed in the indoor space.
To sum up, the utility model discloses a set up dust removal purification mechanism between air inlet mechanism and fan mechanism to guarantee that the indoor air environment can not cause secondary pollution because of the new trend, guaranteed the cleanness of indoor air environment. Simultaneously, through setting up air outlet nozzle at the air outlet department of fan mechanism, can carry out heat transfer treatment with the leading-in heat exchanger top of new trend better, guarantee that new trend temperature is the same with indoor ambient temperature.
It is to be understood that the invention is not limited to the above-described embodiments, and that modifications and variations may be made by those skilled in the art in light of the above teachings, and all such modifications and variations are intended to be included within the scope of the invention as defined in the appended claims.
Claims (10)
1. The utility model provides a new trend purifier which characterized in that: the device comprises an air inlet mechanism, a fan mechanism and an air outlet mechanism which are arranged in sequence, wherein a purification and dust removal mechanism is arranged between the air inlet mechanism and the fan mechanism; the air outlet mechanism comprises an air outlet nozzle, and the air outlet nozzle is arranged at the air outlet of the fan mechanism.
2. The fresh air purification device according to claim 1, wherein: the air outlet nozzle comprises an installation part, an air guide part and a nozzle part which are sequentially connected, and the installation part is correspondingly arranged at the air outlet; the air nozzle part comprises an air nozzle air inlet and an air nozzle air outlet, the air nozzle air inlet is communicated with the air guide part, and the area of the air nozzle air inlet is larger than that of the air nozzle air outlet.
3. The fresh air purification device according to claim 2, wherein: the installation part comprises a first installation opening and a second installation opening, the first installation opening is connected to the air outlet, the second installation opening is communicated with the air guide part, and the area of the first installation opening is larger than that of the second installation opening.
4. The fresh air purification device according to claim 2, wherein: the air guide part is arranged in an arc shape and is bent towards the direction far away from the fan mechanism, and the air outlet direction of the air guide part is vertical to the air outlet direction of the air outlet; the air guide part is communicated with the air nozzle part through an air guide connecting part.
5. The fresh air purification device according to claim 1, wherein: purify dust removal mechanism pass through wind channel part communicate in air inlet mechanism with between the fan mechanism, air inlet mechanism includes air inlet mounting bracket and intake pipe, the air inlet mounting bracket communicate in wind channel part, the intake pipe sets up the air inlet department of air inlet mounting bracket.
6. The fresh air purification device according to claim 5, wherein: purify dust removal mechanism and include purification dust removal mounting bracket and purification dust removal module, purification dust removal mounting bracket sets up the air inlet mounting bracket with between the wind channel part, purification dust removal module can dismantle connect in the purification dust removal mounting bracket.
7. The fresh air purification device according to claim 6, wherein: the purification and dust removal mounting frame is provided with a connecting part and is detachably connected with the air duct part through the connecting part; the purification and dust removal module comprises a filter cotton core and/or an active carbon filter core.
8. The fresh air purification device according to claim 5, wherein: the air duct component comprises an air duct shell, and the air duct shell is arranged in a hollow mode to form an air inlet duct; the fan mechanism is a centrifugal fan.
9. An air conditioner, characterized in that: the fresh air purification device comprises the fresh air purification device as claimed in any one of claims 1 to 8 and a base for assembling the fresh air purification device, wherein a heat exchanger is further arranged on the base, and the fresh air purification device is arranged on one side of the heat exchanger.
10. The air conditioner according to claim 9, wherein: the outside of heat exchanger is provided with the filter screen, the filter screen can dismantle connect in the heat exchanger, air-out mechanism sets up the air inlet of heat exchanger with between the filter screen.
