CN211283995U - Purification sedimentation tank for environmental protection engineering sewage treatment - Google Patents
Purification sedimentation tank for environmental protection engineering sewage treatment Download PDFInfo
- Publication number
- CN211283995U CN211283995U CN201922292524.3U CN201922292524U CN211283995U CN 211283995 U CN211283995 U CN 211283995U CN 201922292524 U CN201922292524 U CN 201922292524U CN 211283995 U CN211283995 U CN 211283995U
- Authority
- CN
- China
- Prior art keywords
- cabinet body
- sewage
- pipe
- fixed mounting
- cabinet
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Landscapes
- Water Treatment By Sorption (AREA)
Abstract
The utility model discloses an environmental protection engineering sewage treatment is with purifying sedimentation tank, the intelligent cabinet temperature adjusting device comprises a cabinet body, the top fixed mounting of the cabinet body has the sewage pipe, the sewage pipe is linked together with the internal portion of cabinet, the internal fixed mounting of cabinet has annular support plate, annular support plate's top fixed mounting has the toper filter screen, the internal pivot that is located toper filter screen top that is equipped with of cabinet, fixed mounting has the puddler in the pivot, the equal fixed mounting in both sides of pivot has the puddler that is located the puddler below, the equal fixed mounting in bottom of two puddlers has first scraper blade, the bottom of two first scraper blades all contacts the equal fixed mounting in one side that two first scraper blades kept away from each other with the toper filter screen has the second scraper. The utility model relates to a rationally, the practicality is good, and is good to the precipitation purifying effect of sewage, and it is fast to deposit, has improved work efficiency, is convenient for moreover the internal precipitate impurity of cabinet discharge.
Description
Technical Field
The utility model relates to a sedimentation tank equipment technical field specifically is an environmental protection engineering sewage treatment is with purifying sedimentation tank.
Background
The sedimentation tank is a structure for removing suspended matters in water by using sedimentation, and is a device for purifying water quality, wherein the suspended matters in water are removed by using the natural sedimentation or coagulating sedimentation effect of water, and the engineering sewage needs to be subjected to sedimentation and purification treatment and then is discharged before being discharged, so that the pollution and the damage to the ecological environment are reduced.
However, in the prior art, when sewage is subjected to precipitation purification treatment in a sedimentation tank, the sewage and a flocculating agent are not uniformly mixed and react insufficiently, so that the effect of precipitation purification on the sewage is poor, the precipitation speed is low, the working efficiency is reduced, and impurities such as sludge and precipitates are inconvenient to discharge out of the sedimentation tank.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
The utility model provides a not enough to prior art, the utility model provides an environmental protection engineering sewage treatment is with purifying and precipitating pond has solved sewage and when precipitating purification treatment in the sedimentation tank, and it is not good to carry out the effect that deposits the purification to sewage, and settling rate is slow, leads to work efficiency to reduce, is not convenient for moreover to the outer problem of impurity discharge sedimentation tank such as mud and precipitate.
(II) technical scheme
In order to achieve the above object, the utility model provides a following technical scheme: a purifying and precipitating tank for environmental protection engineering sewage treatment comprises a tank body, wherein a sewage pipe is fixedly installed at the top of the tank body and is communicated with the inside of the tank body, an annular supporting plate is fixedly installed in the tank body, a conical filter screen is fixedly installed at the top of the annular supporting plate, a rotating shaft positioned above the conical filter screen is arranged in the tank body, a stirring rod is fixedly installed on the rotating shaft, inclined rods positioned below the stirring rod are fixedly installed at two sides of the rotating shaft, first scraping plates are fixedly installed at the bottoms of the two inclined rods, second scraping plates are fixedly installed at the sides, far away from each other, of the two first scraping plates, which are contacted with the conical filter screen at the bottoms of the two first scraping plates, a motor is fixedly installed at the top of the tank body, a mounting hole is formed in the inner wall of the top of the tank body, the top, the suction end fixed mounting of sewage pump has first water pipe, the one end that the sewage pump was kept away from to first water pipe extends to the cabinet internally and is located the below of annular backup pad, the discharge end fixed mounting of sewage pump has the second water pipe, the one end that the sewage pump was kept away from to the second water pipe extends to the cabinet internally and is located the top of puddler, one side fixed mounting that the sewage pump was kept away from to the cabinet body has the outlet pipe, the outlet pipe is linked together with the internal portion of cabinet, one side fixed mounting that the sewage pump was kept away from to the cabinet body has the dredge pump, the suction end fixed mounting of dredge pump has first sludge pipe, the one end fixed mounting of first sludge pipe is linked together in one side of the cabinet body and with the internal portion of cabinet, first sludge pipe is located the top of annular backup pad, the discharge.
Preferably, the top of the cabinet body is fixedly provided with a dosing pipe which is communicated with the inside of the cabinet body.
Preferably, equal fixed mounting has the activated carbon board on the both sides inner wall of the cabinet body, and two activated carbon boards are the slope setting, and two activated carbon boards all are located the below of annular support plate.
Preferably, the number of the stirring rods is six, and the six stirring rods are symmetrically arranged in pairs.
Preferably, the rotating shaft is fixedly sleeved with a bearing, and an outer ring of the bearing is fixedly connected with the inner wall of the mounting hole.
Preferably, a stop valve is fixedly mounted on the water outlet pipe.
(III) advantageous effects
The utility model provides an environmental protection engineering sewage treatment is with purifying and precipitating pond. The method has the following beneficial effects:
(1) this environmental protection engineering sewage treatment is with purifying sedimentation tank, it is internal to flow into the cabinet from the sewage pipe through sewage, from throwing the pencil to the internal appropriate amount flocculating agent that drops into of cabinet, starter motor and sewage pump work, the motor drives the pivot, six puddlers, two first scraper blades of two sloping poles and two second scraper blades rotate, utilize the rotation of six puddlers and two sloping poles, stir misce bene to sewage and flocculating agent, fully produce the precipitate, utilize two first scraper blades and two second scraper blades can clean the precipitate that the toper filter screen was avoided, avoid the precipitate to block up the mesh on the toper filter screen, under the effect of sewage pump, can make the internal sewage of cabinet circulate and flow, thereby carry out effectual filtration to sewage, make precipitate and impurity in the sewage persist in the top of toper filter screen, utilize two active carbon boards can be to the chlorine residue in the sewage, Colloid, organic matter, heavy metal ion, tiny particle impurity, peculiar smell etc. adsorb and purify, stir the internal sewage of cabinet and accomplish the back, stop motor and sewage pump work, open the stop valve, and the sewage after the purification is discharged from the outlet pipe.
(2) This environmental protection engineering sewage treatment is with purifying sedimentation tank, through the work of periodic starting motor, make two first scraper blades and two second scraper blades rotate, restart sludge pump, utilize the rotation of two first scraper blades and two second scraper blades, promote the rotation of deposit impurity that persists on the toper filter screen, when pushing away the position of first sludge pipe to deposit impurity, utilize sludge pump can be outside the cabinet body to deposit impurity discharge, thereby conveniently discharge the internal deposit impurity of cabinet.
Drawings

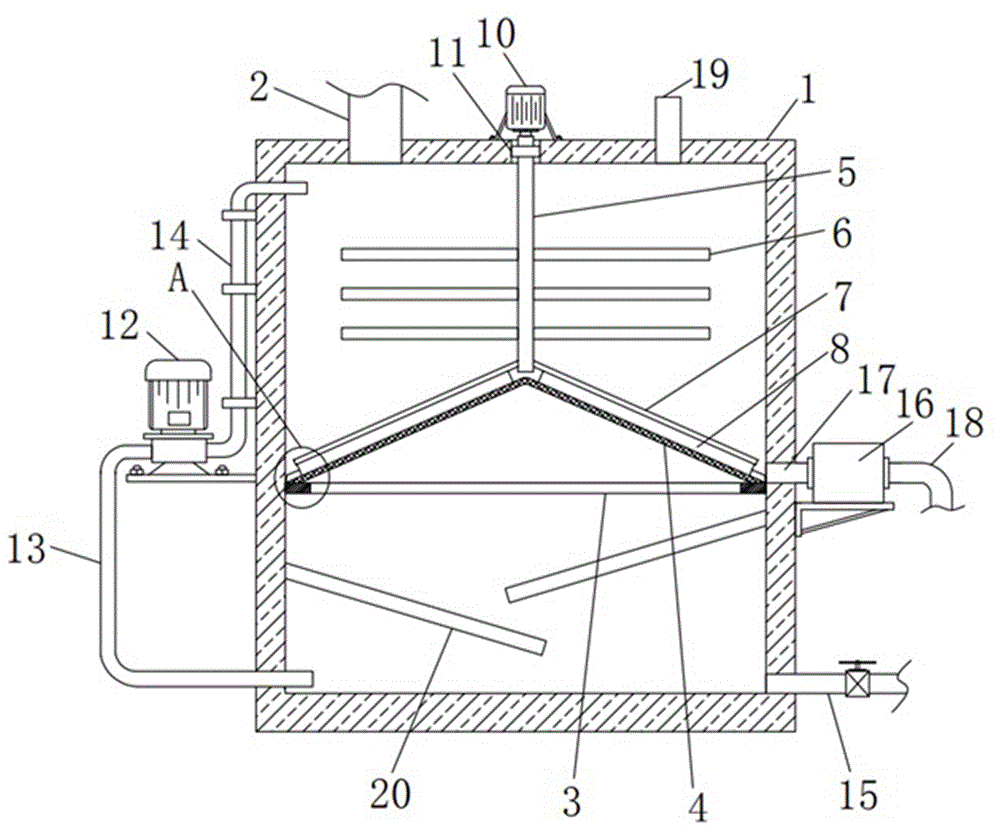

FIG. 1 is a schematic sectional view of the main view of the present invention;
fig. 2 is an enlarged schematic view of a portion a of fig. 1.
In the figure: 1. a cabinet body; 2. a sewage pipe; 3. an annular support plate; 4. a conical filter screen; 5. a rotating shaft; 6. a stirring rod; 7. an inclined lever; 8. a first squeegee; 9. a second squeegee; 10. a motor; 11. mounting holes; 12. a sewage pump; 13. a first water pipe; 14. a second water pipe; 15. a water outlet pipe; 16. a sludge discharge pump; 17. a first sludge pipe; 18. a second sludge pipe; 19. a dosing tube; 20. an activated carbon plate.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
As shown in fig. 1-2, the utility model provides a technical solution: a purifying and precipitating tank for environmental protection engineering sewage treatment comprises a cabinet body 1, a sewage pipe 2 is fixedly installed at the top of the cabinet body 1, the sewage pipe 2 is communicated with the inside of the cabinet body 1, an annular supporting plate 3 is fixedly installed in the cabinet body 1, a conical filtering net 4 is fixedly installed at the top of the annular supporting plate 3, a rotating shaft 5 positioned above the conical filtering net 4 is arranged in the cabinet body 1, a stirring rod 6 is fixedly installed on the rotating shaft 5, inclined rods 7 positioned below the stirring rod 6 are fixedly installed at two sides of the rotating shaft 5, first scraping plates 8 are fixedly installed at the bottoms of the two inclined rods 7, second scraping plates 9 are fixedly installed at the sides, far away from each other, of the two first scraping plates 8, of which the bottoms are contacted with the conical filtering net 4, a motor 10 is fixedly installed at the top of the cabinet body 1, a mounting hole 11 is formed in the inner wall of the top of the cabinet body 1, the, one side fixed mounting sewage pump 12 of the cabinet body 1, the suction end fixed mounting of sewage pump 12 has first water pipe 13, the one end that sewage pump 12 was kept away from to first water pipe 13 extends to the cabinet body 1 in and is located the below of annular backup pad 3, the discharge end fixed mounting of sewage pump 12 has second water pipe 14, the one end that sewage pump 12 was kept away from to second water pipe 14 extends to the cabinet body 1 in and is located the top of puddler 6, one side fixed mounting that sewage pump 12 was kept away from to the cabinet body 1 has outlet pipe 15, outlet pipe 15 is linked together with cabinet body 1 is inside, one side fixed mounting that sewage pump 12 was kept away from to the cabinet body 1 has sludge pump 16, sludge pump 16's suction end fixed mounting has first sludge pipe 17, the one end fixed mounting of first sludge pipe 17 is in one side of the cabinet body 1 and is linked together with cabinet body 1 is inside, first sludge pipe 17 is located the top of annular backup pad 3, sludge pump 16's discharge end fixed mounting.
The top fixed mounting of the cabinet body 1 has the injection pipe 19, injection pipe 19 is linked together with the internal portion of cabinet, equal fixed mounting has activated carbon plate 20 on the both sides inner wall of the cabinet body 1, two activated carbon plate 20 are the slope setting, two activated carbon plate 20 all are located the below of annular support plate 3, the quantity of puddler 6 is six, six puddlers 6 are two bisymmetry settings, fixed cover is equipped with the bearing in the pivot 5, the outer lane of bearing and the inner wall fixed connection of mounting hole 11, fixed mounting has the stop valve on the outlet pipe 15.
When in use, the cabinet body 1 is provided with a control switch and a power cord, the motor 10, the sewage pump 12, the sludge discharge pump 16, the control switch and the power cord are sequentially and electrically connected to form a loop, the control switch can respectively control the start and stop of the motor 10, the sewage pump 12 and the sludge discharge pump 16, sewage flows into the cabinet body 1 from the sewage pipe 2, a proper amount of flocculating agent is put into the cabinet body 1 from the dosing pipe 19, the motor 10 and the sewage pump 12 are started to work, the motor 10 drives the rotating shaft 5, the six stirring rods 6 and the two inclined rods 7 to rotate, the two inclined rods 7 respectively drive the corresponding first scraping plate 8 and the second scraping plate 9 to rotate, the six stirring rods 6 and the two inclined rods 7 are utilized to stir and mix the sewage and the flocculating agent uniformly to generate sediment, and the sediment avoided by the conical filter screen 4 can be cleaned by the two first scraping plates 8 and the two second scraping plates 9, avoid the sediment to block up the mesh on the toper filter screen 4, under the effect of sewage pump 12, the sewage that is located the toper filter screen 4 below in the cabinet body 1 passes through first water pipe 13 in proper order, sewage pump 12 and second water pipe 14 discharge into the top of toper filter screen 4, make the sewage in the cabinet body 1 circulate and flow, thereby carry out effectual filtration to sewage, make sediment and impurity in the sewage persist the top at toper filter screen 4, utilize two active carbon boards 20 can be to remaining chlorine in the sewage, the colloid, the organic matter, heavy metal ion, tiny particle impurity, peculiar smell etc. adsorb the purification, after the stirring of the sewage in the cabinet body 1 is accomplished, stop motor 10 and sewage pump 12 work, open the stop valve on outlet pipe 15, the sewage after the purification is discharged from 15, can regularly start dredge pump 16 and motor 10 work, motor 10 drives pivot 5, Six puddlers 6, two sloping poles 7, two first scraper blades 8 and two second scraper blades 9 rotate, utilize the rotation of two first scraper blades 8 and two second scraper blades 9, can promote the rotation of the deposit impurity that persists on the toper filter screen 4, when pushing away the deposit impurity to the position of first sludge pipe 17, utilize sludge pump 16 can discharge the deposit impurity outside the cabinet body 1 to conveniently discharge the deposit impurity in the cabinet body 1, do not make the content of detailed description all belong to the prior art that the professional skilled person in the art is publicly known simultaneously in this description.
In conclusion, in the purifying and settling tank for sewage treatment in environmental protection engineering, sewage flows into the cabinet body 1 from the sewage pipe 2, a proper amount of flocculating agent is put into the cabinet body 1 from the chemical dosing pipe 19, the motor 10 and the sewage pump 12 are started to work, the motor 10 drives the rotating shaft 5, the six stirring rods 6, the two inclined rods 7, the two first scraping plates 8 and the two second scraping plates 9 to rotate, the sewage and the flocculating agent are uniformly stirred and mixed by utilizing the rotation of the six stirring rods 6 and the two inclined rods 7 to fully generate precipitates, the precipitates avoided by the conical filter screen 4 can be cleaned by utilizing the two first scraping plates 8 and the two second scraping plates 9 to avoid the precipitates from blocking meshes on the conical filter screen 4, the sewage in the cabinet body 1 can circularly flow under the action of the sewage pump 12, so that the sewage can be effectively filtered, and the precipitates and impurities in the sewage can be remained above the conical filter screen 4, the utility model has the advantages of utilizing two activated carbon plates 20 to adsorb and purify residual chlorine, colloid, organic matters, heavy metal ions, fine particle impurities, peculiar smell and the like in sewage, stopping the work of the motor 10 and the sewage pump 12 after stirring the sewage in the cabinet body 1, opening the stop valve, discharging the purified sewage from the water outlet pipe 15, regularly starting the motor 10 to work, rotating the two first scraping plates 8 and the two second scraping plates 9, then starting the sludge pump 16, utilizing the rotation of the two first scraping plates 8 and the two second scraping plates 9 to push the precipitate impurities remained on the conical filter screen 4 to rotate, pushing the precipitate impurities to the position of the first sludge pipe 17, utilizing the sludge pump 16 to discharge the precipitate impurities out of the cabinet body 1, thereby conveniently discharging the precipitate impurities in the cabinet body 1, the utility model has reasonable design, good practicability and good precipitation and purification effect on sewage, the sedimentation speed is fast, has improved work efficiency, is convenient for moreover discharge the sediment impurity in the cabinet body 1.
Claims (6)
1. The utility model provides an environmental protection engineering sewage treatment is with purifying sedimentation tank, includes the cabinet body (1), its characterized in that: the top of the cabinet body (1) is fixedly provided with a sewage pipe (2), the sewage pipe (2) is communicated with the inside of the cabinet body (1), the cabinet body (1) is internally and fixedly provided with an annular supporting plate (3), the top of the annular supporting plate (3) is fixedly provided with a conical filter screen (4), a rotating shaft (5) positioned above the conical filter screen (4) is arranged in the cabinet body (1), a stirring rod (6) is fixedly arranged on the rotating shaft (5), two sides of the rotating shaft (5) are both fixedly provided with inclined rods (7) positioned below the stirring rod (6), the bottoms of the two inclined rods (7) are both fixedly provided with first scraping plates (8), the bottoms of the two first scraping plates (8) are both contacted with the conical filter screen (4), one side of the two first scraping plates (8) far away from each other is both fixedly provided with a second scraping plate (9), the top of the cabinet, a mounting hole (11) is formed in the inner wall of the top of the cabinet body (1), the top end of the rotating shaft (5) penetrates through the mounting hole (11) and is fixedly connected with the output shaft end of the motor (10), a sewage pump (12) is fixedly mounted on one side of the cabinet body (1), a first water pipe (13) is fixedly mounted at the suction end of the sewage pump (12), one end, far away from the sewage pump (12), of the first water pipe (13) extends into the cabinet body (1) and is positioned below the annular supporting plate (3), a second water pipe (14) is fixedly mounted at the discharge end of the sewage pump (12), one end, far away from the sewage pump (12), of the second water pipe (14) extends into the cabinet body (1) and is positioned above the stirring rod (6), a water outlet pipe (15) is fixedly mounted on one side, far away from the sewage pump (12), of the cabinet body (1), the water outlet pipe (15) is communicated with the interior of the cabinet body (1), a sludge discharge pump (16), the suction end fixed mounting of sludge pump (16) has first sludge pipe (17), and the one end fixed mounting of first sludge pipe (17) is in one side of the cabinet body (1) and is linked together with the cabinet body (1) is inside, and first sludge pipe (17) are located the top of annular backup pad (3), and the discharge end fixed mounting of sludge pump (16) has second sludge pipe (18).
2. The purification and sedimentation tank for environmental protection engineering sewage treatment according to claim 1, wherein: the top of the cabinet body (1) is fixedly provided with a dosing pipe (19), and the dosing pipe (19) is communicated with the inside of the cabinet body (1).
3. The purification and sedimentation tank for environmental protection engineering sewage treatment according to claim 1, wherein: equal fixed mounting has activated carbon plate (20) on the both sides inner wall of the cabinet body (1), and two activated carbon plates (20) are the slope setting, and two activated carbon plates (20) all are located the below of annular support board (3).
4. The purification and sedimentation tank for environmental protection engineering sewage treatment according to claim 1, wherein: the number of the stirring rods (6) is six, and the six stirring rods (6) are arranged in a pairwise symmetrical mode.
5. The purification and sedimentation tank for environmental protection engineering sewage treatment according to claim 1, wherein: the rotating shaft (5) is fixedly sleeved with a bearing, and the outer ring of the bearing is fixedly connected with the inner wall of the mounting hole (11).
6. The purification and sedimentation tank for environmental protection engineering sewage treatment according to claim 1, wherein: and a stop valve is fixedly arranged on the water outlet pipe (15).
