Abstract
The utility model provides an excrement collecting bag for clysis, which comprises a bag body and a pair of bag ears; one end of the bag body is a closed end, and the other end of the bag body is an arc-shaped open end; one bag ear is fixed at one side end part of the arc-shaped opening end, and the other bag ear is fixed at the other side end part of the arc-shaped opening end; an adhesive patch is fixed on one bag ear for adhering on the buttocks of the patient. The utility model discloses an excrement collection bag for enema for effectual collection patient's excrement when patient's enema, and simple structure, convenient to use, it is with low costs, be suitable for practical application.
Description
Technical Field
The utility model relates to the field of medical equipment, particularly, relate to an excrement collection bag for enema.
Background
Enema is a treatment method in which an anal tube is inserted into the colon from the anus through the rectum to achieve the effect of relaxing bowels and exhausting air, and the enema can stimulate the peristalsis of the intestine, soften and remove feces, and has the effects of reducing temperature, inducing spawning, diluting intestinal toxicants and reducing absorption, and low-temperature solution is used for cooling patients with high fever, and in addition, the treatment purposes of supplying medicines, nutrition, moisture and the like can be achieved. Clinically, enema is often used to relieve constipation or to clean the intestine before surgery.
Most of old patients and other patients with relaxed perianal sphincters are difficult to control themselves during clystering, excrement or clystering liquid leaks out from the periphery of an anal tube in the clystering process, and the excrement is discharged to a sickbed or clothes of the patients due to the fact that the patients do not have time to go to a toilet after the anal tube is taken out, so that the psychological and physical discomfort of the patients is caused, and meanwhile, the cleaning and nursing work of medical staff is increased. In order to solve the problem, a plurality of excrement collecting devices for clysis are generated, including a negative pressure collecting device, an clysis auxiliary device and the like, most of the devices are complex in structure and expensive in material, and are used as disposable products, so that the manufacturing cost and the using cost are high, the use is inconvenient, and the actual popularization cannot be achieved; there are also medical personnel to adopt the method of directly cushioning the plastic bag under the patient's health, and the posture when current plastic bag can not fine cooperation patient does the enema often does not play actual effect, still has a large amount of excrement to splash on patient's clothing and sick bed.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide an excrement collection bag for enema for effectual collection patient's excrement when patient's enema, and simple structure, convenient to use, it is with low costs, be suitable for practical application.
The embodiment of the utility model is realized like this: an excrement collecting bag for clysis comprises a bag body and a pair of bag ears; one end of the bag body is a closed end, and the other end of the bag body is an arc-shaped open end; one bag ear is fixed at one side end part of the arc-shaped opening end, and the other bag ear is fixed at the other side end part of the arc-shaped opening end; an adhesive patch is fixed on one bag ear for adhering on the buttocks of the patient.
Furthermore, the bag ear and the bag body integrated into one piece, the bag ear is extended to one side far away from the closed end by the arc-shaped opening end and is formed.
Furthermore, a bendable shaping ring is fixed at the arc-shaped opening end and distributed along the edge of the arc-shaped opening end.
Furthermore, the shaping ring is made of one of polyethylene, polypropylene, aluminum strips or steel strips.
Further, the arc open end is provided with the arc circle, and moulding circle is worn to locate in the arc circle.
Furthermore, the inner wall surface of the bag body is fixedly provided with absorbent cotton, and the absorbent cotton is arranged close to the arc bottom of the arc-shaped opening end.
Furthermore, the bag body is made of waterproof plastic.
The utility model has the advantages that: the utility model discloses a bag is collected to excrement for enema, before the enema, cover arc opening end on patient's the hip, glue the sticker on the bag ear of arc open end one end other than one side hip of patient, glue the sticker on the bag ear of the arc open end other than the hip of patient opposite side, adjust the sticking position of sticker, make whole arc opening cover around patient's anus, make the excrement that flows from patient's anus directly enter into the internal of bag of collecting the bag, in addition, the sticker can be very firm fix the bag on one's body with collecting, make the arc open end can be fine all the time cover around patient's anus, realize the effective collection to patient's anus excrement, to sum up, the utility model discloses a simple structure of bag is collected to excrement for the enema, high durability and convenient use, and low cost, and is suitable for practical application.
Drawings
In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings that are required to be used in the embodiments will be briefly described below, it should be understood that the following drawings only illustrate some embodiments of the present invention, and therefore should not be considered as limiting the scope, and for those skilled in the art, other related drawings can be obtained according to the drawings without inventive efforts.

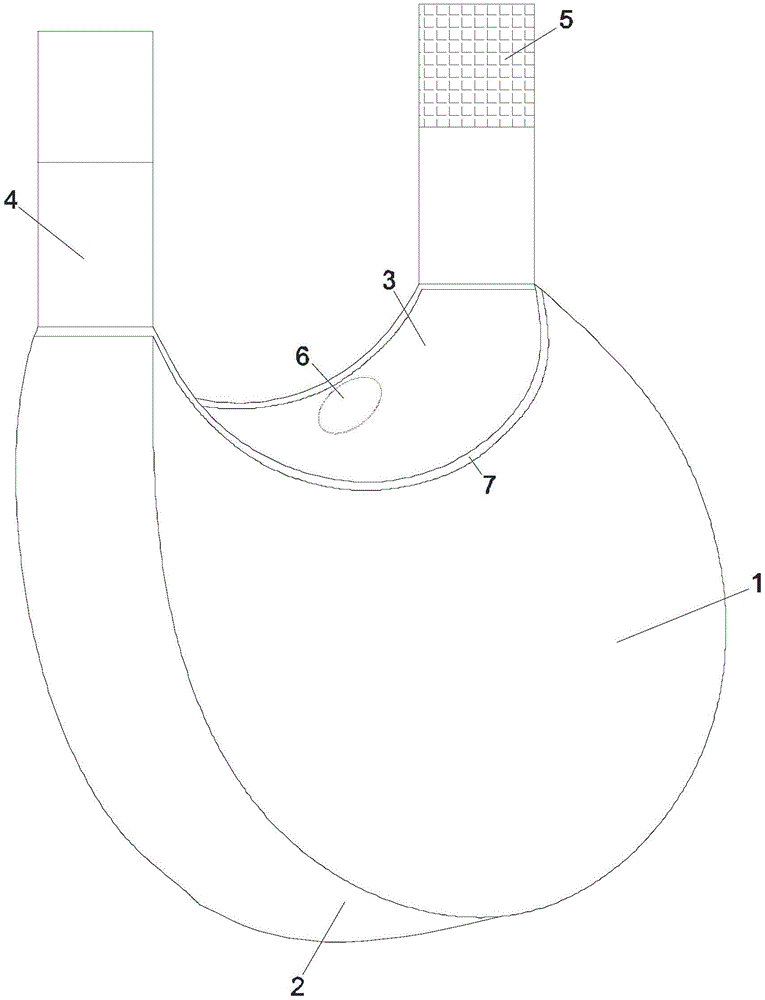

Fig. 1 is a schematic structural view of an excreta collection bag for enema according to an embodiment of the present invention.
Icon:
1-bag body, 2-closed end, 3-open end, 4-bag ear, 5-sticking piece, 6-absorbent cotton and 7-arc ring.
Detailed Description
In order to make the objects, technical solutions and advantages of the embodiments of the present invention clearer, the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are some, but not all, embodiments of the present invention. The components of embodiments of the present invention, as generally described and illustrated in the figures herein, may be arranged and designed in a wide variety of different configurations.
The present invention will be further described with reference to the accompanying drawings, and as shown in fig. 1, the present embodiment provides an excreta collecting bag for enema, which comprises a bag body 1 and a pair of bag ears 4; one end of the bag body 1 is a closed end 2, and the other end of the bag body 1 is an arc-shaped open end 3; one bag ear 4 is fixed at one side end part of the arc-shaped opening end 3, and the other bag ear 4 is fixed at the other side end part of the arc-shaped opening end 3; an adhesive patch 5 for adhering on the buttocks of the patient is fixed on one bag ear 4. The adhesive sheet 5 of the present embodiment is made of a material which has a strong adhesive force to a human body and is harmless to the human body, like an electrode sheet. Before the enema, cover arc open end 3 on patient's the buttock, paste piece 5 on the bag ear 4 of 3 one ends of arc open end and glue beside one side buttock of patient, paste piece 5 on the bag ear 4 of 3 other ends of arc open end glues beside the buttock of patient's opposite side, the paste position of adjustment paste piece 5, make whole arc open end cover around patient's anus, make the excrement that flows from patient's anus directly enter into the bag body 1 of collecting the bag, in addition, paste piece 5 can be very firm fix the collecting bag on one's body at the patient, make arc open end 3 cover around patient's anus that can be fine all the time, realize the effective collection to patient's anus excrement, to sum up, the utility model discloses an excrement collecting bag for the enema's simple structure, and is with low costs, be suitable for practical application.
In this embodiment, the bag ears 4 are integrally formed with the bag body 1, and the bag ears 4 are formed by extending the arc-shaped opening end 3 to the side far away from the closed end 2. The two are integrally formed, so that the production process is simpler, and the connection between the bag body 1 and the bag ears 4 can be more stable.
In the present embodiment, a bendable shaping ring (not shown) is fixed to the arc-shaped opening end 3, and the shaping ring is distributed along the edge of the arc-shaped opening end 3. Moulding circle that can buckle can be fine with 3 laminating of arc open end around patient's anus, play and support whole bag body 1, guarantee the effect of laminating effect, better avoid the excrement to leak outward.
The arc open end 3 is provided with arc circle 7, and moulding circle is worn to locate in arc circle 7. The structure is similar to the fixing mode of the supporting strip arranged at the edge of the mask and the mask, and the fixing mode is easier to realize in production and has better fixing effect.
The shaping ring is made of one of polyethylene, polypropylene, aluminum strips or steel strips.
It should be noted that, the inner wall surface of the bag body 1 of the present embodiment is fixedly connected with a water absorbent cotton 6, and the water absorbent cotton 6 is arranged near the arc bottom of the arc-shaped opening end 3. After the collecting bag is fixed on the buttocks of the patient, the position of the collecting bag is adjusted, so that the absorbent cotton 6 is just positioned in the buttocks of the patient and is close to the position below the anus. Therefore, the liquid flowing out of the anus of the patient can firstly reach the absorbent cotton 6 and then enter the bag body 1 under the flow guiding effect of the absorbent cotton 6, so that the liquid is prevented from flowing onto a bed sheet.
The material of the bag body 1 of this embodiment is waterproof plastic. Waterproof plastic can not only play a good role in collecting excrement without exosmosis, but also is a disposable material with lower cost.
The specific application method of the excrement collection bag for enema of this example is: before the patient performs clysis operation, the adhesive sheet 5 on one side of the bag body 1 is firstly adhered to the side of the buttocks of the patient on one side, and the adhesive sheet 5 on the other side is adhered to the side of the buttocks of the patient on the other side, so that the bag body 1 is fixed around the anus of the patient; then adjusting the shaping ring, fitting the shaping ring around the anus of the patient, and simultaneously enabling the absorbent cotton 6 to be positioned in the buttocks cleft below the anus of the patient; the anal tube can extend into the anus from the upper part of the anus, and also can extend into the anus after passing through the water absorption cotton 6 from the lower part of the anus. In the clystering process, when excrement flows out from the anus inserted with the anal tube or the anal tube is removed to begin to excrete, the excrement can reach the absorbent cotton 6 along the hip canal and enter the bag body 1 after the flow guide effect of the absorbent cotton 6, or enter the bag body 1 attached to the skin of a patient along the skin and cannot flow to a bed or clothes of the patient; in addition, the adhesive force between the adhesive sheet 5 and the body of the patient is strong, and the adhesive sheet cannot easily fall off, so that the bag body 1 cannot fall off under the action of gravity even when the patient stands up.
In conclusion, the excrement collecting bag is simple in structure, convenient to use, low in production cost, good in excrement collecting effect and suitable for clinical popularization and application.
The above is only a preferred embodiment of the present invention, and is not intended to limit the present invention, and various modifications and changes will occur to those skilled in the art. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (7)
1. An excrement collection bag for clysis is characterized in that: comprises a bag body and a pair of bag ears; one end of the bag body is a closed end, and the other end of the bag body is an arc-shaped open end; one bag ear is fixed at one side end part of the arc-shaped opening end, and the other bag ear is fixed at the other side end part of the arc-shaped opening end; an adhesive patch which is used for being adhered to the buttocks of the patient is fixed on the bag ear.
2. An excreta collection bag for enema according to claim 1, wherein: the bag ear with bag body integrated into one piece, the bag ear by the arc open end to keeping away from the one side of closed end extends the formation.
3. An excreta collection bag for enema according to claim 1, wherein: the arc open end is fixed with a moulding circle that can buckle moulding, moulding circle is followed the edge distribution of arc open end.
4. An excreta collection bag for enema according to claim 3, wherein: the shaping ring is made of one of polyethylene, polypropylene, aluminum strips or steel strips.
5. An excreta collection bag for enema according to claim 4, wherein: the arc open end is provided with the arc circle, moulding circle wears to locate in the arc circle.
6. An excreta collection bag for enema according to claim 1, wherein: the inner wall surface of the bag body is fixedly provided with a water absorption cotton, and the water absorption cotton is arranged close to the arc bottom of the arc-shaped opening end.
7. An excreta collection bag for enema according to claim 1, wherein: the bag body is made of waterproof plastic.
