Abstract

The utility model relates to an electromechanical device cleaning equipment technical field, and an electromechanical device's spare part belt cleaning device is disclosed, including the main tank body, main tank body bottom fixed mounting has the install bin, the equal fixed mounting of lateral wall has the mounting panel about the main tank body, there is the bull stick through bearing swing joint between the interior diapire of mounting panel bottom and install bin, the collar is installed with the interior diapire symmetry of main tank body to mounting panel bottom, fixed mounting has a filter screen cover between the side that two collars are close to mutually, the equal fixed intercommunication of lateral wall has the installation pipe about the main tank body, the roof is provided with the dry mechanism of washing in the main tank body, main tank body top fixed mounting has the water storage box, the fixed intercommunication of water storage box left side wall has the connecting pipe, the one end that the connecting pipe. The utility model discloses can stir the gathering at the inside washing liquid of the main tank body after spraying and wasing, make the washing liquid can further wash the impurity on spare part surface, improve the cleaning performance.

Description

Part cleaning device for electromechanical equipment
Technical Field
The utility model relates to an electromechanical device cleaning equipment technical field specifically is an electromechanical device's spare part belt cleaning device.
Background
When parts of electromechanical equipment are cleaned, the parts are usually placed in cleaning liquid to be soaked for a period of time, and the parts are not cleaned thoroughly in such a way, so that the cleaning effect is poor.
Therefore, the part cleaning device of some electromechanical devices can be provided with the stirring mechanism in the device, and the cleaning liquid is continuously stirred by the stirring mechanism, so that the cleaning effect of the device is improved, but the problem of the cleaning mode is that the stirring rod possibly collides with the part during rotation, so that the part is damaged, and the stirring rod also has the possibility of breakage, so that the part and the stirring rod are not high enough in protection.
To the problem, the utility model provides an electromechanical device's spare part belt cleaning device can avoid spare part and puddler to contact when guaranteeing the cleaning performance, provides the protection to spare part and puddler, prolongs the life of equipment.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
The utility model provides a be not enough to prior art, the utility model provides a spare part belt cleaning device of electromechanical device has solved traditional electromechanical device spare part belt cleaning device's puddler and can contact with spare part when rotating, leads to spare part and puddler all to have the problem of impaired possibility.
(II) technical scheme
In order to achieve the above object, the utility model provides a following technical scheme: a part cleaning device of electromechanical equipment comprises a main box body, wherein an installation box is fixedly installed at the bottom of the main box body, a motor is fixedly installed at the bottom of the installation box body through a support, a rotating shaft is fixedly installed at the output end of the motor, the top of the rotating shaft penetrates through the inner bottom wall of the installation box and is movably connected with the inner top wall of the installation box through a bearing, a first gear is fixedly installed on the outer surface of the rotating shaft, installation plates are fixedly installed on the left side wall and the right side wall of the main box body, a rotating rod is movably connected between the bottom of the installation plates and the inner bottom wall of the installation box through the bearing, a second gear is fixedly installed on the outer surface of the rotating rod and is meshed with the first gear, installation rings are symmetrically installed on the bottom of the installation plates and the inner bottom wall of the main box body, a first filter screen cover is fixedly installed between the two, the left side wall and the right side wall of the main box body are fixedly communicated with installation pipes, a cleaning and drying mechanism is arranged on the top wall in the main box body, a water storage box is fixedly arranged at the top of the main box body, the left side wall of the water storage box is fixedly communicated with a connecting pipe, one end of the connecting pipe, which is close to the water storage box, is provided with a pressure pump, and the pressure pump is fixedly connected with the left side surface of the water storage box through a support;
wash dry mechanism includes the casing, roof fixed connection in casing top and the main tank body, connecting pipe bottom pass the casing and extend to the inside of casing, the diapire is provided with evenly distributed's shower nozzle in the casing, diapire fixed mounting has the second screen panel in the casing, roof fixed mounting has the electric heat piece in the casing.
Preferably, there is the fan at the main tank top through support fixed mounting, the fan output has fixed pipe through the fixed intercommunication of joint, the one end that the fan was kept away from to fixed pipe passes the interior roof of casing and extends to the inside of casing, and fixed socle portion sets up and is provided with the closable valve.
Preferably, the connecting pipe and one end of the mounting pipe close to the main box body are both provided with a closable valve.
Preferably, the front surface of the main box body is provided with a box door.
Preferably, the left side surface and the right side surface of the installation box are both fixedly provided with a support frame.
Preferably, a gap is reserved between the side surface of the stirring rod and the inner ring of the first filter screen cover.
(III) advantageous effects
Compared with the prior art, the utility model provides an electromechanical device's spare part belt cleaning device possesses following beneficial effect:
1. the utility model discloses a water storage box, connecting pipe and the washing drying mechanism isotructure that sets up can spray the washing to the electromechanical device spare part in the main tank body, and the washing liquid in the water storage box passes through connecting pipe, casing and shower nozzle and sprays on the surface of spare part, washes away the impurity on spare part surface, dirt.
2. The utility model discloses a motor, bull stick and puddler isotructure that set up can stir the gathering at the inside washing liquid of the main tank body after spraying and wasing, make the washing liquid can further wash the impurity that falls the spare part surface, improve the cleaning performance.
3. The utility model discloses a first screen panel that sets up can avoid the puddler to contact with spare part when rotating, prevents that spare part and puddler from receiving the damage owing to colliding with, can provide certain protection effect to spare part and puddler homoenergetic.
4. The utility model discloses a fan and fixed pipe isotructure that set up can end and with washing liquid discharge main tank body after whole cleaning process, air-dry fast to spare part, shorten the dry time of spare part, improve equipment's work efficiency on the whole.
5. The utility model discloses a second screen panel that sets up can prevent that the outside impurity of equipment from getting into the main tank body through fixed pipe or connecting pipe, and the cleaning performance of washing liquid after the appropriate heating is better, and the effect of air after the appropriate heating is better, and the roof sets up the electric heat piece and can play the heating effect to washing liquid and air homoenergetic in the casing, has reduced manufacturing cost when having guaranteed cleaning performance and drying efficiency.
Drawings

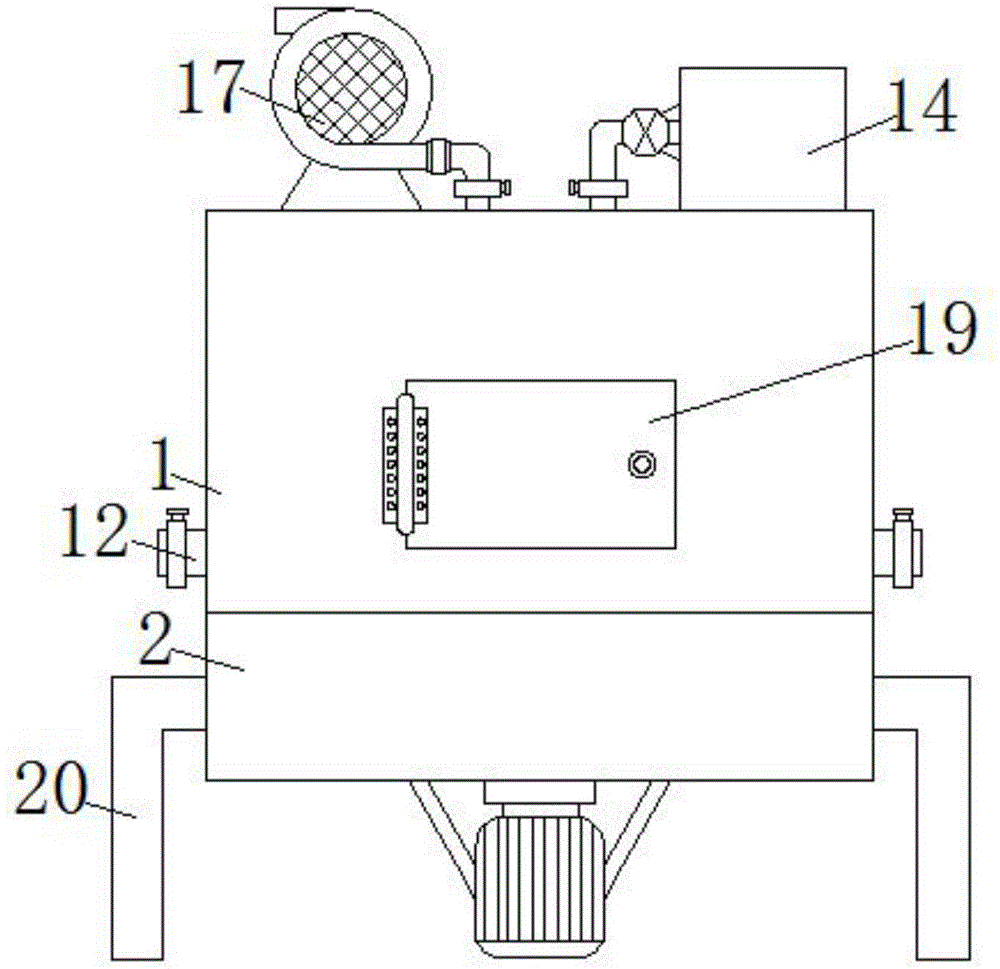

FIG. 1 is a front view of the structure of the present invention;
FIG. 2 is a front sectional view of the structure of the present invention;
FIG. 3 is an enlarged schematic view of the structure at A in FIG. 2 according to the present invention;
fig. 4 is a front sectional view of the shell structure of the present invention.
In the figure: 1. a main box body; 2. installing a box; 3. a motor; 4. a rotating shaft; 5. a first gear; 6. mounting a plate; 7. a rotating rod; 8. a second gear; 9. a mounting ring; 10. a first strainer cover; 11. a stirring rod; 12. installing a pipe; 13. cleaning and drying the mechanism; 131. a housing; 132. a spray head; 133. a second strainer cover; 134. an electric heating block; 14. a water storage tank; 15. a connecting pipe; 16. a pressure pump; 17. a fan; 18. a fixed tube; 19. a box door; 20. a support frame.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
As shown in fig. 1-4, the utility model provides a technical solution: a cleaning device for parts of electromechanical equipment comprises a main box body 1, a mounting box 2 is fixedly arranged at the bottom of the main box body 1, a motor 3 is fixedly arranged at the bottom of the mounting box 2 through a bracket, a rotating shaft 4 is fixedly arranged at the output end of the motor 3, the top of the rotating shaft 4 penetrates through the inner bottom wall of the mounting box 2 and is movably connected with the inner top wall of the mounting box 2 through a bearing, a first gear 5 is fixedly arranged on the outer surface of the rotating shaft 4, mounting plates 6 are fixedly arranged on the left side wall and the right side wall of the main box body 1, a rotating rod 7 is movably connected between the bottom of the mounting plate 6 and the inner bottom wall of the mounting box 2 through a bearing, a second gear 8 is fixedly arranged on the outer surface of the rotating rod 7, the second gear 8 is meshed with the first gear 5, mounting rings 9 are symmetrically arranged at the bottom of the mounting plate 6 and the inner bottom wall of the main box body 1, a, the left side wall and the right side wall of the main box body 1 are both fixedly communicated with mounting pipes 12, a cleaning and drying mechanism 13 is arranged on the top wall in the main box body 1, a water storage tank 14 is fixedly arranged on the top of the main box body 1, the left side wall of the water storage tank 14 is fixedly communicated with a connecting pipe 15, one end of the connecting pipe 15 close to the water storage tank 14 is provided with a pressure pump 16, and the pressure pump 16 is fixedly connected with the left side surface of the water storage tank 14 through a support;
the cleaning and drying mechanism 13 includes a housing 131, the top of the housing 131 is fixedly connected with the inner top wall of the main box 1, the bottom of the connecting pipe 15 penetrates the housing 131 and extends to the inside of the housing 131, the inner bottom wall of the housing 131 is provided with evenly distributed nozzles 132, the inner bottom wall of the housing 131 is fixedly provided with a second filter screen cover 133, and the inner top wall of the housing 131 is fixedly provided with an electric heating block 134. Can be after spraying the washing through the motor 3 that sets up, bull stick 7 and puddler 11 isotructure, stir the gathering at the inside washing liquid of the main tank body 1, make the washing liquid can further wash the impurity on spare part surface, improve the cleaning performance, first screen panel 10 can avoid puddler 11 to contact with spare part when rotating, prevent that spare part and puddler 11 from receiving the damage owing to colliding with, can provide certain protection effect to spare part and puddler 11 homoenergetic.
Further preferably, the top of the main box 1 is fixedly provided with a fan 17 through a support, the output end of the fan 17 is fixedly communicated with a fixed pipe 18 through a joint, one end of the fixed pipe 18, which is far away from the fan 17, penetrates through the inner top wall of the shell 131 and extends to the inside of the shell 131, and the bottom of the fixed pipe 18 is provided with a closable valve. After the cleaning work is finished, air can be sucked into the main box body 1 through the fan 17, and the parts are quickly dried.
Further preferably, the connecting pipe 15 and the mounting pipe 12 are provided with a closable valve at one end close to the main box 1. The speed of the cleaning liquid entering and flowing out of the main tank body 1 is convenient to control.
Further preferably, the main cabinet 1 is provided with a cabinet door 19 on the front surface. The parts of the electromechanical device can be placed into the main box body 1 through the box door 19, and the parts can be taken out through the box door 19 after the cleaning is finished.
Preferably, the support frames 20 are fixedly mounted on the left and right side surfaces of the mounting box 2. The stability of equipment during operation is improved.
Further preferably, a gap is left between the side surface of the stirring rod 11 and the inner ring of the first screen cover 10. The unnecessary friction caused by the contact of the stirring rod 11 with the inner ring of the first filter screen cover 10 when rotating is avoided, the abrasion of the equipment is reduced, and the service life of the equipment is prolonged.
The working principle is as follows: when the cleaning machine works, the box door 19 is opened, parts of electromechanical equipment to be cleaned are placed in the main box body 1, the box door 19 is closed, the electric heating block 134 is started, the valve of the connecting pipe 15 is opened, cleaning liquid in the water storage tank 14 is pumped into the shell 131 by using the pressure pump 16, the cleaning liquid is sprayed on the surfaces of the parts in the shell 131 after being heated by the electric heating block 134 for a short time through the spray head 132, the parts are washed, impurities and dirt on the surfaces of the parts are washed away, the valve of the connecting pipe 15 is closed along with the collection of the cleaning liquid in the main box body 1, the starting motor 3 drives the rotating shaft 4 to rotate, the rotating shaft 4 drives the two second gears 8 to rotate through the first gear 5, so that the two rotating rods 7 rotate, the cleaning liquid is stirred by using the stirring rod 11 on the outer surface of the rotating rod 7, and the cleaning liquid can further clean the impurities on the surfaces of the parts, improve the cleaning performance, after the washing is accomplished, open the valve of installation pipe 12, the washing liquid is arranged to the main tank body 1 outside through installation pipe 12, the washing liquid is by the evacuation back, close motor 3, open the valve of fixed pipe 18, start fan 17 with the outside air suction of equipment in casing 131, and after being heated for a short time by electric heat piece 134 in casing 131, get into inside the main tank body 1 through shower nozzle 132, air-dry the spare part in the main tank body 1, after air-drying the completion, open chamber door 19 and take out spare part, close fan 17 and electric heat piece 134.
The electrical components presented in the document are all electrically connected with an external master controller and 220V mains, and the master controller can be a conventional known device controlled by a computer or the like.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims (6)

1. The utility model provides an electromechanical device's spare part belt cleaning device, includes main tank body (1), its characterized in that: the mounting box is characterized in that the mounting box (2) is fixedly mounted at the bottom of the main box body (1), the motor (3) is fixedly mounted at the bottom of the mounting box (2) through a support, a rotating shaft (4) is fixedly mounted at the output end of the motor (3), the top of the rotating shaft (4) penetrates through the inner bottom wall of the mounting box (2) and is movably connected with the inner top wall of the mounting box (2) through a bearing, a first gear (5) is fixedly mounted on the outer surface of the rotating shaft (4), a mounting plate (6) is fixedly mounted on the left side wall and the right side wall of the main box body (1), a rotating rod (7) is movably connected between the bottom of the mounting plate (6) and the inner bottom wall of the mounting box (2) through a bearing, a second gear (8) is fixedly mounted on the outer surface of the rotating rod (7), the second gear (8) is meshed with the first gear (5), and a mounting, a first filter screen cover (10) is fixedly installed between the side faces, close to each other, of the two installation rings (9), stirring rods (11) which are uniformly distributed are fixedly installed on the outer surface of the rotating rod (7), the left side wall and the right side wall of the main box body (1) are fixedly communicated with installation pipes (12), a cleaning and drying mechanism (13) is arranged on the inner top wall of the main box body (1), a water storage tank (14) is fixedly installed at the top of the main box body (1), a connecting pipe (15) is fixedly communicated with the left side wall of the water storage tank (14), a pressure pump (16) is arranged at one end, close to the water storage tank (14), of the connecting pipe (15), and the pressure pump (16) is fixedly connected with the left side face of the;
wash dry mechanism (13) including casing (131), roof fixed connection in casing (131) top and the main tank body (1), connecting pipe (15) bottom pass casing (131) and extend to the inside of casing (131), the bottom wall is provided with evenly distributed's shower nozzle (132) in casing (131), bottom wall fixed mounting has second screen panel (133) in casing (131), roof fixed mounting has electric heat piece (134) in casing (131).
2. The apparatus for cleaning parts of an electromechanical device according to claim 1, wherein: the fan (17) is fixedly installed at the top of the main box body (1) through a support, the output end of the fan (17) is fixedly communicated with a fixed pipe (18) through a joint, one end, far away from the fan (17), of the fixed pipe (18) penetrates through the inner top wall of the shell (131) and extends to the inside of the shell (131), and a closable valve is arranged at the bottom of the fixed pipe (18).
3. The apparatus for cleaning parts of an electromechanical device according to claim 1, wherein: the connecting pipe (15) and one end of the mounting pipe (12) close to the main box body (1) are both provided with a closable valve.
4. The apparatus for cleaning parts of an electromechanical device according to claim 1, wherein: the front surface of the main box body (1) is provided with a box door (19).
5. The apparatus for cleaning parts of an electromechanical device according to claim 1, wherein: the side all fixed mounting has support frame (20) about install bin (2).
6. The apparatus for cleaning parts of an electromechanical device according to claim 1, wherein: and a gap is reserved between the side surface of the stirring rod (11) and the inner ring of the first filter screen cover (10).
