CN211214089U

CN211214089U - Nursing dressing change support

Info

Publication number: CN211214089U
Application number: CN201922011663.4U
Authority: CN
Inventors: 张霞; 贾燚; 沈义军
Original assignee: Individual
Current assignee: Individual
Priority date: 2019-11-20
Filing date: 2019-11-20
Publication date: 2020-08-11
Anticipated expiration: 2029-11-20

Abstract

The utility model discloses a nursing support of changing dressings, including the expansion bracket, the mount, stop device, a pedestal, place the platform, heating device and gallows, the mount is located on the base, the scalable cover of expansion bracket is located on the mount, stop device locates in the expansion bracket, place the platform and locate on the expansion bracket, heating device locates in placing the platform, the expansion bracket top is located to the gallows, stop device includes the spring, the rotary rod, connecting piece and locating part, the rotary rod is rotatable to be located in the mount, the connecting piece is located on the rotary rod, the connecting piece both sides are located to the spring, be equipped with spacing hole on the expansion bracket, the locating part is located on the spring and is passed spacing hole and locate the expansion bracket outside, the locating part sets. The utility model belongs to the technical field of medical instrument, specifically provide a remove convenient and can fix, provide good sense of touch through heat dissipation and heating for the patient to accessible altitude mixture control is applicable to different patients' nursing support of changing dressings.

Description

Nursing dressing change support

Technical Field

The utility model belongs to the technical field of medical instrument, specifically indicate a nursing support of changing dressings.

Background

At present, after clinical operation or treatment of a surgical patient, dressing change and medicine application treatment are required to be carried out at intervals, particularly for patients with limb injuries, limbs of the patient need to be lifted up, wound gauze is unwound, dressing change and medicine application treatment are carried out, gauze wrapping is carried out on the injury of the patient, the limbs of the patient are placed on a support to carry out dressing change and nursing in the existing nursing and medicine application process, the existing support only can serve as a support effect and cannot be lifted and adjusted, due to the fact that the sizes of the patients are different, the injury positions are also different, the using range is limited, the patient cannot be well matched, uncomfortable touch feeling is brought to the patient, operation trouble is brought to personnel in the whole process, treatment difficulty is increased, and unexpected pain is also brought to the patient.

Disclosure of Invention

For solving the above-mentioned current difficult problem, the utility model provides a remove conveniently and can fix, provide good sense of touch through heat dissipation and heating for the patient to accessible altitude mixture control is applicable to different patients' nursing support of changing dressings.

The utility model adopts the following technical scheme: the utility model discloses a nursing dressing change bracket, including expansion bracket, mount, stop device, base, placing platform, heating device and gallows, the mount is located on the base, the expansion bracket is telescopically sheathed on the mount, the diameter of the expansion bracket is greater than that of the mount, the stop device is located in the expansion bracket, the placing platform is located on the expansion bracket, the heating device is located in the placing platform, the gallows is located on the top end of the expansion bracket; stop device includes spring, rotary rod, connecting piece and locating part, the rotary rod is rotatable to be located in the mount, the connecting piece is located on the rotary rod, the connecting piece both sides are located to the spring, be equipped with spacing hole on the expansion bracket, the locating part is located on the spring and is passed spacing hole and locate the expansion bracket outside, the locating part is the setting of semicircle disk, and when the vertical setting in locating part circular arc side, it is downthehole to exert vertical stress locating part circular arc side to the mount and receive the expansion bracket inner wall extrusion contractible spacing, and then reach flexible effect, when locating part circular arc side level sets up, vertical stress can't make the locating part compress, and then reaches spacing fixed effect.

Further, a sponge mat is arranged on the placing table and is arranged in an inwards concave arc shape, and a drawer is arranged in the placing table and used for placing medical articles.

Further, heating device includes hot plate and controller, the hot plate is located and is placed the interior sponge of platform and fill up the bottom, the controller is located on the telescopic link, controller and hot plate electricity are connected.

Furthermore, the spongy cushion is provided with air holes for heat transfer.

Furthermore, the placing table is provided with a bandage for fixing limbs of the patient.

Furthermore, the hanger is provided with a lifting hook for hanging a transfusion bottle or other medical appliances.

Furthermore, be equipped with the universal wheel on the base, be equipped with the stopper on the universal wheel, the stopper is connected with the controller electricity, and the integrated device of being convenient for removes and rotates and rigidity.

Furthermore, an elastic fixing clamp is arranged on the telescopic frame and can be fixedly clamped on a bed edge or other fixed medical appliances.

Adopt above-mentioned structure the utility model discloses the beneficial effect who gains as follows: the utility model discloses nursing support of changing dressings, scalable settlement through the expansion bracket, but arbitrary height-adjusting is with the patient of adaptation in different sizes and different affected parts, it is simple and convenient effective, the flexibility is strong, and set up the gas pocket through the sponge stacks up, when increasing compliance and ring nature, increase patient contact site's circulation of air, be convenient for summer heat dissipation and winter reinforcing heating device's heating efficiency, it is nimble convenient to set up the universal wheel, can remove at will rotatoryly, and carry out the bottom through the stopper and fix, and combine the fixed clamping of elasticity to carry out whole firm on other utensils, prevent to overturn, and the variety of using has been increased through setting up of lifting hook and drawer, extensive popularization meaning has.

Drawings

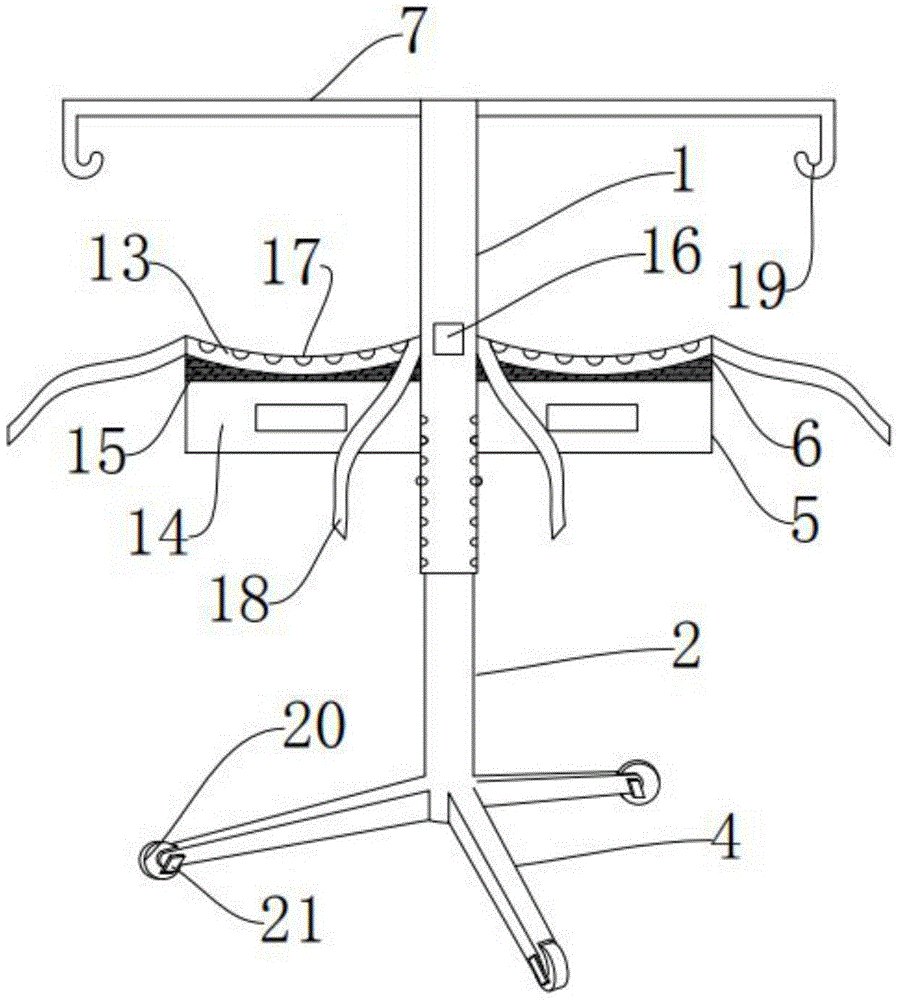

FIG. 1 is a schematic view of the overall structure of the nursing dressing support of the present invention;

FIG. 2 is a diagram of the use state of the limiting device of the nursing dressing change bracket of the present invention;

fig. 3 is a schematic structural view of the limiting device of the nursing dressing change bracket of the utility model.

The device comprises an expansion bracket 1, an expansion bracket 2, a fixing frame 3, a limiting device 4, a base 5, a placing table 6, a heating device 7, a hanging frame 8, a spring 9, a rotating rod 10, a connecting piece 11, a limiting piece 12, a limiting hole 13, a sponge mat 14, a drawer 15, a heating plate 16, a controller 17, an air hole 18, a binding band 19, a lifting hook 20, a universal wheel 21, a brake 22 and an elastic fixing clamp.

Detailed Description

The present invention will be described in further detail with reference to the accompanying drawings.

As shown in fig. 1-3, the nursing dressing change support of the present invention comprises an expansion bracket 1, a fixing bracket 2, a limiting device 3, a base 4, a placing platform 5, a heating device 6 and a hanging bracket 7, wherein the fixing bracket 2 is arranged on the base 4, the expansion bracket 1 is telescopically sleeved on the fixing bracket 2, the diameter of the expansion bracket 1 is larger than that of the fixing bracket 2, the limiting device 3 is arranged in the expansion bracket 1, the placing platform 5 is arranged on the expansion bracket 1, the heating device 6 is arranged in the placing platform 5, and the hanging bracket 7 is arranged at the top end of the expansion bracket 1; stop device 3 includes spring 8, rotary rod 9, connecting piece 10 and locating part 11, rotary rod 9 is rotatable to be located in mount 2, connecting piece 10 is located on rotary rod 9, spring 8 is located connecting piece 10 both sides, be equipped with spacing hole 12 on the expansion bracket 1, locating part 11 is located on spring 8 and is passed spacing hole 12 and locate the expansion bracket 1 outside, locating part 11 is the setting of semicircle dish formula.

Wherein, it is equipped with the foam-rubber cushion 13 to place the bench 5, the foam-rubber cushion 13 sets up for the indent arc, it is equipped with drawer 14 in the bench 5 to place, heating device 6 includes hot plate 15 and controller 16, hot plate 15 is located and is placed bench 5 interior foam-rubber cushion 13 bottom, controller 16 is located on the telescopic link, controller 16 and hot plate 15 are connected, be equipped with gas pocket 17 on the foam-rubber cushion 13, it is equipped with bandage 18 on the bench 5 to place, be equipped with lifting hook 19 on the gallows 7, be equipped with universal wheel 20 on the base 4, be equipped with stopper 21 on the universal wheel 20. The telescopic frame 1 is provided with an elastic fixing clamp 22.

When the medical device is used, a medical worker moves a support to a proper position through the universal wheel 20, fixes the universal wheel 20 through the brake 21, fixes the support to other appliances through the elastic fixing clamp 22, enables the whole support to be in a stable state, when the support is subjected to height adjustment, the arc side surface of the limiting part 11 is vertically arranged in an initial state, the expansion bracket 1 is vertically pressed or lifted, the expansion bracket 1 applies axial stress to the side surface of the limiting part 11, the limiting part 11 is extruded and contracted into the limiting hole 12 by converting the vertical stress into horizontal stress due to the semi-arc arrangement of the side surface of the limiting part 11, the spring 8 is compressed at the moment, the expansion bracket 1 loses the limiting position and can be lifted relative to the fixing frame 2, when the limiting part 11 moves to the next limiting hole 12, the spring 8 rebounds to penetrate through the limiting hole 12, and the limiting part 11 is rotated 90 degrees by the medical worker after the, locating part 11 drives spring 8 and connecting piece 10 and rotates through rotary rod 9, makes 11 circular arc side levels of locating part set up, and vertical stress can't compress resilience to locating part 11 this moment, and then makes locating support fixed, and it is fixed to place the patient wounded limbs on placing platform 5, through binding it fixed, opens hot plate 15 through controller 16, can treat the nursing.

The present invention and the embodiments thereof have been described above, but the description is not limited thereto, and the embodiment shown in the drawings is only one of the embodiments of the present invention, and the actual structure is not limited thereto. In summary, those skilled in the art should understand that they should not be limited to the embodiments described above, and that they can design the similar structure and embodiments without departing from the spirit of the invention.

Claims

1. The utility model provides a nursing support of changing dressings which characterized in that: the telescopic rack type heating device comprises a telescopic rack, a fixing rack, a limiting device, a base, a placing table, a heating device and a hanging rack, wherein the fixing rack is arranged on the base, the telescopic rack is telescopically sleeved on the fixing rack, the diameter of the telescopic rack is larger than that of the fixing rack, the limiting device is arranged in the telescopic rack, the placing table is arranged on the telescopic rack, the heating device is arranged in the placing table, and the hanging rack is arranged at the top end of the telescopic rack; the limiting device comprises a spring, a rotary rod, a connecting piece and a limiting piece, wherein the rotary rod is rotatably arranged in the fixing frame, the connecting piece is arranged on the rotary rod, two sides of the connecting piece are arranged on the spring, a limiting hole is formed in the expansion bracket, the limiting piece is arranged on the spring and penetrates through the limiting hole to be arranged on the outer side of the expansion bracket, the limiting piece is arranged in a semicircular disc mode, and the limiting piece can penetrate through the limiting hole.

2. A care dressing stent of claim 1, wherein: the placing table is provided with a spongy cushion, the spongy cushion is arranged in an inwards concave arc shape, and a drawer is arranged in the placing table.

3. A care dressing stent of claim 2, wherein: the heating device comprises a heating plate and a controller, the heating plate is arranged at the bottom of the sponge pad in the placing table, the controller is arranged on the telescopic rod, and the controller is connected with the heating plate.

4. A care dressing stent of claim 3, wherein: the spongy cushion is provided with air holes.

5. A care dressing stent of claim 1, wherein: the placing table is provided with a binding belt.

6. A care dressing stent of claim 1, wherein: the hanger is provided with a lifting hook.

7. A care dressing stent of claim 1, wherein: the base is provided with a universal wheel, and the universal wheel is provided with a brake.

8. A care dressing stent of claim 1, wherein: and the telescopic frame is provided with an elastic fixing clamp.
