CN211212525U

CN211212525U - Controllable solar protection devices based on building body

Info

Publication number: CN211212525U
Application number: CN201921360715.2U
Authority: CN
Inventors: 刘建波
Original assignee: Individual
Current assignee: Individual
Priority date: 2019-08-21
Filing date: 2019-08-21
Publication date: 2020-08-11
Anticipated expiration: 2029-08-21

Abstract

The utility model provides a controllable sun-shading device based on a building body, which comprises a sliding plate; the method is characterized in that: the back of the sliding plate is fixedly provided with a mounting frame through bolts; a motor base is fixedly arranged on one side of the sliding plate through a bolt, a through hole is formed in the motor base, and a motor is fixedly arranged on the motor base through the bolt; the other side of the sliding plate is fixedly provided with a baffle plate through a bolt, a bearing is fixedly arranged in the baffle plate through interference fit, and a lead screw is arranged in the bearing and is movably connected with a motor through a key connection arrangement coupler; the sliding plate and the motor are transversely arranged, the opening and closing mode of the sun shading device is transversely overlapped, the use mode is simple, adjustment can be conveniently made according to the area of a sun shading position, or adjustment can be made according to the difference of the width models of the sun shading cloth material, so that the sun shading cloth material is suitable for different conditions, in addition, the front end of the outer part of the sliding plate is of an arc-shaped structure, rain can be shielded, and the fixed block, the movable block and the folding plate can be effectively protected.

Description

Controllable solar protection devices based on building body

Technical Field

The utility model belongs to the technical field of the building, more specifically say, in particular to controllable solar protection devices based on building body.

Background

In a building, the interior space needs to have sufficient light and sufficient air flow to the outside. Windows are widely used by ancient people since they have been the most common design of light transmission and ventilation in buildings. Window coverings, typically shades or blinds, maintain the privacy of indoor activities by blocking sunlight from entering an area through horizontal or vertical coverings. These coverings are typically in the form of slats or pleats, which may be vertically suspended in the case of vertical coverings or horizontally extendable in the case of horizontal coverings, many window coverings also including a bottom rail.

Through retrieval, for example, patent No. CN104389502A discloses a cordless controllable sunshade system, which includes a first guide rail, a second guide rail, a third guide rail and a foldable sunshade installed between the two adjacent guide rails, wherein a lifting system is installed on the first guide rail and the second guide rail, a first shelter is installed between the first guide rail and the second guide rail, a second shelter is installed between the second guide rail and the third guide rail, and the shading rates of the first shelter and the second shelter are different. The sun-shading device adopts a stay-rope-free structure, avoids potential safety hazards caused by winding of the stay rope exposed outside, is simple and convenient to operate, can stay at any position only by pulling the sun-shading object by hands, runs stably, and can flexibly adjust the shading degree of the sun-shading system and control the indoor lighting amount by adjusting the position of the second guide rail. The invention has the advantages of beautiful whole, convenient operation and strong applicability.

For another example, patent No. CN208502627U discloses a sun-shading curtain, relating to the technical field of roller shutter lifting devices. The sun-shading curtain comprises a rotating shaft and a rolling curtain component formed by sequentially connecting a plurality of curtain sheets, wherein the rolling curtain component is arranged on the rotating shaft in a rolling way. The curtain piece includes the daylighting section and shelters from the section, and the daylighting section includes daylighting portion and connecting portion, shelters from the section and establishes the chamber including inlaying that has the open end, inlays to establish the chamber and is provided with joint portion, and joint portion is located the open end, joint portion can cooperate with the connecting portion of adjacent curtain piece. Two adjacent curtain pieces are connected in sequence and are respectively a first curtain piece and a second curtain piece, and the lighting section of the first curtain piece can be embedded in the shielding section of the second curtain piece. This sunshade screen is better to have improved the unicity of traditional roll of curtain when using, can satisfy user's ventilation, daylighting and sunshade demand simultaneously, and the rolling process is adjustable, and speed is controllable, and both ends uniformity is good after the roll-up, and the roll-up is convenient, and the fault rate is little, and application scope is wide.

Based on the aforesaid, solar protection devices who uses at present mainly control the sunshade scope through curling from top to bottom, do not possess nimble equipment type and adjustment suitability, and the model is mostly fixed, and the structure is fixed, and inconvenient according to sheltering from the needs to make the adjustment to the area of sheltering from with the mode of sheltering from, and the suitability is general, and nimble suitability is not enough, is unfavorable for the outside use of wall body.

Therefore, in view of the above, research and improvement are made for the existing structure and defects, and a controllable sunshade device based on a building body is provided, so as to achieve the purpose of higher practical value.

SUMMERY OF THE UTILITY MODEL

In order to solve the technical problem, the utility model provides a controllable solar protection devices based on building body to solve the solar protection devices who provides at present and use in the above-mentioned background art and mainly control the sunshade scope through curling from top to bottom, do not possess nimble equipment type and adjustment suitability, the model is mostly fixed, the structure is fixed, inconvenient according to sheltering from the needs to make the adjustment to the area that shelters from with the mode of sheltering from, the suitability is general, nimble suitability is not enough, be unfavorable for the problem of the outside use of wall body.

The utility model relates to a purpose and efficiency based on controllable solar protection devices of building body are reached by following specific technological means:

a controllable sun-shading device based on a building body comprises a sliding plate; the method is characterized in that: the back of the sliding plate is fixedly provided with a mounting frame through bolts; a motor base is fixedly arranged on one side of the sliding plate through a bolt, a through hole is formed in the motor base, and a motor is fixedly arranged on the motor base through the bolt; the other side of the sliding plate is fixedly provided with a baffle through a bolt, a bearing is fixedly arranged in the baffle through interference fit, and a lead screw is arranged in the bearing and is connected with a coupler and a motor in a moving mode through a key.

Further, the mounting bracket is formed by welding a plurality of groups of cylinders between two groups of plates, and a plurality of groups of through holes are formed in the outer side of the mounting bracket.

Furthermore, the sliding plate also comprises a sliding chute A and a sliding chute B, the outer side of the top of the sliding plate is provided with an arc-shaped surface structure, and the sliding chute A and the sliding chute B are respectively arranged at the bottom of the sliding plate and the bottom of the front end; the middle of each fixed block is provided with a screw hole, and the fixed blocks can be matched with bolts to penetrate through the screw holes to be tightly and fixedly arranged in the sliding chutes B; the movable block is slidably arranged in the sliding groove A, the screw rod is positioned in the sliding groove A, and the top of the movable block is provided with a screw hole which is movably connected with the screw rod.

Furthermore, the rear sides of the fixed block and the movable block are of a connecting shaft structure, and a plurality of groups of folding plates are movably arranged in the fixed block and the movable block through rotating shafts; the number of the folding plates is set to be even, and two ends of the folding plates are respectively in different connecting shaft forms at the middle or two ends; the connecting shafts at the two ends of the folding plate respectively protrude towards the two sides, and the plane of the folding plate is aligned with the circle center of the connecting shafts.

Furthermore, two groups of through holes are formed in the folding plate, and the bottom of the folding plate is fixedly provided with sunshade cloth in a penetrating mode or a binding mode in a matching mode with the through holes; the bottom of the sunshade cloth is provided with strip-shaped balancing weights in an assembling mode, and the number of the balancing weights is consistent with that of the folding plates.

Compared with the prior art, the utility model discloses following beneficial effect has:

the sliding plate and the motor are transversely arranged, the switching mode of the sun shading device is transversely overlapped, the use mode is simple, adjustment can be conveniently made according to the area of a sun shading part, or adjustment can be made according to different width models of the sun shading cloth so as to be suitable for different conditions, in addition, the front end of the outer part of the sliding plate is of an arc-shaped structure, rain can be shielded, and the fixed block, the movable block and the folding plate can be effectively protected; the folded sheet both ends are the even axle form of centre of a body or both ends department difference respectively, and both ends are even axle department and are protruding to both sides respectively, and the folded sheet plane aligns with even axle department centre of a circle, for the folded sheet provides apparent discernment degree, reduces the assembly error rate to when conveniently splicing the dismouting, need adjust according to the in service behavior, can directly dismantle all the other groups of splices, convenient to use easy operation with two sets of folded sheets in the middle of.

Drawings

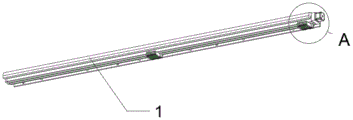

Fig. 1 is a schematic perspective top view of the sliding plate of the present invention.

Fig. 2 is a schematic view of the sliding plate of the present invention in a three-dimensional bottom view.

Fig. 3 is a schematic perspective view of the sliding plate of the present invention.

Fig. 4 is a schematic rear perspective view of the sliding plate of the present invention.

Fig. 5 is a schematic view of the working state structure of the present invention.

Fig. 6 is a schematic diagram of a partially enlarged structure of the present invention.

Fig. 7 is a schematic perspective view of the fixing block of the present invention.

Fig. 8 is a schematic perspective view of the folding plate of the present invention.

In the drawings, the corresponding relationship between the component names and the reference numbers is as follows:

1. the sun-shading cloth comprises a sliding plate, 101, sliding grooves A and 102, sliding grooves B and 2, a motor base, 3, a motor, 4, an installation frame, 5, a fixed block, 6, a movable block, 7, a folding plate, 8 and sun-shading cloth.

Detailed Description

The following describes embodiments of the present invention in further detail with reference to the accompanying drawings and examples. The following examples are intended to illustrate the invention, but are not intended to limit the scope of the invention.

In the description of the present invention, "a plurality" means two or more unless otherwise specified; the terms "upper", "lower", "left", "right", "inner", "outer", "front", "rear", "head", "tail", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are merely for convenience of description and simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be construed as limiting the present invention. Furthermore, the terms "first," "second," "third," and the like are used for descriptive purposes only and are not to be construed as indicating or implying relative importance.

In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "connected" and "connected" are to be interpreted broadly, and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; may be directly connected or indirectly connected through an intermediate. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.

Example (b):

as shown in figures 1 to 8:

the utility model provides a controllable sun-shading device based on a building body, which comprises a sliding plate 1; the method is characterized in that: the back of the sliding plate 1 is fixedly provided with a mounting frame 4 through bolts; a motor base 2 is fixedly arranged on one side of the sliding plate 1 through bolts, a through hole is formed in the motor base 2, and a motor 3 is fixedly arranged through bolts; the other side of the sliding plate 1 is fixedly provided with a baffle through a bolt, a bearing is fixedly arranged in the baffle through interference fit, and a lead screw is arranged in the bearing and is connected with a coupler and a motor 3 in a moving mode through a key.

Wherein, mounting bracket 4 is connected to form through welding multiunit cylinder in the middle of two sets of boards, and has seted up the multiunit through-hole in the 4 outsides of mounting bracket, through setting up mounting bracket 4 and conveniently assembling solar protection devices.

The sliding plate 1 further comprises a sliding groove A101 and a sliding groove B102, the outer side of the top of the sliding plate 1 is provided with an arc-shaped surface structure, and the sliding groove A101 and the sliding groove B102 are respectively arranged at the bottom of the sliding plate 1 and the bottom of the front end; screw holes are formed in the middle of the fixing block 5, and the fixing block 5 can be matched with bolts to penetrate through the screw holes to be tightly and fixedly arranged in the sliding groove B102; the movable block 6 is slidably arranged in the sliding groove A101, the screw rod is arranged in the sliding groove A101, the top of the movable block 6 is provided with a screw hole in kinematic connection with the screw rod, and the movable block 6 can be matched with the screw rod to drive the sunshade cloth 8 to be unfolded.

Wherein, the rear sides of the fixed block 5 and the movable block 6 are both of a connecting shaft structure, and a plurality of groups of folding plates 7 are movably arranged in the fixed block 5 and the movable block 6 through rotating shafts; the number of the folding plates 7 is set to be even, and two ends of the folding plates 7 are respectively in different connecting shaft forms at the middle or two ends; the connecting shafts at the two ends of the folding plate 7 are respectively protruded towards the two sides, the plane of the folding plate 7 is aligned with the circle center of the connecting shaft, the folding plate 7 has a uniform structure, and the width of the sunshade cloth 8 and the sunshade area can be adjusted.

Wherein, two groups of through holes are arranged in the folding plate 7, and the bottom of the folding plate 7 is fixedly provided with sunshade cloth 8 by penetrating or binding the bottom of the folding plate 7 in a matching way with the through holes; the bottom of the sunshade cloth 8 is provided with a strip-shaped balancing weight, and the number of the balancing weights is consistent with that of the folding plates 7.

The specific use mode and function of the embodiment are as follows:

in the utility model, a mounting frame 4 is fixed on the back of the sliding plate 1 through bolts; a motor base 2 is fixedly arranged on one side of the sliding plate 1 through bolts, a through hole is formed in the motor base 2, and a motor 3 is fixedly arranged through bolts; a baffle is fixedly arranged on the other side of the sliding plate 1 through a bolt, a bearing is fixedly arranged in the baffle through interference fit, and a lead screw is arranged in the bearing and is movably connected with a motor 3 through a key connection arrangement coupler; a plurality of groups of through holes are formed in the outer side of the mounting frame 4, and waterproof treatment is performed on the top of the mounting frame 4 by adhering rain cloth; a screw hole is formed in the middle of the fixed block 5, the fixed block 5 is matched with a bolt to penetrate through the screw hole to be tightly and fixedly arranged in the sliding groove B102, the movable block 6 is arranged in the sliding groove A101 in a sliding mode, and the top of the movable block 6 is provided with the screw hole to be in movable connection with the screw rod; a plurality of groups of folding plates 7 are movably arranged in the fixed block 5 and the movable block 6 through rotating shafts; two groups of through holes are arranged in the folding plate 7, and the bottom of the folding plate 7 is provided with sunshade cloth 8 in a penetrating way or a binding way in cooperation with the through holes; a strip-shaped balancing weight is assembled at the bottom of the sunshade cloth 8; when the sunshade cloth is used, the starting motor 3 is matched with the lead screw to drive the fixing block 5 to move, so that the folding plate 7 is unfolded, and the sunshade cloth 8 is driven to be unfolded to shield; when the using width needs to be adjusted, two or four groups in the folding plates 7 are disassembled, the number of the disassembled groups is even, and the rest parts are spliced after the disassembly, so that the adjustment can be completed.

The embodiments of the present invention have been presented for purposes of illustration and description, and are not intended to be exhaustive or limited to the invention in the form disclosed. Many modifications and variations will be apparent to those of ordinary skill in the art. The embodiment was chosen and described in order to best explain the principles of the invention and the practical application, and to enable others of ordinary skill in the art to understand the invention for various embodiments with various modifications as are suited to the particular use contemplated.

Claims

1. A controllable solar protection device based on a building body comprises: the sliding plate (1), the fixed block (5) and the movable block (6); the method is characterized in that: the back of the sliding plate (1) is fixedly provided with a mounting frame (4) through bolts; a motor base (2) is fixedly arranged on one side of the sliding plate (1) through a bolt, a through hole is formed in the motor base (2), and a motor (3) is fixedly arranged through the bolt; the other side of the sliding plate (1) is fixedly provided with a baffle through a bolt, a bearing is fixedly arranged in the baffle through interference fit, and a lead screw is arranged in the bearing and is movably connected with a motor (3) through a key connection setting coupler; screw holes are formed in the middle of the fixing block (5), and the fixing block (5) can be matched with bolts to penetrate through the screw holes to be tightly and fixedly arranged in the sliding groove B (102); the movable block (6) is slidably arranged in the sliding groove A (101), the screw rod is positioned in the sliding groove A (101), and the top of the movable block (6) is provided with a screw hole in movable connection with the screw rod.

2. The building-based controllable sunshade device according to claim 1, wherein: the mounting bracket (4) is formed by connecting two groups of plates by welding a plurality of groups of cylinders, and a plurality of groups of through holes are formed in the outer side of the mounting bracket (4).

3. The building-based controllable sunshade device according to claim 1, wherein: the sliding plate (1) further comprises a sliding groove A (101) and a sliding groove B (102), the outer side of the top of the sliding plate (1) is of an arc-shaped surface structure, and the sliding groove A (101) and the sliding groove B (102) are respectively arranged at the bottom of the sliding plate (1) and the bottom of the front end of the sliding plate.

4. The building-based controllable sunshade device according to claim 1, wherein: the rear sides of the fixed block (5) and the movable block (6) are of a connecting shaft structure, and a plurality of groups of folding plates (7) are movably arranged in the fixed block (5) and the movable block (6) through rotating shafts; the number of the folding plates (7) is set to be even, and two ends of each folding plate (7) are in different connecting shaft forms at the middle or two ends respectively; the connecting shafts at the two ends of the folding plate (7) respectively protrude towards the two sides, and the plane of the folding plate (7) is aligned with the circle center of the connecting shafts.

5. The building-based controllable sunshade device according to claim 4, wherein: two groups of through holes are formed in the folding plate (7), and the bottom of the folding plate (7) is fixedly provided with sunshade cloth (8) in a penetrating way or a binding way by matching with the through holes; the bottom of the sunshade cloth (8) is provided with strip-shaped balancing weights, and the number of the balancing weights is consistent with that of the folding plates (7).
