CN211181391U

CN211181391U - Simulation sand table for environmental art

Info

Publication number: CN211181391U
Application number: CN202020176483.1U
Authority: CN
Inventors: 敬雪琰; 敬尚林
Original assignee: Guangxi Normal University
Current assignee: Guangxi Normal University
Priority date: 2020-02-14
Filing date: 2020-02-14
Publication date: 2020-08-04
Anticipated expiration: 2030-02-14

Abstract

The utility model discloses an environmental art is with simulation sand table, which comprises a housin, a plurality of spout has been seted up to the casing internal surface, sliding connection has slider, a plurality of in the spout the equal fixed connection of slider is at the surface of toughened glass frame, four connecting blocks of internal surface difference fixed connection of toughened glass frame. This environmental art is with simulation sand table structural design is reasonable, high durability and convenient use, through simulation sand table view, including a motor, an end cap, a controller, and a cover plate, the pivot, the gear, the chain, the roller, the belt, the bracing piece, toughened glass frame, mutually supporting between connecting block and the multistage pneumatic cylinder, make this device can protect the simulation sand table view when needs show, and can overhaul or remove toughened glass frame when maintaining at needs, can also shift the outside near inside simulation sand table view, thereby made things convenient for the use and the maintenance of staff to this device, the practicality of this device has been improved.

Description

Simulation sand table for environmental art

Technical Field

The utility model relates to an environment art technical field specifically is an environment is simulation sand table for art.

Background

After carrying out design planning to some gardens, often can make a simulation sand table view come to carry out the micro-exhibition to the global design in gardens, so that people can be more clear understand the gardens, but ordinary simulation sand table position often is fixed, and the area is often great, when certain part in the middle appears damaging, be difficult to overhaul and maintain, and if set up the glass frame in the periphery and block the destruction that people led to the fact to the sand table, just more inconvenient managers overhauls and maintains the sand table, if do not set up the glass frame, the people who watch just cause the destruction to the sand table easily, make ordinary sand table be not convenient for people to use, the practicality is lower, consequently, it solves above-mentioned problem with the simulation sand table to need an environment art convenient to use.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide an environmental art is with simulation sand table to solve the problem that proposes in the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides an environmental art is with simulation sand table, includes the casing, a plurality of spout has been seted up to casing internal surface, sliding connection has slider, a plurality of in the spout the equal fixed connection of slider is at the surface of toughened glass frame, four connecting blocks of internal surface difference fixedly connected with of toughened glass frame, the lower fixed surface that multistage pneumatic cylinder and shells inner wall were passed through to the lower surface of connecting block is connected.

Two support frames of shells inner wall's lower fixed surface are connected with, the right flank joint of support frame has two bearings, and the back is two same pivot has been cup jointed in the bearing, the surface joint of pivot has the roller, two the outer transmission of roller has same belt, the rear the right-hand member of pivot and the output shaft fixed connection of motor, the right flank fixed connection of two fixed blocks and right side support frame is passed through to the left surface of motor, the upper surface of belt passes through the lower fixed surface of a plurality of bracing piece and simulation sand table view and is connected.

Furthermore, the sliding blocks are arranged at the corners of the toughened glass frame, and the shape of the sliding grooves is matched with that of the sliding blocks.

Furthermore, four brake universal wheels are fixedly connected to four corners of the lower surface of the shell respectively.

Furthermore, the outer surface joint of pivot has the gear, two the gear is through same chain transmission connection.

Furthermore, the base part of the simulated sand table landscape is made of fixed soft materials.

Furthermore, the support frame is T-shaped.

Compared with the prior art, the beneficial effects of the utility model are that: the simulation sand table for the environmental art has reasonable structural design and convenient use, and can control the motor to work through the mutual matching of the simulation sand table landscape, the motor, the rotating shaft, the gear, the chain, the roller, the belt, the supporting rod, the toughened glass frame, the connecting block and the multi-stage hydraulic cylinder when the simulation sand table landscape needs to be overhauled or maintained, so that the motor can drive the gear and the roller to rotate through the rotating shaft, the gear can drive the other gear and the roller to rotate through the chain, the two rollers can drive the simulation sand table landscape to rotate through the belt and the supporting rod in the same direction, the simulation sand table landscape close to the inside can be rotated to the outside, the overhaul or the maintenance of the simulation sand table landscape by a worker is facilitated, when the simulation sand table landscape needs to be displayed, the worker can control the multi-stage hydraulic cylinder to extend, make multistage pneumatic cylinder extension can drive toughened glass frame rebound to suitable position through the connecting block for this device can protect the simulation sand table view when needs show, and can overhaul or remove toughened glass frame when maintaining at needs, can also shift the outside near inside simulation sand table view, thereby made things convenient for the use and the maintenance of staff to this device, improved the practicality of this device.

Drawings

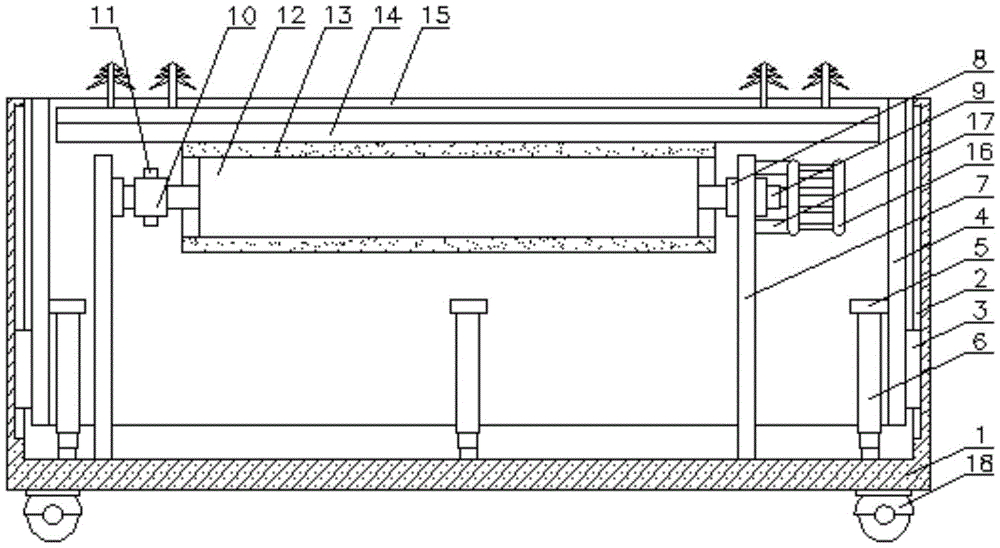

Fig. 1 is a schematic front view of a cross-sectional structure of the present invention;

fig. 2 is a schematic sectional view of the casing of the present invention;

FIG. 3 is a schematic cross-sectional view of the belt of the present invention;

fig. 4 is an enlarged schematic structural view at a position a of the present invention;

fig. 5 is a structural schematic diagram of the support frame of the present invention viewed from the right.

In the figure: the device comprises a shell 1, a sliding groove 2, a sliding block 3, a toughened glass frame 4, a connecting block 5, a multistage hydraulic cylinder 6, a supporting frame 7, a bearing 8, a rotating shaft 9, a gear 10, a chain 11, a roller 12, a belt 13, a supporting rod 14, a simulated sand table landscape 15, a motor 16, a fixed block 17 and a brake universal wheel 18.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Please refer to fig. 1-5: the utility model provides an environmental art is with simulation sand table, which comprises a housing 1, the lower surface four corners department of casing 1 is fixedly connected with four brake universal wheels 18 respectively, through setting up brake universal wheel 18, thereby can reduce the frictional force between the device and the ground when removing, make the device be convenient for remove, casing 1 internal surface has seted up a plurality of spout 2, sliding connection has slider 3 in the spout 2, through setting up spout 2 and slider 3, make toughened glass frame 4 reciprocate, can drive slider 3 and reciprocate in spout 2, thereby make toughened glass frame 4 reciprocate more stable, slider 3 sets up the corner at toughened glass frame 4, the corner of spout 2 and the shape looks adaptation of slider 3, through setting up slider 3 at toughened glass frame 4, thereby the influence that people caused to the watching of this device has been reduced, make the sight of this device better, the equal fixed connection of a plurality of slider 3 is at toughened glass frame 4's surface, toughened glass frame 4's internal surface is four connecting blocks 5 of fixedly connected with respectively, connecting block 5's lower surface passes through multistage pneumatic cylinder 6 and the lower fixed surface connection of 1 inner wall of casing, through setting up multistage pneumatic cylinder 6, make multistage pneumatic cylinder 6 can provide power for the work of this device, thereby ensured the normal use of this device, and multistage pneumatic cylinder 6's input is connected with external switch's output end point, external switch's input is connected with external power supply's output electricity, make the staff can pass through external switch control multistage pneumatic cylinder 6's work.

The lower surface of the inner wall of the shell 1 is fixedly connected with two support frames 7, the support frames 7 are T-shaped, the belt 13 can drive the simulation sand table landscape 15 to normally rotate through a plurality of support rods 14 while rotating by setting the shape of the support frames 7 to be T-shaped, so that the area inside the simulation sand table landscape 15 can rotate to the outside, thereby ensuring the normal use of the device, the right side surface of the support frames 7 is clamped with two bearings 8, the two bearings 8 on the back surface are sleeved with the same rotating shaft 9, the roller 12 and the gear 10 can drive the rotating shaft 9 to rotate in the two bearings 8 when rotating by setting the bearings 8, thereby providing a supporting point for the rotation of the roller 12, the roller 12 can drive the simulation sand table landscape 15 to rotate more stably through the belt 13 and the support rods 14, and the gear 10 is clamped on the outer surface of the rotating shaft 9, two gears 10 are connected by the same chain 11 in a transmission way, the gear 10 and the chain 11 are arranged, one gear 10 can drive the other gear 10 to rotate by the chain 11 when rotating, so that the transmission of power is facilitated, two rollers 12 can rotate in the same direction at the same time, so that the normal rotation of the belt 13 is ensured, the rollers 12 are clamped on the outer surface of the rotating shaft 9, the two rollers 12 are externally connected with the same belt 13 in a transmission way, the right end of the rear rotating shaft 9 is fixedly connected with an output shaft of a motor 16, the left side surface of the motor 16 is fixedly connected with the right side surface of a right supporting frame 7 by two fixing blocks 17, the motor 16 is a slow-speed motor 16 by arranging the motor 16, so that the motor 16 can provide power for the rotation of the belt 13, the normal use of the device is ensured, the input end of the motor 16 is electrically connected with the output end of an external switch, and, make the user can control this device through external switch and use, the upper surface of belt 13 is through the lower fixed surface connection of a plurality of bracing piece 14 and simulation sand table view 15, the base part of simulation sand table view 15 is the soft material that has been fixed, the base part through setting up simulation sand table view 15 is for the soft material preparation that has been fixed to form, thereby avoided simulation sand table view 15 to take place at the condition that the pivoted in-process was scattered, thereby ensured the normal use of this device.

When the simulated sand table landscape 15 needs to be overhauled or maintained, the motor 16 can be controlled to work through the external switch, so that the motor 16 can drive the gear 10 and the roller 12 at the rear part to rotate through the rotating shaft 9, so that the gear 10 can drive the other gear 10 and the roller 12 to rotate through the chain 11, so that the two rollers 12 can rotate in the same direction and can drive the simulated sand table landscape 15 to rotate through the belt 13 and the supporting rod 14, so that the simulated sand table landscape 15 close to the inside can be rotated to the outside, so that a worker can overhaul or maintain the inner area of the simulated sand table landscape 15, when the simulated sand table landscape 15 needs to be displayed, the worker can control the extension of the multiple multi-stage hydraulic cylinders 6 through the external switch, so that the multi-stage hydraulic cylinders 6 can drive the toughened glass frame 4 to move upwards to a proper, thereby protecting the simulated sand table landscape 15.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides an environmental art is with simulation sand table, includes casing (1), its characterized in that: the inner surface of the shell (1) is provided with a plurality of sliding grooves (2), the sliding grooves (2) are connected with sliding blocks (3) in a sliding mode, the sliding blocks (3) are all fixedly connected to the outer surface of the toughened glass frame (4), the inner surface of the toughened glass frame (4) is fixedly connected with four connecting blocks (5) respectively, and the lower surfaces of the connecting blocks (5) are fixedly connected with the lower surface of the inner wall of the shell (1) through a multi-stage hydraulic cylinder (6);

two support frames (7) of lower fixed surface of casing (1) inner wall are connected with, the right flank joint of support frame (7) has two bearings (8), and the back is two same pivot (9) have been cup jointed in bearing (8), the surface joint of pivot (9) has roller (12), two roller (12) outer transmission is connected with same belt (13), rear the right-hand member of pivot (9) and the output shaft fixed connection of motor (16), the right flank fixed connection of left surface through two fixed blocks (17) and right side support frame (7) of motor (16), the upper surface of belt (13) is through the lower fixed surface fixed connection of a plurality of bracing piece (14) and simulation sand table view (15).

2. The simulation sand table for environmental art according to claim 1, wherein: the slider (3) is arranged at the corner of the toughened glass frame (4), and the shape of the sliding chute (2) is matched with that of the slider (3).

3. The simulation sand table for environmental art according to claim 1, wherein: four brake universal wheels (18) are fixedly connected to four corners of the lower surface of the shell (1) respectively.

4. The simulation sand table for environmental art according to claim 1, wherein: the outer surface joint of pivot (9) has gear (10), two gear (10) are through same chain (11) transmission connection.

5. The simulation sand table for environmental art according to claim 1, wherein: the base part of the simulated sand table landscape (15) is made of fixed soft materials.

6. The simulation sand table for environmental art according to claim 1, wherein: the support frame (7) is T-shaped.
