CN211130509U - Three-dimensional animation design model display device - Google Patents

Abstract

The utility model relates to a three-dimensional animation design model display device. Both side walls of the storage box are connected to both sides of a mounting plate through a nested sliding connection structure of a sliding block and a chute, and the center position of the bottom of the mounting plate is connected by a hydraulic rod. The cylinder is arranged in the middle of the bottom of the inner cavity of the storage box, the four corners of the top of the mounting plate are connected to the four corners of the bottom of the supporting plate through the support column, and the top of the mounting plate inside the support column is provided with a rotating motor , The design of the arc structure can produce a three-dimensional effect on the vision during the display, which is more profound and vivid, and greatly increases the publicity and display effect of the three-dimensional animation drawings and models. The size adjusts the height of the drawing slot, which is easy to operate, and increases the scope of application of the display device. When it is necessary to display models or animation drawings, it can be rotated 360 degrees and displayed in all directions without dead ends.

Description

A three-dimensional animation design model display device

technical field

The utility model relates to a three-dimensional animation design model display device, which belongs to the technical field of three-dimensional animation design display.

Background technique

As we all know, 3D animation, also known as 3D animation, is an emerging technology that has emerged with the development of computer software and hardware technology in recent years. 3D animation production is a work that closely combines art and technology. Compared with graphic design, 3D animation. With the concept of time and space, it needs to learn from some laws of graphic design, but more needs to be created according to the laws of film and television art. At present, in the display of 3D animation design models, it is all through simple display boards or The display stand will display the designed 3D animation drawings or models. Because the 3D animation is more prominent in the effect of a three-dimensional figure, just displaying it on the display board cannot make people more deeply and vividly aware of the three-dimensional effect. The display effect of three-dimensional animation is not ideal, the display effect is poor, and it cannot meet the requirements of use. For this reason, we provide a three-dimensional animation design model display device.

Utility model content

The technical problem to be solved by the utility model overcomes the existing defects, and provides a display device, which adopts the transparent observation window of the arc structure, the structural design of the model placing slot and the drawing placing slot of the annular structure, and the model placing slot and the drawing placing slot. The structural design of the connection between the telescopic rods and the design of the arc structure can produce a three-dimensional effect on the vision during the display, which is more profound and vivid, greatly increasing the publicity and display effect of the three-dimensional animation drawings and models, and at the same time displaying the model or animation When drawing a drawing, the height of the drawing slot can be adjusted according to the size of the model, which is easy to operate and increases the scope of application of the display device. The hydraulic rod is driven by the cylinder to drive the slider on the mounting plate to move on the chute. The structure design combines rotation The motor drives the rotating shaft to drive the pulley at the bottom of the model placement slot to move on the annular slide rail, and the position of the model placement slot can be adjusted as needed, so that the mold placement slot can be stored in the storage box or raised to the installation frame, and the model can be displayed when needed. The animation drawings can be displayed in a 360-degree rotation, showing no dead ends in all directions, easy to move, ingenious structural design, strong practicability, and can effectively solve the problems in the background technology.

In order to solve the above-mentioned technical problems, the utility model provides the following technical solutions:

A three-dimensional animation design model display device, comprising a storage box, both side walls of the storage box are connected to both sides of a mounting plate through a nested sliding connection structure of a slider and a chute, and the center position of the bottom of the mounting plate is connected by a hydraulic rod The cylinder is arranged in the middle of the bottom of the inner cavity of the storage box, the four corners of the top of the mounting plate are connected to the four corners of the bottom of the supporting plate through the support column, and the top of the mounting plate inside the support column is provided with a rotating motor , the rotating motor is fixedly connected to the center position of the bottom of the model placement groove through the center position of the support plate through the rotating shaft, the top of the support plate is embedded with an annular slide rail, and the annular slide rail is nested and slidably connected to the pulley, and the model is placed The four corners of the top of the tank are fixedly connected to the four corners of the bottom of the drawing slot through telescopic rods. The top of the storage box is fixedly connected to the bottom of the inner wall of the installation frame that matches the structure of the storage box. The four walls of the installation frame are embedded with A transparent observation window, the top of the installation frame is provided with a cover plate.

Further, the top of the storage box is set as an open structure, the four corners of the bottom of the storage box are connected to universal wheels with foot brakes through connecting rods, and the front side of the storage box at the bottom of the installation frame passes through. The hinge is connected to the box door, and a handle is provided on one side of the box door.

Further, the transparent observation window, the model placement slot and the drawing placement slot are all made of transparent glass, and the drawing placement slot is set as a ring structure.

Further, the number of the sliders and the chute is set to four, and the two side walls of the storage box are respectively provided with two parallel distribution of the chute in the vertical direction.

Further, the number of the pulleys is set to four, and the pulleys are set at the four corners of the bottom of the model placing slot.

Further, the bottom area of the cover plate is larger than the top area of the installation frame, and the bottom area of the installation frame is larger than the top area of the storage box.

Further, the number of the transparent observation windows is set to four, all of which are set as arc structures.

Beneficial effects of the utility model: The utility model adopts the transparent observation window of the arc structure, the structural design of the model placing groove and the drawing placing groove of the annular structure, and the structural design of the telescopic rod connection between the model placing groove and the drawing placing groove. The design of the structure can produce a three-dimensional effect on the vision during display, which is more profound and vivid, and greatly increases the publicity and display effect of 3D animation drawings and models. When displaying models or animation drawings at the same time, the drawings can be adjusted according to the size of the model. The height of the placement slot is convenient to operate, which increases the scope of application of the display device. The hydraulic rod is driven by the cylinder to drive the slider on the mounting plate to move on the chute. Moving on the annular slide rail, the position of the model placement groove can be adjusted according to the needs, so that the mold placement groove can be stored in the storage box or raised to the installation frame, and can be rotated 360 degrees when the model or animation drawings need to be displayed Display, display in all directions without dead ends, easy to move, ingenious structural design, and strong practicability.

Description of drawings

The accompanying drawings are used to provide a further understanding of the present invention, and constitute a part of the specification, and are used to explain the present invention together with the embodiments of the present invention, and do not constitute a limitation to the present invention.

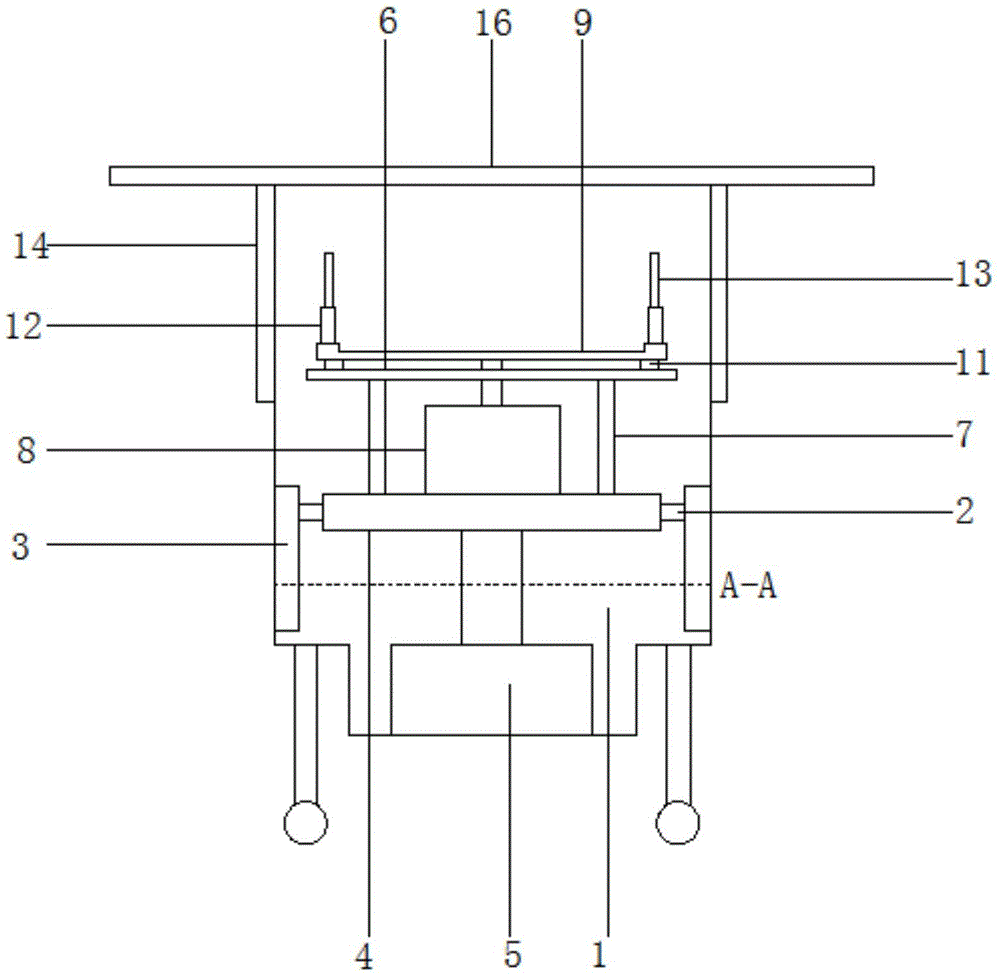

FIG. 1 is a structural diagram of a three-dimensional animation design model display device of the present invention.

Fig. 2 is a front structure diagram of a three-dimensional animation design model display device of the present invention.

Fig. 3 is a schematic diagram of the distribution structure of annular slide rails of a three-dimensional animation design model display device of the present invention.

4 is a cross-sectional view A-A of a three-dimensional animation design model display device of the present invention.

Labels in the figure: 1. Storage box; 2. Slider; 3. Chute; 4. Mounting plate; 5. Cylinder; 6. Supporting plate; 7. Supporting column; 8. Rotary motor; 9. Model placement slot; 10 11, pulley; 12, telescopic rod; 13, drawing slot; 14, installation frame; 15, transparent observation window; 16, cover plate; 17, box door; 18, handle.

Detailed ways

The preferred embodiments of the present utility model will be described below with reference to the accompanying drawings. It should be understood that the preferred embodiments described herein are only used to illustrate and explain the present utility model, but not to limit the present utility model.

As shown in Figures 1-4, it includes a storage box 1. Both side walls of the storage box 1 are connected to both sides of the mounting plate 4 through the nested sliding connection structure of the slider 2 and the chute 3. The center of the bottom of the mounting plate 4 The position is connected to the cylinder 5 through the hydraulic rod, and the cylinder 5 is arranged in the middle position of the bottom of the inner cavity of the storage box 1, and the four corner positions of the top of the mounting plate 4 are connected to the four corner positions of the bottom of the support plate 6 through the support column 7. The support column 7. The top of the mounting plate 4 on the inner side is provided with a rotating motor 8, and the rotating motor 8 is fixedly connected to the center position of the bottom of the model placing slot 9 through the center position of the support plate 6 through the rotating shaft, and the top of the support plate 6 is embedded with a ring shape. The sliding rail 10, the annular sliding rail 10 is nested and slidingly connected to the pulley 11, which can reduce the load of the model placing slot 9, the telescopic rod 12 and the drawing placing slot 13 on the rotating motor 8, and can make the rotating display more stable, The top four corners of the model placement slot 9 are fixedly connected to the bottom four corners of the drawing placement slot 13 through the telescopic rod 12, and the position of the model placement slot 9 can be adjusted as required, so that the mold placement slot 9 can be stored in the storage box 1 or raised. To the installation frame 14, the top of the storage box 1 is fixedly connected to the bottom of the inner wall of the installation frame 14 that matches the structure of the storage box 1. Transparent observation windows 15 are embedded in the four walls of the installation frame 14. The top of the frame 14 is provided with a cover plate 16 .

The top of the storage box 1 is set as an open structure, and the four corners of the bottom of the storage box 1 are connected to universal wheels with foot brakes through connecting rods, so that the device is easy to move and reduces the limitation of the device due to the location of the display. The front side of the storage box 1 at the bottom of the installation frame 14 is connected to a box door 17 by a hinge, and a handle 18 is provided on one side of the box door 17, so that it is convenient to take out and replace the model or animation drawing to be displayed. The transparent observation window 15 , The model placement slot 9 and the drawing placement slot 13 are all made of transparent glass. The drawing placement slot 13 is set as a ring structure, which can produce a three-dimensional effect on the vision when displaying the animation drawings, which is more profound and vivid, and greatly increases the The publicity and display effect of the three-dimensional animation drawings and models, the number of the sliders 2 and the chutes 3 are set to four, and the two side walls of the storage box 1 are respectively provided with two parallel distributions in the vertical direction. Chute 3, the number of the pulleys 11 is set to four, and the pulleys 11 are set at the four corners of the bottom of the model placement groove 9, and the bottom area of the cover plate 16 is larger than the top area of the mounting frame 14. , the bottom area of the installation frame 14 is larger than the top area of the storage box 1, and also has the function of preventing rain and sun exposure. The number of the transparent observation windows 15 is set to four, all of which are set as arc structures. The ingenious design can produce a three-dimensional effect on the vision when displaying the model, which is more profound and vivid, and greatly increases the publicity and display effect of the three-dimensional animation drawings and models.

The utility model is improved as follows: when in use, connect to an external power supply, place the model or animation drawings to be displayed in the model placement slot 9 and the drawing placement slot 13 respectively, and adjust the telescopic rod 12 according to the size of the model until the drawing is placed The slot 13 is higher than the highest part of the model, close the box door 17, open the cylinder 5 to drive the hydraulic rod to drive the slider 2 on the mounting plate 4 to move on the chute 3 to the model placement slot 9 and extend out of the storage box 1, close the cylinder 5, Then, turn on the rotating motor 8 to drive the rotating shaft to drive the pulley 11 at the bottom of the model placing slot 9 to move on the annular slide rail 10 to perform the rotating display work.

The above are the preferred embodiments of the present invention. Those skilled in the art can also make changes and modifications to the above-mentioned embodiments. Therefore, the present invention is not limited to the above-mentioned specific embodiments. Any obvious improvement, replacement or modification made on the basis of the present invention belongs to the protection scope of the present invention.

Claims (7)

1. The utility model provides a three-dimensional animation design model display device, includes containing box (1), its characterized in that: containing box (1) both sides wall is all through slider (2) and the nested sliding connection structural connection mounting panel (4) both sides of spout (3), mounting panel (4) bottom central point puts and connects cylinder (5) through the hydraulic stem, just cylinder (5) are located containing box (1) inner chamber bottom middle part position, mounting panel (4) top four corners position is through support column (7) joint support board (6) bottom four corners position, support column (7) are inboard mounting panel (4) top is equipped with rotating electrical machines (8), rotating electrical machines (8) run through the pivot backup pad (6) central point puts fixed connection model standing groove (9) bottom central point and puts, backup pad (6) top is inlayed and is equipped with annular slide rail (10), the nested sliding connection pulley (11) of annular slide rail (10), model standing groove (9) top four corners position all places the drawing through telescopic link (12) fixedly connected with and places drawing Groove (13) bottom four corners position, containing box (1) top fixed connection all around with containing box (1) structure assorted installing frame (14) inner wall bottom, installing frame (14) four walls all inlays and is equipped with transparent observation window (15), installing frame (14) top is equipped with apron (16).

2. The apparatus for displaying a three-dimensional animation design model according to claim 1, wherein: the top of the storage box (1) is arranged to be an open structure, four corners of the bottom of the storage box (1) are connected with universal wheels with service brakes through connecting rods, one side of the front surface of the storage box (1) at the bottom of the mounting frame (14) is connected with a box door (17) through a hinge, and one side of the box door (17) is provided with a handle (18).

3. The apparatus for displaying a three-dimensional animation design model according to claim 1, wherein: the transparent observation window (15), the model placing groove (9) and the drawing placing groove (13) are all made of transparent glass, and the drawing placing groove (13) is of an annular structure.

4. The apparatus for displaying a three-dimensional animation design model according to claim 2, wherein: the number of the sliding blocks (2) and the sliding grooves (3) is four, and the two parallel sliding grooves (3) are respectively arranged on the two side walls of the containing box (1) in the vertical direction.

5. A three-dimensional animation design model exhibition apparatus as claimed in claim 3, wherein: the number of the pulleys (11) is four, and the pulleys (11) are arranged at four corners of the bottom of the model placing groove (9).

6. The apparatus for displaying a three-dimensional animation design model according to claim 2, wherein: the bottom area of the cover plate (16) is larger than the top area of the mounting frame (14), and the bottom area of the mounting frame (14) is larger than the top area of the containing box (1).

7. A three-dimensional animation design model exhibition apparatus as claimed in claim 3, wherein: the number of the transparent observation windows (15) is four, and the transparent observation windows are all of arc-shaped structures.
