Abstract
The utility model relates to a technical field is put in the advertisement, and an intelligence express delivery cabinet mutual advertisement delivery device is disclosed, including intelligent express delivery cabinet, the front of intelligence express delivery cabinet is equipped with liquid crystal display, the front of intelligence express delivery cabinet and the bottom that is located liquid crystal display are equipped with the voice broadcast audio amplifier, the right side fixedly connected with dead lever at intelligence express delivery cabinet top. This mutual advertisement of intelligence express delivery cabinet is put in device, through setting up six locking bolt fixed advertisement cabinets, the effectual holistic stability of advertisement cabinet that has strengthened, then through setting up six spouts three advertising cabinet door of sliding connection respectively, the staff's slip advertising cabinet door of being convenient for, when the bill-board need be changed or maintain, only need the staff to slide the advertising cabinet door, then take off the bill-board can, the effect of being convenient for change the bill-board has been reached, thereby the effectual advertisement of having solved puts in the device is not convenient for change the bill-board and is difficult to the problem that the influence bill-board was put in the effect of attracting attention.
Description
Technical Field
The utility model relates to an advertisement delivery technical field specifically is an intelligent mutual advertisement delivery device of express delivery cabinet.
Background
Advertisement promotion is an activity carried out by news media for promoting advertisement layout and advertisement program time, and the specific method of advertisement promotion comprises the following steps: the advertising method is characterized in that the advertising method utilizes self media to carry out propaganda, utilizes other media to carry propaganda, sends various propaganda materials, visits main advertisers, holds joint activities of contacting emotions with the advertisers and the like, and the propaganda content of advertisement promotion generally emphasizes the effectiveness of advertisements broadcasted by the media by listing some specific cases and explains that the cost of advertisement broadcasting by the media is the most favorable and the most common from various angles.
At present there have been advertising company and express delivery company jointly, the utilization pastes the putting in of cabinet body advertisement and carries out advertising information at present intelligent express delivery cashier's office in a shop, though the cost of advertisement putting has been reduced to a certain extent, but still carry out advertising information's putting in with the mode of show, be not convenient for change different billboards, be difficult to the appealing attention, and the advertisement of many express delivery cabinets is put the device most all for the single face, can only let the people of a direction see the advertisement, so provided an intelligent express delivery cabinet mutual advertisement puts in the device and solve the problem that proposes in the aforesaid.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
Not enough to prior art, the utility model provides an intelligence express delivery cabinet mutual advertisement puts in device possesses the advantage such as being convenient for change bill-board, has solved the advertisement and has put in the device and be not convenient for change the bill-board and be difficult to attract to notice the problem that influences the bill-board and put in the effect.
(II) technical scheme
For the purpose of realizing the above-mentioned bill-board of being convenient for change, the utility model provides a following technical scheme: an intelligent express delivery cabinet interactive advertisement delivery device comprises an intelligent express delivery cabinet, wherein a liquid crystal display screen is arranged on the front side of the intelligent express delivery cabinet, a voice broadcast sound box is arranged on the front side of the intelligent express delivery cabinet and positioned at the bottom of the liquid crystal display screen, a fixed rod is fixedly connected to the right side of the top of the intelligent express delivery cabinet, a camera is fixedly connected to the left side of the fixed rod, a street lamp is fixedly connected to the right side of the fixed rod, a solar photovoltaic panel is fixedly mounted at the top of the intelligent express delivery cabinet and positioned at the left side of the fixed rod, an installation cavity is formed in the intelligent express delivery cabinet, a mounting frame is fixedly connected to the inner bottom wall of the installation cavity, a rotating motor is fixedly connected to the inner portion of the mounting frame, a rotating shaft is fixedly connected to the output shaft of the, the equal threaded connection in the left and right sides of advertisement cabinet has the locking bolt that runs through and extend to in the carousel, the inside swing joint of advertisement cabinet has the bill-board, the front of advertisement cabinet top and bottom all is equipped with the spout, two the inside sliding connection of spout has the advertisement cabinet door.
Preferably, the appearance of intelligence express delivery cabinet is the rectangle, intelligence express delivery cabinet comprises fifteen little cabinets, eight well cabinets and four big cabinets, the quantity of voice broadcast audio amplifier is two.
Preferably, the dead lever is hollow cylinder, the junction fixedly connected with strengthening rib of dead lever and intelligent express delivery cabinet, the bottom fixedly connected with support frame of solar photovoltaic board.
Preferably, the slotted hole of pivot external diameter size is seted up at the top of intelligence express delivery cabinet, the bottom of carousel just is located the fixed cover of outside fixedly connected with of pivot.
Preferably, the turntable is a solid cylinder, and threaded holes with the size of six locking bolt outer diameters are formed in the turntable.
Preferably, the quantity of spout is six, the quantity of advertisement cabinet and advertisement cabinet door is three, and interconnect between the three advertisement cabinet, and is three the appearance of advertisement cabinet is the triangular prism.
(III) advantageous effects
Compared with the prior art, the utility model provides an intelligence mutual advertisement of express delivery cabinet puts in device possesses following beneficial effect:
1. this mutual advertisement of intelligence express delivery cabinet puts in device, through setting up six locking bolt fixed advertisement cabinets, the effectual holistic stability of advertisement cabinet that has strengthened, then through setting up six spouts sliding connection respectively have three advertisement cabinet door, the staff of being convenient for slides the advertisement cabinet door, when the bill-board need be changed or maintain, only need the staff to slide the advertisement cabinet door, then take off the bill-board can, reached the effect of being convenient for change the bill-board.
2. This mutual advertisement of intelligence express delivery cabinet is put in device, rotate the motor through setting up mounting bracket fixed connection, the stability of rotating the motor during operation has effectively been strengthened, the rethread sets up and rotates the motor and rotate and drive the pivot and rotate, the pivot rotates and drives the carousel and rotate, thereby it is rotatory to drive the advertisement cabinet, can effectually attract passerby's attention, the effect of advertisement popularization has been reached, thereby the effectual advertisement of having solved puts in the device is not convenient for change bill-board and is difficult to attract the problem that influences the bill-board and put in the effect.
Drawings

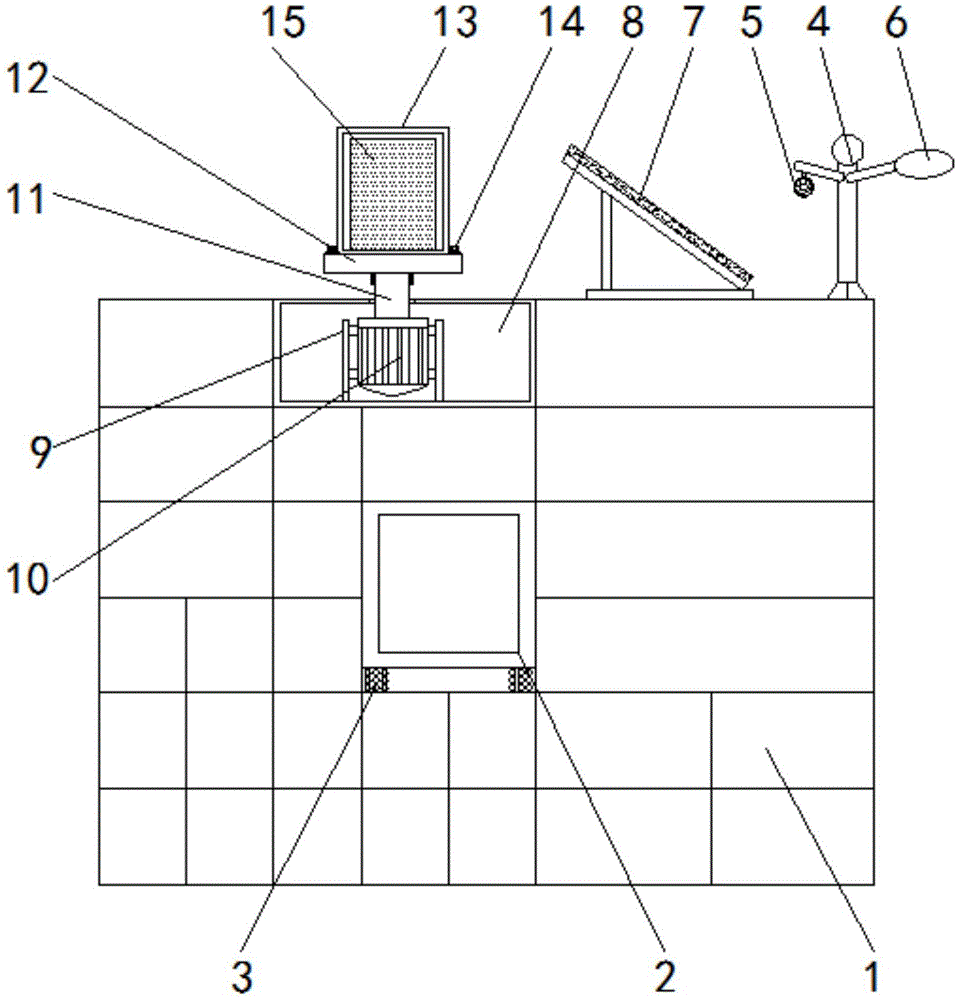

FIG. 1 is a schematic structural view of the present invention;
fig. 2 is a back view of the structure of the advertisement box of the present invention.
In the figure: 1 intelligence express delivery cabinet, 2 liquid crystal display, 3 voice broadcast audio amplifier, 4 dead levers, 5 cameras, 6 street lamps, 7 solar photovoltaic boards, 8 installation chambeies, 9 mounting brackets, 10 rotation motors, 11 pivots, 12 carousel, 13 advertisement cabinets, 14 locking bolt, 15 bill-boards, 16 spouts, 17 advertisement cabinet doors.
Detailed Description
The preferred embodiments of the present invention will be described below with reference to the accompanying drawings, which are simplified schematic drawings and only schematically illustrate the basic structure of the present invention, and therefore only show the components related to the present invention.
In the description of the present invention, it is to be understood that the terms "center", "longitudinal", "lateral", "up", "down", "front", "back", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", and the like, indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are used merely for convenience of description and for simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention. Furthermore, the terms "first", "second" and "first" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include one or more of that feature. In the description of the present invention, "a plurality" means two or more unless otherwise specified.
In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "connected," and "connected" are to be construed broadly, and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.
Referring to fig. 1-2, an intelligent express delivery cabinet interactive advertisement delivery device comprises an intelligent express delivery cabinet 1, a liquid crystal display 2 is arranged on the front side of the intelligent express delivery cabinet 1, a voice broadcast sound box 3 is arranged on the front side of the intelligent express delivery cabinet 1 and positioned at the bottom of the liquid crystal display 2, the intelligent express delivery cabinet 1 is rectangular, the intelligent express delivery cabinet 1 is composed of fifteen small cabinets, eight middle cabinets and four large cabinets, the number of the voice broadcast sound boxes 3 is two, a fixing rod 4 is fixedly connected to the right side of the top of the intelligent express delivery cabinet 1, a camera 5 is fixedly connected to the left side of the fixing rod 4, a street lamp 6 is fixedly connected to the right side of the fixing rod 4, a solar photovoltaic panel 7 is fixedly mounted at the left side of the fixing rod 4 and positioned at the top of the intelligent express delivery cabinet 1, the fixing rod 4 is a hollow cylinder, the bottom of the solar photovoltaic panel 7 is fixedly connected with a supporting frame, the inside of the intelligent express cabinet 1 is provided with an installation cavity 8, the inner bottom wall of the installation cavity 8 is fixedly connected with an installation frame 9, the inside of the installation frame 9 is fixedly connected with a rotating motor 10, the model of the rotating motor 10 can be Y160M-4, an output shaft of the rotating motor 10 is fixedly connected with a rotating shaft 11, the top of the rotating shaft 11 is fixedly connected with a rotating disc 12, the top of the intelligent express cabinet 1 is provided with a slotted hole with the size of the outer diameter of the rotating shaft 11, the bottom of the rotating disc 12 is fixedly connected with a fixed sleeve positioned outside the rotating shaft 11, the top of the rotating disc 12 is fixedly connected with an advertisement cabinet 13, the interactive advertisement putting device of the intelligent express cabinet effectively enhances the stability of the rotating motor 10 during working by arranging the rotating motor 10, and, the rotating shaft 11 rotates to drive the rotating disc 12 to rotate, thereby driving the advertisement cabinet 13 to rotate, effectively attracting the attention of passers-by, and achieving the effect of advertisement promotion, the left and right sides of the advertisement cabinet 13 are all connected with the locking bolts 14 which penetrate and extend into the rotating disc 12 by screw threads, the rotating disc 12 is a solid cylinder, the inside of the rotating disc 12 is provided with threaded holes with the size of six locking bolts 14, the inside of the advertisement cabinet 13 is movably connected with the advertisement board 15, the fronts of the top and the bottom of the advertisement cabinet 13 are both provided with the sliding grooves 16, the inside of the two sliding grooves 16 is connected with the advertisement cabinet door 17 in a sliding way, the number of the sliding grooves 16 is six, the number of the advertisement cabinets 13 and the number of the advertisement cabinet door 17 are three, the three advertisement cabinets 13 are connected with each other, the appearance of the three advertisement cabinets 13 is triangular prism, the intelligent express, effectual strengthened the holistic stability of advertisement cabinet 13, then there is three advertising cabinet door 17 through setting up six spout 16 difference sliding connection, the staff of being convenient for slides advertising cabinet door 17, when bill-board 15 need be changed or maintain, only need the staff to slide advertising cabinet door 17, then take off bill-board 15 can, the effect of being convenient for change bill-board has been reached, thereby effectual advertisement of having solved is put in the device and is not convenient for change the bill-board and is difficult to the problem that the influence bill-board put in the effect of attracting attention.
To sum up, this mutual advertisement of intelligence express delivery cabinet puts in device, through setting up six locking bolt 14 fixed advertisement cabinets 13, the effectual holistic stability of advertisement cabinet 13 that has strengthened, then through setting up six spout 16 three advertisement cabinet doors 17 of sliding connection respectively, the staff of being convenient for slides advertisement cabinet door 17, when bill-board 15 needs to be changed or maintain, only needs staff to slide advertisement cabinet door 17, then take off bill-board 15 can, reached the effect of being convenient for change bill-board.
And, this mutual advertisement of intelligence express delivery cabinet puts in device, rotate motor 10 through setting up mounting bracket 9 fixed connection, the stability of rotating motor 10 during operation has effectively been strengthened, the rethread sets up rotates motor 10 and rotates and drive pivot 11 and rotate, pivot 11 rotates and drives carousel 12 and rotate, thereby it is rotatory to drive advertisement cabinet 13, can effectually attract passerby's attention, the effect of advertisement popularization has been reached, thereby the effectual advertisement of having solved puts in the device is not convenient for change the bill-board and is difficult to attract the problem that influences the bill-board and put in the effect.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation, an element defined by the phrase "comprising an … …" does not exclude the presence of other identical elements in a process, method, article, or apparatus that comprises the element.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides an intelligence express delivery cabinet mutual advertisement puts in device, includes intelligent express delivery cabinet (1), its characterized in that: the intelligent express delivery cabinet is characterized in that a liquid crystal display (2) is arranged on the front side of the intelligent express delivery cabinet (1), a voice broadcast sound box (3) is arranged on the front side of the intelligent express delivery cabinet (1) and positioned at the bottom of the liquid crystal display (2), a fixing rod (4) is fixedly connected to the right side of the top of the intelligent express delivery cabinet (1), a camera (5) is fixedly connected to the left side of the fixing rod (4), a street lamp (6) is fixedly connected to the right side of the fixing rod (4), a solar photovoltaic panel (7) is fixedly installed on the left side of the fixing rod (4) and positioned at the top of the intelligent express delivery cabinet (1), an installation cavity (8) is formed in the intelligent express delivery cabinet (1), an installation frame (9) is fixedly connected to the inner bottom wall of the installation cavity (8), a rotating motor (10) is fixedly connected to the inner portion of the, the top fixedly connected with carousel (12) of pivot (11), the top fixedly connected with advertisement cabinet (13) of carousel (12), the equal threaded connection in the left and right sides of advertisement cabinet (13) has and runs through and extend to locking bolt (14) in carousel (12), the inside swing joint of advertisement cabinet (13) has bill-board (15), the front of advertisement cabinet (13) top and bottom all is equipped with spout (16), two the inside sliding connection of spout (16) has advertisement cabinet door (17).
2. The intelligent express delivery cabinet interactive advertisement delivery device of claim 1, wherein: the appearance of intelligence express delivery cabinet (1) is the rectangle, intelligence express delivery cabinet (1) comprises fifteen little cabinets, eight well cabinets and four big cabinets, the quantity of voice broadcast audio amplifier (3) is two.
3. The intelligent express delivery cabinet interactive advertisement delivery device of claim 1, wherein: the solar express delivery cabinet is characterized in that the fixing rod (4) is a hollow cylinder, a reinforcing rib is fixedly connected to the joint of the fixing rod (4) and the intelligent express delivery cabinet (1), and a supporting frame is fixedly connected to the bottom of the solar photovoltaic panel (7).
4. The intelligent express delivery cabinet interactive advertisement delivery device of claim 1, wherein: the slotted hole of pivot (11) external diameter size is seted up at the top of intelligence express delivery cabinet (1), the fixed cover of outside fixedly connected with that just is located pivot (11) in the bottom of carousel (12).
5. The intelligent express delivery cabinet interactive advertisement delivery device of claim 1, wherein: the rotary table (12) is a solid cylinder, and threaded holes with the size of the outer diameter of six locking bolts (14) are formed in the rotary table (12).
6. The intelligent express delivery cabinet interactive advertisement delivery device of claim 1, wherein: the quantity of spout (16) is six, the quantity of advertisement cabinet (13) and advertisement cabinet door (17) is three, and interconnect between three advertisement cabinet (13), and is three the appearance of advertisement cabinet (13) is the triangular prism.
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202020194553.6U CN211150052U (en) | 2020-02-22 | 2020-02-22 | Mutual advertisement of intelligence express delivery cabinet puts in device |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202020194553.6U CN211150052U (en) | 2020-02-22 | 2020-02-22 | Mutual advertisement of intelligence express delivery cabinet puts in device |
Publications (1)
| Publication Number | Publication Date |
|---|---|
| CN211150052U true CN211150052U (en) | 2020-07-31 |
Family
ID=71753113
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN202020194553.6U Active CN211150052U (en) | 2020-02-22 | 2020-02-22 | Mutual advertisement of intelligence express delivery cabinet puts in device |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN211150052U (en) |
Cited By (1)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN114792497A (en) * | 2021-05-17 | 2022-07-26 | 上海隼锐网络科技有限公司 | Certificate of discrimination is propaganda device for consultation service |
-
2020
