Abstract
The utility model provides an over-and-under type active carbon purifier belongs to exhaust-gas treatment technical field, and this over-and-under type active carbon purifier includes box, supporting mechanism, first coarse filter grid, active carbon board and elevating system. The top of the box body is provided with an air inlet pipe, one side of the bottom of the box body is provided with an exhaust pipe, and the supporting seats are all provided with slots; the bottom of the first coarse filter grid is inserted into the slot, and the top of the first coarse filter grid penetrates through the box body and is exposed; the lifting mechanism is provided with two groups, the lifting mechanism comprises a telescopic piece, a support plate and a connecting rod, the telescopic piece is fixed at the top of the box body, the support plate is fixedly arranged at the output end of the telescopic piece, and the other ends of the two groups of connecting rods are respectively connected with the first coarse filter grid and the activated carbon plate. The utility model discloses a promotion effect of extensible member is convenient for promote first coarse filter grid and active carbon board business turn over box, conveniently adjusts the change installation, and it is convenient to use.
Description
Technical Field
The utility model relates to a waste gas treatment field particularly, relates to an over-and-under type active carbon purifier.
Background
The active carbon adsorption equipment is one of the purification equipment with the best treatment effect on organic waste gas and odor. Activated carbon adsorption is an effective measure to remove water odor, natural and synthetic dissolved organic matter, micro-pollutants, etc. Most of larger organic molecules, aromatic compounds, halogenated alkynes and the like can be firmly adsorbed on the surface of the active carbon or in gaps, and the active carbon has obvious removal effect on humus, synthetic organic matters and low molecular weight organic matters.
The inconvenient lift adjustment that carries on of filtration of current active carbon clarifier for it installs, relatively troublesome to need wholly to dismantle when changing the installation.
SUMMERY OF THE UTILITY MODEL
In order to make up for above deficiency, the utility model provides an over-and-under type active carbon purifier aims at improving active carbon purifier filtration and adjusts the change problem.
The utility model discloses a realize like this:
a lifting type activated carbon purifier comprises a box body, a supporting mechanism, a first coarse filter grid, an activated carbon plate and a lifting mechanism.
An air inlet pipe is arranged at the top of the box body, and an exhaust pipe is arranged at one side of the bottom of the box body;
the two supporting mechanisms are arranged, each supporting mechanism comprises a supporting seat, the two supporting seats are arranged at the bottom in the box body, and slots are formed in the supporting seats;
the bottom of the first coarse filter grid is inserted into the slot, and the top of the first coarse filter grid penetrates through the box body and is exposed;
the bottom of the activated carbon plate is inserted into the slot, and the top of the activated carbon plate penetrates through the box body and is exposed;
the lifting mechanism is provided with two groups, the lifting mechanism comprises a telescopic piece, a support plate and a connecting rod, the telescopic piece is fixed at the top of the box body, the support plate is fixedly arranged at the output end of the telescopic piece, one end of the connecting rod is connected to the support plate, and the other ends of the connecting rod are respectively in threaded connection with the first coarse filter grid and the activated carbon plate.
The utility model discloses an in one embodiment, the bottom half is kept away from blast pipe one side is equipped with the scum pipe, scum pipe one side is equipped with the coarse level of second filter grid, the coarse level of second filter grid insert establish install in the bottom half.
In an embodiment of the present invention, the intake pipe, the exhaust pipe and the slag discharge pipe are all provided with a pipe valve and a flange joint.
In an embodiment of the present invention, the first coarse filter grid and the second coarse filter grid have the same diameter of the filter grid hole.
The utility model discloses an in one embodiment, the box top is located respectively first coarse filter grating with elevating system runs through the position and has seted up the jack, the jack with the slot inner wall all covers there is the sealing member.
In an embodiment of the present invention, the first coarse filter grid includes a first support bracket and a filter grid net, and the filter grid net is disposed in the first support bracket.
In an embodiment of the present invention, the activated carbon plate includes a second support bracket and an activated carbon layer, and the activated carbon layer is disposed in the second support bracket.
The utility model discloses an in one embodiment, the extensible member is electric jar, cylinder or electric putter, the extensible member output adopt grafting mode fixed connection in the backup pad, the spread groove has been seted up to the correspondence in the backup pad.
In an embodiment of the present invention, the connecting rod is rotatably connected to the supporting plate, and the first supporting frame and the second supporting frame are screwed on the connecting rod.
The utility model discloses an in one embodiment, still include the blowback mechanism, the blowback mechanism includes blowback pipeline, air outlet cover, blowback pipe valve and blowback coupling, the blowback pipeline extends to first coarse filter grating one side, the air outlet cover install in blowback pipeline tip, blowback pipe valve set up in on the blowback pipeline, blowback coupling set up in the blowback pipeline other end, blowback coupling and outside air supply line intercommunication.
The utility model has the advantages that: the utility model discloses a over-and-under type active carbon purifier who obtains through above-mentioned design, during the use, get into the box through dirty gas, waste gas contacts the flow in the box, great granule dust impurity filters through first coarse filter screen, when passing through the active carbon board, because there is unbalanced and unsaturated molecular gravitation or chemical vigor on the active carbon layer surface, therefore when this solid surface contacts with gas, attract gas molecule, make it gather and keep on the solid surface, the pollutant is consequently adsorbed, reach gaseous thorough filtration, through adopting inserting the installation mode with active carbon board with first coarse filter screen and set up in the box, and first coarse filter screen and active carbon board top all connect elevating system, through the impetus of extensible member, be convenient for promote first coarse filter screen and active carbon board business turn over box, conveniently adjust and change the installation, the use is convenient.
Drawings
In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings that are required to be used in the embodiments will be briefly described below, it should be understood that the following drawings only illustrate some embodiments of the present invention, and therefore should not be considered as limiting the scope, and for those skilled in the art, other related drawings can be obtained according to the drawings without inventive efforts.

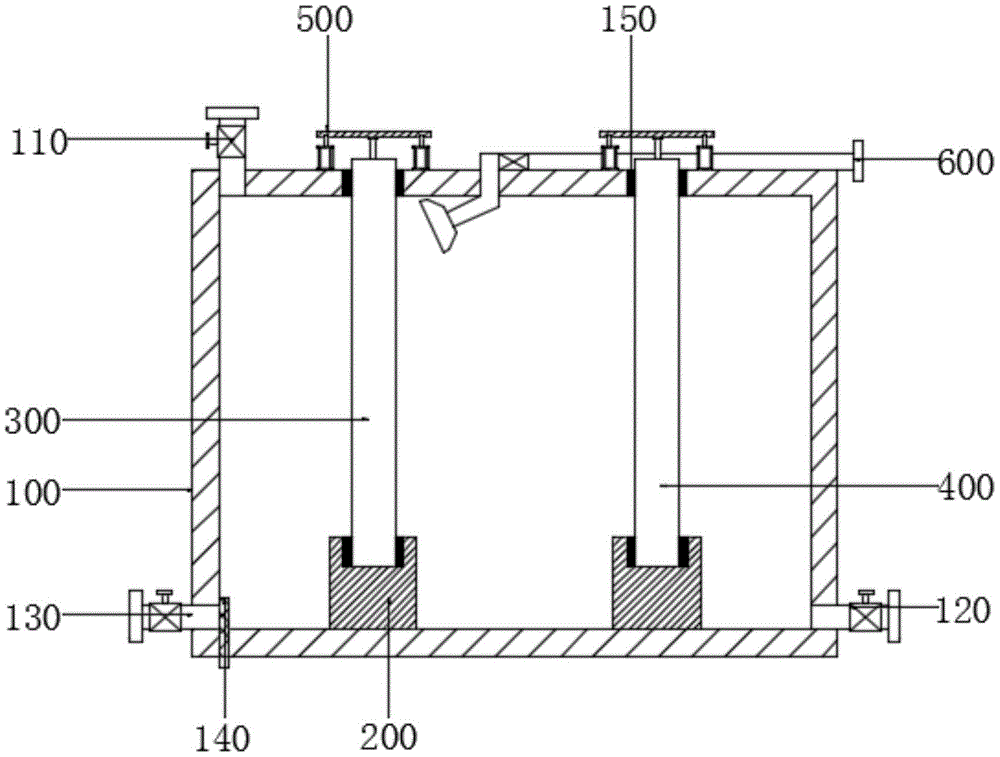

Fig. 1 is a schematic structural view of an elevating activated carbon purifier provided by an embodiment of the present invention;
fig. 2 is a schematic structural view of a supporting mechanism according to an embodiment of the present invention;
fig. 3 is a schematic structural view of a first coarse-stage filtering grid according to an embodiment of the present invention;
fig. 4 is a schematic structural view of an activated carbon plate according to an embodiment of the present invention;
fig. 5 is a schematic structural view of a lifting mechanism provided in an embodiment of the present invention;
fig. 6 is a schematic structural diagram of a blowback mechanism provided by an embodiment of the present invention.
In the figure: 100-a box body; 110-an air inlet pipe; 120-an exhaust pipe; 130-a slag discharge pipe; 140-a second coarse filter grid; 150-a receptacle; 200-a support mechanism; 210-a support base; 220-slot; 230-a seal; 300-a first coarse filter grid; 310-a first support bracket; 320-a filter grid mesh; 400-an activated carbon plate; 410-a second support bracket; 420-an activated carbon layer; 500-a lifting mechanism; 510-a telescoping member; 520-a support plate; 530-connecting rod; 540-connecting grooves; 600-a blowback mechanism; 610-a back flushing pipeline; 620-air outlet cover; 630-blowback pipe valve; 640-blowback pipe joint.
Detailed Description
To make the objects, technical solutions and advantages of the embodiments of the present invention clearer, the drawings of the embodiments of the present invention are combined to clearly and completely describe the technical solutions of the embodiments of the present invention, and obviously, the described embodiments are some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Thus, the following detailed description of the embodiments of the present invention, presented in the accompanying drawings, is not intended to limit the scope of the invention, as claimed, but is merely representative of selected embodiments of the invention. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
It should be noted that: like reference numbers and letters refer to like items in the following figures, and thus, once an item is defined in one figure, it need not be further defined and explained in subsequent figures.
In the description of the present invention, it is to be understood that the terms "center", "longitudinal", "lateral", "length", "width", "thickness", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", "clockwise", "counterclockwise", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and to simplify the description, but do not indicate or imply that the device or element referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore should not be construed as limiting the present invention.
Furthermore, the terms "first", "second" and "first" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include one or more of that feature. In the description of the present invention, "a plurality" means two or more unless specifically limited otherwise.
In the present invention, unless otherwise expressly stated or limited, the terms "mounted," "connected," and "fixed" are to be construed broadly and may, for example, be fixedly connected, detachably connected, or integrally formed; either directly or indirectly through intervening media, either internally or in any other relationship. The specific meaning of the above terms in the present invention can be understood according to specific situations by those skilled in the art.
In the present disclosure, unless expressly stated or limited otherwise, the first feature "on" or "under" the second feature may comprise direct contact between the first and second features, or may comprise contact between the first and second features not directly. Also, the first feature being "on," "above" and "over" the second feature includes the first feature being directly on and obliquely above the second feature, or merely indicating that the first feature is at a higher level than the second feature. A first feature being "under," "below," and "beneath" a second feature includes the first feature being directly under and obliquely below the second feature, or simply meaning that the first feature is at a lesser elevation than the second feature.
Examples
Referring to fig. 1-6, the present invention provides a technical solution: a lifting type activated carbon purifier comprises a box body 100, a supporting mechanism 200, a first coarse filter grid 300, an activated carbon plate 400 and a lifting mechanism 500.
Wherein, the box 100 adopts the carbon steel preparation, and the surface spraying plastics is handled, and is applicable in complicated operating mode environment, and difficult corruption, supporting mechanism 200 sets up in box 100 for the installation of first coarse filter screen 300, activated carbon plate 400 bottom provides connection structure, and elevating system 500 connects in first coarse filter screen 300, activated carbon plate 400.
Referring to fig. 1, an air inlet pipe 110 is arranged at the top of a box 100, an air outlet pipe 120 is arranged on one side of the bottom of the box 100, a slag outlet pipe 130 is arranged on one side of the bottom of the box 100, which is far away from the air outlet pipe 120, a second coarse filter grid 140 is arranged on one side of the slag outlet pipe 130, the second coarse filter grid 140 is inserted and installed at the bottom of the box 100, the second coarse filter grid 140 is convenient to install and detach at the bottom of the box 100, pipe valves and flange joints are respectively installed on the air inlet pipe 110, the air outlet pipe 120 and the slag outlet pipe 130, the pipe valves are arranged to control the opening and closing of the air outlet pipe.
Referring to fig. 1-2, two support mechanisms 200 are provided, each support mechanism 200 includes a support base 210, the two support bases 210 are disposed at the bottom of the box 100, each support base 210 is provided with a slot 220, and the slots 220 are disposed to provide a limit for installing the filter structure.
Referring to fig. 1 to 3, the bottom of the first coarse filter grid 300 is inserted into the slot 220, the top of the first coarse filter grid 300 penetrates through the box 100 and is exposed, the diameters of the grid holes of the first coarse filter grid 300 and the second coarse filter grid 140 are the same, the first coarse filter grid 300 includes a first support bracket 310 and a filter grid 320, the filter grid 320 is disposed in the first support bracket 310, and the filter grid 320 effectively filters larger particle dust impurities.
Referring to fig. 1, 2 and 4, the bottom of the activated carbon plate 400 is inserted into the slot 220, the top of the activated carbon plate 400 penetrates through the box body 100 and is exposed, the activated carbon plate 400 includes a second support bracket 410 and an activated carbon layer 420, the activated carbon layer 420 is disposed in the second support bracket 410, and unbalanced and unsaturated molecular attraction or chemical force exists on the surface of the activated carbon layer 420, so that when the solid surface contacts with gas, gas molecules can be attracted and concentrated and kept on the solid surface, and pollutants are adsorbed.
Referring to fig. 1 and 5, two sets of lifting mechanisms 500 are provided, each lifting mechanism 500 includes an expansion member 510, a support plate 520 and a connecting rod 530, the expansion member 510 is fixed on the top of the box 100, the support plate 520 is fixed on the output end of the expansion member 510, when the device is specifically arranged, the telescopic member 510 is an electric cylinder, an air cylinder or an electric push rod, the output end of the telescopic member 510 is fixedly connected to the support plate 520 in an inserting manner, the support plate 520 is correspondingly provided with a connecting groove 540, the telescopic member is installed in an inserting manner, so that the structure of the supporting plate 520 and the telescopic member 510 are conveniently connected, one end of the connecting rod 530 is connected to the supporting plate 520, the other ends of the two groups of connecting rods 530 are respectively in threaded connection with the first coarse filter grid 300 and the activated carbon plate 400, the connecting rod 530 is rotatably connected to the supporting plate 520, the tops of the first support bracket 310 and the second support bracket 410 are both in threaded connection with the connecting rod 530, and are installed in a threaded connection manner, so that the connecting rod 530 is easily assembled with and disassembled from the first support bracket 310 and the second support bracket 410, respectively.
Referring to fig. 1, it should be noted that the top of the box 100 is respectively provided with a jack 150 at a position where the first coarse filter grid 300 and the lifting mechanism 500 penetrate, the inner walls of the jack 150 and the slot 220 are covered with a sealing element 230, and in this document, the sealing element 230 is an elastic rubber pad.
Referring to fig. 1 and 6, the lift type activated carbon purifier further includes a back-blowing mechanism 600, the back-blowing mechanism 600 includes a back-blowing pipeline 610, an air outlet cover 620, a back-blowing pipe valve 630 and a back-blowing pipe joint 640, the back-blowing pipeline 610 extends to one side of the first coarse filter grid 300, the air outlet cover 620 is installed at an end portion of the back-blowing pipeline 610, the back-blowing pipe valve 630 is disposed on the back-blowing pipeline 610, the back-blowing pipe joint 640 is disposed at the other end of the back-blowing pipeline 610, the back-blowing pipe joint 640 is communicated with an external air supply pipeline, the back-blowing pipeline 610 is configured to blow and blow back the back of the first coarse filter grid 300, larger particle dust and impurities are blown down and collected at the bottom of the box 100, and the back-blowing pipe can be cleaned regularly, thereby.
Specifically, the working principle of the lifting type activated carbon purifier is as follows: the dust-containing gas enters the box body 100, the waste gas flows in the box body 100 in a contact manner, larger particle dust impurities are filtered by the first coarse filter grid 300, when the dust-containing gas passes through the activated carbon plate 400, unbalanced and unsaturated molecular attraction or chemical force exists on the surface of the activated carbon layer 420, so that when the solid surface is contacted with the gas, gas molecules are attracted, concentrated and kept on the solid surface, pollutants are adsorbed, the gas is thoroughly filtered, and the filtered gas is discharged through the exhaust pipe 120.
It should be noted that the specific model specification of the telescopic member 510 needs to be determined by type selection according to the actual specification of the device, and the specific type selection calculation method adopts the prior art in the field, so detailed description is omitted.
The power supply of the telescopic member 510 and its principle will be clear to those skilled in the art and will not be described in detail herein.
The above description is only a preferred embodiment of the present invention and is not intended to limit the present invention, and various modifications and changes may be made by those skilled in the art. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (10)
1. A lifting type activated carbon purifier is characterized by comprising
The air inlet box comprises a box body (100), wherein an air inlet pipe (110) is arranged at the top of the box body (100), and an air outlet pipe (120) is arranged on one side of the bottom of the box body (100);
the supporting mechanisms (200) are provided with two supporting mechanisms (200), each supporting mechanism (200) comprises a supporting seat (210), the two supporting seats (210) are arranged at the bottom in the box body (100), and slots (220) are formed in the supporting seats (210);
the bottom of the first coarse filtering grid (300) is inserted into the slot (220), and the top of the first coarse filtering grid (300) penetrates through the box body (100) and is exposed;
the bottom of the activated carbon plate (400) is inserted into the slot (220), and the top of the activated carbon plate (400) penetrates through the box body (100) and is exposed;
elevating system (500), elevating system (500) are equipped with two sets ofly, elevating system (500) all include extensible member (510), backup pad (520) and connecting rod (530), extensible member (510) are fixed in box (100) top, backup pad (520) fixed set up in extensible member (510) output, connecting rod (530) one end connect in backup pad (520), two sets of connecting rod (530) other end respectively threaded connection in first coarse filter grid (300) and activated carbon plate (400).
2. The lifting type activated carbon purifier as recited in claim 1, wherein a slag discharge pipe (130) is disposed at a side of the bottom of the tank body (100) away from the exhaust pipe (120), a second coarse filter grid (140) is disposed at a side of the slag discharge pipe (130), and the second coarse filter grid (140) is inserted and installed at the bottom of the tank body (100).
3. The lift type activated carbon purifier as recited in claim 2, wherein the inlet pipe (110), the outlet pipe (120) and the deslagging pipe (130) are provided with pipe valves and flange joints.
4. The elevating activated carbon purifier of claim 2, wherein the first coarse filter grid (300) and the second coarse filter grid (140) have uniform grid hole diameters.
5. The lift type activated carbon purifier according to claim 1, wherein a plug hole (150) is formed in the top of the box body (100) at the position where the first coarse filter grid (300) and the lifting mechanism (500) penetrate through, and sealing elements (230) are covered on the plug hole (150) and the inner wall of the slot (220).
6. The elevating activated carbon purifier of claim 1, wherein the first coarse filter grid (300) comprises a first support bracket (310) and a filter grid mesh (320), the filter grid mesh (320) being disposed within the first support bracket (310).
7. The elevating activated carbon purifier of claim 6, wherein the activated carbon plate (400) comprises a second support bracket (410) and an activated carbon layer (420), the activated carbon layer (420) being disposed in the second support bracket (410).
8. The lift type activated carbon purifier as claimed in claim 1, wherein the telescopic member (510) is an electric cylinder, an air cylinder or an electric push rod, the output end of the telescopic member (510) is fixedly connected to the supporting plate (520) in an inserting manner, and the supporting plate (520) is correspondingly provided with a connecting groove (540).
9. The elevating activated carbon purifier as recited in claim 7, wherein said connecting rod (530) is rotatably connected to said supporting plate (520), and the tops of said first supporting bracket (310) and said second supporting bracket (410) are both screw-connected to said connecting rod (530).
10. The lift type activated carbon purifier of claim 1, further comprising a back-blowing mechanism (600), wherein the back-blowing mechanism (600) comprises a back-blowing pipeline (610), an air outlet cover (620), a back-blowing pipe valve (630) and a back-blowing pipe joint (640), the back-blowing pipeline (610) extends to one side of the first coarse filter grid (300), the air outlet cover (620) is installed at an end of the back-blowing pipeline (610), the back-blowing pipe valve (630) is installed on the back-blowing pipeline (610), the back-blowing pipe joint (640) is installed at the other end of the back-blowing pipeline (610), and the back-blowing pipe joint (640) is communicated with an external air supply pipeline.
