Abstract

The utility model discloses a soccer goal for soccer practice, comprising a soccer goal body, the front and back sides of the top of the soccer goal body are fixedly connected with support rod bodies, the top of the support rod body is fixedly connected with a protection pad, and the A solar panel is fixedly connected to the top of the protective pad, and an arc-shaped elastic plate is fixedly connected to the front of the top of the football goal body. The soccer goal for soccer practice is easy to operate and has strong practicability. The ball discharge pipe, blower and corner plate are beneficial to the collection and transportation of soccer balls, reducing the time for players to pick up the ball, which is beneficial to the local improvement of training efficiency. The rotating rod increases the collection range of footballs, which is conducive to the collection of footballs outside the football goal, and improves the practicability of the football goal. Energy saving, the protective pad is beneficial to the protection of the solar panel, and the curved elastic plate prevents the football from being kicked too far.

Description

A soccer goal for soccer practice

technical field

The utility model relates to the technical field of sports equipment, in particular to a soccer goal for soccer practice.

Background technique

Football is the world's No. 1 sport and the most influential single sport in the global sports world. The football goal is an indispensable part of football. The position of the football goal is in the center of the bottom line. It consists of a goalpost, a crossbar connecting the two goalposts, and a net attached to the back of the goal. However, the existing soccer goal for soccer training has some shortcomings in the use process. After the soccer goal is kicked into the soccer ball, the soccer ball needs to be taken out manually, which wastes time for the soccer players during shooting training, which leads to the training efficiency. low.

Utility model content

(1) Technical problems solved

Aiming at the deficiencies of the prior art, the utility model provides a soccer goal for soccer practice, which solves the problem that it is difficult to improve the training efficiency during soccer practice.

(2) Technical solutions

In order to achieve the above purpose, the present utility model is realized through the following technical solutions: a football goal for soccer practice, comprising a soccer goal body, the front and back sides of the top of the soccer goal body are fixedly connected with support rod bodies, and the support The top of the rod body is fixedly connected with a protective pad, the top of the protective pad is fixedly connected with a solar panel, the front of the top of the football goal body is fixedly connected with an arc-shaped elastic plate, and the bottoms of both sides of the front of the football goal body are provided with A sliding groove, a telescopic rod is fixedly connected to the back of the inner wall of the sliding groove, a rotating shaft body is rotatably connected to the front of the telescopic end of the telescopic rod, a rotating rod is rotatably connected to the front of the rotating shaft body, and the middle of the back of the football goal body is fixed A fixed plate is connected, the bottom of the fixed plate penetrates the soccer goal body and extends to the bottom of the soccer goal body, and the bottom of the back of the fixed plate is connected with a ball outlet pipe, and the bottom of the left side of the back of the ball outlet pipe passes through a connecting block A blower is fixedly connected, a battery is fixedly connected to the left side of the top of the ball outlet pipe, a corner plate is fixedly connected to the left side of the back of the ball outlet pipe, and the left side of the front side of the ball outlet pipe is fixedly connected to the football through a fixing block. The left side of the bottom of the back of the door body, the front side of the blower is connected to the left side of the top of the outlet pipe through a hose, and the back of the blower is connected to the back of the corner plate through a hose.

Further preferably, the football goal body is composed of a steel body bracket and a ball net.

Further preferably, the arc-shaped elastic plate is located on the front side of the support rod body, the corner plate is located on the left side of the connecting block, and the battery is located on the right side of the blower.

Further preferably, the rotating shaft body and the rotating rod are both slidably connected inside the telescopic rod casing.

Further preferably, the bottom of the ball outlet tube and the bottom of the soccer goal body are located on the same horizontal plane, the corner plate is located on the left side of the soccer goal body, and the bottom of the corner plate and the bottom of the soccer goal body are located on the same horizontal plane.

Further preferably, a control switch is installed on the top of the battery, and the left side of the bottom of the inner wall of the tube is inclined to the left.

(3) Beneficial effects

The utility model provides a soccer goal for soccer practice, which has the following beneficial effects:

(1) The soccer goal for soccer practice is easy to operate and has strong practicability. The use of the discharge tube, blower and corner plate is conducive to the collection and transportation of soccer balls, reduces the time for players to pick up the ball, and is beneficial to the improvement of training efficiency. The use of the rod, the rotating shaft body and the rotating rod increases the collection range of the football, is beneficial to the collection of the football outside the football gate, and improves the practicability of the football gate.

(2) The use of the battery is conducive to the control of the telescopic rod, the rotating shaft and the blower, the use of the solar panel is conducive to the charging of the battery, saving energy, the use of the protective pad is conducive to the protection of the solar panel, and the curved elastic plate prevents the football A case of being kicked too far occurs.

Description of drawings

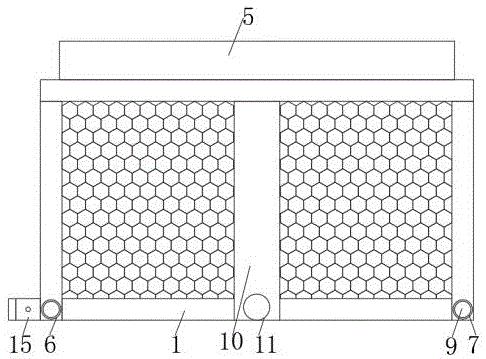

Fig. 1 is the front view of the utility model;

Fig. 2 is the right side sectional view of the utility model;

Fig. 3 is the top sectional view of the utility model;

Figure 4 is a cross-sectional view of the back of the ball outlet pipe of the present invention.

In the picture: 1 football goal body, 2 support rod body, 3 protective pad, 4 solar panel, 5 curved elastic plate, 6 sliding groove, 7 telescopic rod, 8 rotating shaft body, 9 rotating rod, 10 fixed plate, 11 ball outlet tube , 12 connection blocks, 13 blowers, 14 batteries, 15 corner boards.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

1-4, the present utility model provides a technical solution: a soccer goal for soccer practice, which is simple to operate and has strong practicability, and includes a soccer goal body 1, which is composed of a steel body bracket and a ball net. The front and back sides of the top of the football goal body 1 are fixedly connected with a support rod body 2, the top of the support rod body 2 is fixedly connected with a protection pad 3, and the top of the protection pad 3 is fixedly connected with a solar panel 4. The use of the solar panel 4 is beneficial to The charging of the battery 14 saves energy, the use of the protective pad 3 is beneficial to the protection of the solar panel 4, the front of the top of the football goal body 1 is fixedly connected with an arc-shaped elastic plate 5, and the arc-shaped elastic plate 5 is located on the front of the support rod body 2, The arc-shaped elastic plate 5 prevents the football from being kicked too far. The bottom of both sides of the front of the football goal body 1 is provided with sliding grooves 6, and the back of the inner wall of the sliding groove 6 is fixedly connected with a telescopic rod 7, and the telescopic rod 7 is telescopic The front of the end is rotatably connected with a rotating shaft body 8, and the front of the rotating shaft body 8 is rotatably connected with a rotating rod 9. The rotating shaft body 8 and the rotating rod 9 are both slidably connected to the inside of the outer casing of the telescopic rod 7. The telescopic rod 7, the rotating shaft body 8 and the rotating rod 9 The use of the football goal increases the collection range of footballs, which is conducive to the collection of footballs outside the football goal, and improves the practicability of the football goal. The middle of the back of the football goal body 1 is fixedly connected with a fixed plate 10, and the bottom of the fixed plate 10 penetrates the football goal body. 1 and extends to the bottom of the football goal body 1, the bottom of the back of the fixed plate 10 is connected with a ball outlet tube 11, the left side of the bottom of the inner wall of the ball outlet tube 11 is inclined to the left, and the bottom of the ball outlet tube 11 is connected with the bottom of the football goal body 1. Located on the same level, the bottom of the left side of the back of the tube 11 is fixedly connected with the blower 13 through the connection block 12, the left side of the top of the tube 11 is fixedly connected with a battery 14, the top of the battery 14 is installed with a control switch, and the battery 14 is located in the blower. On the right side of 13, the use of the battery 14 is beneficial to the control of the telescopic rod 7, the rotating shaft body 8 and the blower 13, the left side of the back of the tube 11 is fixedly connected with a corner plate 15, and the corner plate 15 is located on the left side of the connection block 12, The corner plate 15 is located on the left side of the football goal body 1, the bottom of the corner plate 15 is located on the same horizontal plane as the bottom of the football goal body 1, and the left side of the front of the ball outlet pipe 11 is fixedly connected to the left side of the bottom of the back of the football goal body 1 through a fixing block. The front side of the blower 13 is connected to the left side of the top of the outlet pipe 11 through a hose, and the back of the blower 13 is connected to the back of the corner plate 15 through a hose. The use of the outlet pipe 11, the blower 13 and the corner plate 15 is beneficial to The collection and transportation of footballs reduces the time for players to pick up the balls, which is beneficial to the improvement of training efficiency.

Working principle: After the player kicks the ball into the football goal body 1, the control switch on the battery 14 is turned on, the telescopic rod 7 is extended, the rotating shaft body 8 and the rotating rod 9 are extended out of the football goal body 1, and the rotating shaft body 8 rotates , the two rotating rods 9 rotate relatively close to sweep the football outside the football goal body 1 into the football goal body 1, and the blower 13 works, so that suction is generated in the ball tube 11, and the football is sucked out of the left side of the ball tube 11. side, the football slides into the corner plate 15 with the inclination of the left side of the ball outlet pipe 11, and the air outlet hole at the other end of the blower 13 passes the air into the corner plate 15, so that the football in the corner plate 15 is discharged smoothly and conveyed. to the player.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , substitutions and variants.

Claims (6)

1. The utility model provides a football door is used in football exercise, includes the football door body (1), its characterized in that: the football door comprises a football door body (1), a supporting rod body (2) fixedly connected with the front and the back of the two sides of the top of the football door body (1), a protection pad (3) fixedly connected with the top of the supporting rod body (2), a solar panel (4) fixedly connected with the top of the protection pad (3), an arc elastic plate (5) fixedly connected with the front of the top of the football door body (1), sliding grooves (6) respectively formed in the bottoms of the two sides of the front of the football door body (1), telescopic rods (7) fixedly connected with the back of the inner walls of the sliding grooves (6), a rotating shaft body (8) rotatably connected with the front of the telescopic ends of the telescopic rods (7), a rotating rod (9) rotatably connected with the front of the rotating shaft body (8), a fixing plate (10) fixedly connected with the middle of the back of the football door body (1), and a bottom of the fixing plate (, the bottom intercommunication at fixed plate (10) back has out bulb (11), go out the left bottom in bulb (11) back and pass through connecting block (12) fixedly connected with air-blower (13), go out left side fixedly connected with battery (14) at bulb (11) top, go out left side fixedly connected with corner board (15) at the bulb (11) back, go out the left side of bulb (11) front and pass through fixed block fixed connection in the left side of the football door body (1) back bottom, the front of air-blower (13) is passed through the hose intercommunication in the left side at bulb (11) top, the back of air-blower (13) is passed through the hose intercommunication at the back of corner board (15).

2. The soccer gate for practicing soccer according to claim 1, wherein: the football door body (1) consists of a steel body support and a ball net.

3. The soccer gate for practicing soccer according to claim 1, wherein: the arc-shaped elastic plate (5) is located on the front face of the supporting rod body (2), the corner plate (15) is located on the left side of the connecting block (12), and the battery (14) is located on the right side of the air blower (13).

4. The soccer gate for practicing soccer according to claim 1, wherein: the rotating shaft body (8) and the rotating rod (9) are connected inside the shell of the telescopic rod (7) in a sliding mode.

5. The soccer gate for practicing soccer according to claim 1, wherein: go out the bottom of bulb (11) and the bottom of the football door body (1) and be located same horizontal plane, corner board (15) are located the left side of the football door body (1), the bottom of corner board (15) and the bottom of the football door body (1) are located same horizontal plane.

6. The soccer gate for practicing soccer according to claim 1, wherein: the top of the battery (14) is provided with a control switch, and the left side of the bottom of the inner wall of the ball outlet pipe (11) inclines leftwards.
