The utility model relates to the technical field of medical equipment, and disclose nursing belt with adjustable restraint to child's shank, including nursing belt and supplementary waistband, the higher authority in nursing belt is provided with supplementary waistband and nursing belt parcel in the shank, and supplementary waistband is fixed at the waist, the nursing belt is including nursing belt main part, the higher authority in nursing belt main part is provided with first fixed plate and second fixed plate respectively, upper and lower both ends both sides respectively fixed mounting have first metal button and second metal button. This nursing belt with adjustable restraint to child's shank is when using, and the boundary belt lies in the middle part of supplementary waistband main part and boundary belt and is provided with the rubber pad, and when hanging the shank, the boundary belt parcel is at the opposite side of waist, and the power that receives simultaneously is also the biggest, can improve children user's comfort level greatly through the rubber pad that sets up and alleviate the ache to realize the purpose of the nursing belt that can be convenient for the activity simultaneously to child's shank restraint is adjustable.
Description
Technical Field
The utility model relates to the technical field of medical equipment, specifically be to nursing belt with adjustable restraint of child's shank.
Background
There are many children in the hospital the inside, various reasons such as playing owing to mixing the skin have caused the leg wound of different degrees, and children need regularly go to outdoor activities so that do benefit to the recovery that the health is wounded and is painful, current bandage can only be fixed children's shank, but children can receive very big hindrance also can increase children's misery and increase nursing staff's work load simultaneously at activity shank, be unfavorable for carrying out each item nursing operation moreover, consequently need design one kind can be to the adjustable nursing belt of being convenient for the activity simultaneously of children's shank restraint.
SUMMERY OF THE UTILITY MODEL
In order to realize the purpose of the nursing belt which can restrain the legs of the children and is adjustable and convenient to move simultaneously, the utility model provides the following technical scheme: the nursing belt with adjustable restraint for the legs of the children comprises a nursing belt and an auxiliary belt, wherein the auxiliary belt is arranged on the nursing belt, the nursing belt wraps the legs, the auxiliary belt is fixed on the waist, the nursing belt comprises a nursing belt main body, a first fixing plate and a second fixing plate are respectively arranged on the nursing belt main body, a first metal button and a second metal button are respectively fixedly arranged on the two sides of the upper end and the lower end of the nursing belt main body, elastic bands are respectively and fixedly connected on the two sides of the second fixing plate, a hair surface magic tape and a hook surface magic tape are respectively arranged on the left side and the right side of the elastic bands, a fixing block is fixedly arranged on the back surface of the nursing belt main body, the auxiliary belt is fixedly arranged on the left end and the right end of the fixing block, the auxiliary belt comprises an auxiliary belt main body and a protective, the connecting band of fixedly connected with below the connecting block, the automatic lock metal head of lower extreme fixedly connected with of connecting band, supplementary waistband main part right-hand member surface has been seted up, the left end fixedly connected with belt head of supplementary waistband main part.
The utility model has the advantages that: when the nursing belt with the adjustable restraint on the legs of the child is used, the nursing belt is tied to the injured legs, when the nursing belt needs to be moved outdoors or moved, the auxiliary waist belt can be tied to the waist under the condition of needs, when the nursing belt is tied, the nursing belt main body is wrapped on the legs, the hair surface magic tape and the hook surface magic tape are pasted together, the nursing belt main body and the legs are fixed, the first metal button and the second metal button are buckled together, the edge corners of the nursing belt main body are prevented from being exposed, bacteria are easy to breed, the attractiveness is influenced, the first fixing plate and the second fixing plate are arranged inside the nursing belt main body, the first fixing plate and the second fixing plate are vertically arranged inside the nursing belt main body in a transversely-vertically staggered mode, the first fixing plate and the second fixing plate are used for fixing the legs and correcting bones, and rapid recovery of the legs of the child is facilitated, the first fixing plate can be pulled out to facilitate normal movement of the legs, the lower end of the automatic buckling metal head is fixedly connected with the auxiliary belt, when a child needs to go to outdoor activities, the auxiliary belt can be fixed on the waist as required, the nursing belt is connected with the auxiliary belt through the automatic buckling metal head and the auxiliary belt, and then the injured legs can be hung, so that pain can be reduced, and recovery of the legs is facilitated, wherein the auxiliary belt is better adapted to different crowds by inserting the adjusting clamping needles into different parts, the protective belt is positioned in the middle of the auxiliary belt main body and is provided with a rubber pad, when the legs are hung, the protective belt is wrapped on the other side of the waist, the force received at the same time is the greatest, and the comfort level of the child user can be greatly improved through the arranged rubber pad to relieve soreness, thereby realizing the purpose of the nursing belt which can restrain and adjust the legs of the children and is convenient to move.
As optimizing, first fixed plate and second fixed plate are the crisscross perpendicular form setting of violently standing and take the inside of main part in the nursing, and first fixed plate and second fixed plate all are used for fixed shank and correction skeleton, are favorable to the quick recovery of children's shank, and wherein first fixed plate can take out the normal activity that makes things convenient for the shank.
As optimization, the first metal button and the second metal button are buckled, and the first metal button and the second metal button are buckled together, so that the edge corner of the nursing belt main body is prevented from being exposed, bacteria are easy to breed, and the attractiveness is influenced.
As an optimization, the hair side magic tape and the hook side magic tape are attached to each other, the nursing belt main body is wrapped on the leg, then the hair side magic tape and the hook side magic tape are attached together, and the nursing belt main body and the leg are fixed together.
As an optimization, the lower end of the automatic buckling metal head is fixedly connected with the auxiliary belt, when a child needs to go to outdoor activities, the auxiliary belt can be fixed on the waist as required, then the nursing belt and the auxiliary belt are connected together through the automatic buckling metal head and the auxiliary belt, and then the injured leg can be hung, so that the pain can be reduced, and meanwhile, the recovery of the leg is facilitated.
As an optimization, the adjusting clamping needle is movably mounted on the belt head and inserted in the adjusting clamping needle, and the adjusting clamping needle is inserted into different belt heads, so that the auxiliary belt can better adapt to different people.
As optimization, the protective belt is located in the middle of the auxiliary waistband main body and provided with the rubber pad, when the leg is hung, the protective belt wraps the other side of the waist, the force applied to the protective belt is maximum, and the comfort level of a child user can be greatly improved through the arranged rubber pad to relieve ache.
Drawings

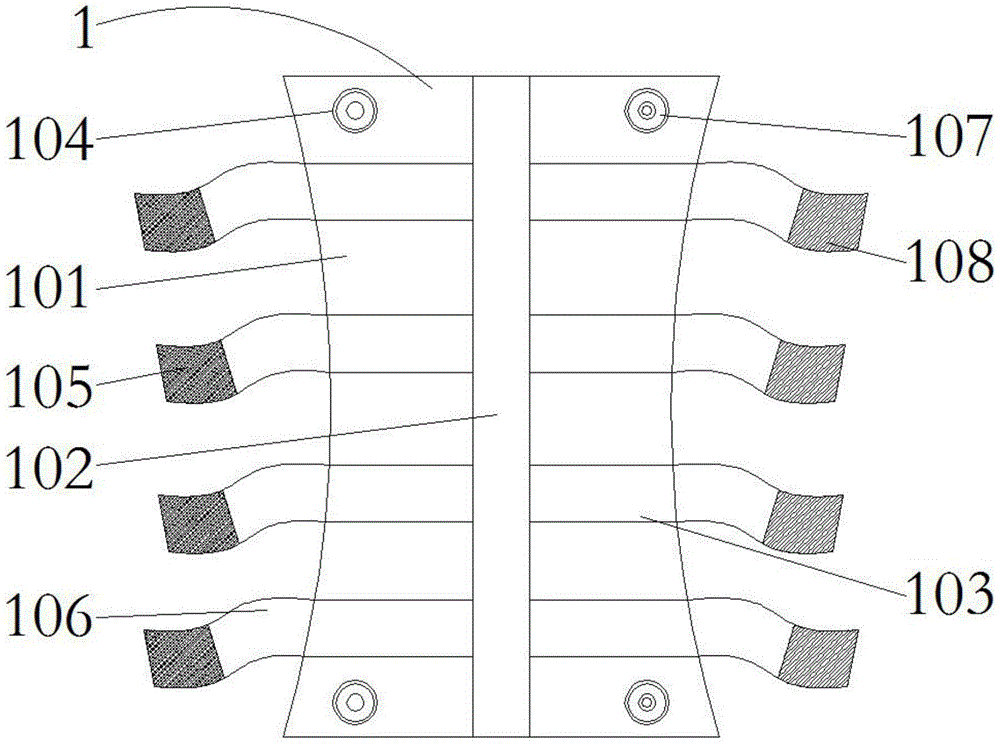

FIG. 1 is a front view of the structure nursing belt of the present invention;
FIG. 2 is a back view of the structure nursing belt of the present invention;
fig. 3 is a schematic view of the auxiliary waistband of the present invention.
In the figure: 1-nursing belt, 2-auxiliary belt, 101-nursing belt main body, 102-first fixing plate, 103-second fixing plate, 104-first metal button, 105-hair side magic tape, 106-elastic band, 107-second metal button, 108-hook side magic tape, 109-fixing block, 110-auxiliary belt, 200-auxiliary belt main body, 201-protective belt, 202-belt head, 203-connecting block, 204-connecting belt, 205-automatic fastening metal head, and 206-limiting hole.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-3, the nursing belt with adjustable restraint for the legs of the child comprises a nursing belt 1 and an auxiliary belt 2, the auxiliary belt 2 is disposed on the nursing belt 1, the nursing belt 1 wraps the legs, the auxiliary belt 2 is fixed on the waist, the nursing belt 1 comprises a nursing belt main body 101, a first fixing plate 102 and a second fixing plate 103 are respectively disposed on the nursing belt main body 101, the first fixing plate 102 and the second fixing plate 103 are vertically arranged in the nursing belt main body 101 in a staggered manner, the first fixing plate 102 and the second fixing plate 103 are both used for fixing the legs and correcting the bones, so as to facilitate the rapid recovery of the legs of the child, wherein the first fixing plate 102 can be pulled out to facilitate the normal movement of the legs, a first metal button 104 and a second metal button 107 are respectively fixedly mounted on two sides of the upper end and the lower end of the nursing belt 1, the first metal button 104 is buckled with the second metal button 107, the first metal button 104 and the second metal button 107 are buckled together to prevent the edge corner of the nursing belt main body 101 from being exposed, so that bacteria are easy to breed and the beauty is easy to influence, both sides of the second fixing plate 103 are fixedly connected with elastic bands 106, the left side and the right side of each elastic band 106 are respectively provided with a hair side magic tape 105 and a hook side magic tape 108, the hair side magic tapes 105 and the hook side magic tapes 108 are attached to each other, the nursing belt main body 101 is wrapped on the leg and then the hair side magic tapes 105 and the hook side magic tapes 108 are attached to each other to fix the nursing belt main body 101 and the leg, the back of the nursing belt main body 101 is fixedly provided with a fixing block 109, the left end and the right end of the fixing block 109 are respectively fixedly provided with an auxiliary belt 110, the auxiliary belt 2 comprises an auxiliary belt main body 200 and a protective belt 201, the upper surface of the right side of the auxiliary belt main body 200 is, the lower end of the connecting belt 204 is fixedly connected with an automatic buckling metal head 205, the lower end of the automatic buckling metal head 205 is fixedly connected with the auxiliary belt 110, when a child needs to go to outdoor activities, the auxiliary belt 2 can be fixed on the waist as required, then the nursing belt 1 and the auxiliary belt 2 are connected together through the automatic buckling metal head 205 and the auxiliary belt 110, then the injured leg can be hung, so that the pain can be reduced, meanwhile, the recovery of the leg is facilitated, the surface of the right end of the auxiliary belt main body 200 is provided with a limiting hole 206, the left end of the auxiliary belt main body 200 is fixedly connected with a belt head 202, the protecting belt 201 is positioned in the middle of the auxiliary belt main body 200, the protecting belt 201 is provided with a rubber pad, when the leg is hung, the protecting belt 201 is wrapped on the other side of the waist, the force is also the largest, the comfort level of the child user can be greatly, the belt head 202 is movably provided with an adjusting clamp pin which is inserted into the limit hole 206, and the adjusting clamp pin is inserted into different limit holes 206, so that the auxiliary belt 2 can better adapt to different people.
When in use, the nursing belt with adjustable restraint on the legs of the child is used for tying the nursing belt 1 on the injured leg, when the child needs to go outdoors or move, the auxiliary waistband 2 can be tied on the waist under the condition of need, wherein when the nursing belt 1 is tied, the nursing belt main body 101 is wrapped on the leg, then the hair side magic tape 105 and the hook side magic tape 108 are pasted together, the nursing belt main body 101 and the leg are fixed, the first metal button 104 and the second metal button 107 are buckled together, the edge corner of the nursing belt main body 101 is prevented from being exposed, bacteria are easy to breed, the appearance is affected, the first fixing plate 102 and the second fixing plate 103 are arranged inside the nursing belt main body 101 in a transverse and vertical staggered manner, and both the first fixing plate 102 and the second fixing plate 103 are used for fixing the leg and correcting bones, the utility model is beneficial to the rapid recovery of the legs of children, wherein the first fixing plate 102 can be drawn out to facilitate the normal activity of the legs, then the lower end of the automatic buckling metal head 205 is fixedly connected with the auxiliary belt 110, when the children need to go to the outdoor activity, the auxiliary belt 2 can be fixed at the waist as required, then the nursing belt 1 is connected with the auxiliary belt 2 through the automatic buckling metal head 205 and the auxiliary belt 110, then the injured legs can be hung, thus the pain can be reduced, and simultaneously the legs can be recovered, wherein, the auxiliary belt 2 can be better adapted to different people by inserting the adjusting clamping pins into different limit holes 206, the protective belt 201 is positioned at the middle part of the auxiliary belt main body 200 and the protective belt 201 is provided with a rubber pad, when the legs are hung, the protective belt 201 is wrapped at the other side of the waist, and the force received is maximum, the comfort level of the child user can be greatly improved through the arranged rubber pad, and the ache is relieved.
Above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the design of the present invention, equivalent replacement or change should be covered within the protection scope of the present invention.
Claims (7)
1. Nursing belt with adjustable restraint to child's shank, including nursing belt (1) and supplementary waistband (2), its characterized in that: an auxiliary waistband (2) is arranged on the nursing belt (1), the nursing belt (1) wraps the legs, and the auxiliary waistband (2) is fixed on the waist;
the nursing belt (1) comprises a nursing belt main body (101), wherein a first fixing plate (102) and a second fixing plate (103) are respectively arranged on the nursing belt main body (101), a first metal button (104) and a second metal button (107) are respectively and fixedly arranged on the upper side and the lower side of the nursing belt (1), elastic bands (106) are respectively and fixedly connected to the two sides of the second fixing plate (103), a hair side magic tape (105) and a hook side magic tape (108) are respectively arranged on the left side and the right side of each elastic band (106), a fixing block (109) is fixedly arranged on the back of the nursing belt main body (101), and auxiliary belts (110) are respectively and fixedly arranged on the left end and the right end of each fixing block (109);
supplementary waistband (2) are including supplementary waistband main part (200) and boundary belt (201), fixed mounting has connecting block (203) above the right side of supplementary waistband main part (200), below fixedly connected with connecting band (204) of connecting block (203), the automatic lock metal head of lower extreme fixedly connected with (205) of connecting band (204), spacing hole (206) have been seted up on supplementary waistband main part (200) right-hand member surface, the left end fixedly connected with belt head (202) of supplementary waistband main part (200).
2. The nursing band with adjustable restraint for pediatric legs as defined in claim 1, wherein: the first fixing plate (102) and the second fixing plate (103) are arranged inside the nursing belt main body (101) in a vertical and horizontal staggered vertical shape.
3. The nursing band with adjustable restraint for pediatric legs as defined in claim 1, wherein: the first metal button (104) is buckled with the second metal button (107).
4. The nursing band with adjustable restraint for pediatric legs as defined in claim 1, wherein: the hair side magic tape (105) is attached to the hook side magic tape (108).
5. The nursing band with adjustable restraint for pediatric legs as defined in claim 1, wherein: the lower end of the automatic buckling metal head (205) is fixedly connected with the auxiliary belt (110).
6. The nursing band with adjustable restraint for pediatric legs as defined in claim 1, wherein: an adjusting clamping needle is movably mounted on the belt head (202) and inserted into the limiting hole (206).
7. The nursing band with adjustable restraint for pediatric legs as defined in claim 1, wherein: the protective belt (201) is positioned in the middle of the auxiliary waistband main body (200), and the protective belt (201) is provided with a rubber pad.
