Abstract
The utility model belongs to the technical field of digital printing machine, especially, relate to a flat clamping device that opens up, include: a work table; the compression roller mechanism is arranged above the workbench; the compression roller mechanism comprises two compression roller assemblies symmetrically arranged above the workbench and two compression roller driving assemblies for driving the two compression roller assemblies to mutually approach or depart from each other along the X direction; the compression roller assembly comprises a compression roller; the two ends of the roll shaft of the compression roll are provided with height adjusting parts, and the adjusting parts are arranged on the drive of the compression roll drive assembly; the press roller driving assembly drives the press rollers of the two press roller assemblies to be away from each other so as to flatten the cloth to be printed on the workbench from the middle part to two sides of the cloth to be printed, and clamps two ends of the cloth to be printed when the two press roller assemblies move to the tail ends, so that the cloth cannot be deviated or wrinkled during printing, and the printing position of the cloth is accurate; and the Z-direction lifting mechanism is arranged on the side part of the workbench and used for driving the two press roll assemblies to move along the Z direction so as to abut against or be far away from the to-be-printed cloth on the workbench.
Description
Technical Field
The utility model belongs to the technical field of digital printing machine, especially, relate to a flat clamp material device of exhibition and digital printing machine.
Background
Digital printing is printing by digital technology. The digital printing technology is a high and new technology product which integrates the mechanical and computer electronic information technologies and is gradually formed along with the continuous development of the computer technology. Due to the requirement of a printing process, cloth needs to be flatly laid on a workbench, and a pressure roller is needed for realizing the purpose; the position between current nip roll and the workstation is fixed, can not adjust, has following problem: when printing is carried out on different objects with different cloth thicknesses, the positions of the cloth and the workpiece cannot be adjusted, so that the cloth cannot easily pass through a gap between the nip roll and the workbench, and the digital printing is not practical; in addition, the nip roll can only level and smooth the cloth, and does not have the material clamping effect, and the digital printing machine head can appear the cloth and take place to bulge or wrinkle a little when removing the printing, causes the stamp on the cloth untidy or slightly to one side, leads to the cloth stamp inaccurate and unsatisfied requirement, causes the waste product.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a digital printing machine aims at solving pressing material roller mechanism among the prior art does not have the material effect of pressing, leads to the cloth stamp not accurate and unsatisfied technical problem who requires.
In order to achieve the above object, an embodiment of the present invention provides a digital printing machine, including;
the workbench is used for placing cloth to be printed;
the compression roller mechanism is arranged above the workbench; the compression roller mechanism comprises two compression roller assemblies symmetrically arranged above the workbench and two compression roller driving assemblies for driving the two compression roller assemblies to mutually approach or depart from each other along the X direction; the compression roller assembly comprises a compression roller; the two ends of a roll shaft of the compression roll are respectively provided with a height adjusting part, and the adjusting parts are arranged on the drive of the compression roll drive assembly; the press roller driving assembly drives the press rollers of the two press roller assemblies to be away from each other so as to flatten the cloth to be printed on the workbench from the middle part to two sides of the cloth to be printed, and the two press roller assemblies clamp two ends of the cloth to be printed when moving to the tail ends; and
and the Z-direction lifting mechanism is arranged on the side part of the workbench and connected with the compression roller driving assembly and used for driving the two compression roller assemblies to move along the Z direction so as to abut against or be far away from the to-be-printed cloth on the workbench.
Optionally, the height adjustment component comprises an adjustment seat; a Z-direction strip-shaped groove is dug in the adjusting seat, and the width of the Z-direction strip-shaped groove is matched with the diameter of a roller shaft of the compression roller; z has a pressure spring to the lower extreme holding in bar groove, the lower extreme of pressure spring with the lower extreme butt in Z to the bar groove, the upper end of pressure spring with the roller butt of compression roller, the upper portion threaded connection of adjusting the seat has an adjusting screw, adjusting screw stretches into Z to the bar inslot and with the roller butt of compression roller.
Optionally, the lower end of the Z-direction strip-shaped groove is provided with an accommodating groove matched with the pressure spring in an excavating mode, and the lower end of the pressure spring is accommodated in the accommodating groove.
Optionally, the first ends and the second ends of the roll shafts of the two press rolls are respectively connected with the moving ends of the two press roll driving assemblies; the platen roller driving assembly includes: the press roller driving mounting frame is arranged on the moving end of the Z-direction lifting mechanism; the two ends of the X-direction driving screw rod are rotatably connected to the compression roller driving mounting frame; the X-direction driving screw rod comprises a left-handed screw rod and a right-handed screw rod connected with one end of the left-handed screw rod, a left screw rod block and a right screw rod block are respectively arranged on the left-handed screw rod and the right-handed screw rod, and the left screw rod block and the right screw rod block are respectively connected with adjusting seats of the two compression roller assemblies; and the compression roller driving motor is arranged on the compression roller driving mounting frame, and the rotating shaft of the compression roller driving motor is fixedly connected with one end of the X-direction driving screw rod.
Optionally, the compression roller driving assembly further comprises a guide component; the guide part comprises an X-direction guide rod, the two ends of the X-direction guide rod are installed on the compression roller driving installation frame, two sliding blocks are arranged on the X-direction guide rod, and the two sliding blocks are respectively connected with the left screw rod block and the right screw rod block.
Optionally, compression roller drive mounting bracket is guard shield shape installation frame, a side of guard shield shape installation frame is dug and is equipped with the installation cavity, X is all located to drive lead screw, left lead screw piece, right lead screw piece, X to guide bar and slider in the installation cavity.
Optionally, the Z-direction lifting mechanism comprises two Z-direction lifting assemblies symmetrically arranged on two sides of the workbench, and moving ends of the two Z-direction lifting assemblies are respectively connected with the two compression roller driving assemblies; the Z-direction lifting assembly comprises a lifting mounting frame arranged on the side part of the workbench; the middle part of the lifting mounting frame is rotatably connected with a Z-direction lifting screw rod, the upper part of the lifting mounting frame is connected with a guide seat in a sliding manner, the upper end of the guide seat is connected with the compression roller driving mounting frame, and the lower end of the guide seat is connected with a sliding block of the Z-direction lifting screw rod; and a lifting driving part is arranged on the side part of the lifting mounting frame, and the lifting driving part is connected with the lower end of the Z-direction lifting screw rod and is used for driving the Z-direction lifting screw rod to rotate.
Optionally, the lift driving part comprises: the lifting driving motor is arranged on the side part of the lifting mounting frame; the two synchronous belt wheels are respectively arranged on a rotating shaft of the lifting driving motor and a lower end shaft of the Z-direction lifting screw rod; and the synchronous belts are sleeved on the two synchronous belt wheels.
Optionally, the flattening and material clamping device further comprises a second X-direction moving assembly; the second X-direction moving assembly includes: the two second X-direction linear guide rails are symmetrically arranged at the upper end of a rack; the two ends of the second X-direction screw rod are rotatably connected to the rack; the second X-direction driving motor is arranged on the rack and is connected with one end of the second X-direction screw rod; and the workbench is arranged on the slide block of the second X-direction linear guide rail and the screw rod block of the second X-direction screw rod.
A digital printing machine is provided with the flattening and material clamping device.
The embodiment of the utility model provides an above-mentioned one or more technical scheme in the exhibition flat clamping device have one of following technological effect at least: when the digital printing machine head is used for printing on the cloth to be printed on the workbench, initially, the compression rollers of the two compression roller assemblies are close to each other, the Z-direction lifting mechanism drives the compression rollers of the two compression roller assemblies to move downwards along the Z direction to abut against the middle part of the cloth to be printed, then the compression roller driving assembly drives the compression rollers of the two compression roller assemblies to mutually keep away from each other along the X direction to level the cloth to be printed on the workbench from the middle part to two sides, and when the two compression rollers move to the tail ends, the two ends of the cloth to be printed are clamped between the two compression rollers and the workbench, so that the cloth to be printed on the workbench is clamped while being leveled, the cloth cannot deviate or wrinkle during printing, and at the moment, when the digital printing machine head is used for printing on the cloth to be printed on the workbench, the printing position of the cloth is accurate and the pattern is printed neatly, the printing effect is good, and the rejection rate is reduced.
Drawings
In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings required for the embodiments or the prior art descriptions will be briefly introduced below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and it is obvious for those skilled in the art to obtain other drawings without inventive labor.

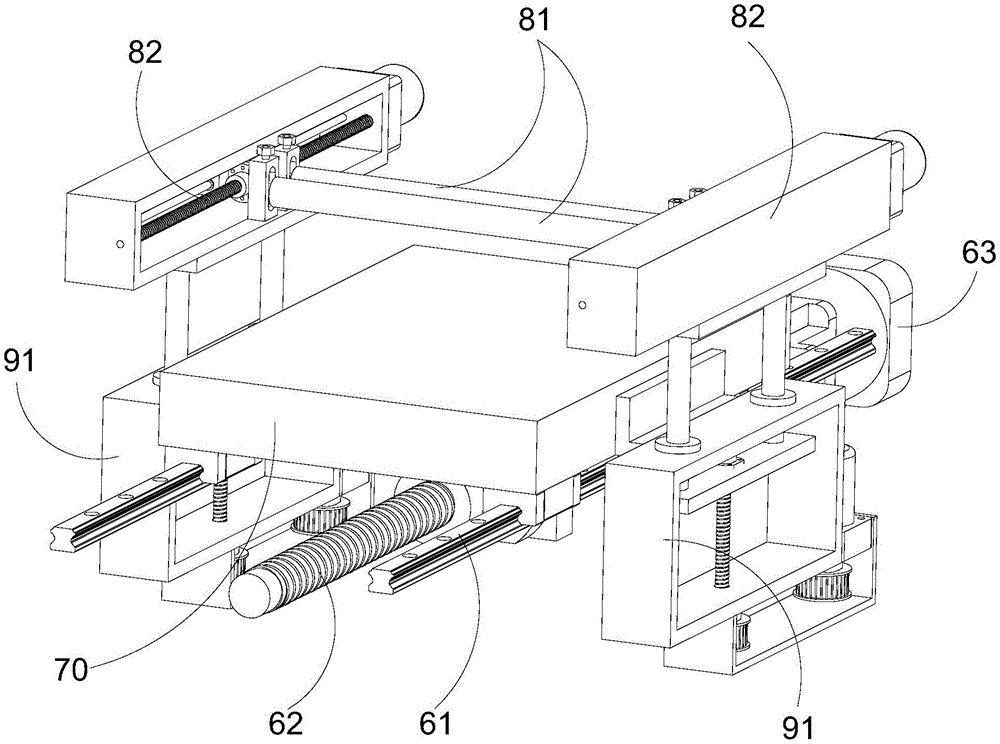

Fig. 1 is a schematic view of a part of the structure of the flattening material clamping device provided by the embodiment of the present invention.
Fig. 2 is a schematic structural diagram of a compression roller assembly of the flattening and material clamping device provided by the embodiment of the utility model.
Fig. 3 is a schematic structural diagram of a compression roller driving assembly of the flattening material clamping device provided by the embodiment of the present invention.
Fig. 4 is a schematic structural diagram of the pressing roller driving assembly and the Z-direction lifting mechanism of the flattening material clamping device provided by the embodiment of the present invention.
Fig. 5 is a schematic structural diagram of a digital printing machine provided by an embodiment of the present invention.
Fig. 6 is another view of the structure of the digital printing machine according to the embodiment of the present invention.
Wherein, in the figures, the respective reference numerals:
a frame 10, a vertical frame 11, a support base 12, a first X-direction moving assembly 20, a first X-direction linear guide rail 21, a first X-direction lead screw 22, an X-direction moving plate 23, a first X-direction driving motor 24, a Y-direction moving assembly 30, a Y-direction linear module 31, a Z-direction moving assembly 40, a digital printing machine head 50, a second X-direction moving assembly 60, a second X-direction linear guide rail 61, a second X-direction lead screw 62, a second X-direction driving motor 63, a workbench 70, a press roller mechanism 80, two press roller assemblies 81, a press roller 811, a height adjusting component 812, an adjusting seat 813, a Z-direction strip-shaped groove 814, a press spring 815, an adjusting screw 816, a press roller driving component 82, a press roller driving mounting frame 821, an X-direction driving lead screw 822, a left-rotation lead screw 823, a right-rotation lead screw 824, a left block 826, a right lead screw block 827, a press roller driving motor 829, a guide component 83, the lifting mechanism comprises a Z-direction lifting mechanism 90, a Z-direction lifting assembly 91, a lifting mounting frame 911, a Z-direction lifting screw 912, a guide seat 913, a lifting driving component 914, a lifting driving motor 915, a synchronous pulley 916, a synchronous belt 917 and a connecting seat 918.
Detailed Description
Reference will now be made in detail to embodiments of the present invention, examples of which are illustrated in the accompanying drawings, wherein like reference numerals refer to the same or similar elements or elements having the same or similar function throughout. The embodiments described below by referring to the drawings are exemplary and intended to explain the embodiments of the present invention and are not to be construed as limiting the present invention.
In the description of the embodiments of the present invention, it should be understood that the terms "length," "width," "upper," "lower," "front," "rear," "left," "right," "vertical," "horizontal," "top," "bottom," "inner," "outer," and the like are used in the orientation or positional relationship indicated in the drawings, which is only for convenience in describing the embodiments of the present invention and simplifying the description, and do not indicate or imply that the device or element so indicated must have a particular orientation, be constructed and operated in a particular orientation, and therefore should not be construed as limiting the invention.
Furthermore, the terms "first", "second" and "first" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include one or more of that feature. In the description of the embodiments of the present invention, "a plurality" means two or more unless specifically limited otherwise.
In the embodiments of the present invention, unless otherwise explicitly specified or limited, the terms "mounted," "connected," and "fixed" are to be construed broadly, e.g., as fixed or detachable connections or as an integral part; can be mechanically or electrically connected; either directly or indirectly through intervening media, either internally or in any other relationship. The specific meaning of the above terms in the embodiments of the present invention can be understood by those skilled in the art according to specific situations.
In an embodiment of the present invention, referring to fig. 1-4, a flattening material clamping device is provided, which includes a workbench 70, a pressing roller mechanism 80 and a Z-direction lifting mechanism 90.
Wherein the working table 70 is used for placing cloth to be printed.
Wherein, the compression roller mechanism 80 is arranged above the workbench 70; the press roller mechanism 80 includes two press roller assemblies 81 symmetrically disposed above the worktable 70, and two press roller driving assemblies 82 for driving the two press roller assemblies 81 to approach or separate from each other along the X direction.
Wherein the compression roller assembly 81 comprises a compression roller 811; both ends of the roller shaft of the compression roller 811 are provided with height adjusting parts 812, and the adjusting parts 812 are mounted on the moving end of the driving assembly 82 of the compression roller 811. The levelness of the compression roller 811 can be adjusted by the height adjusting component 812, so that the compression roller 811 can better level the cloth to be printed on the workbench 70, and the height adjusting component 812 can also adjust the distance between the compression roller 811 and the workbench 70, so that the compression roller 811 can level the cloth to be printed with different thicknesses on the workbench 70.
The compression roller driving assembly 82 drives the compression rollers 811 of the two compression roller assemblies 81 to be away from each other so as to flatten the cloth to be printed on the workbench 70 from the middle part to two sides of the cloth to be printed, and the compression rollers 811 of the two compression roller assemblies 81 clamp two ends of the cloth to be printed when moving to the tail end.
The Z-direction lifting mechanism 90 is disposed at a side portion of the workbench 70, connected to the press roller driving assembly 82, and configured to drive the two press roller assemblies 81 to move along the Z direction to abut against or be away from the cloth to be printed on the workbench 70.
The embodiment of the utility model provides a flat clamp material device that flattens has one of following technological effect: when the digital printing machine works, printed cloth is placed on the workbench 70, initially, the compression rollers 811 of the two compression roller assemblies 81 are close to each other, the Z direction lifting mechanism 90 drives the two compression rollers 811 of the compression roller assemblies 81 to move downwards along the Z direction to abut against the middle of the printed cloth, then the compression roller driving assembly 82 drives the two compression rollers 811 of the compression roller assemblies 81 to mutually keep away from each other along the X direction to flatten the printed cloth on the workbench 70 from the middle to two sides, and when the two compression rollers 811 move to the tail end, the two ends of the printed cloth are clamped between the two compression rollers 811 and the workbench 70, so that the printed cloth on the workbench 70 is clamped while being flattened, the cloth cannot deviate or wrinkle during printing, at the moment, when the printed cloth on the workbench 70 is printed by the digital printing machine head, the printing position of the cloth is accurate, and the printed patterns are clean, the printing effect is good, and the rejection rate is reduced.
In another embodiment of the present invention, referring to fig. 1 and fig. 2, the height adjusting component 812 of the flattening material clamping device comprises an adjusting seat 813, and the adjusting seat 813 is installed on the moving end of the pressing roller driving component 82; a Z-direction strip-shaped groove 814 is dug in the adjusting seat 812, and the width of the Z-direction strip-shaped groove 814 is matched with the diameter of a roller shaft of the pressing roller 811. A pressure spring 815 is accommodated at the lower end of the Z-direction strip groove 814, the lower end of the pressure spring 815 is abutted against the lower end of the Z-direction strip groove 814, and the upper end of the pressure spring 815 is abutted against a roller shaft of the compression roller 811; furthermore, an accommodating groove adapted to the pressure spring 815 is dug at the lower end of the Z-direction strip-shaped groove 814, and the lower end of the pressure spring 815 is accommodated in the accommodating groove, so that the pressure spring 815 is stably installed in the Z-direction strip-shaped groove 814. An adjusting screw 816 is connected to the upper portion of the adjusting seat 813 through a thread, and the adjusting screw 816 extends into the Z-direction strip-shaped groove 814 and abuts against a roller shaft of the pressing roller 811; the hexagonal groove is dug to adjusting screw 816's nut upper end, and people can stretch into hexagonal adjusting tool's one end in the hexagonal groove to rotate hexagonal adjusting tool drives adjusting screw 816 rotates convenient to use. When the levelness of the press roller 811 is adjusted, the adjusting screws 816 on the height adjusting parts 812 at both ends of the press roller 811 can be rotated to make both ends of the press roller 811 located at the same horizontal plane, so that the press roller 811 can better level the cloth to be printed on the worktable 70. When the distance between pressing roller 811 and workbench 70 is adjusted, adjusting screws 816 on height adjusting parts 812 at two ends of pressing roller 811 can be rotated to change the distance between pressing roller 811 and workbench 70, so that pressing roller 811 can flatten the cloth to be printed on workbench 70 with different thicknesses. In the process of adjusting compression roller 811 by turning adjustment screw 816, compression spring 815 is always in a state of elastically supporting compression roller 811.
In another embodiment of the present invention, referring to fig. 2 and 3, the first end and the second end of the roller shafts of two press rollers 811 of the flattening material clamping device are respectively connected to the moving ends of two press roller driving assemblies 82 through the height adjusting component 812. The platen roller driving assembly 82 includes: the press roller driving mounting frame 821 is arranged on the moving end of the Z-direction lifting mechanism 90; the two ends of the X-direction driving screw 822 are rotatably connected to the compression roller driving mounting frame 821 through screw bearings; the X-direction driving screw 822 comprises a left-handed screw 823 and a right-handed screw 824 connected with one end of the left-handed screw 823, the left-handed screw 823 and the right-handed screw 824 are respectively provided with a left screw block 826 and a right screw block 827, and the left screw block 826 and the right screw block 827 are respectively connected with the adjusting seats 812 of the two pressing roller assemblies 81; and the compression roller driving motor 829 is arranged on the compression roller driving mounting frame 821, and a rotating shaft of the compression roller driving motor 829 is fixedly connected with one end of the X-direction driving screw 822. The left screw rod 823 and the right screw rod 824 are driven to rotate by the compression roller driving motor 829 to drive the left screw rod 826 and the right screw rod 827 to approach or separate from each other, so as to drive the two compression rollers 811 to approach or separate from each other.
Further, referring to fig. 3, the pressing roller driving assembly 82 further includes a guide member 83; the guide member 83 includes an X-direction guide bar 831, both ends of the X-direction guide bar 831 are mounted on the platen roller driving mounting frame 821 on one side of the X-direction driving screw 822, two sliders 832 are provided on the X-direction guide bar 831, and the two sliders 832 are respectively connected to the left screw block 826 and the right screw block 827. The guide member 83 smoothly moves the two pressing rollers 811 toward and away from each other in the X direction.
Further, referring to fig. 3, the platen roller driving mounting frame 821 is a cover-shaped mounting frame, a mounting cavity 825 is dug at one side of the cover-shaped mounting frame, and the X-direction driving screw 822, the left screw block 826, the right screw block 827, the X-direction guide lever 831, and the slider 832 are disposed in the mounting cavity 825. The shield-shaped mounting frame may shield the X-direction driving screw 822, the left screw block 826, the right screw block 827, the X-direction guide bar 831, and the slider 832 from some dust in the air, and some dust in the air is not likely to fall onto the X-direction driving screw 822, the left screw block 826, the right screw block 827, the X-direction guide bar 831, and the slider 832.
In another embodiment of the present invention, referring to fig. 1 and 4, the Z-direction lifting mechanism 90 of the flattening material clamping device includes two Z-direction lifting assemblies 91 symmetrically disposed on two sides of the worktable, and two moving ends of the Z-direction lifting assemblies 91 are respectively connected to two press roller driving mounting frames 821 of the press roller driving assemblies 82. The Z-direction lifting assembly 91 comprises a lifting mounting frame 911 mounted on a side portion of the worktable 70, and specifically, the lifting mounting frame 911 is mounted on the side portion of the worktable 70 through a connecting seat 918. The middle part of lift mounting bracket 911 is rotated and is connected with a Z to lift lead screw 912, the upper portion sliding connection of lift mounting bracket 911 has a guide holder 913, and furtherly, guide holder 913 includes the upper end plate, lower end plate to and connect two guide bars of upper end plate and lower end plate. An upper end plate of the guide base 913 is connected to a lower end of the press roller driving mounting bracket 821, a lower end plate of the guide base 913 is connected to a slider of the Z-direction lifting screw 912, and the guide rod is slidably connected to an upper portion of the lifting mounting bracket 911 through a linear bearing. A lifting driving component 914 is arranged on the side of the lifting mounting frame 911, and the lifting driving component 914 is connected with the lower end of the Z-direction lifting screw 912 and is used for driving the Z-direction lifting screw 912 to rotate. The lifting driving component 914 drives the Z-direction lifting screw 912 to rotate, so as to drive the press roller driving mounting frame 821 to move along the Z direction, and thus drive the two press rollers 811 to move along the Z direction.
Further, referring to fig. 4, the elevation driving part 914 includes: a lifting driving motor 915 which is arranged at the side part of the lifting mounting frame 911; two synchronous pulleys 916, the two synchronous pulleys 916 are respectively mounted on the rotating shaft of the lifting driving motor 915 and the lower end shaft of the Z-direction lifting screw 912; and a synchronous belt 917 sleeved on the two synchronous pulleys 916. Through lift driving motor 915 drives Z is to the rotation of lift lead screw 912, simple structure, reasonable in design.
In another embodiment of the present invention, referring to fig. 1, the second X-direction moving assembly 60 of the flattening material clamping device comprises: the two second X-direction linear guide rails 61 are symmetrically arranged at the upper end of the rack 10; the two ends of the second X-direction screw rod 62 are rotatably connected to the frame 10; the second X-direction driving motor 63 is arranged on the frame 10 and is connected with one end of the second X-direction screw rod 62; the slide block of the second X-direction linear guide 61 and the screw block of the second X-direction screw 62 are provided with the table 70. Through second X drives to driving motor 63 workstation 70X is to removing, so that workstation 70's material loading station and stamp station switch over each other, the staff material loading of being convenient for.
The rest of this embodiment is the same as the first embodiment, and the unexplained features in this embodiment are explained by the first embodiment, which is not described herein again.
A digital printing machine, refer to fig. 5 and 6, has the flattening clamping device. The digital printing machine further comprises a frame 10, a first X-direction moving assembly 20, a stand 11, a Y-direction moving assembly 30, a Z-direction moving assembly 40 and a digital printing machine head 50.
The frame 10 is a common supporting frame, and mainly refers to a supporting function.
The two first X-direction moving assemblies 20 are symmetrically arranged on the rack 10; specifically, the two sides of the frame 10 are both provided with a support base 12 in a protruding manner, and the two first X-direction moving assemblies 20 are mounted on the support base 12.
The stand 11 is disposed on the moving ends of the two first X-direction moving assemblies 20.
The Y-direction moving assembly 30 is disposed on the stand 11.
The Z-direction moving assembly 40 is disposed on the moving end of the Y-direction moving assembly 30.
Wherein, the digital printing machine head 50 is arranged on the moving end of the Z-direction moving assembly 40; the digital printer head 50 is well known to those skilled in the art, and therefore the structure and operation principle of the digital printer head are not described herein.
Wherein, the second X-direction moving assembly 60 is arranged on the frame 10 below the digital printing machine head 50.
Further, referring to fig. 5, the first X-direction moving assembly 20 includes: the two first X-direction linear guide rails 21 are symmetrically arranged at the upper ends of the supporting seats 12 of the rack 10; the two ends of the first X-direction screw rod 22 are rotatably connected to the supporting seat 12 of the rack 10; an X-direction moving plate 23 mounted on the slider of the second X-direction linear guide 21 and the lead screw block of the second X-direction lead screw 22; the first X-direction driving motor 24 is arranged on the supporting seat 12 of the rack 10 and is connected with one end of the first X-direction screw rod 22; the lower end of the stand 11 is mounted on the X-direction moving plate 23 of the two first X-direction moving assemblies 20. The first X-direction screw 22 is driven to rotate by the X-direction driving motor 24 to drive the vertical frame 11 to move in the X direction, so as to drive the digital printing machine head 50 to move in the X direction to print the cloth to be printed on the workbench 70.
Further, referring to fig. 5 and 6, the Y-direction moving assembly 30 of the digital printing machine includes a Y-direction linear module 31; the Y-direction linear module 31 is arranged on the vertical frame 22, a Y-direction moving plate is arranged on a slide block of the Y-direction linear module 31, and the Z-direction moving assembly 40 is mounted on the Y-direction moving plate. Through Y is to sharp module 30 drive Z is to removing subassembly 40Y to removing, thereby drives digital printing head 50Y is to removing, is convenient for digital printing head 50 is right the cloth of waiting to stamp on the workstation 70 prints.
Further, referring to fig. 5 and 6, the structure of the Z-direction moving assembly 40 is substantially the same as that of the Y-direction moving assembly 30, and the Z-direction moving assembly 40 is configured to drive the digital printing head 50 to move along the Z direction so as to enable the digital printing head 50 to approach or separate from the upper surface of the cloth to be printed on the worktable 70.
The embodiment of the utility model provides a digital printing machine has one of following technological effect: when the cloth printing machine works, printed cloth is placed on the workbench 70, initially, the two press roller assemblies 81 are close to each other, the Z drives the two press roller assemblies 81 to move downwards along the Z direction to abut against the middle part of the printed cloth on the workbench 70, then the press roller driving assembly 82 drives the two press roller assemblies 81 to mutually keep away from each other along the X direction to flatten the printed cloth on the workbench 70 from the middle part of the printed cloth to be flattened, and when the two press roller assemblies 81 move to the tail end, the two ends of the printed cloth to be flattened are clamped between the press roller assemblies 81 and the workbench 70, so that the printed cloth on the workbench 70 is flattened and simultaneously clamped, the cloth cannot deviate or wrinkle during printing, and then the second X drives the workbench 70 and the printed cloth to be moved to a printing station to the moving assembly 60, at last, the digital printing machine head 50 is close to the workbench 70 for printing cloth and printing the printing cloth through the first X to the moving assembly 20, the Y to the moving assembly 30 and the Z to the moving assembly 40, and the digital printing machine head 50 is guaranteed to print the set position of the printing cloth accurately, so that the cloth printing effect is accurate and good.
The foregoing is a more detailed description of the present invention, taken in conjunction with the specific preferred embodiments thereof, and it is not intended that the invention be limited to the specific embodiments shown and described. To the utility model belongs to the technical field of the ordinary technical personnel, do not deviate from the utility model discloses under the prerequisite of design, its framework form can be nimble changeable, can derive series of products. But merely as a matter of simple deductions or substitutions, should be considered as belonging to the scope of patent protection of the present invention as determined by the claims submitted.
Claims (10)
1. The utility model provides a flat clamp material device that flattens which characterized in that includes:
the workbench is used for placing cloth to be printed;
the compression roller mechanism is arranged above the workbench; the compression roller mechanism comprises two compression roller assemblies symmetrically arranged above the workbench and two compression roller driving assemblies for driving the two compression roller assemblies to mutually approach or depart from each other along the X direction; the compression roller assembly comprises a compression roller; the two ends of a roll shaft of the compression roll are respectively provided with a height adjusting part, and the adjusting parts are arranged on the drive of the compression roll drive assembly; the press roller driving assembly drives the press rollers of the two press roller assemblies to be away from each other so as to flatten the cloth to be printed on the workbench from the middle part to two sides of the cloth to be printed, and the two press roller assemblies clamp two ends of the cloth to be printed when moving to the tail ends; and
and the Z-direction lifting mechanism is arranged on the side part of the workbench and connected with the compression roller driving assembly and used for driving the two compression roller assemblies to move along the Z direction so as to abut against or be far away from the to-be-printed cloth on the workbench.
2. The flattening clamping device according to claim 1, characterized in that: the height adjusting component comprises an adjusting seat; a Z-direction strip-shaped groove is dug in the adjusting seat, and the width of the Z-direction strip-shaped groove is matched with the diameter of a roller shaft of the compression roller; z has a pressure spring to the lower extreme holding in bar groove, the lower extreme of pressure spring with the lower extreme butt in Z to the bar groove, the upper end of pressure spring with the roller butt of compression roller, the upper portion threaded connection of adjusting the seat has an adjusting screw, adjusting screw stretches into Z to the bar inslot and with the roller butt of compression roller.
3. The flattening clamping device according to claim 2, characterized in that: the lower extreme in Z to the bar groove is dug and is equipped with the holding tank of pressure spring adaptation, the lower extreme holding of pressure spring is in the holding tank.
4. The flattening clamp device according to claim 3, characterized in that: the first ends and the second ends of the roll shafts of the two compression rolls are respectively connected with the moving ends of the two compression roll driving components; the platen roller driving assembly includes: the press roller driving mounting frame is arranged on the moving end of the Z-direction lifting mechanism; the two ends of the X-direction driving screw rod are rotatably connected to the compression roller driving mounting frame; the X-direction driving screw rod comprises a left-handed screw rod and a right-handed screw rod connected with one end of the left-handed screw rod, a left screw rod block and a right screw rod block are respectively arranged on the left-handed screw rod and the right-handed screw rod, and the left screw rod block and the right screw rod block are respectively connected with adjusting seats of the two compression roller assemblies; and the compression roller driving motor is arranged on the compression roller driving mounting frame, and the rotating shaft of the compression roller driving motor is fixedly connected with one end of the X-direction driving screw rod.
5. The flattening clamp device according to claim 4, characterized in that: the compression roller driving assembly also comprises a guide component; the guide part comprises an X-direction guide rod, the two ends of the X-direction guide rod are installed on the compression roller driving installation frame, two sliding blocks are arranged on the X-direction guide rod, and the two sliding blocks are respectively connected with the left screw rod block and the right screw rod block.
6. The flattening clamp device of claim 5, wherein: compression roller drive mounting bracket is guard shield shape installation frame, a side portion of guard shield shape installation frame is dug and is equipped with the installation cavity, X is all located to drive lead screw, left lead screw piece, right lead screw piece, X to guide bar and slider in the installation cavity.
7. The flattening clamp device of claim 6, wherein: the Z-direction lifting mechanism comprises two Z-direction lifting components symmetrically arranged on two sides of the workbench, and moving ends of the two Z-direction lifting components are respectively connected with the two compression roller driving components; the Z-direction lifting assembly comprises a lifting mounting frame arranged on the side part of the workbench; the middle part of the lifting mounting frame is rotatably connected with a Z-direction lifting screw rod, the upper part of the lifting mounting frame is connected with a guide seat in a sliding manner, the upper end of the guide seat is connected with the compression roller driving mounting frame, and the lower end of the guide seat is connected with a sliding block of the Z-direction lifting screw rod; and a lifting driving part is arranged on the side part of the lifting mounting frame, and the lifting driving part is connected with the lower end of the Z-direction lifting screw rod and is used for driving the Z-direction lifting screw rod to rotate.
8. The flattening clamp device of claim 7, wherein: the lift driving part includes: the lifting driving motor is arranged on the side part of the lifting mounting frame; the two synchronous belt wheels are respectively arranged on a rotating shaft of the lifting driving motor and a lower end shaft of the Z-direction lifting screw rod; and the synchronous belts are sleeved on the two synchronous belt wheels.
9. The flattening clamp device of claim 7, wherein: the flattening and clamping device also comprises a second X-direction moving assembly; the second X-direction moving assembly includes: the two second X-direction linear guide rails are symmetrically arranged at the upper end of a rack; the two ends of the second X-direction screw rod are rotatably connected to the rack; the second X-direction driving motor is arranged on the rack and is connected with one end of the second X-direction screw rod; and the workbench is arranged on the slide block of the second X-direction linear guide rail and the screw rod block of the second X-direction screw rod.
10. The utility model provides a digital calico printing machine which characterized in that: having a flattening grip device according to any of claims 1 to 9.
