Abstract
The utility model discloses a rainwater is collected and is utilized system for municipal works relates to the technical field of municipal construction and construction, including the escape canal of locating the road both sides, still including locating in proper order the infiltration water layer and the sump pit of escape canal below, be equipped with the water pump in the sump pit, the water pump is connected with the green water pipe of planting the irrigation that is used for the road. The utility model discloses but have automatic collection and filter the rainwater and can be applied to urban afforestation and irrigate the technological effect.
Description
Technical Field
The utility model belongs to the technical field of the technique of municipal construction and specifically relates to a rainwater collection utilizes system for municipal works is related to.
Background
With the acceleration of the urbanization process, some urban water resource shortage, water environment pollution, flood disasters, ecological environment deterioration and other problems in China are very serious. Rainwater is taken as a key element in a water circulation system and plays an important role in the process of constructing the urban sustainable water circulation system. Therefore, how to effectively collect and utilize the urban rainwater has become an important issue which needs to be paid attention to environment, municipal administration, planning, building, landscape, water conservancy and the like.
At present, urban rainwater is mainly drained into an urban underground water pipe network through drainage ditches on two sides of a road and finally converged into rivers, seas and lakes. However, since the urban rainwater usually carries some urban garbage and pollutants, the urban rainwater is directly discharged into rivers, seas and lakes to cause pollution pressure to the water environment; on the other hand, the effect of directly converging urban rainwater to rivers, seas and lakes is very limited, and the rainwater is not effectively utilized.
SUMMERY OF THE UTILITY MODEL
The utility model aims at providing an automatic collect and filter the rainwater and can be applied to a rainwater collection and utilization system for municipal works that urban afforestation irrigated.
The utility model discloses a can realize through following technical scheme:
the utility model provides a system of utilizing is collected to rainwater for municipal works, is including locating the escape canal of road both sides, still including locating in proper order infiltration water layer and the sump pit of escape canal below, be equipped with the water pump in the sump pit, the water pump is connected with the water pipe that is used for green planting of giving the road and irrigates.
Through adopting above-mentioned technical scheme, city rainwater is through the escape canal that flows in the road both sides, because infiltration water layer and sump pit have been laid to the escape canal below, therefore during the rainwater can pass the infiltration water layer gradually and get into the sump pit, the rainwater realizes filtering when the infiltration water layer. Most of the waste pollutants in the rainwater are retained in the drainage ditch and the permeable layer, so that the rainwater collected in the water collecting well reaches the purity degree which can be used for irrigation. The rainwater that the water pump in the sump pit will collect leads to pipe pump sending to the greenbelt of road one side in, realizes the irrigation to the green plant of road, and the rainwater can automatic filtration, collection and utilization, reduces municipal construction cost and is friendly to the environment more.
Further setting the following steps: the drainage ditch includes a plurality of drainage bricks of laying along the road extending direction, the drainage brick is the fretwork brick that infiltration mouth was all seted up to bottom surface and side, the filter screen has been laid to the medial surface of drainage brick.
By adopting the technical scheme, the drainage ditch is formed by paving a plurality of drainage bricks along the extending direction of the road, the drainage bricks are convenient and quick to lay and construct, and the construction period can be shortened; the water seepage port is formed in the drainage brick, the filter screen is laid on the inner side face of the drainage brick, and therefore before rainwater or sewage drained into the drainage brick enters the water seepage layer, impurities in the sewage can be intercepted by the filter screen, and the possibility that the water seepage port is blocked by the impurities is reduced. After more sundries are accumulated on the filter screen, the filter screen can be taken off from the inner side surface of the drainage brick for cleaning or replacement, and the drainage smoothness of the drainage ditch is kept.
Further setting the following steps: the longitudinal section of the drainage brick is in a trapezoid shape with a wide upper end and a narrow lower end, a first-stage rigid sieve plate is arranged on the cross section of the middle line of the drainage brick, and the shape and the size of the cross section of the middle line of the drainage brick are the same as those of the first-stage rigid sieve plate.
Through adopting above-mentioned technical scheme, set up one-level rigidity sieve on the cross section of drainage brick median line department, one-level rigidity sieve can filter the water that gets into in the escape canal before the filter screen, reduces the possibility that the filter screen is blockked up.
Further setting the following steps: the drainage brick is characterized in that an embedding strip is arranged at the middle line of the drainage brick, and the edges of two opposite sides of the first-stage rigid sieve plate are arranged on the embedding strip.
By adopting the technical scheme, the edges of the two opposite sides of the first-stage rigid sieve plate are placed on the embedding strips at the middle line of the drainage brick, so that the first-stage rigid sieve plate can be easily taken down from the drainage brick, and sundries on the first-stage rigid sieve plate can be conveniently cleaned.
Further setting the following steps: the top surface opening of sump pit just is equipped with second grade rigidity sieve.
Through adopting above-mentioned technical scheme, the top surface of sump pit sets up the second grade rigidity sieve, and the filterable rainwater permeable second grade rigidity sieve of process infiltration water layer gets into the sump pit, and during the grit that the second grade rigidity sieve prevented among the infiltration water layer got into the sump pit, it was still less to store up the grit in the sump pit.
Further setting the following steps: one side of the water collecting well is communicated with an inspection well, one end of the water pipe is connected with a water outlet of the water pump, and the other end of the water pipe penetrates through the inspection well and extends into a green belt on one side of the road.
Through adopting above-mentioned technical scheme, the water pipe passes the inspection shaft and extends to the greenbelt in, and municipal administration maintenance workman can get into the inspection shaft and overhauls water pipe and water pump, maintains for a long time.
Further setting the following steps: one end of the water pipe extending into the green belt is provided with a high-pressure spray head.
Through adopting above-mentioned technical scheme, set up high pressure nozzle on the water pipe, can enlarge irrigation scope, irrigate more evenly comprehensively.
To sum up, the utility model discloses a beneficial technological effect does:
(1) a water permeating layer and a water collecting well are arranged below the drainage ditch, rainwater collected into the drainage ditch can gradually penetrate through the water permeating layer to enter the water collecting well, most of garbage pollutants in the rainwater are retained in the drainage ditch and the water permeating layer, a water pump in the water collecting well pumps the collected rainwater into a green belt on one side of a road through a water pipe, irrigation on green plants on the road is achieved, the rainwater can be automatically filtered, collected and utilized, municipal construction cost is reduced, and the water collecting well is more environment-friendly;
(2) a filter screen is laid on the inner side surface of the drainage brick, a first-stage rigid sieve plate is arranged on the middle line of the drainage brick, rainwater and sewage enter a drainage ditch and are filtered twice through the first-stage rigid sieve plate and the filter screen, and then are filtered for the third time through a water seepage layer, so that the rainwater and sewage filtering effect is better, and a water seepage port of the drainage brick is not easy to block;
(3) dig at sump pit one side and establish the inspection shaft, the water pipe passes from the inspection shaft, makes things convenient for the municipal administration maintenance workman of later stage to overhaul water pipe and water pump.
Drawings

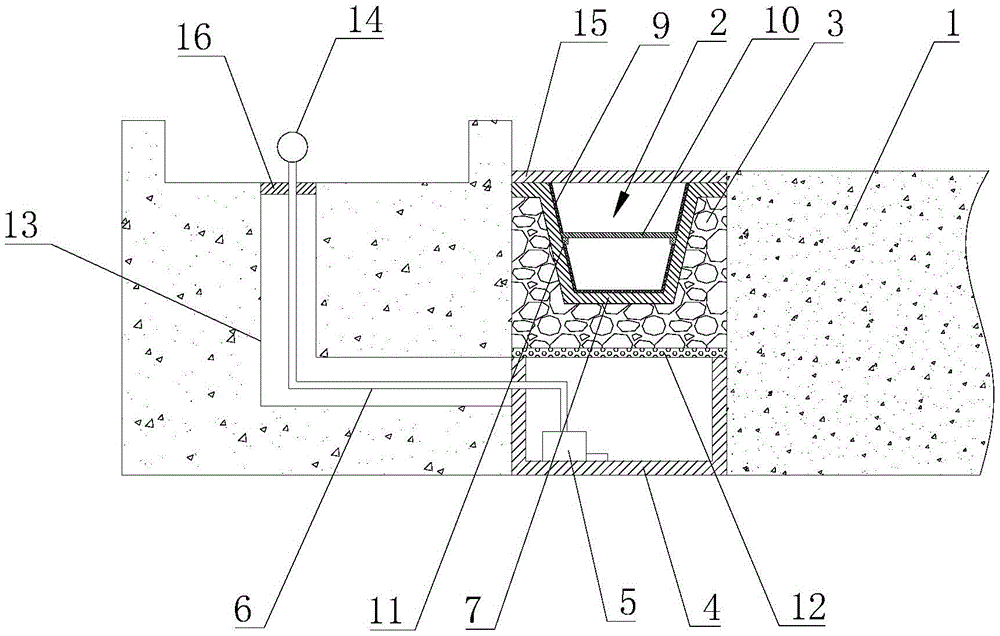

Fig. 1 is a schematic view of the overall structure of the present invention;
fig. 2 is a schematic structural view of the drainage brick of fig. 1.
Reference numerals: 1. a road; 2. a drainage ditch; 3. a water-permeable layer; 4. a water collecting well; 5. a water pump; 6. a water pipe; 7. a drainage brick; 8. a water seepage port; 9. a filter screen; 10. a first-stage rigid sieve plate; 11. embedding the strip; 12. a second-stage rigid sieve plate; 13. an inspection well; 14. a high pressure spray head; 15. a fine-toothed comb; 16. a well cover is provided.
Detailed Description
The present invention will be described in further detail with reference to the accompanying drawings.
Referring to fig. 1, for the utility model discloses a rainwater is collected and is utilized system for municipal works, including two escape canals 2 of locating road 1 both sides respectively, every escape canal 2 below has set gradually infiltration layer 3 and collector well 4. The permeable stratum 3 is the grit layer that can play the filter effect, and the sump pit 4 is located permeable stratum 3 below and the setting of sump pit 4 top surface opening and covers and be equipped with second grade rigidity sieve 12, and the filtration aperture of second grade rigidity sieve 12 is less than the minimum dimension of grit in the grit layer.
After getting into escape canal 2 in the rainwater, rubbish pollutant is held back in escape canal 2 and infiltration water layer 3, and the rainwater then permeates and flows into water collecting well 4, and the rainwater of collecting is in 6 pump sending to the greenbelt of road 1 one side of water pipe by water pump 5 in the water collecting well 4 again, realizes the irrigation to the green plant of road 1, and the rainwater can automatic filtration, collection and utilization, reduces municipal construction cost and is more friendly to the environment.
Referring to fig. 2, the drainage ditch 2 is formed by laying a plurality of drainage bricks 7 arranged along the extending direction of the road 1, the longitudinal section of each drainage brick 7 is in a trapezoid shape with a wide upper end and an opening, and a narrow lower end and a closed bottom, and the top surface of each drainage brick 7 is covered with a grate 15 which is flush with the road surface. The drainage brick 7 is a hollow brick with two water seepage holes 8 on the bottom surface and two side surfaces, and a filter screen 9 is laid on the inner side surface of the drainage brick 7. An embedding strip 11 protruding out of the inner side face of the drainage brick 7 is integrally formed at the position of the median line of the drainage brick 7, a first-stage rigid sieve plate 10 is arranged on the cross section of the position of the median line of the drainage brick 7, the shape and the size of the cross section of the first-stage rigid sieve plate 10 and the cross section of the position of the median line of the drainage brick 7 are the same, and the first-stage rigid sieve plate 10 is embedded and placed on the embedding strip 11. Rainwater and sewage are filtered twice through the first-level rigid sieve plate 10 and the filter screen 9 after entering the drainage ditch 2, and then are filtered for the third time through the permeable water layer 3, and finally enter the water collecting well 4, so that the water quality is purer, and the water collecting well is suitable for irrigation.
Referring to fig. 1, a manhole 13 is dug on one side of the water collecting well 4, a manhole cover 16 is covered on the top of the manhole 13, the bottom of the manhole 13 is transversely communicated with the position, close to the top, of the water collecting well 4, one end of a water pipe 6 is connected with a water outlet of a water pump 5, and the other end of the water pipe penetrates through the manhole 13 and the manhole cover 16 and extends into a green belt on one side of the road 1. Municipal maintenance workers can enter the inspection well 13 to overhaul the water pipe 6 and the water pump 5 for long-term maintenance. In order to increase the irrigation range of the water pipe 6, a high-pressure spray head 14 is arranged at one end of the water pipe 6 extending into the green belt.
The implementation principle and the beneficial effects of the embodiment are as follows: set up permeable bed 3 and water collection well 4 in 2 below in escape canal, collect and pass the permeable bed 3 gradually to the rainwater in escape canal 2 and get into water collection well 4, most rubbish pollutant in the rainwater is held back in escape canal 2 and permeable bed 3, water pump 5 in the water collection well 4 passes through 6 pump sending of rainwater of collecting to the greenbelt of 1 one side of road, the realization is to the irrigation of 1 green plants on road, the rainwater can automatic filtration, collect and utilize, reduce municipal construction cost and be more friendly to the environment.
The embodiment of this specific implementation mode is the preferred embodiment of the present invention, not limit according to this the utility model discloses a protection scope, so: all equivalent changes made according to the structure, shape and principle of the utility model are covered within the protection scope of the utility model.
Claims (7)
1. The utility model provides a system of utilizing is collected to rainwater for municipal works, is including locating escape canal (2) of road (1) both sides, its characterized in that: still including locating in proper order infiltration bed (3) and sump pit (4) of escape canal (2) below, be equipped with water pump (5) in sump pit (4), water pump (5) are connected with water pipe (6) that are used for green planting of road (1) to irrigate.
2. The rainwater collection and utilization system for municipal engineering according to claim 1, wherein: the drainage ditch (2) include a plurality of drainage bricks (7) of laying along road (1) extending direction, drainage bricks (7) are the fretwork brick that infiltration mouth (8) were all seted up to bottom surface and side, filter screen (9) have been laid to the medial surface of drainage bricks (7).
3. The rainwater collection and utilization system for municipal engineering according to claim 2, wherein: the longitudinal section of the drainage brick (7) is in a trapezoid shape with a wide upper end and a narrow lower end, a first-stage rigid sieve plate (10) is arranged on the cross section of the median line of the drainage brick (7), and the shape and the size of the cross section of the median line of the drainage brick (7) are the same as those of the first-stage rigid sieve plate (10).
4. The rainwater collection and utilization system for municipal engineering according to claim 3, wherein: the drainage brick is characterized in that an embedding strip (11) is arranged at the middle line of the drainage brick (7), and the edges of two opposite sides of the first-stage rigid sieve plate (10) are arranged on the embedding strip (11).
5. The rainwater collection and utilization system for municipal engineering according to claim 1, wherein: the top surface of the water collecting well (4) is opened and is provided with a secondary rigid sieve plate (12).
6. The rainwater collection and utilization system for municipal works according to claim 1 or 5, wherein: one side of the water collecting well (4) is communicated with an inspection well (13), one end of the water pipe (6) is connected with a water outlet of the water pump (5), and the other end of the water pipe penetrates through the inspection well (13) and extends into a green belt on one side of the road (1).
7. The rainwater collection and utilization system for municipal works according to claim 6, wherein: one end of the water pipe (6) extending into the green belt is provided with a high-pressure spray head (14).
