CN211053230U

CN211053230U - Chip recovery device of heart walking machine

Info

Publication number: CN211053230U
Application number: CN201922017909.9U
Authority: CN
Inventors: 江涛; 江锦祥
Original assignee: Xiamen Xucheng Metal Products Co Ltd
Current assignee: Xiamen Xucheng Metal Products Co Ltd
Priority date: 2019-11-20
Filing date: 2019-11-20
Publication date: 2020-07-21
Anticipated expiration: 2029-11-20

Abstract

The utility model relates to a walk heart machine, more specifically say, it relates to a smear metal recovery unit who walks heart machine, and its technical scheme main points are: including being used for setting up the receipts bits case in the casing below, receive bits case upper portion and one side lateral wall opening setting, the bits mouth that falls has been seted up in casing upper surface middle part, it is provided with two receipts bits boxes to receive the horizontal slip of bits incasement interval from top to bottom, receive the equal upper end opening setting of bits box. The utility model discloses a chip recovery unit of walking heart machine has the advantage of conveniently clearing up the sweeps.

Description

Chip recovery device of heart walking machine

Technical Field

The utility model relates to a walk heart machine, more specifically say that it relates to a smear metal recovery unit who walks heart machine.

Background

The center-moving machine is called a center-moving numerically controlled lathe, and can also be called a headstock moving numerically controlled automatic lathe, an economical turning and milling combined machine tool or a longitudinal cutting lathe. The method belongs to precision machining equipment, can simultaneously complete composite machining such as turning, milling, drilling, boring, tapping, carving and the like at one time, and is mainly used for batch machining of precision hardware and shaft special-shaped nonstandard parts. The spindle parts are very suitable for mass production by using the spindle machine.

At present, a Chinese patent with a publication number of CN 205996709U is searched to disclose a walking machine, which has the technical key points that: including casing, base, carry out the main shaft subassembly of centre gripping, carry out the knife rest subassembly of cutting, baffle box and connect the silo to the work piece, knife rest subassembly and main shaft subassembly all set up same one side at the base, connect the silo setting on the inner wall of casing, knife rest subassembly includes the knife rest seat, the baffle box sets up on the knife rest seat, and the baffle box slope sets up downwards, and the upper end of baffle box connects the work piece that drops towards the main shaft and flourishing, and the lower extreme orientation of baffle box makes the work piece drop to connect in the silo.

Above-mentioned a walk heart machine that discloses, the work piece finishes automatic dropping to connect the silo in, and is more convenient, but when a large amount of processing pivot work pieces, can produce a large amount of sweeps, the sweeps drops on the base, consequently has the inconvenient problem of clearing up.

SUMMERY OF THE UTILITY MODEL

Not enough to prior art exists, the utility model aims to provide a smear metal recovery unit who walks heart machine has the advantage of conveniently clearing up the sweeps.

The above technical purpose of the present invention can be achieved by the following technical solutions: the utility model provides a chip recovery unit of heart machine walks, is including being used for setting up the receipts bits case in the casing below, receive bits case upper portion and one side lateral wall opening setting, the bits mouth that falls has been seted up in casing upper surface middle part, it is provided with two receipts bits boxes to receive bits incasement horizontal slip of interval from top to bottom, receive the equal upper end opening setting of bits box.

By adopting the technical scheme, the scraps produced by processing above the machine shell fall from the scrap falling port and fall into the scrap collecting box, two scrap collecting boxes can receive the scraps in the scrap collecting box, the scrap collecting box above the machine shell is full and needs to be taken away for treatment, and the scraps fall into the scrap collecting box below the machine shell.

The utility model discloses further set up to: the scrap collecting box is characterized in that guide grooves are horizontally formed in two opposite side walls in the scrap collecting box, the two opposite side walls of the scrap collecting box are provided with mounting grooves, a clamping block is movably inserted into the mounting grooves, a plurality of springs are horizontally arranged in the mounting grooves at intervals, one end of each spring is fixedly connected to the bottom of each mounting groove, the other end of each spring is fixedly connected to each clamping block, the clamping blocks of the scrap collecting box located above are connected to the guide grooves in a sliding mode, two inner side walls below the guide grooves are horizontally and fixedly connected with placing plates, and a driving assembly for pushing the scrap collecting box below to move upwards is arranged at the bottom of the.

Through adopting above-mentioned technical scheme, can get into the mounting groove during fixture block compression spring in, alright with on putting the board of placing of receiving the bits box with receiving the bits box, drive assembly will receive the bits box upwards promote to guide way department spring extension, and a fixture block partly gets into the guide way, and it just slides and connects in the guide way to receive the bits box, fills with the back and pulls out along the guide way can.

The utility model discloses further set up to: drive assembly includes screw rod, motor, sliding seat, two guide bars and two push rods, the setting of interval level is receiving bits case lower part about mounting panel and the roof, the screw rod rotates to be connected between mounting panel and roof, the vertical bottom of installing in receiving the bits incasement of motor, mounting panel and screw rod fixed connection, two are passed in the pivot of motor the guide bar parallel arrangement is between the mounting panel and the roof of screw rod both sides, the sliding seat level set up and with screw rod threaded connection, the sliding seat slides with the guide bar and is connected, two the vertical fixed connection of push rod is in sliding seat upper surface both sides, the push rod can conflict and receive bits box bottom and make it rise.

Through adopting above-mentioned technical scheme, the motor drive screw rod rotates, sliding seat alright slide along screw rod length direction, the push rod alright in the fixing on the sliding seat in order to contradict and receive the bits box and go up and down.

The utility model discloses further set up to: the shell is provided with a forward rotation switch and a reverse rotation switch which are electrically connected with the motor.

By adopting the technical scheme, the scrap collecting box is convenient for workers to operate the motor to drive the scrap collecting box to lift.

The utility model discloses further set up to: the guide groove is characterized in that a normally closed travel switch is vertically arranged at the groove bottom of the guide groove, the normally closed travel switch is connected with the forward rotation switch in series, and the normally closed travel switch is in contact with the clamping block to be disconnected.

By adopting the technical scheme, when the scrap collecting box is pulled out of the guide groove, the normally closed travel switch is closed, the scrap collecting box below is lifted to the guide groove to continuously receive scraps, and the scraps are placed to fly out of the opening above the scrap collecting box.

The utility model discloses further set up to: and a guide inclined plane is arranged on one side of the clamping block facing the guide groove.

Through adopting above-mentioned technical scheme, can conveniently put into the receipts bits case with receiving the bits box from placing the board, the fixture block can compression spring, makes things convenient for the feeding to receive the bits case.

The utility model discloses further set up to: the side of the chip collecting box facing the side wall of the chip collecting box opening is provided with a handle.

By adopting the technical scheme, the force application is more convenient to hold when the scrap collecting box needs to be taken and placed.

The utility model discloses further set up to: a protective cover is arranged at the upper end of the casing, one side of the protective cover close to the handle is connected to the upper surface of the casing in a sliding mode, and a gap is reserved between the bottom end of the other side of the protective cover and the casing.

By adopting the technical scheme, the flying-out of the scraps from the upper part of the machine shell is prevented.

The utility model discloses further set up to: the surface of one side of the protective cover close to the handle is fixedly connected with a handle.

Through adopting above-mentioned technical scheme, the guard shield is better handheld application of force when the casing surface slides.

To sum up, the utility model discloses following beneficial effect has:

Firstly, the scraps are convenient to clean;

Secondly, the scrap collecting box is convenient to take and place;

Thirdly, the scrap can be well received when the scrap collecting box is taken and placed.

Drawings

FIG. 1 is a schematic view of the overall structure of the present embodiment;

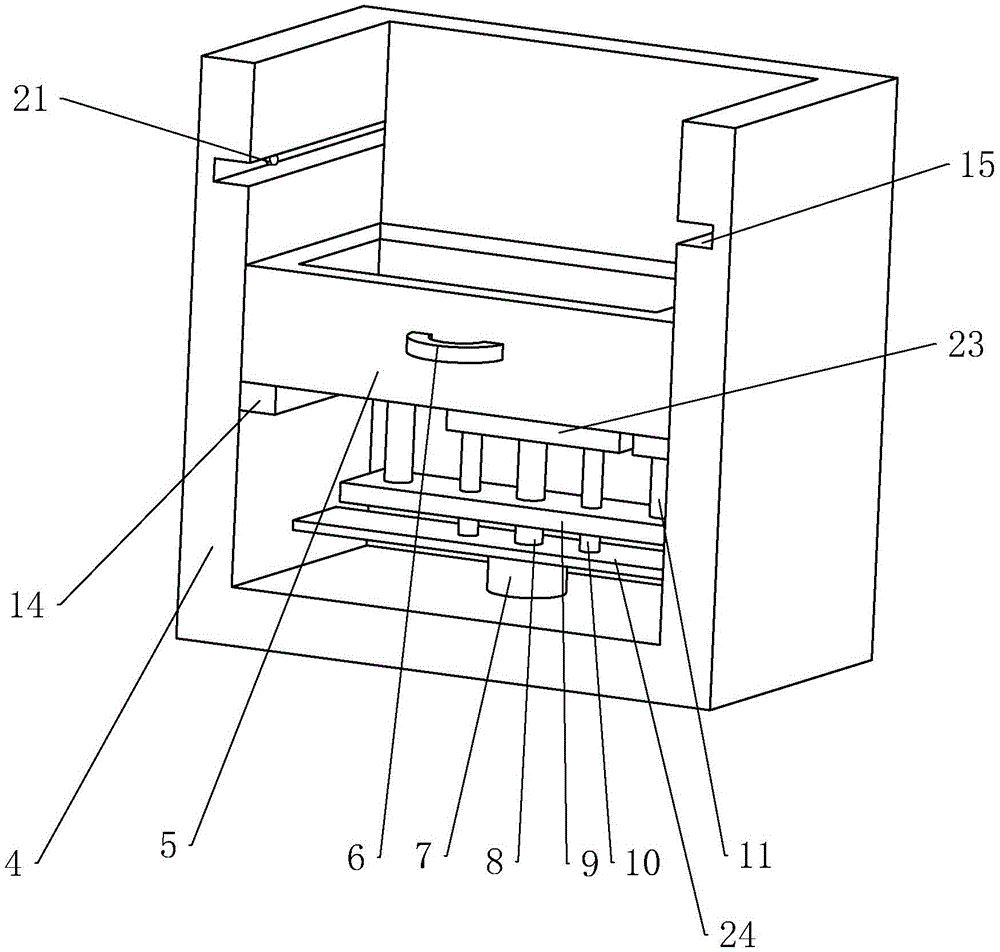

FIG. 2 is a schematic structural view of a scrap collecting box in the present embodiment;

FIG. 3 is a partial exploded view of the compact of this embodiment.

In the figure: 1. a housing; 2. a tool holder assembly; 3. a spindle assembly; 4. a scrap collecting box; 5. a scrap collecting box; 6. a handle; 7. a motor; 8. a screw; 9. a sliding seat; 10. a guide bar; 11. a push rod; 12. a shield; 13. a handle; 14. placing the plate; 15. a guide groove; 16. mounting grooves; 17. a spring; 18. a clamping block; 19. a forward rotation switch; 20. a reverse switch; 21. a normally closed travel switch; 22. a chip falling port; 23. a top plate; 24. mounting a plate; 25. a guide slope.

Detailed Description

The present invention will be described in detail with reference to the accompanying drawings and examples.

The utility model provides a walk a heart machine, refer to fig. 1, including casing 1, carry out the main shaft assembly 3 of centre gripping to the work piece, carry out the knife rest assembly 2 of cutting to the work piece, knife rest assembly 2 and main shaft assembly 3 all set up in the same one side of base, still include smear metal recovery unit, smear metal recovery unit is including being used for setting up receipts bits case 4 in casing 1 below, receive 4 upper portions of bits case and one side lateral wall opening settings, chip falling mouth 22 has been seted up at casing 1 upper surface middle part, it is provided with two receipts bits boxes 5 to receive interval horizontal slip about in the bits case 4, receive the equal upper end opening setting of bits box 5. The scraps produced by processing the workpiece fall from the scrap falling port 22 to the scrap collecting box 4 below, two scrap collecting boxes 5 for receiving the scraps are arranged in the scrap collecting box 4, the scrap collecting box 5 above needs to be taken out after being filled, and the scrap collecting box 5 below can continue to receive the scraps without stopping the machining operation of the core-moving machine.

Referring to fig. 1, further, a shield 12 is disposed at the upper end of the housing 1, one side of the shield 12 close to the handle 6 is slidably connected to the upper surface of the housing 1, and a gap is formed between the bottom end of the other side and the housing 1, so as to prevent the scraps from flying out of the housing 1 during the processing of the workpiece. A handle 13 is fixedly connected to one side surface of the shield 12 close to the handle 6, so that the shield 12 can be conveniently pushed to apply force by hand.

Referring to fig. 2 and 3, further, the guide grooves 15 have been seted up to the relative both sides wall average level in the receipts bits case 4 that is located the top, mounting groove 16 has been seted up to two relative lateral walls of receipts bits box 5, mounting groove 16 activity is pegged graft there is fixture block 18, horizontal interval is provided with a plurality of springs 17 in mounting groove 16, spring 17 one end fixed connection is at the tank bottom of mounting groove 16, other end fixed connection is on fixture block 18, the fixture block 18 of the receipts bits case 5 that is located the top slides and connects on guide grooves 15, the equal horizontal fixedly connected with of inside wall of two guide grooves 15 below places board 14, it is provided with the drive assembly that the receipts bits case 5 that promotes the below moved up to receive. After the upper chip collecting box 5 is filled, the chip collecting box 5 can be taken out along the guide groove 15, the driving assembly pushes the lower chip collecting box 5 to the upper part, the chip collecting box 5 is fixed in the guide groove 15 through the clamping block 18, and the situation that the lower chip collecting box 5 is far away from the chip falling opening 22 to cause flying of scraps is prevented.

Referring to fig. 2, specifically, the driving assembly includes a screw rod 8, a motor 7, a sliding seat 9, two guide rods 10 and two push rods 11, the mounting plate 24 and the top plate 23 are horizontally arranged at the lower part of the scrap collecting box 4 at intervals, the screw rod 8 is rotatably connected between the mounting plate 24 and the top plate 23, the motor 7 is vertically installed at the bottom of the scrap collecting box 4, a rotating shaft of the motor 7 penetrates through the mounting plate 24 and the screw rod 8 to be fixedly connected, the two guide rods 10 are parallelly arranged at two sides of the screw rod 8 and are vertically fixedly connected to the mounting plate 24, the sliding seat 9 is horizontally arranged and is in threaded connection with the screw rod 8, the sliding seat 9 is connected with the guide rods 10 in a sliding manner, the two push rods 11 are vertically fixedly connected to two sides of the upper surface of the sliding. The motor 7 drives the screw rod 8 to rotate, the sliding seat 9 in threaded connection with the screw rod 8 ascends along the guide rod 10 in the vertical direction, the push rods 11 on the two sides of the sliding seat 9 also push the scrap collecting box 5 to ascend, and when the upper scrap collecting box 5 is taken out, the lower scrap collecting box 5 can be lifted to the height of the guide groove 15.

Referring to fig. 1 and 2, further, a forward rotation switch 19 and a reverse rotation switch 20 electrically connected to the motor 7 are disposed on the housing 1, which facilitates control by a worker. A normally closed travel switch 21 is vertically arranged at the bottom of the guide groove 15, the normally closed travel switch 21 is connected with the forward rotation switch 19 in series, and the normally closed travel switch 21 is abutted and disconnected with the fixture block 18. After the upper chip collecting box 5 is fully taken out, the normally closed travel switch 21 is closed to enable the motor 7 to rotate forwards, the lower chip collecting box 5 begins to ascend, the clamping block 18 ascends to the position of the guide groove 15 and enters the installation groove 16 under the elastic force of the spring 17, the normally closed travel switch 21 is in contact with the clamping block 18 to be disconnected, the motor 7 stops rotating forwards, a worker cleans the fully loaded chip collecting box 4 and then presses the reverse rotation switch 20 to enable the motor 7 to rotate backwards, the push rod 11 descends along with the motor, the clamping blocks 18 on two sides of the unloaded chip collecting box 5 are compressed into the installation box, and then the mounting box slides along the placing plate 14 to be placed into the chip collecting box.

Referring to fig. 1 and 3, further, a guide inclined surface 25 is arranged on one side of the clamping block 18 facing the guide groove 15, and when the unloaded chip collecting box 5 is placed into the chip collecting box 4, the inclined surface is pressed, so that the spring 17 is compressed, the clamping block 18 enters the mounting groove 16, and the chip collecting box 5 is more conveniently placed into the chip collecting box 4. A handle 6 is arranged on one side, close to the box taking opening, of the scrap collecting wire box, so that the scrap collecting box 5 can be conveniently held by hand to apply force.

The implementation principle of the embodiment is as follows: the chip receiving box 5 can slide in the guide groove 15 through the elasticity of the spring 17 to the clamping block 18, and the spring 17 can be compressed when the chip receiving box 4 is placed along the placing plate 14, so that the clamping block 18 enters the mounting groove 16. When the upper scrap collecting box 4 is taken out after being filled with the scraps, the driving assembly can lift the lower scrap collecting box 5 to the position of the guide groove 15, and the clamping block 18 is clamped in the guide groove 15 to continuously receive the scraps.

It is above only the utility model discloses a preferred embodiment, the utility model discloses a scope of protection does not only confine above-mentioned embodiment, the all belongs to the utility model discloses a technical scheme under the thinking all belongs to the utility model discloses a scope of protection. It should be noted that, for those skilled in the art, various modifications and decorations can be made without departing from the principle of the present invention, and these modifications and decorations should also be regarded as the protection scope of the present invention.

Claims

1. A chip recovery device of a heart-walking machine is characterized in that: the scrap collecting box comprises a scrap collecting box (4) arranged below a machine shell (1), wherein the upper part and one side wall of the scrap collecting box (4) are provided with openings, a scrap falling opening (22) is formed in the middle of the upper surface of the machine shell (1), two scrap collecting boxes (5) are horizontally arranged in the scrap collecting box (4) at intervals, the upper ends of the scrap collecting boxes (5) are provided with openings, guide grooves (15) are horizontally formed in the two opposite side walls in the scrap collecting box (4) above, mounting grooves (16) are formed in the two opposite side walls of the scrap collecting boxes (5), clamping blocks (18) are movably inserted in the mounting grooves (16), a plurality of springs (17) are horizontally arranged in the mounting grooves (16) at intervals, one end of each spring (17) is fixedly connected to the bottom of each mounting groove (16), the other end of each spring is fixedly connected to each clamping block (18), the clamping blocks (18) of the scrap collecting boxes (5) above are connected to the guide, the inner side walls below the two guide grooves (15) are horizontally and fixedly connected with a placing plate (14), and a driving assembly for pushing the chip collecting box (5) below to move upwards is arranged at the bottom of the chip collecting box (4).

2. A chip recovery device for a heart-walking machine according to claim 1, characterized in that: the driving assembly comprises a screw rod (8), a motor (7), a sliding seat (9), two guide rods (10) and two push rods (11), a mounting plate (24) and a top plate (23) are arranged in the scrap collecting box (4), the mounting plate (24) and the top plate (23) are horizontally arranged at the lower part of the scrap collecting box (4) at intervals, the screw rod (8) is rotatably connected between the mounting plate (24) and the top plate (23), the motor (7) is vertically arranged at the bottom in the scrap collecting box (4), a rotating shaft of the motor (7) penetrates through the mounting plate (24) and the screw rod (8) to be fixedly connected, the two guide rods (10) are parallelly arranged between the mounting plate (24) and the top plate (23) on two sides of the screw rod (8), the sliding seat (9) is horizontally arranged and is in threaded connection with the screw rod (8), and the sliding seat (9) is connected with the guide rods (10) in a sliding manner, the two push rods (11) are vertically and fixedly connected to two sides of the upper surface of the sliding seat (9), and the push rods (11) can abut against the bottom of the scrap collecting box (5) to enable the scrap collecting box to ascend.

3. A chip recovery device for a heart-walking machine according to claim 2, characterized in that: the shell (1) is provided with a forward rotation switch (19) and a reverse rotation switch (20) which are electrically connected with the motor (7).

4. A chip recovery device for a heart-walking machine according to claim 3, characterized in that: the guide groove is characterized in that a normally closed travel switch (21) is vertically arranged at the bottom of the guide groove (15), the normally closed travel switch (21) is connected with the forward rotation switch (19) in series, and the normally closed travel switch (21) is abutted and disconnected with the clamping block (18).

5. A chip recovery device for a heart-walking machine according to claim 4, characterized in that: one side of the clamping block (18) facing the guide groove (15) is provided with a guide inclined surface (25).

6. A chip recovery device for a heart-walking machine according to claim 5, characterized in that: the side surface of the chip collecting box (5) facing the side wall of the opening of the chip collecting box (4) is provided with a handle (6).

7. A chip recovery device for a heart-walking machine according to claim 6, characterized in that: a protective cover (12) is arranged at the upper end of the machine shell (1), one side of the protective cover (12) close to the handle (6) is connected to the upper surface of the machine shell (1) in a sliding mode, and a gap is reserved between the bottom end of the other side and the machine shell (1).

8. A chip recovery device for a heart-walking machine according to claim 7, characterized in that: the surface of one side of the shield (12) close to the handle (6) is fixedly connected with a handle (13).
