Abstract

The utility model discloses an emulsification device for bacterin production, including the emulsification tank, a plurality of supporting legs are installed to the lower extreme of emulsification tank, agitator motor is installed to the upper end of emulsification tank, the inlet pipe is installed to the position that the upper end of emulsification tank is located the agitator motor both sides, agitator motor's output shaft is connected to in the emulsification tank and installs the (mixing) shaft, (mixing) shaft fixedly connected with bolt transport leaf, two baffles of middle part fixedly connected with of emulsification tank. The utility model discloses a spiral delivery leaf replaces traditional stirring leaf design, and resistance when can greatly reduced (mixing) shaft rotates is when emulsifying to liquid stirring, and required power is littleer, is favorable to reducing the manufacturing cost of enterprise, and through the mode that liquid upper and lower circulation turned, can avoid taking place the problem at stirring dead angle, is favorable to improving the homogeneity at emulsification.

Description

A emulsification device for bacterin production

Technical Field

The utility model relates to an emulsification equipment technical field especially relates to an emulsification device for bacterin production.

Background

In the field of vaccines or other chemical engineering, materials are often required to be emulsified, and the main body of the emulsifying device is a stirring mechanism, generally a motor drives a stirring blade to emulsify the materials;

and traditional mode through stirring leaf emulsification because the stirring leaf must have certain area for must have great power when the stirring of stirring leaf, also make because the area of stirring leaf is great, make the rolling resistance great, the consumption that causes is also great, is unfavorable for reducing the cost of enterprise's production.

SUMMERY OF THE UTILITY MODEL

The utility model aims at solving the problems in the prior art and providing an emulsifying device for vaccine production.

In order to achieve the above purpose, the utility model adopts the following technical scheme:

the utility model provides an emulsification device for bacterin production, includes the emulsification tank, a plurality of supporting legs are installed to the lower extreme of emulsification tank, agitator motor is installed to the upper end of emulsification tank, the inlet pipe is installed to the position that the upper end of emulsification tank is located the agitator motor both sides, agitator motor's output shaft installs the (mixing) shaft in the emulsification tank, (mixing) shaft fixedly connected with bolt conveying leaf, two baffles of middle part fixedly connected with of emulsification tank, two the through-hole has been seted up at the middle part of baffle, and the (mixing) shaft is located the through-hole, two install unloading mechanism with the middle part of (mixing) shaft jointly between the baffle, set up two unloading holes of symmetry on the baffle.

Preferably, unloading mechanism includes impeller, worm wheel and connecting seat, the middle part welding of (mixing) shaft has the worm wheel, two through the connecting seat of two symmetries of body of rod fixedly connected with between the baffle, two all be connected with the impeller through the axis body rotation on the connecting seat, the worm wheel meshing has the worm, the both ends of worm are connected with the axis body that the impeller corresponds.

Preferably, the (mixing) shaft is located two one sides that the baffle kept away from each other and is fixedly connected with go up agitator disk and agitator disk down respectively, go up a plurality of ribs of equal fixedly connected with on agitator disk and the agitator disk down, and agitator disk is greater than last agitator disk down, the both sides end of agitator disk all is equipped with the rib down.

Preferably, the impeller and the blanking hole are in the same line.

Preferably, the lower end of the emulsification tank is provided with a discharge ball valve.

Preferably, a bearing is installed at one end, corresponding to the impeller, of the inner wall of the emulsifying tank, and a shaft body corresponding to the impeller is in interference fit with an inner ring of the bearing.

Compared with the prior art, the utility model has the following benefits:

1. the utility model has the advantages that the spiral conveying blade replaces the traditional design of the stirring blade, the resistance of the stirring shaft during rotation can be greatly reduced, the required power is smaller during the stirring and emulsification of the liquid, the production cost of enterprises can be favorably reduced, and the problem of stirring dead angles can be avoided by the way of the up-and-down circulation and turning of the liquid, and the improvement of the uniformity of emulsification can be favorably realized;

2. through stirring the liquid of emulsion tank bottom down the agitator disk, avoid taking place bottom deposit phenomenon, through unloading mechanism for the impeller rotates along with the (mixing) shaft, can play acceleration effect to the liquid of whereabouts, plays simultaneously under the centrifugal force effect and smashes the effect, thereby improves stirring emulsification efficiency.

Drawings

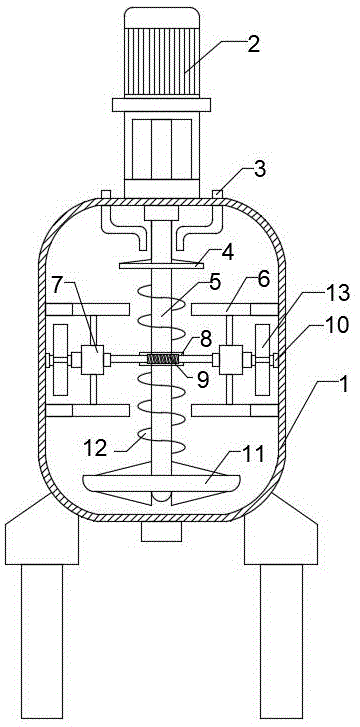

FIG. 1 is a schematic diagram of an emulsifying device for vaccine production according to the present invention;

FIG. 2 is a schematic view of a feed hole of an emulsifying device for vaccine production according to the present invention;

fig. 3 is a rib distribution diagram of an emulsifying device for vaccine production according to the present invention.

In the figure: 1 emulsification tank, 2 agitator motors, 3 inlet pipes, 4 upper stirring discs, 5 stirring shafts, 6 baffles, 7 connecting seats, 8 worm wheels, 9 worms, 10 bearings, 11 lower stirring discs, 12 bolt conveying blades, 13 impellers, 14 discharging holes and 15 ribs.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.

In the description of the present invention, it is to be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.

Referring to fig. 1-3, an emulsifying device for vaccine production comprises an emulsifying tank 1, a plurality of supporting legs are installed at the lower end of the emulsifying tank 1, a stirring motor 2 is installed at the upper end of the emulsifying tank 1, feeding pipes 3 are installed at positions, located at two sides of the stirring motor 2, of the upper end of the emulsifying tank 1, an output shaft of the stirring motor 2 is connected into the emulsifying tank 1 and provided with a stirring shaft 5, the stirring shaft 5 is fixedly connected with a bolt conveying blade 12, two baffle plates 6 are fixedly connected with the middle part of the emulsifying tank 1, through holes are formed in the middle parts of the two baffle plates 6, the stirring shaft 5 is located in the through holes, a blanking mechanism is installed between the two baffle plates 6 and in the middle part of the stirring shaft 5, two symmetrical blanking holes 14 are formed in the baffle plates 6, the blanking mechanism is used for accelerating the liquid falling from the blanking holes 14, and, the liquid falls through the blanking hole 14, so that the liquid is continuously and circularly turned over up and down, and the effect of stirring and emulsifying is achieved.

Unloading mechanism includes impeller 13, worm 9, worm wheel 8 and connecting seat 7, the middle part welding of (mixing) shaft 5 has worm wheel 8, connecting seat 7 through two symmetries of body of rod fixedly connected with between two baffles 6, all be connected with impeller 13 through the axis body rotation on two connecting seats 7, worm wheel 8 meshes has worm 9, the both ends of worm 9 are connected with the axis body that impeller 13 corresponds, drive worm wheel 8 and worm 9 through (mixing) shaft 5 and rotate, make two impeller 13 rotate simultaneously, and accelerate the liquid of unloading hole 14 whereabouts, thereby guarantee the efficiency that the liquid upper and lower circulation turned.

Stirring shaft 5 is located one side difference fixedly connected with that two baffles 6 keep away from each other and goes up agitator disk 4 and agitator disk 11 down, goes up a plurality of ribs 15 of equal fixedly connected with on agitator disk 4 and the agitator disk 11 down, and agitator disk 11 is greater than agitator disk 4 down, and the both sides end of agitator disk 11 all is equipped with rib 15 down for agitator disk 11 can stir the part of 1 bottom in emulsification tank down, avoids taking place bottom deposition phenomenon. The impeller 13 is in the same straight line with the blanking hole 14, and the impeller 13 can accelerate the liquid falling from the blanking hole 14. The lower end of the emulsification tank 1 is provided with a discharging ball valve. The bearing 10 is installed to the one end that corresponds impeller 13 on the inner wall of emulsification tank 1, and the axis body interference fit that impeller 13 corresponds makes impeller 13's the other end obtain supporting on the bearing 10 inner ring to guarantee impeller 13's rotation flexibility.

During the use, the material gets into from inlet pipe 3, it rotates to drive (mixing) shaft 5 through agitator motor 2, thereby make spiral stirring leaf play the transport effect, here, when (mixing) shaft 5 rotates, drive liquid rebound, the direction of delivery of accessible spiral stirring leaf decides, thereby make liquid carry one side of 6 upper ends of baffle, then liquid falls through unloading hole 14 again naturally, simultaneously (mixing) shaft 5 when rotating, it rotates to drive worm 9 through worm wheel 8, make two impeller 13 begin to rotate simultaneously, can fall with higher speed the liquid of unloading hole 14 whereabouts, the direction of rotation accessible worm wheel 8's of this place impeller 13 screw direction decides, make liquid constantly upwards move downwards again, play the effect of stirring.

The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.

Claims

1. An emulsifying device for vaccine production, which comprises an emulsifying tank (1) and is characterized in that, a plurality of supporting legs are arranged at the lower end of the emulsifying tank (1), a stirring motor (2) is arranged at the upper end of the emulsifying tank (1), the upper end of the emulsifying tank (1) is provided with a feeding pipe (3) at the position at the two sides of the stirring motor (2), an output shaft of the stirring motor (2) is connected to the inside of the emulsifying tank (1) and is provided with a stirring shaft (5), the stirring shaft (5) is fixedly connected with a bolt conveying blade (12), the middle part of the emulsifying tank (1) is fixedly connected with two baffles (6), the middle parts of the two baffles (6) are provided with through holes, and the stirring shaft (5) is positioned in the through hole, two blanking mechanisms are jointly arranged between the baffles (6) and in the middle of the stirring shaft (5), and two symmetrical blanking holes (14) are formed in the baffles (6).

2. The emulsifying device for vaccine production according to claim 1, wherein the blanking mechanism comprises an impeller (13), a worm (9), a worm wheel (8) and connecting seats (7), the worm wheel (8) is welded in the middle of the stirring shaft (5), two symmetrical connecting seats (7) are fixedly connected between the baffles (6) through a rod body, the two connecting seats (7) are rotatably connected with the impeller (13) through a shaft body, the worm wheel (8) is meshed with the worm (9), and two ends of the worm (9) are connected with the shaft body corresponding to the impeller (13).

3. The emulsifying device for vaccine production according to claim 1, wherein the stirring shaft (5) is located at one side of the two baffles (6) away from each other and is fixedly connected with an upper stirring disc (4) and a lower stirring disc (11), the upper stirring disc (4) and the lower stirring disc (11) are fixedly connected with a plurality of ribs (15), the lower stirring disc (11) is larger than the upper stirring disc (4), and the two side ends of the lower stirring disc (11) are provided with the ribs (15).

4. An emulsifying device for vaccine production according to claim 2, characterized in that the impeller (13) is in line with the discharge orifice (14).

5. An emulsifying device for vaccine production according to claim 1, characterized in that the lower end of the emulsifying tank (1) is equipped with a discharge ball valve.

6. The emulsifying device for vaccine production according to claim 2, wherein a bearing (10) is installed on the inner wall of the emulsifying tank (1) at one end corresponding to the impeller (13), and the shaft body corresponding to the impeller (13) is in interference fit with the inner ring of the bearing (10).
