Textile workshop air purification equipment for collecting waste silk
Technical Field
The utility model relates to a weaving workshop technical field specifically is a collect weaving workshop air purification equipment of silk waste.
Background
The original textile meaning is a general name taken from spinning and weaving, but with the continuous development and perfection of a textile knowledge system and a subject system, particularly after non-woven textile materials and three-dimensional compound weaving and other technologies are produced, the existing textile is not only traditional hand spinning and weaving, but also comprises non-woven fabric technology, modern three-dimensional weaving technology, modern electrostatic nano-net forming technology and other produced textiles for clothing, industry and decoration, and used waste silk in a workshop can be collected after the work of the existing textile workshop is finished, so that the effect of cleaning the environment in the workshop is achieved.
And current weaving workshop can raise the dust in the air at the in-process of collecting the silk waste, can cause the influence by the inside environment in workshop like this, and weaving workshop is inside can reduce the dust influence through air purification, but current air purification equipment is not high at the in-process work efficiency who purifies the dust, can not satisfy the user demand in weaving workshop.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
The utility model provides a not enough to prior art, the utility model provides a collect weaving workshop air purification equipment of silk waste possesses can improve weaving workshop and can improve advantages such as purifying effect to the dust collecting the silk waste in-process, and it is not high to have solved current air purification equipment at the in-process work efficiency who purifies the dust, can not satisfy the problem of weaving workshop user demand.
(II) technical scheme
For the purpose that realizes above-mentioned air purification equipment and improve work efficiency, the utility model provides a following technical scheme: a spinning workshop air purification device for collecting waste silk comprises an air purification device main body, wherein a water tank is fixedly mounted on one side of the outer wall of the air purification device main body, a water inlet pipe is arranged at the top of the water tank and penetrates through the inside of the water tank, the top of the water inlet pipe is connected with the input end of a water pump, the output end of the water pump is connected with the bottom of one side of a water supply pipe close to the water pump, the bottom of one side of the water supply pipe far away from the water pump is connected with the top of a storage pipe and penetrates through the inside of the air purification device main body, a nozzle is mounted at the bottom of the storage pipe, a water outlet plate is mounted in the air purification device main body, a water outlet is arranged on one side of the water outlet plate close to the water tank and is mounted on the outer wall of the air purification device main body, the bottom of filter layer is provided with the filter screen and installs the inner wall in the air purification equipment main part, the bottom of filter screen is provided with the breathing pipe, one side that the nearly water tank of breathing pipe runs through the inner wall of air purification equipment main part and is connected with the aspirator, one side that the air purification equipment main part is far away from to the aspirator is connected with the gas outlet, the observation window is installed to the outer wall of air purification equipment main part.
Preferably, an air inlet is installed on one side of the air purification equipment main body far away from the water tank, and the air inlet is horn-shaped.
Preferably, the outer wall of the air purification equipment main body far away from the water tank side is provided with a connecting shaft, and the top and the bottom of the air purification equipment main body are rotatably connected through the connecting shaft.
Preferably, the fixed block is all installed at the top and the bottom of the nearly water tank one side outer wall of air purification equipment main part, and two fixed block inside run through have the gim peg.
Preferably, the bottom of air purification equipment main part is installed the mount, and the four corners department of mount bottom all is connected with the universal wheel.
Preferably, eight nozzles are installed at the bottom of the storage pipe, and the eight nozzles are in an inverted tower shape.
Preferably, the material of filter layer is active carbon, and the filter layer has a plurality of filtration mouths of wearing through from top to bottom.
Third, beneficial effect
Compared with the prior art, the utility model provides a collect weaving workshop air purification equipment of silk waste possesses following beneficial effect:
1. this collect weaving workshop air purification equipment of silk waste, use through the mutual cooperation of memotron, flow pipe, water pump, inlet tube, water tank, play water board, delivery port and spout, spray the dust through the spout to air purification equipment main part is inside and purify, can filter for the first time gas like this to can improve the inside filtering capability to the dust of air purification equipment main part.
2. This collect weaving workshop air purification equipment of silk waste can flow the water that sprays out from the spout through the delivery port through going out the water board, because it is like left lower extreme slope form to go out the water board, conveniently goes the inside discharge of air purification equipment main part like this, can not influence the normal use of air purification equipment main part.
3. This collect weaving workshop air purification equipment of silk waste can play secondary filter's effect to the dust through the filter layer, is provided with a plurality of filtration mouths on the filter layer, and gaseous just so can be through the filtration mouth downwards, filters gas according to the active carbon material of filter layer simultaneously to reach the work efficiency who improves the air purification equipment main part.
Drawings

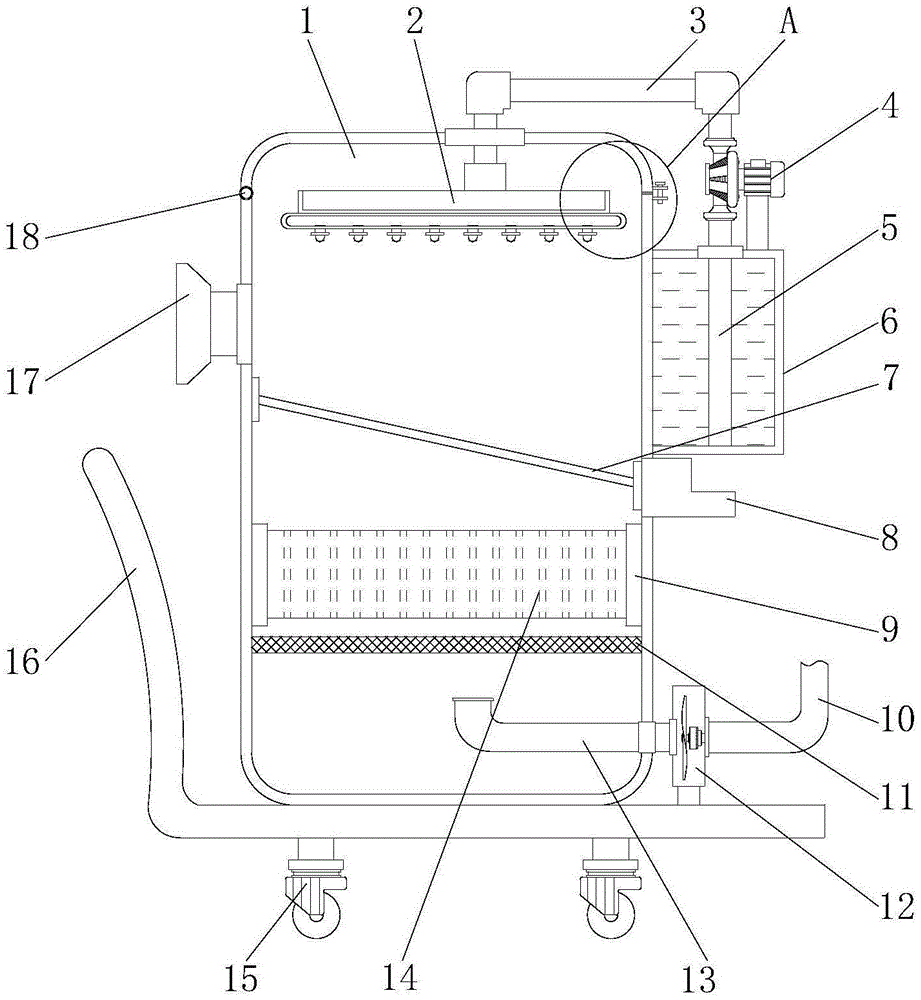

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic view of the structure of the filter layer of the present invention;
fig. 3 is a front view of the present invention;
fig. 4 is an enlarged view of a portion a in fig. 1 according to the present invention.
In the figure: 1. an air cleaning apparatus main body; 2. a storage tube; 3. a water supply pipe; 4. a water pump; 5. a water inlet pipe; 6. a water tank; 7. a water outlet plate; 8. a water outlet; 9. a fixing plate; 10. an air outlet; 11. a filter screen; 12. an aspirator; 13. an air intake duct; 14. a filter layer; 15. a universal wheel; 16. a fixed mount; 17. an air inlet; 18. a connecting shaft; 19. a filter port; 20. an observation window; 21. a fixing bolt; 22. a fixed block; 23. and (4) a nozzle.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-4, an air purification device for a textile workshop for collecting waste filaments comprises an air purification device main body 1, a water tank 6 is fixedly installed on one side of the outer wall of the air purification device main body 1, an air inlet 17 is installed on one side of the air purification device main body 1 far from the water tank 6, the air inlet 17 is horn-shaped, a connecting shaft 18 is installed on the outer wall of one side of the air purification device main body 1 far from the water tank 6, and the top and the bottom of the air purification device main body 1 are rotatably connected through the connecting shaft 18, so that the interior of the air purification device main body 1 can be opened, the interior of the air purification device main body 1 can be conveniently overhauled and cleaned, fixed blocks 22 are installed on the top and the bottom of the outer wall of the air purification device main body 1 near to the water tank 6, fixing bolts 21 penetrate through the interiors of the two fixed blocks 22, thus, the fixing bolts 21 simultaneously penetrate through the through holes on the two fixing bolts 21 to fix the outside of the air purification equipment main body 1, the fixing frame 16 is installed at the bottom of the air purification equipment main body 1, the four corners at the bottom of the fixing frame 16 are connected with the universal wheels 15, 4 universal wheels 15 are installed at the bottom of the fixing frame 16, the fixing frame 16 can be moved by the universal wheels 15, the position of the air purification equipment main body 1 is convenient to move, the top of the water tank 6 is provided with the water inlet pipe 5 which penetrates through the inside of the water tank 6, the top of the water inlet pipe 5 is connected with the input end of the water pump 4, the output end of the water pump 4 is connected with the bottom of one side of the water supply pipe 3 close to the water pump 4, the bottom of one side of the water supply pipe 3 far away from the water pump 4 is connected with the top of the storage pipe 2 by penetrating through the, the eight nozzles 23 are inverted tower-shaped, gas can be uniformly sprayed through the eight nozzles 23 at the bottom of the storage pipe 2, so that the working efficiency is improved, the water outlet plate 7 is arranged inside the air purification equipment main body 1, one side of the water outlet plate 7, which is close to the water tank 6, is provided with the water outlet 8, which is arranged on the outer wall of the air purification equipment main body 1, the dust is sprayed and purified through the nozzles 23 inside the air purification equipment main body 1 through the storage pipe 2, the water supply pipe 3, the water pump 4, the water inlet pipe 5, the water tank 6, the water outlet plate 7, the water outlet 8 and the nozzles 23 which are mutually matched for use, so that the gas can be filtered for the first time, the filtering function of the dust inside the air purification equipment main body 1 can be improved, the water sprayed from the nozzles 23 can flow out through the water outlet 8 through the water outlet plate 7, and the water outlet plate 7, therefore, the air purification equipment main body 1 can be conveniently discharged, the normal use of the air purification equipment main body 1 cannot be influenced, the bottom of the water outlet plate 7 is provided with the filter layer 14 which is arranged inside the air purification equipment main body 1, two sides of the filter layer 14 are provided with the fixing plates 9 which are fixedly arranged on the inner side wall of the filter layer 14, the filter layer 14 is made of active carbon, the filter layer 14 penetrates through the filter layer 14 from top to bottom and is provided with a plurality of filter openings 19, gas can be filtered out through the filter openings 19, the secondary filtration of the gas is completed, the bottom of the filter layer 14 is provided with the filter screen 11 which is arranged on the inner wall of the air purification equipment main body 1, the dust can be secondarily filtered through the filter layer 14, the filter layer 14 is provided with a plurality of filter openings 19, the gas can be discharged downwards through the filter openings 19, and can be filtered according to the active carbon, therefore, the working efficiency of the air purification equipment main body 1 is improved, the air suction pipe 13 is arranged at the bottom of the filter screen 11, one side, close to the water tank 6, of the air suction pipe 13 penetrates through the inner wall of the air purification equipment main body 1 and is connected with the air suction machine 12, one side, far away from the air purification equipment main body 1, of the air suction machine 12 is connected with the air outlet 10, and the observation window 20 is installed on the outer wall of the air purification equipment main body 1.
The electrical components presented in the document are all electrically connected with an external master controller and 220V mains, and the master controller can be a conventional known device controlled by a computer or the like.
When the air purification device is used, the water pump 4 is started, the water pump 4 flows water from the inside of the water tank 6 to the inside of the water supply pipe 3 through the water inlet pipe 5, meanwhile, the collected waste gas enters the inside of the air purification device main body 1 from the air inlet 17, at the moment, the water in the water supply pipe 3 flows into the storage pipe 2 and is sprayed downwards through the nozzle 23 at the bottom, the gas is filtered by the water, the filtered water is discharged outwards through the water outlet plate 7, the water is discharged into the water outlet 8 through the water outlet plate 7 due to the fact that the water outlet plate 7 is inclined towards the left lower end, the water is discharged out of the air purification device main body 1, whether the water in the water is completely discharged is observed through the observation window 20, the water outlet plate 7 can be moved after the water is completely discharged, the air aspirator 12 is started again, the air aspirator 12 moves the gas sprayed by the water downwards through the air suction pipe 13, therefore, the gas can pass through the filter layer 14 in the downward moving process, the filter layer 14 is made of activated carbon, the gas can be secondarily filtered by the activated carbon in the downward moving process through the filter opening 19, the solid material in the gas is sieved out through the filter screen 11 after the filtering is finished, the gas can flow into the gas outlet 10 through the gas suction pipe 13, and then the gas flows into the outside of the air purification device main body 1, and the working principle of the textile workshop air purification device for collecting waste filaments is completed.
To sum up, this collect weaving workshop air purification equipment of silk has reached and has improved air purification equipment to gaseous purifying effect, has solved the not high problem of general air purification equipment purification efficiency, satisfies the user demand in weaving workshop.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims (7)

1. The utility model provides a collect weaving workshop air purification equipment of silk waste, includes air purification equipment main part (1), its characterized in that: one side fixed mounting of air purification equipment main part (1) outer wall has water tank (6), the top of water tank (6) is provided with inlet tube (5) and runs through the inside of water tank (6), the top of inlet tube (5) is connected with the input of water pump (4), the output of water pump (4) is connected with one side bottom that water supply pipe (3) is nearly water pump (4), one side bottom of water supply pipe (3) far away water pump (4) is connected and runs through the inside top of air purification equipment main part (1) and storage tube (2) and is connected, spout (23) are installed to the bottom of storage tube (2), the internally mounted of air purification equipment main part (1) has a water board (7), one side that water board (7) is nearly water tank (6) is provided with delivery port (8) and installs the outer wall in air purification equipment main part (1), the bottom of water board (7) is provided with filter layer (14) and installs the bottom in air purification equipment main part (1) Inside, the both sides of filter layer (14) are provided with fixed plate (9) fixed mounting at filter layer (14) inside wall, the bottom of filter layer (14) is provided with filter screen (11) and installs the inner wall in air purification equipment main part (1), the bottom of filter screen (11) is provided with breathing pipe (13), the inner wall that air purification equipment main part (1) was run through to one side of the nearly water tank (6) of breathing pipe (13) is connected with aspirator (12), one side and gas outlet (10) of air purification equipment main part (1) are far away in aspirator (12) are connected, observation window (20) are installed to the outer wall of air purification equipment main part (1).
2. The textile workshop air purification device for collecting waste silk according to claim 1, characterized in that: an air inlet (17) is installed on one side of the air purification equipment main body (1) far away from the water tank (6), and the air inlet (17) is horn-shaped.
3. The textile workshop air purification device for collecting waste silk according to claim 1, characterized in that: the outer wall of one side of the air purification equipment main body (1) far away from the water tank (6) is provided with a connecting shaft (18), and the top and the bottom of the air purification equipment main body (1) are rotatably connected through the connecting shaft (18).
4. The textile workshop air purification device for collecting waste silk according to claim 1, characterized in that: fixed blocks (22) are installed at the top and the bottom of the outer wall of the air purification equipment main body (1) close to one side of the water tank (6), and fixing bolts (21) penetrate through the inside of the two fixed blocks (22).
5. The textile workshop air purification device for collecting waste silk according to claim 1, characterized in that: the air purification equipment is characterized in that a fixing frame (16) is installed at the bottom of the air purification equipment main body (1), and the four corners of the bottom of the fixing frame (16) are connected with universal wheels (15).
6. The textile workshop air purification device for collecting waste silk according to claim 1, characterized in that: eight spouts (23) are installed to the bottom of storage tube (2), and eight spouts (23) are the form of falling tower.
7. The textile workshop air purification device for collecting waste silk according to claim 1, characterized in that: the material of filter layer (14) is active carbon, and filter layer (14) is run through from top to bottom has a plurality of filtration mouths (19).
