The utility model discloses a fixed correction equipment of orthopedics nursing, including nursing bed main part, nursing bed main part includes upper portion backup pad, middle part backup pad and lower part backup pad, the inside of upper portion backup pad, middle part backup pad and lower part backup pad all is provided with the recess, the baffle is all installed to the both sides of upper portion backup pad upper surface, the lower surface mounting of upper portion backup pad has first cylinder, the middle part backup pad is installed to the one end of upper portion backup pad, the handrail is all installed to the both sides of middle part backup pad upper surface, the rotation axis is installed to the one end of middle part backup pad, middle part backup pad and lower part backup pad pass through the rotation axis. The utility model combines the arc-shaped correction plate and the movable baffle, the movable baffle is removed when the medicine is applied, the nylon rope is tightly buckled with the retaining ring, and the affected limb is conveniently lifted when the medicine is applied to the patient; and can be effectual fix the patient wound and correct through mobilizable bracing piece that has the nylon rope of hanging, remove it when convenient not using, do not influence patient's daily life.
Description
Technical Field
The utility model relates to an orthopedics nursing dress technical field specifically is a fixed correction equipment of orthopedics nursing.
Background
With the rapid development of socioeconomic, orthopedic patients often need to change their dressing after surgery to accelerate the treatment rate and relieve the pain of the patients. When changing dressings, medical personnel generally lift up the affected limb of patient or place on interim article to fully expose the surface of a wound, generally when changing dressings like this, need the patient to take comfortable position, then help through a plurality of medical personnel to hold the affected limb in order to make things convenient for the doctor to change dressings, multiple necessary demand when this kind of method can not satisfy medical personnel to the patient well and change dressings, thereby delay going on of treatment, increased very big work degree of difficulty for nursing staff.
However, the existing orthopedic nursing device cannot quickly and conveniently lift the affected limb of the patient, so that the patient is inconvenient to take medicine, and cannot be seated conveniently and effectively fixed and corrected when the patient is in bed; therefore, the existing requirements are not met, and an orthopedic nursing fixing and correcting device is provided for the existing requirements.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a fixed correction equipment of orthopedics nursing to solve the current orthopedics nursing device that proposes in the above-mentioned background art, unable swift and convenient lifts up patient's affected limb, and inconvenient medicine loading, and the patient is when bed, sits inconveniently, unable effectual correction scheduling problem of fixing.
In order to achieve the above object, the utility model provides a following technical scheme: the orthopedic nursing fixing and correcting equipment comprises a nursing bed main body, wherein the nursing bed main body comprises an upper supporting plate, a middle supporting plate and a lower supporting plate, grooves are formed in the upper supporting plate, the middle supporting plate and the lower supporting plate, baffles are arranged on two sides of the upper surface of the upper supporting plate, a first air cylinder is arranged on the lower surface of the upper supporting plate, the middle supporting plate is arranged at one end of the upper supporting plate, handrails are arranged on two sides of the upper surface of the middle supporting plate, a rotating shaft is arranged at one end of the middle supporting plate, the middle supporting plate and the lower supporting plate are connected through the rotating shaft, a moving baffle is arranged in the lower supporting plate, a T-shaped limiting groove is formed in the lower supporting plate, the moving baffle is connected with the T-shaped limiting groove through a T-shaped sliding block, and an arc, the inside of board is corrected to the arc is provided with the spring, the buckle is installed on the top of spring, the lower surface mounting of lower part backup pad has the bottom support, the second cylinder is installed to the below of lower part backup pad, the head of a bed support is installed to the below of nursing bed main part, the support is installed to the bottom of head of a bed support, the bottom plate is installed to the below of support, the lower surface mounting of bottom plate has the universal wheel, the bracing piece is installed to the top of nursing bed main part, the gyro wheel is installed on the top of bracing piece, the nylon rope is installed to the below of gyro wheel.
Adopt above-mentioned technical scheme, through the combination of arc correction board and movable baffle, remove movable baffle during the medicine feeding, with nylon rope and buckle straining, correct the board slowly to hoist with the arc through the buckle, make the arc correct the board and leave lower part backup pad and rise upwards, slowly hang the affected limb, make things convenient for medical personnel to go up medicine, and can effectually fix the patient wound, through the mobilizable bracing piece that has nylon rope of hanging, conveniently put aside the bracing piece when not using, do not influence patient's daily life, the spring of buckle bottom installation, can press down the buckle when not using, when taking out movable baffle, the buckle can pop out, facilitate the use.
Preferably, one end of the middle support plate is completely attached to the outer surface of the rotating shaft, the middle support plate is connected with the rotating shaft through a hinge, and the lower support plate is connected with the rotating shaft through a hinge.
By adopting the technical scheme, the middle supporting plate 10 is connected with the rotating shaft 16 through a hinge, and the lower supporting plate 11 is connected with the rotating shaft 16 through a hinge, so that the connection is more stable and the rotation is convenient.
Preferably, the bottom of bracing piece is installed the universal wheel, the universal wheel passes through the buckle with the bracing piece and fixes.
Adopt above-mentioned technical scheme, universal wheel 13 passes through the buckle with bracing piece 9 to be fixed, and convenient the removal, and can support bigger weight.
Preferably, the upper support plate and the middle support plate are connected by a rotating shaft.
By adopting the technical scheme, the upper supporting plate and the middle supporting plate are convenient to rotate by using the rotating shaft for fixing.
Preferably, the bottom end of the roller is provided with a fixed block, and the roller is connected with the supporting rod through the fixed block.
By adopting the technical scheme, the device is more stably connected through the fixing mode of connecting the fixing blocks.
Preferably, one end of the support is completely attached to one end of the bottom plate, and the support and the bottom plate are fixed through welding.
By adopting the technical scheme, the device can resist larger acting force in a welding and fixing mode.
Preferably, the lower surface of the retaining ring is completely attached to the top end of the spring, and the retaining ring is connected with the spring through welding.
By adopting the technical scheme, the device can conveniently stretch and move in a welding connection mode.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the utility model combines the arc correction plate and the movable baffle, the movable baffle is removed when medicine is administered, the nylon rope is tightly fastened with the retaining ring, the arc correction plate is slowly hoisted by the retaining ring, so that the arc correction plate leaves the lower support plate and is lifted upwards, and the affected limb is slowly hoisted, thereby facilitating the administration of medicine by medical staff;
2. the utility model discloses a mobilizable bracing piece that has the nylon rope of hanging puts aside the bracing piece when conveniently not using, does not influence patient's daily life, and the spring of buckle bottom installation can be pressed down the buckle when not using, when taking out the movable baffle, and the buckle can pop out, facilitates the use.
Drawings

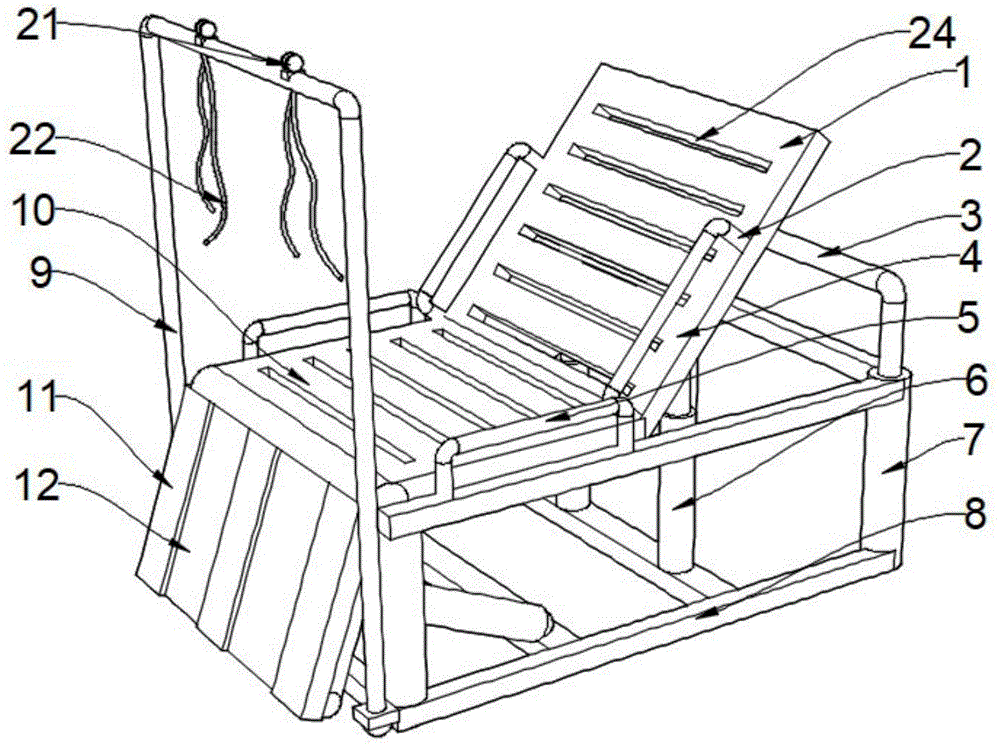

Fig. 1 is a schematic overall structure diagram of the present invention;
fig. 2 is a side view of the utility model in its entirety;
FIG. 3 is a schematic view of a partial structure of the lower support plate of the present invention;
FIG. 4 is a schematic view of a partial structure of the buckle of the present invention;
fig. 5 is a schematic view of a partial structure of the T-shaped slider according to the present invention.
In the figure: 1. a nursing bed main body; 2. a baffle plate; 3. a bedside support; 4. an upper support plate; 5. a handrail; 6. a first cylinder; 7. a support; 8. a base plate; 9. a support bar; 10. a middle support plate; 11. a lower support plate; 12. moving the baffle; 13. a universal wheel; 14. a bottom bracket; 15. a second cylinder; 16. a rotating shaft; 17. an arc straightening plate; 18. a retaining ring; 19. a T-shaped limiting groove; 20. a T-shaped slider; 21. a roller; 22. a nylon cord; 23. a spring; 24. and (4) a groove.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
Referring to fig. 1-5, the present invention provides an embodiment: an orthopedic nursing fixing and correcting device comprises a nursing bed main body 1, wherein the nursing bed main body 1 comprises an upper supporting plate 4, a middle supporting plate 10 and a lower supporting plate 11, grooves 24 are respectively arranged inside the upper supporting plate 4, the middle supporting plate 10 and the lower supporting plate 11, baffles 2 are respectively arranged on two sides of the upper surface of the upper supporting plate 4, a first air cylinder 6 is arranged on the lower surface of the upper supporting plate 4, the middle supporting plate 10 is arranged at one end of the upper supporting plate 4, handrails 5 are respectively arranged on two sides of the upper surface of the middle supporting plate 10, a rotating shaft 16 is arranged at one end of the middle supporting plate 10, the middle supporting plate 10 and the lower supporting plate 11 are connected through the rotating shaft 16, a movable baffle 12 is arranged inside the lower supporting plate 11, a T-shaped limiting groove 19 is arranged inside the lower supporting plate 11, the, an arc correction plate 17 is arranged below the movable baffle 12, which can effectively fix and correct the wound of a patient, a spring 23 is arranged inside the arc correction plate 17, a retaining ring 18 is arranged at the top end of the spring 23, it hangs slowly to rectify board 17 with the arc through buckle 18 for board 17 is rectified to the arc leaves lower part backup pad 11 and rises upwards, slowly hang the affected limb, make things convenient for medical personnel to go up medicine, the lower surface mounting of lower part backup pad 11 has bottom support 14, second cylinder 15 is installed to the below of lower part backup pad 11, nursing bed main part 1's below is installed head of a bed support 3, support 7 is installed to head of a bed support 3's bottom, bottom plate 8 is installed to the below of support 7, the lower surface mounting of bottom plate 8 has universal wheel 13, bracing piece 9 is installed to nursing bed main part 1's top, gyro wheel 21 is installed on the top of bracing piece 9, nylon rope 22 is installed to the below of gyro wheel 21.
Specifically, as shown in fig. 1 and 2, one end of the middle support plate 10 is completely attached to the outer surface of the rotation shaft 16, the middle support plate 10 is hinged to the rotation shaft 16, and the lower support plate 11 is hinged to the rotation shaft 16.
By adopting the above technical scheme, the middle support plate 10 is hinged with the rotating shaft 16, and the lower support plate 11 is hinged with the rotating shaft 16, so that the connection is more stable and the rotation is convenient.
Specifically, as shown in fig. 1, a universal wheel 13 is mounted at the bottom end of the support rod 9, and the universal wheel 13 is fixed to the support rod 9 through a buckle.
Through adopting above-mentioned technical scheme, universal wheel 13 passes through the buckle with bracing piece 9 and fixes, and convenient the removal, and can support bigger weight.
Specifically, as shown in fig. 1, the upper support plate 4 is connected to the middle support plate 10 through a rotation shaft.
By adopting the above technical scheme, the upper support plate 4 and the middle support plate 10 are conveniently rotated by using the rotation shaft for fixing.
Specifically, as shown in fig. 1, a fixing block is installed at the bottom end of the roller 21, and the roller 21 is connected to the support rod 9 through the fixing block.
Through adopting above-mentioned technical scheme, through the fixed mode that the fixed block is connected for the device connects more stably.
Specifically, as shown in fig. 2, one end of the bracket 7 completely fits one end of the bottom plate 8, and the bracket 7 and the bottom plate 8 are fixed by welding.
Through adopting above-mentioned technical scheme, through the mode of welded fastening for the device can resist bigger effort.
Specifically, as shown in fig. 3, the lower surface of the snap ring 18 completely abuts against the top end of the spring 23, and the snap ring 18 and the spring 23 are connected by welding.
Through adopting above-mentioned technical scheme, through welded connection's mode for the convenient flexible removal of the device.
The working principle is as follows: when the device is used, the support rod 9 is pushed, the universal wheel 13 drives the support rod 9 to move to a specified position, the nylon rope 22 surrounding the roller 21 is pulled out, the movable baffle plate 12 is pulled out, the buckle 18 connected with the spring 23 is popped out, the nylon rope 22 is connected with the buckle 18, the roller 21 rotates to wind the nylon rope 22, the arc correction plate 17 is slowly hoisted through the buckle 18, the arc correction plate 17 is lifted upwards away from the lower support plate 11 to slowly hoist the affected limb, thereby facilitating the medicine application of medical personnel, after the medicine change is finished, the injury of a patient can be fixed and corrected through the arc correction plate 17, or the arc correction plate 17 is moved to the specified position, after the arc correction plate 17 is tightly clamped with the lower support plate 11, the nylon rope 22 is untied, the movable baffle plate 12 is inserted back to the original position through the T-shaped limiting groove 19, when the patient wants to sit up, the first air cylinder 6 and the second air cylinder 15 respectively push the upper support plate 4 and the lower support plate, the patient is allowed to find a comfortable posture.
It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
Claims (7)
1. The utility model provides a fixed correction equipment of orthopedics nursing, includes nursing bed main part (1), its characterized in that: the nursing bed main body (1) comprises an upper supporting plate (4), a middle supporting plate (10) and a lower supporting plate (11), wherein grooves (24) are formed in the upper supporting plate (4), the middle supporting plate (10) and the lower supporting plate (11), baffles (2) are arranged on two sides of the upper surface of the upper supporting plate (4), a first air cylinder (6) is arranged on the lower surface of the upper supporting plate (4), the middle supporting plate (10) is arranged at one end of the upper supporting plate (4), handrails (5) are arranged on two sides of the upper surface of the middle supporting plate (10), a rotating shaft (16) is arranged at one end of the middle supporting plate (10), the middle supporting plate (10) and the lower supporting plate (11) are connected through the rotating shaft (16), and a movable baffle (12) is arranged inside the lower supporting plate (11), the inside of lower part backup pad (11) is provided with T shape spacing groove (19), movable baffle (12) are connected through T shape slider (20) with T shape spacing groove (19), arc correction plate (17) are installed to the below of movable baffle (12), the inside of arc correction plate (17) is provided with spring (23), buckle (18) are installed on the top of spring (23), the lower surface mounting of lower part backup pad (11) has bottom support (14), second cylinder (15) are installed to the below of lower part backup pad (11), bedside support (3) are installed to the below of nursing bed main part (1), support (7) are installed to the bottom of bedside support (3), bottom plate (8) are installed to the below of support (7), the lower surface mounting of bottom plate (8) has universal wheel (13), bracing piece (9) are installed to the top of nursing bed main part (1), the top of bracing piece (9) is installed gyro wheel (21), nylon rope (22) are installed to the below of gyro wheel (21).
2. The orthopedic care fixation and correction device of claim 1, wherein: one end of the middle supporting plate (10) is completely attached to the outer surface of the rotating shaft (16), the middle supporting plate (10) is connected with the rotating shaft (16) through a hinge, and the lower supporting plate (11) is connected with the rotating shaft (16) through a hinge.
3. The orthopedic care fixation and correction device of claim 1, wherein: the universal wheel (13) is installed to the bottom of bracing piece (9), universal wheel (13) are fixed through the buckle with bracing piece (9).
4. The orthopedic care fixation and correction device of claim 1, wherein: the upper supporting plate (4) is connected with the middle supporting plate (10) through a rotating shaft.
5. The orthopedic care fixation and correction device of claim 1, wherein: the bottom end of the roller (21) is provided with a fixed block, and the roller (21) is connected with the support rod (9) through the fixed block.
6. The orthopedic care fixation and correction device of claim 1, wherein: one end of the support (7) is completely attached to one end of the bottom plate (8), and the support (7) and the bottom plate (8) are fixed through welding.
7. The orthopedic care fixation and correction device of claim 1, wherein: the lower surface of the retaining ring (18) is completely attached to the top end of the spring (23), and the retaining ring (18) is connected with the spring (23) through welding.
