Abstract

A rice soup box, which is characterized in that: the rice soup box is arranged into a concave structure which can be used for storing rice soup, the rice soup box is at least provided with a rice soup inlet column, the rice soup inlet column is arranged into a hollow structure with a lower opening, and the side surface of the rice soup inlet column is at least provided with a rice soup inlet. The scheme provides a collect rice water box of rice water to and rice cooker, mainly solved the problem that current rice cooker preparation low sugar rice need arrange rice water through the solenoid valve, mainly solved current rice cooker need strict control water level and can't realize the problem of rice water and the quick complete separation of rice, solved the problem that low sugar rice that current rice cooker produced is softer, the taste is poor, and solved the relatively poor problem of content of starch of current rice cooker in the in-process reduction rice of preparation low sugar rice.

Description

Rice soup box and rice cooker thereof

Technical Field

The utility model relates to the kitchen household electrical appliances field, concretely relates to rice soup box and rice cooker thereof.

Background

The electromagnetic valve is installed on the inner container of the existing partial rice cooker, rice soup can be discharged from the inner container through the electromagnetic valve, separation of the rice soup in the inner container and rice is further achieved, low-sugar rice is manufactured, but the electromagnetic valve needs to be powered, so that the inner container is complex in structure and difficult to clean, the cost is very high, and the reliability is low.

The rice cooker is characterized in that a steamer is arranged in an inner container, rice soup holes are formed in the steamer, rice is placed in the steamer, when the rice cooker initially works, the rice soup in the inner container penetrates through the rice soup holes in the steamer to enter the steamer and submerge the rice, a heating element continuously heats the inner container along with the work of the rice cooker, the rice soup level in the inner container is gradually reduced in the continuous heating and cooking process, and low-sugar rice is prepared; when too much rice water is added when the user makes the low-sugar rice or the amount of the made rice is too much, the rice water and the rice in the inner container cannot be quickly and completely separated, so that the taste of the low-sugar rice is poor, the content effect of starch is poor, and the low-sugar rice can be made only by strictly limiting the height of the water level and the matching height of the water level and the rice.

SUMMERY OF THE UTILITY MODEL

The present invention is directed to solving, at least to some extent, one of the technical problems in the related art.

Therefore, an object of the utility model is to provide a rice soup box and rice cooker thereof, the main problem of solving the low sugar rice of current rice cooker preparation and need arranging rice soup through the solenoid valve, the main problem of solving current rice cooker needs the strict control water level and can't realize rice soup and the quick complete separation of rice, the problem of solving the low sugar rice of current rice cooker preparation soft, the taste is poor to and solve the relatively poor problem of content of starch of current rice cooker in the in-process reduction rice of preparation low sugar rice.

An embodiment of the utility model provides a rice soup box and rice cooker thereof, rice soup box set up to the spill structure that can be used to hold rice soup, are provided with one on the rice soup box at least and advance rice soup post, advance rice soup post and set up to cavity under shed's structure, advance to be provided with one on the side of rice soup post and advance rice soup mouth at least, and advance the top that rice soup mouth is located rice soup box bottom terminal surface.

In the rice soup box, the rice feeding soup columns are positioned on the side surfaces and/or the bottom surface of the rice soup box.

In the rice soup box, at least one diversion trench is arranged on the side surface of the rice soup inlet column, and the rice soup inlet is positioned on the diversion trench.

In the rice soup box, at least one inclined plane is arranged on the side surface of the rice soup inlet column, the rice soup inlet is positioned on the inclined plane, and/or the rice soup inlet column is of a structure gradually narrowing from bottom to top.

In the rice soup box, the upper part of the rice soup inlet column is provided with the partition part, and the partition part is positioned above the rice soup inlet.

According to the rice soup box, at least one through hole is formed in the side face of the rice soup box, or the height of the rice soup inlet column is larger than or equal to that of the rice soup box, and the rice soup inlet is located below the middle of the side face of the rice soup inlet column.

According to the rice soup box, the rice soup inlet column is provided with the drainage ribs for guiding and/or the defoaming ribs for defoaming.

A rice cooker comprises an inner container and a rice soup box, wherein the inner container is detachably arranged in a cooker body, and the rice soup box is detachably arranged in the inner container.

The rice cooker further comprises a cooking piece, the cooking piece is installed in the inner container, and the rice soup box is located above the cooking piece and/or a plurality of rice soup draining holes are formed in the cooking piece on the side.

When the rice water in the inner container is boiled, at least part of the rice water in the inner container is flushed upwards and enters the rice water box, and at least part of the rice water is left at the bottom of the inner container.

Compared with the prior art, the utility model discloses following beneficial effect has:

the rice soup box is provided with the rice soup inlet column, the rice soup inlet is formed in the rice soup inlet column, when the rice soup box is used in a rice cooker, rice soup can be collected to prepare low-sugar rice, and the rice soup in the inner container can quickly enter the rice soup box through the rice soup inlet on the rice soup inlet column when the rice soup is swelled upwards, so that the rice soup box can collect the rice soup; the problem of current rice cooker install the solenoid valve on the inner bag and carry out the rice soup of discharging is solved.

The rice soup box of this scheme can apply preparation low sugar rice in the rice cooker, and when the rice soup box of this scheme was installed on the rice cooker, the rice cooker made partly rice soup in the inner bag upwards gush fast and entered into in the rice soup box at the in-process of work, partly rice soup stayed in the inner bag bottom downwards, realized that two at least parts can all hold rice soup in the inner bag to further realize the quick complete separation of inner bag rice soup and rice.

The inner bag of this scheme and rice soup box's simple structure, the convenient dismantlement is washd, and inner bag and rice soup box form the independent space that holds of two parts, and the in-process that realizes the rice cooker through advancing rice soup leads to the post and makes the rice soup in the inner bag enter into rice soup box fast when upwards gushing up in the rice cooker, realizes the quick complete separation of rice soup and rice, realizes making low sugar rice.

This scheme does not need the water level height of the water that strict limitation user added to the inner bag and the matching height of water level and rice, only need set for the water level scope of a take the altitude can, rice and rice hot water can quick complete separation in this within range, can hold the rice hot water in the inner bag respectively in inner bag bottom and rice hot water box, the quick complete separation of all can realizing rice hot water and rice, the rice hot water of inner bag upwells and enters into the interior back of rice hot water box, the water level of the rice hot water in the inner bag bottom can be less than the piece of cooking, the water level that does not need the strict limitation user to add, all can realize that rice is independent on the piece of cooking.

This scheme is current relatively and sets up the structure that the solenoid valve comes the rice cooker of row rice hot water on the inner bag of partial rice cooker more simple, the cost is lower, only need to increase the rice hot water box of this scheme and cook on the basis of current rice cooker and can realize carrying out quick complete separation's structure with rice hot water and rice in the inner bag, very big reduction can make the cost of the rice cooker of low sugar rice, and the low sugar rice taste of making is better, the effect of the content of starch that falls is better, the rice cooker that is favorable to obesity personage and diabetes patient to utilize this scheme makes low sugar rice edible, and can satisfy the crowd that needs to drink rice hot water and use, under the prerequisite of great reduce cost advantage, be favorable to popularizing the healthy diet that people eat low sugar rice.

Drawings

FIG. 1 is a perspective view of a rice cooker of the present embodiment;

fig. 2 is a schematic view of the rice soup box of the scheme;

FIG. 3 is a schematic view of the rice soup box according to the present embodiment;

FIG. 4 is a schematic sectional view of the rice soup box of the present embodiment;

fig. 5 is a schematic view showing that the height of the rice soup column on the rice soup box is greater than or equal to the height of the rice soup box;

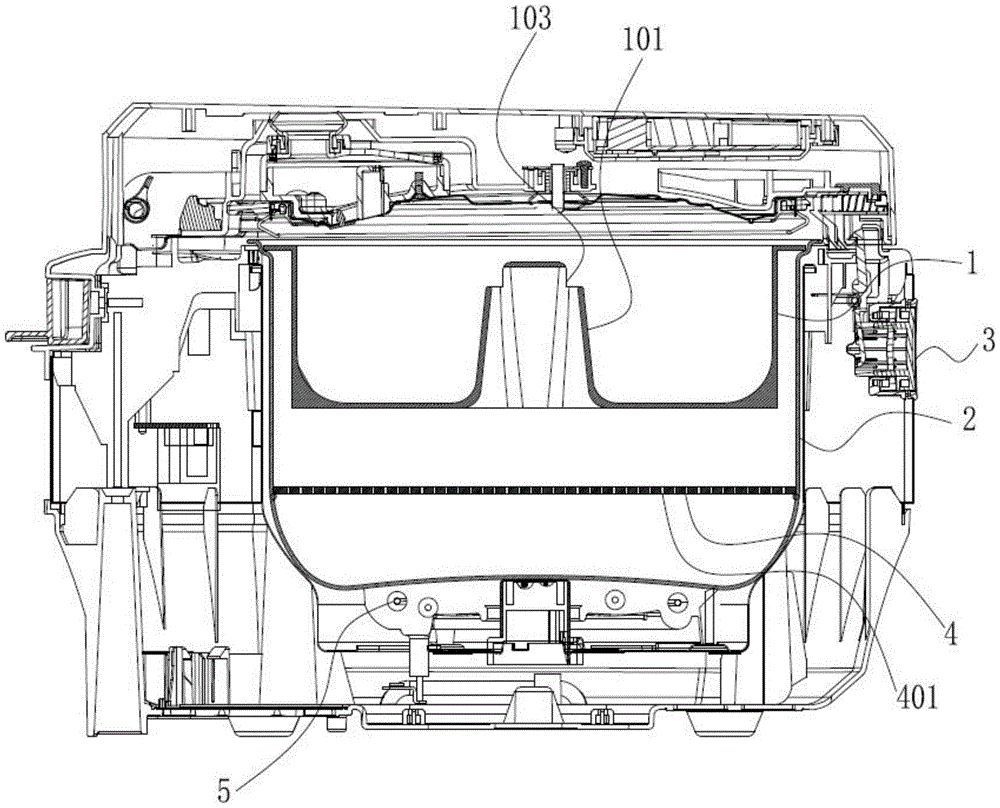

FIG. 6 is a schematic sectional view showing the overall structure of the rice soup box of the present embodiment installed in a rice cooker;

FIG. 7 is a schematic view showing the rice water box of the present embodiment installed in a rice cooker without separating rice water and rice in the inner container;

FIG. 8 is a schematic view showing the rice water box of the present embodiment installed in a rice cooker and the rice water and the rice in the inner container separated;

fig. 9 is a schematic view of the rice water box of the present embodiment positioned on the side of the cooking member.

Reference numerals: 1-rice soup box, 101-rice soup column, 102-diversion trench, 103-rice soup inlet, 104-inclined plane, 105-baffle part, 106-through hole, 107-drainage rib, 108-defoaming rib, 2-inner container, 3-cooker body, 4-cooking piece, 401-rice draining hole and 5-heating piece.

Detailed Description

In order to make the technical means, creation features, achievement purposes and functions of the present invention easy to understand, the present invention will be further described with reference to the following embodiments.

Example (b): the utility model discloses a rice soup box and rice cooker thereof, as shown in fig. 1 to fig. 9, the rice soup box 1 of the scheme can be applied to the rice cooker to make low-sugar rice, the rice soup box 1 plays a role of collecting rice soup, and the rice soup column 101 and the rice soup port 103 are arranged on the rice soup box 1, so that the rice cooker can be used for making low-sugar rice; under the condition that water and rice are boiled, partial starch in the rice is separated into the water to form rice water, the rice water contains a large amount of starch, the rice water is swelled upwards and rapidly enters the rice water box 1, and the rice water are further separated to prepare low-sugar rice, namely the rice with low starch content. Wherein, rice water is the dense state of sticking paste, boils very easily and upwards gushes fast under the condition of heating, and can even the most boiling of piece and upwards gush fast, and this scheme combines the structure each other of inner bag 2, rice water box 1, heating member 5 to realize that the rice cooker can make the separation of rice water and rice at the in-process of making rice, realizes making low sugar rice.

The utility model provides a rice soup box 1, rice soup box 1 sets up to the spill structure that can be used to hold rice soup, be provided with one on the rice soup box 1 at least and advance rice soup post 101, advance rice soup post 101 and set up to cavity under shed's structure, it advances rice soup mouth 103 to be provided with one on the side of rice soup post 101 at least, and advance rice soup mouth 103 and be located the top of 1 bottom terminal surface of rice soup box, make rice soup enter into 1 ware of rice soup through advancing rice soup mouth 103, it makes rice soup box 1 can hold a quantitative rice soup at least to advance rice soup mouth 103 and be located the top of bottom terminal surface, realize the effect that rice soup box 1 collected rice soup.

The rice water inlet 103 is arranged on the side surface of the rice water inlet column 101, so that the rice water in the rice water box 1 can flow to the rice water inlet 103 towards two sides and then enter the rice water box 1 when the rice water is gushed upwards and enters the rice water inlet column 101, and more rice water can enter the rice water box 1; preferably, the plurality of rice-in soup mouths 103 are located on the side surface of the rice-in soup column 101.

Wherein, through setting up into rice water post 101 and go into rice water mouth 103 on it and realize the effect of the collection rice water of rice water box 1, when rice water box 1 was used to the rice cooker in, the rice water in inner bag 2 can enter into in rice water post 101 then enter into rice water box 1 through going into rice water mouth 103 under the circumstances of the boiling, realize the function that rice water box 1 collected rice water.

The rice soup inlet 103 is positioned above the bottom surface of the rice soup box 1, so that the rice soup box 1 can contain a certain amount of rice soup and has a certain volume, and the rice soup inlet column 101 is positioned on the side surface and/or the bottom surface of the rice soup box 1; preferably, the rice-in soup column 101 is disposed on the bottom surface of the rice soup box 1; preferably, the rice water inlet pillar 101 is located at a middle position on the bottom end surface, and the middle position facilitates the concentration of the rice water into the rice water inlet pillar 101 and then into the rice water box 1. Preferably, the rice soup inlet pole 101 is provided at a central position on the bottom end surface of the rice soup box 1. The rice water inlet column 101 is of a cylindrical structure or a conical structure, the interior of the rice water inlet column 101 is provided with a hollow structure to form a rice water inlet channel, a rice water inlet 103 is arranged on the side surface of the rice water inlet column 101, and rice water in the inner container 2 enters the rice water box 1 through the rice water inlet 103 on the rice water inlet column 101; wherein the rice water inlet column 101 can be a hollow structure with a lower opening, and the rice water inlet 103 is positioned on the side surface of the rice water inlet column 101; the position of the rice water inlet 103 may be specifically set according to the convenience of the rice water entering the rice water box 1.

Optionally, at least one diversion trench 102 is arranged on the side surface of the rice feeding soup column 101, and the rice feeding soup port 103 is positioned on the diversion trench 102; the guide and flow guide effects on the rice water are achieved by arranging the flow guide grooves 102 on the side faces of the rice water inlet columns 101, the rice water inlet openings 103 are formed in the upper portions of the flow guide grooves 102, the rice water inlet columns 101 and the flow guide grooves 102 are communicated with the interior of the rice water box 1, and the rice water can quickly enter the rice water box 1 by flowing upwards through the rice water inlet openings 103 in the flow guide grooves 102.

Optionally, at least one inclined plane 104 is arranged on the side surface of the rice feeding soup column 101, the rice feeding soup port 103 is located on the inclined plane 104, the inclined plane 104 is arranged on the side surface of the rice feeding soup column 101, the inclined plane 104 plays a role in compressing and guiding rice soup, the inclined plane 104 is mainly of an inclined plane 104 structure which is gradually reduced from bottom to top, and the rice soup is guided, compressed and enters the rice soup box 1. Preferably, a plurality of inclined planes 104 are provided, the inclined planes 104 are uniformly distributed on the side positions of the rice feeding soup column 101, and each inclined plane 104 is provided with a rice feeding soup port 103.

Optionally, at least one inclined plane 104 is arranged on the side surface of the rice feeding soup column 101, the rice feeding soup port 103 is positioned on the inclined plane 104, and/or the rice feeding soup column 101 is in a structure gradually narrowing from bottom to top; can set up into the structure that narrows gradually from bottom to top with advancing rice water post 101, like conical structure, be favorable to the guide of rice water to be collected, realize that rice water big mouth enters into advancing rice water post 101 in the osculum spouts rice water box 1 in, be favorable to the collection of rice water.

Optionally, in the scheme, at least one through hole 106 is formed in the side surface of the rice water box 1, the through hole 106 is used for rice water in the inner container 2 to pass through, at the moment, a gap H1 with a certain distance is formed between the inner side surface of the inner container 2 and the outer side surface of the rice water box 1, H1 is greater than 0, the gap can be used for concentrating rice water, and the gap is communicated with the through hole 106; namely, when the rice water in the inner container 2 is swelled upwards, the rice water can enter the gap and enter the rice water box 1 through the through hole 106 on the side surface of the rice water box 1, so that the rice water is collected; preferably, the plurality of through holes 106 are uniformly distributed on the side surface of the rice-water box 1, so that the rice-water collecting effect is better.

Optionally, in the scheme, the height of the rice soup inlet column 101 is set to be greater than or equal to that of the rice soup box 1, and the rice soup inlet 103 is positioned below the middle part of the side surface of the rice soup inlet column 101; by limiting the height of the rice water inlet column 101 and limiting the rice water inlet 103 to be positioned below the middle part of the rice water inlet column 101, certain slow flow effect can be achieved at the top of the rice water inlet column 101 when rice water enters the inner hollow structure of the rice water inlet column 101, the rice water is prevented from being sprayed out from the rice water inlet 103 too fast, and meanwhile, a larger rice water bubble entering the foremost end of the rice water inlet column 101 can be compressed and extruded into a smaller rice water bubble at the foremost end of the rice water inlet column 101, so that certain slow flow effect is achieved; meanwhile, the rice soup box 1 can collect more rice soup, and the effect of increasing the inner volume of the rice soup box 1 is achieved.

At present, a part of rice soup boxes 1 are provided with a rice soup inlet column 101 which is communicated with the rice soup box 1, and the upper part and the lower part of the rice soup box are provided with open-ended through structures, so that the structure cannot play a role of reducing rice soup bubbles, the rice soup bubbles are easily and directly sprayed on the end surface of a cooker cover, the cooker cover is difficult to clean, and meanwhile, the rice soup is easily dropped downwards into an inner container 2 while being sprayed on the end surface of the cooker cover, and less rice soup can be collected; the rice soup column 101 of advancing of this scheme sets up to cavity under shed's structure, advances to be provided with one on the side of rice soup column 101 at least and advances rice soup mouth 103, and in rice soup in the inner bag 2 entered into rice soup box 1 through advancing rice soup mouth 103 of side, the problem on the terminal surface of rice soup spout to a kind of deep pot lid can not appear, and can not appear the problem that falls back in collecting rice soup, can collect more rice soups.

Wherein, the upper portion of advancing rice soup post 101 is provided with separating portion 105, separates that separating portion 105 is located the top of advancing rice soup mouth 103, separates that separating portion 105 can play the effect of separating the fender rice soup, prevents that the rice soup from spouting on the terminal surface of a kind of deep pot lid to can play the effect of certain rice soup bubble of disappearing, and make the rice soup advance rice soup mouth 103 to the both sides flow direction and enter into again in the rice soup box 1, can collect more rice soup.

According to the scheme, the rice feeding soup column 101 is provided with a drainage rib 107 for guiding and/or a defoaming rib 108 for defoaming; the inner side surface of the hollow lower opening of the rice feeding soup column 101 is mainly provided with a plurality of drainage ribs 107, which can play a certain role of guiding and draining rice soup bubbles and is beneficial to the rice soup to flow upwards in the inner container 2 and enter the rice soup box 1; the defoaming ribs 108 for defoaming are arranged on the outer side surface of the rice soup inlet column 101, when rice soup in the liner 2 upwards gushes into the rice soup box 1 and then falls onto the outer side surface of the rice soup inlet column 101, the rice soup is broken by the defoaming ribs 108, and larger rice soup bubbles are changed into smaller rice soup bubbles and enter the rice soup box 1, so that more rice soup can be collected, and an anti-overflow effect can be achieved; the problem that the rice soup in the rice soup box 1 is upwelled and overflows out of the cooker cover is solved; playing a role of defoaming.

The rice cooker structure comprises an inner container 2, wherein the inner container 2 is detachably arranged in a cooker body 3, the rice soup box 1 is also arranged, the rice soup box 1 is detachably arranged in the inner container 2, the rice soup box 1 can be directly placed on the outer edge of the top of the inner container 2, the rice cooker structure further comprises a heating element 5 for heating, when the rice soup in the inner container 2 is boiled, at least part of the rice soup in the inner container 2 is upwards flushed and enters the rice soup box 1, and at least part of the rice soup is left at the bottom of the inner container 2; can realize the collection effect to rice water based on rice soup box 1, when the internal container 2 placed the a kind of deep pot body 3 in, hold water and rice in the internal container 2, rice cooker work, 5 heats of heating member make rice and water boil out, partial starch separation aquatic in the rice, when heating member 5 sustained heating, when rice water in the internal container 2 upwards gushes out the time-up, rice water can upwards enter into rice soup box 1 this moment in, realize the collection effect of rice soup box 1 to rice water, make partial rice water and rice in the internal container 2 separate, produce low sugar rice, but this scheme exists the problem that can not make rice and rice water separate completely fast, can have partial rice water and rice to boil the preparation into rice together in the internal container 2 all the time.

Another rice cooker structure of the scheme comprises an inner container 2, wherein the inner container 2 is detachably arranged in a cooker body 3, the rice soup box 1 is also arranged, the rice soup box 1 is detachably arranged in the inner container 2, the rice soup box 1 can be directly placed on the outer edge of the top of the inner container 2, the rice cooker structure further comprises a heating element 5 for heating, when the rice soup in the inner container 2 is boiled, at least part of the rice soup in the inner container 2 is upwards flushed and enters the rice soup box 1, and at least part of the rice soup is left at the bottom of the inner container 2; the rice cooking box comprises the rice cooking box 1 and further comprises a cooking piece 4, the cooking piece 4 is detachably mounted in the inner container 2, a limiting part for supporting the cooking piece 4 can be arranged in the inner container 2, or the cooking piece 4 is directly placed in the inner container 2, the inner side surface of the inner container 2 supports the cooking piece 4 in a stress mode, the rice cooking box 1 is located above and/or on the side of the cooking piece 4, a plurality of rice draining soup holes 401 are formed in the cooking piece 4, the cooking piece 4 is used for containing rice, and the rice draining soup holes 401 have the effect of draining rice soup for the rice; according to the rice cooker with the structure, the rice soup box 1 can be arranged above and/or on the side of the cooking piece 4, so that the rice and the rice soup can be quickly and completely separated to prepare low-sugar rice, the starch content in the rice can be better reduced, and the rice soup can be completely separated.

When rice soup box 1 is located the top of piece 4 of cooking, when rice soup box 1 and piece 4 of cooking all are located inner bag 2, and rice soup box 1 is located the top of piece 4 of cooking, mainly be located the piece 4 of cooking directly over during the position, the piece 4 of cooking and rice soup box 1 divide into two-layerly with the inner space region of inner bag 2, rice soup box 1 is on the upper strata, piece 4 of cooking is in the lower floor, and still be provided with the certain distance clearance between rice soup box 1 and the piece 4 of cooking on vertical direction, hold the rice by the cooking in this distance clearance, place the rice and cook on piece 4 and form rice by cooking at the beginning, rice soup box 1 is used for holding rice soup, the rice soup in the inner bag 2 can enter into rice soup box 1, and then realize the complete separation of rice soup and rice in the inner bag 2.

When the rice soup box 1 is positioned at the side of the cooking piece 4, the cooking piece 4 at least wraps a part of the rice soup box 1, or the rice soup box 1 at least wraps a part of the cooking piece 4; the main structure is two parts of both sides, and wherein one side is rice soup box 1, and the opposite side is cooking piece 4, and both sides constitute jointly, can set up to mutual circular structure or crescent structure.

Wherein, in the process of making low-sugar rice by the rice cooker, the rice cooker is started to work, the rice is positioned on the steaming part 4, the water is positioned in the inner container 2, the water submerges the rice, the heating part 5 is heated to ensure that the water and the rice are fully boiled, partial starch in the rice is separated out to form rice water in the boiling process, the rice water can be slightly boiled in the boiling process, the boiling rice water is small in bubble, a large amount of rice water can not flow upwards into the rice water box 1, after the rice water is fully separated out from the rice in the boiling process for a certain time, the concentration of the rice water is high, the heating part 5 is continuously heated or the power is increased to heat so that the rice water in the inner container 2 is boiled, the rice water intensively and quickly enters the rice water box 1, a part of the rice water in the inner container 2 flows upwards and quickly enters the rice water box 1, a part of the rice water is remained in the bottom of the inner container 2, and the water level of the part of the rice water is lower than the bottom surface, the rice soup and the rice are quickly and completely separated in the whole process, the low-sugar rice is placed on the cooking piece 4, the rice soup formed by water carrying partial starch in the rice is respectively placed in the rice soup box 1 and the area at the bottom of the inner container 2, the rice on the cooking piece 4 is completely separated from the rice soup, and the low-sugar rice is manufactured; the problem of current some rice cooker install the solenoid valve on inner bag 2 and carry out the rice soup row is solved, and inner bag 2, rice soup box 1's simple structure, easy washing.

Aiming at the problem that in the process of making low-sugar rice, water and rice are fully boiled, partial starch in the rice is separated to form rice soup, the rice soup is in a thick sticky paste state, the rice soup is easy to swell upwards as the concentration of the rice soup is higher, the swelling effect is better, more starch is contained in the rice soup, the rice soup is fully swelled under the condition that the heating element 5 is continuously heated, and the rice soup swells upwards more quickly and is easier to swell upwards as the concentration of the rice soup is high; meanwhile, rice water bubbles are easy to form and swell upwards, part of the rice water forms the rice water bubbles and swells upwards, the rice water bubbles can take away a large amount of rice water and swell upwards together, so that more rice water can quickly enter the rice water box 1, and by controlling the heating time or power of the heating element 5, most of the rice water in the inner container 2 can be guaranteed to swell upwards and enter the rice water box 1, so that the rice water left in the bottom of the inner container 2 cannot submerge rice on the cooking element 4, and the rice water and the rice are quickly and completely separated; therefore, the rice cooker can be better applied to the preparation of low-sugar rice.

The heating member 5 of this scheme, heating member 5 are used for the heating, can directly heat inner bag 2, and heating member 5 can be heating tube or electromagnetic wire coil, only need realize to the heating of inner bag 2 can, can adopt heating member 5 to inner bag 2 direct heating, also can adopt heating member 5 to inner bag 2 indirect heating.

Above-mentioned two kinds of rice cooker's structure still includes a kind of deep pot lid, and a kind of deep pot lid is rotatably installed and is realized the switching on and off on inner bag 2 upper portion in the upper portion of the body 3 of a kind of deep pot, and when a kind of deep pot lid rotatory lid closed on the body 3 of a kind of deep pot downwards, the sealing member on the a kind of deep pot lid terminal surface realizes sealed the upper portion of inner bag 2, prevents that inner bag 2 from following the position outward and spilling. The cooker further comprises a circuit control, wherein a circuit board is arranged in the cooker body 3, a power supply unit, a control unit and a timing unit are arranged on the circuit board, and the circuit board is electrically connected with the heating element 5 and the temperature sensor; the power supply unit is used for supplying power, the timing unit is used for detecting and setting time, the temperature sensor is used for detecting the temperature of the inner container 2, the temperature sensor is generally arranged on the bottom surface of the inner container 2, and/or the temperature sensor is arranged on the cooker cover, when the cooker cover covers the cooker body 3 downwards, the temperature sensor is positioned on the upper part of the inner container 2, and at the moment, the temperature sensor can be used for detecting the temperature in the inner container 2; the control unit controls the heating of the heating element 5, a working program is built in, the heating element 5 is mainly controlled to execute the steps of starting heating, stopping heating, heating time and heating power, the whole circuit can realize the circuit control of the control method of the rice cooker, and rice water can be poured into the rice water box 1 upwards mainly by controlling the matching of the heating time and the heating power of the heating element 5.

The structural design of inner bag 2 and rice water box 1 of this scheme can realize the quick complete separation of rice and rice water in inner bag 2, does not need the water level height of the water that strict limitation user added in to inner bag 2 and the matching height of water level and rice, all can realize all having rice water in inner bag 2 bottom and the rice water box 1, and rice is independent to be located and boils 4 on, realizes the quick complete separation of rice and rice water.

The rice cooker of this scheme is current rice cooker relatively sets up the water storage box in inside and realizes through the height of strict limitation water storage box and inner bag bottom surface that a small amount of rice hot water in the in-process inner bag of rice cooker work enters into the advantage that the mode of making low sugar rice has in the water storage box through the mode that overflows in constrictive space: the rice and the rice soup can be quickly and completely separated, the problem that the rice soup and the rice are not completely separated in the rice made by boiling the rice soup at the bottom of the liner and the rice together can be solved, the scheme realizes quick and complete separation of the rice soup and the rice, the effect of reducing the starch content in the rice is better, and the rice has better taste; the water level of the inner container and the matching height of the water level and rice are not required to be strictly limited; this scheme current rice cooker relatively sets up the food steamer in inside and makes the water level in the inner bag reduce the advantage that the mode of making low sugar rice has gradually through the process of continuously heating and decocting: can realize rice and rice water and separate fast completely, can not appear utilizing the heating to make the problem that the water level slowly descends, can not appear rice and boil for a long time in rice water and lead to rice too soft, the poor problem of taste, and the water level height that does not need strict restriction inner bag and the matching height of water level and rice, it is better to reduce the starch content effect in the rice, and rice taste is better.

The rice cooker aims at the scheme, when the rice soup box 1 is not placed, the rice cooker can be normally used as a common rice cooker, if the normal rice cooker is used, only water and rice are directly added into the inner container 2 for cooking, normal rice without starch reduction is manufactured, and the like, if the structure that rice soup and rice in the inner container 2 can be quickly and completely separated can be realized by adding the rice soup box 1 and the cooking piece 4 on the basis of the existing rice cooker, the cost of the rice cooker capable of manufacturing low-sugar rice is greatly reduced, the scheme has a great cost advantage, the popularization of the rice cooker capable of manufacturing low-sugar rice is facilitated, and the popularization of healthy diet for people to eat the low-sugar rice is facilitated.

The structure of this scheme rice soup box 1 and the structure of rice cooker can also be applied to the environment that needs reduce the starch content in eating the material, eat the material and can be for the rice, also can be for other higher edible materials that close starch, can utilize the rice cooker of this scheme to make low sugar food, eat the material and singly inject into the rice, close the higher edible material of starch and boil the back in aqueous, can form the hot water liquid that has certain concentration of the state of sticking paste, this hot water liquid is upwards gushed very easily under the condition of being heated the boiling, consequently, usable this scheme rice cooker makes low sugar food.

The working principle is as follows: according to the scheme, the rice water inlet 103 is formed in the rice water box 1, so that rice water in the inner container 2 can be enabled to upwards rush into the rice water box 1 when the rice water in the inner container 2 is boiled, and the effect of collecting the rice water by the rice water box 1 is achieved; the rice soup box 1 is arranged in the inner container 2, so that separation of rice and rice soup can be realized, the starch content in the rice is reduced, and the rice soup takes away the starch in the rice and is collected into the rice soup box 1 in the process of being collected into the rice soup box 1; when the rice cooker simultaneously includes rice soup box 1 and cooking piece 4, can realize the quick complete separation of rice and rice soup in inner bag 2, rice soup is located rice soup box 1 and inner bag 2 bottom, and rice independently is located cooking piece 4, the effect of starch is fallen in the realization that can be better, and rice is cooked, is favorable to promoting the taste of rice.

It will be understood by those skilled in the art that the foregoing embodiments are specific examples of the invention, and that various changes in form and details may be made therein without departing from the spirit and scope of the invention in practice.

Claims (10)

1. A rice soup box, which is characterized in that: the rice soup box is arranged to be of a concave structure which can be used for storing rice soup, the rice soup box is at least provided with a rice soup inlet column, the rice soup inlet column is of a hollow lower opening structure, the side face of the rice soup inlet column is at least provided with a rice soup inlet, and the rice soup inlet is positioned above the bottom face of the rice soup box.

2. A rice soup box as claimed in claim 1, wherein: the rice feeding soup column is positioned on the side surface and/or the bottom surface of the rice soup box.

3. A rice soup box as claimed in claim 1, wherein: the side surface of the rice feeding soup column is provided with at least one diversion trench, and the rice feeding soup port is positioned on the diversion trench.

4. A rice soup box as claimed in claim 1, wherein: the side surface of the rice feeding soup column is at least provided with an inclined surface, the rice feeding soup port is positioned on the inclined surface, and/or the rice feeding soup column is of a structure which gradually narrows from bottom to top.

5. A rice soup box as claimed in claim 1, wherein: the upper part of the rice water inlet column is provided with a baffle part which is positioned above the rice water inlet.

6. A rice soup box as claimed in claim 1, wherein: the side surface of the rice soup box is at least provided with a through hole, or the height of the rice soup inlet column is more than or equal to the height of the rice soup box, and the rice soup inlet is positioned below the middle part of the side surface of the rice soup inlet column.

7. A rice soup box as claimed in claim 1, wherein: the rice inlet soup column is provided with a drainage rib for guiding and/or a defoaming rib for defoaming.

8. A rice cooker comprises an inner container, wherein the inner container is detachably arranged in a cooker body, and the rice cooker is characterized in that: further comprising the rice-soup box as claimed in any one of claims 1 to 7, which is detachably mounted in the inner container.

9. A rice cooker as claimed in claim 8, wherein: still include the piece of cooking, the piece of cooking is installed in the inner bag, and rice water box is located the top and/or the side of the piece of cooking, has seted up a plurality of rice water holes on the piece of cooking.

10. A rice cooker as claimed in claim 9, wherein: the rice water box also comprises a heating element for heating, when the rice water in the inner container is boiled, at least part of the rice water in the inner container is flushed upwards and enters the rice water box, and at least part of the rice water is remained at the bottom of the inner container.
