Abstract
The utility model relates to a heat abstractor of degree of depth learning computer visual analysis host computer, including the host computer machine case, the host computer machine incasement is equipped with host power and integrated device, the box of host computer machine case is half enclosed structure, the uncovered side demountable installation access door board of host computer machine case, the lateral part of host computer machine case is equipped with power air intake and power air outlet, top inner wall and the power air intake of host computer machine case, be fixed with the baffle between the lateral part inner wall at power air outlet place, install on the host computer machine case when access door board, the baffle is close to the one end of the uncovered side of host computer machine case and offsets with access door board, one side bottom that the host computer machine case is close to the host power is equipped with the air intake, the air intake is equipped with radiator fan, one side top that the host computer machine case kept away. Compared with the prior art, the utility model has the advantages of reduce host computer heat dissipation burden, overhaul convenient, dustproof effectual.
Description
Technical Field
The utility model relates to a heat dissipation equipment of degree of depth learning computer especially relates to a heat abstractor of degree of depth learning computer visual analysis host computer.
Background
Deep learning is a new field in machine learning research, and its motivation is to create and simulate a neural network for human brain to analyze and learn, which simulates the mechanism of human brain to interpret data such as images, sounds and texts. Visual analysis is the analysis and tracking of objects appearing within the camera scene by separating the background from the objects in the scene. According to the video content analysis function, different alarm rules are preset in scenes of different cameras, once a target breaks away from the predefined rules in the scenes, the system can automatically give an alarm, and the monitoring workstation automatically pops up alarm information and gives an alarm sound. The deep learning and the visual analysis are realized without leaving the support of computer technology.
The computer power supply is an indispensable part of the deep learning computer host, the computer power supply can dissipate heat in the operation process, the cooling fan of the computer power supply can dissipate the heat of the computer power supply, but in the cooling process of the computer power supply, the air outside the deep learning computer host can be pumped into the computer power supply, and then the air with the heat generated in the operation of the computer power supply is blown into the deep learning computer host, so that the heat dissipation burden of the deep learning computer host is increased, and other components inside the deep learning computer host can be seriously damaged due to overhigh temperature.
SUMMERY OF THE UTILITY MODEL
The utility model aims at providing a heat abstractor of degree of depth learning computer vision analysis host computer in order to overcome the defect that above-mentioned prior art exists.
The purpose of the utility model can be realized through the following technical scheme:
the utility model provides a heat abstractor of degree of depth learning computer visual analysis host computer, includes the host computer machine case, the host computer machine incasement is equipped with host computer power and integrated device, its characterized in that, the box of host computer machine case be half enclosed structure, the uncovered side demountable installation access door board of host computer machine case, the lateral part of host computer machine case on be equipped with the power air intake and the power air outlet that correspond the setting with the host computer power, be fixed with the baffle that is used for carrying out the air direction between the lateral part inner wall at top inner wall and power air intake, power air outlet place of host computer machine case, install on the host computer machine case when the access door board, the baffle be close to the one end and the access door board counterbalance of the uncovered side.
Preferably, the baffle is an obtuse angle structural plate.
Preferably, the bottom of one side of the host case close to the host power supply is provided with an air inlet, a heat dissipation fan is fixed at the air inlet, the top of one side of the host case far away from the host power supply is provided with an air outlet, and a suction fan is fixed at the air outlet.
Preferably, the host machine case is provided with a dustproof mechanism matched with the air inlet and the air outlet.
Preferably, the baffle is provided with a notch for bearing a connecting wire or a wiring harness on a host power supply.
Preferably, dustproof mechanism include filter screen, first magnet and second magnet, filter screen and air intake and air outlet match the setting, a plurality of first magnets are installed the filter screen be close to one side of host computer machine case, first magnet inserts host computer machine case back actuation second magnet, host computer machine case on be equipped with the mounting groove that corresponds with second magnet.
Preferably, the size of the gap is matched with the width of a connecting wire or a wiring harness on the host power supply.
Preferably, a rotating handle is arranged at the top of the main machine case.
Preferably, the bottom of the host machine case is provided with a plurality of rubber support legs.
Preferably, the access door panel is connected with the main machine case through a fixing screw.
Compared with the prior art, the utility model has the advantages of it is following:
1. the utility model discloses set up power air intake and power outlet for the host computer power supply effect on the host computer machine case, the host computer machine case has set up the baffle with power air intake and power outlet correspondence, the baffle can lead from the hot-air that host computer power supply air exit exhaust, make hot-air discharge from power outlet, realized hindering the function that the hot-air that produces influences the operation of integrated device in the host computer power operation process, greatly reduced the heat dissipation burden of host computer machine incasement portion;
2. the baffle is provided with a notch which is used for connecting a connecting wire on a host power supply with a circuit board and a display card of the integrated device, so that the host power supply can conveniently supply power to the integrated device, and meanwhile, the connecting wire on the host power supply can not be influenced to be connected with the integrated device;
3. the utility model is provided with the dustproof mechanism comprising the filter screen, the first magnet and the second magnet, and the effect that the filter screen is fixed on the outer side wall of the host case is achieved through the cooperation of the filter screen, the first magnet and the second magnet, thereby realizing the function of preventing dust in the air from entering the interior of the host case and simultaneously facilitating the installation and the disassembly of the filter screen;
4. the main machine case is of a semi-surrounding structure, and the access door plate can be installed on the open side of the main machine case through fixing screws, so that the disassembly and assembly process is convenient, and the access is convenient;
5. the top of the host case is provided with a rotating handle, the bottom of the host case is provided with rubber support legs, the rotating handle is convenient for carrying the host case, and the rubber support legs are convenient for keeping the bottom of the host case at a certain distance from the ground so as to prevent the bottom of the host case from being corroded.
Drawings
Fig. 1 is a schematic view of an external structure of a heat dissipation device of a deep learning computer vision analysis host of the present invention;

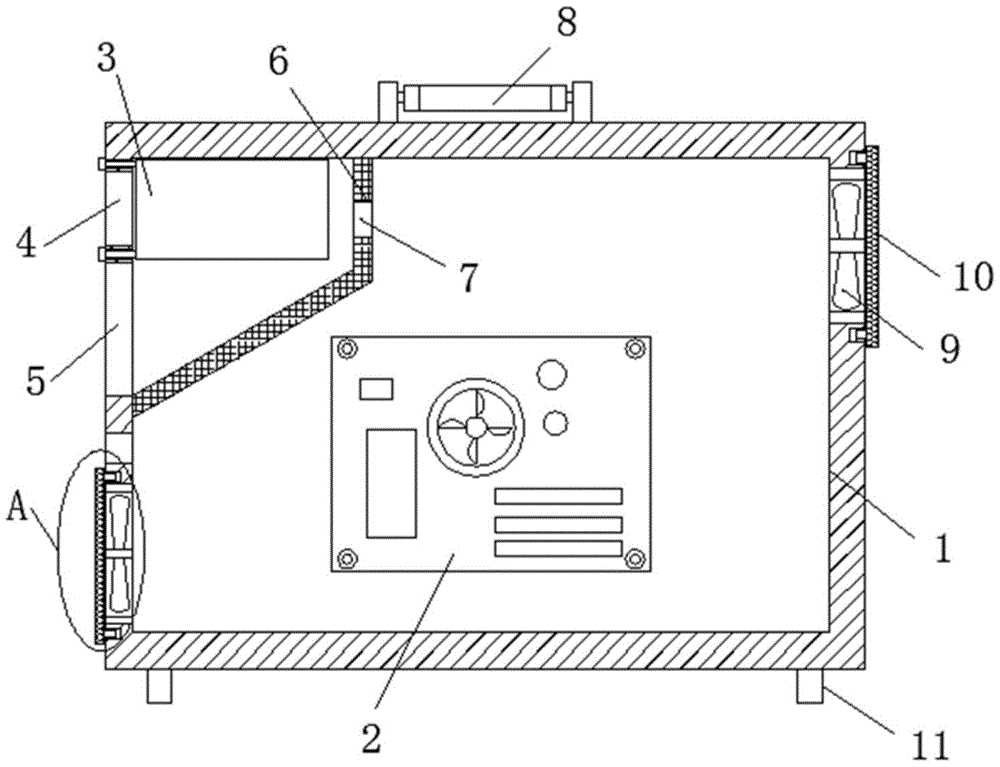

FIG. 2 is a schematic view of the internal structure of the heat dissipation device of the deep learning computer vision analysis host of the present invention;
FIG. 3 is a schematic view of the structure at A in FIG. 2;
fig. 4 is a schematic top view of the heat dissipation device of the deep learning computer vision analysis host of the present invention;
the reference numbers in the figures indicate:
1. a host chassis; 2. an integrated device; 3. a host power supply; 4. a power supply air inlet; 5. a power supply air outlet; 6. a baffle plate; 7. a notch; 8. rotating the handle; 9. an exhaust fan; 10. filtering with a screen; 11. a rubber foot; 12. fixing screws; 13. an access door panel; 14. a first magnet; 15. a second magnet; 16. a heat dissipation fan.
Detailed Description
The present invention will be described in detail below with reference to the accompanying drawings and specific embodiments. It is to be understood that the embodiments described are only some of the embodiments of the present invention, and not all of them. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative efforts shall fall within the protection scope of the present invention.
The utility model relates to a heat abstractor of degree of depth learning computer vision analysis host computer, including the host computer machine case 1 of half surrounding structure, host computer machine case 1's uncovered side demountable installation has access door board 13, and access door board 13 passes through fixed screw 12 to be fixed on host computer machine case 1 to make access door board 13 and host computer machine case 1 be connected more stable, it is required to explain that fixed screw 12 is the handle screw, and the model is BY-GB 8023. Preferably, the access door panel 13 has a size larger than the size of the open side of the main machine housing 1.
The integrated device 2 and the host power supply 3 are installed on the inner side wall of the host case 1, a power supply air inlet 4 and a power supply air outlet 5 which correspond to the host power supply 3 are arranged on a case body of the host case 1, the power supply air inlet 4 and the power supply air outlet 5 are arranged on the same side wall of the case body, and preferably, the power supply air inlet 4 is positioned above the power supply air outlet 5. A baffle 6 is fixed between the inner wall of the top of the host case 1 and the inner wall of the side part provided with the power supply air inlet 4 and the power supply air outlet 5, and the baffle 6 is an obtuse-angle structural plate, so that the baffle 6 is arranged corresponding to the power supply air inlet 4 and the power supply air outlet 5. When the access door panel 13 is installed on the host case 1, one side of the baffle 6 far away from the host case 1 is abutted against the access door panel 13. The baffle 6 is provided with a notch 7. The purpose of the notch 7 is to place a connecting wire or a wire harness on the host power supply 3, so that the connecting wire on the host power supply 3 is connected with the circuit board and the display card of the integrated device 2, and the host power supply 3 can supply power to the integrated device 2 conveniently. Preferably, the size of the gap 7 is matched to the width of the connecting wire or the associated wiring harness. It should be noted that the integrated device 2 is an integrated structure in the prior art, and includes a CPU, a memory bank, a motherboard, a video card, a hard disk, a CPU heat dissipation fan, and the like, which will not be described herein.
The bottom of one side of the host case 1 close to the host power supply 3 is provided with an air inlet, the inner side wall of the case corresponding to the air inlet is fixedly connected with a heat radiation fan 16, the top of one side of the host case 1 far away from the host power supply 3 is provided with an air outlet, the inner side wall of the case corresponding to the air outlet is fixedly connected with an extraction fan 9, it should be noted that the heat radiation fan 16, the extraction fan 9, the heat radiation fan 16 and the extraction fan 9 are connected with the main board of the host case 1, and the power supply technology is the prior art and is not. The heat dissipation fan 16 pumps the air outside the host case 1 into the host case 1, and the exhaust fan 9 pumps the hot air inside the host case 1 out, so that the air circulation inside the host case 1 is accelerated, and the heat dissipation efficiency inside the host case 1 is improved.
Air intake and air outlet department set up dustproof mechanism respectively, and dustproof mechanism includes the filter screen 10 that matches the setting with air intake and air outlet, and the tip fixedly connected with of one side that filter screen 10 is close to host computer machine case 1 is a plurality of first magnet 14, and the actuation is connected with second magnet 15 behind the tank wall that first magnet 14 inserted host computer machine case 1, is equipped with the mounting groove that corresponds with second magnet 15 on the tank wall of host computer machine case 1. The filter screen 10 is used for preventing dust in the air from entering the inside of the host case 1 and adhering to components of the integrated device 2 to influence the heat dissipation of the integrated device 2, and the filter screen 10 is connected with the host case 1 through the first magnet 14 and the second magnet 15 so as to facilitate the installation and the disassembly of the filter screen 10.
The top fixedly connected with of host computer machine case 1 rotates handle 8, and a plurality of rubber stabilizer blades 11 of bottom fixedly connected with of host computer machine case 1 rotate handle 8's effect and be portable this host computer machine case 1, and rubber stabilizer blade 11's effect is the bottom and the ground that are convenient for make host computer machine case 1 keep certain distance, prevents that the bottom of host computer machine case 1 from corroding.
When the utility model discloses a when the degree of depth study computer operation, host power supply 3 moves, host power supply 3 takes the outside air of host computer machine case 1 from the fan in area into host power supply 3's inside, then discharge from host power supply 3's air exit, lead to through baffle 6 from 3 exhaust hot-air of host power supply, from 5 discharges of power outlet on the host computer machine case 1, avoid the heat that host power supply 3 produced at the in-process of operation to cause the influence to integrated device 2's operation, can not increase the inside heat dissipation burden of host computer machine case 1. The cooling fan 16 and the exhaust fan 9 on the host case 1 are connected with the main board of the host case 1 and rotate at the same time to cool the integrated device 2 inside the host case 1, so that the damage of the components of the integrated device 2 caused by overhigh temperature inside the host case 1 is avoided. In addition, install two detachable filter screens 10 on host computer machine case 1, filter screen 10 can prevent that the dust in the air from entering into host computer machine case 1's inside, and on the adhesion reached integrated device 2's components and parts, influence integrated device 2's heat dissipation, this utility model's heat abstractor of degree of depth learning computer visual analysis host computer has fine thermal diffusivity, and also portable has very strong practicality simultaneously.
The utility model discloses the standard part that uses all can purchase from the market, and dysmorphism piece all can be customized according to the description with the record of drawing of description, and the concrete connection mode of each part all adopts conventional means such as ripe bolt, rivet, welding among the prior art, and machinery, part and equipment all adopt prior art, and conventional model, including circuit connection adopts conventional connection mode among the prior art, does not detailed here again.
The above description is only for the specific embodiments of the present invention, but the scope of the present invention is not limited thereto, and any person skilled in the art can easily think of various equivalent modifications or replacements within the technical scope of the present invention, and these modifications or replacements should be covered within the scope of the present invention. Therefore, the protection scope of the present invention shall be subject to the protection scope of the claims.
Claims (10)
1. A heat dissipation device of a visual analysis host of a deep learning computer comprises a host case (1), a host power supply (3) and an integrated device (2) are arranged in the host case (1), it is characterized in that the box body of the main machine case (1) is of a semi-enclosed structure, an access door panel (13) is detachably arranged on the open side of the main machine case (1), a power supply air inlet (4) and a power supply air outlet (5) which are arranged corresponding to the main power supply (3) are arranged on the side part of the main machine case (1), a baffle plate (6) for guiding air is fixed between the inner wall of the top part of the main machine case (1) and the inner walls of the side part where the power supply air inlet (4) and the power supply air outlet (5) are positioned, when the access door panel (13) is arranged on the host case (1), one end of the baffle (6) close to the open side of the host case (1) is propped against the access door panel (13).
2. The heat sink for deep learning computer vision analysis host as claimed in claim 1, wherein the baffle (6) is an obtuse angle structural plate.
3. The heat dissipation device for the deep learning computer vision analysis host computer according to claim 1, wherein an air inlet is formed at the bottom of one side of the host computer case (1) close to the host computer power supply (3), a heat dissipation fan (16) is fixed at the air inlet, an air outlet is formed at the top of one side of the host computer case (1) far away from the host computer power supply (3), and a suction fan (9) is fixed at the air outlet.
4. The heat dissipation device for the deep learning computer vision analysis host computer according to claim 3, wherein a dustproof mechanism matched with the air inlet and the air outlet is arranged on the host computer case (1).
5. The heat sink for deep learning computer vision analysis host computer according to claim 2, wherein the baffle (6) is provided with a notch (7) for carrying a connection wire or a wiring harness on the host computer power supply (3).
6. The heat dissipation device for the deep learning computer vision analysis host computer according to claim 4, wherein the dustproof mechanism comprises a filter screen (10), a first magnet (14) and a second magnet (15), the filter screen (10) is matched with the air inlet and the air outlet, the first magnets (14) are installed on one side, close to the host computer case (1), of the filter screen (10), the first magnet (14) is inserted into the host computer case (1) and then attracts the second magnet (15), and the host computer case (1) is provided with a mounting groove corresponding to the second magnet (15).
7. The heat sink for deep learning computer vision analysis host computer according to claim 5, wherein the size of the gap (7) matches the width of the connection line or wiring harness on the host computer power supply (3).
8. The heat dissipation device for the deep learning computer vision analysis host computer according to claim 1, wherein a rotating handle (8) is arranged at the top of the host computer case (1).
9. The heat dissipation device for deep learning computer vision analysis host computer according to claim 1, wherein the bottom of the host computer case (1) is provided with a plurality of rubber support legs (11).
10. The heat dissipation device for the deep learning computer vision analysis host computer according to claim 1, wherein the access door panel (13) is connected with the host computer case (1) through a fixing screw (12).
