Abstract
An ecological solidified soil block production device belongs to the technical field of soil processing and application and aims to solve the problems of low production efficiency and limited popularization and use of ecological solidified soil blocks in the prior art. The utility model discloses an ecological solidified soil building block production facility includes: an equipment frame body; the building block die set is detachably arranged on the equipment frame body and at least comprises a die body with an upper end and a lower end which are open; the briquetting unit is arranged above the building block die set and performs telescopic motion to compact ecological soil in the building block die set from the upper end of the building block die set; the bottom tray is arranged at the lower end of the building block die set; the demoulding unit drives the bottom tray to move up and down; and the power unit provides power for the briquetting unit and the demoulding unit, and the control system controls the movement of the briquetting unit and the demoulding unit.
Description
Technical Field
The utility model belongs to the technical field of soil processing is used, concretely relates to ecological solidified soil building block production facility.
Background
The ecological building blocks can build up a retaining wall of a garden, a slope protection of a river channel and the like. The retaining wall or the revetment built by the ecological building blocks can grow plants, is rich in vitality and aesthetic feeling, and can protect the ecological environment. The production of the ecological building block can fully utilize local resources, such as solid waste materials such as tunnel waste slag, tailing ore, stone chips and the like, and not only solves the problem of stacking and processing of the solid waste materials, thereby saving a large amount of land and realizing the recycling of resources, but also can replace nonrenewable stone resources, reduce the exploitation of mines, protect natural resources and be beneficial to ecological environmental protection. However, a special production mold and equipment for the ecological building blocks are not available at present, so that the large-scale application and large-area popularization of the ecological building blocks are influenced.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide an ecological solidified soil building block production facility solves the ecological solidified soil building block production efficiency low, the limited problem of using widely that prior art exists.
In order to achieve the above object, the utility model discloses an ecological solidified soil building block production facility includes:
an equipment frame body;
the building block die set is detachably arranged on the equipment frame body and at least comprises a die body with an upper end and a lower end which are open;
the briquetting unit is arranged above the building block die set and performs telescopic motion to compact ecological soil in the building block die set from the upper end of the building block die set;
the bottom tray is arranged at the lower end of the building block die set;
the demoulding unit drives the bottom tray to move up and down;
and the power unit provides power for the briquetting unit and the demoulding unit, and the control system controls the movement of the briquetting unit and the demoulding unit.
The block die set also comprises a pressure plate, the shape of the cross section of the inner space of the pressure plate is the same as that of the cross section of the inner space of the die body, and one end surface of the pressure plate, which is opposite to the die body, is provided with insections; the pressing block plate is in sliding fit with the inner space of the die body along the movement direction of the pressing block unit.
The apparatus frame body includes:
a support frame;
the working frame is arranged at the upper end of the supporting frame along the movement direction of the pressing block unit;
and the workbench is arranged in the working frame and perpendicular to the movement direction of the pressing block unit, a through hole along the movement direction of the pressing block unit is formed in the middle of the workbench, the block die set corresponds to the through hole, and the size of the inner part of the block die set is smaller than that of the through hole.
The equipment frame body further comprises a damping wheel, and the damping wheel is arranged at the bottom of the supporting frame.
The briquetting unit includes:
the pressing block telescopic structure provides telescopic motion for the pressing block;
and the briquetting mounting head is arranged at the lower end part of the telescopic motion direction of the briquetting telescopic unit, and the briquetting mounting head is detachably connected with the briquetting plate.
The briquetting extending structure is a first hydraulic cylinder.
The demoulding unit comprises a demoulding telescopic structure which is provided along the movement direction of the pressing block unit, and the bottom tray is fixed at the upper end of the movement direction of the demoulding telescopic structure.
The demolding telescopic structure is a second hydraulic cylinder.
The power unit is a hydraulic system for providing power for the first hydraulic cylinder of the briquetting unit and the second hydraulic cylinder of the demoulding unit.
The utility model has the advantages that: the utility model discloses an ecological solidified soil building block production facility will stir the ecological soil material of good and pour into the mould of building block mould group originally internally, under power pack's effect, open first pneumatic cylinder through control system and drive the briquetting unit and press the briquetting board downwards, drive the bottom tray downstream through control system control second pneumatic cylinder after the building block suppression is accomplished, the briquetting unit is released the building block immediately, accomplishes the building block preparation.
The utility model discloses a briquetting unit can combine together with the briquetting board of the building block mould group of different forms, adapts to the preparation demand of different building block types, produces the building block of different forms, and dismantles portably, easily operates. The utility model discloses mechanization can be high, and personnel low in labor strength uses more conveniently, and the cost is lower, simple structure, and the simple control system of accessible carries out the mass production of building block for the production efficiency of building block has been accelerated greatly.
Drawings

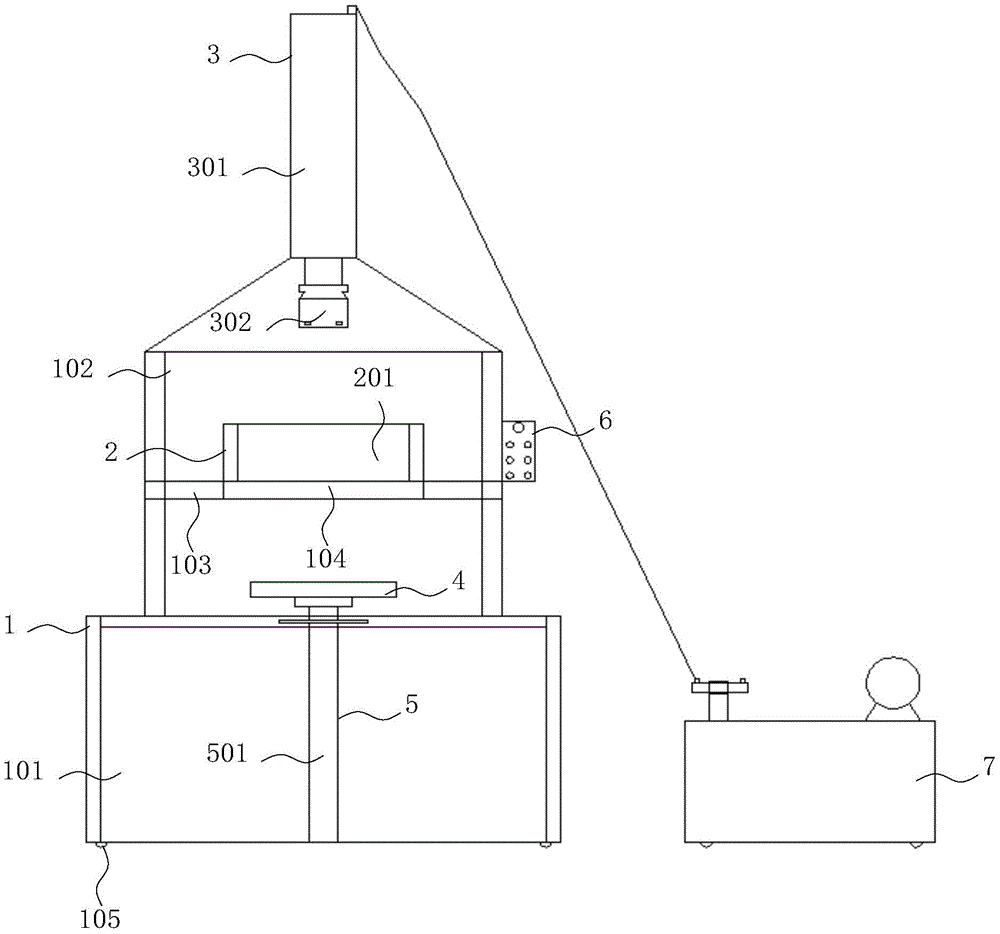

FIG. 1 is a schematic view of the overall structure of an ecological solidified soil block production device of the utility model;
wherein: 1. the equipment comprises an equipment frame body, 101, a supporting frame, 102, a working frame, 103, a working table, 104, a through hole, 105, a damping wheel, 2, a block mold group, 201, a mold body, 3, a briquetting unit, 301, a first hydraulic cylinder, 302, a briquetting mounting head, 4, a bottom tray, 5, a demoulding unit, 501, a second hydraulic cylinder, 6, a control system, 7 and a power unit.
Detailed Description
The following describes embodiments of the present invention with reference to the accompanying drawings.
Referring to the attached figure 1, the utility model discloses an ecological solidified soil building block production facility includes:
an apparatus frame 1;
the building block die set 2 is detachably arranged on the equipment frame body 1, and the building block die set 2 at least comprises a die body 201 with an upper end and a lower end being open;
the briquetting unit 3 is arranged above the building block die set 2, and the ecological soil in the building block die set 2 is compacted from the upper end of the building block die set 2 by the telescopic motion of the briquetting unit 3;
a bottom tray 4 arranged at the lower end of the block mold group 2;
the demoulding unit 5 drives the bottom tray 4 to move up and down;
and the power unit 7 and the control system 6, the power unit 7 provides power for the briquetting unit 3 and the demoulding unit 5, and the control system 6 controls the movement of the briquetting unit 3 and the demoulding unit 5.
The block die set 2 further comprises a pressing plate, the shape of the cross section of the inner space of the pressing plate is the same as that of the cross section of the inner space of the die body 201, and one end face of the pressing plate, opposite to one end face of the die body 201, is provided with insections; the building block is not easy to be bonded on the pressing block, and the production is easy; the pressing block plate is slidably fitted with respect to the inner space of the die body 201 in the moving direction of the pressing block unit 3.
The utility model discloses a building block die group 2 can be changed according to actual need's block construction's difference, and the mould body 201 among the building block die group 2 after changing can be dismantled and connect on equipment framework 1, and the connection can be dismantled on briquetting unit 3 to the briquetting board, realizes the suppression of the building block of different shapes.
The apparatus frame 1 includes:
a support frame 101;
a working frame 102 arranged at the upper end of the supporting frame 101 along the moving direction of the briquetting unit 3;
and the workbench 103 is arranged inside the working frame 102 and is vertical to the movement direction of the pressing block unit 3, a through hole 104 along the movement direction of the pressing block unit 3 is formed in the middle of the workbench 103, the block die set 2 corresponds to the through hole 104, and the inner size of the block die set 2 is smaller than that of the through hole 104.
The device frame 1 further comprises a shock absorption wheel 105, and the shock absorption wheel 105 is arranged at the bottom of the supporting frame 101.
The briquetting unit 3 includes:
the pressing block telescopic structure provides telescopic motion for the pressing block;
and a briquetting mounting head 302 arranged at the lower end part of the telescopic motion direction of the briquetting telescopic unit, wherein the briquetting mounting head 302 is detachably connected with the briquetting plate.
The pressing block telescopic structure is a first hydraulic cylinder 301.
The demolding telescopic structure is a second hydraulic cylinder 501.
The power unit 7 is a hydraulic system for providing power for the first hydraulic cylinder 301 of the briquetting unit 3 and the second hydraulic cylinder 501 of the demoulding unit 5. The power unit 7 comprises a driving assembly and an oil pumping assembly, oil is pumped out under the action of the driving assembly 1, the first hydraulic cylinder 301 is started through the control system 6 to drive the pressing block unit 3 to press the building block downwards, the control system 6 controls the demoulding unit 5 to drive the bottom tray 4 to press downwards after the pressing of the building block is finished, and the pressing block unit 3 pushes the building block out immediately to finish the manufacturing of the building block.
When the building block is pressed, when the pressure reaches a certain value, the block pressing device stops moving, then the bottom lifting device automatically moves downwards, and the block pressing device penetrates through the through hole 104 to push out the building block. The production process of the building block is safer and quicker.
The utility model discloses an ecological solidified soil building block production device, the control system 6 is arranged on the right side of the middle part of the device, and the briquetting unit 3 and the demoulding unit 5 can be controlled by the control system 6 to move up and down; the control system 6 is provided with an emergency stop button, so that equipment can be forcibly stopped when an emergency occurs, and accidents are reduced.
The utility model discloses an ecological solidified soil building block production facility, briquetting unit 3, building block die set 2 all use stainless steel with bottom tray 4, have hardness height, difficult emergence corrosion, long service life's characteristics.
Claims (9)
1. An ecological solidified soil block production device is characterized by comprising:
an apparatus frame (1);
the building block die set (2) is detachably arranged on the equipment frame body (1), and the building block die set (2) at least comprises a die body (201) with an open upper end and an open lower end;
the briquetting unit (3) is arranged above the building block die set (2), and the ecological soil in the building block die set (2) is compacted by the briquetting unit (3) from the upper end of the building block die set (2) through telescopic motion;
a bottom tray (4) arranged at the lower end of the block mold set (2);
a demoulding unit (5) which drives the bottom tray (4) to move up and down;
and the power unit (7) and the control system (6), the power unit (7) provides power for the briquetting unit (3) and the demoulding unit (5), and the control system (6) controls the movement of the briquetting unit (3) and the demoulding unit (5).
2. The ecological solidified soil building block production equipment according to claim 1, wherein the building block mold group (2) further comprises a pressing plate, the pressing plate and the mold body (201) have the same cross-sectional shape of the inner space, and the pressing plate is provided with insections relative to one end face of the mold body (201); the pressing block plate is matched with the inner space of the die body (201) in a sliding way along the moving direction of the pressing block unit (3).
3. The eco-solidified soil block production facility according to claim 1 or 2, wherein the facility frame body (1) comprises:
a support frame (101);
a working frame (102) arranged at the upper end of the supporting frame (101) along the moving direction of the briquetting unit (3);
and the workbench (103) is arranged in the working frame (102) and is vertical to the movement direction of the briquetting unit (3), a through hole (104) along the movement direction of the briquetting unit (3) is formed in the middle of the workbench (103), the block die set (2) corresponds to the through hole (104), and the internal size of the block die set (2) is smaller than that of the through hole (104).
4. The eco-solidified soil block production equipment according to claim 3, wherein the equipment frame body (1) further comprises a shock absorption wheel (105), and the shock absorption wheel (105) is arranged at the bottom of the supporting frame (101).
5. The eco-solidified soil block production apparatus as set forth in claim 2, wherein said briquetting unit (3) comprises:
the pressing block telescopic structure provides telescopic motion for the pressing block;
and the briquetting installing head (302) is arranged at the lower end part of the telescopic motion direction of the briquetting telescopic unit, and the briquetting installing head (302) is detachably connected with the briquetting plate.
6. The eco-solidified soil block production equipment as claimed in claim 5, wherein the briquette telescoping structure is a first hydraulic cylinder (301).
7. An eco-solidified soil block production apparatus as claimed in claim 1 or 2, wherein said demold unit (5) comprises a demold extension structure provided along a moving direction of the briquetting unit (3), said bottom tray (4) being fixed at an upper end of the moving direction of said demold extension structure.
8. The eco-solidified soil block production equipment according to claim 7, wherein the demolding telescopic structure is a second hydraulic cylinder (501).
9. The eco-solidified soil block production equipment as claimed in claim 1, wherein the power unit (7) refers to a hydraulic system for supplying power to the first hydraulic cylinder (301) of the briquetting unit (3) and the second hydraulic cylinder (501) of the knockout unit (5).
