Abstract
The utility model discloses a cover strutting arrangement is used in household electrical appliances equipment, which comprises a roof, the pillar that four rectangles of lower extreme fixedly connected with of roof distribute, the below of roof is equipped with the backup pad rather than being parallel, the first slider of four equal fixedly connected with in angle of backup pad, four the lateral wall of pillar all is equipped with the first slide with four first slider matched with, the lower extreme symmetry of backup pad is equipped with two splint, the top of backup pad is equipped with the screw thread clamp of being connected with two splint and gets the mechanism, the upper end of roof is equipped with the hoisting mechanism who is connected with the backup pad. The utility model discloses, it is fixed that the shroud that will assemble household electrical appliances passes through splint, mentions and puts down the shroud through control driving motor, reduces equipment workman's intensity of labour, has improved production efficiency.
Description
Technical Field
The utility model relates to a household electrical appliances equipment technical field especially relates to a cover strutting arrangement is used in household electrical appliances equipment.
Background
At present, the production mode of household appliances is quite perfect, a complete industrial chain is formed, various parts of the household appliances are distributed to a plurality of cooperative factories for production respectively by a plurality of manufacturers, and then the parts are assembled and formed by assembling workers, so that the production efficiency is greatly improved, and the cost is reduced.
However, some household appliances, such as refrigerators, freezers, washing machines, etc., have larger sizes and weights, and the volume and weight of the cover can be increased accordingly, so that the household appliances can be mechanically assisted, but the household appliances still bring great inconvenience to assembly workers, increase the working strength of the assembly workers, and reduce the assembly efficiency.
SUMMERY OF THE UTILITY MODEL
In order to solve the technical problem, the utility model adopts the following technical scheme:
the utility model provides a shroud strutting arrangement is used in household electrical appliances equipment, includes the roof, the pillar that four rectangles of lower extreme fixedly connected with of roof distribute, the below of roof is equipped with the backup pad rather than being parallel, the first slider of four equal fixedly connected with in angle of backup pad, four the lateral wall of pillar all is equipped with the first slide with four first slider matched with, the lower extreme symmetry of backup pad is equipped with two splint, the top of backup pad is equipped with the screw clamp of being connected with two splint and gets the mechanism, the upper end of roof is equipped with the hoisting mechanism who is connected with the backup pad.
Preferably, the mechanism is got to screw thread clamp includes the fixed block of fixed connection at backup pad upper end middle part, the left side wall of fixed block rotates and is connected with the threaded rod that extends to the right side wall, the screw thread opposite direction of the threaded rod of fixed block both sides, the threaded rod both ends all overlap and be equipped with rather than complex screw thread slider, the upper end both sides of backup pad all are equipped with the second slide corresponding with two screw thread sliders, two in the lower extreme of screw thread slider extends to two second slides, two the lower extreme of screw thread slider is extended the lower extreme of backup pad and is passed respectively with two splint fixed connection, the terminal fixedly connected with crank in threaded rod one side.
Preferably, hoisting mechanism fixed connection is two supports in the top end of the roof, two rotate between the support and be connected with the pivot, the outer wall fixed connection wire winding cylinder of pivot, wire winding cylinder's outer wall winding has the stay cord, the below fixed connection of the terminal roof that extends of stay cord is in the upper end of fixed block, the terminal fixedly connected with worm wheel of pivot, the upper end fixed connection extension board of roof, driving motor is installed to the lateral wall of extension board, driving motor's output fixedly connected with and worm wheel engaged with worm.
Preferably, the inner side walls of the two clamping plates are provided with rubber gaskets.
Preferably, the lower ends of the four pillars are respectively provided with a travelling wheel.
Preferably, the upper end of the top plate is provided with a safety cover which is sleeved on the outer walls of the winding drum, the worm and the worm wheel.
The utility model discloses in, its beneficial effect does:
1. the mechanism is got to the screw thread clamp that sets up, places the household electrical appliances shroud between two splint and wave the crank, and the crank rotates and drives the threaded rod and rotate, and under the effect of threaded rod, two screw sliders drive two splint and press from both sides the both sides wall of tight household electrical appliances shroud, easy operation, the tight household electrical appliances housing of clamp of being convenient for.
2. The hoisting mechanism who sets up starts driving motor, and the worm of driving motor output rotates and drives the worm wheel and rotate, and the worm wheel rotates and drives the wire winding cylinder and rotate to twine the stay cord on the surface of wire winding cylinder, thereby upwards carry the household electrical appliances shroud between the splint below the backup pad, effectively reduced equipment workman's intensity of labour, improved production efficiency.
Drawings

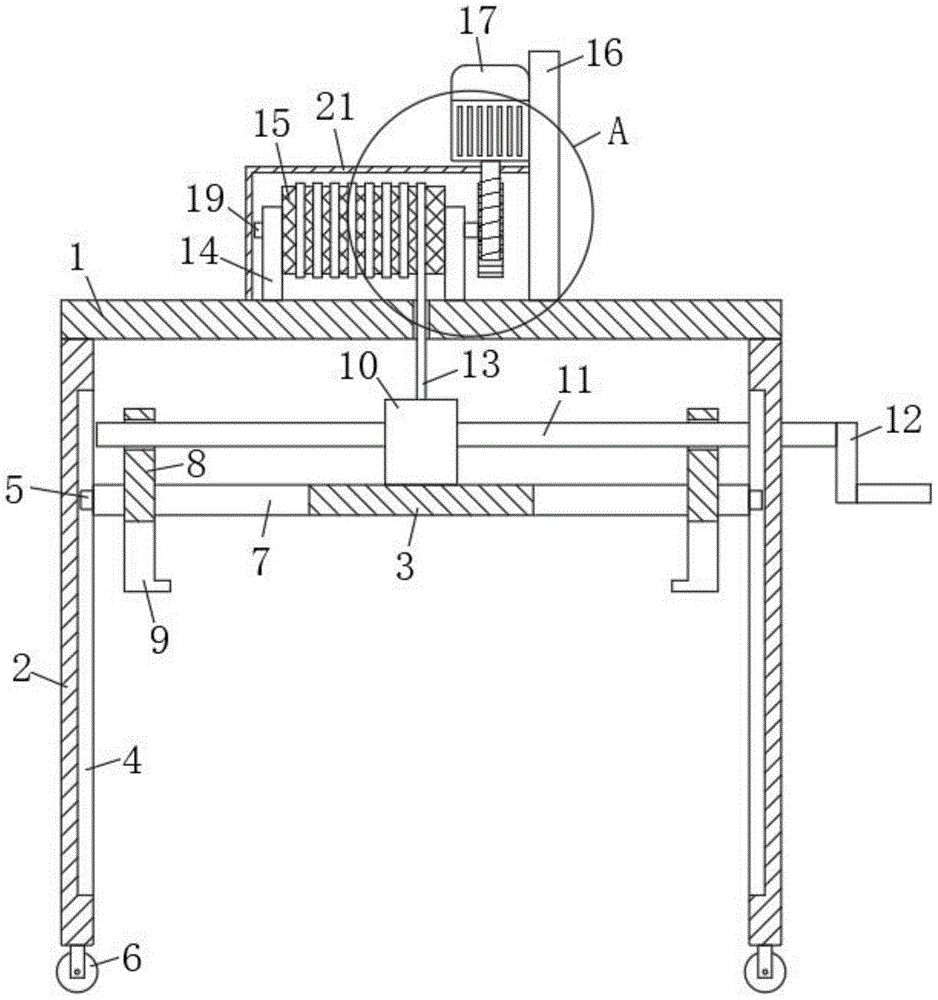

Fig. 1 is a schematic structural view of a cover supporting device for assembling a household electrical appliance according to the present invention;
fig. 2 is an enlarged schematic structural view of a position a of the cover supporting device for assembling household electrical appliances.
In the figure: the device comprises a top plate 1, a support column 2, a support plate 3, a first slide way 4, a first slide block 5, a travelling wheel 6, a second slide way 7, a threaded slide block 8, a clamping plate 9, a fixing block 10, a threaded rod 11, a crank 12, a pull rope 13, a support 14, a winding drum 15, a support plate 16, a driving motor 17, a worm 18, a rotating shaft 19, a worm wheel 20 and a safety cover 21.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
Referring to fig. 1-2, a cover supporting device for assembling household appliances comprises a top plate 1, four pillars 2 distributed in a rectangular shape are fixedly connected to the lower end of the top plate 1, running wheels 6 are mounted at the lower ends of the four pillars 2 to facilitate movement of the device, a supporting plate 3 parallel to the top plate 1 is arranged below the top plate 1, first sliding blocks 5 are fixedly connected to four corners of the supporting plate 3, first sliding ways 4 matched with the four first sliding blocks 5 are arranged on the side walls of the four pillars 2, two clamping plates 9 are symmetrically arranged at the lower end of the supporting plate 3, rubber gaskets are arranged on the inner side walls of the two clamping plates 9 to prevent the household appliances from being damaged by clamping, a thread clamping mechanism connected with the two clamping plates 9 is arranged above the supporting plate 3, the thread clamping mechanism comprises a fixed block 10 fixedly connected to the middle part of the upper end of the supporting plate 3, a, threaded rod 11's of fixed block 10 both sides screw thread opposite direction, 11 both ends of threaded rod all overlap and be equipped with rather than complex screw slider 8, the upper end both sides of backup pad 3 all are equipped with the second slide 7 corresponding with two screw slider 8, the lower extreme of two screw slider 8 extends to in two second slides 7, the lower extreme that the lower extreme extension of two screw slider 8 passes backup pad 3 respectively with two splint 9 fixed connection, 11 one side end fixedly connected with cranks 12 of threaded rod, place the household electrical appliances shroud between two splint 9 and wave crank 12, crank 12 rotates and drives threaded rod 11 and rotate, under the effect of threaded rod 11, two screw slider 8 drive two splint 9 and press from both sides the both sides wall of tight household electrical appliances shroud, and the operation is simple, be convenient for press from both sides tight household electrical appliances shroud.
The upper end of the top plate 1 is provided with a hoisting mechanism connected with the supporting plate 3, the hoisting mechanism is fixedly connected with two supports 14 at the upper end of the top plate 1, a rotating shaft 19 is rotatably connected between the two supports 14, the outer wall of the rotating shaft 19 is fixedly connected with a winding roller 15, the outer wall of the winding roller 15 is wound with a pull rope 13, the tail end of the pull rope 13 extends to the lower part of the top plate 1 and is fixedly connected with the upper end of a fixed block 10, the tail end of the rotating shaft 19 is fixedly connected with a worm wheel 20, the upper end of the top plate 1 is fixedly connected with a support plate 16, the side wall of the support plate 16 is provided with a driving motor 17, the output end of the driving motor 17 is fixedly connected with a worm 18 meshed with the worm wheel 20, the upper end of the top plate 1 is provided with a safety cover 21 sleeved on the outer walls of the, and the pull rope 13 is wound on the surface of the winding drum 15, so that the household appliance cover between the clamping plates 9 below the supporting plate 3 is lifted upwards, the labor intensity of assembly workers is effectively reduced, and the production efficiency is improved.
The utility model discloses in, at the great family TV of equipment size, place the household electrical appliances shroud between two splint 9, then wave crank 12, crank 12 rotates and drives threaded rod 11 and rotates, under threaded rod 11's effect, two screw sliders 8 drive two splint 9 and press from both sides the both sides wall of tight household electrical appliances shroud, and is simple in operation, the tight household electrical appliances housing of clamp of being convenient for, then start driving motor 17, the worm 18 of driving motor 17 output rotates and drives worm wheel 20 and rotate, worm wheel 20 rotates and drives winding drum 15 and rotate, and with stay cord 13 winding on winding drum 15's surface, thereby 3 upwards lifts the backup pad of fixed connection in the terminal fixed block 10 of stay cord 13 and below, two and drive the household electrical appliances shroud between splint 9 and upwards lift, the intensity of labour who has effectively reduced the equipment workman, and the production efficiency is improved.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (6)
1. The utility model provides a shroud strutting arrangement is used in household electrical appliances equipment, includes roof (1), its characterized in that, pillar (2) that four rectangles of lower extreme fixedly connected with of roof (1) distribute, the below of roof (1) is equipped with backup pad (3) rather than being parallel, the first slider (5) of the equal fixedly connected with in four angles of backup pad (3), four the lateral wall of pillar (2) all is equipped with the first slide (4) with four first sliders (5) matched with, the lower extreme symmetry of backup pad (3) is equipped with two splint (9), the top of backup pad (3) is equipped with the screw clamp of being connected with two splint (9) and gets the mechanism, the upper end of roof (1) is equipped with the hoisting mechanism who is connected with backup pad (3).
2. The cover supporting device for assembling electric home appliances as claimed in claim 1, the thread clamping mechanism comprises a fixed block (10) fixedly connected with the middle part of the upper end of the supporting plate (3), the left side wall of the fixed block (10) is rotationally connected with a threaded rod (11) extending to the right side wall, the thread directions of the threaded rods (11) at the two sides of the fixed block (10) are opposite, the two ends of each threaded rod (11) are respectively sleeved with a thread sliding block (8) matched with the threaded rod, the upper end both sides of backup pad (3) all are equipped with second slide (7) corresponding with two screw thread slider (8), two in the lower extreme of screw thread slider (8) extends to two second slides (7), two the lower extreme of screw thread slider (8) is passed the lower extreme of extending backup pad (3) respectively with two splint (9) fixed connection, threaded rod (11) one side end fixedly connected with crank (12).
3. The cover supporting device for assembling the household appliance according to claim 2, wherein the hoisting mechanism is fixedly connected to two supports (14) at the upper end of the top plate (1), two supports (14) are rotatably connected with a rotating shaft (19) therebetween, the outer wall of the rotating shaft (19) is fixedly connected with a winding drum (15), the outer wall of the winding drum (15) is wound with a pull rope (13), the tail end of the pull rope (13) extends to the lower portion of the top plate (1) and is fixedly connected to the upper end of the fixed block (10), the tail end of the rotating shaft (19) is fixedly connected with a worm wheel (20), the upper end of the top plate (1) is fixedly connected with a support plate (16), a driving motor (17) is installed on the side wall of the support plate (16), and the output end of the driving motor (17) is fixedly connected with a worm (18) meshed with.
4. A cover support device for assembling household electrical appliances according to claim 3, wherein the inner side walls of the two clamping plates (9) are provided with rubber gaskets.
5. A cover supporting device for assembling household electrical appliances according to claim 4, wherein traveling wheels (6) are installed at the lower ends of the four support columns (2).
6. A cover supporting device for assembling household electrical appliances according to claim 5, wherein the top plate (1) is provided at its upper end with a safety cover (21) fitted over the outer walls of the winding drum (15), the worm (18) and the worm wheel (20).
