Abstract
The utility model discloses an external formula pleuroperitoneal two-chamber of putting washes drainage pipeline device, including the pipeline body, the outside surface mark of pipeline body has the scale mark, seted up the drainage chamber in the pipeline body and washed the chamber, the fixed drainage mouth that is equipped with in affiliated pipeline body upper end, seted up the drainage chamber in the drainage mouth, affiliated drainage chamber downwardly extending to the pipe pointed end has seted up the drainage hole, and drainage mouth side of affiliated pipeline body upper end is equipped with washes the mouth, it washes the chamber to have seted up in washing the mouth, it is equipped with the washing hole to the extension of the most advanced direction of pipeline to wash the chamber. This external formula chest abdomen double-chamber of putting washes drainage pipeline device avoids the patient to put the wound of pipe under the operation of opening the abdomen in surgery, adopts the external pipe of bedside body, and easy operation shortens the time of being in hospital, reduces because of washing, again infection rate, the mortality that the drainage thoroughly leads to, reduces medical expenses, avoids thick pipe diameter drainage tube to patient's uncomfortable sense, reduces medical staff work load.
Description
Technical Field
The utility model relates to the field of medical equipment, in particular to an external implanted thoracico-abdominal double-cavity flushing drainage pipeline device.
Background
Digestive system diseases become one of three diseases with the highest morbidity of human beings, clinically, the commonly used operation treatment methods comprise surgical laparotomy, laparoscopic minimally invasive treatment, endoscopic treatment and the like, but digestive tract perforation, abdominal infection and the like occur after operation, the most common complications are generated, patients show acute abdominal symptoms such as fever, pain and the like, the birth of an abdominal cavity flushing technology greatly reduces the mortality of the patients with the complications, reduces the number of hospitalization days, and therefore the survival quality of the patients is improved.
However, an extracorporeal puncture embedded type washing and drainage integrated device for treating the complications is lacking clinically, a washing drainage tube used in the current surgery needs to be operated to cut a chest/abdominal cavity postposition tube, physical and psychological wounds of a patient are increased, the healing time is long, the operation needs to be performed under the guidance of CT (computed tomography) for percutaneous puncture and tube placement under the guidance of CT, the drainage tube is a single cavity, washing and drainage cannot be performed synchronously, washing/drainage is not thorough easily caused, closure of a pus cavity is not facilitated, and the tube placement time is prolonged; when the drainage is not smooth, doctors need to manually wash or drain, the workload of medical staff is increased, and the risk of occupational exposure is increased; and if a washing pipe and a drainage pipe are respectively arranged at different parts of the thoracic cavity/abdominal cavity focus, the method can carry out washing and drainage simultaneously, but needs to puncture for a plurality of times, thereby increasing the body pain and infection probability of patients, and increasing the expenditure of medical consumables and the workload of medical staff.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide an external formula chest abdomen two-chamber of putting into is washed drainage pipeline device to the external puncture that appears clinical lack this type of complication of treatment is put into and is washed, drainage integral type device in solving above-mentioned background art, thereby avoids the patient to put the wound of pipe under the operation of opening the abdomen in the surgery, adopts the other external pipe of bed, easy operation, and the control infection promotes the focus closed, and is recovered with higher speed, shortens the time of being in hospital, reduces medical expenses, reduces medical staff work load.
In order to achieve the above object, the utility model provides a following technical scheme: an external implanted thoracico-abdominal double-cavity washing and drainage pipeline device comprises a pipeline body, scale marks are marked on the outer surface of the pipeline body, the pipeline body is internally provided with a drainage cavity and a washing cavity, the upper end of the pipeline body is fixedly provided with a drainage port, a drainage cavity is arranged in the drainage opening, the drainage cavity extends downwards to the tip of the catheter and is provided with a drainage hole, the side of the drainage opening at the upper end of the pipeline body is provided with a flushing opening, a flushing cavity is arranged in the flushing port, a flushing hole is formed in the flushing cavity in an extending way towards the tip end of the pipeline, the distance between the flushing hole and the drainage hole is 5-6CM, a flushing joint is arranged on the outer side of the flushing port, the outside movable mounting of flushing joint has connecting thread, the outside movable mounting of drainage mouth has the drainage to connect, go out guide wire hole and drainage double-purpose have been seted up to the one end of pipeline body.
Preferably, the front end of the pipeline body is designed to be a branched structure, and the length of the scale marks on the pipeline body is matched with the length of the pipeline body.
Preferably, the periphery of the drainage hole at the tip of the pipeline body is provided with at least three groups, the included angle between the drainage holes is 120 degrees, and the drainage holes are the same in size.
Preferably, the diameter of the flush lumen is less than the diameter of the drainage lumen.
Preferably, the flushing port is of a threaded diaphragm design.
Compared with the prior art, the beneficial effects of the utility model are that: this external formula chest abdomen double-chamber of putting into washes drainage tube device, increase the chamber of washing that can wash on the drainage tube, littleer diameter and simple structure relatively, solve the clinical drainage problem of washing that does not have effective treatment alimentary canal fistula and chest abdominal cavity infection, avoid the wound of patient's catheterization under the operation of opening the abdomen in the department, thereby control the infection, promote the focus closure, it is recovered with higher speed, shorten the time of being in hospital, reduce because of washing, the reinfection rate that the drainage thoroughly leads to, the mortality, reduce medical expenses, avoid thick pipe diameter drainage tube to feel uncomfortable to the patient, do benefit to clinical operation, reduce medical staff work load.
Drawings

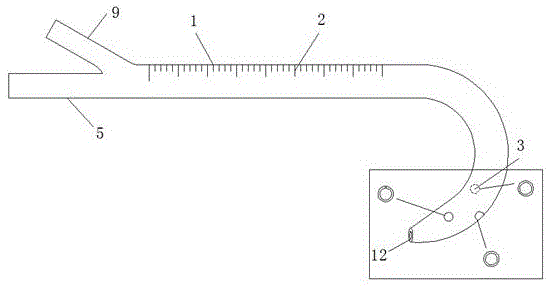

FIG. 1 is a schematic front view of the present invention;
FIG. 2 is a schematic view of the internal structure of the present invention;
FIG. 3 is a schematic view of the external guide wire structure of the present invention;
fig. 4 is a schematic view of a partial structure of the present invention.
In the figure: 1. a pipe body; 2. scale lines; 3. a drainage hole; 4. a drainage lumen; 5. a drainage opening; 6. a drainage connector; 7. flushing the hole; 8. flushing the cavity; 9. flushing the opening; 10. flushing the joint; 11. connecting threads; 12. a wire outlet hole and a drainage dual-purpose; 13. And a guide wire is externally matched.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-4, the present invention provides a technical solution: an external insertion type thoracoabdominal double-cavity washing and drainage pipeline device comprises a pipeline body 1, scale marks 2 are marked on the outer side surface of the pipeline body 1, a drainage cavity 4 and a washing cavity 8 are formed in the pipeline body 1, a drainage port 5 is fixedly arranged at the upper end of the pipeline body 1, the drainage cavity 4 is formed in the drainage port 5, the drainage cavity 4 extends downwards to the tip end of a catheter and is provided with a drainage hole 3, a washing port 9 is arranged beside the drainage port 5 at the upper end of the pipeline body 1, a washing cavity 8 is formed in the washing port 9, a washing hole 7 is formed in the washing cavity 8 in a manner of extending towards the tip end of the pipeline, the distance between the washing hole 7 and the drainage hole 3 is 5-6CM, a washing connector 10 is arranged on the outer side of the washing port 9, a connecting thread 11 is movably mounted on the outer side of the washing connector 10, a drainage connector 6 is movably mounted on the outer side of;
furthermore, the upper end of the pipeline body 1 is designed to be a branched structure, and the length of the scale mark 2 on the pipeline body 1 is matched with that of the pipeline body 1, so that the pipeline is convenient for operators to use, and the difficulty in operation is reduced;
furthermore, at least three groups of drainage holes 3 are arranged on the periphery of the tip of the pipeline body 1, the included angle between the drainage holes is 120 degrees, and the drainage holes 3 are the same in size;
furthermore, the diameter of the washing cavity 8 is smaller than that of the drainage cavity 4, so that drainage liquid can be led out from the drainage cavity 4 in a larger range;
furthermore, the flushing port 9 is designed as a threaded separation membrane, so that the clinical infusion apparatus and the flushing head can be conveniently connected with each other.
The working principle is as follows: the puncture needle, the separately configured external matching guide wire 13, the skin expander and the skin expanding tube are used conventionally to send the tip of the pipeline body 1 to the deepest part of the focus, the method is characterized in that a flushing hole 7 is sent into a focus as a reference, the tip of a pipeline body 1 is in a pigtail shape and is suspended in the focus, a pipe body part left outside the body is properly fixed by a catheter fixing device, an infusion device is connected with a drainage connector 6 of the pipeline body 1, physiological saline flows out from the flushing hole 7 through a flushing cavity 8 to continuously and slowly flush the focus, a central negative pressure device in a ward is applied to connect a drainage port 5 of the pipe for constant force suction while flushing, flushing fluid in the focus is sucked out through the drainage hole 3 and a drainage cavity 4, the patient is clinically diagnosed as digestive tract fistula or the patient with chest and abdominal infection possibly, a double-cavity flushing and drainage integrated pipe is placed as early as possible, after the infection symptom is obviously relieved, the pipeline body 1 is pulled out, the fistula naturally heals after several days, and the.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (5)
1. The utility model provides an external formula thorax abdomen two-chamber of putting washes drainage tube device, includes pipeline body (1), its characterized in that: the outer side surface of the pipeline body (1) is marked with scale marks (2), a drainage cavity (4) and a flushing cavity (8) are formed in the pipeline body (1), a drainage port (5) is fixedly arranged at the upper end of the pipeline body (1), the drainage cavity (4) is formed in the drainage port (5), the drainage cavity (4) extends downwards to the tip end of a catheter and is provided with a drainage hole (3), a flushing port (9) is arranged at the side of the drainage port (5) at the upper end of the pipeline body (1), a flushing cavity (8) is formed in the flushing port (9), a flushing hole (7) extends towards the tip end of the pipeline and is formed in the flushing cavity (8), the distance between the flushing hole (7) and the drainage hole (3) is 5-6CM, a flushing joint (10) is arranged at the outer side of the flushing port (9), and a connecting thread (11) is movably arranged at the outer side of the flushing joint, the outside movable mounting of drainage mouth (5) has drainage to connect (6), go out wire guide hole and drainage double-purpose (12) have been seted up to the one end of pipeline body (1).
2. The extracorporeal implantable thoracoabdominal dual-chamber irrigation drainage tube device of claim 1, wherein: the front end of the pipeline body (1) is designed to be a branched structure, and the length of the scale marks (2) on the pipeline body (1) is matched with the length of the pipeline body (1).
3. The extracorporeal implantable thoracoabdominal dual-chamber irrigation drainage tube device of claim 1, wherein: at least three groups of drainage holes (3) are arranged on the periphery of the pipeline body (1), included angles among the drainage holes are 120 degrees, and the drainage holes (3) are the same in size.
4. The extracorporeal implantable thoracoabdominal dual-chamber irrigation drainage tube device of claim 1, wherein: the diameter of the flushing cavity (8) is smaller than that of the drainage cavity (4).
5. The extracorporeal implantable thoracoabdominal dual-chamber irrigation drainage tube device of claim 1, wherein: the flushing port (9) is designed for a threaded separation membrane.
