Abstract
The medical oxygen uptake flowmeter storage and disinfection device is provided with a storage cabinet, more than two layers of shelving chambers separated by a shelving frame are arranged in the storage cabinet along the height direction, each layer of shelving frame is provided with a gap or a hole, a group of bases for placing the oxygen uptake flowmeter are arranged on each layer of shelving frame, a plurality of through holes are formed in the bases, a supporting column is fixed at the side of each base, clamping jaws are arranged on each supporting column, a disinfectant sprayer is arranged on the outer side of the storage cabinet, and the outlet end of the disinfectant sprayer is connected with a conduit leading to each shelving chamber. Placing the used oxygen uptake flow meter on a base in a storage cabinet, and clamping the upper part of the oxygen uptake flow meter by a clamping jaw to finish the placement and fixation of the oxygen uptake flow meter; when the oxygen absorption flowmeter needs to be disinfected, the disinfectant sprayer is opened, and the fog-shaped disinfectant sprayed by the disinfectant sprayer can enter each shelving room to disinfect the oxygen absorption flowmeter.
Description
Technical Field
The utility model relates to a medical appliance, in particular to a medical oxygen uptake flow meter storing and sterilizing device.
Background
Clinical nurses simply stack the used oxygen uptake flow meters in a treatment tray after collecting the oxygen uptake flow meters, and then uniformly send the oxygen uptake flow meters to a supply room for disinfection. Therefore, the oxygen inhalation flow meter cannot be uniformly placed after being used, cannot be sterilized in time and can influence the continuous use; if manual wiping and disinfection are adopted, time and labor are wasted, the flowmeter is easy to damage, and when the damaged flowmeter is used, a patient can be indirectly injured; the oxygen uptake flow meter is sent to be disinfected and then taken back, and the workload of nurses is increased.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a degassing unit is deposited to medical oxygen uptake flow meter, should deposit degassing unit and can concentrate medical oxygen uptake flow meter and deposit, and can realize their timely disinfection.
In order to achieve the above purpose, the utility model adopts the following scheme: the medical oxygen uptake flowmeter storage and disinfection device is provided with a storage cabinet, more than two layers of shelving chambers separated by a shelving frame are arranged in the storage cabinet along the height direction, each layer of shelving frame is provided with a gap or a hole, a group of bases for placing the oxygen uptake flowmeter are arranged on each layer of shelving frame, a plurality of through holes are formed in the bases, a supporting column is fixed at the side of each base, clamping jaws are arranged on each supporting column, a disinfectant sprayer is arranged on the outer side of the storage cabinet, and the outlet end of the disinfectant sprayer is connected with a conduit leading to each shelving chamber.
According to the scheme, the used oxygen uptake flow meter is placed on the base in the storage cabinet, and the claw clamps the upper part of the oxygen uptake flow meter, so that the oxygen uptake flow meter can be placed and fixed; when the oxygen absorption flowmeter needs to be disinfected, the disinfectant sprayer is opened, and the fog-shaped disinfectant sprayed by the disinfectant sprayer can enter each shelving room to disinfect the oxygen absorption flowmeter.
The utility model discloses rational in infrastructure, convenient to use, it can make the oxygen uptake flow meter concentrate and place, manage and in time disinfect to guarantee safe in utilization, and can improve medical personnel's work efficiency, alleviate working strength.
Drawings

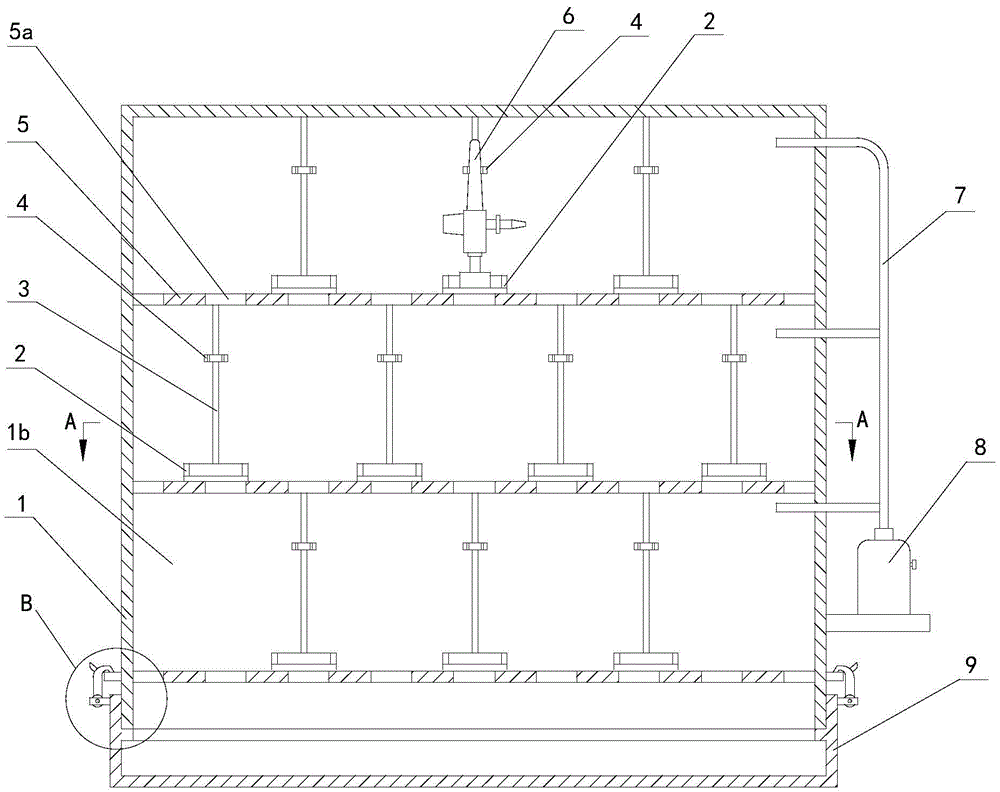

Fig. 1 is a schematic structural diagram of an embodiment of the present invention;
FIG. 2 is a cross-sectional view A-A of FIG. 1;
fig. 3 is an enlarged view of a portion B of fig. 1.
Detailed Description
The present invention will be further described with reference to the following specific embodiments and the accompanying drawings.
See fig. 1 and 2
The utility model provides a medical oxygen uptake flowmeter deposits degassing unit has a storing compartment 1, 1 inside edge direction of height of storing compartment is equipped with by shelving 5 divided shelve room 1b more than two-layer, hole 5a has on each layer of shelving 5, take a set of base 2 that supplies the oxygen uptake flowmeter to place on each layer of shelving 5, it has a plurality of through-holes 2a to open on each base 2, the side of each base 2 is fixed with a pillar 3, jack catch 4 is equipped with on each pillar 3, be equipped with an antiseptic solution atomizer 8 in the 1 outside of storing compartment, the exit end of antiseptic solution atomizer 8 has connect the pipe 7 that leads to each shelve room. In addition, the structure principle of the disinfectant sprayer 8 is the same as that of the existing humidifier.
When the medical oxygen inhalation flow meter storage and disinfection device is used, the cabinet door 1a is closed, the inside of the storage cabinet 1 is a closed space, and the cabinet door 1a is opened, so that the medical oxygen inhalation flow meter can be taken and placed.
As shown in figure 1, the used oxygen uptake flow meter 6 is placed on the base 2 in the storage cabinet, and the claw 4 clamps the upper part of the oxygen uptake flow meter 6, so that the placement and the fixation of the oxygen uptake flow meter can be completed.
See fig. 1, 3
In this embodiment, the lower end of the storage cabinet 1 is open, and the lower end of the storage cabinet is connected with a chassis 9. The mode of the connection between the lower end of the storage cabinet 1 and the chassis 9 is as follows: have bead 9a on the inner wall of chassis 9, the lower extreme of storing compartment 1 stretches into in chassis 9 and pastes with bead 9a and lean on, and articulated on the lateral surface of chassis 9 have couple 11, and the lower part of 1 lateral surface of storing compartment is fixed with boss 12, and couple 11 articulates the cooperation with boss 12. The hook 11 is disengaged from the boss 12, and the chassis 9 is separated from the storage cabinet 1. Atomized disinfectant sprayed by the disinfectant sprayer is condensed into liquid, and finally falls into the chassis 9, and the chassis 9 is detached regularly, so that the disinfectant in the chassis can be cleaned.
The above description is only a specific embodiment of the present invention, and it should be noted that, for those skilled in the art, without departing from the principle of the present invention, a plurality of modifications or equivalent replacements may be performed on the technical solution of the present invention, and these should also be considered as belonging to the protection scope of the present invention.
Claims (3)
1. Medical oxygen uptake flow meter deposits degassing unit which characterized in that: the storing and sterilizing device is provided with a storing cabinet, more than two layers of placing chambers separated by placing frames are arranged in the storing cabinet along the height direction, each layer of placing frames is provided with a gap or a hole, a group of bases for placing oxygen uptake flow meters are placed on each layer of placing frames, a plurality of through holes are arranged on the bases, a supporting column is fixed at the side of each base, clamping jaws are arranged on each supporting column, a sterilizing liquid sprayer is arranged outside the storing cabinet, and the outlet end of the sterilizing liquid sprayer is connected with a conduit leading to each placing chamber.
2. The medical oxygen uptake flow meter storage and sterilization device according to claim 1, wherein: the lower end of the storage cabinet is open, and the lower end of the storage cabinet is connected with a chassis.
3. The medical oxygen uptake flow meter storage and sterilization device according to claim 2, wherein: the inner wall on chassis has the bead, and the lower extreme of storing compartment stretches into in the chassis and pastes with the bead and lean on, and articulated on the lateral surface on chassis have the couple, and the lower part of storing compartment lateral surface is fixed with the boss, and the couple articulates the cooperation with the boss.
