Abstract
The utility model discloses a girder steel fixed knot constructs, include: the anchor rod is suitable for anchoring on a well wall; the welding bracket is provided with a side plate, a flat plate, a vertical plate and a reinforcing rib, the side plate is arranged along a well wall, the side plate is connected with the anchor rod to be fixed on the well wall, the flat plate is connected to one side of the side plate, the vertical plate is vertically arranged above the flat plate and is connected with the side plate, a first connecting hole is formed in the vertical plate, and the reinforcing rib is located on one horizontal side of the vertical plate and is respectively connected with the vertical plate and the flat plate; the steel beam is arranged on the flat plate and located on the other horizontal side of the vertical plate, and a second connecting hole is formed in the steel beam; bolts respectively passing through the first connection holes and the second connection holes to connect the steel beam and the welding bracket. According to the utility model discloses girder steel fixed knot constructs can improve the bearing capacity of girder steel, improves the security of construction and installation.
Description
Technical Field
The utility model belongs to the technical field of mechanical structure is equipped to the mine shaft and specifically relates to a girder steel fixed knot constructs is related to.
Background
In the related technology, the steel beam and the well wall fixing structure is mainly characterized in that holes are formed in steel beam wing plates and then the steel beam wing plates are connected with angle steel supporting plates, and the angle steel supporting plates are fixed on the well wall through anchor rods. When the stress of the channel steel beam is increased, angle steel needs to be welded on a web plate of the steel beam, is flush with a wing plate of the steel beam, and is then connected with the angle steel bracket through bolts. This type of fixed structure is much more used in situations where the steel beams are under low stress.
However, with the improvement of the mine capacity, especially in the lifting shaft, the stress of the steel beam is larger and larger, and at the moment, the angle steel supporting plate is thin and is not matched with the shape and size of the high and large steel beam, so that the visual safety is influenced. Meanwhile, the fixed structure of the upper and lower angle steel supporting plates is adopted, the supporting plates or the steel beams are often subjected to on-site hole expansion under the influence of on-site construction quality, the hole expansion size is limited, the installation is difficult, and the bearing capacity of the supporting plates and the steel beams is greatly reduced due to on-site hole expansion, so that the installation quality cannot be guaranteed. In addition, because the electric welding reaming is carried out on the underground site, the construction progress is seriously influenced, and the safety of constructors is not facilitated.
SUMMERY OF THE UTILITY MODEL
The utility model discloses aim at solving one of the technical problem that exists among the prior art at least. Therefore, the utility model provides a girder steel fixed knot constructs to improve the bearing capacity of girder steel, improve the security of construction and installation.
According to the utility model discloses girder steel fixed knot constructs, include: the anchor rod is suitable for anchoring on a well wall; the welding bracket is provided with a side plate, a flat plate, a vertical plate and a reinforcing rib, the side plate is arranged along a well wall, the side plate is connected with the anchor rod to be fixed on the well wall, the flat plate is connected to one side of the side plate, the vertical plate is vertically arranged above the flat plate and is connected with the side plate, a first connecting hole is formed in the vertical plate, and the reinforcing rib is located on one horizontal side of the vertical plate and is respectively connected with the vertical plate and the flat plate; the steel beam is arranged on the flat plate and located on the other horizontal side of the vertical plate, and a second connecting hole is formed in the steel beam; bolts respectively passing through the first connection holes and the second connection holes to connect the steel beam and the welding bracket.
According to the utility model discloses girder steel fixed knot constructs 100 adopts the welding bracket to replace current angle steel from top to bottom to support fixed girder steel, adopts to add the rigidity that the muscle rib improves the welding bracket, has improved the bearing strength of girder steel, has reduced installation operation intensity, and easy maintenance makes it not take place to destroy when accidental collision simultaneously. The steel beam fixing structure is simple in structure, convenient to machine and mount, low in technical requirement, low in implementation cost and low in labor operation intensity.
In some embodiments, the steel beam fixing structure comprises a plurality of reinforcing ribs, and the plurality of reinforcing ribs are connected to the vertical plates along the length direction of the steel beam.
In some embodiments, the steel beam fixing structure has the reinforced rib respectively arranged vertically to the flat plate and the vertical plate, and the reinforced rib is arranged at the same height as the vertical plate.
In some embodiments, the steel beam fixing structure the welding bracket further includes a rib plate located below the flat plate and connected to the side plate.
Specifically, the steel beam fixing structure the rib plate is perpendicular to the flat plate, and the rib plate and the reinforcing rib are located on two sides of the vertical plate.
In some embodiments, the steel beam fixing structure is provided with thin sheets between the steel beam and the vertical plate.
In some embodiments, the side plate of the steel beam fixing structure is a vertical straight plate, or the side plate is an arc-shaped plate matched with the well wall.
In some embodiments, the side plates of the steel beam fixing structure are provided with a filling layer on the side facing the well wall.
In some embodiments, the steel beam fixing structure comprises a web plate and a wing plate, the wing plate is connected to at least one side of the web plate along the length direction of the web plate, and the second connecting hole is formed in the web plate.
Specifically, the web of the steel beam fixing structure is tightly attached to the vertical plate, or the wing plate is tightly attached to the vertical plate, and a plurality of bolts are connected between the web and the vertical plate.
Additional aspects and advantages of the invention will be set forth in part in the description which follows and, in part, will be obvious from the description, or may be learned by practice of the invention.
Drawings
The above and/or additional aspects and advantages of the present invention will become apparent and readily appreciated from the following description of the embodiments, taken in conjunction with the accompanying drawings of which:

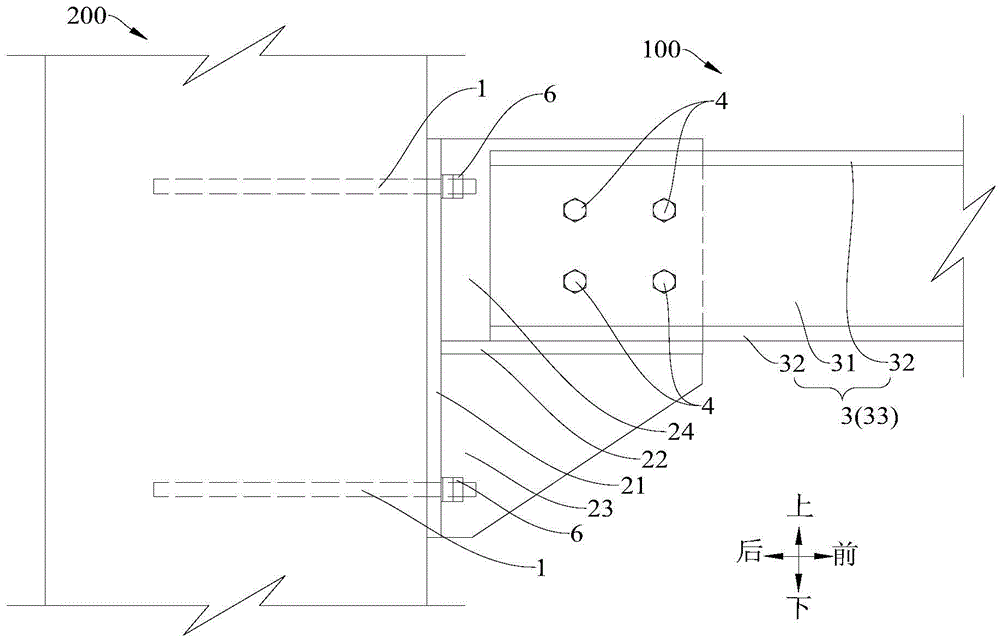

fig. 1 is the embodiment of the utility model provides an in the side view of girder steel fixed knot structure wherein, the girder steel chooses for use the I-steel. For ease of understanding, structures not visible are shown in dashed lines)
FIG. 2 is a side view of a steel beam mounting structure in an embodiment of the present invention (wherein the steel beam is a channel steel; for ease of understanding, the structure that cannot be observed is shown in phantom);
FIG. 3 is a side view of a welding bracket (side plate is a vertical straight plate) according to an embodiment of the present invention;
fig. 4 is a side view of an anchor rod in an embodiment of the present invention;
FIG. 5 is a side view of a steel beam in an embodiment of the present invention;
FIG. 6 is a top view of a steel beam mounting structure in an embodiment of the present invention (wherein the steel beam is an I-beam, the structure that cannot be observed is shown by dashed lines for ease of understanding);
FIG. 7 is a top view of a steel beam mounting structure in an embodiment of the present invention (wherein the steel beam is selected to be a channel steel; for ease of understanding, the structure that is not visible is shown in phantom);
fig. 8 is a top view of the welding bracket (the side plate is an arc plate adapted to the well wall) in the embodiment of the present invention.
Reference numerals:
a steel beam fixing structure 100,
An anchor rod 1,
A welding bracket 2, a side plate 21, a fourth connecting hole 211, a flat plate 22, a third connecting hole 221, a rib plate 23, a vertical plate 24, a first connecting hole 241, a ribbed rib 25,
The steel beam 3, the web plate 31, the wing plate 32, the second connecting hole 321, the I-steel 33, the channel steel 34, the angle steel 35,
A bolt 4,
A nut 6,
The borehole wall 200.
Detailed Description
Reference will now be made in detail to embodiments of the present invention, examples of which are illustrated in the accompanying drawings, wherein like reference numerals refer to the same or similar elements or elements having the same or similar function throughout. The embodiments described below with reference to the drawings are exemplary only for the purpose of explaining the present invention, and should not be construed as limiting the present invention.
In the description of the present invention, it is to be understood that the terms "upper", "lower", "length", "vertical", "horizontal", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be construed as limiting the present invention. Furthermore, a feature defined as "first" or "second" may explicitly or implicitly include one or more of that feature. In the description of the present invention, "a plurality" means two or more unless otherwise specified.
In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "connected," and "connected" are to be construed broadly, and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.
A steel beam fixing structure 100 according to an embodiment of the present invention is described below with reference to fig. 1 to 8.
According to the utility model discloses girder steel fixed knot constructs 100, as shown in fig. 1-5, girder steel fixed knot constructs 100 includes: anchor 1, welding bracket 2, girder steel 3 and bolt 4. The welding carriage 2 has side plates 21, flat plates 22, risers 24 and a ribbed rib 25. Dull and stereotyped 22 is connected in one side of curb plate 21, and the riser 24 is vertical to be set up in dull and stereotyped 22 top and link to each other with curb plate 21, is equipped with first connecting hole 241 on the riser 24, and the rib 25 that adds is located riser 24 horizontal one side and links to each other with riser 24, dull and stereotyped 22 respectively. The anchor rods 1 are adapted to be anchored to the borehole wall 200 with the side plates 21 disposed along the borehole wall 200, the side plates 21 being connected to the anchor rods 1 for securement to the borehole wall 200. The steel beam 3 is arranged on the flat plate 22 and located on the other horizontal side of the vertical plate 24, and a second connecting hole 321 is formed in the steel beam 3. Bolts 4 pass through the first and second connection holes 241 and 321 to connect the steel beam 3 and the welding bracket 2, respectively.
The welding bracket 2 is a welding part, and the side plate 21, the flat plate 22 and the vertical plate 24 are connected into a whole by welding. Girder steel fixed knot constructs 100 is when the assembly, earlier with welding bracket 2 through stock 1 be fixed in the wall of a well 200 on, then put up girder steel 3 on welding bracket 2, erect with bolt 4 with girder steel 3 and welding bracket 2 fixed connection after counterpointing, finally with supplementary fastener 5 with girder steel 3 card on welding bracket 2.
It should be noted that the bracket provides a supporting function for the steel beam at both ends of the steel beam, and is a support of the steel beam. The strength of the bracket design and the quality of the field installation quality are directly related to the bearing capacity of the steel beam, and the bracket design is particularly important in lifting the vertical shaft. In recent years, mine lifting capacity and lifting speed are higher and higher, which puts higher requirements on installation of steel beams. Brackets that provide support for the steel beams are also required to match the load bearing capacity of the steel beams. The design innovation of bracket not only will guarantee that its design strength meets the demands, also need guarantee simultaneously that its overall dimension will coordinate with the girder steel size, satisfies visual safety, also needs the abominable operational environment in field of considering simultaneously, will simple to operate, reduces intensity of labour.
At present, the steel beam is still fixed mainly by adopting a bracket structure of upper and lower angle steels in the prior art. This kind of structure all sets up the angle steel as the bracket on the girder steel downside, and the embodiment of this structure is: and welding stiffening rib plates on the angle steel, respectively forming corresponding bolt holes in the steel beam and the angle steel, mounting the anchor rods on the well wall during mounting, then mounting the lower angle steel, fixing the steel beam, connecting the steel beam on the lower angle steel by using bolts, then mounting the upper angle steel, and finally connecting the steel beam on the upper angle steel by using bolts. The hole is not only needed to be aligned with the upper angle steel, but also needs to be aligned with the lower angle steel when the steel beam is installed, the hole is difficult to align on the site of the structure, the installation operation intensity is high, the installation quality can not be guaranteed, the hole is usually expanded by electric welding on the site, the hole expansion size is limited due to the size influence of the angle steel, serious persons can burn the supporting plate, and the supporting capacity of the supporting plate is seriously reduced. Therefore, the structure can not meet the requirement of the bearing capacity of the steel beam and the visual safety. In some structures adopting the upper and lower angle steel brackets, due to the fact that bolt connection cannot be achieved, welding installation is adopted, namely the upper and lower angle steels are anchored on a well wall, and steel beams are directly welded on the upper and lower angle steels, and certain difficulty is brought to maintenance and replacement of the rear brackets and the steel beams. In a word, the upper and lower angle steel brackets can not guarantee and provide the required intensity of cage guide installation fixed node, increase installation working strength, weaken the bearing capacity of girder steel, influence the operation that promotes the container and reduce the promotion task of shaft. When the steel beam is subjected to an accidental event, the due function of the steel beam cannot be exerted, and the steel beam is easy to damage.
Along with the development of the technology and the requirement of mine production, the operation speed of the lifting container is faster and faster, so that higher and higher quality requirements are provided for the design, installation, maintenance and replacement of the steel beam. The steel beam is fixed, so that the steel beam is not damaged when stressed normally, and is not invalid when an accidental event occurs, and the steel beam continues to play a role. This application has adopted welding bracket 2 to replace the angle steel bracket among the current scheme, and welding bracket 2 has curb plate 21, flat 22, riser 24 and adds muscle rib 25, and welding bracket 2 global rigidity and intensity obtain promoting under adding holding of muscle rib 25, consequently also can further promote the bearing capacity of girder steel 3. And the welding bracket 2 is formed by welding and connecting the side plate 21, the flat plate 22 and the vertical plate 24, and three plate bodies in size can be selected to be in proper size according to actual needs, namely the size of the welding bracket 2 can be determined according to design strength and hole opening requirements, so that the trouble of large hole expansion on site is avoided. The arrangement of the welding bracket 2 avoids the need of arranging brackets below the upper part of the steel beam, and overcomes the difficult problem of alignment of the upper bracket, the lower bracket and the anchor rod. Therefore, the steel beam fixing structure 100 of the welding bracket 2 is matched with a steel beam with a large load in terms of bearing capacity, external dimension and visual safety, and the bearing capacity of the steel beam is ensured. In a word, welding bracket 2 simple structure, processing is convenient, and technical requirement is low, realizes with low costs, has both reduced intensity of labour, and simple to operate for the installation progress has improved girder steel fixed node's intensity again.
According to the utility model discloses girder steel fixed knot constructs 100 adopts welding bracket 2 to replace current angle steel from top to bottom to support fixed girder steel 3, adopts to add muscle rib 25 and improves welding bracket's rigidity, has improved the bearing strength of girder steel, has reduced installation operation intensity, and easy maintenance makes it not take place to destroy when accidental collision simultaneously. The steel beam fixing structure is simple in structure, convenient to machine and mount, low in technical requirement, low in implementation cost and low in labor operation intensity.
According to the utility model discloses girder steel fixed knot constructs 100, through setting up riser 24 in dull and stereotyped 22 top and link to each other with curb plate 21, curb plate 21 links to each other with stock 1 in order to fix on the wall of a well 200 to make welding bracket 2 can be fixed in on the wall of a well 200 steadily. The bolt 4 passes first connecting hole 241 on the riser 24 and the second connecting hole 321 on the girder steel 3 respectively with connection girder steel 3 and welding bracket 2 to welding bracket 2 can play fixed, limiting displacement to girder steel 3, and then improves girder steel 3's bearing capacity, makes girder steel 3 install on the wall of a well 200 firmly. The rigidity of welding bracket 2 can be increased in the setting of strengthening rib, further improves girder steel 3's bearing capacity to be favorable to protecting constructor's safety.
In some embodiments, as shown in fig. 3, the reinforcing rib 25 is provided in plurality, and the plurality of reinforcing ribs 25 are connected to the risers 24 along the length of the steel beam 3. The rigidity of welding bracket 2 can be increased in the setting of a plurality of strengthening ribs for welding bracket 2 all obtains the reinforcing along 3 length direction's of girder steel support intensity, and then can improve girder steel 3's bearing capacity.
In some embodiments, as shown in fig. 3, the ribbing 25 is disposed perpendicular to the flats 22 and risers 24, respectively, and the ribbing 25 is disposed at the same height as the risers 24. The ribs 2525 are disposed perpendicular to the flat plate 22 and the vertical plate 24, respectively, so that the rigidity of the welding bracket 2 can be improved. The ribs 2525 are disposed at the same height as the risers 24, so that the strength of the risers 24 in the height direction is improved. When the steel beam 3 is installed on the vertical plate 24 to bear a heavy object, external force can be uniformly applied to the vertical plate 24 and the rib plate 23, so that the bearing capacity and the fatigue resistance of the welding bracket 2 can be improved.
In some embodiments, as shown in fig. 1 and 3, the welding carriage 2 further comprises a rib 23, the rib 23 being located below the flat plate 22 and connected to the side plate 21. The rib plate 23 located below the flat plate 22 can bear a part of external force, so that when the steel beam 3 bears a heavy object, the flat plate 22 can transmit part of the external force to the rib plate 23, the fatigue resistance of the welding bracket 2 can be improved, and the supporting strength and stability of the welding bracket 2 can be improved.
Specifically, as shown in fig. 1 and 3, the rib 23 is disposed perpendicular to the flat plate 22, and the rib 23 and the ribbed rib 25 are located on both sides of the riser 24. Thus, the upper surface of the flat plate 22 is provided with the riser 24 and the ribs 23 on both sides of the riser 24, and the lower surface of the flat plate 22 is provided with the ribs 23 on both sides of the riser 24, so that the ribs and the reinforcing ribs 2525 can improve the rigidity of the welding bracket 2.
In some embodiments, sheets (not shown) are inserted between the steel beams 3 and the risers 24. It can be understood that, when installing girder steel 3, there is certain clearance between girder steel 3 and the riser 24, has the thin slice through having filled in between girder steel 3 and the riser 24, can fill the clearance, improves the joint strength between girder steel 3 and the riser 24, further improves the stability of welding bracket 2 installation.
In particular, the lamellae may be thin steel sheets. The thickness of the thin steel sheet is in millimeter level, and the actual thickness of the thin steel sheet is determined according to the clearance between the steel beam 3 and the vertical plate 24. Of course, the sheet may be made of other materials such as aluminum sheet.
In some embodiments, as shown in fig. 1 and 2, the steel beam 3 is at least one of an i-steel 33 and a channel steel 34. When using an i-beam 33, as shown in fig. 1, the i-beam 33 is supported on the welding carriage 2. The bolts 4 pass through the first and second coupling holes 241 and 321, respectively, to couple the i-steel 33 and the welding bracket 2. When a channel 34 is used, as shown in fig. 2, the channel 34 is supported on the welding bracket 2. The bolts 4 pass through the first and second connection holes 241 and 321 to connect the channel steel 34 and the welding bracket 2, respectively. Of course, the structure of the steel beam 3 is not limited to this, and for example, an angle steel 35 may be provided on the welding bracket 2 to further increase the bearing capacity of the steel beam 3.
In some embodiments, the side plates 21 are vertical straight plates, as shown in fig. 1-3, or the side plates 21 are curved plates that fit against the borehole wall 200, as shown in fig. 8. As shown in fig. 1-3, vertical plates may be used when the well wall 200 is more vertical. As shown in fig. 6-8, when the well wall 200 has a curvature, an arcuate plate adapted to the well wall 200 may be used. When the side plate 21 is fixed on the well wall 200 through the anchor rod 1, the side plate 21 can be well contacted with the well wall 200, and the stability of the installation of the welding bracket 2 can be improved.
Alternatively, as shown in fig. 3 and 8, a fourth connecting hole 211 may be formed in the side plate 21, the end of the anchor rod 1 may have a thread, and the end of the anchor rod 1 having the thread is engaged with the nut 6 after passing through the fourth connecting hole 211, so that the side plate 21 may be fixed to the well wall 200 through the anchor rod 1.
In some embodiments, the side plates 21 are provided with a filling layer (not shown) on the side facing the borehole wall 200. It can be understood that a certain gap exists between the side plate 21 and the well wall 200, and the side plate 21 is provided with the filling layer on the side facing the well wall 200, so that the gap can be filled, the connection strength between the side plate 21 and the well wall 200 is improved, and the installation stability of the welding bracket 2 is further improved.
Specifically, the filling layer is a cement mortar layer which is solidified after fluid is filled in a gap between the side plate 21 and the well wall 200. Therefore, fluid can be well filled into a gap between the side plate 21 and the well wall 200, so that the side plate 21 and the well wall 200 can be tightly connected through the solidified cement mortar layer, the connection strength between the side plate 21 and the well wall 200 is improved, and the installation stability of the welding bracket 2 is further improved.
In some embodiments, as shown in fig. 1 and 5, the beam has a web 31 and a wing 32, the wing 32 is connected to at least one side of the web 31 along a length direction of the web 31, and the second connection hole 321 is provided on the web 31. That is, at least one side of the length direction of the web 31 is connected with the wing plate 32, so that the web 31 and at least one wing plate 32 can provide certain structural strength to bear heavy objects. The second connection hole 321 of the web 31 can be matched with the first connection hole 241 of the riser 24, so as to be used as a hole for connecting the web 31 with the flat plate 22.
Specifically, as shown in fig. 2 and 7, the web 31 is closely attached to the riser 24, or as shown in fig. 1 and 6, the flange 32 is closely attached to the riser 24, and a plurality of bolts 4 are connected between the web 31 and the riser 24. As shown in fig. 2 and 7, the web 31 can be tightly attached to the riser 24, so that the force borne by the steel beam 3 can be uniformly dispersed on the riser 24, the local stress of the riser 24 is reduced, and the fatigue resistance of the riser 24 is improved. The second connection hole 321 formed in the web 31 can be connected to the vertical plate 24 via the bolt 4, and the connection strength between the web 31 and the vertical plate 24 can be increased by providing a plurality of bolts 4, so that the steel beam 3 can be stably fixed to the welding bracket 2. Or as shown in fig. 1 and 6, the wing plates 32 are tightly attached to the vertical plate 24, so that the force borne by the steel beam 3 is uniformly dispersed on the vertical plate 24, the local stress on the vertical plate 24 is reduced, and the fatigue resistance of the vertical plate 24 is improved.
A steel beam fixing structure 100 according to an embodiment of the present invention is described below with reference to fig. 1.
According to the utility model discloses girder steel fixed knot constructs 100, include: anchor rod 1, welding bracket 2, girder steel 3, bolt 4 and nut 6.
Wherein the rock bolt 1 is adapted to be anchored to the borehole wall 200.
The welding carriage 2 has side plates 21, flat plates 22, risers 24, ribs 23, and ribbing 25. The side plate 21 is arranged along the well wall 200, and the side plate 21 is connected with the anchor rods 1 to be fixed on the well wall 200. The side plate 21 is a vertical straight plate. The side plate 21 may be provided with a fourth coupling hole 211. The flat plate 22 is connected to one side of the side plate 21, and the vertical plate 24 is vertically disposed above the flat plate 22 and connected to the side plate 21. The riser 24 is provided with a first connection hole 241. The rib 23 is located below the flat plate 22 and connected to the side plate 21. Rib 23 is perpendicular to slab 22, and rib 23, ribbed rib 25 are located the both sides of riser 24. The plurality of the reinforcement ribs 25 are connected to the risers 24 along the length direction of the steel beam 3. The reinforced rib 25 is respectively arranged vertically to the flat plate 22 and the vertical plate 24, and the reinforced rib 25 is arranged at the same height as the vertical plate 24.
The steel beam 3 is arranged on the flat plate 22 and is positioned on the other horizontal side of the vertical plate 24. The steel beam 3 has a web 31 and a wing plate 32, and the second connection hole 321 is provided on the web 31. The web 31 is closely attached to the riser 24, and a plurality of bolts 4 are connected between the web 31 and the riser 24.
In the description herein, references to the description of the terms "embodiment," "example," etc., mean that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one embodiment or example of the invention. In this specification, the schematic representations of the terms used above do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials, or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.
While embodiments of the present invention have been shown and described, it will be understood by those of ordinary skill in the art that: various changes, modifications, substitutions and alterations can be made to the embodiments without departing from the principles and spirit of the invention, the scope of which is defined by the claims and their equivalents.
Claims (10)
1. A steel beam fixing structure, comprising:
the anchor rod is suitable for anchoring on a well wall;
the welding bracket is provided with a side plate, a flat plate, a vertical plate and a reinforcing rib, the side plate is arranged along a well wall, the side plate is connected with the anchor rod to be fixed on the well wall, the flat plate is connected to one side of the side plate, the vertical plate is vertically arranged above the flat plate and is connected with the side plate, a first connecting hole is formed in the vertical plate, and the reinforcing rib is located on one horizontal side of the vertical plate and is respectively connected with the vertical plate and the flat plate;
the steel beam is arranged on the flat plate and located on the other horizontal side of the vertical plate, and a second connecting hole is formed in the steel beam;
bolts respectively passing through the first connection holes and the second connection holes to connect the steel beam and the welding bracket.
2. The steel beam fastening structure of claim 1, wherein the plurality of reinforcing ribs are connected to the risers along the length of the steel beam.
3. The steel beam fixing structure according to claim 1, wherein the reinforcement ribs are provided perpendicular to the flat plate and the riser, respectively, and are provided at the same height as the riser.
4. The steel beam fastening structure of claim 1, wherein the welding bracket further comprises a rib plate located below the flat plate and connected to the side plate.
5. The steel beam-fixing structure according to claim 4, wherein the rib is provided perpendicular to the slab, and the rib and the reinforcement rib are provided on both sides of the riser.
6. The steel beam fastening structure of claim 1, wherein a thin sheet is inserted between the steel beam and the riser.
7. The steel beam fixing structure according to claim 1, wherein the side plates are vertical straight plates, or the side plates are arc-shaped plates matched with the well wall.
8. The steel beam fastening structure according to claim 1, wherein the side plate is provided with a filling layer at a side facing the well wall.
9. The steel beam fixing structure according to any one of claims 1 to 8, wherein the steel beam has a web and a wing plate connected to at least one side of the web in a length direction of the web, and the second connection hole is provided on the web.
10. The steel beam fastening structure of claim 9, wherein the web is attached to the riser or the wing is attached to the riser, and a plurality of bolts are connected between the web and the riser.
