CN210821322U

CN210821322U - Plastic floor drenches membrane device

Info

Publication number: CN210821322U
Application number: CN201921817769.7U
Authority: CN
Inventors: 李松杰
Original assignee: Anji Tianze Plastic Co Ltd
Current assignee: Anji Tianze Plastic Co Ltd
Priority date: 2019-10-28
Filing date: 2019-10-28
Publication date: 2020-06-23
Anticipated expiration: 2029-10-28

Abstract

The utility model discloses a plastic floor drenches membrane device, comprises a workbench, the workstation is connected with the conveying roller through the roller backup pad, roller backup pad both ends are connected with first compression roller axle and second compression roller axle through first compression roller board and second compression roller board, the upper portion of workstation from a left side to the right side is equidistance in proper order and is equipped with first frame, second frame and third frame, be equipped with the drenching membrane pond that is used for the rubber coating on the first frame, be equipped with the tectorial membrane frame that send the membrane on the second frame, be equipped with the electric jar that is used for adjusting the lift on the third frame, the workstation bottom is installed and is used for power take off's motor; the utility model is provided with a motor to drive the conveying roller shaft to transport the plastic floor, a film spraying pool is arranged on the workbench to paint glue, a guide roller shaft is arranged to realize the conveying of the film, and the laminating roller shaft driven by the electric cylinder realizes the laminating of the film; the press roll shaft is arranged on the conveying roll shaft, so that the plastic floor can be prevented from falling and shifting in the transportation process.

Description

Plastic floor drenches membrane device

Technical Field

The utility model belongs to the technical field of the plastic floor, concretely relates to plastic floor drenches membrane device.

Background

Plastic flooring is another name for PVC flooring. The main component is polyvinyl chloride material, and the PVC floor can be made into two kinds, one kind is homogeneous and transparent, namely the pattern material from bottom to top is the same.

The other is a composite type, namely, the top layer is a pure PVC transparent layer, and a printing layer and a foaming layer are added below the pure PVC transparent layer. The PVC flooring is widely used in various aspects of homes and businesses due to its rich color and variety of colors.

Plastic flooring is a broad name. There are many descriptions on the network, it should be said that all the descriptions are not very accurate, and the plastic floor is a new type light floor decoration material which is very popular in the world today, also called as "light floor material".

Need drench the membrane to it in the production process on plastic floor for plastic floor can prevent effects such as water and antiskid, drench the membrane to carry out the rubber coating to plastic floor earlier, then go with the tectorial membrane pressfitting, realize plastic floor's tectorial membrane, increase plastic floor's practicality.

However, in the prior art, glue is smeared through the manual work to the process of drenching the membrane, make work efficiency low, and the glue thickness of smearing is inhomogeneous, make very trouble in the time of the tectorial membrane, and the finished product can seem highly uneven, can't reach the standard, automatic rubber coating is realized to equipment some among the prior art, but take place the plastic floor very easily and remove when using and drop, make to have a large amount of problems in the operation, to the tectorial membrane, there is not guider, make the tectorial membrane very easily cause the tectorial membrane extrusion of fracture or be, can't realize the tectorial membrane, do not the pressfitting operation behind the tectorial membrane, make the inside bubble that exists easily of tectorial membrane, and can not make the very level and smooth of tectorial membrane.

Therefore, the plastic floor film coating device is provided for solving the problems in the prior art, so that the working efficiency is improved, time and labor are saved, the production and labor cost of enterprises is reduced, the operation is simple, the excellent forming effect of the plastic floor can be ensured in operation, and the plastic floor can not be displaced and the film coating and laying are smooth in transportation.

Disclosure of Invention

The utility model aims at providing a plastic floor drenches membrane device to solve the problem that proposes among the above-mentioned background art.

In order to achieve the above purpose, the utility model adopts the following technical scheme:

a plastic floor film coating device comprises a workbench, roll shaft supporting plates are fixedly arranged on two sides of the workbench, a gear box is fixedly arranged on the outer side of each roll shaft supporting plate, at least five groups of conveying roll shafts are arranged in each roll shaft supporting plate through bearings, a first press roll plate is fixedly arranged at the top of the left end of each roll shaft supporting plate, a first press roll shaft is movably connected inside each first press roll plate through a bearing, a first frame, a second frame and a third frame are sequentially arranged on the upper portion of the workbench from left to right at equal intervals, a first cross beam is welded on the first frame, a film coating pool is fixedly arranged on the first cross beam, a flow guide pool is fixedly connected to the bottom of the film coating pool, a connecting pipe is fixedly connected to the bottom of the flow guide pool, a film coating nozzle is arranged at the bottom of the connecting pipe, a film coating frame is welded at the top of the second frame, a film coating roll is movably connected inside the film coating frame through, the welding of the upper portion of second frame has first deflector, there is first direction roller through bearing swing joint in the first deflector, the welding of the upper portion of third frame has the second crossbeam, fixed mounting has electric jar on the second crossbeam, the output of electric jar covers the compression roller frame through telescope tube and telescopic link fixedly connected with, cover the inside of compression roller frame and have the cover compression roller axle through bearing swing joint, the fixed second compression roller board that is equipped with in right-hand member upper portion of roller backup pad, the inside of second compression roller board has the second compression roller axle through bearing swing joint, the one end bottom fixed mounting of workstation has the motor, the output end key of motor is connected with the gear, the gear passes through the chain and connects in the gear box.

Preferably, at least four groups of supporting legs are welded at the bottom of the workbench and are respectively fixed at four corners of the bottom of the workbench.

Preferably, the leftmost end of carrying the roller is as initiative transport roller, the tip key-type connection of initiative transport roller has initiative runner and gear to be in the gear box, remains carry the roller as driven transport roller, the tip key-type connection of driven transport roller has driven runner to be in the gear box.

Preferably, the gear on the output end of the motor is in transmission connection with the gear at the end part of the driving conveying roller shaft through a chain, and the driving rotating wheel at the end part of the driving conveying roller shaft is in transmission connection with the driven rotating wheel at the end part of the driven conveying roller shaft through a transmission belt.

Preferably, a hole groove is formed in one side of the left end of the workbench, and the chain penetrates through the hole groove and is connected into the gear box.

Preferably, the top of the membrane spraying pool is welded with a funnel, and the flow guide pool penetrates through the first cross beam.

Preferably, the bottom of the connecting pipe is provided with six groups of laminating nozzles at least at equal intervals, the upper part of each group of laminating nozzles is provided with a valve, and the valves are positioned on the connecting pipe.

Preferably, a second guide plate is welded on the right side of the third frame, and a second guide roll shaft is movably connected in the second guide plate through a bearing.

Preferably, the telescopic sleeve is movably arranged at the output end of the electric cylinder, the telescopic rod is movably arranged in the telescopic sleeve, and the telescopic sleeve penetrates through the second cross beam.

Preferably, the first platen roller shaft and the second platen roller shaft are both located above the conveying roller shafts at both ends.

The utility model discloses a technological effect and advantage: the utility model provides a plastic floor drenches membrane device compares with prior art, has following advantage:

the utility model discloses being equipped with the motor and driving the transport roller and carrying out the transportation to the plastic floor, make the plastic floor can be transported to the tail end on the workstation, and be equipped with the membrane spraying pond on the workstation, and realize smearing glue to the plastic floor through the membrane spraying mouth, and be equipped with the direction roller and realize the transport to the tectorial membrane, make the tectorial membrane can laminate on the plastic floor of smearing glue, then realize the pressfitting to the tectorial membrane through the cover pressing roller that the electric cylinder drove, make the tectorial membrane can be laminated on the plastic floor tightly; and the roller pressing shaft is arranged on the conveying roller shaft, so that the plastic floor can be prevented from falling and shifting in the transportation process.

Drawings

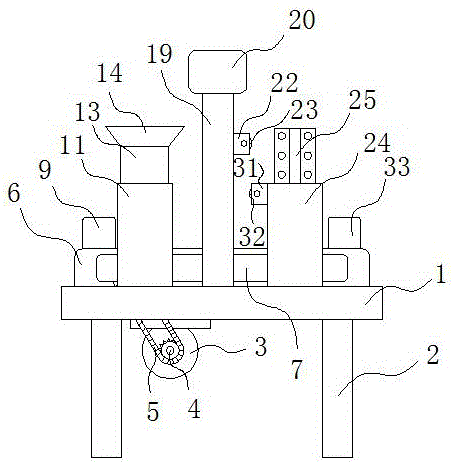

Fig. 1 is a schematic structural view of the present invention;

fig. 2 is a left side view of the present invention;

fig. 3 is a right-side schematic view of the present invention;

fig. 4 is a schematic view of the electric cylinder of the present invention;

FIG. 5 is a schematic view of part A of the present invention;

fig. 6 is a schematic view of the coating of the present invention.

In the figure: 1. a work table; 2. a support leg; 3. a motor; 4. a gear; 5. a chain; 6. a roll shaft support plate; 7. a gear box; 8. a conveying roller shaft; 9. a first platen; 10. a first press roller shaft; 11. a first frame; 12. a first cross member; 13. a membrane drenching pool; 14. a funnel; 15. a diversion pool; 16. a connecting pipe; 17. a film spraying nozzle; 18. a valve; 19. a second frame; 20. a film covering frame; 21. film-covered rolls; 22. a first guide plate; 23. a first guide roller shaft; 24. a third frame; 25. an electric cylinder; 26. a second cross member; 27. a telescopic sleeve; 28. a telescopic rod; 29. covering and pressing the roller frame; 30. covering and pressing the roll shaft; 31. a second guide plate; 32. a second guide roller shaft; 33. a second platen; 34. a second platen roller shaft; 35. a driving runner; 36. a transmission belt; 37. a driven runner.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. The specific embodiments described herein are merely illustrative of the invention and are not intended to be limiting of the invention. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

The utility model provides a plastic floor film coating device as shown in figures 1-6, which comprises a workbench 1;

according to the figure 1, in order to make the height of the workbench 1 convenient for the operation of operators, at least four groups of supporting legs 2 are welded at the bottom of the workbench 1, the supporting legs 2 are respectively fixed at the four corners at the bottom of the workbench 1, in order to realize the fixation of the conveying roller shafts 8, roller shaft supporting plates 6 are fixedly arranged at two sides of the workbench 1, in order to realize the power output of the conveying roller shafts 8, a gear box 7 is fixedly arranged at the outer side of the roller shaft supporting plate 6 at one side, in order to realize the conveying of the conveying roller shafts 8 on the whole workbench 1, at least five groups of conveying roller shafts 8 are arranged in the roller shaft supporting plates 6 through bearings, in order to prevent plastic floors from shifting and falling off during the conveying, a first pressure roller plate 9 is fixedly arranged at the top of the left end of the roller shaft supporting plate 6, a first pressure roller shaft 10 is movably connected in the first pressure roller plate 9 through a bearing, a second pressure roller, the inside of the second compression roller plate 33 is movably connected with a second compression roller shaft 34 through a bearing, and the first compression roller shaft 10 and the second compression roller shaft 34 are both positioned above the conveying roller shafts 8 at the two end parts;

according to the figures 1 and 5, in order to realize the conveying action to the conveying roller shaft 8, the leftmost end of the conveying roller shaft 8 is used as a driving conveying roller shaft, in order to realize that the driving conveying roller shaft can be in transmission connection with a motor and can also be in transmission connection with a driven conveying roller shaft, a driving rotating wheel 35 and a gear 4 are connected to the end key of the driving conveying roller shaft and are positioned in a gear box 7, the residual conveying roller shaft 8 is used as a driven conveying roller shaft, a driven rotating wheel 37 is connected to the end key of the driven conveying roller shaft and is positioned in the gear box 7, in order to realize the power output of the power to the conveying roller shaft 8, a motor 3 is fixedly installed at the bottom of one end of the worktable 1, in order to drive the conveying roller shaft 8 to rotate by the motor 3, the gear 4 is connected to the output end key of the motor 3, the gear 4 is connected to the gear box, in order to realize the operation of the whole conveying roller shaft 8, a driving runner 35 at the end part of the driving conveying roller shaft is in transmission connection with a driven runner 37 at the end part of the driven conveying roller shaft through a transmission belt 36, in order to facilitate the connection of the chain 5, a hole groove is formed in one side of the left end of the workbench 1, and the chain 5 penetrates through the hole groove and is connected into the gear box 7;

according to the figures 1, 2 and 6, the upper part of the workbench 1 is sequentially provided with a first frame 11, a second frame 19 and a third frame 24 at equal intervals from left to right, the first frame 11 is welded with a first beam 12, in order to glue the plastic floor, a film spraying pool 13 is fixedly arranged on the first beam 12, in order to prevent the glue from flowing too rapidly and cause uneven glue coating, the bottom of the film spraying pool 13 is fixedly connected with a flow guide pool 15, the bottom of the flow guide pool 15 is fixedly connected with a connecting pipe 16, the bottom of the connecting pipe 16 is provided with a film spraying nozzle 17, in order to add the glue conveniently, the top of the film spraying pool 13 is welded with a funnel 14, the flow guide pool 15 penetrates through the first beam 12, in order to uniformly coat the glue, the bottom of the connecting pipe 16 is provided with at least six groups of film spraying nozzles 17 at equal intervals, in order to realize the control of the glue, the upper parts of each group of film spraying nozzles 17 are, the valve 18 is arranged on the connecting pipe 16;

according to fig. 1, in order to realize the conveying of the coating, a coating frame 20 is welded on the top of a second frame 19, a coating roll 21 is movably connected inside the coating frame 20 through a bearing, in order to realize the guiding conveying of the coating, a first guide plate 22 is welded on the upper part of the second frame 19, and a first guide roller shaft 23 is movably connected inside the first guide plate 22 through a bearing;

according to fig. 1, 3 and 4, a second cross beam 26 is welded on the upper portion of the third frame 24, in order to achieve guiding conveying of the coated film, a second guide plate 31 is welded on the right side of the third frame 24, a second guide roller shaft 32 is movably connected in the second guide plate 31 through a bearing, in order to achieve adjustment of the coated film roller shaft 30, an electric cylinder 25 is fixedly installed on the second cross beam 26, an output end of the electric cylinder 25 is fixedly connected with a coated film roller frame 29 through a telescopic sleeve 27 and a telescopic rod 28, the telescopic sleeve 27 is movably arranged at the output end of the electric cylinder 25, the telescopic rod 28 is movably arranged in the telescopic sleeve 27, the telescopic sleeve 27 penetrates through the second cross beam 26, and the coated film roller shaft 30 is movably connected in the coated film roller frame 29 through a bearing.

The working principle is as follows: firstly, a motor 3 is started, the motor 3 drives a driving rotating wheel 35 and a driven rotating wheel 37 in a gear box 7 to rotate under the transmission action of a chain 5, a conveying roller shaft 8 is further enabled to rotate, then a valve 18 of a film spraying nozzle 17 is opened, glue in a film spraying pool 13 can flow out from the film spraying nozzle 17 along a flow guide pool 15, then the plastic floor is placed on the conveying roller shaft 8 and is pressed by a first press roller shaft 10 to prevent the plastic floor from shifting, then the plastic floor is conveyed under the conveying action of the conveying roller shaft 8, glue smearing is achieved when the plastic floor passes through the lower part of the film spraying nozzle 17, then a film coating roll 21 on a film coating frame 20 is pulled out, and the plastic floor coated with the glue is attached to the plastic floor coated with the glue through the guiding conveying action of a first guide roller shaft 23 and a second guide roller shaft 32; then, start electric cylinder 25 for cover compression roller frame 29 and cover compression roller axle 30 downstream under the effect of flexible cover 27 and telescopic link 28, the laminating is on the plastic floor that the tectorial membrane was passed, the realization carries out the pressfitting to the plastic floor that the tectorial membrane was passed, make the adhesion that the tectorial membrane can be tight on plastic floor, just so make subsequent operation realize automaticly, the transport of plastic floor is realized to the effect through carrying roller axle 8, the transport to the tectorial membrane is realized to the pressfitting effect through covering compression roller axle 30, realize automatic drenching the membrane operation to plastic floor.

Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications and variations can be made in the embodiments or in part of the technical features of the embodiments without departing from the spirit and the scope of the invention.

Claims

1. The utility model provides a plastic floor drenches membrane device, includes workstation (1), its characterized in that: the roll shaft supporting plates (6) are fixedly arranged on two sides of the workbench (1), one side of the roll shaft supporting plates (6) is fixedly provided with a gear box (7), five groups of conveying roll shafts (8) are arranged in the roll shaft supporting plates (6) at least through bearings, the top of the left end of each roll shaft supporting plate (6) is fixedly provided with a first compression roller plate (9), the inside of each first compression roller plate (9) is movably connected with a first compression roller shaft (10) through bearings, the upper portion of the workbench (1) is sequentially and equidistantly provided with a first frame (11), a second frame (19) and a third frame (24) from left to right, a first cross beam (12) is welded on the first frame (11), a film spraying pool (13) is fixedly arranged on the first cross beam (12), a flow guide pool (15) is fixedly connected to the bottom of the film spraying pool (13), and a connecting pipe (16) is fixedly connected to the bottom of the flow guide pool (15), the bottom of the connecting pipe (16) is provided with a laminating nozzle (17), the top of the second frame (19) is welded with a laminating frame (20), the inside of the laminating frame (20) is connected with a laminating roll (21) through a bearing movable joint, the upper part of the second frame (19) is welded with a first guide plate (22), the inside of the first guide plate (22) is connected with a first guide roller shaft (23) through a bearing movable joint, the upper part of the third frame (24) is welded with a second cross beam (26), the second cross beam (26) is fixedly provided with an electric cylinder (25), the output end of the electric cylinder (25) is fixedly connected with a laminating roller frame (29) through a telescopic sleeve (27) and a telescopic rod (28), the inside of the laminating roller frame (29) is connected with a laminating roller shaft (30) through a bearing movable joint, the upper part of the right end of the supporting plate (6) is fixedly provided with a second laminating roller plate (33), the inside of second pinch roller board (33) has second pinch roller axle (34) through bearing swing joint, the one end bottom fixed mounting of workstation (1) has motor (3), the output end key connection of motor (3) has gear (4), gear (4) are connected in gear box (7) through chain (5).

2. The plastic floor laminating device of claim 1, wherein: four groups of supporting legs (2) are welded at least at the bottom of the workbench (1), and the supporting legs (2) are fixed at four corners of the bottom of the workbench (1) respectively.

3. The plastic floor laminating device of claim 1, wherein: carry the roller as the initiative transport roller at the leftmost end of roller (8), the tip key joint that the roller was carried in the initiative is connected with initiative runner (35) and gear (4) and is in gear box (7), remains carry roller (8) as the driven roller of carrying, the tip key joint that the roller was carried in the driven roller of carrying is connected with driven runner (37) and is in gear box (7).

4. The plastic floor laminating device of claim 1, wherein: the gear (4) on the output end of the motor (3) is in transmission connection with the gear (4) at the end part of the driving conveying roller shaft through a chain (5), and the driving rotating wheel (35) at the end part of the driving conveying roller shaft is in transmission connection with the driven rotating wheel (37) at the end part of the driven conveying roller shaft through a transmission belt (36).

5. The plastic floor laminating device of claim 1, wherein: a hole groove is formed in one side of the left end of the workbench (1), and the chain (5) penetrates through the hole groove to be connected into the gear box (7).

6. The plastic floor laminating device of claim 1, wherein: the top welding of drenching membrane pond (13) has funnel (14), water conservancy diversion pond (15) run through in first crossbeam (12).

7. The plastic floor laminating device of claim 1, wherein: the bottom of the connecting pipe (16) is at least equidistantly provided with six groups of laminating nozzles (17), the upper part of each group of laminating nozzles (17) is provided with a valve (18), and the valves (18) are positioned on the connecting pipe (16).

8. The plastic floor laminating device of claim 1, wherein: the right side welding of third frame (24) has second deflector (31), there is second direction roller (32) through bearing swing joint in second deflector (31).

9. The plastic floor laminating device of claim 1, wherein: the telescopic sleeve (27) is movably arranged at the output end of the electric cylinder (25), the telescopic rod (28) is movably arranged in the telescopic sleeve (27), and the telescopic sleeve (27) penetrates through the second cross beam (26).

10. The plastic floor laminating device of claim 1, wherein: the first compression roller shaft (10) and the second compression roller shaft (34) are both positioned above the conveying roller shafts (8) at the two end parts.
