Abstract

The utility model discloses a traditional chinese and western medicine combines internal medicine fumigation treatment device, including the bed body and fumigator, the fumigator sets up in bed body downside, and bed body downside is equipped with the fumigator, and the fumigator downside is equipped with supporting mechanism, and the fumigator is equipped with slide mechanism with stifling case junction, and the fumigator upper end is connected with the breather pipe, sets up the stifling mouth of a plurality of upper and lower intercommunications on the bed body, is equipped with ventilation fan in the stifling mouth, and bed body top is equipped with the seal chamber, is equipped with fixed establishment in the seal chamber, has seted up the through-hole on the seal chamber, is equipped with elevating system on the lateral wall of seal chamber one end, and stifling. The utility model discloses compare in the height that current stifling treatment device elevating system can adjust the sealed cabin, and then adjust the space that the sealed cabin is located bed body top to change stifling gaseous concentration, increase the dynamics that stifling gas pierces through skin, so that reach better treatment.

Description

Traditional chinese and western medicine combines stifling treatment device of internal medicine

Technical Field

The utility model belongs to the medical field specifically is a stifling treatment device of chinese and western medicine combination internal medicine.

Background

The fumigation therapy is a traditional Chinese medicine therapy, and mainly achieves related treatment effects by permeating and absorbing skin, sending the medicine to each part of a human body through blood circulation and then absorbing the medicine components in steam by the human body.

When the existing fumigation treatment device is used for treating some patients with serious diseases, fumigation to a heavier degree is required, but the size of a sealed cabin on the body of the patient is fixed, the concentration of fumigation gas cannot be adjusted by adjusting the size of the sealed cabin, the fumigation time can only be increased to achieve the purpose of treatment, and a large amount of fumigation medicines can be wasted.

To the above problem, the utility model designs a stifling treatment device of chinese and western medicine combination internal medicine to this solves the above-mentioned problem of proposing.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a stifling treatment device of traditional chinese and western medicine combination internal medicine from this overcomes the current problem of proposing in the above-mentioned background art.

In order to achieve the above object, the present invention provides the following technical solutions: a fumigation treatment device for a traditional Chinese and western medicine combined internal medicine comprises a bed body and a fumigator, wherein the fumigator is arranged at the lower side of the bed body, a fumigation box is arranged at the lower side of the bed body, a fumigator is arranged in the fumigation box, a supporting mechanism for supporting the fumigator is arranged at the lower side of the fumigator, a sliding mechanism capable of moving out the fumigator is arranged at the joint of the fumigator and the fumigation box, a ventilating pipe is connected with the upper end of the fumigator, a plurality of fumigation ports which are communicated up and down are formed in the bed body, a ventilating fan is arranged in each fumigation port, a plurality of branch pipes are fixedly connected onto the ventilating pipe, extend to the fumigation ports and are abutted against the ventilating fan, a sealed cabin is arranged above the bed body, a fixing mechanism for fixing limbs of a patient is arranged in the sealed cabin, and a through hole which is communicated inside and outside is formed in one end, be equipped with the elevating system who is used for going up and down to the sealed cabin on the one end lateral wall that the through-hole was kept away from to the sealed cabin, it is equipped with the battery to lie in fumigator both sides in the fumigation incasement.

Preferably, an annular groove which is communicated up and down is formed in the bed body, the size of the annular groove is matched with that of the sealed cabin, and the side wall of the sealed cabin penetrates through the annular groove and extends to the lower side of the bed body.

Preferably, the supporting mechanism comprises a supporting plate arranged in the fumigation box, a groove matched with the bottom end of the fumigation device in size is formed in the supporting plate, a group of accommodating grooves are formed in the lower end face of the supporting plate, and a supporting rod matched with the accommodating grooves is rotatably connected in the accommodating grooves.

Preferably, slide mechanism includes a set of connecting rod of fixed connection in layer board both ends, stifling case is equipped with the slide rail on being close to the one end inner wall of connecting rod, the opening of inside and outside intercommunication is seted up to the one end that the slide rail is close to the connecting rod, the connecting rod runs through the opening and extends to in the slide rail, the one end fixedly connected with restriction piece that the connecting rod is located the slide rail, the connecting rod lower extreme is equipped with the ball, sliding fit between ball and the slide rail opening.

Preferably, fixed establishment includes a set of telescopic link of fixed connection on the inner wall of sealed cabin upper end, and is a set of the one end fixedly connected with arc fixed plate of sealed cabin upper end inner wall is kept away from to the telescopic link, the cover is equipped with expanding spring on the telescopic link, both ends are fixed continuous between sealed cabin upper end inner wall and arc fixed plate respectively about the expanding spring.

Preferably, elevating system includes fixed connection in the support of bed body upper end, vertically be provided with the threaded rod in the support, the cover is equipped with the slider on the threaded rod, the slider is close to the one end fixedly connected with restriction lever of sealed cabin, the spout has been seted up on the lateral wall of support one end, the restriction lever runs through the spout and extends to the support outside, the support upper end is equipped with the rotating electrical machines, rotate between threaded rod medial extremity and the support inner chamber lower extreme and be connected, threaded rod outside end runs through the support and goes up the lateral wall of side and extend to the support outside, the threaded rod is located and is fixed continuous between the one end in the support outside and the power take.

To sum up, owing to adopted above-mentioned scheme, the beneficial effects of the utility model are that:

the utility model discloses be equipped with annular fluting on the bed body, the lateral wall of sealed cabin can run through annular fluting, and medical personnel can adjust the height of sealed cabin using elevating system, and then adjust the space that the sealed cabin is located the bed body top, thereby change the concentration of fumigant gas, increase the dynamics that fumigant gas pierces through skin, so as to reach better treatment;

the utility model discloses in be equipped with slide mechanism, medical personnel can utilize slide mechanism light to pull out the fumigator, add or change the medicine in the fumigator, and supporting mechanism can be supported it after the fumigator is pulled out, thereby avoids the fumigator overweight to press the broken layer board, and fixed establishment can slightly fix patient's limbs, thereby avoids patient's health to remove at will and influences treatment.

Drawings

In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings used in the description of the embodiments will be briefly introduced below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and it is obvious for those skilled in the art that other drawings can be obtained according to these drawings without creative efforts.

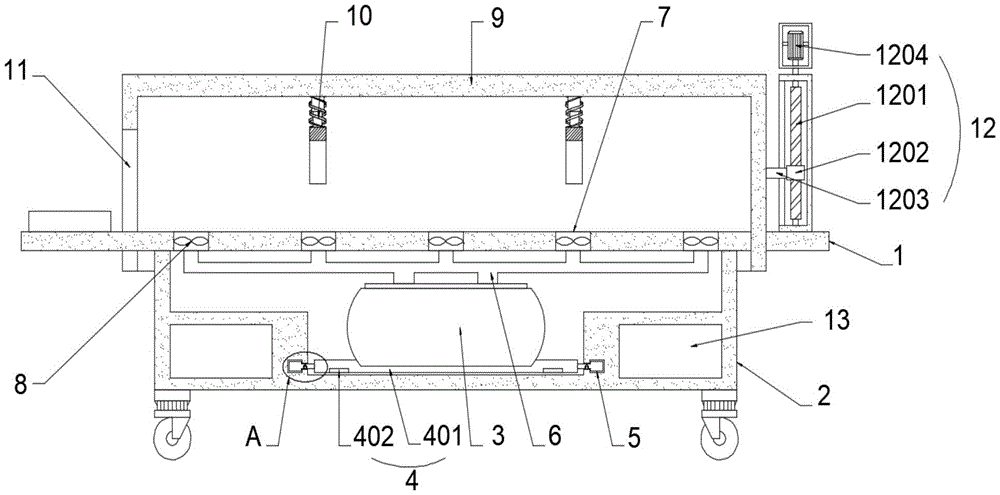

FIG. 1 is a schematic view of the overall structure of the present invention;

FIG. 2 is a schematic side view of the present invention;

FIG. 3 is a detailed structural schematic diagram of the fixing mechanism of FIG. 1;

fig. 4 is an enlarged schematic view of a portion a in fig. 1.

In the drawings, the components represented by the respective reference numerals are listed below:

1. bed body, 2, fumigation case, 3, fumigator, 4, supporting mechanism, 401, layer board, 402, bracing piece, 5, slide mechanism, 501, connecting rod, 502, slide rail, 503, restriction piece, 504, ball, 6, breather pipe, 7, stifling mouth, 8, ventilation fan, 9, sealed cabin, 10, fixed establishment, 1001, telescopic link, 1002, arc fixed plate, 1003, expanding spring, 11, through-hole, 12, elevating system, 1201, threaded rod, 1202, slider, 1203, restriction pole, 1204, rotating electrical machines, 13, the battery.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments of the present invention, all other embodiments obtained by a person of ordinary skill in the art without creative efforts belong to the protection scope of the present invention.

Referring to fig. 1-4, a fumigation treatment device for a combined traditional Chinese and western medicine internal medicine comprises a bed body 1 and a fumigator 3, wherein the fumigator 3 is arranged at the lower side of the bed body 1, a fumigation box 2 is arranged at the lower side of the bed body 1, the fumigator 3 is arranged in the fumigation box 2, a supporting mechanism 4 for supporting the fumigator 3 is arranged at the lower side of the fumigator 3, a sliding mechanism 5 capable of moving the fumigator 3 out is arranged at the joint of the fumigator 3 and the fumigation box 2, an air pipe 6 is connected with the upper end of the fumigator 3, a plurality of fumigation ports 7 which are communicated up and down are arranged on the bed body 1, a ventilation fan 8 is arranged in each fumigation port 7, a plurality of branch pipes are fixedly connected to the ventilation pipe 6 and extend to the fumigation ports 7 and are abutted against the ventilation fan 8, a sealed cabin 9 is arranged above the bed body 1, a fixing mechanism 10 for fixing limbs of a patient is arranged in the sealed cabin 9, a through hole 11 which, be equipped with on the one end lateral wall of capsule 9 keeping away from through-hole 11 and be used for carrying out the elevating system 12 that goes up and down to capsule 9, lie in fumigator 3 both sides in the fumigation case 2 and be equipped with battery 13.

Furthermore, an annular open slot which is communicated up and down is formed in the bed body 1, the side wall of the sealed cabin 9 can penetrate through the bed body 1, so that the space of the sealed cabin 9 on the upper side of the bed body 1 can be adjusted, the size of the annular open slot is matched with that of the sealed cabin 9, and the side wall of the sealed cabin 9 penetrates through the annular open slot and extends to the lower side of the bed body 1.

Furthermore, the supporting mechanism 4 comprises a supporting plate 401 arranged in the fumigation box 2, a slot matched with the bottom end of the fumigation device 3 in size is formed in the supporting plate 401, a group of accommodating grooves are formed in the lower end face of the supporting plate 401, a supporting rod 402 matched with the group of accommodating grooves is rotationally connected in the group of accommodating grooves, and the supporting rod 402 is rotated to support the supporting plate 401 after the supporting plate 401 is pulled out.

Further, slide mechanism 5 includes a set of connecting rod 501 of fixed connection in layer board 401 both ends, it is equipped with slide rail 502 on the one end inner wall that stifling case 2 is close to connecting rod 501, the opening of inside and outside intercommunication is seted up to slide rail 502 near the one end of connecting rod 501, under the cooperation of slide rail 502 with restriction piece 503, layer board 401 can be pulled out at will, connecting rod 501 runs through the opening and extends to in the slide rail 502, connecting rod 501 is located the one end fixedly connected with restriction piece 503 in slide rail 502, connecting rod 501 lower extreme is equipped with ball 504, it is more convenient to make the slip process, sliding fit between ball 504 and the slide rail 502 opening.

Further, fixed establishment 10 includes a set of telescopic link 1001 of fixed connection on the inner wall of capsule 9 upper end, telescopic link 1001 plays the effect of direction, a set of telescopic link 1001 is kept away from one end fixedly connected with arc fixed plate 1002 of capsule 9 upper end inner wall, the cover is equipped with expanding spring 1003 on telescopic link 1001, arc fixed plate 1002 is fixed patient's limbs under expanding spring 1003's elastic force effect, both ends are fixed continuous between capsule 9 upper end inner wall and arc fixed plate 1002 respectively about expanding spring 1003.

Further, the lifting mechanism 12 comprises a support fixedly connected to the upper end of the bed body 1, a threaded rod 1201 is longitudinally arranged in the support, a slider 1202 is sleeved on the threaded rod 1201, one end of the slider 1202, which is close to the sealed cabin 9, is fixedly connected with a limiting rod 1203, a sliding groove is formed in a side wall of one end of the support, the limiting rod 1203 penetrates through the sliding groove and extends to the outside of the support, a rotating motor 1204 is arranged at the upper end of the support, the rotating motor 1204 is controlled to operate, the threaded rod 1201 is driven to rotate, the slider 1202 slides in the support under the limitation of the sliding groove, the limiting rod 1203 is driven to move up and down, the inner side end of the threaded rod 1201 is rotatably connected with the lower side end of the inner cavity of the support, the outer side end of.

The working principle is as follows: when the utility model is used, the supporting plate 401 is pulled, the limiting block 503 slides in the slide rail 502, the ball 504 makes the sliding process more smooth, the supporting rod 402 is rotated to support the supporting plate 401 after the supporting plate 401 is pulled out, then the medicine is added into the fumigator 3, the supporting rod 402 is folded to push the supporting plate 401 again after the medicine is added, and then the patient lies on the bed body 1, then the rotating motor 1204 is controlled to operate in the forward direction to drive the threaded rod 1201 to rotate in the forward direction, the sliding block 1202 slides upwards in the bracket under the limitation of the sliding chute, and further drives the limiting rod 1203 to move downwards, so that the height of the sealed cabin 9 is adjusted, if the patient has serious illness, the sealed cabin 9 can be lowered to a lower height, then the fumigator 3 and the ventilation fan 8 are controlled to operate to fumigate the patient, the supporting plate 401 can be pulled to pull out the fumigator 3 after the fumigation medicine is used up, and the medicine can be added into the fumigator 3.

In the description herein, references to the description of "one embodiment," "an example," "a specific example," etc., mean that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one embodiment or example of the invention. In this specification, the schematic representations of the terms used above do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials, or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.

The preferred embodiments of the present invention disclosed above are intended only to help illustrate the present invention. The preferred embodiments are not intended to be exhaustive or to limit the invention to the precise embodiments disclosed. Obviously, many modifications and variations are possible in light of the above teaching. The embodiments were chosen and described in order to best explain the principles of the invention and its practical applications, to thereby enable others skilled in the art to best understand the invention for and utilize the invention. The present invention is limited only by the claims and their full scope and equivalents.

Claims

1. The utility model provides a stifling treatment device of traditional chinese and western medicine combination internal medicine, includes bed body (1) and fumigator (3), fumigator (3) set up in bed body (1) downside, its characterized in that: the bed body is characterized in that a fumigation box (2) is arranged on the lower side of the bed body (1), a fumigator (3) is arranged in the fumigation box (2), a supporting mechanism (4) used for supporting the fumigator (3) is arranged on the lower side of the fumigator (3), a sliding mechanism (5) capable of moving out the fumigator (3) is arranged at the joint of the fumigator (3) and the fumigation box (2), a vent pipe (6) is connected to the upper end of the fumigator (3), a plurality of fumigation ports (7) which are communicated up and down are formed in the bed body (1), a ventilation fan (8) is arranged in each fumigation port (7), a plurality of branch pipes are fixedly connected to the vent pipe (6) and extend to the fumigation ports (7) and are in abutting contact with the ventilation fan (8), a sealed cabin (9) is arranged above the bed body (1), and a fixing mechanism (10) used for fixing limbs of a patient is arranged in the sealed cabin (9), set up through-hole (11) of inside and outside intercommunication on the sealed cabin (9) one end lateral wall, be equipped with on the one end lateral wall that the through-hole (11) was kept away from in sealed cabin (9) and be used for carrying out elevating system (12) that go up and down to sealed cabin (9), it is equipped with battery (13) to lie in fumigator (3) both sides in fumigation case (2).

2. The fumigation treatment device for the traditional Chinese and western medicine integrated medical department according to claim 1, which is characterized in that: the bed body (1) is provided with an annular groove which is communicated up and down, the size of the annular groove is matched with that of the sealed cabin (9), and the side wall of the sealed cabin (9) penetrates through the annular groove and extends to the lower side of the bed body (1).

3. The fumigation treatment device for the traditional Chinese and western medicine integrated medical department according to claim 1, which is characterized in that: supporting mechanism (4) including setting up layer board (401) in fumigation case (2), set up on layer board (401) with fumigator (3) bottom size assorted fluting, set up a set of groove of accomodating, a set of on the terminal surface under layer board (401) and taken in the inslot internal rotation and be connected with its assorted bracing piece (402).

4. The fumigation treatment device for the traditional Chinese and western medicine integrated medical department according to claim 3, characterized in that: slide mechanism (5) are including a set of connecting rod (501) of fixed connection in layer board (401) both ends, fumigation case (2) are equipped with slide rail (502) on being close to one end inner wall of connecting rod (501), the opening of inside and outside intercommunication is seted up to slide rail (502) one end that is close to connecting rod (501), connecting rod (501) run through the opening and extend to in slide rail (502), connecting rod (501) are located one end fixedly connected with restriction piece (503) of slide rail (502), connecting rod (501) lower extreme is equipped with ball (504), sliding fit between ball (504) and slide rail (502) opening.

5. The fumigation treatment device for the traditional Chinese and western medicine integrated medical department according to claim 1, which is characterized in that: fixed establishment (10) are including a set of telescopic link (1001) of fixed connection on sealed cabin (9) upper end inner wall, and are a set of one end fixedly connected with arc fixed plate (1002) of sealed cabin (9) upper end inner wall are kept away from to telescopic link (1001), the cover is equipped with expanding spring (1003) on telescopic link (1001), both ends are fixed continuous between sealed cabin (9) upper end inner wall and arc fixed plate (1002) respectively about expanding spring (1003).

6. The fumigation treatment device for the traditional Chinese and western medicine integrated medical department according to claim 1, which is characterized in that: elevating system (12) are including fixed connection in the support of bed body (1) upper end, vertically be provided with threaded rod (1201) in the support, the cover is equipped with slider (1202) on threaded rod (1201), one end fixedly connected with restriction lever (1203) that slider (1202) are close to sealed cabin (9), the spout has been seted up on the support one end lateral wall, restriction lever (1203) run through the spout and extend to the support outside, the support upper end is equipped with rotating electrical machines (1204), rotate between threaded rod (1201) medial extremity and the support inner chamber lower extreme and be connected, threaded rod (1201) outside end runs through support upside lateral wall and extends to the support outside, fixed the linking to each other between the one end that threaded rod (1201) is located the support outside and the power take off of rotating electrical machines (1204).
