Abstract
The utility model relates to a pigment field, more specifically the pigment processingequipment that says so, the device can add water to mix and dilute the processing to pigment and obtain finished product pigment. The working principle is as follows: put into raw and other materials from the raw and other materials feed inlet of raw and other materials grinding box upper end, open and grind driving motor, it drives and grinds driving motor output gear rotation to grind driving motor output gear, it follows gear rotation to grind driving motor output gear drive grinding, it rotates to drive and grinds drive shaft and raw and other materials grinding roller, raw and other materials grinding roller rotation opposite direction, smash the grinding to raw and other materials, it falls into the stirring mixing tank body through pigment stirring feed inlet to follow raw and other materials grinding box bottom after grinding, add certain water from mixing the water tank, open stirring power output motor, stirring power output motor drives and stirs the rotation of mixing cross, stir the mixing to the water that ground pigment and mixing the water tank provided.
Description
Technical Field
The utility model relates to a pigment field, more specifically the pigment processingequipment that says so.
Background
The utility model discloses a utility model is CN 208727616U's utility model discloses a sanding device for pigment processing, including first motor, pigment sanding board, unable adjustment base, second motor, PMKD, make mill and box, the box is installed on unable adjustment base's top, and one side of box articulates there is the side door, the intermediate position department of box one side installs the control box, and the intermediate position department on box top installs first motor, the vertical pivot of installing in bottom of first motor runs through to the inside of box, and the bottom of the inside pivot of box installs the mill, feed hopper is all installed on the top of the box of first motor both sides. The utility model is provided with a plurality of feeding funnels and feeding pipes, so that a plurality of pigments can be conveniently placed at the same time when in use, and can be mixed and stirred, and the pigments can be separately stirred, thereby preventing the mutual infection of the pigments caused by the last use and facilitating the later collection and use; the disadvantage is that the pigment can not be mixed with water to be diluted to obtain the finished pigment.
Disclosure of Invention
The utility model provides a pigment processing device, its beneficial effect can add water to mix to dilute the processing and obtain finished pigment for the device to pigment.
The utility model provides a pigment processingequipment, grinds the case, mixes feed water tank and pigment stirring mixing box including raw and other materials, and raw and other materials grind case fixed connection pigment stirring mixing box fixed connection on mixing the feed water tank, its characterized in that: pigment stirring mixing box, pigment stirring mixing box include pigment stirring feed inlet, stirring mixing barrel body, stirring power take off motor, pigment discharge port and mix the mixed cross, stirring mixing barrel body top is provided with pigment stirring feed inlet, stirring power take off motor passes through the bolt and can dismantle the connection at stirring mixing barrel body left end, mix cross fixed connection on the output shaft of stirring power take off motor, pigment discharge port fixed connection is at the right-hand member of stirring mixing barrel body, stirring mixing barrel body lower extreme outer wall and two mixing box bearing U type roof beams contact, stirring mixing barrel body and mixing water tank pass through hose connection and intercommunication.
As this technical scheme's further optimization, the utility model relates to a pigment processingequipment still including mixing the supply tank, mixed supply tank include basic bearing frame landing leg, mixing box bearing U type roof beam, basic bearing frame panel and mixed water tank, the equal fixed connection of four angle departments of basic bearing frame panel lower extreme has basic bearing frame landing leg, mixing box bearing U type roof beam has two, mixing box bearing U type roof beam of fixedly connected with in the middle of two basic bearing frame landing legs in the left side, another mixing box bearing U type roof beam of fixedly connected with in the middle of two basic bearing frame landing legs in the right side, mixed water tank fixed connection is on basic bearing frame panel, raw and other materials grind box fixed connection on basic bearing frame panel.
As a further optimization of the technical proposal, the raw material grinding box of the pigment processing device of the utility model comprises a raw material grinding box body, a grinding driving motor mounting plate, a grinding following gear, a grinding driving motor output gear, a raw material grinding roller and a grinding driving shaft, wherein the upper end of the raw material grinding box body is provided with a raw material feed inlet, the bottom end of the raw material grinding box body is open, the grinding driving motor mounting plate is fixedly connected at the left end of the raw material grinding box body, the grinding driving motor is detachably connected on the grinding driving motor mounting plate through a bolt, the grinding driving motor output gear is fixedly connected on the output shaft of the grinding driving motor, two grinding driving shafts are rotatably connected on the inner wall of the raw material grinding box body, the two grinding driving shafts are horizontally arranged, one left end of the two grinding, the left end of the other grinding driving shaft is fixedly connected with the grinding following gear, the grinding following gear is in meshing transmission with the output gear of the grinding driving motor, and the two raw material grinding rollers are respectively and fixedly connected onto the two grinding driving shafts.
As the further optimization of this technical scheme, the utility model relates to a pigment processingequipment raw and other materials grind roller rotation opposite direction.
The utility model relates to a pigment processingequipment's beneficial effect does:
the device can smash the grinding to the raw and other materials of pigment to add water and mix dilution processing and obtain finished product pigment, simple structure, the security performance is high, and is easy and simple to handle, will smash grinding mixing stirring and combining into an organic whole.
Drawings
The present invention will be described in further detail with reference to the accompanying drawings and specific embodiments.

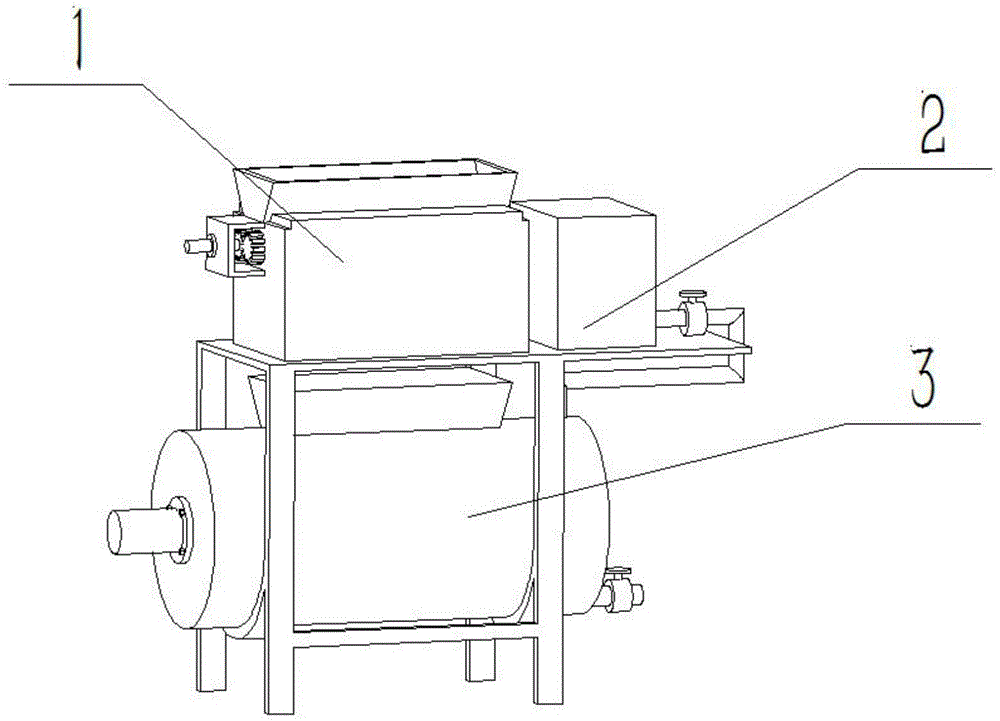

Fig. 1 is a schematic structural diagram of the pigment processing device of the present invention.
Fig. 2 is a cross-sectional view of a paint processing apparatus.
FIG. 3 is a schematic view of the raw material grinding box.
FIG. 4 is a schematic view of the raw material grinding box in another direction.
Fig. 5 is a schematic view of the structure of the hybrid water supply tank.
FIG. 6 is a schematic view of the structure of the pigment stirring and mixing box.
In the figure: a raw material grinding box 1; a raw material grinding box body 1-1; grinding a driving motor 1-2; grinding a driving motor mounting plate 1-3; grinding the following gear 1-4; grinding an output gear 1-5 of a driving motor; raw material grinding rollers 1-6; grinding the drive shaft 1-7; a mixed water supply tank 2; basic bearing frame supporting legs 2-1; the mixing box bears a U-shaped beam 2-2; basic bearing frame panels 2-3; 2-4 parts of a mixed water tank; a pigment stirring and mixing box 3; a pigment stirring feed port 3-1; 3-2 parts of a stirring and mixing barrel body; 3-3 of a stirring power output motor; a pigment discharge port 3-4; mix the crosses 3-5.
Detailed Description
The first embodiment is as follows:
the present embodiment will be described with reference to fig. 1, 2, 3, 4, 5, and 6, in which a pigment processing apparatus includes a raw material grinding tank 1, a mixing water supply tank 2, and a pigment stirring and mixing tank 3, the raw material grinding tank 1 is fixedly connected to the mixing water supply tank 2, the pigment stirring and mixing tank 3 is fixedly connected to the mixing water supply tank 2, the pigment processing apparatus further includes a pigment stirring and mixing tank 3, the pigment stirring and mixing tank 3 includes a pigment stirring and feeding port 3-1, a stirring and mixing barrel 3-2, a stirring power output motor 3-3, a pigment discharging port 3-4, and a stirring and mixing cross 3-5, the pigment stirring and feeding port 3-1 is provided at the top end of the stirring and mixing barrel 3-2, the stirring power output motor 3-3 is detachably connected to the left end of the stirring and mixing barrel 3-2 by a bolt, the stirring and mixing cross 3-5 is fixedly connected to an output shaft of the stirring power output motor 3-3, the pigment discharge port 3-4 is fixedly connected to the right end of the stirring and mixing barrel body 3-2, the outer wall of the lower end of the stirring and mixing barrel body 3-2 is contacted with two mixing box bearing U-shaped beams 2-2, and the stirring and mixing barrel body 3-2 and the mixing water tank 2-4 are connected and communicated through a hose; the stirring power output motor 3-3 drives the stirring mixing cross 3-5 to rotate, and the ground pigment and the water provided by the mixing water tank 2-4 are stirred and mixed to obtain the mixed pigment.
The second embodiment is as follows:
the following describes the present embodiment with reference to fig. 1, 2, 3, 4, 5 and 6, and the present embodiment further describes the first embodiment, the pigment processing apparatus further includes a mixed water supply tank 2, the mixed water supply tank 2 includes a basic bearing frame leg 2-1, a mixed tank bearing U-shaped beam 2-2, a basic bearing frame panel 2-3 and a mixed water tank 2-4, four corners of the lower end of the basic bearing frame panel 2-3 are fixedly connected to the basic bearing frame leg 2-1, two mixed tank bearing U-shaped beams 2-2 are provided, one mixed tank bearing U-shaped beam 2-2 is fixedly connected between the two basic bearing frame legs 2-1 on the left side, the other mixed tank bearing U-shaped beam 2-2 is fixedly connected between the two basic bearing frame legs 2-1 on the right side, the mixed water tank 2-4 is fixedly connected to the basic bearing frame panel 2-3, and the raw material grinding tank body 1-1 is fixedly connected to the basic bearing frame panel 2-3; two mixing box bearing U-shaped beams 2-2 are used for fixing the pigment stirring mixing box 3.
The third concrete implementation mode:
the following describes the present embodiment with reference to fig. 1, 2, 3, 4, 5, and 6, and the present embodiment further describes the second embodiment, wherein the raw material grinding box 1 includes a raw material grinding box body 1-1, a grinding driving motor 1-2, a grinding driving motor mounting plate 1-3, a grinding follower gear 1-4, a grinding driving motor output gear 1-5, a raw material grinding roller 1-6, and a grinding driving shaft 1-7, the raw material grinding box body 1-1 is provided with a raw material feeding port at the upper end, the raw material grinding box body 1-1 is open at the bottom end, the grinding driving motor mounting plate 1-3 is fixedly connected to the left end of the raw material grinding box body 1-1, the grinding driving motor 1-2 is detachably connected to the grinding driving motor mounting plate 1-3 by a bolt, the grinding driving motor output gear 1-5 is fixedly connected to an output shaft of the grinding driving motor 1-2, two grinding driving shafts 1-7 are rotatably connected to the inner wall of the raw material grinding box body 1-1, the two grinding driving shafts 1-7 are horizontally arranged, the left end of one of the two grinding driving shafts 1-7 is fixedly connected with the grinding driving motor output gear 1-5, the left end of the other grinding driving shaft 1-7 is fixedly connected with the grinding following gear 1-4, the grinding following gear 1-4 is in meshing transmission with the grinding driving motor output gear 1-5, and the two raw material grinding rollers 1-6 are respectively and fixedly connected to the two grinding driving shafts 1-7; the grinding driving motor 1-2 drives the grinding driving motor output gear 1-5 to rotate, the grinding driving motor output gear 1-5 drives the grinding following gear 1-4 to rotate, the grinding driving shaft 1-7 and the raw material grinding roller 1-6 are driven to rotate, raw materials are ground and ground, and the ground raw materials fall from the bottom end of the raw material grinding box body 1-1.
The fourth concrete implementation mode:
the third embodiment will be described with reference to fig. 1, 2, 3, 4, 5 and 6, and the third embodiment will be described in detail with reference to the first embodiment, in which the raw material grinding rolls 1 to 6 rotate in opposite directions to carry in the raw material and grind it.
The utility model relates to a pigment processingequipment's theory of operation: raw materials are put in from a raw material feed inlet at the upper end of a raw material grinding box body 1-1, a grinding driving motor 1-2 is opened, the grinding driving motor 1-2 drives a grinding driving motor output gear 1-5 to rotate, the grinding driving motor output gear 1-5 drives a grinding following gear 1-4 to rotate, a grinding driving shaft 1-7 and a raw material grinding roller 1-6 are driven to rotate, the rotation directions of the raw material grinding rollers 1-6 are opposite, the raw materials are ground and ground, the ground raw materials fall from the bottom end of the raw material grinding box body 1-1 and fall into a stirring and mixing barrel body 3-2 through a pigment stirring feed inlet 3-1, certain amount of water is added from a mixing water tank 2-4, a stirring power output motor 3-3 is opened, and the stirring power output motor 3-3 drives a stirring and mixing cross 3-5, and stirring and mixing the ground pigment and water provided by a mixing water tank 2-4 to obtain a mixed pigment.
Of course, the above description is not intended to limit the present invention, and the present invention is not limited to the above examples, and the changes, modifications, additions or replacements made by those skilled in the art within the scope of the present invention also belong to the protection scope of the present invention.
Claims (4)
1. The utility model provides a pigment processingequipment, grinds case (1), mixes feed water tank (2) and pigment stirring mixing box (3) including raw and other materials, and raw and other materials grind case (1) fixed connection and are being mixed feed water tank (2) on pigment stirring mixing box (3) fixed connection on mixing feed water tank (2), its characterized in that: the pigment stirring and mixing box (3) comprises a pigment stirring feed inlet (3-1), a stirring and mixing barrel body (3-2), a stirring power output motor (3-3), a pigment discharge port (3-4) and a stirring and mixing cross (3-5), wherein the pigment stirring feed inlet (3-1) is formed in the top end of the stirring and mixing barrel body (3-2), the stirring power output motor (3-3) is detachably connected to the left end of the stirring and mixing barrel body (3-2) through a bolt, the stirring and mixing cross (3-5) is fixedly connected to an output shaft of the stirring power output motor (3-3), the pigment discharge port (3-4) is fixedly connected to the right end of the stirring and mixing barrel body (3-2), the outer wall of the lower end of the stirring and mixing barrel body (3-2) is in contact with two mixing box bearing U-shaped beams (2-2), the stirring and mixing barrel body (3-2) and the mixing water tank (2-4) are connected and communicated through a hose.
2. A paint processing apparatus as claimed in claim 1, wherein: the mixed water supply tank (2) comprises basic bearing frame supporting legs (2-1), a mixed tank bearing U-shaped beam (2-2), a basic bearing frame panel (2-3) and a mixed water tank (2-4), four corners of the lower end of a basic bearing frame panel (2-3) are fixedly connected with basic bearing frame supporting legs (2-1), two mixing box bearing U-shaped beams (2-2) are provided, the middle of two left basic bearing frame supporting legs (2-1) is fixedly connected with one mixing box bearing U-shaped beam (2-2), the middle of two right basic bearing frame supporting legs (2-1) is fixedly connected with the other mixing box bearing U-shaped beam (2-2), a mixing water tank (2-4) is fixedly connected onto the basic bearing frame panel (2-3), and a raw material grinding box body (1-1) is fixedly connected onto the basic bearing frame panel (2-3).
3. A paint processing apparatus as claimed in claim 1, wherein: the raw material grinding box (1) comprises a raw material grinding box body (1-1), a grinding driving motor (1-2), a grinding driving motor mounting plate (1-3), a grinding following gear (1-4), a grinding driving motor output gear (1-5), a raw material grinding roller (1-6) and a grinding driving shaft (1-7), wherein a raw material feeding port is formed in the upper end of the raw material grinding box body (1-1), the bottom end of the raw material grinding box body (1-1) is opened, the grinding driving motor mounting plate (1-3) is fixedly connected to the left end of the raw material grinding box body (1-1), the grinding driving motor (1-2) is detachably connected to the grinding driving motor mounting plate (1-3) through bolts, and the grinding driving motor output gear (1-5) is fixedly connected to an output shaft of the grinding driving motor (1-2), two grinding driving shafts (1-7) are rotatably connected to the inner wall of a raw material grinding box body (1-1), the two grinding driving shafts (1-7) are horizontally arranged, one left end of each of the two grinding driving shafts (1-7) is fixedly connected with a grinding driving motor output gear (1-5), the left end of the other grinding driving shaft (1-7) is fixedly connected with a grinding following gear (1-4), the grinding following gear (1-4) is in meshing transmission with the grinding driving motor output gear (1-5), and two raw material grinding rollers (1-6) are respectively and fixedly connected to the two grinding driving shafts (1-7).
4. A paint processing apparatus as claimed in claim 3, wherein: the raw material grinding rollers (1-6) rotate in opposite directions.
