The utility model relates to a heat collector mounting bracket correlation technique field, in particular to a heat collector mounting bracket capable of reducing installation error, which comprises a base and a heat collector mounting bracket arranged on the base, wherein the base is formed by combining a bottom plate and two supporting tables, the front side of the supporting table is provided with a chute, the upper surface of the rear side of the supporting table is fixedly welded with a first-level telescopic rod, a second-level telescopic rod is arranged above the first-level telescopic rod, a third-level telescopic rod is arranged above the second-level telescopic rod, a steering block is fixedly welded above the third-level telescopic rod, and the steering; through set up one-level telescopic link, second grade telescopic link and tertiary telescopic link on the brace table on the base to it has the piece that turns to of pivot hole to open at the top fixed mounting of tertiary flexible pole, and rotate the pivot setting on the water tank in the pivot hole, thereby can put down the telescopic link through letting the user before the typhoon comes, reduces the area that receives the wind of heat collector, thereby reduces the heat collector because of receiving the too big risk that is blown off of wind area.
Description
Technical Field
The utility model relates to a heat collector mounting bracket correlation technique field specifically is a heat collector mounting bracket of reducible installation error.
Background
The heat collector, also called as a heat collecting plate, is a name of the solar energy industry for the outdoor heat collecting part of the solar water heater. The solar heat collector with good performance is one of key equipment of the solar air conditioner, has the main function of collecting heat energy in sunlight, transferring the heat energy to a water tank through a communicating pipeline and heating cold water in the water tank, and solar energy is the most attractive clean energy among new energy and renewable energy, is favorable for energy conservation and environmental protection, can be said that the mainstream of global energy in the future is solar energy, and the solar energy utilization technology is more and more widely valued. The solar heat collector is the most important component in solar heat utilization, and the performance of the solar heat collector plays a decisive role in the success or failure of the whole system. The basic feature of the method can be divided into two categories, i.e. non-condensation and condensation. However, the solar vacuum tube on traditional solar energy mounting bracket is the mounting notch on mounting notch and the water tank all is the one-to-one, if there is the error to lead to the installation of later stage solar vacuum tube difficulty between its upper and lower correspondence notch, and solar water heater installs in higher department usually moreover, and it is windy the area big moreover, and in typhoon weather, it can have very big potential safety hazard, for this reason, the utility model provides a reducible installation error's heat collector mounting bracket is used for solving above-mentioned problem.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a heat collector mounting bracket of reducible installation error to solve the problem that proposes in the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a reducible installation error's heat collector mounting bracket, includes the base and installs the heat collector mounting bracket on the base, the base is formed by a bottom plate and two combinations of brace table, and its brace table fixed welding is in the both sides of bottom plate, and its brace table's front side is opened and is equipped with the spout, and the last fixed surface of its rear side welding has an one-level telescopic link, the top of one-level telescopic link is provided with the second grade telescopic link, the top of second grade telescopic link is provided with tertiary telescopic link, the fixed welding in top of tertiary telescopic link has the piece that turns to, turn to the piece and be a rectangular plate.
Preferably, the bottom plate of the base is provided with mounting holes, the mounting holes are provided with three rows and three columns, the total number is nine, and the mounting holes in the middle row are closer to the mounting holes in the front row.
Preferably, one-level telescopic link, second grade telescopic link and tertiary telescopic link are the pipe, and the internal diameter of one-level telescopic link equals with the external diameter of second grade telescopic link, and the internal diameter of second grade telescopic link equals with the external diameter of tertiary telescopic link, and the bolt hole has all been seted up to the upper end of one-level telescopic link, the last lower extreme of second grade telescopic link, the lower extreme of tertiary telescopic link.
Preferably, the activity of second grade telescopic link sets up in the body of one-level telescopic link, and fixes through bolt and nut between the bolt hole of second grade telescopic link lower extreme and the bolt hole of one-level telescopic link upper end, the activity of tertiary telescopic link sets up in the body of second grade telescopic link, and passes through bolt and nut fixed connection between the bolt hole of tertiary telescopic link lower extreme and the bolt hole of second grade telescopic link upper end.
Preferably, the heat collector mounting bracket is a door style of calligraphy frame structure of handstand, and the fixed welding of opening part on its upper end has the water tank, and has seted up solar energy vacuum tube mounting groove on the frame pole of its bottom, leave the installation notch on the water tank, and the fixed welding in both ends of water tank has the pivot, the pivot is rotated and is set up in the pivot hole on turning to the piece, the fixed welding in bottom both sides of heat collector mounting bracket has the pivot bolt, the pivot bolt sets up in the spout.
Preferably, the solar vacuum tube mounting groove is a long groove opening, one end of the solar vacuum tube is fixedly mounted in the mounting groove opening of the water tank, and the other end of the tube body is arranged in the solar vacuum tube mounting groove and is fixed through a fixing buckle cover.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the first-stage telescopic rod, the second-stage telescopic rod and the third-stage telescopic rod are arranged on the support table on the base, the steering block with the rotating shaft hole is fixedly arranged above the third-stage telescopic rod, and the rotating shaft on the water tank is rotatably arranged in the rotating shaft hole, so that a user can put down the telescopic rods before typhoon comes, the wind area of the heat collector is reduced, and the risk that the heat collector is blown off due to overlarge wind area is reduced;
2. and set the solar vacuum tube mounting groove to a long notch to let solar vacuum tube can avoid upper and lower mounting groove to have positional deviation and lead to the dismantlement of solar vacuum tube and the difficult problem of installation when the installation, for the mounting groove that the tradition set up, the mounting groove of bottom run-through type is more convenient to the installation of solar vacuum tube moreover.
Drawings

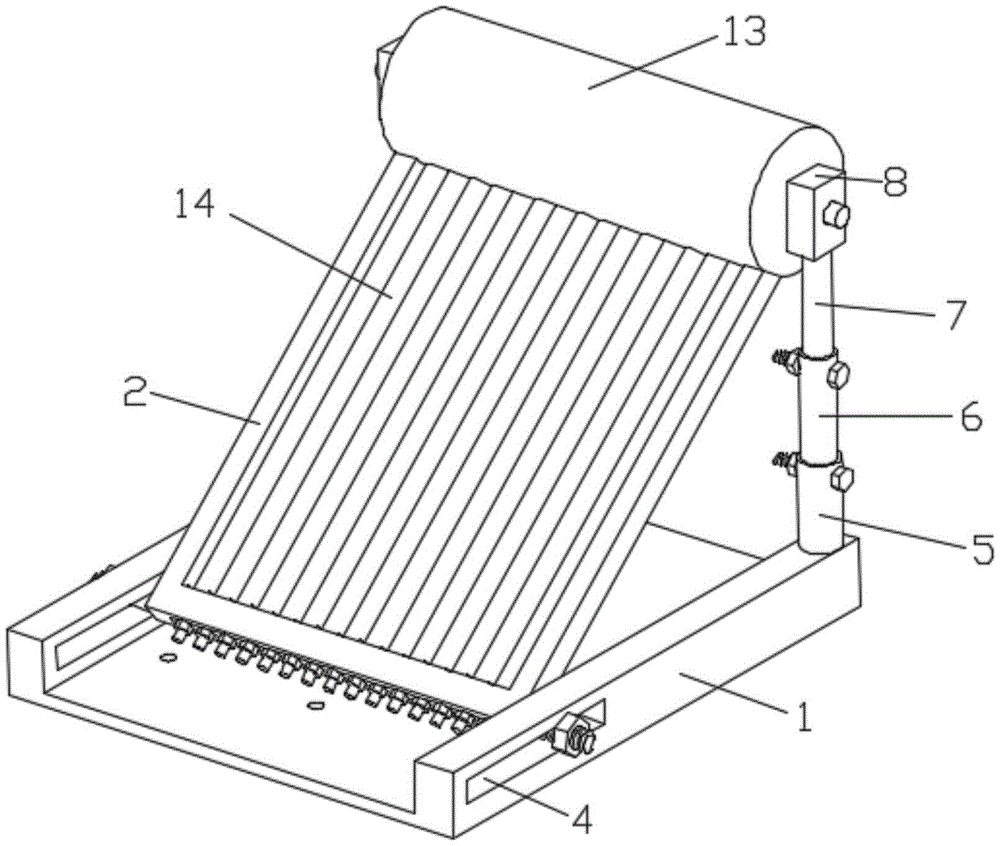

FIG. 1 is a schematic structural view of the present invention;
fig. 2 is a rear schematic view of the present invention;
FIG. 3 is a schematic view of the base structure of the present invention;
FIG. 4 is a schematic structural view of the heat collector mounting frame of the present invention;
fig. 5 is a schematic view of the solar vacuum tube installation groove of the present invention.
In the figure: base 1, heat collector mounting bracket 2, mounting hole 3, spout 4, one-level telescopic link 5, second grade telescopic link 6, tertiary telescopic link 7, turn to piece 8, pivot hole 9, solar vacuum tube mounting groove 10, pivot bolt 11, water tank 12, pivot 13, solar vacuum tube 14, fixed buckle 15.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-5, the present invention provides a technical solution: the utility model provides a reducible installation error's heat collector mounting bracket, include base 1 and install heat collector mounting bracket 2 on base 1, base 1 is formed by a bottom plate and two combinations of brace table, its brace table fixed welding is in the both sides of bottom plate, spout 4 has been seted up to its brace table's front side, the last fixed surface welding of its rear side has one-level telescopic link 5, the top of one-level telescopic link 5 is provided with second grade telescopic link 6, second grade telescopic link 6's top is provided with tertiary telescopic link 7, the fixed welding in top of tertiary telescopic link 7 has turning to piece 8, turning to piece 8 is a rectangular plate, pivot hole 9 has been seted up on its plate body.
Furthermore, mounting holes 3 are formed in a bottom plate of the base 1, three rows and three columns of the mounting holes 3 are arranged, nine mounting holes are formed in total, the distance between the mounting holes in the middle row is shorter than that between the mounting holes in the front row, the center of gravity of the whole device is close to the rear side of the water tank 12, the mounting holes in the front side are arranged densely, the stress of the mounting holes 3 is more uniform, and the stability of the device is enhanced;
further, the first-stage telescopic rod 5, the second-stage telescopic rod 6 and the third-stage telescopic rod 7 are all round pipes, the inner diameter of the first-stage telescopic rod 5 is equal to the outer diameter of the second-stage telescopic rod 6, the inner diameter of the second-stage telescopic rod 6 is equal to the outer diameter of the third-stage telescopic rod 7, and bolt holes are formed in the upper end of the first-stage telescopic rod 5, the upper end and the lower end of the second-stage telescopic rod 6 and the lower end;
further, the second-stage telescopic rod 6 is movably arranged in the tube body of the first-stage telescopic rod 5, a bolt hole at the lower end of the second-stage telescopic rod and a bolt hole at the upper end of the first-stage telescopic rod 5 are fixed through a bolt and a nut, the third-stage telescopic rod 7 is movably arranged in the tube body of the second-stage telescopic rod 6, and the bolt hole at the lower end of the three-stage telescopic rod 7 is fixedly connected with the bolt hole at the upper end of the two-stage telescopic rod 6 through a bolt and a nut, by arranging the primary telescopic rod 5, the secondary telescopic rod 6 and the tertiary telescopic rod 7 on the supporting platform on the base 1, a steering block 8 with a rotating shaft hole 9 is fixedly arranged above the three-stage telescopic rod 7, a rotating shaft 13 on a water tank 12 is rotatably arranged in the rotating shaft hole 9, therefore, the telescopic rod can be put down by a user before the typhoon comes, the wind area of the heat collector is reduced, and the risk that the heat collector is blown off due to overlarge wind area is reduced;
further, the heat collector mounting frame 2 is an inverted door-shaped frame structure, a water tank 12 is fixedly welded at an opening at the upper end of the heat collector mounting frame, a solar vacuum tube mounting groove 10 is formed in a frame rod at the bottom end of the heat collector mounting frame, a mounting groove opening is formed in the water tank 12, rotating shafts 13 are fixedly welded at two ends of the water tank, the rotating shafts 13 are rotatably arranged in rotating shaft holes 9 in the steering block 8, rotating shaft bolts 11 are fixedly welded at two sides of the bottom end of the heat collector mounting frame 2, and the rotating shaft bolts 11 are arranged in the sliding grooves 4;
furthermore, the solar vacuum tube mounting groove 10 is a long groove opening, one end of the solar vacuum tube 14 is fixedly mounted in the mounting groove opening of the water tank 12, the other end of the tube body is arranged in the solar vacuum tube mounting groove 10 and is fixed through the fixing buckle 15, and the solar vacuum tube mounting groove 10 is arranged to be a long groove opening, so that the problem that the solar vacuum tube 14 is difficult to dismount and mount due to the fact that the upper mounting groove and the lower mounting groove have position deviation during mounting of the solar vacuum tube 14 can be solved, and compared with the mounting groove which is conventionally arranged, the mounting groove which is of a bottom penetrating type is more convenient for mounting of the solar vacuum tube 14;
the working principle is as follows: in practical use, a worker fixedly installs the base 1 on the roof through the expansion bolt, then puts the solar vacuum tube 14 into the mounting groove 10 from the lower side of the solar vacuum tube, fixedly screws the solar vacuum tube into the mounting groove on the water tank 12, then carries out auxiliary fixing on the bottom of the solar vacuum tube through the fixing buckle 15, then raises the second-stage telescopic rod 6 and the third-stage telescopic rod 7, fixes the two-stage telescopic rod and the third-stage telescopic rod through the bolt and the nut, then fixes the rotating shaft bolt 11 in the chute 4 through the nut, when the user knows that the typhoon is coming, the user only needs to loosen the bolt and the nut on the telescopic rods, loosen the nut on the rotating shaft bolt 11, put down the heat collector mounting frame 2, then fix the rotating shaft bolt 11, and then increases the weight of the full water in the solar water heater, thereby effectively reducing the wind area of the solar heat collector, and the device can ensure enough stability in typhoon weather.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a reducible installation error's heat collector mounting bracket, includes base (1) and installs heat collector mounting bracket (2) on base (1), its characterized in that: base (1) is formed by a bottom plate and two brace tables combination, and its brace table fixed welding is in the both sides of bottom plate, and spout (4) have been opened to its brace table's front side, and the last fixed surface welding of its rear side has one-level telescopic link (5), the top of one-level telescopic link (5) is provided with second grade telescopic link (6), the top of second grade telescopic link (6) is provided with tertiary telescopic link (7), the fixed welding in top of tertiary telescopic link (7) has turning block (8), turning block (8) are a rectangular plate, have seted up pivot hole (9) on its plate body.
2. A heat collector mounting bracket capable of reducing mounting errors according to claim 1, wherein: the base plate of the base (1) is provided with mounting holes (3), the mounting holes (3) are provided with three rows and three columns in total, the total number is nine, and the distance between the mounting holes in the middle row and the mounting holes in the front row is shorter.
3. A heat collector mounting bracket capable of reducing mounting errors according to claim 1, wherein: one-level telescopic link (5), second grade telescopic link (6) and tertiary telescopic link (7) are the pipe, and the internal diameter of one-level telescopic link (5) equals with the external diameter of second grade telescopic link (6), and the internal diameter of second grade telescopic link (6) equals with the external diameter of tertiary telescopic link (7), and the bolt hole has all been seted up to the upper end of one-level telescopic link (5), the last lower extreme of second grade telescopic link (6), the lower extreme of tertiary telescopic link (7).
4. A heat collector mounting bracket capable of reducing mounting errors according to claim 3, wherein: the telescopic rod type telescopic pipe is characterized in that the two-stage telescopic rod (6) is movably arranged in a pipe body of the one-stage telescopic rod (5), a bolt hole at the lower end of the two-stage telescopic rod and a bolt hole at the upper end of the one-stage telescopic rod (5) are fixed through a bolt and a nut, the three-stage telescopic rod (7) is movably arranged in the pipe body of the two-stage telescopic rod (6), and the bolt hole at the lower end of the three-stage telescopic rod (7) and the bolt hole at the upper end of the two.
5. A heat collector mounting bracket capable of reducing mounting errors according to claim 1, wherein: the heat collector mounting bracket (2) is a reversed door-shaped frame structure, the opening of the upper end of the heat collector mounting bracket is fixedly welded with a water tank (12), a solar vacuum tube mounting groove (10) is formed in a frame rod at the bottom of the heat collector mounting bracket, a mounting groove opening is reserved in the water tank (12), a rotating shaft (13) is fixedly welded at the two ends of the water tank, the rotating shaft (13) is rotatably arranged in a rotating shaft hole (9) in a steering block (8), a rotating shaft bolt (11) is fixedly welded at the two sides of the bottom of the heat collector mounting bracket (2), and the rotating shaft bolt (11) is arranged in a sliding groove (4).
6. A heat collector mounting rack capable of reducing mounting errors according to claim 5, wherein: the solar vacuum tube mounting groove (10) is a long groove opening, one end of a solar vacuum tube (14) is fixedly mounted in the mounting groove opening of the water tank (12), the other end of the tube body is arranged in the solar vacuum tube mounting groove (10), and the tube body is fixed through a fixing buckle (15).
