CN210767418U - Glass curtain wall convenient for indoor installation - Google Patents
Glass curtain wall convenient for indoor installation Download PDFInfo
- Publication number
- CN210767418U CN210767418U CN201921444177.5U CN201921444177U CN210767418U CN 210767418 U CN210767418 U CN 210767418U CN 201921444177 U CN201921444177 U CN 201921444177U CN 210767418 U CN210767418 U CN 210767418U
- Authority
- CN
- China
- Prior art keywords
- aluminum alloy
- curtain wall
- wall
- upright post
- glass
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Abstract
The utility model belongs to the technical field of glass curtain walls, and discloses a glass curtain wall convenient for indoor installation, which comprises an aluminum alloy upright post, wherein one side of the aluminum alloy upright post opposite to the aluminum alloy upright post is symmetrically provided with a groove, one side of the aluminum alloy upright post positioned in the groove is connected with a mounting plate, one side of the mounting plate is integrally formed with a convex strip matched with the groove, the outer wall of the aluminum alloy upright post is screwed and connected with a fastening screw, the outer wall of the convex strip is symmetrically provided with a first screw hole matched with the fastening screw, the utility model can realize the quick and accurate splicing of the aluminum alloy upright post and the mounting plate when in installation through the matching of the convex strip and the groove, can clamp glass through a clamping groove to avoid the loosening of the glass, fixes each part through the fastening screw and the fastening screw, is quick, convenient, firm and, the independent components are light in weight, and time and labor are saved during installation.
Description
Technical Field
The utility model belongs to the technical field of the glass curtain wall, concretely relates to make things convenient for glass curtain wall of indoor location.
Background
The glass curtain wall is a building external protective structure or a decorative structure which has a certain displacement capacity relative to a main structure by a supporting structure system and does not bear the action of the main structure, and as is known, the glass curtain wall is an attractive and novel building wall decoration method, is a remarkable characteristic of the modern main high-rise building era and is 'standard match' of a plurality of landmark buildings, and the gorgeous and magnificent appearance of the glass curtain wall provides a new definition and interpretation for the building of the traditional brick-concrete structure.
The building of landmark nature at present often all is the superelevation floor, causes very big degree of difficulty for the construction of outer wall decoration, and work efficiency and factor of safety from outdoor installation glass curtain wall are lower, and in addition, traditional glass curtain wall is difficult to be assembled and dismantle, and the installation is comparatively difficult, wastes time and energy, and gives sound insulation and sealed effect not good effect, influences its normal use.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a make things convenient for indoor location's glass curtain wall to the work efficiency and the lower problem of factor of safety of the following outdoor installation glass curtain wall that propose among the above-mentioned background art of solution, in addition, traditional glass curtain wall is difficult for assembling and dismantling, installs comparatively difficult problem.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a make things convenient for indoor location's glass curtain wall, includes the aluminum alloy stand, the recess has been seted up to the relative lateral symmetry of aluminum alloy stand, and one side that the aluminum alloy stand is located the recess is connected with the mounting panel, one side integrated into one piece of mounting panel has the sand grip with recess looks adaptation, the exterior wall of aluminum alloy stand closes soon and is connected with fastening screw, the first screw with fastening screw assorted is seted up to the exterior wall symmetry of sand grip, the draw-in groove has been seted up to one side that the sand grip was kept away from to the mounting panel, the inside of draw-in groove is inserted and is equipped with curtain glass, the upper end of aluminum alloy stand is connected with the entablature, and the bottom of aluminum alloy stand is connected with the bottom end rail, the exterior wall of entablature and bottom rail all closes soon and is.
Preferably, the inner wall of the clamping groove is bonded with a silencing cotton layer, and the outer surface wall of the silencing cotton layer is bonded with a sealing pad.
Preferably, both side walls of the upper cross beam and the lower cross beam are connected with mounting angle steel, and mounting holes are formed in the outer wall of the mounting angle steel.
Preferably, the aluminum alloy upright posts are mounted on the two side walls, and the aluminum alloy upright posts, the upper cross beam and the lower cross beam are connected to form the curtain wall main frame.
Preferably, the solar panel is bonded to the outer surface wall of the curtain wall glass, and the interior of the curtain wall glass is of a hollow structure.
Compared with the prior art, the beneficial effects of the utility model are that:
(1) the utility model discloses can follow indoor erection glass curtain wall, can greatly reduce cost of labor and material cost, follow the indoor erection with the glass subassembly, greatly improve work efficiency, reduce labour fatigue, can improve the factor of safety of installation and construction simultaneously, reduce the potential safety hazard.
(2) The utility model discloses a cooperation of sand grip and recess when the installation, can realize the quick accurate concatenation of aluminum alloy stand and mounting panel, can chucking glass through the draw-in groove, avoid glass not hard up, fix each part through fastening screw and fastening screw, it is swift convenient, firm reliable, this glass curtain wall can progressively splice the installation when installing, solitary each subassembly light in weight, the labour saving and time saving of installing.
(3) The utility model discloses a cotton layer of amortization can greatly improve this glass curtain wall's syllable-dividing effect, has avoided the pollution of external noise, can avoid air and rainwater infiltration to advance through sealed the pad, has avoided simultaneously leaking the sound, has guaranteed the comfort of indoor environment.
Drawings

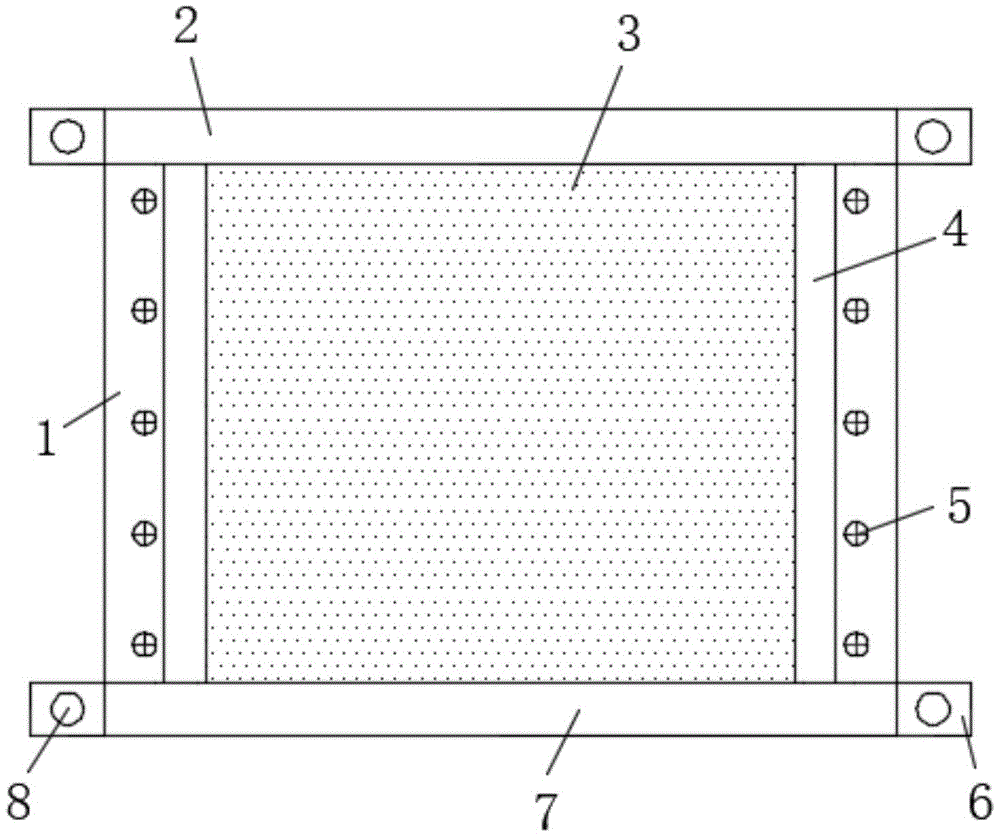

Fig. 1 is a front view of the present invention;
fig. 2 is a schematic structural diagram of the mounting plate of the present invention;
fig. 3 is a cross-sectional view of the present invention;
fig. 4 is a top view of the present invention;
FIG. 5 is a top view of the aluminum alloy pillar of the present invention;
FIG. 6 is an enlarged view of portion A of FIG. 2;
in the figure: the solar energy curtain wall comprises 1-aluminum alloy upright posts, 2-upper cross beams, 3-solar panels, 4-mounting plates, 5-fastening screws, 6-mounting angle steel, 7-lower cross beams, 8-mounting holes, 9-convex strips, 10-first screw holes, 11-curtain wall glass, 12-noise reduction cotton layers, 13-sealing gaskets, 14-fastening screws, 15-second screw holes, 16-grooves and 17-clamping grooves.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-6, the present invention provides a technical solution: a glass curtain wall convenient for indoor installation comprises an aluminum alloy upright post 1, wherein one side of the aluminum alloy upright post 1 opposite to the aluminum alloy upright post is symmetrically provided with a groove 16, one side of the aluminum alloy upright post 1 positioned at the groove 16 is connected with a mounting plate 4, one side of the mounting plate 4 is integrally formed with a convex strip 9 matched with the groove 16, when the glass curtain wall is installed, the aluminum alloy upright post 1 and the mounting plate 4 can be quickly and accurately spliced, the outer surface wall of the aluminum alloy upright post 1 is screwed and connected with a fastening screw 5, the outer surface wall of the convex strip 9 is symmetrically provided with a first screw hole 10 matched with the fastening screw 5, one side of the mounting plate 4 far away from the convex strip 9 is provided with a clamping groove 17, curtain wall glass 11 can be clamped through the clamping groove 17, the looseness of the curtain wall glass 11 is avoided, the curtain wall glass 11 is inserted in the clamping groove 17, the upper, the outer surface wall of entablature 2 and bottom end rail 7 all closes soon and is connected with fastening screw 14, the upper and lower surface wall of aluminum alloy stand 1 all seted up with fastening screw 14 assorted second screw 15, fix each part through fastening screw 5 and fastening screw 14, it is swift convenient, firm reliable, can progressively splice the installation when this glass curtain wall is installed, solitary each subassembly light in weight, the labour saving and time saving of installing.
Further, the inner wall of draw-in groove 17 bonds and has the cotton layer 12 of amortization, and the exterior wall on the cotton layer 12 of amortization bonds and has sealed the pad 13, can greatly improve the syllable-dividing effect of this glass curtain wall through the cotton layer 12 of amortization, has avoided the pollution of external noise, can avoid air and rainwater infiltration through sealed pad 13, has avoided the sound leakage simultaneously, has guaranteed the comfort of indoor environment.
Furthermore, both sides walls of the upper cross beam 2 and the lower cross beam 7 are connected with installation angle steel 6, installation holes 8 are formed in the outer surface walls of the installation angle steel 6, when the installation is carried out, a worker can penetrate the installation holes 8 formed in the outer surface walls of the installation angle steel 6 through expansion bolts, and the glass curtain wall is stably installed on a wall body.
Further, two aluminum alloy upright posts 1 are installed, the two aluminum alloy upright posts 1 can ensure the completeness of the frame and the reliability of support, and the aluminum alloy upright posts 1, the upper cross beam 2 and the lower cross beam 7 are connected to form the curtain wall main frame.
Further, the outer wall of the curtain wall glass 11 is bonded with the solar panel 3, the green energy-saving solar panel 3 is adopted, the solar panel 3 absorbs solar energy, then the energy is stored in a storage battery between equipment through conversion, the requirement of green energy conservation can be realized, the interior of the curtain wall glass 11 is of a hollow structure, the sound insulation effect of the curtain wall glass 11 of the hollow structure can be enhanced, and noise pollution is avoided.
The utility model discloses a theory of operation and use flow: when the utility model is used, a worker firstly passes the expansion bolt through the mounting hole 8 arranged on the outer wall of the mounting angle steel 6, the lower beam 7 is arranged on the wall body, then the aluminum alloy upright post 1 is arranged on the two sides of the upper end of the lower beam 7, the aluminum alloy upright post is screwed and connected and fixed through the fastening screw 14 passing through the second screw hole 15, then the mounting plate 4 is inserted with one end of the convex strip 9 into the groove 16, the fastening screw 5 is screwed and connected and fixed firmly, then the curtain wall glass 11 is inserted into the clamping groove 17, after the curtain wall glass 11 is mounted, the upper beam 2 is mounted, wherein the aluminum alloy upright post 1 and the mounting plate 4 can be spliced quickly and accurately through the matching of the convex strip 9 and the groove 16, the curtain wall glass 11 can be clamped through the clamping groove 17, the looseness of the curtain wall glass 11 is avoided, in addition, the sound insulation effect of the glass curtain wall can be greatly improved through the, the pollution of external noise is avoided, air and rainwater can be prevented from seeping through the sealing gasket 13, meanwhile, sound leakage is avoided, and the comfort of the indoor environment is guaranteed.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (5)
1. The utility model provides a make things convenient for indoor location's glass curtain wall which characterized in that: the aluminum alloy curtain wall glass fixing device comprises an aluminum alloy upright post (1), wherein a groove (16) is symmetrically formed in one side, opposite to the aluminum alloy upright post (1), of the aluminum alloy upright post (1), a mounting plate (4) is connected to one side, located in the groove (16), of the aluminum alloy upright post (1), a convex strip (9) matched with the groove (16) is integrally formed in one side of the mounting plate (4), a fastening screw (5) is connected to the outer wall of the aluminum alloy upright post (1) in a screwing mode, a first screw hole (10) matched with the fastening screw (5) is symmetrically formed in the outer wall of the convex strip (9), a clamping groove (17) is formed in one side, away from the convex strip (9), of the mounting plate (4), curtain wall glass (11) is inserted into the clamping groove (17), an upper cross beam (2) is connected to the upper end of the aluminum alloy upright post (1), a lower cross beam (7) is connected to the bottom end of, and the upper surface wall and the lower surface wall of the aluminum alloy upright post (1) are provided with second screw holes (15) matched with the fastening screws (14).
2. The glass curtain wall convenient for indoor installation of claim 1, wherein: the inner wall of draw-in groove (17) bonds and has amortization cotton layer (12), the outward appearance wall bonding of amortization cotton layer (12) has sealed pad (13).
3. The glass curtain wall convenient for indoor installation of claim 1, wherein: the mounting structure is characterized in that two side walls of the upper cross beam (2) and the lower cross beam (7) are respectively connected with mounting angle steel (6), and mounting holes (8) are formed in the outer wall of the mounting angle steel (6).
4. The glass curtain wall convenient for indoor installation of claim 1, wherein: the curtain wall is characterized in that two aluminum alloy upright columns (1) are mounted, and the aluminum alloy upright columns (1), the upper cross beam (2) and the lower cross beam (7) are connected to form a curtain wall main frame.
5. The glass curtain wall convenient for indoor installation of claim 1, wherein: the solar panel (3) is bonded on the outer surface wall of the curtain wall glass (11), and the interior of the curtain wall glass (11) is of a hollow structure.
