CN210674374U - Prevent sewage treatment plant of jam - Google Patents
Prevent sewage treatment plant of jam Download PDFInfo
- Publication number
- CN210674374U CN210674374U CN201921159406.9U CN201921159406U CN210674374U CN 210674374 U CN210674374 U CN 210674374U CN 201921159406 U CN201921159406 U CN 201921159406U CN 210674374 U CN210674374 U CN 210674374U
- Authority
- CN
- China
- Prior art keywords
- box
- sewage treatment
- motor
- wall
- impurity
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Landscapes
- Sewage (AREA)
Abstract
The utility model discloses a prevent sewage treatment plant of jam, the power distribution box comprises a box body, there is first motor through the bolt fastening on the top outer wall of box, and the bottom of first motor output shaft has first transfer line through the bolt fastening, one side of box has the second motor through the bolt fastening, and the one end welding of second motor output shaft has the second transfer line, it crosses filter plate to have through the bolt fastening on one side inner wall of box, and crosses filter plate and be the arc structure. The utility model discloses can drive the scraper blade and rotate, during the rotation with filter plate contact, scrape the impurity above-mentioned, prevent that impurity from blockking up the mesh on the filter plate, influence normal work, can drive stirring frame and mix the piece and rotate to smash the impurity in the sewage, make things convenient for the quick filtration otter board that passes through of impurity, improved the treatment effect of sewage, the mechanization can be high, labour saving and time saving.
Description
Technical Field
The utility model relates to a sewage treatment technical field especially relates to a prevent sewage treatment plant of jam.
Background
The sewage treatment device is an industrial device which can effectively treat domestic sewage, industrial wastewater and the like in urban areas, prevents sewage and pollutants from directly flowing into water areas, and has important significance for improving ecological environment, promoting urban grade and promoting economic development.
Through the retrieval, grant the patent that the publication is CN207957952U, disclose a prevent sewage treatment plant for municipal administration of jam, including the sewage treatment plant body, the inlet opening has been seted up to the left surface of sewage treatment plant body, the inner wall fixedly connected with baffle of sewage treatment plant body, the apopore has been seted up to the lateral surface of baffle, the left side of baffle is equipped with deposits the storehouse, the right side of baffle is equipped with the filtration storehouse, the inner wall fixedly connected with of sewage treatment plant body and the first filter screen of sewage treatment plant body looks adaptation. The above patents suffer from the following disadvantages: impurities in a common sewage treatment device easily cause the blockage of a filter plate and can not meet the requirements of people.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the defects existing in the prior art and providing a sewage treatment device for preventing blockage.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
the utility model provides a prevent sewage treatment plant of jam, includes the box, there is first motor through the bolt fastening on the top outer wall of box, and the bottom of first motor output shaft has first transfer line through the bolt fastening, there is the second motor one side of box through the bolt fastening, and the one end welding of second motor output shaft has the second transfer line, there is the filtration otter board through the bolt fastening on one side inner wall of box, and filters the otter board and be the arc structure.
Furthermore, a plurality of stirring frames are fixed on the outer wall of one side of the first transmission rod through bolts, and a plurality of stirring blocks are welded on one side of each stirring frame.
Further, the welding of the top of box has the inlet pipe, and the welding of one side of box has the drain pipe, and the drain pipe is located filter plate's below.
Furthermore, a plurality of connecting rods are welded on one side of the second transmission rod, a scraper is fixed on one side of each connecting rod through a bolt, and the scraper is in contact with the filter screen plate.
Furthermore, an observation window is arranged on the outer wall of one side of the box body.
Furthermore, a fixing frame is fixed on the inner wall of one side of the stirring frame through bolts, and one side of the fixing frame is rotatably connected with a plurality of fan blades.
The utility model has the advantages that:
1. the second motor can drive the scraping plate to rotate, and the scraping plate is contacted with the filter screen plate during rotation to scrape impurities on the filter screen plate, so that the impurities are prevented from blocking meshes on the filter screen plate and affecting normal work;
2. the stirring frame and the stirring block can be driven to rotate through the arrangement of the first motor, so that impurities in the sewage are crushed, the impurities can conveniently and quickly pass through the filter screen plate, the sewage treatment effect is improved, the mechanical performance is high, and time and labor are saved;
3. can carry out the rotation at stirring frame pivoted in-process through the setting of flabellum, carry out supplementary crushing work to the impurity in the sewage, improve the treatment effect of device.
Drawings

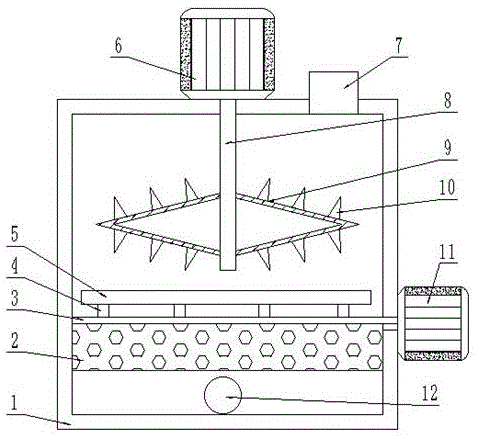

FIG. 1 is a schematic sectional view of an anti-clogging sewage treatment apparatus of embodiment 1 of the present invention;
FIG. 2 is a schematic view of a partial structure of an anti-clogging sewage treatment apparatus according to embodiment 1 of the present invention;
FIG. 3 is a schematic perspective view of an anti-clogging sewage treatment apparatus according to embodiment 1 of the present invention;
fig. 4 is a schematic sectional view of the anti-clogging sewage treatment apparatus of embodiment 2 of the present invention.
In the figure: the device comprises a box body 1, a filter screen plate 2, a second transmission rod 3, a connecting rod 4, a scraping plate 5, a first motor 6, a feeding pipe 7, a first transmission rod 8, a stirring frame 9, a stirring block 10, a second motor 11, a drainage pipe 12, an observation window 13, a fixing frame 14 and fan blades 15.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
Example 1
Referring to fig. 1-3, a sewage treatment device preventing blockage comprises a box body 1, wherein a first motor 6 is fixed on the outer wall of the top of the box body 1 through a bolt, a first transmission rod 8 is fixed at the bottom of an output shaft of the first motor 6 through a bolt, a second motor 11 is fixed on one side of the box body 1 through a bolt, a second transmission rod 3 is welded at one end of an output shaft of the second motor 11, a filter screen plate 2 is fixed on the inner wall of one side of the box body 1 through a bolt, and the filter screen plate 2 is of an arc-shaped structure.
There are a plurality of stirring framves 9 through the bolt fastening on one side outer wall of first transfer line 8, and stir one side welding of frame 9 and have a plurality of stirring pieces 10, the welding of the top of box 1 has inlet pipe 7, and the welding of one side of box 1 has drain pipe 12, drain pipe 12 is located the below of filter plate 2, the welding of one side of second transfer line 3 has a plurality of connecting rods 4, and one side of connecting rod 4 has scraper blade 5 through the bolt fastening, scraper blade 5 contacts with filter plate 2, it has observation window 13 to open on one side outer wall of box 1.
The working principle of the embodiment is as follows: sewage passes through inlet pipe 7 and gets into in the box 1, then drive scraper blade 5 through second motor 11 and rotate, contact with filter plate 2 during the rotation, scrape impurity above-mentioned, prevent that impurity from blockking up the mesh on filter plate 2, influence normal work, drive stirring frame 9 and stirring piece 10 through first motor 6 and rotate, thereby smash the impurity in the sewage, make things convenient for the quick filtration otter board 2 that passes through of impurity, the treatment effect of sewage has been improved, the mechanization can be high, sewage after the processing passes through drain pipe 12 and discharges.
Example 2
Referring to fig. 4, the present embodiment of an anti-clogging sewage treatment apparatus, compared to embodiment 1, mainly differs from embodiment 1 in that a fixing frame 14 is fixed on an inner wall of one side of a stirring frame 9 through bolts, and a plurality of fan blades 15 are rotatably connected to one side of the fixing frame 14.
The working principle of the embodiment is as follows: carry out the rotation through flabellum 15 at stirring frame 9 pivoted in-process, carry out supplementary crushing work to the impurity in the sewage, improved the treatment effect of device.
In the description of the present invention, it is to be understood that the terms "coaxial", "bottom", "one end", "top", "middle", "other end", "upper", "one side", "top", "inner", "front", "center", "both ends", "first", "second", etc. indicate the orientation or positional relationship based on the orientation or positional relationship shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore should not be construed as limiting the present invention.
In the description of this patent, it is noted that unless otherwise specifically stated or limited, the terms "mounted," "connected," and "disposed" are to be construed broadly and can include, for example, fixedly connected, disposed, detachably connected, disposed, or integrally connected and disposed. The specific meaning of the above terms in this patent may be understood by those of ordinary skill in the art as appropriate.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (6)
1. The utility model provides a prevent sewage treatment plant of jam, includes box (1), its characterized in that, be equipped with first motor (6) on the top outer wall of box (1), and the bottom of first motor (6) output shaft is equipped with first transfer line (8), one side of box (1) is equipped with second motor (11), and the one end of second motor (11) output shaft is equipped with second transfer line (3), be equipped with on one side inner wall of box (1) and filter otter board (2), just filter otter board (2) and be the arc structure.
2. The anti-clogging sewage treatment device according to claim 1, wherein a plurality of agitating frames (9) are provided on an outer wall of one side of the first driving rod (8), and a plurality of agitating blocks (10) are provided on one side of the agitating frames (9).
3. The anti-clogging sewage treatment device according to claim 1, wherein the top of the box body (1) is provided with a feeding pipe (7), and one side of the box body (1) is provided with a drainage pipe (12), and the drainage pipe (12) is positioned below the filter screen plate (2).
4. The anti-clogging sewage treatment device according to claim 1, wherein the second transmission rod (3) is provided with a plurality of connecting rods (4) at one side thereof, and a scraper (5) is provided at one side of the connecting rods (4), the scraper (5) being in contact with the filter screen plate (2).
5. The anti-clogging sewage treatment device according to claim 1, wherein an observation window (13) is formed on an outer wall of one side of the box body (1).
6. The anti-clogging sewage treatment device according to claim 2, wherein a fixing frame (14) is provided on an inner wall of one side of the stirring frame (9), and a plurality of fan blades (15) are rotatably connected to one side of the fixing frame (14).
