Abstract
The utility model discloses a cleaning equipment is used in food processing production of water conservation, the power distribution box comprises a box body, the equal swing joint in both sides at box top has the cushion, the filter frame is crossed to one side fixedly connected with that the cushion is relative, the bottom of crossing the filter frame extends to the inner chamber of box, the equal fixedly connected with electric telescopic handle in top of box both sides, electric telescopic handle's top fixedly connected with diaphragm, the fixedly connected with motor is located at the center at diaphragm top, the first gear of diaphragm and fixedly connected with is run through to the bottom of motor shaft, the fixed cover in surface of motor shaft is equipped with the connecting plate. The utility model discloses possess the cleaning efficiency height, the advantage of water economy resource has solved current cleaning equipment for food processing and has mostly washed food through the water pipe, and the cleaning efficiency is low, can waste a large amount of water resources simultaneously, has increased user's washing cost, the problem that people used not convenient for.
Description
Technical Field
The utility model relates to a food processing technology field specifically is a cleaning equipment is used in food processing production of water conservation.
Background
The food processing refers to grain grinding, feed processing, vegetable oil and sugar processing, slaughtering, meat processing, aquatic product processing and food processing activities of vegetables, fruits, nuts and the like which are directly carried out by taking agricultural, forestry, animal husbandry and fishery products as raw materials, and is a type of generalized agricultural product processing industry.
Food need wash before processing, and current cleaning equipment for food processing mostly washes food through the water pipe, and the cleaning efficiency is low, can waste a large amount of water resources simultaneously, has increased user's cleaning cost, the use of the people of not being convenient for.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a cleaning equipment is used in food processing production of water conservation possesses the cleaning efficiency height, and the advantage of water economy resource has solved current cleaning equipment for food processing and has mostly washed food through the water pipe, and cleaning efficiency is low, can waste a large amount of water resources simultaneously, has increased user's washing cost, the problem that people used not convenient for.
In order to achieve the above object, the utility model provides a following technical scheme: a cleaning device for water-saving food processing production comprises a box body, wherein cushion blocks are movably connected to two sides of the top of the box body, a filter frame is fixedly connected to one side opposite to the cushion blocks, the bottom of the filter frame extends to an inner cavity of the box body, electric telescopic rods are fixedly connected to the tops of two sides of the box body, a transverse plate is fixedly connected to the top of each electric telescopic rod, a motor is fixedly connected to the center of the top of the transverse plate, the bottom of a motor rotating shaft penetrates through the transverse plate and is fixedly connected with a first gear, a connecting plate is fixedly sleeved on the surface of the motor rotating shaft, vertical rods are movably connected to two sides of the bottom of the connecting plate, a second gear is sleeved on the surface of each vertical rod, the first gear is meshed with the second gear, a rotating rod is fixedly connected to the bottom of each vertical rod, the bottom of each rotating rod extends to the, the inner chamber of box just is located the below fixedly connected with fixed plate of filter frame, the center department intercommunication of fixed plate bottom has the drain pipe, the surface of drain pipe is provided with the solenoid valve, the equal fixedly connected with backing plate in bottom of box inner chamber both sides, the filter disc has been placed at the top of backing plate, the bottom intercommunication on box right side has the water pump, the top intercommunication of water pump has the long tube, the positive top fixedly connected with controller of box, the controller respectively with motor, electric telescopic handle, water pump and solenoid valve electric connection.
Preferably, the bottom of the front surface of the box body is movably connected with the box door through a hinge, and the bottom of the front surface of the box door is fixedly connected with a handle.
Preferably, the bottom fixedly connected with seal box of connecting plate, first gear and second gear all are located the inner chamber of seal box, the seal box is run through at the top of montant.
Preferably, a bearing is arranged at the joint of the top of the vertical rod and the connecting plate, the bearing sleeve is arranged on the surface of the vertical rod, an inner ring of the bearing is fixedly connected with the vertical rod, and an outer ring of the bearing is fixedly connected with the connecting plate.
Preferably, the bottom of the left side of the box body is communicated with a sewage discharge pipe, and the surface of the sewage discharge pipe is provided with a manual valve.
Preferably, the bottom of the front surface of the box body is fixedly connected with a liquid level window, and scale marks are sprayed on the front surface of the liquid level window.
Preferably, both sides of the inner cavity of the box body are fixedly connected with supporting blocks, and the tops of the supporting blocks are in contact with the filter frame.
Compared with the prior art, the beneficial effects of the utility model are as follows:
1. the utility model discloses a box, the cushion, filter frame, electric telescopic handle, the diaphragm, including a motor, an end cap, a controller, and a cover plate, first gear, the connecting plate, the montant, the second gear, change the rod, the brush hair, the fixed plate, the drain pipe, the solenoid valve, the backing plate, filter disc and controller cooperate, it is high to possess the cleaning efficiency, the advantage of water economy resource, solved current cleaning equipment for food processing and washed food mostly through the water pipe, the cleaning efficiency is low, a large amount of water resources can be wasted simultaneously, user's washing cost has been increased, the problem of people's use is not convenient for.
2. The utility model discloses a setting is changeed rod and brush hair, can wash food, through setting up the bearing, can support the montant, the rotation of the montant of being convenient for, through setting up the seal box, can protect first gear and second gear, through setting up blow off pipe and manual valve, be convenient for discharge the sewage of box inner chamber bottom, through setting up the filter disc, can filter water, the cyclic utilization of the water resource of being convenient for, through setting up the chamber door, be convenient for take out the filter disc from the chamber door, through setting up the cushion, can support the filter frame, through the backing plate, can support the filter disc.
Drawings

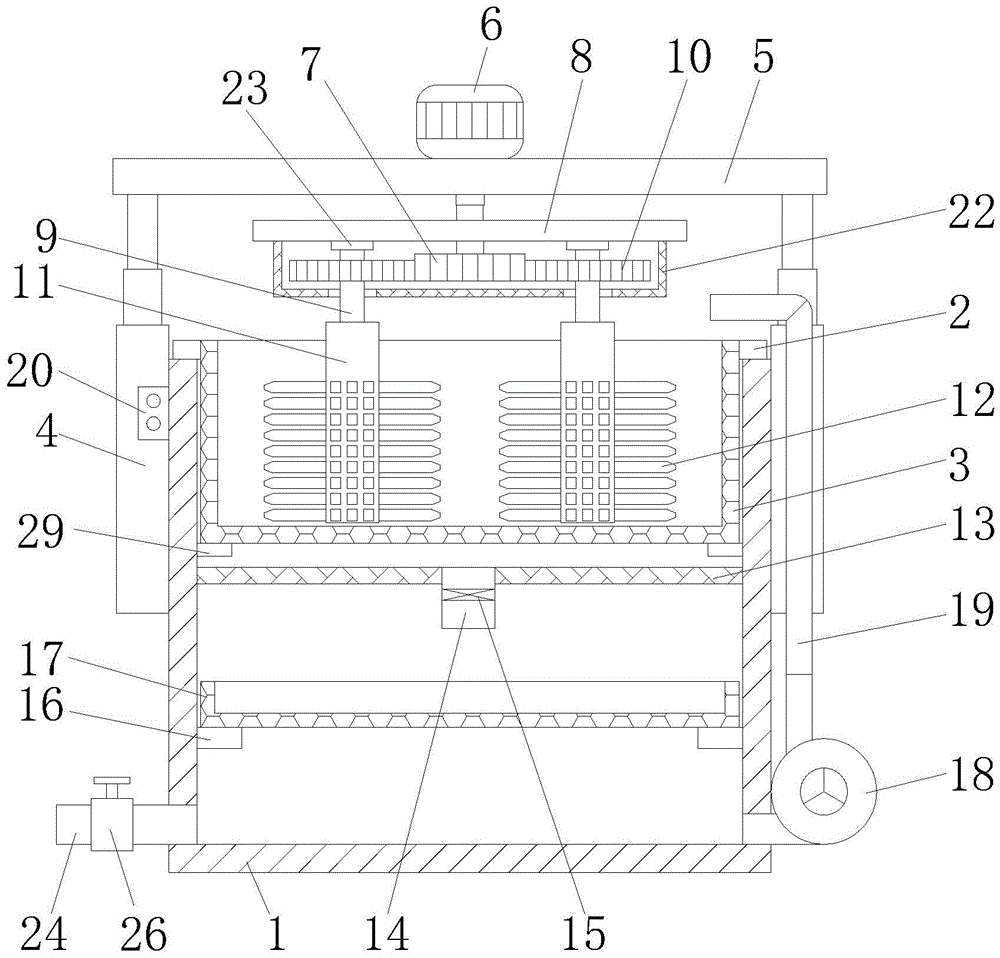

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a front view of the structure of the present invention;
fig. 3 is a schematic top view of the filter frame and the rotary rod of the present invention.
In the figure: the device comprises a box body 1, a cushion block 2, a filter frame 3, an electric telescopic rod 4, a transverse plate 5, a motor 6, a first gear 7, a connecting plate 8, a vertical rod 9, a second gear 10, a rotating rod 11, bristles 12, a fixed plate 13, a water discharge pipe 14, an electromagnetic valve 15, a cushion plate 16, a filter disc 17, a water pump 18, a long pipe 19, a controller 20, a box door 21, a sealed box 22, a bearing 23, a sewage discharge pipe 24, a handle 25, a manual valve 26, a liquid level window 27, scale marks 28 and a supporting block 29.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
In the description of the present invention, it should be noted that the terms "upper", "lower", "inner", "outer", "front end", "rear end", "both ends", "one end", "the other end", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element to be referred must have a specific orientation, be constructed in a specific orientation, and be operated, and thus, should not be construed as limiting the present invention. Furthermore, the terms "first" and "second" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance.
In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted", "provided", "connected", and the like are to be construed broadly, such as "connected", which may be fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.
The utility model discloses a box 1, cushion 2, filter frame 3, electric telescopic handle 4, diaphragm 5, motor 6, first gear 7, connecting plate 8, montant 9, second gear 10, change rod 11, brush hair 12, fixed plate 13, drain pipe 14, solenoid valve 15, backing plate 16, filter disc 17, water pump 18, long tube 19, controller 20, chamber door 21, seal box 22, bearing 23, blow off pipe 24, handle 25, manual valve 26, liquid level window 27, scale mark 28 and supporting shoe 29 part are universal standard or the part that technical personnel in the field know, its structure and principle all can learn through the technical manual or learn through conventional experimental method for this technical personnel.
Referring to fig. 1-3, a water-saving cleaning device for food processing production comprises a box body 1, wherein two sides of the top of the box body 1 are movably connected with cushion blocks 2, one side opposite to the cushion blocks 2 is fixedly connected with a filter frame 3, the bottom of the filter frame 3 extends to the inner cavity of the box body 1, the filter frame 3 can be supported by arranging the cushion blocks 2, the tops of two sides of the box body 1 are fixedly connected with electric telescopic rods 4, the top of each electric telescopic rod 4 is fixedly connected with a transverse plate 5, the center of the top of the transverse plate 5 is fixedly connected with a motor 6, the bottom of a rotating shaft of the motor 6 penetrates through the transverse plate 5 and is fixedly connected with a first gear 7, the surface of the rotating shaft of the motor 6 is fixedly sleeved with a connecting plate 8, two sides of the bottom of the connecting plate 8 are movably connected with vertical rods 9, the surface of the vertical rods 9 is fixedly sleeved with a second gear, the bottom of the connecting plate 8 is fixedly connected with a sealing box 22, the first gear 7 and the second gear 10 are both positioned in an inner cavity of the sealing box 22, the top of the vertical rod 9 penetrates through the sealing box 22, a bearing 23 is arranged at the joint of the top of the vertical rod 9 and the connecting plate 8, the bearing 23 is sleeved on the surface of the vertical rod 9, an inner ring of the bearing 23 is fixedly connected with the vertical rod 9, an outer ring of the bearing 23 is fixedly connected with the connecting plate 8, the vertical rod 9 can be supported by the bearing 23, the rotation of the vertical rod 9 is convenient, the first gear 7 and the second gear 10 can be protected by the sealing box 22, the bottom of the rotating rod 11 extends to an inner cavity of the filter frame 3, the surface of the rotating rod 11 is fixedly connected with bristles 12, the rotating rod 11 and the bristles 12 can be used for washing food, a fixing plate 13 is fixedly connected in the inner cavity of the box 1 and positioned below the filter frame 3, a drain pipe 14, the surface of the drain pipe 14 is provided with an electromagnetic valve 15, the bottom parts of two sides of the inner cavity of the box body 1 are fixedly connected with backing plates 16, the top part of the backing plate 16 is provided with a filter disc 17, water can be filtered by arranging the filter disc 17, recycling of water resources is facilitated, the filter disc 17 can be conveniently taken out of the box door 21 by arranging the box door 21, the filter disc 17 can be supported by the backing plate 16, the bottom part of the right side of the box body 1 is communicated with a water pump 18, the top part of the water pump 18 is communicated with a long pipe 21, the top part of the front side of the box body 1 is fixedly connected with a controller 20, the controller 20 is respectively and electrically connected with a motor 6, an electric telescopic rod 4, the water pump 18 and the electromagnetic valve 15, the bottom part of the front side of the box body 1 is movably connected with the long pipe 21 through hinges, the bottom part of the front, the surface of the sewage discharge pipe 24 is provided with a manual valve 26, the sewage at the bottom of the inner cavity of the box body 1 is convenient to discharge by arranging the sewage discharge pipe 24 and the manual valve 26, the front bottom of the box body 1 is fixedly connected with a liquid level window 27, the front surface of the liquid level window 27 is coated with scale marks 28, the height of the water level at the bottom of the inner cavity of the box body 1 is convenient to observe by arranging the liquid level window 27 and the scale marks 28, both sides of the inner cavity of the box body 1 are fixedly connected with supporting blocks 29, the top of the supporting blocks 29 is in contact with the filter frame 3, the filter frame 3 can be supported by arranging the supporting blocks 29, and the box body 1, the cushion blocks 2, the filter frame 3, the electric telescopic rod 4, the transverse plate 5, the motor 6, the first gear 7, the connecting plate 8, the vertical rod 9, the second gear 10, the rotating rod 11, the brush hair, possess the cleaning efficiency height, the advantage of water economy resource has solved current cleaning equipment for food processing and has mostly washed food through the water pipe, and cleaning efficiency is low, can waste a large amount of water resources simultaneously, has increased user's cleaning cost, the problem that people used not convenient for.
When the potato washing machine is used, potatoes or radishes and the like are placed in an inner cavity of a filter frame 3, water is added into the inner cavity of the filter frame 3, a controller 20 controls an electric telescopic rod 4 to contract to drive a transverse plate 5 to move downwards, the transverse plate 5 drives a motor 6 to move downwards, the motor 6 drives a connecting plate 8, a vertical rod 9 and a rotary rod 11 to move downwards, a controller 20 controls a rotating shaft of the motor 6 to drive a first gear 7 to rotate, the first gear 7 drives a second gear 10 to rotate, the second gear 10 drives the vertical rod 9 to rotate, the vertical rod 9 drives the rotary rod 11 and brush bristles 12 to rotate, the potatoes in the inner cavity of the filter frame 3 are washed, after the washing is finished, the controller 20 controls an electromagnetic valve 15 to be opened, water at the top of the inner cavity of a box body 1 is discharged into a filter disc 17 through a water discharge pipe 14, sewage is filtered through the filter disc 17, the filtered water, the water is conveyed to the inner cavity of the filter frame 3 again, the water is recycled, the box door 21 is opened, the filter disc 17 is taken out of the box body 1, and impurities in the inner cavity of the filter disc 17 are cleaned.
In summary, the following steps: this cleaning equipment is used in food processing production of water conservation, through box 1, cushion 2, filter frame 3, electric telescopic handle 4, diaphragm 5, motor 6, first gear 7, the connecting plate 8, montant 9, second gear 10, change rod 11, brush hair 12, fixed plate 13, the drain pipe 14, solenoid valve 15, backing plate 16, filter disc 17 and controller 20 cooperate, it washes food to have solved current cleaning equipment for food processing mostly to lead to the pipe, the cleaning efficiency is low, can waste a large amount of water resources simultaneously, user's cleaning cost has been increased, the problem of being not convenient for people to use.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (7)
1. The utility model provides a cleaning equipment is used in food processing production of water conservation, includes box (1), its characterized in that: the two sides of the top of the box body (1) are movably connected with cushion blocks (2), one side opposite to the cushion blocks (2) is fixedly connected with a filter frame (3), the bottom of the filter frame (3) extends to the inner cavity of the box body (1), the tops of the two sides of the box body (1) are fixedly connected with electric telescopic rods (4), the top of each electric telescopic rod (4) is fixedly connected with a transverse plate (5), the center of the top of each transverse plate (5) is fixedly connected with a motor (6), the bottom of a rotating shaft of each motor (6) penetrates through the transverse plates (5) and is fixedly connected with a first gear (7), a connecting plate (8) is fixedly sleeved on the surface of the rotating shaft of each motor (6), vertical rods (9) are movably connected on the two sides of the bottom of the connecting plate (8), a second gear (10) is sleeved on the surface of each vertical rod (9), and the first gears (, stick (11) is changeed to the bottom fixedly connected with of montant (9), the bottom of changeing stick (11) extends to the inner chamber of crossing filter frame (3), the fixed surface who changes stick (11) is connected with brush hair (12), the inner chamber of box (1) just is located below fixedly connected with fixed plate (13) of crossing filter frame (3), the center department intercommunication of fixed plate (13) bottom has drain pipe (14), the surface of drain pipe (14) is provided with solenoid valve (15), the equal fixedly connected with backing plate (16) in bottom of box (1) inner chamber both sides, filter disc (17) have been placed at the top of backing plate (16), the bottom intercommunication on box (1) right side has water pump (18), the top intercommunication of water pump (18) has long tube (19), box (1) positive top fixedly connected with controller (20), controller (20) respectively with motor (6), The electric telescopic rod (4), the water pump (18) and the electromagnetic valve (15) are electrically connected.
2. The water-saving cleaning device for food processing production according to claim 1, wherein: the bottom of the front surface of the box body (1) is movably connected with the box door (21) through a hinge, and the bottom of the front surface of the box door (21) is fixedly connected with a handle (25).
3. The water-saving cleaning device for food processing production according to claim 1, wherein: the bottom fixedly connected with seal box (22) of connecting plate (8), first gear (7) and second gear (10) all are located the inner chamber of seal box (22), seal box (22) is run through at the top of montant (9).
4. The water-saving cleaning device for food processing production according to claim 1, wherein: the connecting portion of the top of the vertical rod (9) and the connecting plate (8) is provided with a bearing (23), the surface of the vertical rod (9) is sleeved with the bearing (23), the inner ring of the bearing (23) is fixedly connected with the vertical rod (9), and the outer ring of the bearing (23) is fixedly connected with the connecting plate (8).
5. The water-saving cleaning device for food processing production according to claim 1, wherein: the bottom of the left side of the box body (1) is communicated with a sewage discharge pipe (24), and the surface of the sewage discharge pipe (24) is provided with a manual valve (26).
6. The water-saving cleaning device for food processing production according to claim 1, wherein: the bottom fixedly connected with liquid level window (27) on the positive of box (1), the spraying of the front of liquid level window has scale mark (28).
7. The water-saving cleaning device for food processing production according to claim 1, wherein: the two sides of the inner cavity of the box body (1) are fixedly connected with supporting blocks (29), and the tops of the supporting blocks (29) are in contact with the filter frame (3).
