Abstract
本实用新型公开了一种新型城市河道防洪排涝泵站结构，包括机架，所述机架上端安装有控制箱，所述控制箱侧边固定设有排水管，所述机架底部固接有与控制箱连通的排水泵，所述机架的正下方对称设有两个支撑座，每个所述支撑座上端均固接有一个安装壳，每个所述安装壳上端均贯穿固定安装有一个轴承，每个所述轴承的内圈均固定套设有一根转动管，每根所述转动管的内壁上均开设有内螺纹且每根转动管均螺纹套接有一根支撑杆，两根所述支撑杆的上端均与机架底部固定连接。本实用新型能够根据水深灵活调节高度，且移动更加便捷，当装置移动至防洪排涝处后还能够稳定驻停在河道内，使用更加方便。
The utility model discloses a novel structure of a pump station for flood control and drainage in urban rivers, which comprises a frame, a control box is installed on the upper end of the frame, a drainage pipe is fixedly arranged on the side of the control box, and a bottom of the frame is fixedly connected with a control box. For the drainage pump communicated with the control box, two support seats are symmetrically arranged under the frame, and a mounting shell is fixedly connected to the upper end of each of the support seats, and the upper end of each of the mounting shells is penetrated and fixedly installed. A bearing, the inner ring of each bearing is fixedly sleeved with a rotating pipe, the inner wall of each rotating pipe is provided with an internal thread, and each rotating pipe is threadedly sleeved with a support rod, two The upper ends of the support rods are all fixedly connected with the bottom of the frame. The utility model can flexibly adjust the height according to the water depth, and the movement is more convenient. When the device is moved to the flood control and drainage place, the device can be stably parked in the river course, and the use is more convenient.
Description
Technical Field
The utility model relates to an urban river flood control drainage technical field especially relates to a novel urban river flood control drainage pump station structure.
Background
Nowadays, the work of flood control and drainage of city river course is very important, and in order to deal with the flood disasters that take place in the city river course, multiple flood control and drainage pump station structure to the city river course has appeared in the market. A common flood control and drainage pump station structure is generally composed of a rack, a control box, a drainage pump, a water pumping pipe and a drainage pipe. But current flood control drainage pump station structure is usually very heavy, removes inconveniently, if it is difficult to make it settle in the river course steadily again at its bottom installation gyro wheel, uses inconveniently, and current flood control drainage pump station structure is difficult to adjust the height according to the depth of water.
Therefore, a novel urban river flood control and drainage pump station structure is provided.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the problem in the background art, and the novel city river flood control drainage pump station structure that proposes.
In order to achieve the above purpose, the utility model adopts the following technical scheme: a novel city river flood control and drainage pump station structure comprises a rack, wherein a control box is installed at the upper end of the rack, a drain pipe is fixedly arranged at the side edge of the control box, a drain pump communicated with the control box is fixedly connected to the bottom of the rack, two supporting seats are symmetrically arranged under the rack, an installation shell is fixedly connected to the upper end of each supporting seat, a bearing is fixedly installed at the upper end of each installation shell in a penetrating manner, a rotating pipe is fixedly sleeved on the inner ring of each bearing, an internal thread is arranged on the inner wall of each rotating pipe, a supporting rod is sleeved on each rotating pipe in a threaded manner, the upper ends of the two supporting rods are fixedly connected with the bottom of the rack, a limiting groove is vertically arranged on the side wall of each supporting rod, and a transverse limiting rod is fixedly connected to the side wall of each installation shell in a penetrating manner, and one end of each limiting rod, which is positioned in the mounting shell, is inserted into the limiting groove and is in sliding connection with the limiting groove, each rotating tube is further provided with a driving mechanism matched with the supporting rod for use, and the bottom of each supporting seat is further provided with an adjusting mechanism.
In foretell a novel city river flood control drainage pump station structure, actuating mechanism includes that every rotating tube lower extreme outside all fixedly connected with has a worm wheel, every the worm wheel all meshes a worm, every the one end of worm all runs through and extends the installation shell outside and all welds there is the crank.
In the novel urban river flood control and drainage pump station structure, the adjusting mechanism comprises a mounting groove formed at the bottom of each supporting seat, a motor is fixedly mounted on the inner top wall of each mounting groove, the output end of each motor is perpendicular to the ground and is welded with a first threaded rod, a second threaded rod with opposite threads is welded at the lower end of each first threaded rod, a limiting plate is fixedly connected at the groove opening of each mounting groove, the bottom end of each second threaded rod is rotatably connected to the upper surface of the limiting plate, a first movable plate is in threaded connection with each first threaded rod, two inserting rods are vertically welded at the two ends of the bottom surface of each first movable plate, each inserting rod is in sliding connection with the limiting plate, and a second movable plate is in threaded connection with each second threaded rod, every the equal vertical welding in bottom surface both ends of second fly leaf has two connecting rods, and every connecting rod also all runs through sliding connection with the limiting plate, every the universal wheel is all installed to the bottom of connecting rod.
In foretell a novel city river flood control drainage pumping station structure, every the back taper structure is all adopted to the bottom of inserted bar.
In foretell novel city river flood control drainage pumping station structure, the rail guard is still installed to the control box both sides.
In foretell a novel city river flood control drainage pumping station structure, waterproof servo motor is all adopted to the motor.
The utility model has the advantages that: the crank is arranged to drive the worm wheel and the rotating pipe to rotate, so that the limited supporting rod moves up and down under the rotating action of the rotating pipe, and the height of the device can be adjusted according to the water depth; the waterproof servo motor is arranged to drive the first threaded rod and the second threaded rod with opposite grain directions to rotate, so that the insertion rod and the universal wheel are lifted reversely, and when the insertion rod is inserted into silt on the ground, the device can be stably placed in situ to prevent flood and drain waterlogging; when the universal wheel contacts with the ground, the whole device can move more conveniently.
Drawings

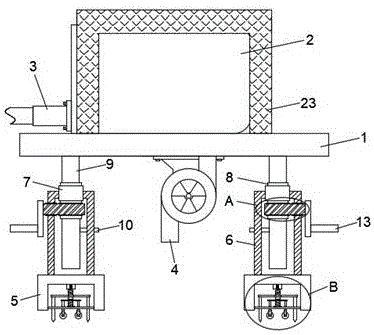

Fig. 1 is a schematic structural view of a novel urban river flood control and drainage pump station structure provided by the utility model;
FIG. 2 is an enlarged view of the structure of part A in FIG. 1;
fig. 3 is an enlarged schematic view of the structure of part B in fig. 1.
In the figure: the device comprises a frame 1, a control box 2, a drain pipe 3, a drain pump 4, a support seat 5, a mounting shell 6, a bearing 7, a rotating pipe 8, a support rod 9, a limiting rod 10, a worm wheel 11, a worm 12, a crank 13, a motor 14, a first threaded rod 15, a second threaded rod 16, a limiting plate 17, a first movable plate 18, an inserted rod 19, a second movable plate 20, a connecting rod 21, a universal wheel 22 and a protective guard 23.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
In the description of the present invention, it is to be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.
Referring to fig. 1-3, a novel urban river flood control and drainage pump station structure comprises a frame 1, a control box 2 is mounted at the upper end of the frame 1, guard rails 23 are mounted at two sides of the control box 2 to prevent the control box 2 from being scratched and knocked, a drain pipe 3 is fixedly arranged at the side edge of the control box 2, a drain pump 4 communicated with the control box is fixedly connected at the bottom of the frame 1, two support seats 5 are symmetrically arranged right below the frame 1, a mounting shell 6 is fixedly connected at the upper end of each support seat 5, a bearing 7 is fixedly arranged at the upper end of each mounting shell 6 in a penetrating manner, a rotating pipe 8 is fixedly sleeved at the inner ring of each bearing 7, an internal thread is arranged on the inner wall of each rotating pipe 8, a support rod 9 is sleeved at the upper end of each rotating pipe 8 in a threaded manner, the upper ends of the two support rods 9 are fixedly connected with the bottom of the frame 1, a limit, a transversely arranged limiting rod 10 is fixedly connected to the side wall of each mounting shell 6 in a penetrating manner, and one end of each limiting rod 10, which is positioned inside the mounting shell 6, is inserted into the limiting groove and is in sliding connection with the limiting groove;
each rotating pipe 8 is also provided with a driving mechanism matched with the support rod 9 for use, the driving mechanism comprises a worm wheel 11 fixedly sleeved outside the lower end of each rotating pipe 8, each worm wheel 11 is meshed with a worm 12, and one end of each worm 12 penetrates through the outside of the mounting shell 6 and extends out and is welded with a crank 13;
the bottom of each supporting seat 5 is also provided with an adjusting mechanism, the adjusting mechanism comprises a mounting groove formed in the bottom of each supporting seat 5, a motor 14 is fixedly mounted on the inner top wall of each mounting groove, each motor 14 adopts an sgmgv-13adc61 type waterproof servo motor, the output end of each motor 14 is perpendicular to the ground and is welded with a first threaded rod 15, the lower end of each first threaded rod 15 is welded with a second threaded rod 16 with opposite thread directions, the groove opening of each mounting groove is fixedly connected with a limiting plate 17, the bottom end of each second threaded rod 16 is rotatably connected to the upper surface of the limiting plate 17, each first threaded rod 15 is in threaded connection with a first movable plate 18, two inserting rods 19 are vertically welded at two ends of the bottom surface of each first movable plate 18, and each inserting rod 19 is in sliding connection with the limiting plate 17, each second threaded rod 16 is in threaded connection with a second movable plate 20, two connecting rods 21 are vertically welded at two ends of the bottom surface of each second movable plate 20, each connecting rod 21 is also in penetrating sliding connection with the limiting plate 17, and a universal wheel 22 is mounted at the bottom of each connecting rod 21; wherein the bottom of every inserted bar 19 all adopts the back taper structure, and the inserted bar 19 of being convenient for inserts in the middle of the river silt, makes the device whole more stable.
When the utility model is used, the crank handle 13 is shaken to lead the worm 12 to drive the worm wheel 11 and the rotating tube 8 to rotate, and because the supporting rod 9 is in threaded connection with the rotating tube 8 and the supporting rod 9 is limited by the limiting rod 10, the supporting rod 9 can only move up and down under the limiting action of the limiting rod 10 when the rotating tube 8 rotates, and the two supporting rods 9 can be adjusted by shaking the two crank handles 13 simultaneously, thereby adjusting the height of the device; the universal wheels 22 in the mounting grooves at the bottoms of the two supporting seats 5 are in contact with the ground in a normal state of the device, so that the device is convenient to move; when the device moves to a flood control and drainage place, the two motors 14 are driven to drive the first threaded rod 15 and the second threaded rod 16 with opposite lines to rotate, so that the first movable plate 18 in threaded connection with the first threaded rod 15 descends, and the second movable plate 20 in threaded connection with the second threaded rod 16 ascends, so that the connecting rod 21 and the universal wheel 22 are retracted, the inserting rod 19 is inserted into silt on the ground, and the device is stably placed in situ to control flood and drain; in a similar way, after flood control and drainage, the two motors 14 are driven to rotate reversely to enable the insertion rod 19 to be retracted, and the universal wheels 22 are placed, so that the universal wheels are convenient to move.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (6)
1. A novel city river flood control and drainage pump station structure comprises a rack (1), wherein a control box (2) is installed at the upper end of the rack (1), a drain pipe (3) is fixedly arranged at the side edge of the control box (2), a drain pump (4) communicated with the control box is fixedly connected to the bottom of the rack (1), the novel city river flood control and drainage pump station structure is characterized in that two supporting seats (5) are symmetrically arranged under the rack (1), an installation shell (6) is fixedly connected to the upper end of each supporting seat (5), a bearing (7) is fixedly installed at the upper end of each installation shell (6) in a penetrating manner, a rotating pipe (8) is fixedly sleeved on the inner ring of each bearing (7), an internal thread is arranged on the inner wall of each rotating pipe (8), a supporting rod (9) is sleeved on each rotating pipe (8) in a threaded manner, the upper ends of the two supporting rods (9) are fixedly connected with the bottom of the rack (1, every equal vertical spacing groove of having seted up, every on the lateral wall of one side of bracing piece (9) all run through gag lever post (10) that a fixedly connected with transversely set up on the lateral wall of installation shell (6), and every gag lever post (10) are located the inside one end of installation shell (6) and all insert and establish at the spacing inslot and each other be sliding connection with the spacing groove, every all still be equipped with the actuating mechanism that cooperation bracing piece (9) used on rotating tube (8), every supporting seat (5) bottom all still is equipped with adjustment mechanism.
2. The novel city river flood control and drainage pumping station structure according to claim 1, wherein the driving mechanism comprises a worm wheel (11) fixedly sleeved outside the lower end of each rotating pipe (8), each worm wheel (11) is meshed with a worm (12), and one end of each worm (12) penetrates through and extends out of the mounting shell (6) and is welded with a crank (13).
3. The novel city river flood control and drainage pumping station structure according to claim 1, wherein the adjusting mechanism comprises a mounting groove formed at the bottom of each supporting seat (5), a motor (14) is fixedly mounted on the inner top wall of each mounting groove, the output end of each motor (14) is perpendicular to the ground and welded with a first threaded rod (15), a second threaded rod (16) with opposite threads is welded at the lower end of each first threaded rod (15), a limiting plate (17) is fixedly connected at the groove opening of each mounting groove, the bottom end of each second threaded rod (16) is rotatably connected to the upper surface of the limiting plate (17), a first movable plate (18) is connected to each first threaded rod (15) in a threaded manner, two inserting rods (19) are vertically welded at two ends of the bottom surface of each first movable plate (18), and every inserted bar (19) all runs through sliding connection with limiting plate (17), every equal threaded connection has a second fly leaf (20), every on second threaded rod (16) the equal vertical welding in bottom surface both ends of second fly leaf (20) has two connecting rods (21), and every connecting rod (21) also all runs through sliding connection with limiting plate (17), every universal wheel (22) are all installed to the bottom of connecting rod (21).
4. The novel city river flood control and drainage pumping station structure according to claim 3, wherein the bottom of each insertion rod (19) is of an inverted cone-shaped structure.
5. The novel city river flood control and drainage pumping station structure according to claim 1, wherein guard rails (23) are further installed on two sides of the control box (2).
6. The novel city river flood control and drainage pumping station structure according to claim 3, wherein the motors (14) are all waterproof servo motors.
